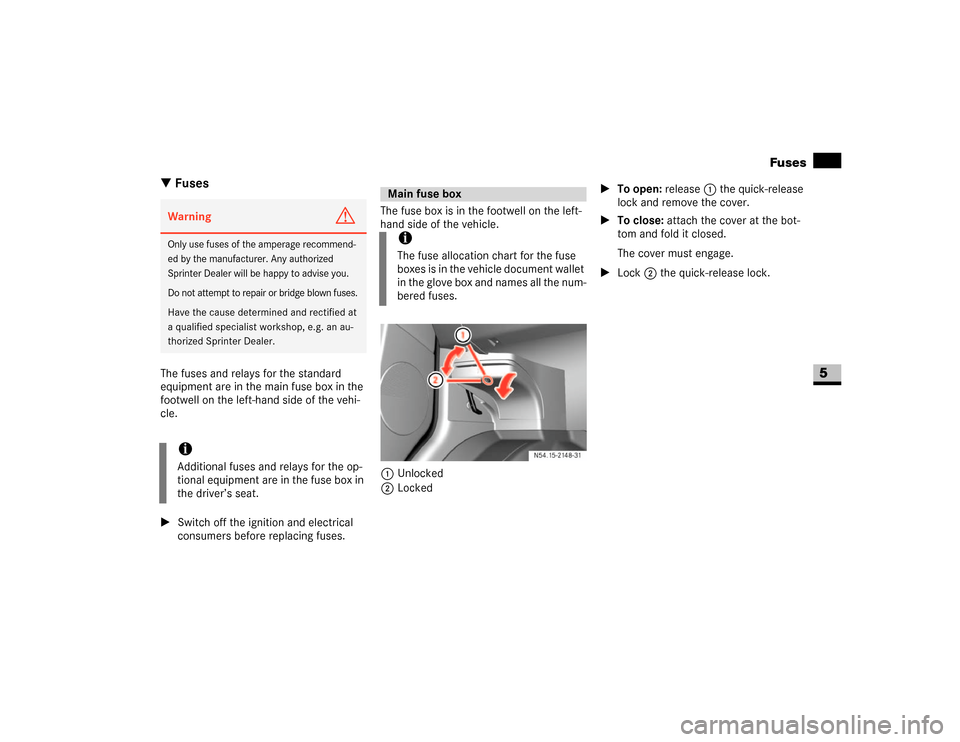

Page 346 of 393

345 Practical hintsFuses
5
\3 FusesThe fuses and relays for the standard
equipment are in the main fuse box in the
footwell on the left-hand side of the vehi-
cle.
\1Switch off the ignition and electrical
consumers before replacing fuses.The fuse box is in the footwell on the left-
hand side of the vehicle.
1Unlocked
2Locked\1To open: release1 the quick-release
lock and remove the cover.
\1To close: attach the cover at the bot-
tom and fold it closed.
The cover must engage.
\1Lock2 the quick-release lock.Warning
G
Only use fuses of the amperage recommend-
ed by the manufacturer. Any authorized
Sprinter Dealer will be happy to advise you.
Do not attempt to repair or bridge blown fuses.Have the cause determined and rectified at
a qualified specialist workshop, e.g. an au-
thorized Sprinter Dealer.iAdditional fuses and relays for the op-
tional equipment are in the fuse box in
the driver’s seat.
Main fuse boxiThe fuse allocation chart for the fuse
boxes is in the vehicle document wallet
in the glove box and names all the num-
bered fuses.
N54.15-2148-31
