Page 620 of 666
618 *Technical dataService products and capacities
6
Service interval
Product name/product number
MB sheet
MS-No.
1
Engine cooling system
Whenever the coolant is replaced, a concentration of 50% by volume of corrosion inhibitor/antifreeze should be maintained. This
provides antifreeze protection down to -34,6 °F (-37 °C).
Do not exceed a concentration of 55% by volume (antifreeze protection down to approximately -49 °F (-45 °C)), as the heat dissi-
pation properties deteriorate at higher concentrations.
Observe the Mercedes-Benz Specifications for Service Products, Sheet 325.Coolant, anticorrosion/
antifreeze fluid
1st interval:
15 years or
180,000 mi
(288,000 km)
2
Subsequent
intervals:
5 years or 90,000
mi (144,000 km)2
EURO Peak Coolant/Antifreeze
OLD WORLD INDUSTRIES
325.0
9769
Zerex G05, The Valvoline Company
325.0
Zerex G48, The Valvoline Company
325.0
Glysantin G05, BASF AG
MOPAR
® Part No. 05066386AA, or equivalent
325.0
nf_BA.book Page 618 Friday, January 25, 2008 3:53 PM
Page 623 of 666
621 *Technical data
Service products and capacities
6
CapacitiesVehicle
Engine with
oil filter
Tank
Cooling
system
Windshield washer /
headlamp cleaning
system
Engine oil
Capacity
Including
reserve fuel
Coolant
1
1 Whenever the coolant is replaced, a concentration of 50% by volume of corrosion inhibitor/antifreeze should be maintained. This provides antifreeze pro-
tection down to -34,6 °F (-37 °C). Do not exceed a concentration of 55% by volume (antifreeze protection down to approximately -49 °F (-45 °C)), as the
heat dissipation properties deteriorate at higher concentrations. Observe the Mercedes-Benz Specifications for Service Products, Sheet 325.
Water with MB windshield
washer fluid
2500 CRD, 3500 CRD
13.21 US qt.
(12.5 l)
25.0 US gal
(100 l)
2
2 Including a reserve of 5.3 US gal (20 l).
5.3 US gal
(20 l)
10.75 US qt.
(10.0 l)
approx. 7.40 US qt. (7.0 l)
2500, 3500
10.04 US qt.
(9.5 l)
25.0 US gal
(100 l)
2
5.3 US gal
(20 l)
7.40 US qt.
(7.0 l)
approx. 7.40 US qt. (7.0 l)
nf_BA.book Page 621 Friday, January 25, 2008 3:53 PM
Page 644 of 666
642 IndexConsumption statistics
(vehicles with steering wheel
buttons)
. . . . . . . . . . . . . . . . . . . . 177
Coolant
. . . . . . . . . . . . . . . . . . . . . 618
adding . . . . . . . . . . . . . . . . . . . . 329
anticorrosion/antifreeze fluid . . 618
display message . . . . . . . . . . . . 502
temperature . . . . . . . . . . . . . . . . 200
temperature display (vehicle with
steering wheel buttons) . . . . . . . 158
temperature gauge
(vehicle with steering wheel
buttons) . . . . . . . . . . . . . . . . . . . 439
Cornering lampschanging bulbs . . . . . . . . . . . . . . 527Correct use
. . . . . . . . . . . . . . . . . . 13
Cruise control
. . . . . . . . . . . 248
,258deactivating . . . . . . . . . . . . . . . . 252
display message . . . . . . . . . . . . 496
downhill gradients . . . . . . . . . . . 249
lever . . . . . . . . . . . . . . . . . . . . . . 249
malfunction . . . . . . . . . . . . . . . . 496
problems . . . . . . . . . . . . . . . . . . 452
setting the speed . . . . . . . . . . . . 251
uphill gradients . . . . . . . . . . . . . 249
Cup holders
. . . . . . . . . . . . . . . . . 291
Curb weight
. . . . . . . . . . . . . . . . . 394
D
Dashboard lightingsee Instrument lightingData cards, vehicle
. . . . . . . . . . . 632
Dehumidification
. . . . . . . . . . . . 223
Delayed switch-offexterior lighting
(vehicles with steering wheel
buttons) . . . . . . . . . . . . . . . . . . . 173Department of Transportationsee DOTDiesel
. . . . . . . . . . . . . . . . . . . . . . 612
consumption . . . . . . . . . . . . . . . 622
low outside temperatures . . . . . 614
reserve fuel warning lamp . 475
,476
tank capacity . . . . . . . . . . . . . . . 621
Diesel enginepreglow indicator lamp . . . 186
,476
winter driving . . . . . . . . . . . . . . . 614
Digital speedometer
. . . . . . . . . . . 10
Digital total distance recorder
. . 10
Direction of rotation (tires)
. . . . 351
Disconnecting the battery
. . . . . 574
D
nf_BA.book Page 642 Friday, January 25, 2008 3:53 PM
Page 650 of 666
648 Indexbrake pad/lining wear . . . . . . . . 470
coolant . . . . . . . . . . . . . . . . . . . . 474
engine diagnostic . . . . . . . . . . . . 477
ESP
®
. . . . . . . . . . . . . . . . . 462
,468
handbrake . . . . . . . . . . . . . . . . . 189
operating speed governor (ADR) . . 274poly-V-belt . . . . . . . . . . . . . . . . . 469
preglow . . . . . . . . . . . . . . . 186
,476
reserve warning
indicator (fuel) . . . . . . . . . . 475,476
windshield washer/headlamp
cleaning system washer fluid
level . . . . . . . . . . . . . . . . . . . . . . 482
Inflation pressuresee Tires, Inflation pressuresInformation regarding electronic
recording devices
. . . . . . . . . . . . . 16
Instrument cluster
. . . . . . . . 20
,142
lighting . . . . . . . . . . . . . . . . . . . . 144
speedometer . . . . . . . . . . . . . . . 145
tachometer . . . . . . . . . . . . . . . . 145
vehicles with steering wheel buttons
selecting the language . . . . . . 166
setting the status line . . . . . . . 167
Instrument lighting
. . . . . . . . . . . 144
Interior lightingchanging bulbs . . . . . . . . . . . . . . 537
front . . . . . . . . . . . . . . . . . . . . . . 137
rear . . . . . . . . . . . . . . . . . . . . . . 138Interior lighting, rear
. . . . . . . . . 138
Interior motion sensor
. . . . . . . . . 80
Intermittent wipe
. . . . . . . . . . . . 210
ISOFIX child seat securing
system
. . . . . . . . . . . . . . . . . . . . . . 61
TopTether . . . . . . . . . . . . . . . . . . 64
J
Jackjacking points . . . . . . . . . . . . . . 551
preparing . . . . . . . . . . . . . . . . . . 550
storage location . . . . . . . . . . . . . 515Jump-starting
. . . . . . . . . . . . . . . 581
connection point . . . . . . . . . . . . 582
Jump-starting connection
point
. . . . . . . . . . . . . . . . . . . . . . . 582
J
nf_BA.book Page 648 Friday, January 25, 2008 3:53 PM
Page 652 of 666
650 IndexLimit speedflat tire . . . . . . . . . . . . . . . . . . . . 570Load distribution
. . . . . . . . . . . . . 279
Loading guidelines
. . . . . . . . . . . 276
Locator lightingsetting
(vehicles with steering wheel
buttons) . . . . . . . . . . . . . . . . . . . 172Locking button (key)
. . . . . . . . . . 85
Locking knob
. . . . . . . . . . . . . . . . . 89
Low-beam headlamps
. . . . 131
,526
automatic headlamp control . . . 132
changing bulbs . . . . . . . . . . . . . . 527
constant headlamp mode
(vehicles with steering wheel
buttons) . . . . . . . . . . . . . . . . . . . 171
driving abroad . . . . . . . . . . . . . . 311
M
Magnetic door retainer
. . . . . . . 101
Malfunction memory
(vehicles with steering wheel
buttons)
. . . . . . . . . . . . . . . . . . . . 160
Maximum engine speed
. . . . . . . 145
Maximum load rating, tires
. . . . 396
Maximum loaded vehicle weight,
tires
. . . . . . . . . . . . . . . . . . . . . . . 396
Maximum roof load
. . . . . . . . . . 630
Maximum speedprogrammed . . . . . . . . . . . . . . . 311Menu (vehicles with steering
wheel buttons)audio . . . . . . . . . . . . . . . . . . . . . 158
malfunction memory . . . . . . . . . 160operation . . . . . . . . . . . . . . . . . . 157
overview . . . . . . . . . . . . . . . . . . 154
settings . . . . . . . . . . . . . . . . . . . 161
telephone . . . . . . . . . . . . . . . . . 178
trip computer . . . . . . . . . . . . . . . 176
Messagesbulbs . . . . . . . . . . . . . . . . . . . . . 503
coolant . . . . . . . . . . . . . . . . . . . 502
doors . . . . . . . . . . . . . . . . . . . . . 511
engine oil level . . . . . . . . . . 508
–510
reserve fuel . . . . . . . . . . . . . . . . 511
telephone . . . . . . . . . . . . . . . . . 501
washer fluid . . . . . . . . . . . . 496,512
Mirrorsexterior mirrors . . . . . . . . . . . . . 209
rear-view mirror . . . . . . . . . . . . . 208
M
nf_BA.book Page 650 Friday, January 25, 2008 3:53 PM

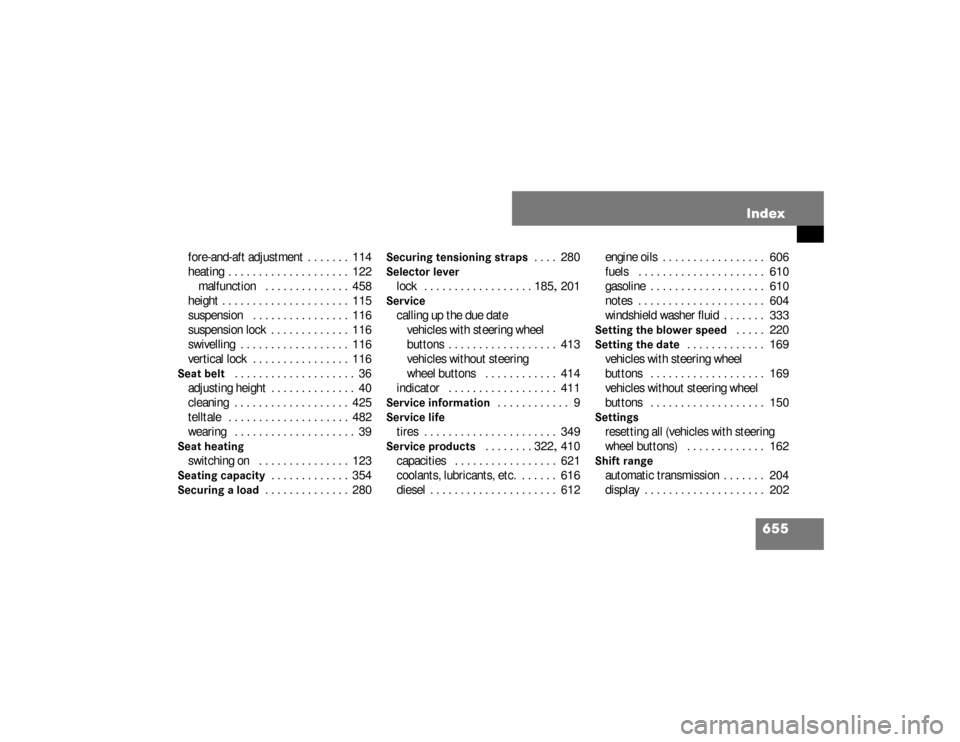

Page 657 of 666
655 Index
fore-and-aft adjustment . . . . . . . 114
heating . . . . . . . . . . . . . . . . . . . . 122
malfunction . . . . . . . . . . . . . . 458
height . . . . . . . . . . . . . . . . . . . . . 115
suspension . . . . . . . . . . . . . . . . 116
suspension lock . . . . . . . . . . . . . 116
swivelling . . . . . . . . . . . . . . . . . . 116
vertical lock . . . . . . . . . . . . . . . . 116Seat belt
. . . . . . . . . . . . . . . . . . . . 36
adjusting height . . . . . . . . . . . . . . 40
cleaning . . . . . . . . . . . . . . . . . . . 425
telltale . . . . . . . . . . . . . . . . . . . . 482
wearing . . . . . . . . . . . . . . . . . . . . 39
Seat heatingswitching on . . . . . . . . . . . . . . . 123Seating capacity
. . . . . . . . . . . . . 354
Securing a load
. . . . . . . . . . . . . . 280
Securing tensioning straps
. . . . 280
Selector leverlock . . . . . . . . . . . . . . . . . . 185
,201
Servicecalling up the due date
vehicles with steering wheel
buttons . . . . . . . . . . . . . . . . . . 413
vehicles without steering
wheel buttons . . . . . . . . . . . . 414
indicator . . . . . . . . . . . . . . . . . . 411Service information
. . . . . . . . . . . . 9
Service lifetires . . . . . . . . . . . . . . . . . . . . . . 349Service products
. . . . . . . . 322
,410
capacities . . . . . . . . . . . . . . . . . 621
coolants, lubricants, etc. . . . . . . 616
diesel . . . . . . . . . . . . . . . . . . . . . 612engine oils . . . . . . . . . . . . . . . . . 606
fuels . . . . . . . . . . . . . . . . . . . . . 610
gasoline . . . . . . . . . . . . . . . . . . . 610
notes . . . . . . . . . . . . . . . . . . . . . 604
windshield washer fluid . . . . . . . 333
Setting the blower speed
. . . . . 220
Setting the date
. . . . . . . . . . . . . 169
vehicles with steering wheel
buttons . . . . . . . . . . . . . . . . . . . 169
vehicles without steering wheel
buttons . . . . . . . . . . . . . . . . . . . 150
Settingsresetting all (vehicles with steering
wheel buttons) . . . . . . . . . . . . . 162Shift rangeautomatic transmission . . . . . . . 204
display . . . . . . . . . . . . . . . . . . . . 202
nf_BA.book Page 655 Friday, January 25, 2008 3:53 PM
