brake fluid DODGE SPRINTER 2008 2.G Owners Manual

23 At a glance
Instrument cluster
1
Brake fluid level too
low
463
EBV malfunction
462
Malfunction in trailer's
brake booster
464
N
Engine oil level warning
as47
1
±
Engine diagnostic
indicator lamp
477
q
Pre-glow system, die-
sel engine only
186
476
Turn signal, left
135
Indicator and Warning Lamps
Page
Indicator and warning lamps
Page
X
Combination low tire
pressure/TPMS mal-
function telltale, USA
only
478
Low tire pressure tell-
tale, Canada only
478
J
Windshield washer/
headlamp cleaning sys-
tem* washer fluid level
too low
482
Door open
483
2
Brake pads / linings
worn
470
Turn signal, right
135
-
ABS malfunction
466
k
ASR malfunction
465
BAS malfunction
465
#
ESP
® malfunction
468
‰
Air cleaner dirty
477
A
Reserve fuel
475
Fuel filler flap open
476
Indicator and warning lamps
Page
nf_BA.book Page 23 Friday, January 25, 2008 3:53 PM

312 OperationDriving tips
4
You will find information about the
speed limit for your tires under “Tires
and wheels” in this section
(\2
page 383).
Check regularly, e.g. weekly or when re-
fueling:
\4
the vehicle lighting
\4
the condition of the tires
(\2
page 346) and the tire pressures
(
\2
page 361)
\4
the engine oil level (
\2
page 322)
\4
the brake fluid level (
\2
page 331)
\4
the fluid level in the windshield wash-
er system / headlamp cleaning sys-
tem reservoir (
\2
page 333)
\4
the contamination level of the rear
air-conditioning air cleaner
(\2
page 414)
Your vehicle is equipped with monolith-
ic-type catalytic converters, an impor-
tant element in conjunction with the
oxygen sensors to achieve substantial
control of the pollutants in the exhaust
emissions. Keep your vehicle in proper
operating condition by following our rec-
ommended maintenance instructions as
outlined in your Service Booklet.
Warning
G
Exceeding the permissible maximum
speed can cause tire damage, which
could lead to loss of control of the vehi-
cle.
As the driver, you must find out about the
maximum speed of the vehicle and the re-
sulting permissible maximum speed of
the tires (tire and tire pressure).
Never exceed the speed limit for your
tires under any circumstances
(\2page 383).
Regular checks
Catalytic converter (gasoline engine)
nf_BA.book Page 312 Friday, January 25, 2008 3:53 PM

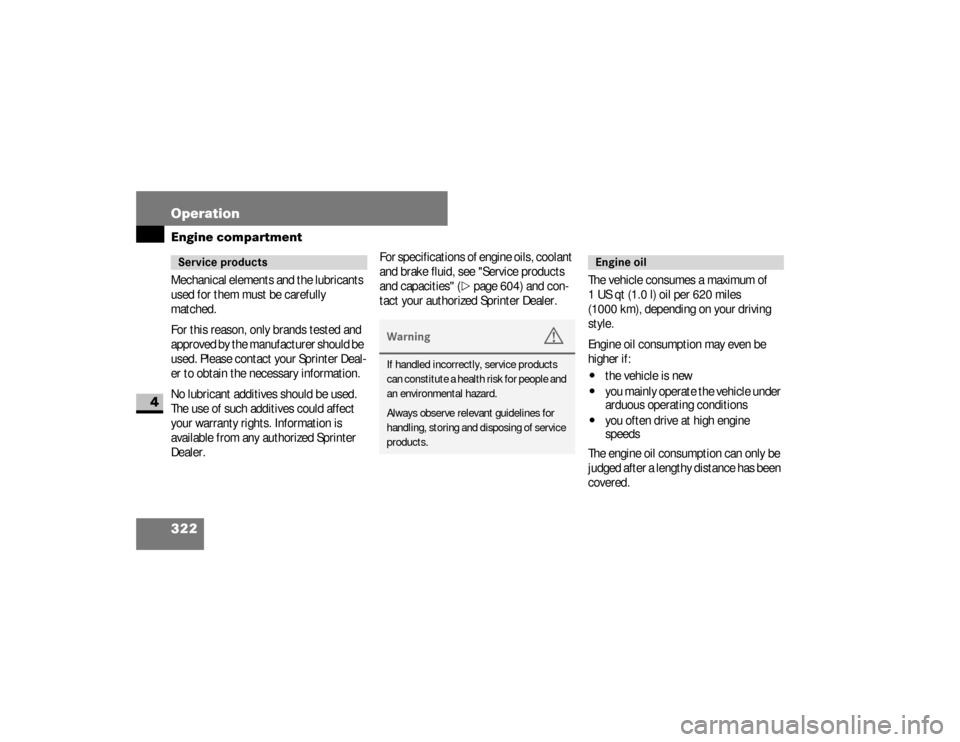

322 OperationEngine compartment
4
Mechanical elements and the lubricants
used for them must be carefully
matched.
For this reason, only brands tested and
approved by the manufacturer should be
used. Please contact your Sprinter Deal-
er to obtain the necessary information.
No lubricant additives should be used.
The use of such additives could affect
your warranty rights. Information is
available from any authorized Sprinter
Dealer.For specifications of engine oils, coolant
and brake fluid, see "Service products
and capacities" (
\2
page 604) and con-
tact your authorized Sprinter Dealer.The vehicle consumes a maximum of
1 US qt (1.0 l) oil per 620 miles
(1000 km), depending on your driving
style.
Engine oil consumption may even be
higher if:
\4
the vehicle is new
\4
you mainly operate the vehicle under
arduous operating conditions
\4
you often drive at high engine
speeds
The engine oil consumption can only be
judged after a lengthy distance has been
covered.
Service products
Warning
G
If handled incorrectly, service products
can constitute a health risk for people and
an environmental hazard.
Always observe relevant guidelines for
handling, storing and disposing of service
products.
Engine oil
nf_BA.book Page 322 Friday, January 25, 2008 3:53 PM

329 Operation
Engine compartment
4
The expansion tank is in the engine com-
partment. Only add coolant with the ve-
hicle standing on a level surface and
with the engine switched off. The cool-
ant temperature must have dropped be-
low 122 °F (50 °C).
1Coolant tank cap
2Brake fluid reservoir cap
3Windshield washer reservoir cap
Environmental note
H
Wh en addi n g o i l, ta ke c ar e n ot t o s pi ll a n y.
No engine oil must be allowed to enter
sewage systems, surface water, ground
water or soil.
You would otherwise be damaging the en-
vironment.
Dispose of engine oil in an environmental-
ly responsible manner. Comply with the
manufacturer’s instructions.
Coolant
N20.30-2063-31
nf_BA.book Page 329 Friday, January 25, 2008 3:53 PM

331 Operation
Engine compartment
4
The reservoir is in the engine compart-
ment. Check the brake fluid level:\4
regularly, e.g. weekly or when refuel-
ing
\4
only with the vehicle standing on a
level surface and with the engine
switched off
1Coolant tank cap
2Brake fluid reservoir cap
3Windshield washer reservoir capThe brake fluid level must be between
the MIN and MAX marks.
Brake fluid
N20.30-2063-31
iThere is usually a notice in the engine
compartment to remind you when
the next brake fluid change is due.
nf_BA.book Page 331 Friday, January 25, 2008 3:53 PM

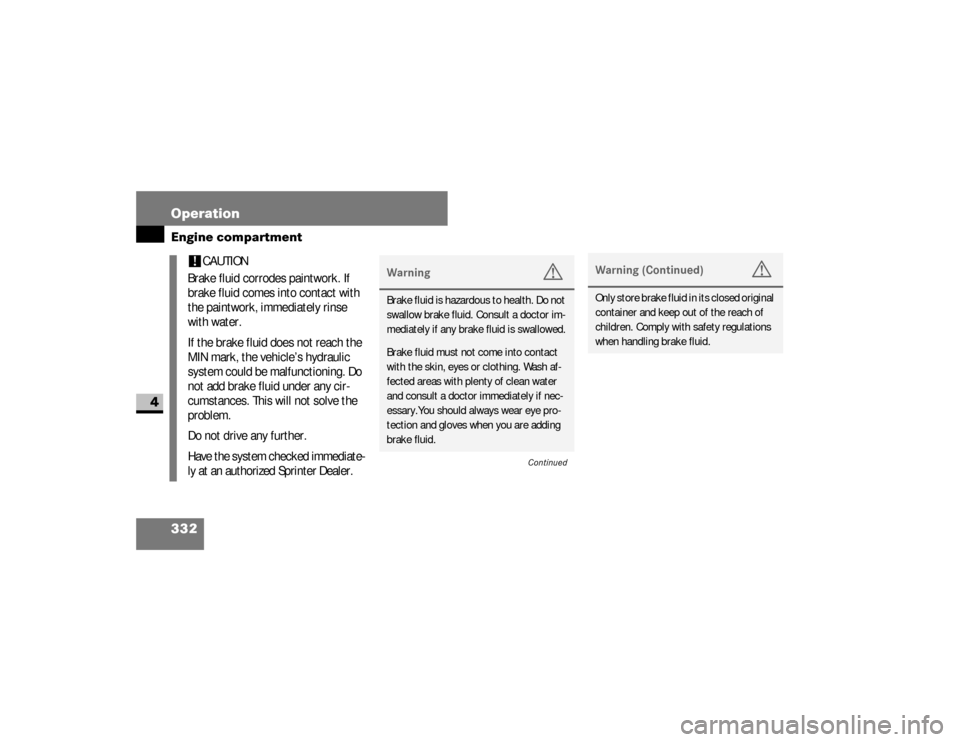

332 OperationEngine compartment
4
!
CAUTION
Brake fluid corrodes paintwork. If
brake fluid comes into contact with
the paintwork, immediately rinse
with water.
If the brake fluid does not reach the
MIN mark, the vehicle’s hydraulic
system could be malfunctioning. Do
not add brake fluid under any cir-
cumstances. This will not solve the
problem.
Do not drive any further.
Have the system checked immediate-
ly at an authorized Sprinter Dealer.
Warning
G
Brake fluid is hazardous to health. Do not
swallow brake fluid. Consult a doctor im-
mediately if any brake fluid is swallowed.Brake fluid must not come into contact
with the skin, eyes or clothing. Wash af-
fected areas with plenty of clean water
and consult a doctor immediately if nec-
essary.You should always wear eye pro-
tection and gloves when you are adding
brake fluid.
Continued
Warning (Continued)
G
Only store brake fluid in its closed original
container and keep out of the reach of
children. Comply with safety regulations
when handling brake fluid.
nf_BA.book Page 332 Friday, January 25, 2008 3:53 PM

333 Operation
Engine compartment
4
For specifications of brake fluid, see
"Service products and capacities"
(\2
page 616).The windshield washer reservoir is in the
engine compartment. It holds approx.
7.4 US qt (7.0 l).
On vehicles with a headlamp cleaning
system, this is also supplied from the
windshield washer reservoir.
1Coolant tank cap
2Brake fluid reservoir cap
3Windshield washer reservoir capAdd windshield washer fluid concentrate
to the water all year round.
Warning
G
If the boiling point of the brake fluid is too
low, vapor pockets may form in the brake
system when the brakes are applied hard
(e.g. when driving on long downhill
stretches). This has a detrimental effect
on braking efficiency, which could in-
crease the stopping distance. This in-
creases the risk of an accident.
Have the brake fluid replaced every
two years.
Windshield washer system/
headlamp cleaning system*
N20.30-2063-31
nf_BA.book Page 333 Friday, January 25, 2008 3:53 PM

410 OperationMaintenance and servicing
4
Mechanical elements and the lubricants
used for them must be carefully
matched.
For this reason, only brands tested and
approved by the manufacturer should be
used. Please contact your Sprinter Deal-
er to obtain the necessary information.
No lubricant additives should be used.
The use of such additives could affect
your warranty rights. Information is
available from any authorized Sprinter
Dealer.For specifications of engine oils, coolant
and brake fluid, see "Service products
and capacities" (
\2
page 604) and con-
tact your authorized Sprinter Dealer.
Observe the information on spare parts
in the “Technical data” section
(
\2
page 600).
Warning (Continued)
G
The manufacturer recommends that you
use an authorized Sprinter Dealer for this
purpose. In particular, work relevant to
safety or on safety-related systems must
be carried out at an authorized Sprinter
Dealer.
Service products
Warning
G
If handled incorrectly, service products
can constitute a health risk for people and
an environmental hazard.
Always observe relevant guidelines for
handling, storing and disposing of service
products.
nf_BA.book Page 410 Friday, January 25, 2008 3:53 PM

422 OperationCleaning and care of the vehicle
4
Headlamps
\1
Wipe the headlamp lenses with a
damp sponge.
Parktronic sensors* The sensors are located in the front and
rear bumpers.\1
Clean the sensors in the bumpers us-
ing water, shampoo and a soft cloth.
Rear view camera lens* The rear view camera is located in the
center of the roof above the third brake
lamp.
!
CAUTION
Only use washer fluid which is suit-
able for plastic lamp lenses.
Unsuitable washer fluid may damage
the plastic headlamp lenses.
For this reason, do not use a dry
cloth, abrasive material, solvent or
solvent-based cleaning agent. You
could otherwise scratch or damage
the lens surface.
1 Parktronic sensors
!
CAUTION
D o n o t u s e d r y , c o a r s e o r h a r d c l o t h s
and do not scrub. You will otherwise
scratch or damage the sensors.
If you clean the sensors with a high-
pressure cleaner or steam cleaner,
observe the information provided by
the manufacturer regarding the dis-
tance to be maintained between the
vehicle and the nozzle of the high-
pressure cleaner.
nf_BA.book Page 422 Friday, January 25, 2008 3:53 PM

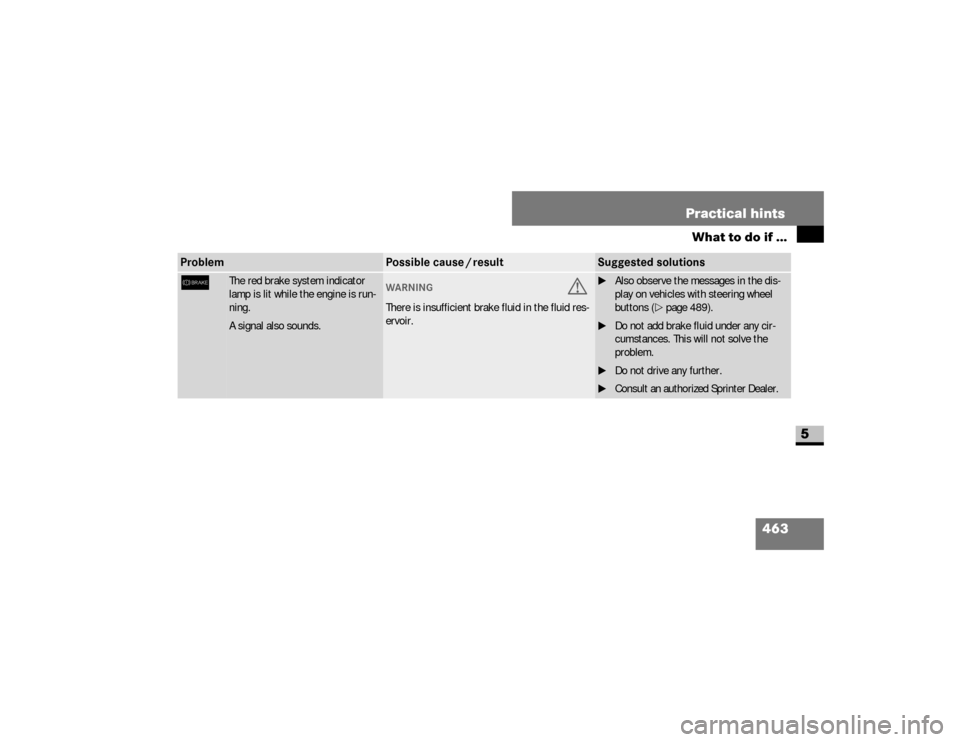

463 Practical hints
What to do if ...
5
6
The red brake system indicator
lamp is lit while the engine is run-
ning.
A signal also sounds.
WARNING
G
There is insufficient brake fluid in the fluid res-
ervoir.
\1Also observe the messages in the dis-
play on vehicles with steering wheel
buttons (\2page 489).
\1Do not add brake fluid under any cir-
cumstances. This will not solve the
problem.
\1Do not drive any further.
\1Consult an authorized Sprinter Dealer.
Problem
Possible cause / result
Suggested solutions
nf_BA.book Page 463 Friday, January 25, 2008 3:53 PM
