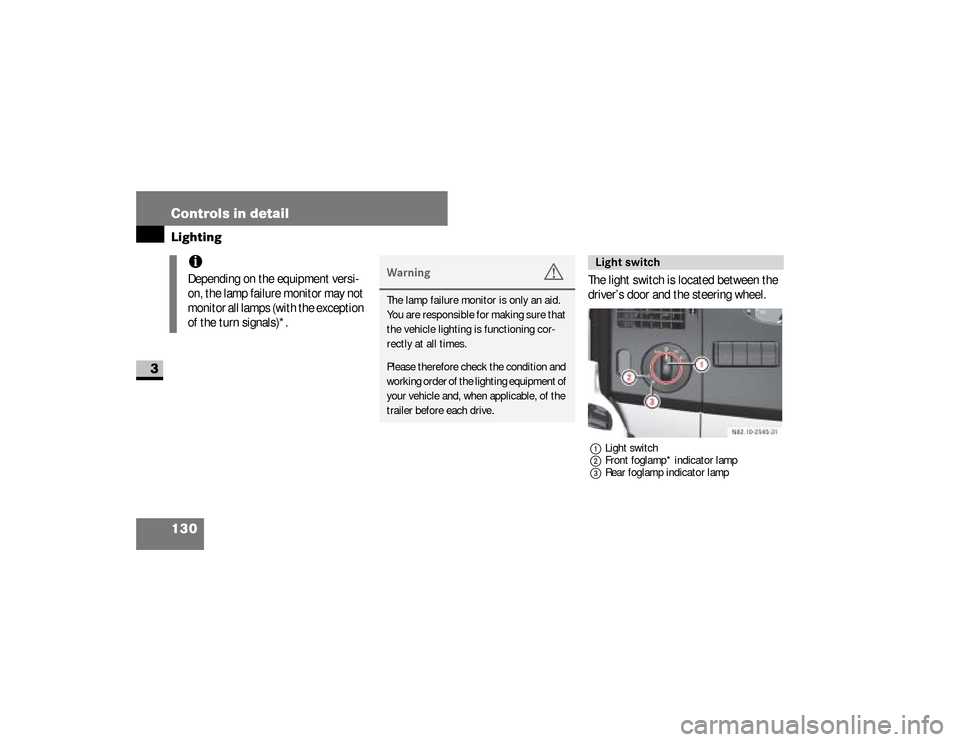

130 Controls in detailLighting
3
The light switch is located between the
driver’s door and the steering wheel.1Light switch
2Front foglamp* indicator lamp
3Rear foglamp indicator lamp
iDepending on the equipment versi-
on, the lamp failure monitor may not
monitor all lamps (with the exception
of the turn signals)*.
Warning
G
The lamp failure monitor is only an aid.
You are responsible for making sure that
the vehicle lighting is functioning cor-
rectly at all times.Please therefore check the condition and
working order of the lighting equipment of
your vehicle and, when applicable, of the
trailer before each drive.
Light switch
nf_BA.book Page 130 Friday, January 25, 2008 3:53 PM
Page 135 of 666
133 Controls in detail
Lighting
3
\1
Turn light switch to
U
.The parking lamps are switched on /
off automatically when the key is in
position
1 (\2
page 111) in the igni-
tion lock.
The parking lamps, low-beam head-
lamps and license plate lamp are
switched on / off automatically when
the engine is running, depending on
the ambient light conditions.
Only use manual headlamp mode when
you are driving in countries where driv-
ing with the low-beam headlamps
switched on is required by law.
\1
In this case, turn the light switch to B
.
Warning
G
If the light switch is atU:
\4the headlamps could switch off tem-
porarily due to extreme glare, e.g.
from oncoming traffic
\4the lights do not switch on automati-
cally in foggy conditions
Set the light switch to B. Otherwise
you are endangering yourself and others.
Continued
Warning (Continued)
G
If it is dark, only turn the light switch from
U toB when the vehicle is station-
ary. You could otherwise cause an acci-
dent if the headlamps were to switch off
briefly.
Automatic headlamp mode is only a driv-
ing aid. You are responsible for the vehi-
cle’s lighting at all times.
nf_BA.book Page 133 Friday, January 25, 2008 3:53 PM
Page 136 of 666
134 Controls in detailLighting
3
The light switch is located between the
driver’s door and the steering wheel.1Light switch
2Front foglamp indicator lamp
3Rear foglamp indicator lamp
Switching on the front foglamps
\1
Make sure that the parking lamps or
low-beam headlamps are switched
on.
\1
Pull light switch
1
out to the first
detent.
The
‡
green indicator lamp next
to the light switch comes on.
Front foglamps */ rear foglampiFoglamps will operate with the park-
ing lamps and/or the low beam
headlamps on. Foglamps should only
be used in conjunction with low
beam headlamps. Consult your State
or Province Motor Vehicle Regula-
tions regarding permissible lamp op-
eration.iWhen the light switch is set to
U
,
you cannot switch on the front or
rear foglamps. In this case, turn the
light switch to
B
or
C
.
nf_BA.book Page 134 Friday, January 25, 2008 3:53 PM
Page 137 of 666
135 Controls in detail
Lighting
3
Switching on the rear foglamp
\1
Make sure that the parking lamps or
low-beam headlamps are switched
on.
\1
Pull light switch
1
out to the second
detent.
The
†
yellow indicator lamp next
to the light switch comes on.
The combination switch is located on
the left of the steering wheel.
1Right-hand turn signal
2Left-hand turn signal\1
Push combination switch up
1
or
down
2
until it engages.
The combination switch moves back
automatically if the steering wheel is
turned sufficiently.
Turn signals
N82.10-2528-31
iTo indicate minor directional changes
such as changing lanes, press the
combination switch only to point of
resistance and release. The corre-
sponding turn signals will flash three
times.
nf_BA.book Page 135 Friday, January 25, 2008 3:53 PM
Page 174 of 666
172 Controls in detailOperating system with steering wheel buttons*
3
Switching the locator lighting on or
off*If you switch the locator lighting to
On,
the following lamps light up in the dark
after you have unlocked the vehicle us-
ing the key:
\4
The parking lamps
\4
The tail lamps
\4
The license plate lamp
\4
The front foglampsThe locator lighting automatically
switches off after 40 seconds or when
you:
\4
open the driver’s door
\4
insert the key into the ignition lock
\4
lock the vehicle with the key
\1
Press the
æ
or
ç
to select the
Lighting
submenu.
\1
Press the
j
or
k
button re-
peatedly until you see the
Loc.
lighting
message in the display.
The current setting is highlighted. USA only:
If you turn the light switch to
C
or
B
, the corresponding light
switches on. Constant headlamp
mode remains activated if the light
switch is turned to
U
.
Canada only:
If you turn the light switch to
B
,
the low-beam headlamps are
switched on. Constant headlamp
mode remains activated if the light
switch is turned to
C
or
U
.
nf_BA.book Page 172 Friday, January 25, 2008 3:53 PM
Page 175 of 666
173 Controls in detail
Operating system with steering wheel buttons*
3
\1
Press the
æ
or
ç
button to
switch the locator lighting On or
Off
.
Setting the exterior lighting delayed
switch-off*The
Headlamps
(headlamps delayed
switch-off) function enables you to set
whether or not the exterior lighting
should remain on in the dark after the
doors have been closed.
When you have set the delayed switch-
off and have switched off the engine, the
following light up:
\4
The parking lamps
\4
The tail lamps
\4
The license plate lamp
\4
The front foglamps
\1
Press the
æ
or
ç
to select the
Lighting
submenu.
\1
Press the
j
or
k
button re-
peatedly until you see the Headlamps
message in the display.
The current setting is highlighted. N54.32-2269-31
iYou can reactivate this function by
opening a door within 10 minutes.
The lights are switched off after 60
seconds if you do not open a door or
if you close an opened door after the
engine has been switched off.
nf_BA.book Page 173 Friday, January 25, 2008 3:53 PM
Page 262 of 666

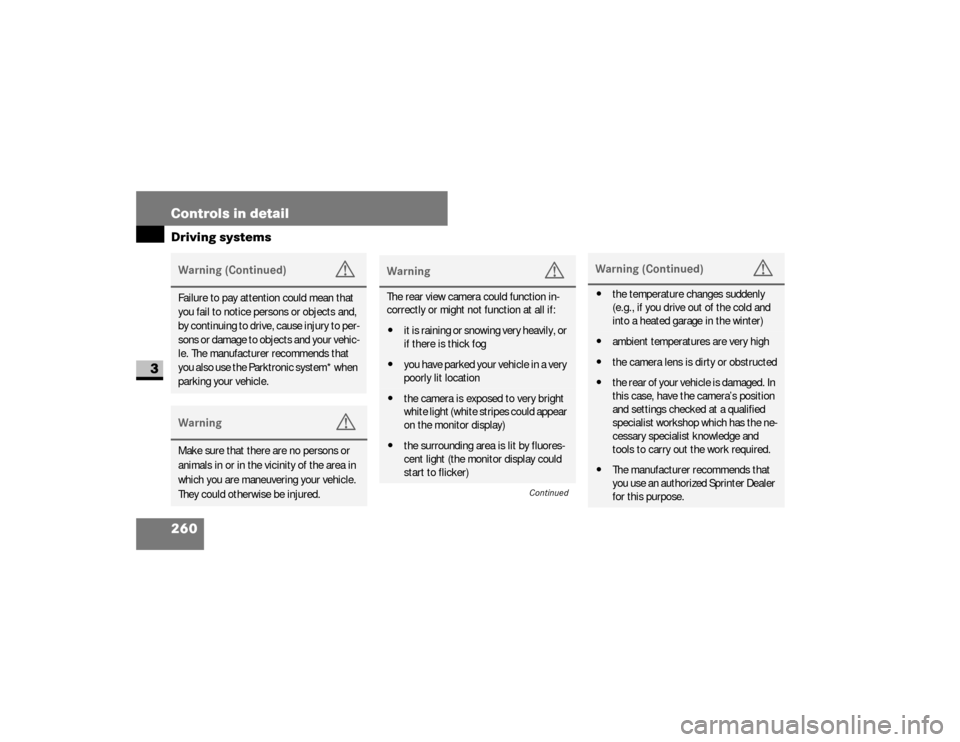

260 Controls in detailDriving systems
3
Warning (Continued)
G
Failure to pay attention could mean that
you fail to notice persons or objects and,
by continuing to drive, cause injury to per-
sons or damage to objects and your vehic-
le. The manufacturer recommends that
you also use the Parktronic system* when
parking your vehicle.Warning
G
Make sure that there are no persons or
animals in or in the vicinity of the area in
which you are maneuvering your vehicle.
They could otherwise be injured.
Warning
G
The rear view camera could function in-
correctly or might not function at all if:\4it is raining or snowing very heavily, or
if there is thick fog\4you have parked your vehicle in a very
poorly lit location\4the camera is exposed to very bright
white light (white stripes could appear
on the monitor display)\4the surrounding area is lit by fluores-
cent light (the monitor display could
start to flicker)
Continued
Warning (Continued)
G
\4the temperature changes suddenly
(e.g., if you drive out of the cold and
into a heated garage in the winter)\4ambient temperatures are very high\4the camera lens is dirty or obstructed\4t h e r e a r o f y o u r v e h i c l e i s d a m a g e d . I n
this case, have the camera’s position
and settings checked at a qualified
specialist workshop which has the ne-
cessary specialist knowledge and
tools to carry out the work required.\4The manufacturer recommends that
you use an authorized Sprinter Dealer
for this purpose.
nf_BA.book Page 260 Friday, January 25, 2008 3:53 PM
Page 444 of 666
442 Practical hintsWhat to do if ...
5
Headlamps and turn signalsWarning
G
Always have maintenance work carried
out at an authorized Sprinter Dealer
Continued
Warning (Continued)
G
which has the necessary specialist knowl-
edge and tools to carry out the work required.The manufacturer recommends that you
use an authorized Sprinter Dealer for this
purpose.
Continued
Warning (Continued)
G
I n p a r t i c u l a r , w o r k r e l e v a n t t o s a f e t y o r o n
safety-related systems must be carried
out at an authorized Sprinter Dealer.
There is a risk of an accident and injury if
this work is carried out incorrectly.
Problem
Possible cause / result
Suggested solutions
The headlamps are fogged up on the inside.
Air humidity is very high.
\1
Drive with the lights on.
The headlamps will defrost after the vehicle
has been driven a short distance.
Moisture has penetrated the headlamp housing since
it is not water-tight.
\1
Have the headlamps checked at an autho-
rized Sprinter Dealer.
nf_BA.book Page 442 Friday, January 25, 2008 3:53 PM
Page 527 of 666
525 Practical hints
Changing bulbs
5
\3 Changing bulbsBulbs and lights are an important aspect
of vehicle safety. For this reason, make
sure that all bulbs are in working order at
all times.\4
Switch off the lights to avoid a short
circuit.
\4
Only touch new bulbs with a clean
lint-free cloth or something similar.
Do not work with wet or greasy fin-
gers.
\4
Only fit 12 V bulbs of the same type
as before and of the correct wattage.
\4
Have the headlamp setting checked
regularly.
\4
If the newly installed bulb does not
light up either, visit an authorized
Sprinter Dealer.
\4
Have the following LEDs and bulbs
changed at an authorized Sprinter
Dealer:\4
The additional turn signals in the
exterior mirrors
\4
The third brake lamp (cargo and
passenger vans only)*
\4
The bi-xenon headlamps*
\4
The foglamps*
Before changing bulbs
Warning
G
Bulbs and bulb holders can become very
hot. For this reason, allow the light to cool
down before changing the bulb.
Keep bulbs out of the reach of children.
Never use a bulb which has been dropped.
Such a bulb may explode and injure you.
H7 bulbs are pressurized and may ex-
plode when changed. You should there-
fore wear eye protection and gloves when
you are changing them.
nf_BA.book Page 525 Friday, January 25, 2008 3:53 PM
Page 528 of 666
526 Practical hintsChanging bulbs
5
\1
Switch off the lighting.
\1
Open the hood (
\2
page 318).
Front bulbs
Bulb
Model
1
Additional turn sig-
nal
PY 16 W
2
Turn signal
PY 21 W
3
Halogen headlamp:
low-beam headlamp
H7 55 W
Bi-xenon headlamp*:
low-beam
headlamp / high-
beam headlamp
D1S-35 W
4
Halogen headlamp:
high-beam headlamp
H7 55 W
Cornering lamp*
(Canada only)
H7 55 W
5
Foglamp*
H11 55 W
Bulb
Model
6
Parking lamp/side
marker/standing
lamp (Canada only)
WY 5 W
Bulb
Model
nf_BA.book Page 526 Friday, January 25, 2008 3:53 PM
