10 IntroductionOperating safetyDo not allow the electronically stored to-
tal distance covered by your vehicle to
be modified as a result of tampering with
the electronics system.
This type of modification or failing to in-
form the buyer when selling the vehicle
could constitute an offense punishable
by law, depending on the country con-
cerned.Having the engine power output of your
vehicle increased by tampering with the
electronic engine management system
will invalidate the vehicle’s general oper-
ating permit and insurance coverage, as
well as your warranty and warranty enti-
tlement.
Modifications to the output of the engine
must be reported to the insurance pro-
vider and require the vehicle to be recer-
tified. The tires, chassis, brake and
cooling systems must be adapted to the
increased engine power output.Tampering with the electronic engine
management system modifies emission
values and it will not be possible to guar-
antee the operating safety of the engine
in every case. Increases in performance
may lead to malfunctions and conse-
quential damage to other assemblies.
If you sell the vehicle, failing to inform
the buyer of the modified engine power
output could constitute an offense pun-
ishable by law, depending on the country
concerned.Digital speedometer and total
distance recorder
Modifying the engine power out-
put
nf_BA.book Page 10 Friday, January 25, 2008 3:53 PM
Page 198 of 666
196 Controls in detailDriving and parking
3
\4
causes and consequences of tire
wear
\4
measures to be taken in the event of
tire damage
\4
tire types for certain regions, areas
of operation or conditions of vehicle
use
\4
interchangeability of tires, etc.
Modifications to the brake system or
wheels are not permissible, nor is the
use of spacer plates or brake dust
shields. Any such modifications will in-
validate the vehicle’s general operating

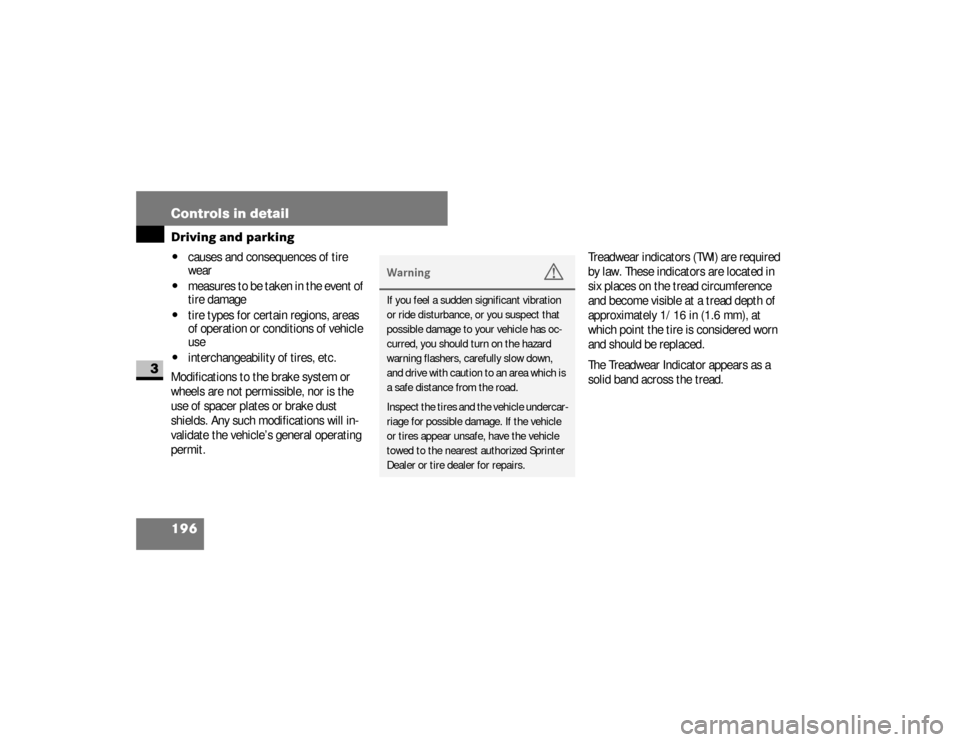

permit.Treadwear indicators (TWI) are required
by law. These indicators are located in
six places on the tread circumference
and become visible at a tread depth of
approximately 1/16 in (1.6 mm), at
which point the tire is considered worn
and should be replaced.
The Treadwear Indicator appears as a
solid band across the tread.
Warning
G
If you feel a sudden significant vibration
or ride disturbance, or you suspect that
possible damage to your vehicle has oc-
curred, you should turn on the hazard
warning flashers, carefully slow down,
and drive with caution to an area which is
a safe distance from the road.
Inspect the tires and the vehicle undercar-
riage for possible damage. If the vehicle
or tires appear unsafe, have the vehicle
towed to the nearest authorized Sprinter
Dealer or tire dealer for repairs.
nf_BA.book Page 196 Friday, January 25, 2008 3:53 PM
Page 201 of 666
199 Controls in detail
Driving and parking
3

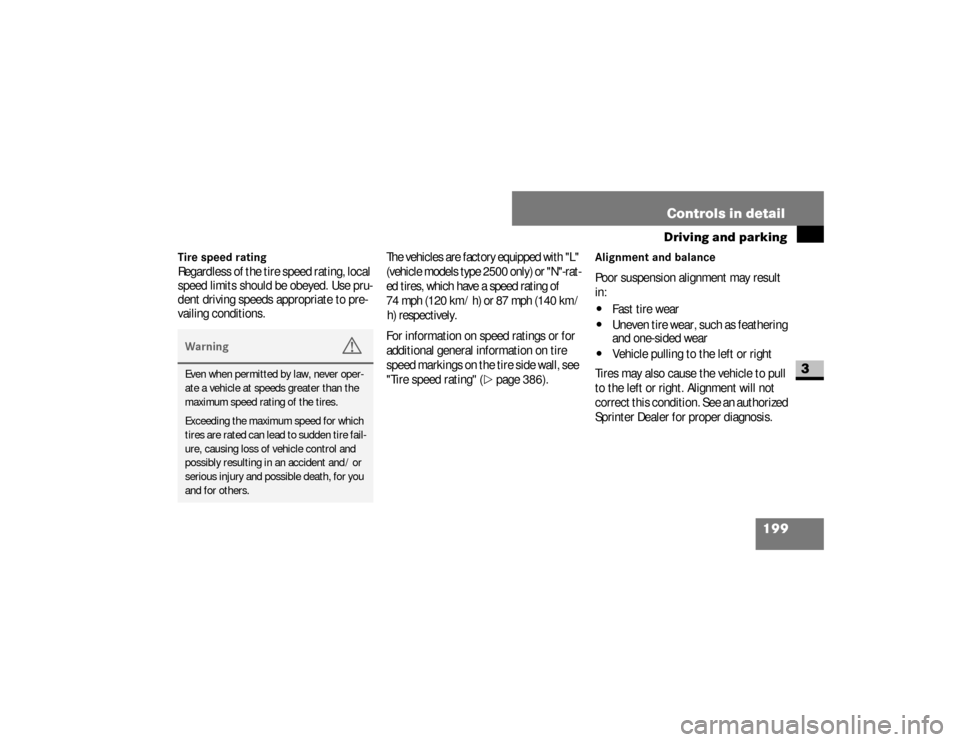

Tire speed ratingRegardless of the tire speed rating, local
speed limits should be obeyed. Use pru-
dent driving speeds appropriate to pre-
vailing conditions.The vehicles are factory equipped with "L"
(vehicle models type 2500 only) or "N"-rat-
ed tires, which have a speed rating of
74 mph (120 km / h) or 87 mph (140 km /
h) respectively.
For information on speed ratings or for
additional general information on tire
speed markings on the tire side wall, see
"Tire speed rating" (
\2
page 386).
Alignment and balancePoor suspension alignment may result
in:\4
Fast tire wear
\4
Uneven tire wear, such as feathering
and one-sided wear
\4
Vehicle pulling to the left or right
Tires may also cause the vehicle to pull
to the left or right. Alignment will not
correct this condition. See an authorized
Sprinter Dealer for proper diagnosis.
Warning
G
Even when permitted by law, never oper-
ate a vehicle at speeds greater than the
maximum speed rating of the tires.
Exceeding the maximum speed for which
tires are rated can lead to sudden tire fail-
ure, causing loss of vehicle control and
possibly resulting in an accident and / or
serious injury and possible death, for you
and for others.
nf_BA.book Page 199 Friday, January 25, 2008 3:53 PM
Page 314 of 666
312 OperationDriving tips
4
You will find information about the
speed limit for your tires under “Tires
and wheels” in this section
(\2
page 383).
Check regularly, e.g. weekly or when re-
fueling:
\4
the vehicle lighting
\4
the condition of the tires
(\2
page 346) and the tire pressures
(
\2
page 361)
\4
the engine oil level (
\2
page 322)
\4
the brake fluid level (
\2
page 331)
\4
the fluid level in the windshield wash-
er system / headlamp cleaning sys-
tem reservoir (
\2
page 333)
\4
the contamination level of the rear
air-conditioning air cleaner
(\2
page 414)
Your vehicle is equipped with monolith-
ic-type catalytic converters, an impor-
tant element in conjunction with the
oxygen sensors to achieve substantial
control of the pollutants in the exhaust
emissions. Keep your vehicle in proper
operating condition by following our rec-
ommended maintenance instructions as
outlined in your Service Booklet.
Warning
G
Exceeding the permissible maximum
speed can cause tire damage, which
could lead to loss of control of the vehi-
cle.
As the driver, you must find out about the
maximum speed of the vehicle and the re-
sulting permissible maximum speed of
the tires (tire and tire pressure).
Never exceed the speed limit for your
tires under any circumstances
(\2page 383).
Regular checks
Catalytic converter (gasoline engine)
nf_BA.book Page 312 Friday, January 25, 2008 3:53 PM
Page 346 of 666
344 OperationTires and wheels
4
Only use wheels and tires which have
been tested and approved by the vehicle
manufacturer.
Warning
G
Worn, old tires can cause accidents. If the
tire tread is badly worn, or if the tires have
sustained damage, replace them.
When replacing rims, only use genuine
wheel bolts approved by the vehicle man-
ufacturer and specified for the particular
rim type. Failure to do so can result in the
bolts loosening and possibly an accident.
Do not use retreaded/remolded tires.
This process does not always permit pre-
vious damage to be detected. Therefore
vehicle safety cannot be guaranteed if re-
treaded/remolded tires are fitted.
Warning
G
Fitting other wheel sizes to the vehicle will
change the vehicle’s handling characteris-
tics and may lead to an accident resulting
in death, severe personal injuries and
property damage.
Continued
Warning (Continued)
G
Only certain tires meeting the tire size/
load/speed rating specifications are cer-
tified to conform to FMVSS 110 for the
Sprinter vehicle at this time. Please check
your side walls of your originally equipped
tires for specific makes/sizes, and speed
load ratings when you need to replace
your tires.To prevent accidents resulting in possible
death, severe injury or property damage,
use only the tire and wheel sizes with load
ratings approved for your Sprinter vehicle
for your tire replacement. Refer to "Tire and loading information"
(\2page 352).
nf_BA.book Page 344 Friday, January 25, 2008 3:53 PM
Page 347 of 666
345 Operation
Tires and wheels
4
For information on tire and wheel sizes
with load ratings, refer to "Tire and load-
ing information" (
\2
page 303).Cuts and punctures in radial tires are re-
pairable only in the tread area because
of side wall flexing. Consult an autho-
rized tire dealer for radial tire repairs.

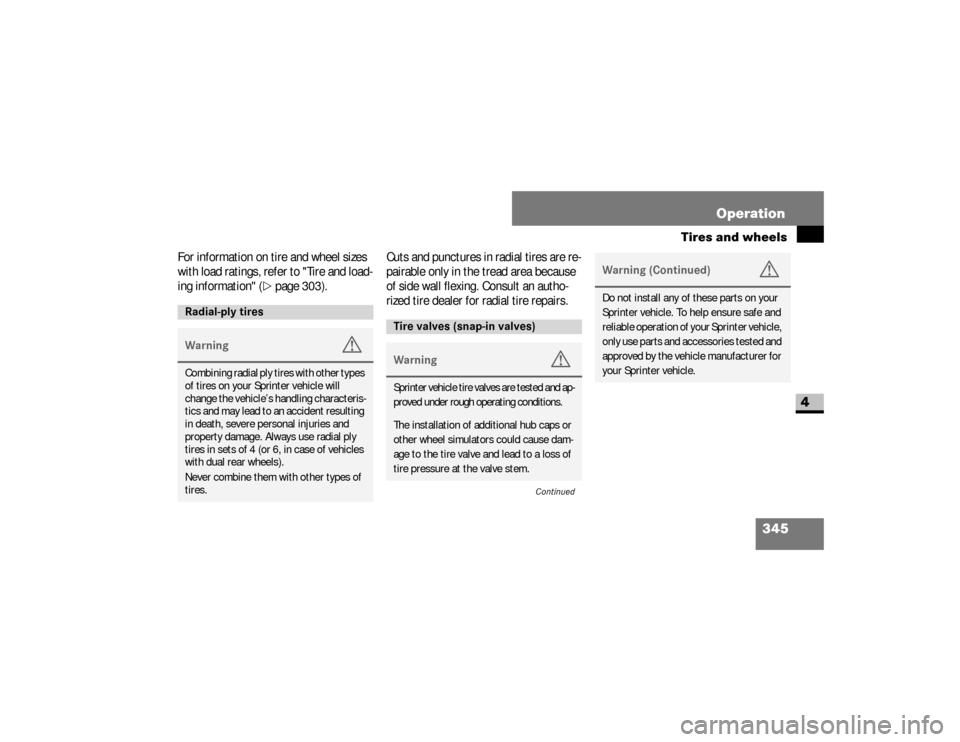

Radial-ply tiresWarning
G
Combining radial ply tires with other types
of tires on your Sprinter vehicle will
change the vehicle’s handling characteris-
tics and may lead to an accident resulting
in death, severe personal injuries and
property damage. Always use radial ply
tires in sets of 4 (or 6, in case of vehicles
with dual rear wheels).
Never combine them with other types of
tires.
Tire valves (snap-in valves)Warning
G
Sprinter vehicle tire valves are tested and ap-
proved under rough operating conditions.The installation of additional hub caps or
other wheel simulators could cause dam-
age to the tire valve and lead to a loss of
tire pressure at the valve stem.
Continued
Warning (Continued)
G
Do not install any of these parts on your
Sprinter vehicle. To help ensure safe and
reliable operation of your Sprinter vehicle,
only use parts and accessories tested and
approved by the vehicle manufacturer for
your Sprinter vehicle.
nf_BA.book Page 345 Friday, January 25, 2008 3:53 PM
Page 348 of 666
346 OperationTires and wheels
4
\4
Only use sets of tires and rims of the
same type and make.
\4
Tires must be of the correct size for
the rim.
\4
Break in new tires for approximately
65 miles (100 km) at moderate
speeds.
\4
Regularly check the tires and rims
for damage. Dented or bent rims can
cause tire inflation pressure loss or
damage to the tire beads.
\4
If the vehicle is heavily loaded, check
tire inflation pressure and correct as
required.
\4
Do not allow your tires to wear down
too far. Adhesion properties on wet
roads are sharply reduced at tread
depths under
1/8in (3 mm) for sum-
mer tires and
1/6in (4 mm) for win-
ter tires.
\4
When replacing individual tires, you
should mount new tires on the front
wheels first.
!
CAUTION
Vehicles not equipped with Tire Pres-
sure Monitoring System (TPMS)*:
For safety reasons, whenever you
change a tire, you must also change
the tire valve.
The following tire valves from the
company Schrader must be used on
the vehicles not equipped with
TPMS*:
\4
TR 600 for vehicle model type
2500
\4
TR 418 for vehicle model type
3500
Other tire valves could be damaged
by the specified tire pressures.
Important guidelines
nf_BA.book Page 346 Friday, January 25, 2008 3:53 PM
Page 361 of 666
359 Operation
Tires and wheels
4

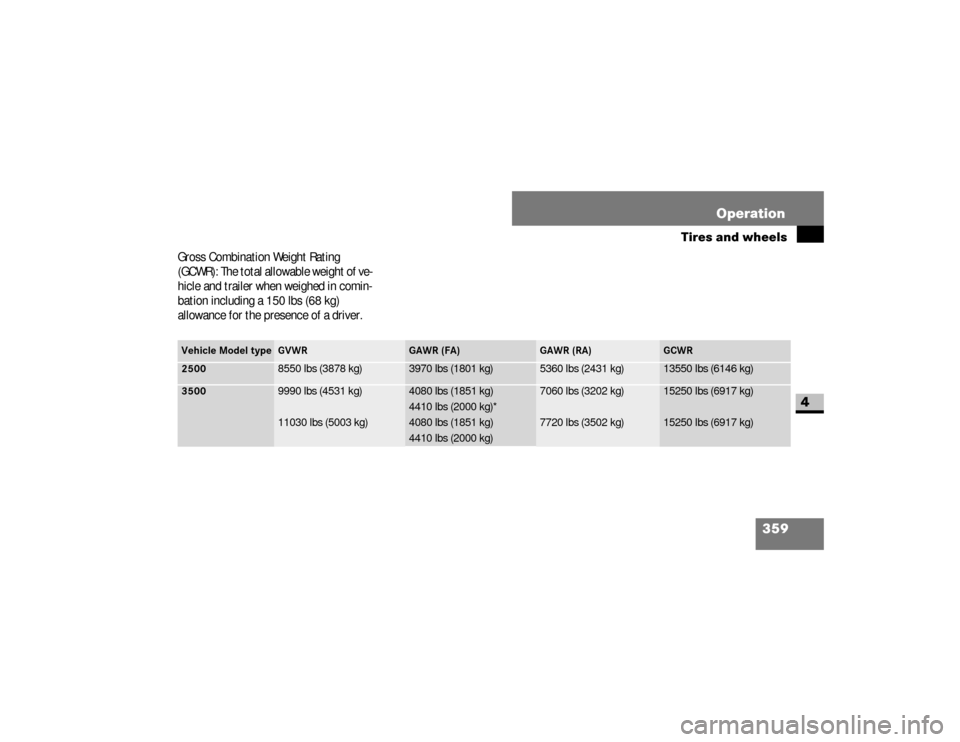

Gross Combination Weight Rating
(GCWR): The total allowable weight of ve-
hicle and trailer when weighed in comin-
bation including a 150 lbs (68 kg)
allowance for the presence of a driver.Vehicle Model type
GVWR
GAWR (FA)
GAWR (RA)
GCWR
2500
8550 lbs (3878 kg)
3970 lbs (1801 kg)
5360 lbs (2431 kg)
13550 lbs (6146 kg)
3500
9990 lbs (4531 kg)
11030 lbs (5003 kg)
4080 lbs (1851 kg)
4410 lbs (2000 kg)*
4080 lbs (1851 kg)
4410 lbs (2000 kg)
7060 lbs (3202 kg)
7720 lbs (3502 kg)
15250 lbs (6917 kg)
15250 lbs (6917 kg)
nf_BA.book Page 359 Friday, January 25, 2008 3:53 PM
Page 363 of 666
361 Operation
Tires and wheels
4

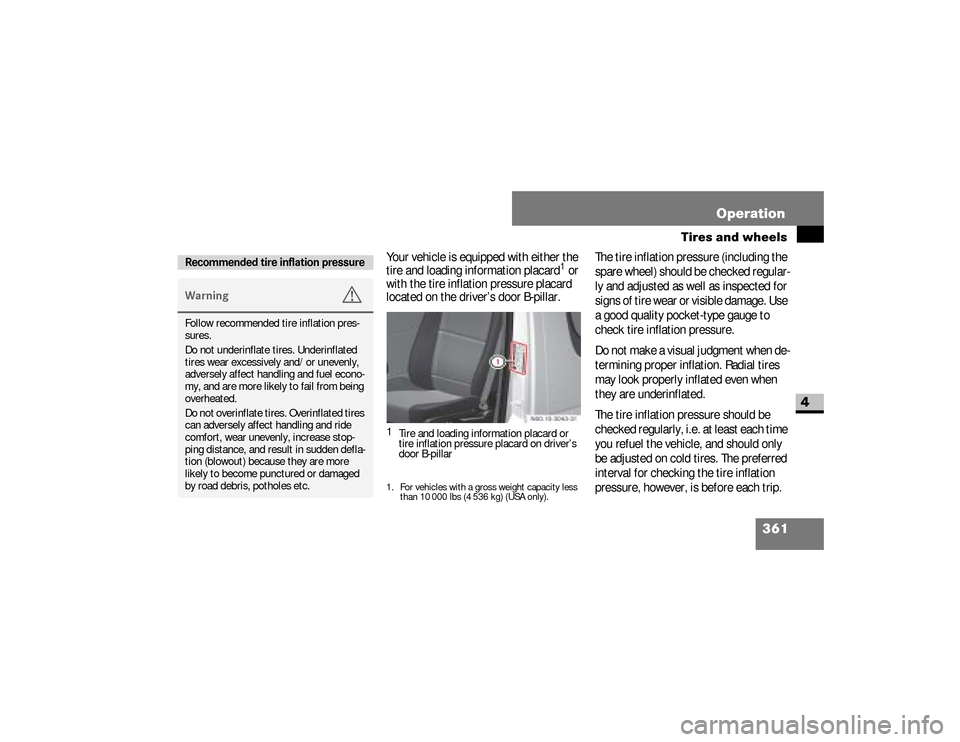

Your vehicle is equipped with either the
tire and loading information placard
1 or
with the tire inflation pressure placard
located on the driver’s door B-pillar.The tire inflation pressure (including the
spare wheel) should be checked regular-
ly and adjusted as well as inspected for
signs of tire wear or visible damage. Use
a good quality pocket-type gauge to
check tire inflation pressure.
Do not m a ke a vis ua l ju dgm ent when de -
termining proper inflation. Radial tires
may look properly inflated even when
they are underinflated.
The tire inflation pressure should be
checked regularly, i.e. at least each time
you refuel the vehicle, and should only
be adjusted on cold tires. The preferred
interval for checking the tire inflation
pressure, however, is before each trip.
Recommended tire inflation pressureWarning
G
Follow recommended tire inflation pres-
sures.
Do not underinflate tires. Underinflated
tires wear excessively and/or unevenly,
adversely affect handling and fuel econo-
my, and are more likely to fail from being
overheated.
Do not overinflate tires. Overinflated tires
can adversely affect handling and ride
comfort, wear unevenly, increase stop-
ping distance, and result in sudden defla-
tion (blowout) because they are more
likely to become punctured or damaged
by road debris, potholes etc.
1. For vehicles with a gross weight capacity less
than 10 000 lbs (4 536 kg) (USA only).1
Tire and loading information placard or
tire inflation pressure placard on driver’s
door B-pillar
nf_BA.book Page 361 Friday, January 25, 2008 3:53 PM
Page 385 of 666
383 Operation
Tires and wheels
4

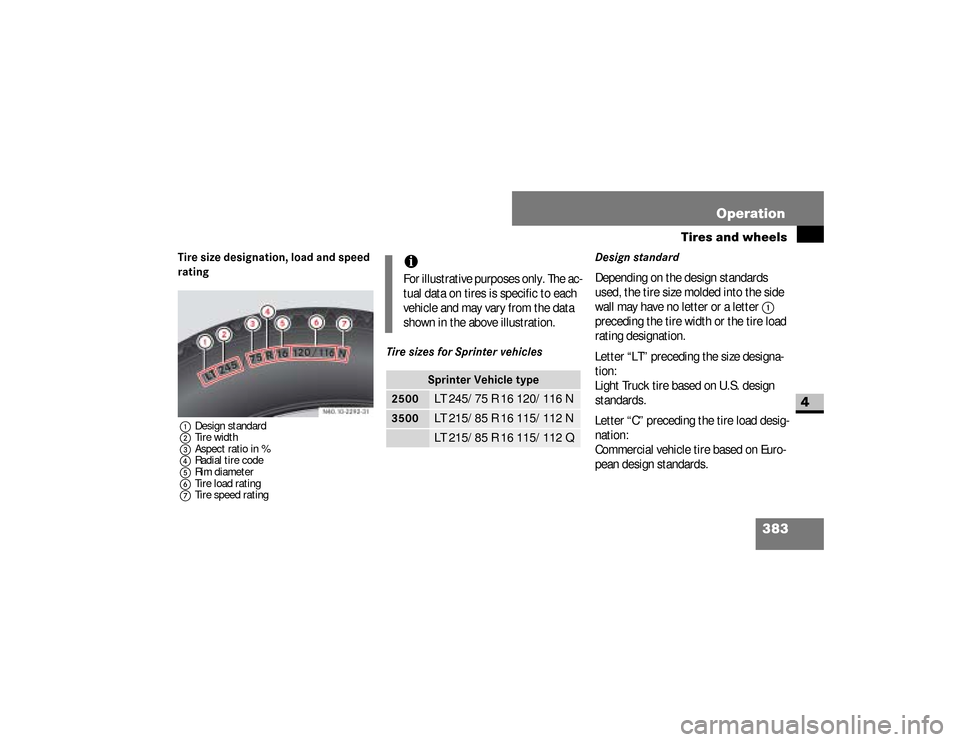

Tire size designation, load and speed
rating1Design standard
2Tire width
3Aspect ratio in %
4Radial tire code
5Rim diameter
6Tire load rating
7Tire speed rating
Tire sizes for Sprinter vehiclesDesign standard
Depending on the design standards
used, the tire size molded into the side
wall may have no letter or a letter
1
preceding the tire width or the tire load
rating designation.
Letter “LT” preceding the size designa-
tion:
Light Truck tire based on U.S. design
standards.
Letter “C” preceding the tire load desig-
nation:
Commercial vehicle tire based on Euro-
pean design standards.
iFor illustrative purposes only. The ac-
tual data on tires is specific to each
vehicle and may vary from the data
shown in the above illustration.
Sprinter Vehicle type
2500
LT 245/75 R 16 120/116 N
3500
LT 215/85 R 16 115/112 NLT 215/85 R 16 115/112 Q
nf_BA.book Page 383 Friday, January 25, 2008 3:53 PM
