Page 25 of 666
23 At a glance
Instrument cluster
1
Brake fluid level too
low
463
EBV malfunction
462
Malfunction in trailer's
brake booster
464
N
Engine oil level warning
as47
1
±
Engine diagnostic
indicator lamp
477
q
Pre-glow system, die-
sel engine only
186
476
Turn signal, left
135
Indicator and Warning Lamps
Page
Indicator and warning lamps
Page
X
Combination low tire
pressure/TPMS mal-
function telltale, USA
only
478
Low tire pressure tell-
tale, Canada only
478
J
Windshield washer/
headlamp cleaning sys-
tem* washer fluid level
too low
482
Door open
483
2
Brake pads / linings
worn
470
Turn signal, right
135
-
ABS malfunction
466
k
ASR malfunction
465
BAS malfunction
465
#
ESP
® malfunction
468
‰
Air cleaner dirty
477
A
Reserve fuel
475
Fuel filler flap open
476
Indicator and warning lamps
Page
nf_BA.book Page 23 Friday, January 25, 2008 3:53 PM
Page 213 of 666
211 Controls in detail
Good visibility
3
Single wipe
\1
Push the combination switch briefly
to the pressure point in the direction
of arrow
1
.
The windshield wipers wipe once
without washer fluid.
Wiping with washer fluid
\1
Press the combination switch be-
yond the pressure point in the direc-
tion of arrow
1
.
The windshield wiper will wipe with
windshield washer fluid.
Vehicles with headlamp cleaning
system*:
If the low-beam headlamps have
been switched on, a high-pressure
water jet also cleans the headlamps. For example, if you have selected
speed
II and stop the vehicle,the wip-
ers wipe at intermittent speed until
you pull away again. The wipe intervals
are longer in intermittent mode.
Vehicles with rain sensor*:
You can use speed
I as the universal
speed. The rain sensor adjusts the
wiping frequency according to how
heavy the rain is. If you stop the vehi-
cle, speeds
III and
II are automatical-
ly switched down to speed
I.
The original speed of the windshield
wipers is resumed when you drive
faster than 5 mph (8 km / h) again.
iWipe with windshield washer fluid even
when it is raining. By doing so you can
prevent smears on the windshield.
nf_BA.book Page 211 Friday, January 25, 2008 3:53 PM
Page 214 of 666
212 Controls in detailGood visibility
3
Intermittent wipeOnly switch on intermittent wipe in
damp weather conditions or when it is
raining.
Vehicles with rain sensor*:
The a rain sensor is activated when you
switch on intermittent wipe. The appro-
priate wiping frequency is set automati-
cally according to the rain falling on the
sensor.The switch is in the combination switch
on the left of the steering wheel.
1Switch
2To wipe with windshield washer fluid
3Intermittent wipe
4To switch off the wiper
5To wipe with windshield washer fluid
\1
Turn key to position
1 in the ignition
lock (
\2
page 111).
Switching on intermittent wipe
\1
Turn switch
1
to
3
.
Switching off intermittent wipe
\1
Turn switch
1
to
4
.
Rear window wiper*
N54.25-2924-31
iThe rear window wiper switches on
automatically if you engage reverse
gear and the windshield wipers are
on.
nf_BA.book Page 212 Friday, January 25, 2008 3:53 PM
Page 215 of 666
213 Controls in detail
Good visibility
3
Wiping with washer fluid
\1
Turn switch
1
to
5
or
2
and keep
it pressed until the window is clean.
The windshield heating is operational
while the engine is running.
The windshield heating consumes a lot
of energy. You should therefore switch
the heating off as soon as the windshield
is clear.
The heating switches off automatically
after approximately 5 minutes.The switch for the windshield heating is
on the center console.
1To switch on / off
Windshield heating*
Warning
G
Clear ice or snow from the windshield be-
fore commencing a journey. Iced-up win-
dows restrict your view. You could cause
an accident and endanger yourself and
others. Do not start the vehicle if the win-
dows are iced up, fogged up or covered in
snow.
N54.25-2920-31
nf_BA.book Page 213 Friday, January 25, 2008 3:53 PM
Page 331 of 666

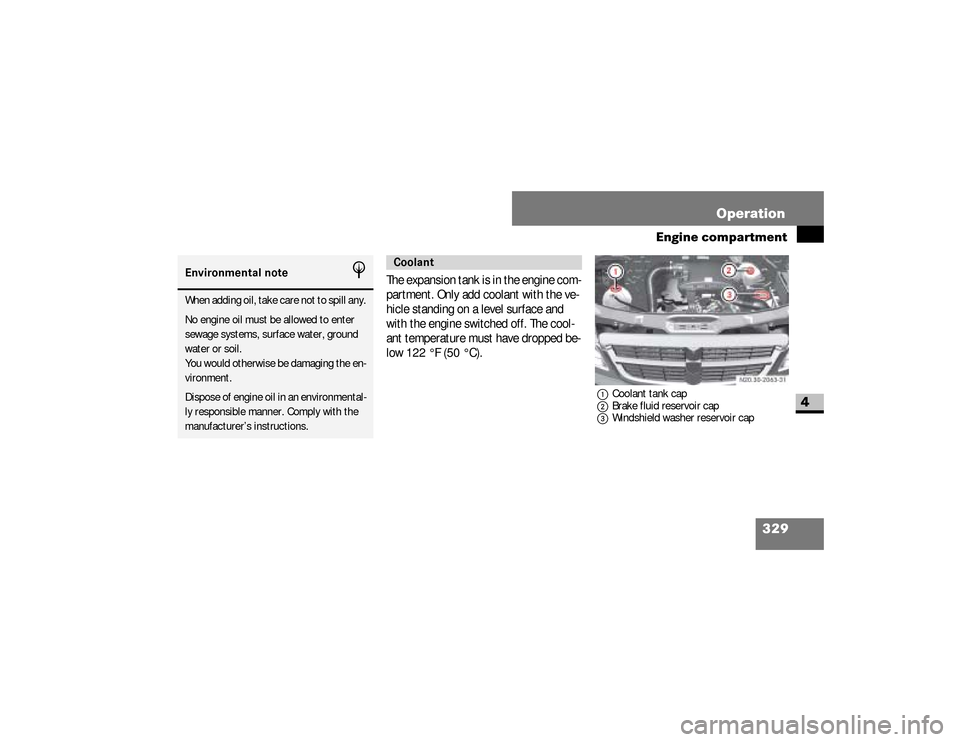

329 Operation
Engine compartment
4
The expansion tank is in the engine com-
partment. Only add coolant with the ve-
hicle standing on a level surface and
with the engine switched off. The cool-
ant temperature must have dropped be-
low 122 °F (50 °C).
1Coolant tank cap
2Brake fluid reservoir cap
3Windshield washer reservoir cap
Environmental note
H
Wh en addi n g o i l, ta ke c ar e n ot t o s pi ll a n y.
No engine oil must be allowed to enter
sewage systems, surface water, ground
water or soil.
You would otherwise be damaging the en-
vironment.
Dispose of engine oil in an environmental-
ly responsible manner. Comply with the
manufacturer’s instructions.
Coolant
N20.30-2063-31
nf_BA.book Page 329 Friday, January 25, 2008 3:53 PM
Page 333 of 666

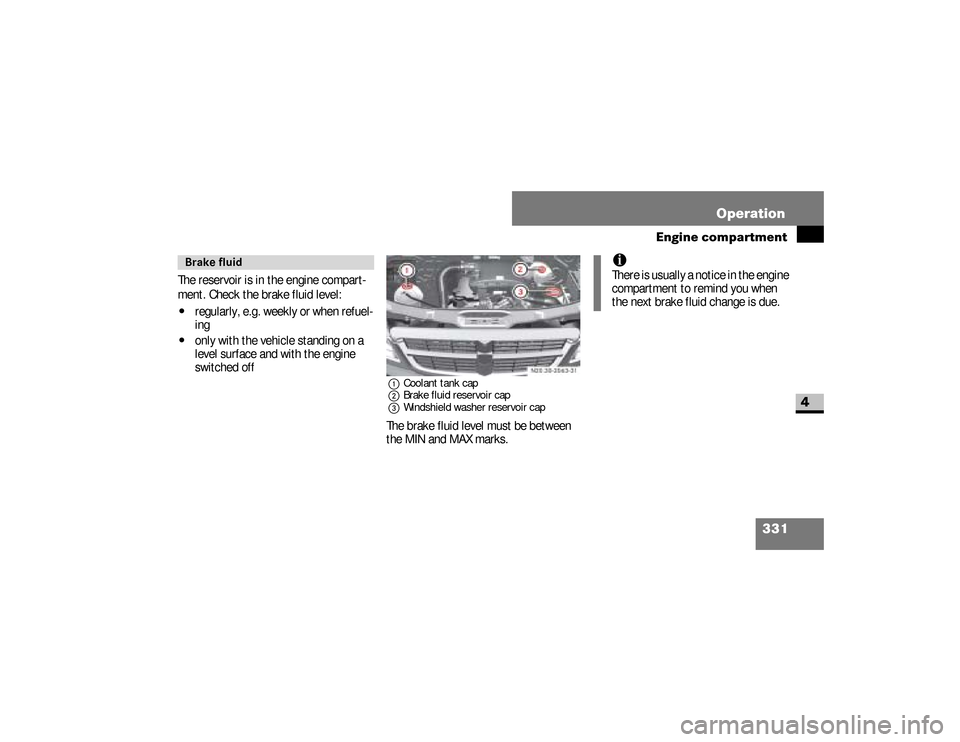

331 Operation
Engine compartment
4
The reservoir is in the engine compart-
ment. Check the brake fluid level:\4
regularly, e.g. weekly or when refuel-
ing
\4
only with the vehicle standing on a
level surface and with the engine
switched off
1Coolant tank cap
2Brake fluid reservoir cap
3Windshield washer reservoir capThe brake fluid level must be between
the MIN and MAX marks.
Brake fluid
N20.30-2063-31
iThere is usually a notice in the engine
compartment to remind you when
the next brake fluid change is due.
nf_BA.book Page 331 Friday, January 25, 2008 3:53 PM
Page 335 of 666
333 Operation
Engine compartment
4
For specifications of brake fluid, see
"Service products and capacities"
(\2
page 616).The windshield washer reservoir is in the
engine compartment. It holds approx.
7.4 US qt (7.0 l).
On vehicles with a headlamp cleaning
system, this is also supplied from the
windshield washer reservoir.
1Coolant tank cap
2Brake fluid reservoir cap
3Windshield washer reservoir capAdd windshield washer fluid concentrate
to the water all year round.
Warning
G
If the boiling point of the brake fluid is too
low, vapor pockets may form in the brake
system when the brakes are applied hard
(e.g. when driving on long downhill
stretches). This has a detrimental effect
on braking efficiency, which could in-
crease the stopping distance. This in-
creases the risk of an accident.
Have the brake fluid replaced every
two years.
Windshield washer system/
headlamp cleaning system*
N20.30-2063-31
nf_BA.book Page 333 Friday, January 25, 2008 3:53 PM
Page 336 of 666

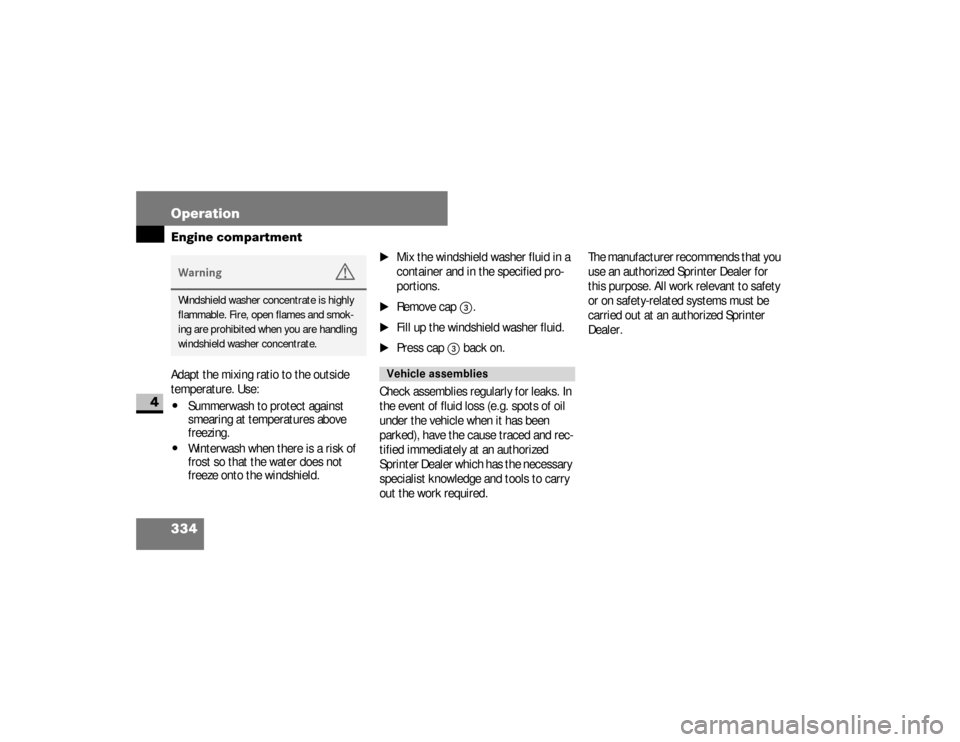

334 OperationEngine compartment
4
Adapt the mixing ratio to the outside
temperature. Use:\4
Summerwash to protect against
smearing at temperatures above
freezing.
\4
Winterwash when there is a risk of
frost so that the water does not
freeze onto the windshield.
\1
Mix the windshield washer fluid in a
container and in the specified pro-
portions.
\1
Remove cap
3
.
\1
Fill up the windshield washer fluid.
\1
Press cap
3
back on.
Check assemblies regularly for leaks. In
the event of fluid loss (e.g. spots of oil
under the vehicle when it has been
parked), have the cause traced and rec-
tified immediately at an authorized
Sprinter Dealer which has the necessary
specialist knowledge and tools to carry
out the work required.The manufacturer recommends that you
use an authorized Sprinter Dealer for
this purpose. All work relevant to safety
or on safety-related systems must be
carried out at an authorized Sprinter
Dealer.
Warning
G
Windshield washer concentrate is highly
flammable. Fire, open flames and smok-
ing are prohibited when you are handling
windshield washer concentrate.
Vehicle assemblies
nf_BA.book Page 334 Friday, January 25, 2008 3:53 PM
Page 424 of 666
422 OperationCleaning and care of the vehicle
4
Headlamps
\1
Wipe the headlamp lenses with a
damp sponge.
Parktronic sensors* The sensors are located in the front and
rear bumpers.\1
Clean the sensors in the bumpers us-
ing water, shampoo and a soft cloth.
Rear view camera lens* The rear view camera is located in the
center of the roof above the third brake
lamp.
!
CAUTION
Only use washer fluid which is suit-
able for plastic lamp lenses.
Unsuitable washer fluid may damage
the plastic headlamp lenses.
For this reason, do not use a dry
cloth, abrasive material, solvent or
solvent-based cleaning agent. You
could otherwise scratch or damage
the lens surface.
1 Parktronic sensors
!
CAUTION
D o n o t u s e d r y , c o a r s e o r h a r d c l o t h s
and do not scrub. You will otherwise
scratch or damage the sensors.
If you clean the sensors with a high-
pressure cleaner or steam cleaner,
observe the information provided by
the manufacturer regarding the dis-
tance to be maintained between the
vehicle and the nozzle of the high-
pressure cleaner.
nf_BA.book Page 422 Friday, January 25, 2008 3:53 PM
Page 484 of 666
482 Practical hintsWhat to do if ...
5
Problem
Possible cause / result
Suggested solutions
/
The yellow water separator indi-
cator lamp
1 lights up while the ig-
nition is on.
The water that has collected in the water sepa-
rator has reached the maximum level.
\1Drain the water separator
(\2page 542).
\1Have the water separator drained at an
authorized Sprinter Dealer.
W
The yellow washer fluid level indi-
cator lamp for the windshield
washer / headlamp cleaning sys-
tem lights up after the engine is
started or while the vehicle is in
motion.
The windshield washer fluid level is too low.
\1Check the fluid level in the reservoir
and add windshield washer fluid if nec-
essary (\2page 333).
<
The red seat belt telltale lights up
for approximately 6 seconds
when the ignition is switched on.
A signal also sounds.
The telltale reminds you to fasten your seat
belt.
\1Fasten your seat belt.
nf_BA.book Page 482 Friday, January 25, 2008 3:53 PM
