DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 17 LEFT SIDE INSTRUMENT PANEL LHD 8Wa - 90 - 26 8W-90 CONNECTOR/GROUND LOCATIONS BUXRG CONNECTOR/GROUND LOCATIONS BUX (Continued) ProCarManuals.com

Page 1122 of 2321

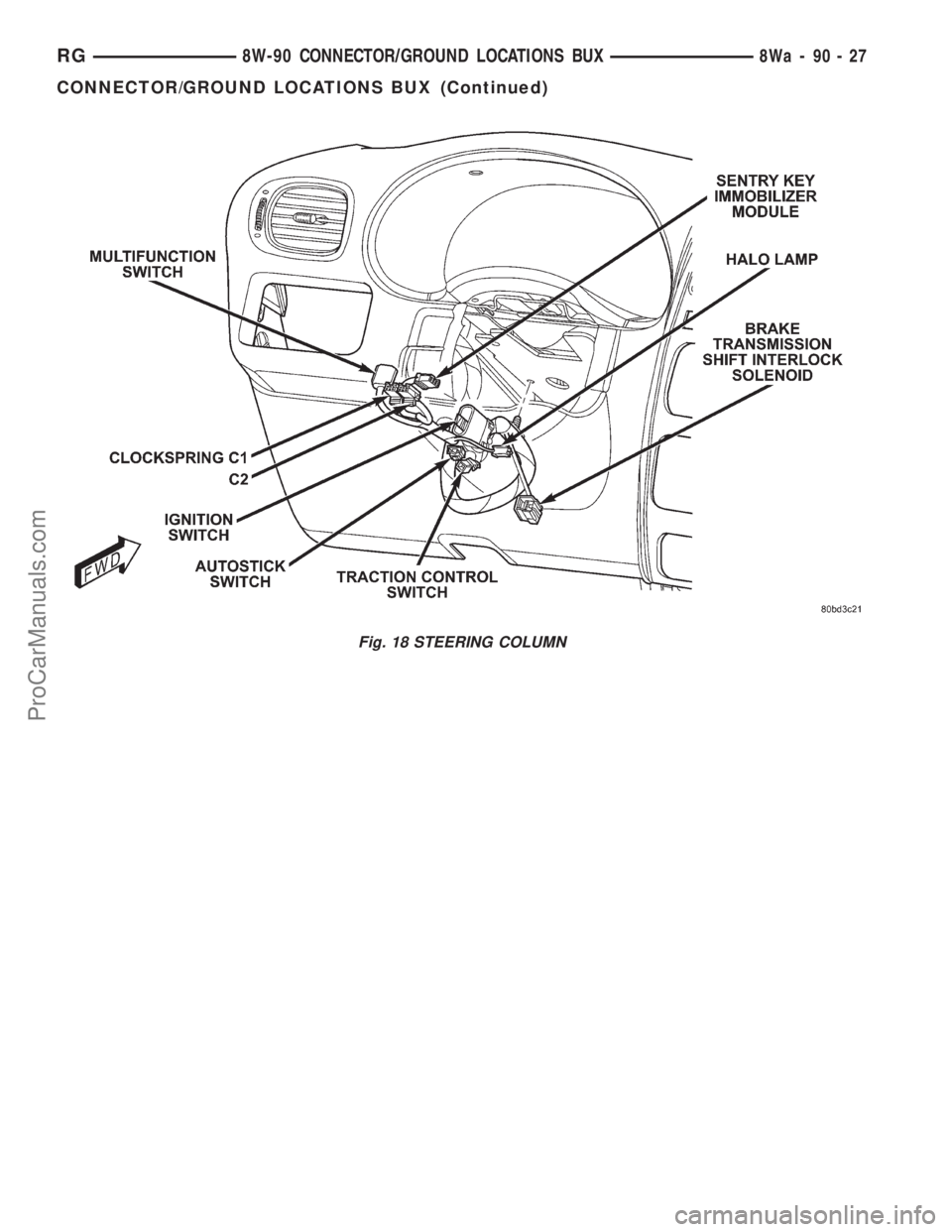

DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 18 STEERING COLUMN RG8W-90 CONNECTOR/GROUND LOCATIONS BUX8Wa-90-27 CONNECTOR/GROUND LOCATIONS BUX (Continued) ProCarManuals.com

Page 1123 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 19 CENTER INSTRUMENT PANEL 8Wa - 90 - 28 8W-90 CONNECTOR/GROUND LOCATIONS BUXRG CONNECTOR/GROUND LOCATIONS BUX (Continued) ProCarManuals.com

Page 1124 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 20 RIGHT SIDE INSTRUMENT PANEL RG8W-90 CONNECTOR/GROUND LOCATIONS BUX8Wa-90-29 CONNECTOR/GROUND LOCATIONS BUX (Continued) ProCarManuals.com

Page 1125 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 21 CENTER INSTRUMENT PANEL RHD 8Wa - 90 - 30 8W-90 CONNECTOR/GROUND LOCATIONS BUXRG CONNECTOR/GROUND LOCATIONS BUX (Continued) ProCarManuals.com

Page 1126 of 2321

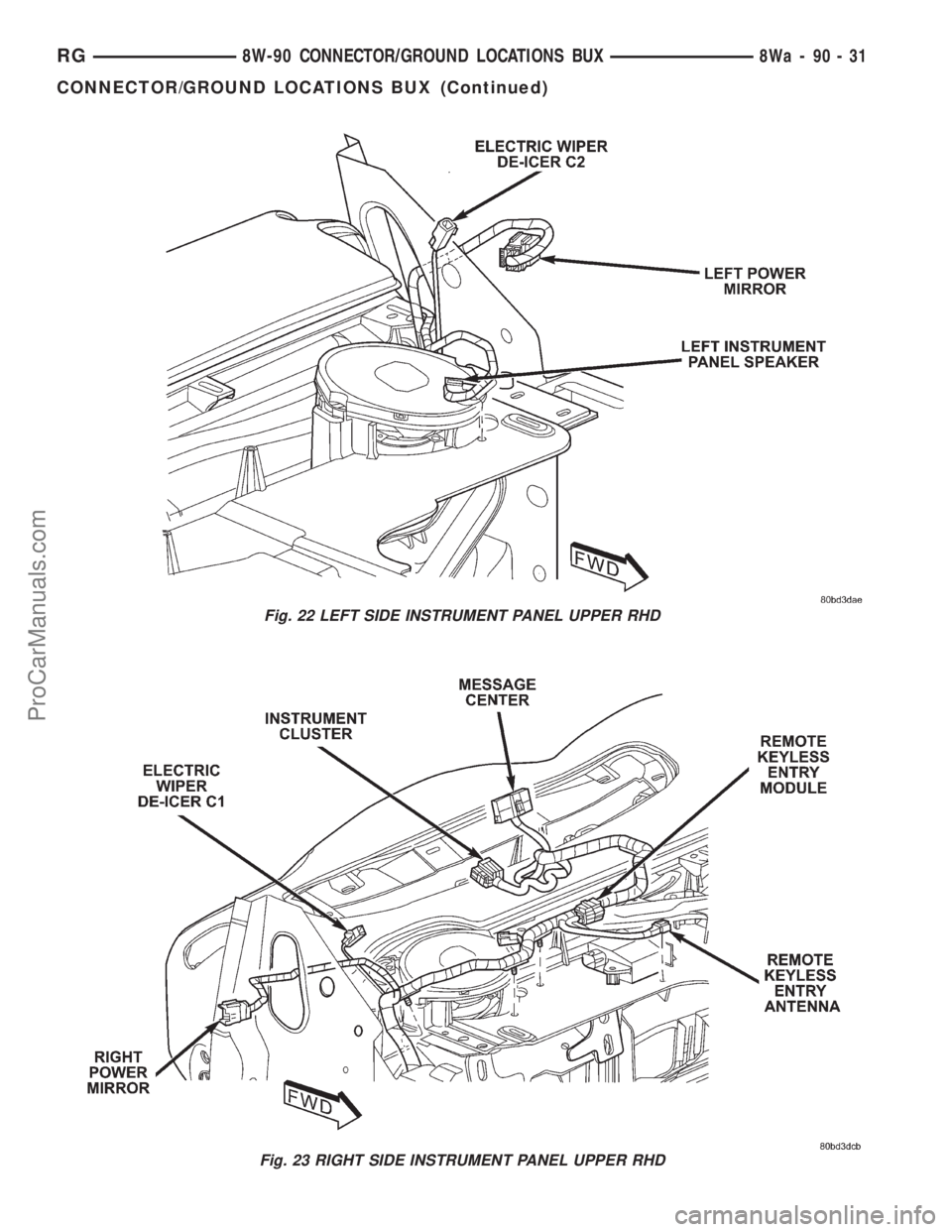

DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 22 LEFT SIDE INSTRUMENT PANEL UPPER RHD Fig. 23 RIGHT SIDE INSTRUMENT PANEL UPPER RHD RG8W-90 CONNECTOR/GROUND LOCATIONS BUX8Wa-90-31 CONNECTOR/GROUND LOCATIONS BUX (Continued) ProCarManuals.com

Page 1127 of 2321

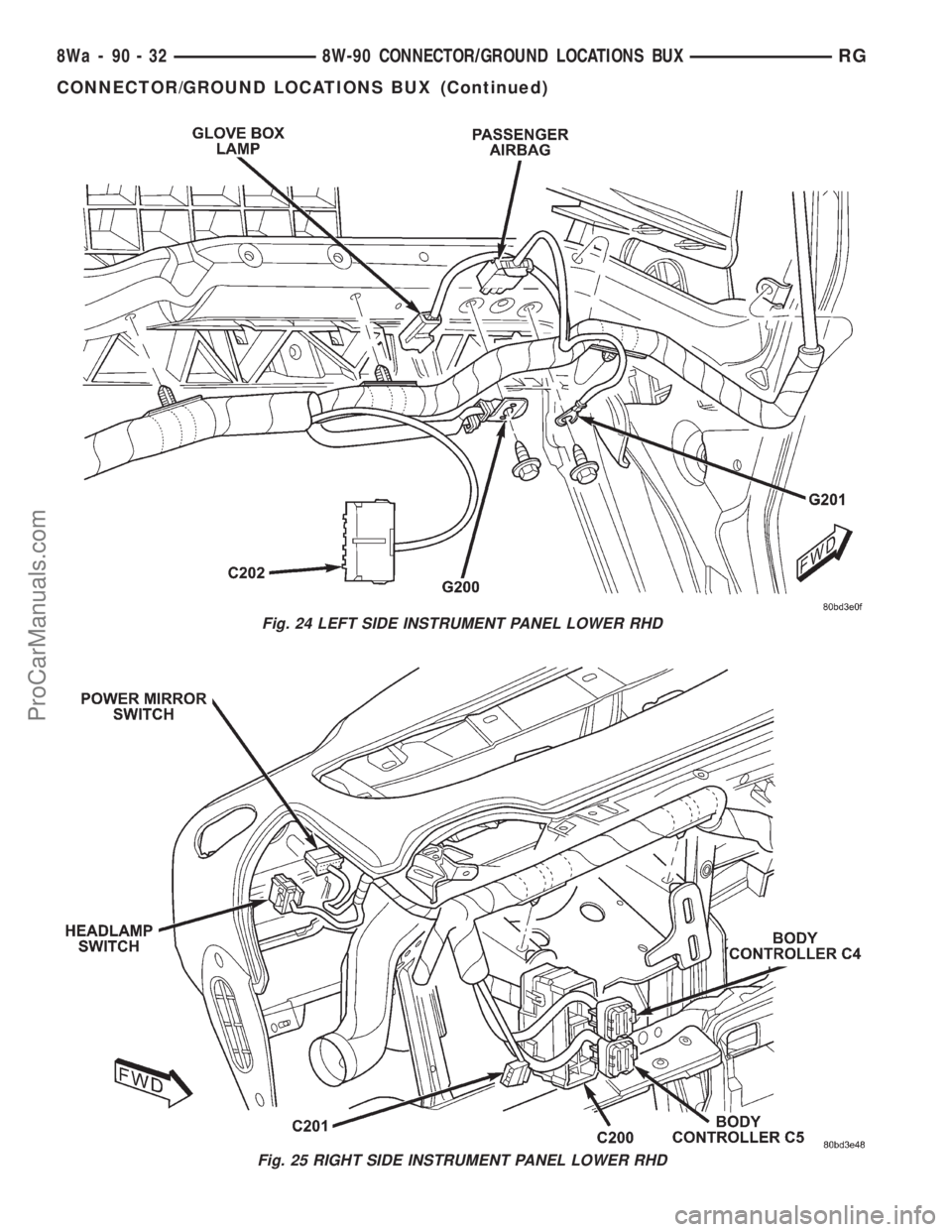

DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 24 LEFT SIDE INSTRUMENT PANEL LOWER RHD Fig. 25 RIGHT SIDE INSTRUMENT PANEL LOWER RHD 8Wa - 90 - 32 8W-90 CONNECTOR/GROUND LOCATIONS BUXRG CONNECTOR/GROUND LOCATIONS BUX (Continued) ProCarManuals

Page 1128 of 2321

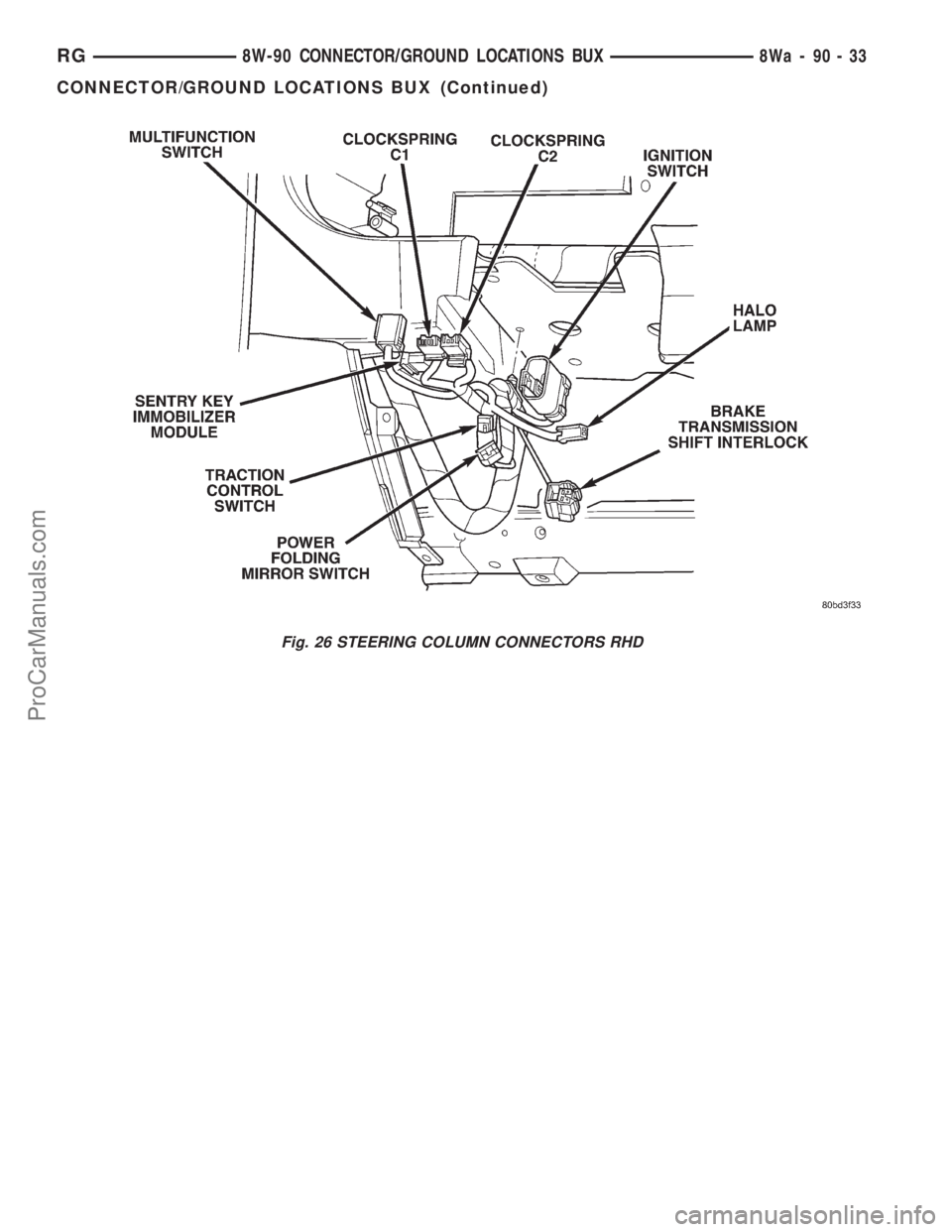

DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 26 STEERING COLUMN CONNECTORS RHD RG8W-90 CONNECTOR/GROUND LOCATIONS BUX8Wa-90-33 CONNECTOR/GROUND LOCATIONS BUX (Continued) ProCarManuals.com

Page 1129 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 27 LEFT SIDE BODY LHD 8Wa - 90 - 34 8W-90 CONNECTOR/GROUND LOCATIONS BUXRG CONNECTOR/GROUND LOCATIONS BUX (Continued) ProCarManuals.com

Page 1130 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 28 RIGHT SIDE BODY RHD Fig. 29 RIGHT B PILLAR RG8W-90 CONNECTOR/GROUND LOCATIONS BUX8Wa-90-35 CONNECTOR/GROUND LOCATIONS BUX (Continued) ProCarManuals.com
