DODGE TOWN AND COUNTRY 2001 Service Manual

Splice Number Location Fig.
S336 Near T/O for Left Rear Reading Lamp 12
S337 Near T/O for Right Mid Reading Lamp N/S
S338 Near T/O for Right Visor/Vanity Lamp N/S
S339 Near T/O for C312 N/S
S340 Near T/O for Passenger Power Window Switch 15, 16
S342 (LHD) Near T/O for Passenger Power Window Motor 15
S343 (LHD) Near T/O for Driver Power Window Motor 15
S344 In T/O to Right Sliding Door Control Module C2 17
S345 Near T/O for Right Sliding Door Motor 17
S346 Near T/O for Driver Power Window Switch 15, 16
S347 Near T/O for Right Sliding Door Lock Motor 17
S348 Near T/O for Left Sliding Door Lock Motor 17
S349 In T/O to Left Sliding Door Control Module - C2 17
S350 Near T/O for Left Sliding Door Motor 17
S351 Near T/O for Liftgate Cylinder Lock Switch 19
S352 Near T/O for Liftgate Cinch/Release Motor 19
S353 Near T/O for C318 18
S354 (RG) Near T/O for C301 N/S
S354 (RS) Near T/O for Driver Heated Seat Module 13
S355 Near T/O for Passenger Heated Seat Module N/S
S356 (RG) In Floor Pan Track Wiring 13
S356 (RS) Near T/O for Passenger Heated Seat Back N/S
S358 (RG) In T/O for Data Link Connector 13
S364 (RHD) Near T/O for Passenger Power Window Window 16
S365 (LHD) Near T/O for Driver Power Window Window 16
S368 Near T/O for C101 14
8Wa - 95 - 4 8W-95 SPLICE LOCATIONS BUXRG
SPLICE LOCATIONS BUX (Continued)
ProCarManuals.com

Fig. 1 ENGINE HARNESS SPLICES - 2.4L
RG8W-95 SPLICE LOCATIONS BUX8Wa-95-5
SPLICE LOCATIONS BUX (Continued)
ProCarManuals.com

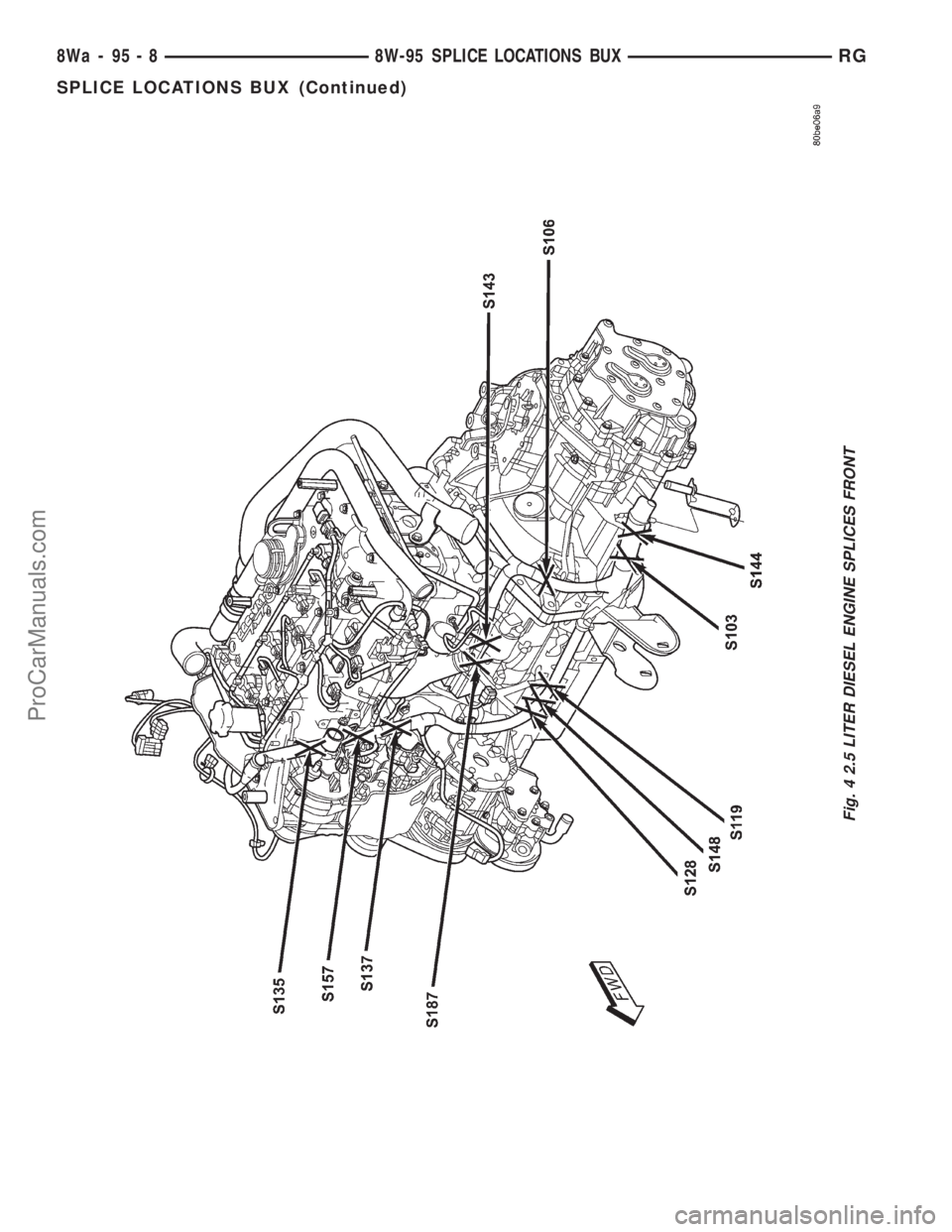

Fig. 2 ENGINE HARNESS SPLICES - 2.4L
8Wa - 95 - 6 8W-95 SPLICE LOCATIONS BUXRG
SPLICE LOCATIONS BUX (Continued)
ProCarManuals.com

Fig. 3 2.5 LITER DIESEL ENGINE SPLICES REAR
RG8W-95 SPLICE LOCATIONS BUX8Wa-95-7
SPLICE LOCATIONS BUX (Continued)
ProCarManuals.com

Fig. 4 2.5 LITER DIESEL ENGINE SPLICES FRONT
8Wa - 95 - 8 8W-95 SPLICE LOCATIONS BUXRG
SPLICE LOCATIONS BUX (Continued)
ProCarManuals.com

Fig. 5 ENGINE HARNESS SPLICES - 3.3L/3.8L
RG8W-95 SPLICE LOCATIONS BUX8Wa-95-9
SPLICE LOCATIONS BUX (Continued)
ProCarManuals.com

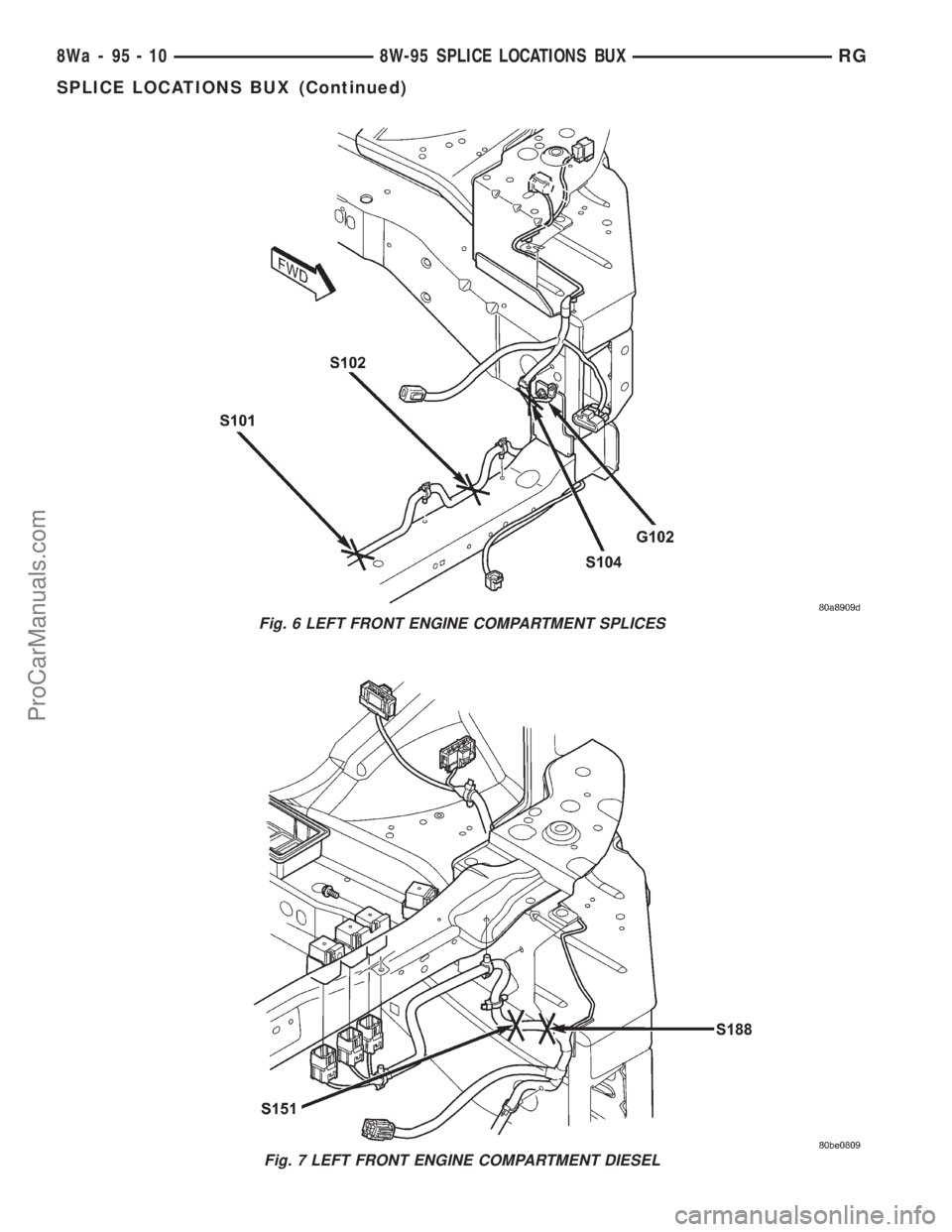

Fig. 6 LEFT FRONT ENGINE COMPARTMENT SPLICES
Fig. 7 LEFT FRONT ENGINE COMPARTMENT DIESEL
8Wa - 95 - 10 8W-95 SPLICE LOCATIONS BUXRG
SPLICE LOCATIONS BUX (Continued)
ProCarManuals.com

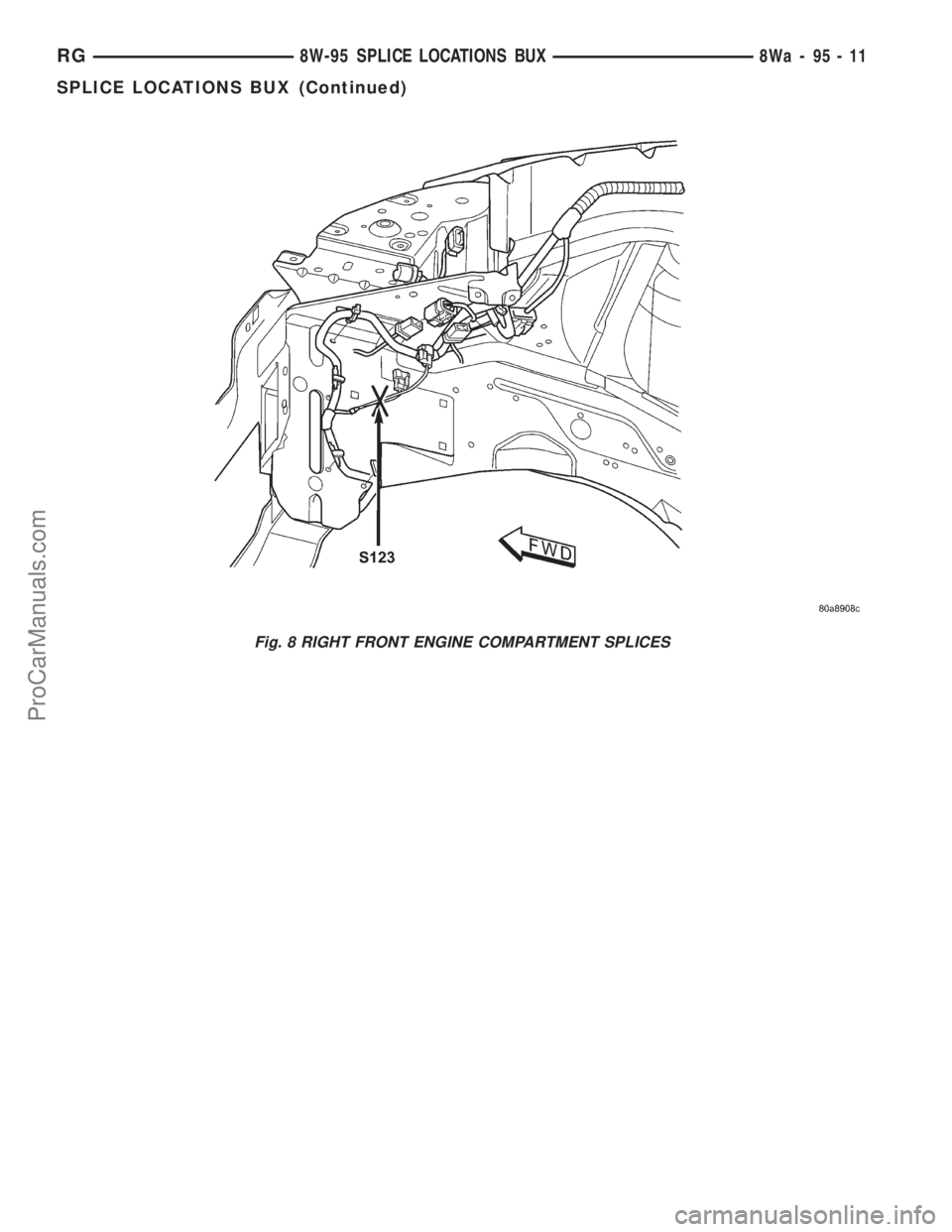

Fig. 8 RIGHT FRONT ENGINE COMPARTMENT SPLICES
RG8W-95 SPLICE LOCATIONS BUX8Wa-95-11
SPLICE LOCATIONS BUX (Continued)
ProCarManuals.com

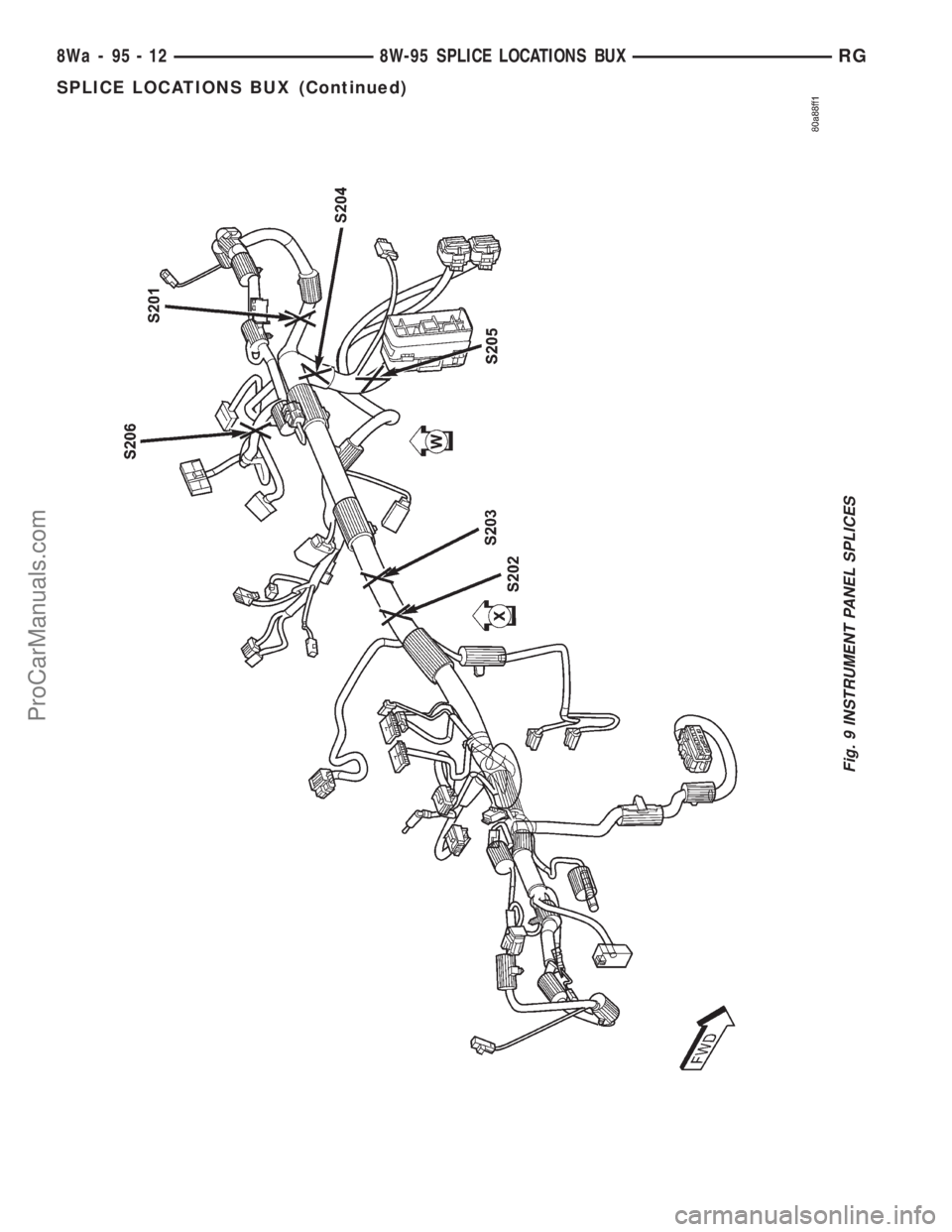

Fig. 9 INSTRUMENT PANEL SPLICES
8Wa - 95 - 12 8W-95 SPLICE LOCATIONS BUXRG
SPLICE LOCATIONS BUX (Continued)
ProCarManuals.com

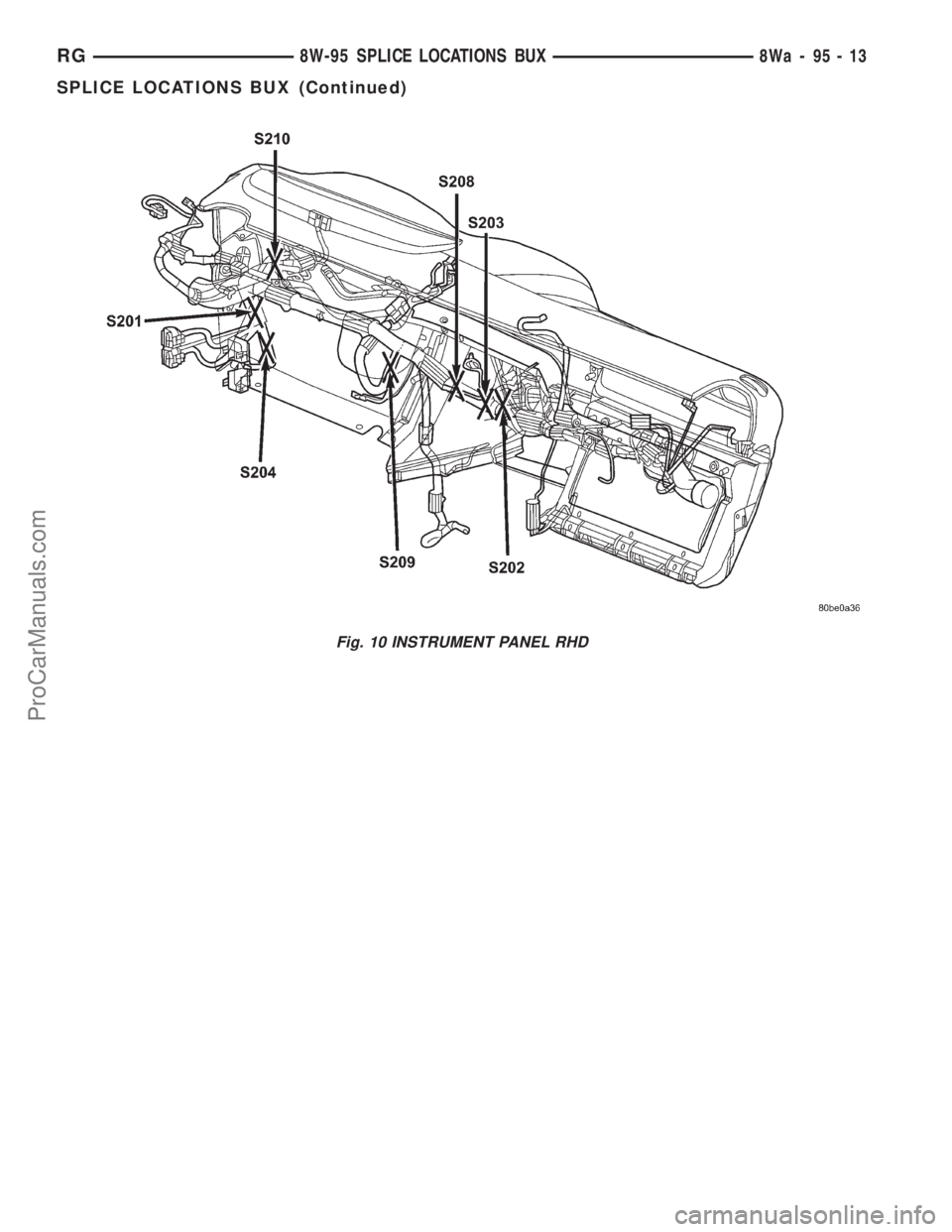

Fig. 10 INSTRUMENT PANEL RHD
