Page 1371 of 2321

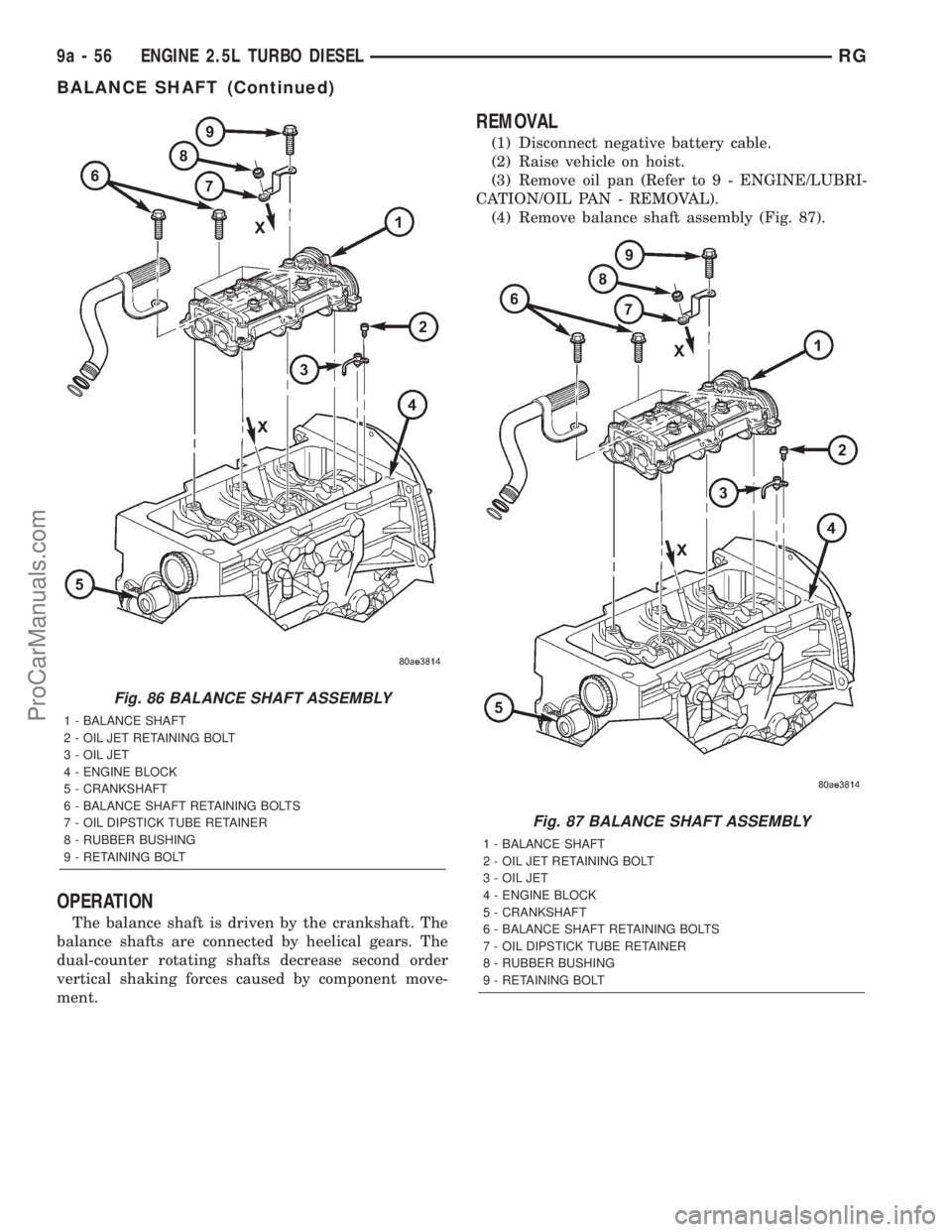

DODGE TOWN AND COUNTRY 2001  Service Manual OPERATION
The balance shaft is driven by the crankshaft. The
balance shafts are connected by heelical gears. The
dual-counter rotating shafts decrease second order
vertical shaking forces caused by co

Page 1372 of 2321

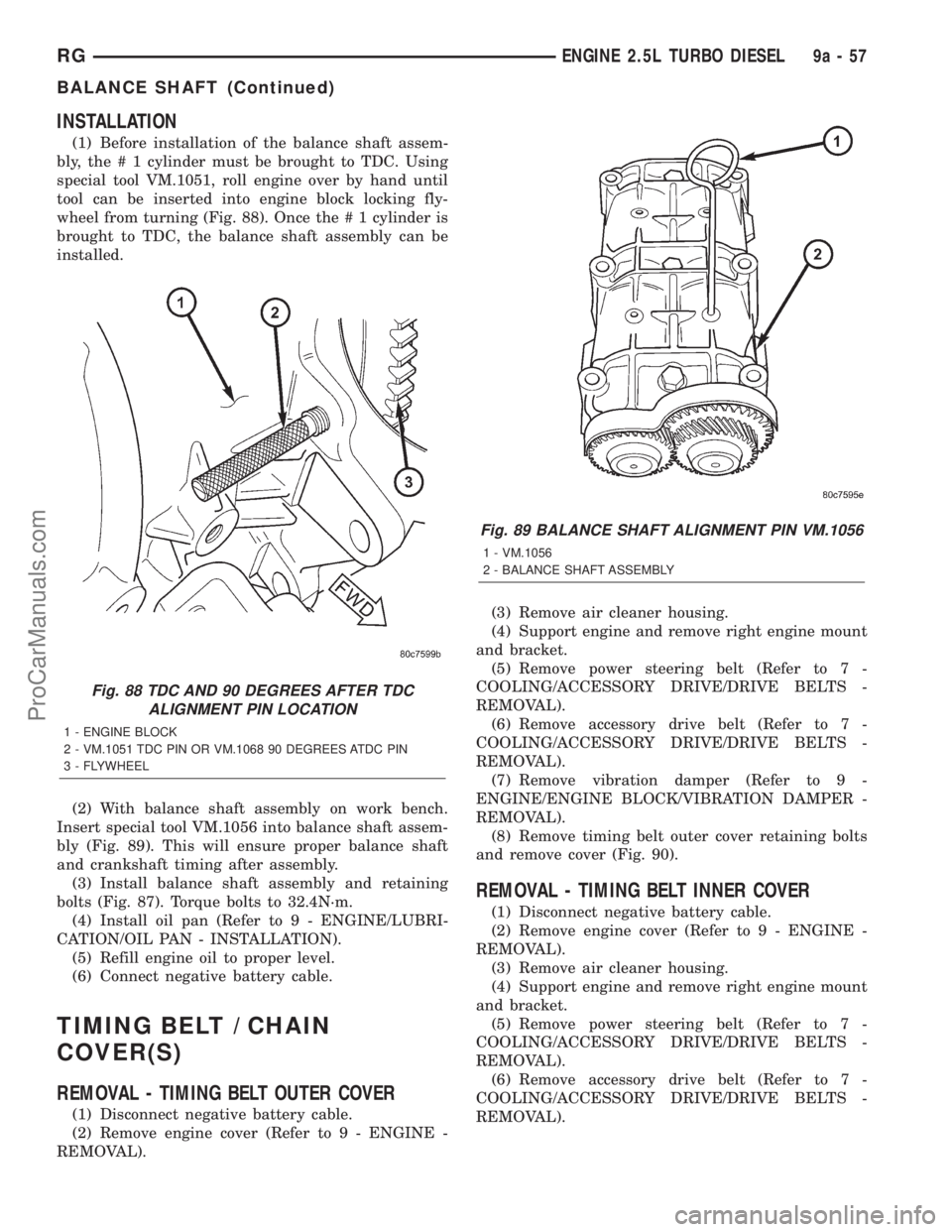

DODGE TOWN AND COUNTRY 2001  Service Manual INSTALLATION
(1) Before installation of the balance shaft assem-
bly, the # 1 cylinder must be brought to TDC. Using
special tool VM.1051, roll engine over by hand until
tool can be inserted into engi

Page 1373 of 2321

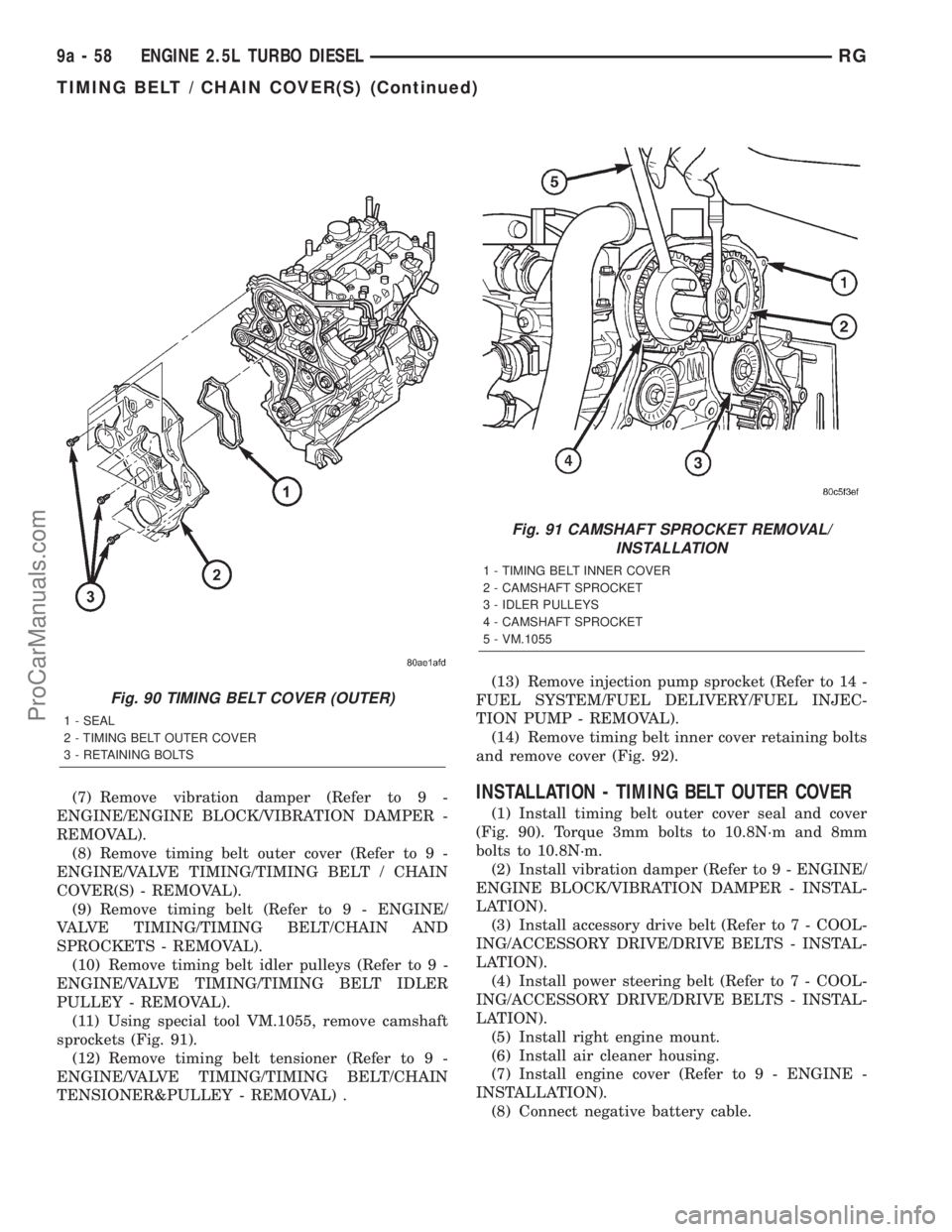

DODGE TOWN AND COUNTRY 2001  Service Manual (7) Remove vibration damper (Refer to 9 -
ENGINE/ENGINE BLOCK/VIBRATION DAMPER -
REMOVAL).
(8) Remove timing belt outer cover (Refer to 9 -
ENGINE/VALVE TIMING/TIMING BELT / CHAIN
COVER(S) - REMOVAL).

Page 1374 of 2321

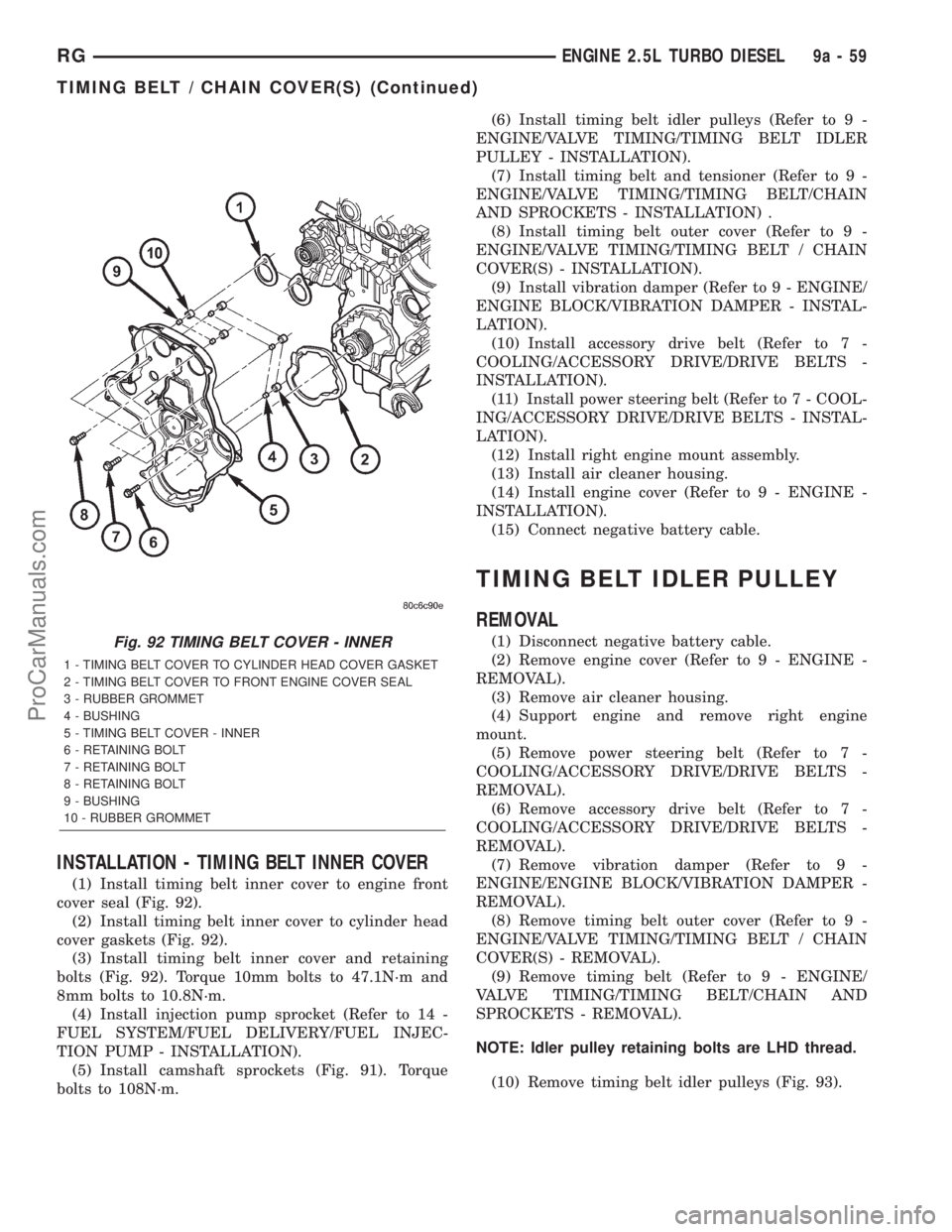

DODGE TOWN AND COUNTRY 2001  Service Manual INSTALLATION - TIMING BELT INNER COVER
(1) Install timing belt inner cover to engine front
cover seal (Fig. 92).
(2) Install timing belt inner cover to cylinder head
cover gaskets (Fig. 92).
(3) Insta

Page 1375 of 2321

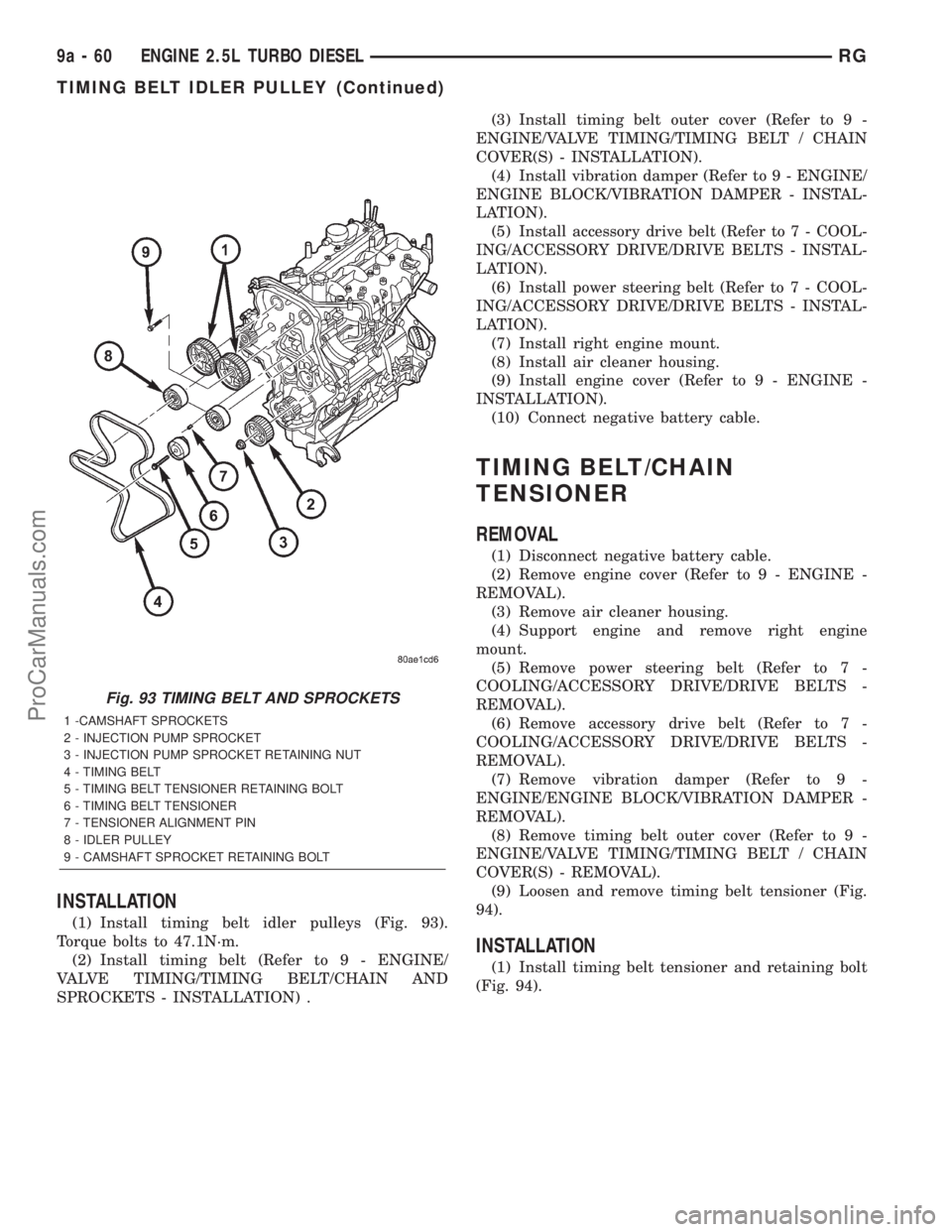

DODGE TOWN AND COUNTRY 2001  Service Manual INSTALLATION
(1) Install timing belt idler pulleys (Fig. 93).
Torque bolts to 47.1N´m.
(2) Install timing belt (Refer to 9 - ENGINE/
VALVE TIMING/TIMING BELT/CHAIN AND
SPROCKETS - INSTALLATION) .(3)

Page 1376 of 2321

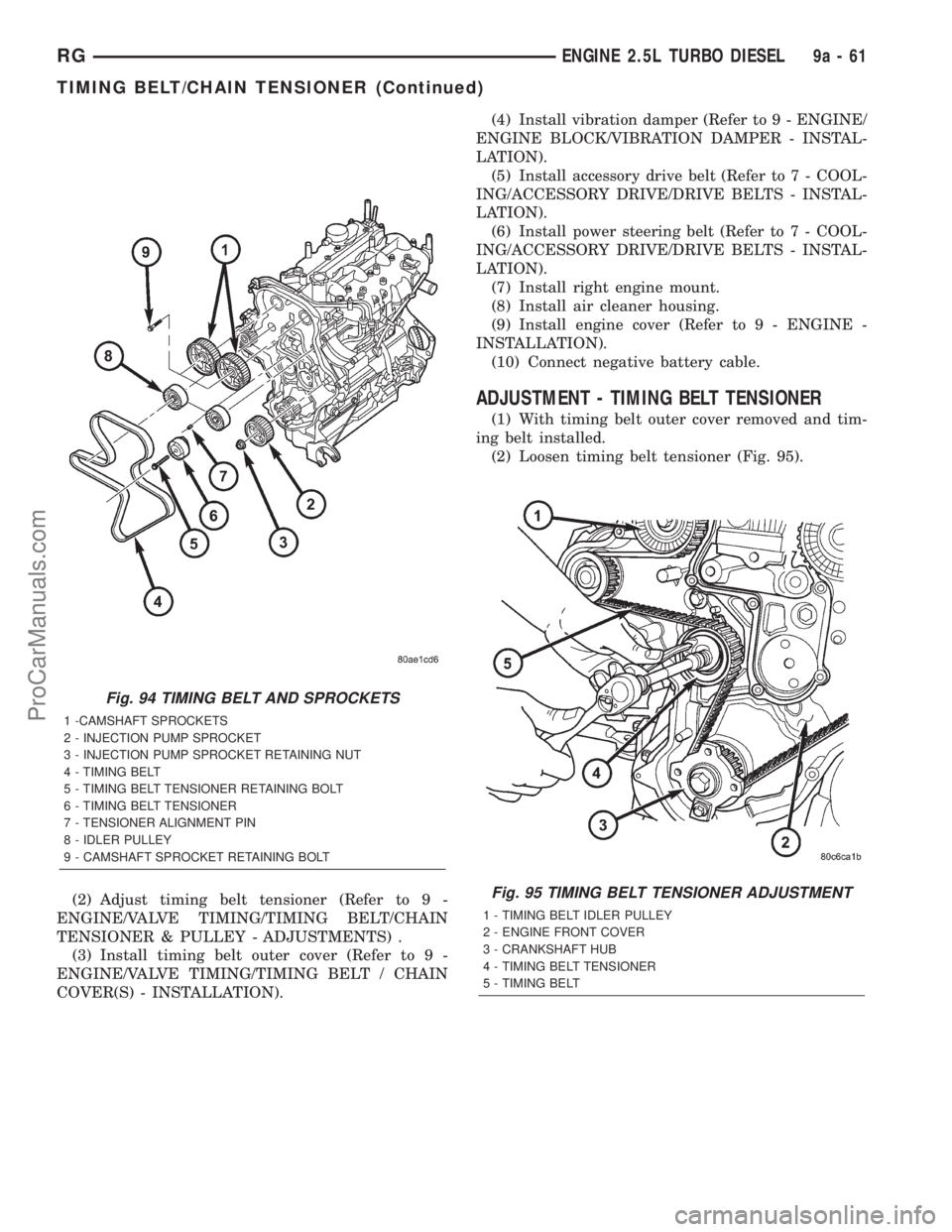

DODGE TOWN AND COUNTRY 2001  Service Manual (2) Adjust timing belt tensioner (Refer to 9 -
ENGINE/VALVE TIMING/TIMING BELT/CHAIN
TENSIONER & PULLEY - ADJUSTMENTS) .
(3) Install timing belt outer cover (Refer to 9 -
ENGINE/VALVE TIMING/TIMING BE

Page 1377 of 2321

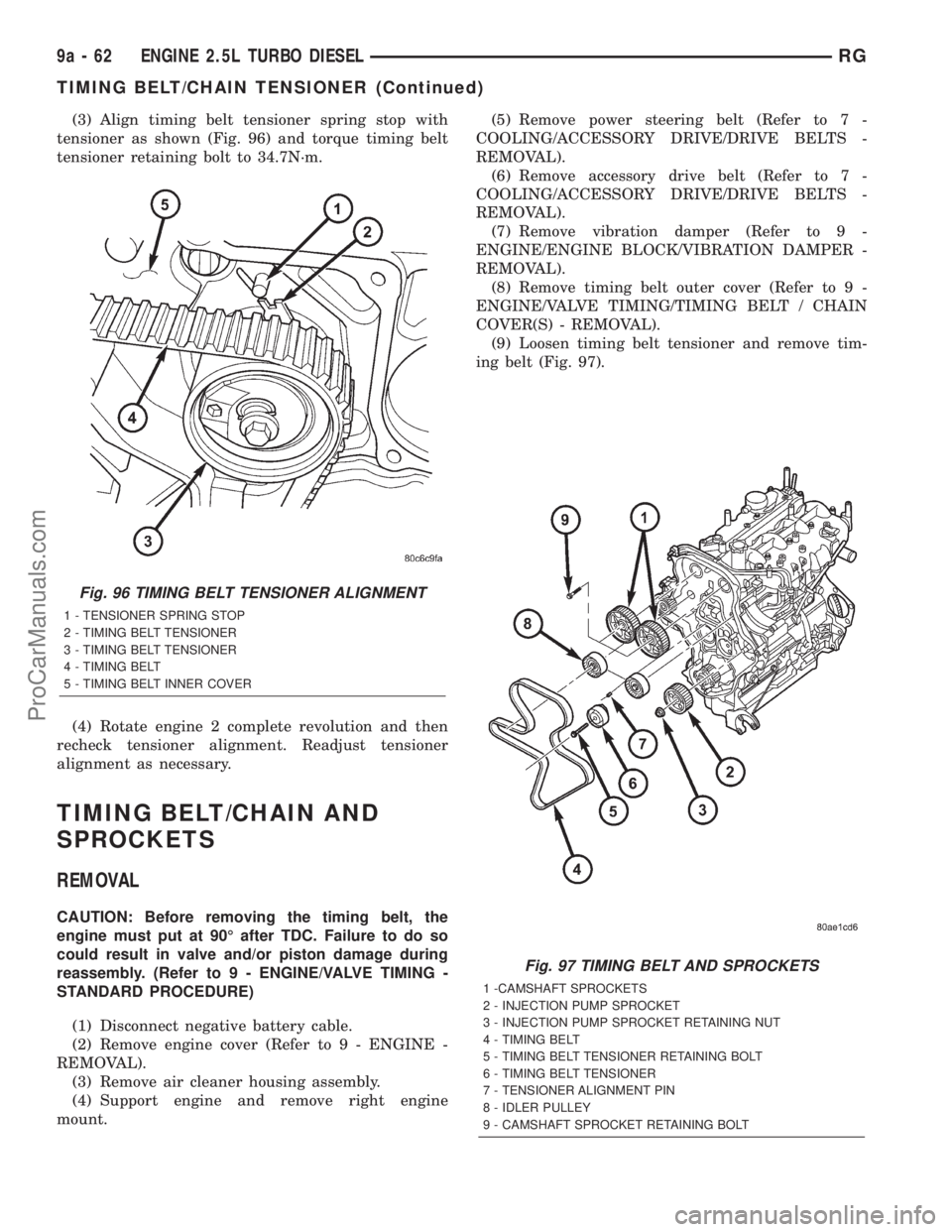

DODGE TOWN AND COUNTRY 2001  Service Manual (3) Align timing belt tensioner spring stop with
tensioner as shown (Fig. 96) and torque timing belt
tensioner retaining bolt to 34.7N´m.
(4) Rotate engine 2 complete revolution and then
recheck tens

Page 1378 of 2321

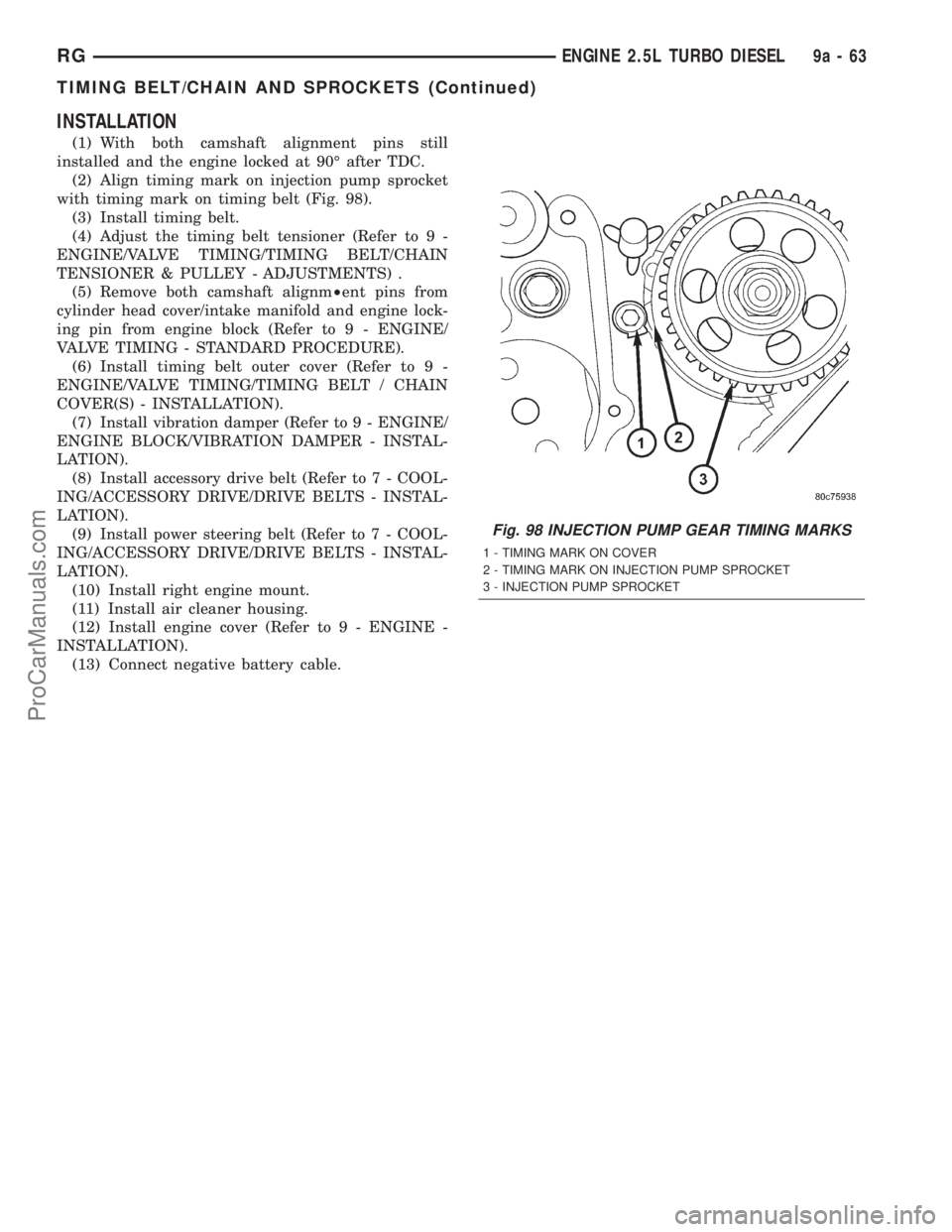

DODGE TOWN AND COUNTRY 2001  Service Manual INSTALLATION
(1) With both camshaft alignment pins still
installed and the engine locked at 90É after TDC.
(2) Align timing mark on injection pump sprocket
with timing mark on timing belt (Fig. 98).

Page 1379 of 2321

DODGE TOWN AND COUNTRY 2001  Service Manual ProCarManuals.com

Page 1380 of 2321

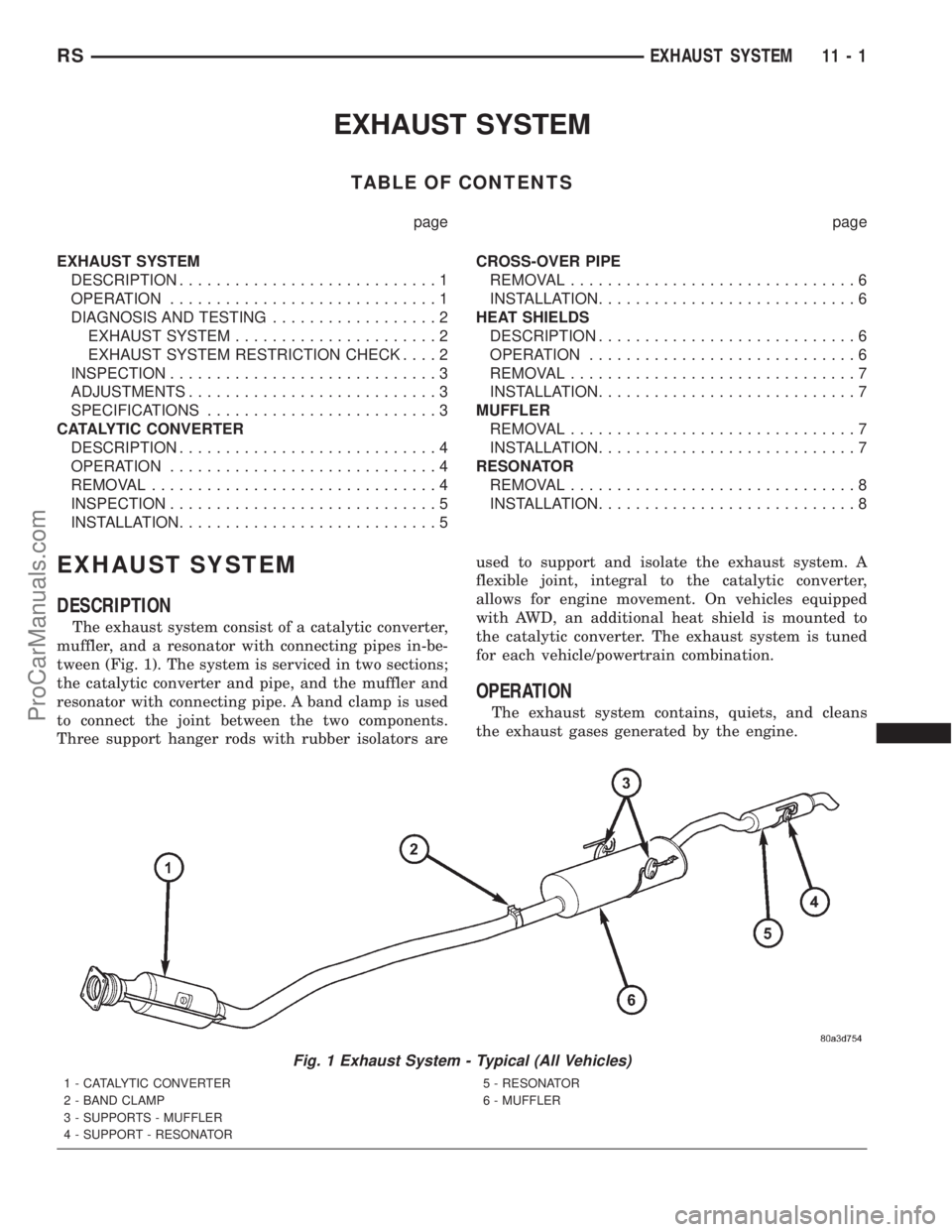

DODGE TOWN AND COUNTRY 2001  Service Manual EXHAUST SYSTEM
TABLE OF CONTENTS
page page
EXHAUST SYSTEM
DESCRIPTION............................1
OPERATION.............................1
DIAGNOSIS AND TESTING..................2
EXHAUST SYSTEM......
