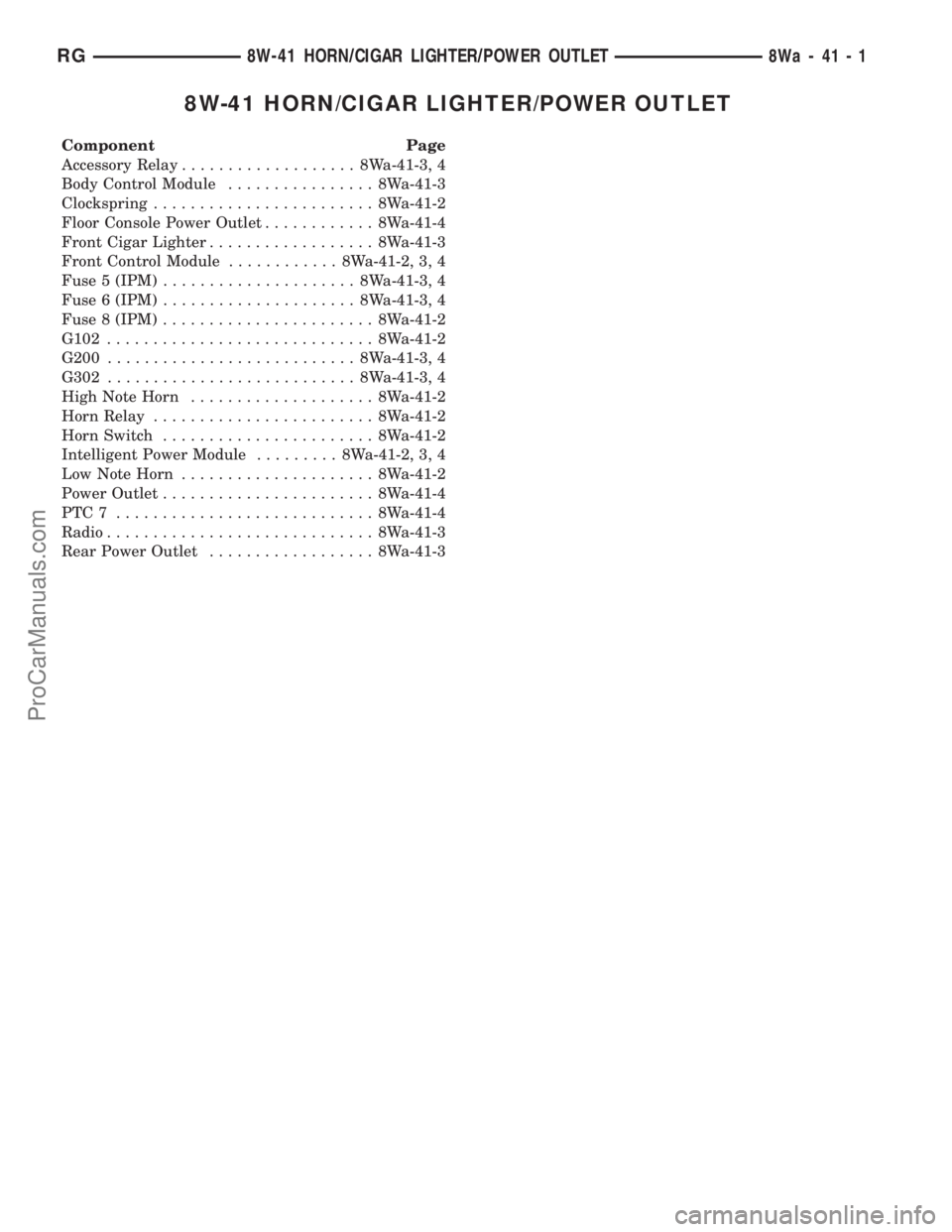

8W-41 HORN/CIGAR LIGHTER/POWER OUTLET
Component Page
Accessory Relay................... 8Wa-41-3, 4
Body Control Module................ 8Wa-41-3
Clockspring........................ 8Wa-41-2

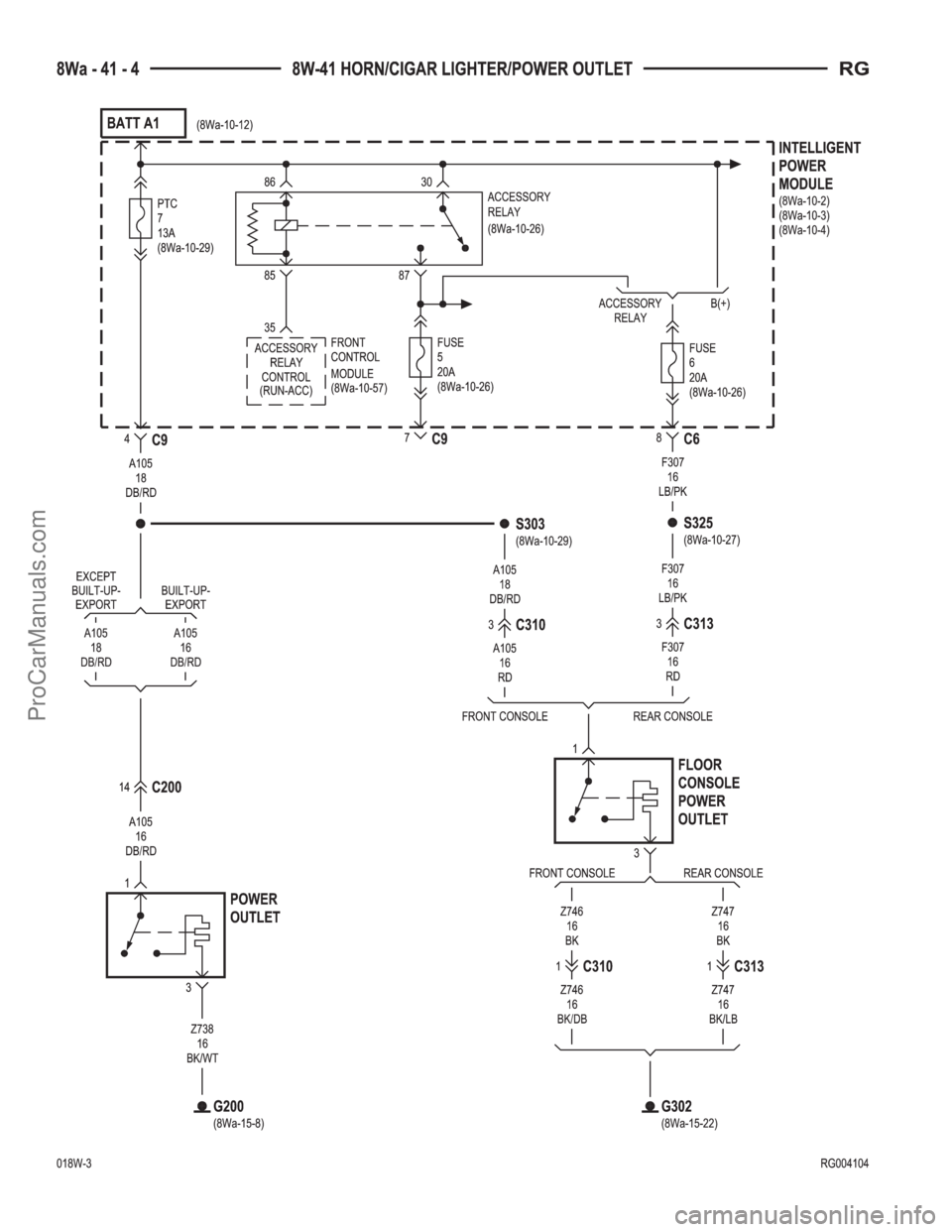

Floor Console Power Outlet............ 8Wa-41-4

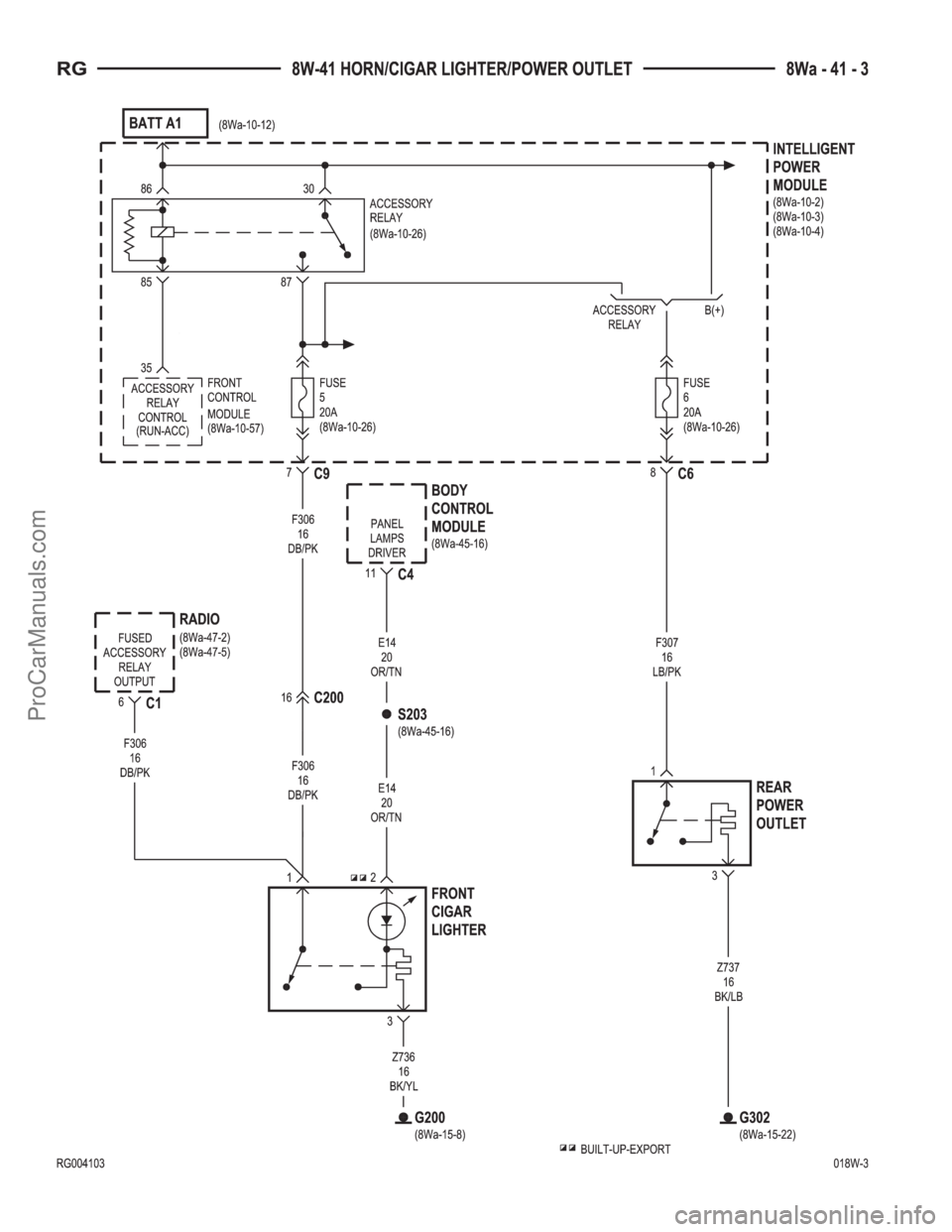

Front Cigar Lighter.................. 8Wa-41-3
Front Control Module............ 8Wa-41-2, 3, 4
Fuse 5 (IPM)..................... 8Wa-41-3, 4
Fuse 6 (IPM)..................... 8Wa-41-3, 4
Fuse 8 (IPM)....................... 8Wa-41-2
G102............................. 8Wa-41-2
G200........................... 8Wa-41-3, 4
G302........................... 8Wa-41-3, 4

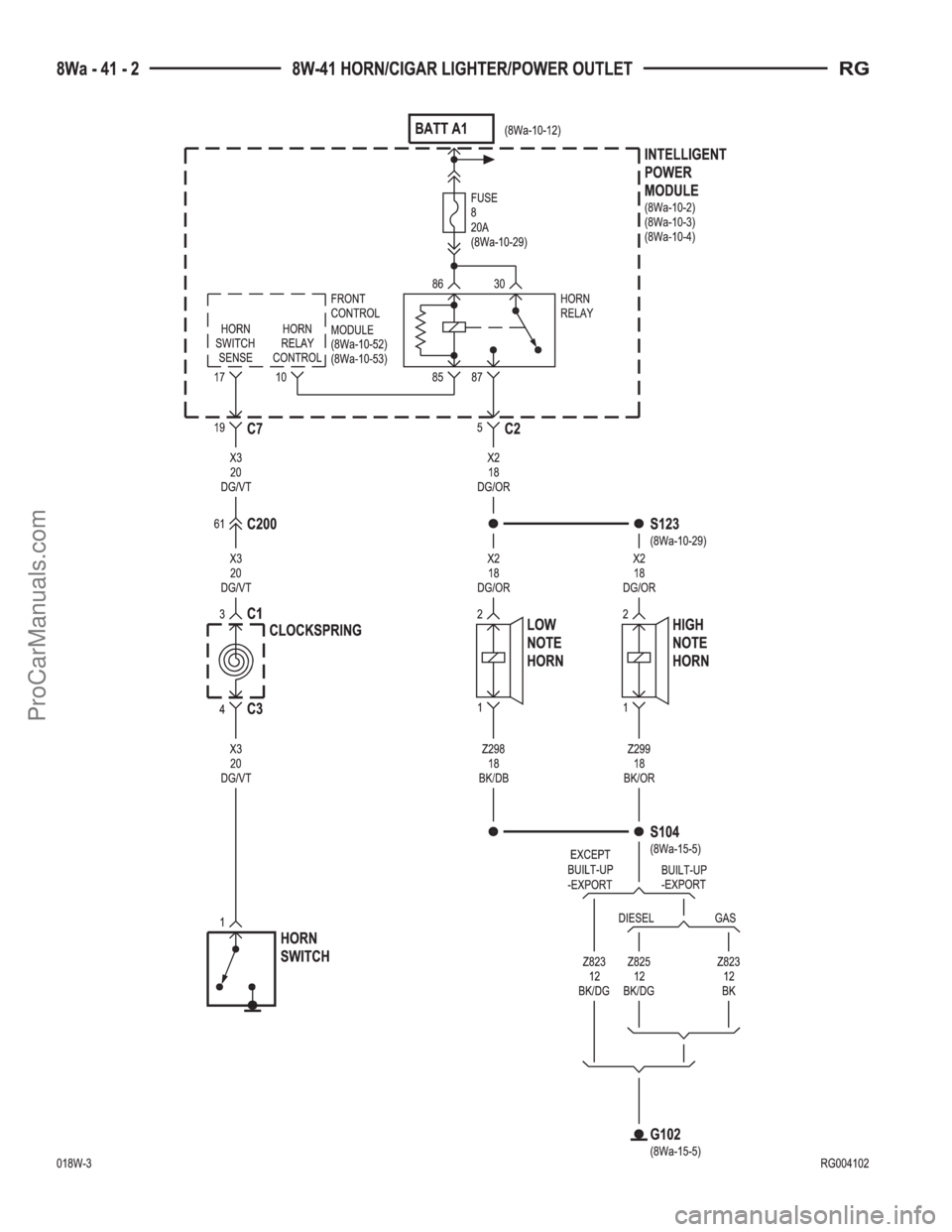

High Note Horn.................... 8Wa-41-2
Horn Relay........................ 8Wa-41-2
Horn Switch....................... 8Wa-41-2
Intelligent Power Module......... 8Wa-41-2, 3, 4
Low Note Horn..................... 8Wa-41-2
Power Outlet....................... 8Wa-41-4
PTC7 ............................ 8Wa-41-4
Radio............................. 8Wa-41-3
Rear Power Outlet.................. 8Wa-41-3
RG8W-41 HORN/CIGAR LIGHTER/POWER OUTLET8Wa-41-1
ProCarManuals.com

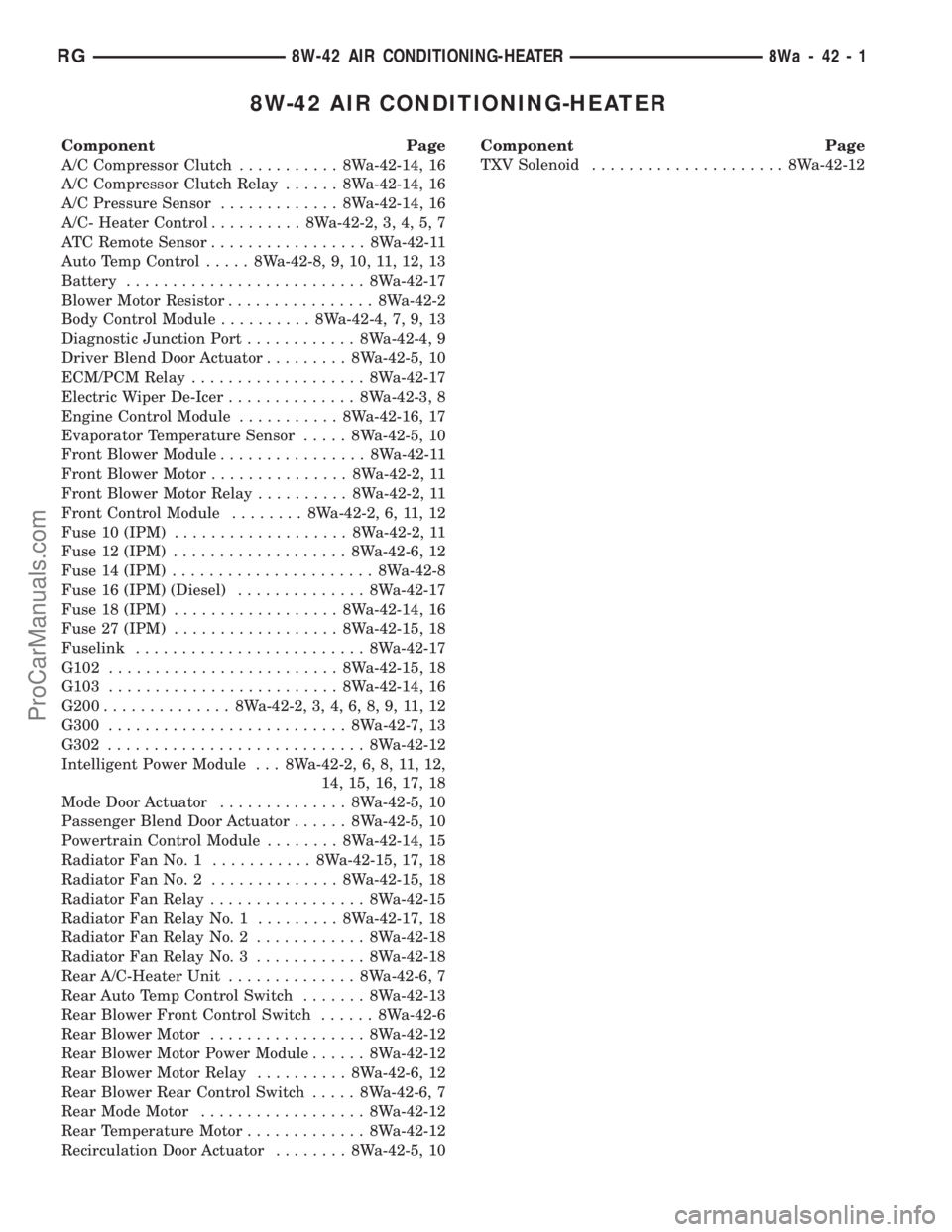

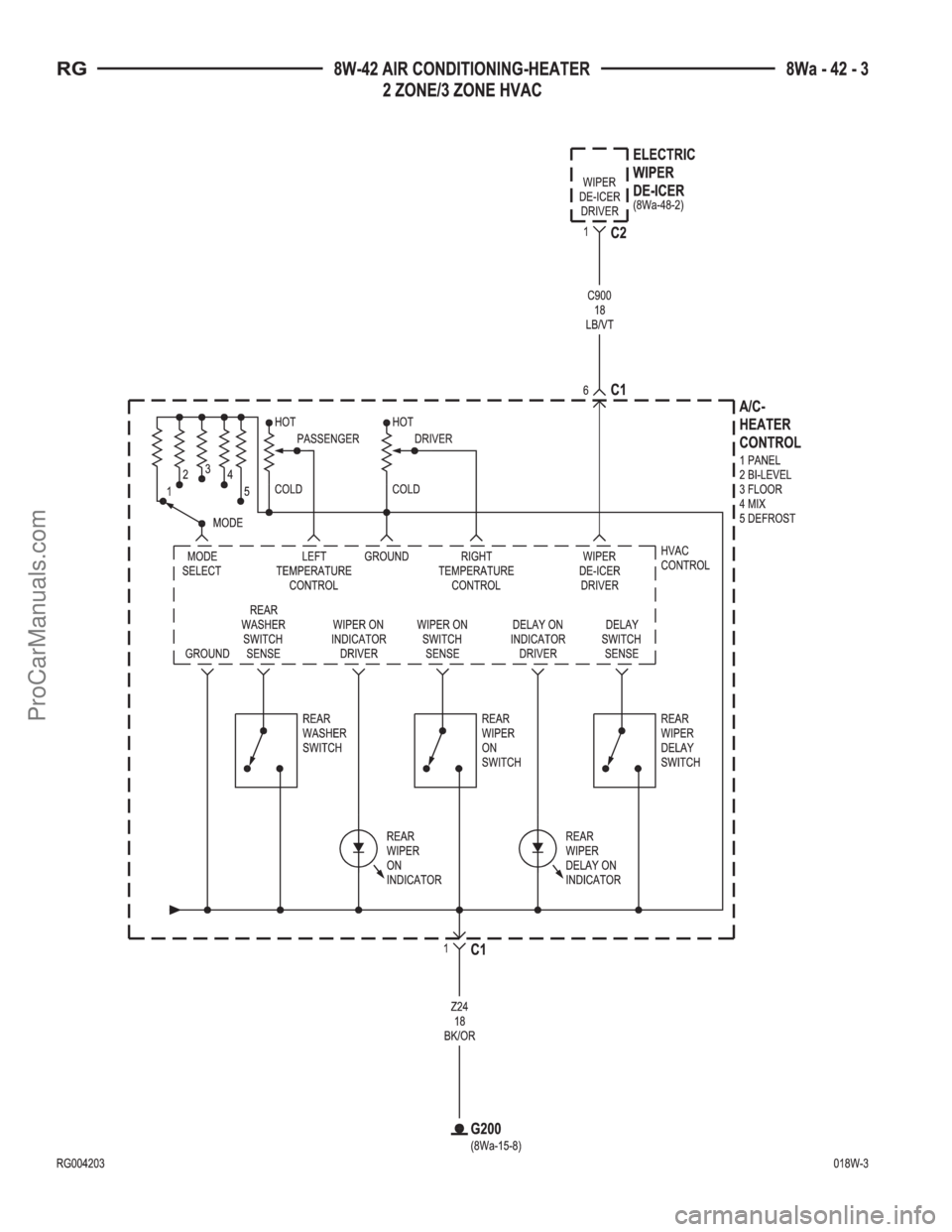

8W-42 AIR CONDITIONING-HEATER
