8W-44 INTERIOR LIGHTING
Component Page

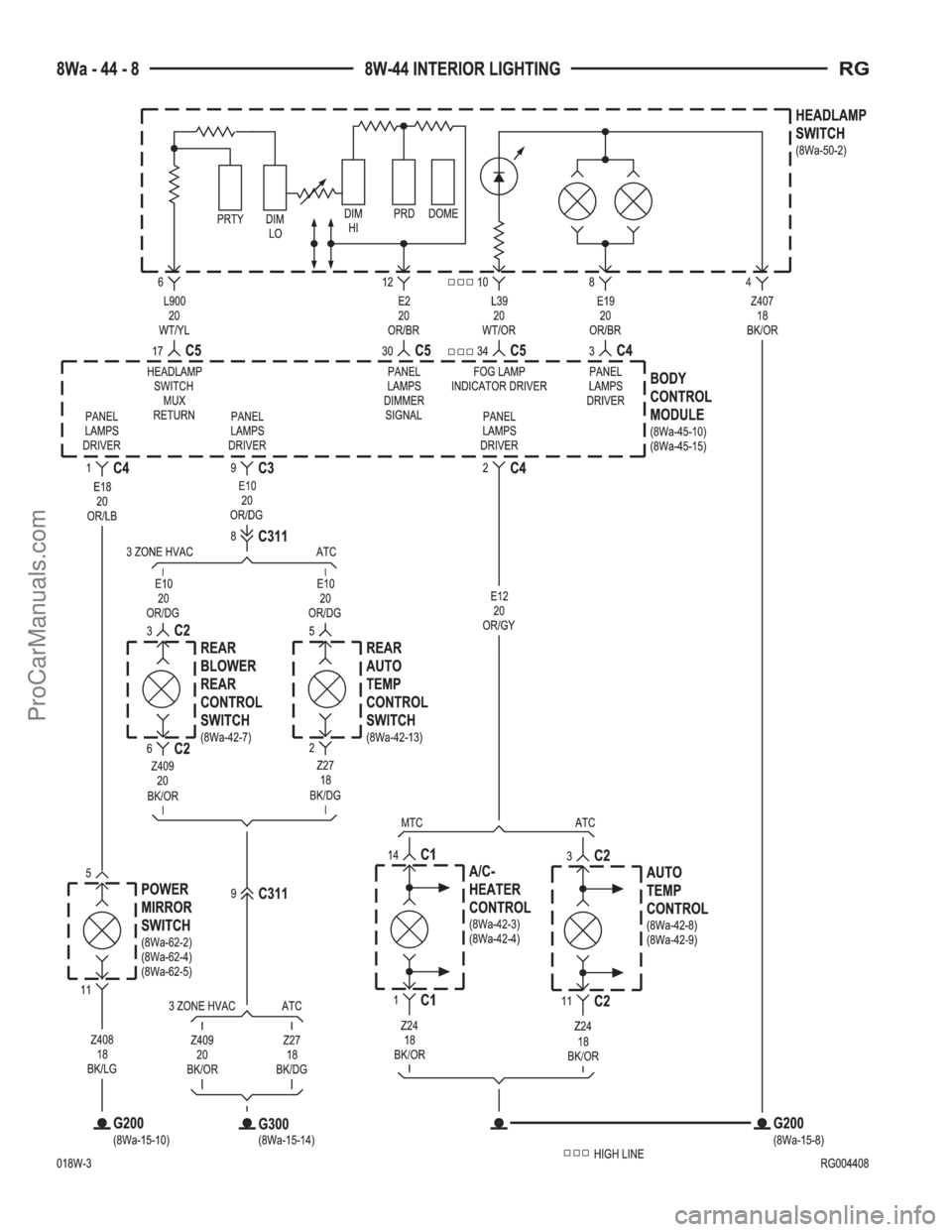

A/C- Heater Control................. 8Wa-44-8

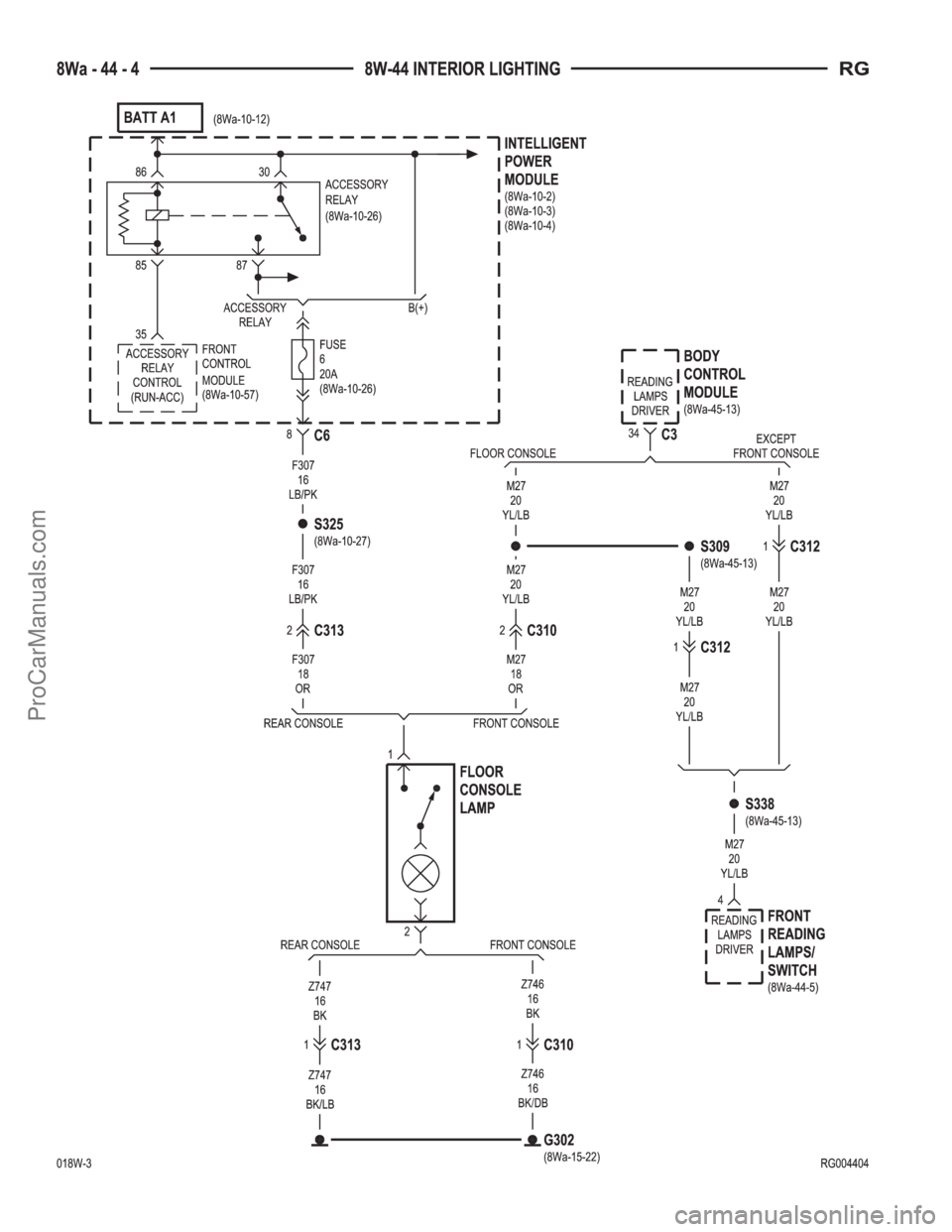

Accessory Relay..................... 8Wa-44-4
Auto Temp Control.................. 8Wa-44-8
Body Control Module..... 8Wa-44-2, 3, 4, 5, 6, 7, 8

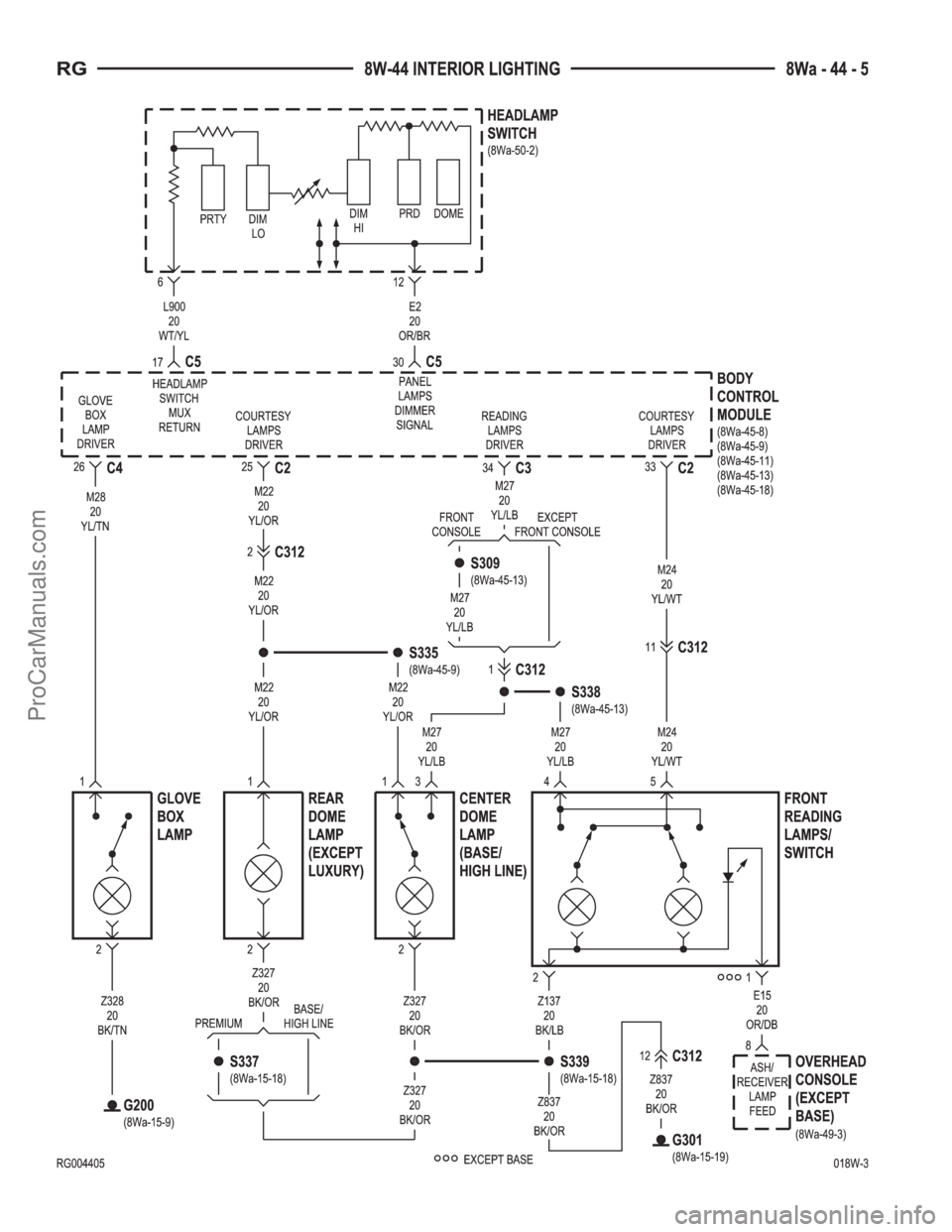

Center Dome Lamp.................. 8Wa-44-5

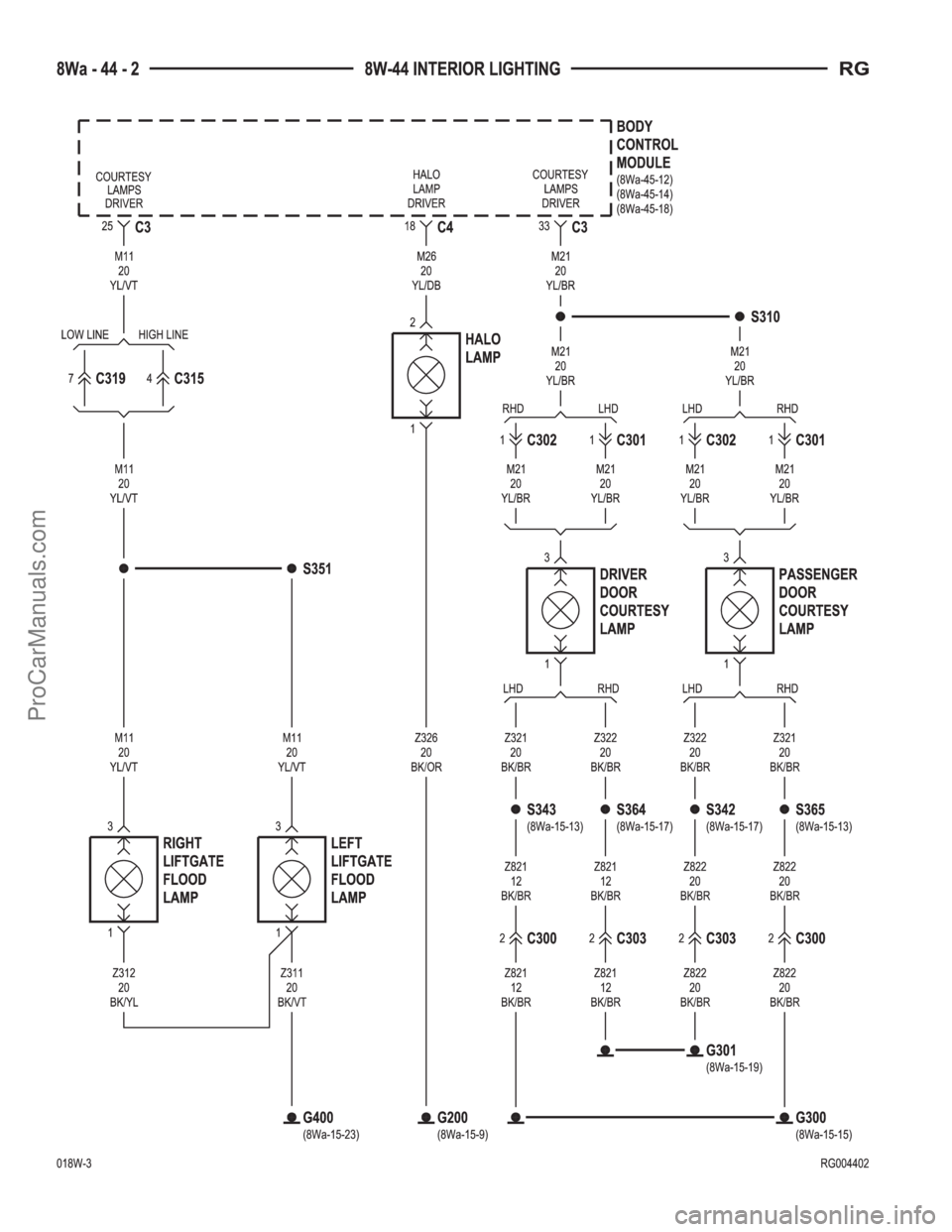

Driver Door Courtesy Lamp........... 8Wa-44-2
Floor Console Lamp................. 8Wa-44-4

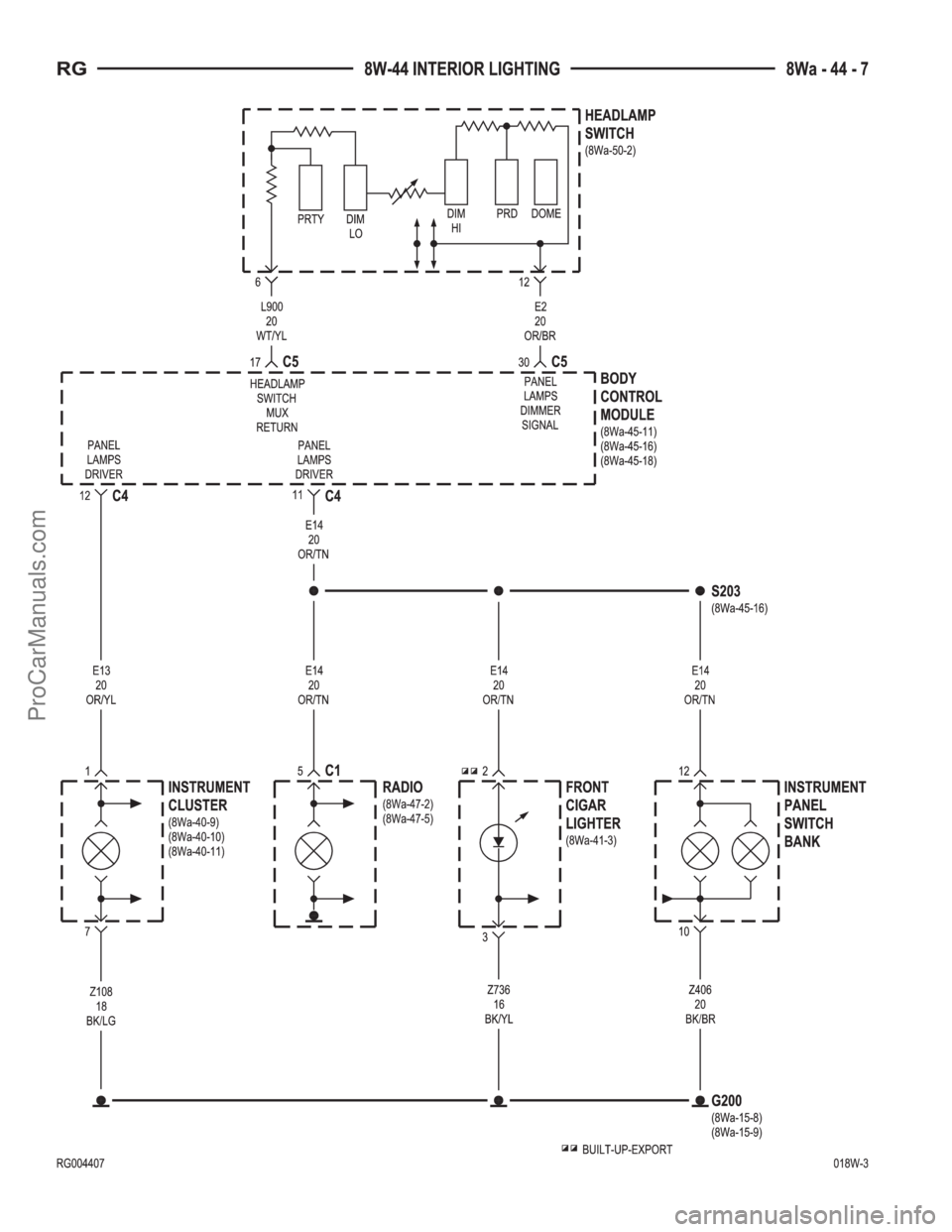

Front Cigar Lighter.................. 8Wa-44-7
Front Control Module................ 8Wa-44-4
Front Reading Lamps/Switch........ 8Wa-44-4, 5
Fuse 6 (IPM)....................... 8Wa-44-4
G200....................... 8Wa-44-2, 5, 7, 8
G300........................... 8Wa-44-2, 8
G301....................... 8Wa-44-2, 3, 5, 6
G302............................. 8Wa-44-4
G400............................. 8Wa-44-2
Glove Box Lamp.................... 8Wa-44-5
Halo Lamp........................ 8Wa-44-2
Headlamp Switch........... 8Wa-44-3, 5, 6, 7, 8
Instrument Cluster.................. 8Wa-44-7
Instrument Panel Switch Bank......... 8Wa-44-7
Intelligent Power Module............. 8Wa-44-4
Left Liftgate Flood Lamp............. 8Wa-44-2

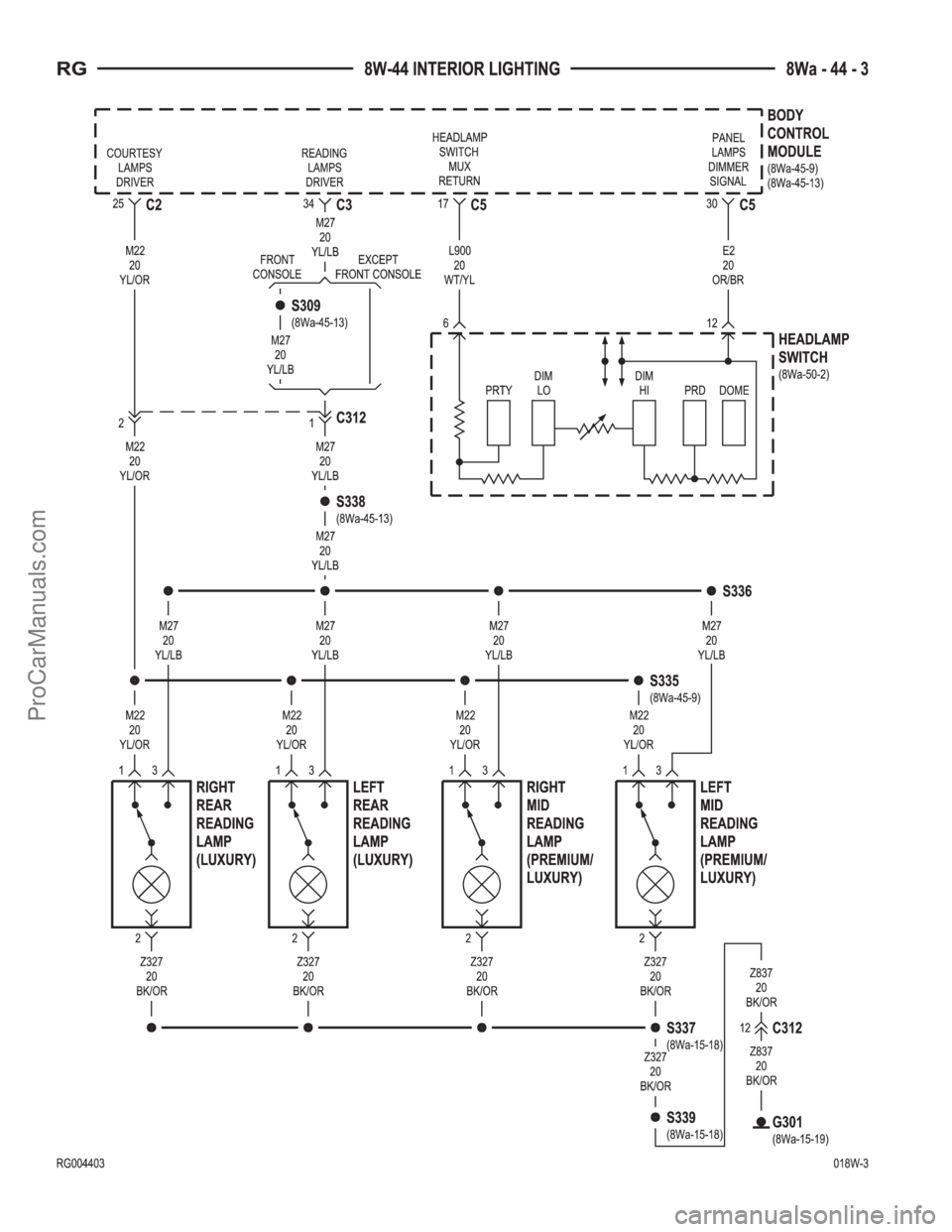

Left Mid Reading Lamp.............. 8Wa-44-3
Left Rear Reading Lamp.............. 8Wa-44-3

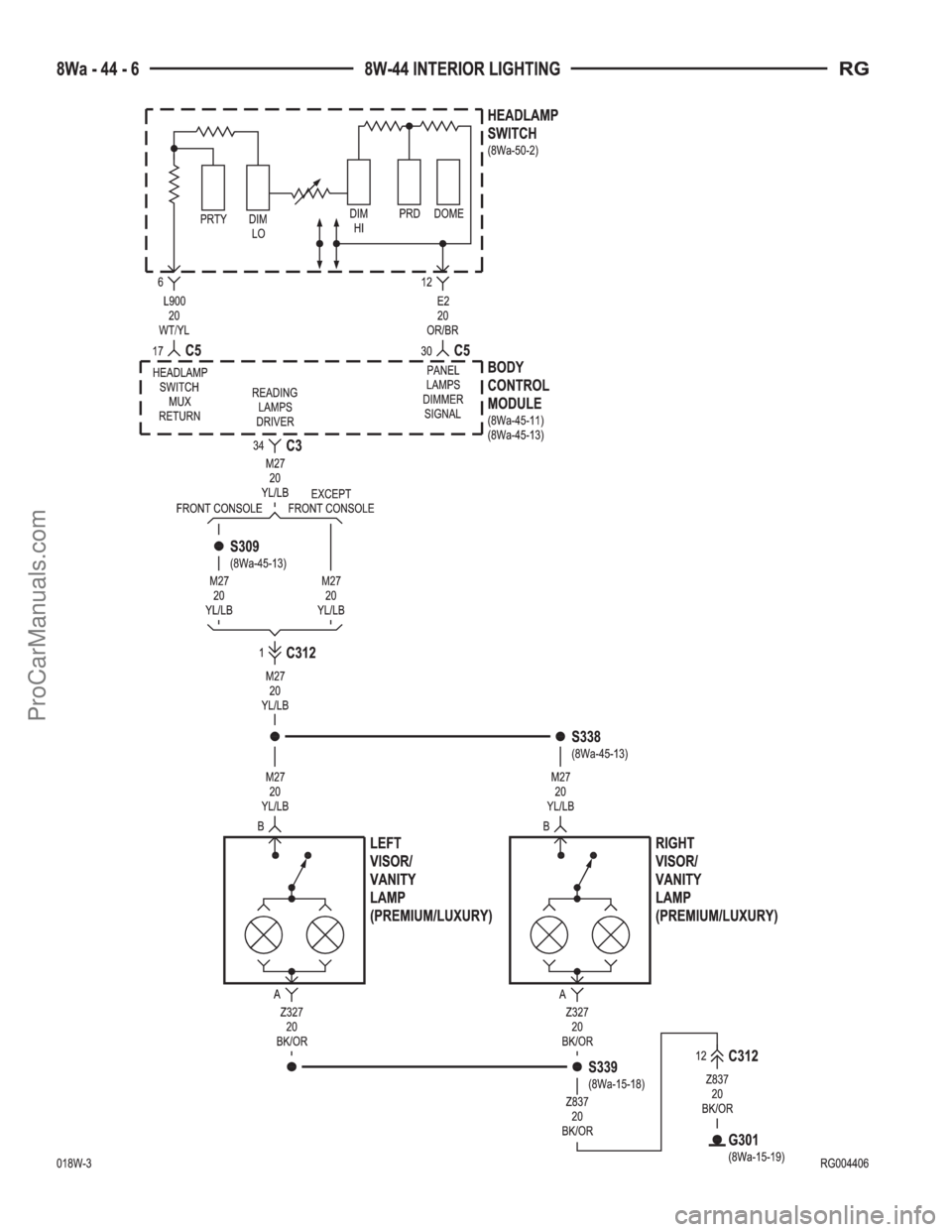

Left Visor/Vanity Lamp............... 8Wa-44-6
Overhead Console................... 8Wa-44-5
Passenger Door Courtesy Lamp........ 8Wa-44-2
Power Mirror Switch................. 8Wa-44-8
Radio............................. 8Wa-44-7
Rear Auto Temp Control Switch........ 8Wa-44-8
Rear Blower Rear Control Switch....... 8Wa-44-8
Rear Dome Lamp................... 8Wa-44-5
Right Liftgate Flood Lamp............ 8Wa-44-2
Right Mid Reading Lamp............. 8Wa-44-3
Right Rear Reading Lamp............. 8Wa-44-3
Right Visor/Vanity Lamp.............. 8Wa-44-6
RG8W-44 INTERIOR LIGHTING8Wa-44-1
ProCarManuals.com
8W-45 BODY CONTROL MODULE
Component Page
A/C-Heater Control.............. 8Wa-45-15, 18
Auto Temp Control.............. 8Wa-45-15, 18
Automatic Day/Night Mirror.......... 8Wa-45-11
Body Control Module . . 8Wa-45-2, 3, 4, 5, 6, 7, 8, 9,
10, 11, 12, 13, 14, 15, 16, 17, 18, 19
Center Dome Lamp............... 8Wa-45-9, 13
Clockspring....................... 8Wa-45-16
Controller Antilock Brake............ 8Wa-45-13
Diagnostic Junction Port............. 8Wa-45-12
Driver Door Courtesy Lamp.......... 8Wa-45-14
Driver Door Lock Switch.......... 8Wa-45-12, 14
Driver Heated Seat Module........... 8Wa-45-11
Floor Console Lamp................ 8Wa-45-13
Front Cigar Lighter................. 8Wa-45-16
Front Control Module................ 8Wa-45-3
Front Reading Lamps/Switch....... 8Wa-45-8, 13
Fuel Pump Module................. 8Wa-45-14
Fuse 14 (IPM)...................... 8Wa-45-3
Fuse 19 (IPM)...................... 8Wa-45-2
Fuse 20 (IPM)...................... 8Wa-45-2
Fuse 24 (IPM)...................... 8Wa-45-2
G301......................... 8Wa-45-5, 6, 8
Glove Box Lamp................... 8Wa-45-18
Halo Lamp....................... 8Wa-45-18
Headlamp Switch............. 8Wa-45-11, 15, 19
Hood Ajar Switch.................. 8Wa-45-12
Ignition Switch..................... 8Wa-45-3
Instrument Cluster.............. 8Wa-45-15, 18
Instrument Panel Switch Bank . . 8Wa-45-10, 11, 16,
18
Intelligent Power Module..... 8Wa-45-2, 3, 5, 6, 13
Left B-Pillar Switch................. 8Wa-45-9
Left Cylinder Lock Switch............ 8Wa-45-10
Left Front Door Lock Motor/Ajar Switch . 8Wa-45-4,
7
Left Liftgate Flood Lamp............ 8Wa-45-12
Left Mid Reading Lamp........... 8Wa-45-9, 14
Left Power Mirror.................. 8Wa-45-19
Left Rear Lamp Assembly........... 8Wa-45-5, 6
Left Rear Reading Lamp........... 8Wa-45-9, 14
Left Remote Radio Switch............ 8Wa-45-16
Left Repeater Lamp................ 8Wa-45-19
Left Sliding Door Control Module.... 8Wa-45-8, 10
Left Sliding Door Lock Motor.......... 8Wa-45-7
Left Sliding Door Lock Motor/Ajar Switch. 8Wa-45-7,
8
Left Stop/Turn Signal Relay........... 8Wa-45-5
Left Visor/Vanity Lamp.............. 8Wa-45-13
License Lamp...................... 8Wa-45-8
Liftgate Ajar Switch................ 8Wa-45-12
Liftgate Cinch/Release Motor......... 8Wa-45-12
Liftgate Cylinder Lock Switch.......... 8Wa-45-9Component Page
Memory Seat Switch................. 8Wa-45-4
Message Center.................... 8Wa-45-17
Multi- Function Switch.............. 8Wa-45-15
Name Brand Speaker Relay........... 8Wa-45-3
Overhead Console................ 8Wa-45-4, 11
Passenger Door Courtesy Lamp....... 8Wa-45-14
Passenger Door Lock Switch....... 8Wa-45-12, 14
Passenger Folding Mirror Relay....... 8Wa-45-19
Passenger Heated Seat Module........ 8Wa-45-11
Power Folding Mirror Switch......... 8Wa-45-19
Power Liftgate Module............... 8Wa-45-8
Power Mirror Switch................ 8Wa-45-15
Radio............................ 8Wa-45-16
Rear Auto Temp Control Switch.... 8Wa-45-10, 18
Rear Blower Rear Control Switch...... 8Wa-45-10
Rear Dome Lamp................... 8Wa-45-9
Rear Wiper Motor................... 8Wa-45-8
Remote Keyless Entry Module...... 8Wa-45-4, 15
Right B-Pillar Switch................ 8Wa-45-9
Right Combination Relay............. 8Wa-45-5
Right Cylinder Lock Switch........... 8Wa-45-10
Right Front Door Lock Motor/Ajar Switch. 8Wa-45-7,
9
Right Liftgate Flood Lamp........... 8Wa-45-12
Right Mid Reading Lamp.......... 8Wa-45-9, 14
Right Power Mirror................. 8Wa-45-19
Right Rear Lamp Assembly.......... 8Wa-45-5, 6
Right Rear Reading Lamp.......... 8Wa-45-9, 14
Right Remote Radio Switch........... 8Wa-45-16
Right Repeater Lamp............... 8Wa-45-19
Right Sliding Door Control Module . . . 8Wa-45-8, 10
Right Sliding Door Lock Motor......... 8Wa-45-7
Right Sliding Door Lock Motor/Ajar Switch. 8Wa-45-7,
8
Right Visor/Vanity Lamp............. 8Wa-45-13
Thatcham Alarm Module............. 8Wa-45-10
Traction Control Switch............. 8Wa-45-16
RG8W-45 BODY CONTROL MODULE8Wa-45-1
ProCarManuals.com
