Page 1034 of 2399

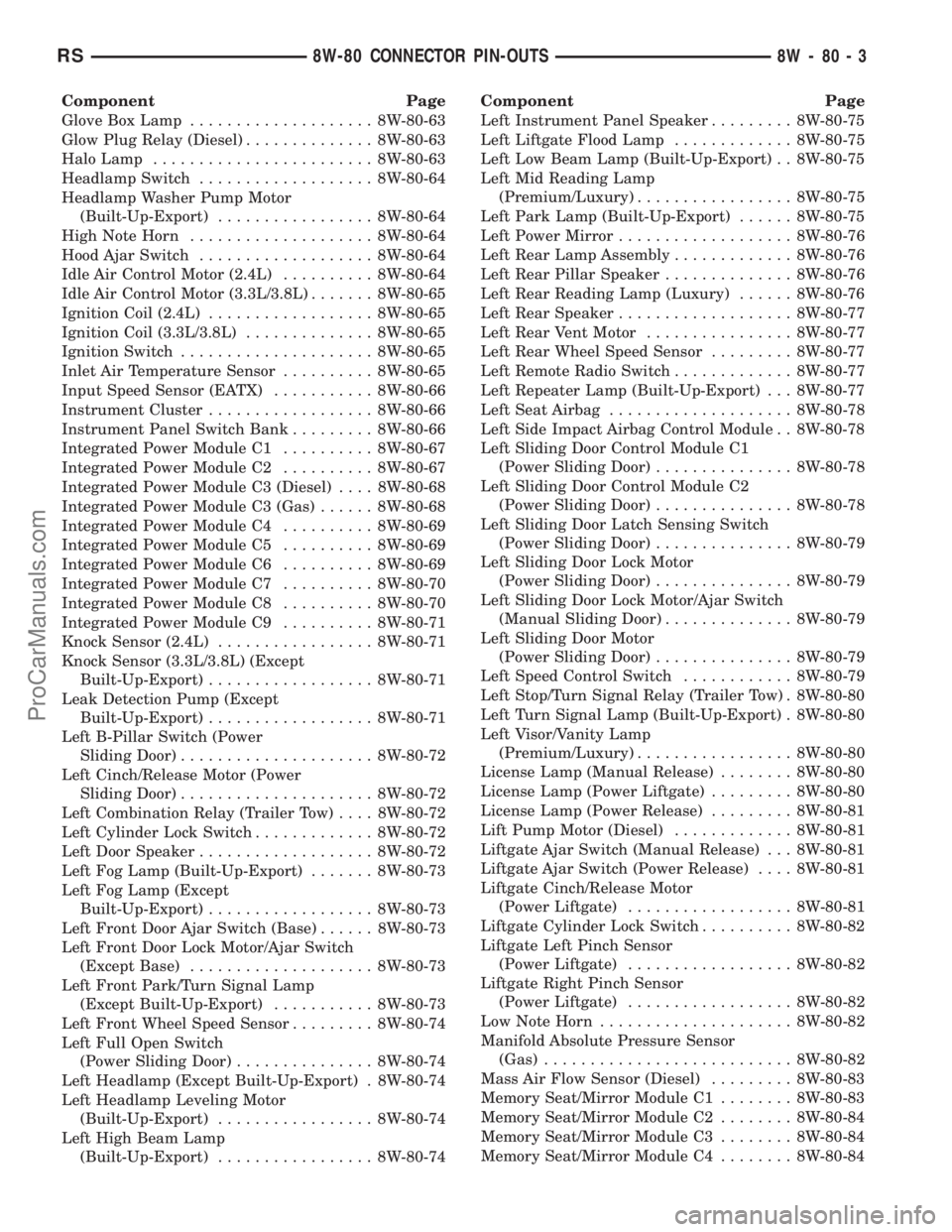

Component Page
Glove Box Lamp.................... 8W-80-63
Glow Plug Relay (Diesel).............. 8W-80-63
Halo Lamp........................ 8W-80-63
Headlamp Switch................... 8W-80-64
Headlamp Washer Pump Motor
(Built-Up-Export)................. 8W-80-64
High Note Horn.................... 8W-80-64
Hood Ajar Switch................... 8W-80-64
Idle Air Control Motor (2.4L).......... 8W-80-64
Idle Air Control Motor (3.3L/3.8L)....... 8W-80-65
Ignition Coil (2.4L).................. 8W-80-65
Ignition Coil (3.3L/3.8L).............. 8W-80-65
Ignition Switch..................... 8W-80-65
Inlet Air Temperature Sensor.......... 8W-80-65
Input Speed Sensor (EATX)........... 8W-80-66
Instrument Cluster.................. 8W-80-66
Instrument Panel Switch Bank......... 8W-80-66
Integrated Power Module C1.......... 8W-80-67
Integrated Power Module C2.......... 8W-80-67
Integrated Power Module C3 (Diesel).... 8W-80-68
Integrated Power Module C3 (Gas)...... 8W-80-68
Integrated Power Module C4.......... 8W-80-69
Integrated Power Module C5.......... 8W-80-69
Integrated Power Module C6.......... 8W-80-69
Integrated Power Module C7.......... 8W-80-70
Integrated Power Module C8.......... 8W-80-70
Integrated Power Module C9.......... 8W-80-71
Knock Sensor (2.4L)................. 8W-80-71
Knock Sensor (3.3L/3.8L) (Except
Built-Up-Export).................. 8W-80-71
Leak Detection Pump (Except
Built-Up-Export).................. 8W-80-71
Left B-Pillar Switch (Power
Sliding Door)..................... 8W-80-72
Left Cinch/Release Motor (Power
Sliding Door)..................... 8W-80-72
Left Combination Relay (Trailer Tow).... 8W-80-72
Left Cylinder Lock Switch............. 8W-80-72
Left Door Speaker................... 8W-80-72
Left Fog Lamp (Built-Up-Export)....... 8W-80-73
Left Fog Lamp (Except
Built-Up-Export).................. 8W-80-73
Left Front Door Ajar Switch (Base)...... 8W-80-73
Left Front Door Lock Motor/Ajar Switch
(Except Base).................... 8W-80-73
Left Front Park/Turn Signal Lamp
(Except Built-Up-Export)........... 8W-80-73
Left Front Wheel Speed Sensor......... 8W-80-74
Left Full Open Switch
(Power Sliding Door)............... 8W-80-74
Left Headlamp (Except Built-Up-Export) . 8W-80-74
Left Headlamp Leveling Motor
(Built-Up-Export)................. 8W-80-74
Left High Beam Lamp
(Built-Up-Export)................. 8W-80-74Component Page
Left Instrument Panel Speaker......... 8W-80-75
Left Liftgate Flood Lamp............. 8W-80-75
Left Low Beam Lamp (Built-Up-Export) . . 8W-80-75
Left Mid Reading Lamp
(Premium/Luxury)................. 8W-80-75
Left Park Lamp (Built-Up-Export)...... 8W-80-75
Left Power Mirror................... 8W-80-76
Left Rear Lamp Assembly............. 8W-80-76
Left Rear Pillar Speaker.............. 8W-80-76
Left Rear Reading Lamp (Luxury)...... 8W-80-76
Left Rear Speaker................... 8W-80-77
Left Rear Vent Motor................ 8W-80-77
Left Rear Wheel Speed Sensor......... 8W-80-77
Left Remote Radio Switch............. 8W-80-77
Left Repeater Lamp (Built-Up-Export) . . . 8W-80-77
Left Seat Airbag.................... 8W-80-78
Left Side Impact Airbag Control Module . . 8W-80-78
Left Sliding Door Control Module C1
(Power Sliding Door)............... 8W-80-78
Left Sliding Door Control Module C2
(Power Sliding Door)............... 8W-80-78
Left Sliding Door Latch Sensing Switch
(Power Sliding Door)............... 8W-80-79
Left Sliding Door Lock Motor
(Power Sliding Door)............... 8W-80-79
Left Sliding Door Lock Motor/Ajar Switch
(Manual Sliding Door).............. 8W-80-79
Left Sliding Door Motor
(Power Sliding Door)............... 8W-80-79
Left Speed Control Switch............ 8W-80-79
Left Stop/Turn Signal Relay (Trailer Tow) . 8W-80-80
Left Turn Signal Lamp (Built-Up-Export) . 8W-80-80
Left Visor/Vanity Lamp
(Premium/Luxury)................. 8W-80-80
License Lamp (Manual Release)........ 8W-80-80
License Lamp (Power Liftgate)......... 8W-80-80
License Lamp (Power Release)......... 8W-80-81
Lift Pump Motor (Diesel)............. 8W-80-81
Liftgate Ajar Switch (Manual Release) . . . 8W-80-81
Liftgate Ajar Switch (Power Release).... 8W-80-81
Liftgate Cinch/Release Motor
(Power Liftgate).................. 8W-80-81
Liftgate Cylinder Lock Switch.......... 8W-80-82
Liftgate Left Pinch Sensor
(Power Liftgate).................. 8W-80-82
Liftgate Right Pinch Sensor
(Power Liftgate).................. 8W-80-82
Low Note Horn..................... 8W-80-82
Manifold Absolute Pressure Sensor
(Gas)........................... 8W-80-82
Mass Air Flow Sensor (Diesel)......... 8W-80-83
Memory Seat/Mirror Module C1........ 8W-80-83
Memory Seat/Mirror Module C2........ 8W-80-84
Memory Seat/Mirror Module C3........ 8W-80-84
Memory Seat/Mirror Module C4........ 8W-80-84
RS8W-80 CONNECTOR PIN-OUTS8W-80-3
ProCarManuals.com
Page 1035 of 2399

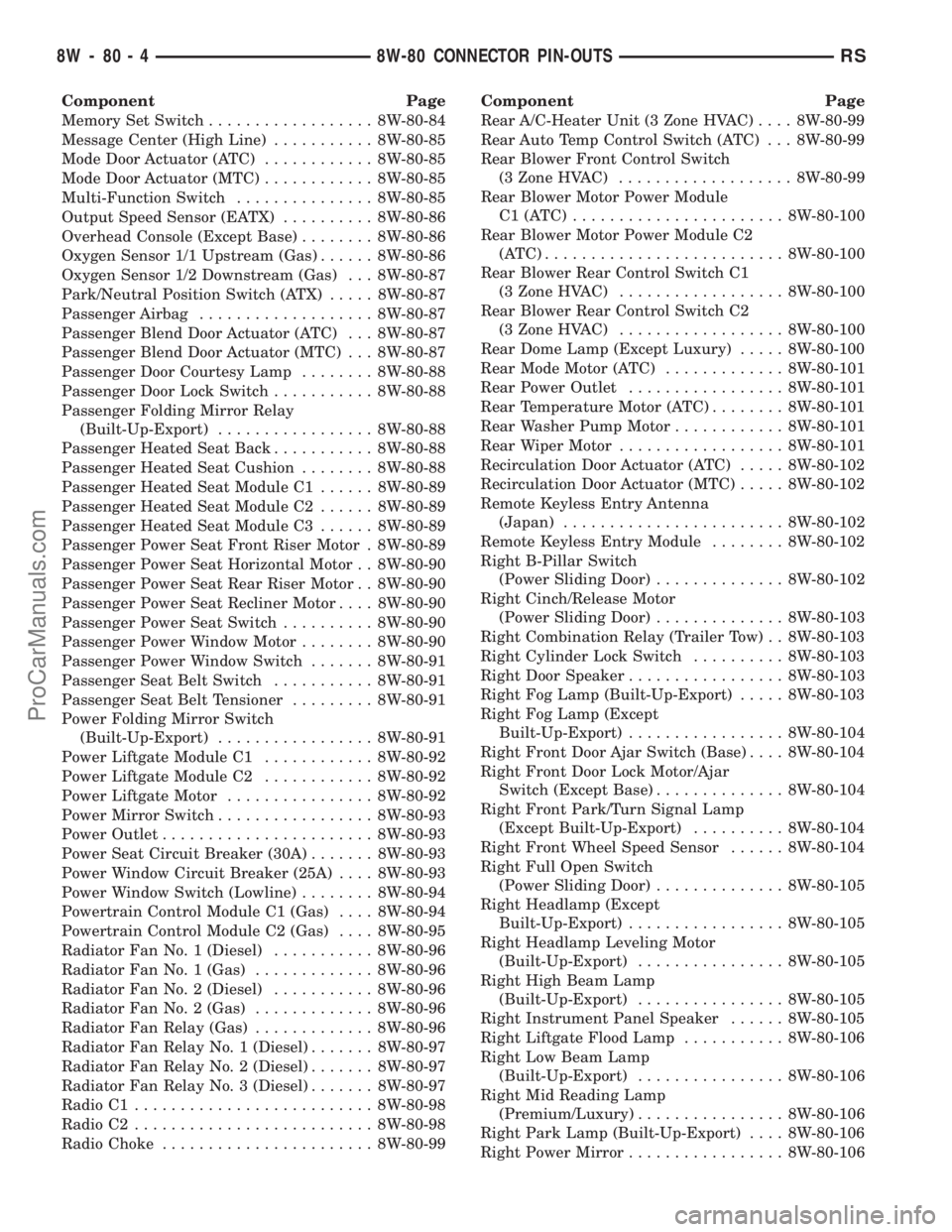

Component Page
Memory Set Switch.................. 8W-80-84
Message Center (High Line)........... 8W-80-85
Mode Door Actuator (ATC)............ 8W-80-85
Mode Door Actuator (MTC)............ 8W-80-85
Multi-Function Switch............... 8W-80-85
Output Speed Sensor (EATX).......... 8W-80-86
Overhead Console (Except Base)........ 8W-80-86
Oxygen Sensor 1/1 Upstream (Gas)...... 8W-80-86
Oxygen Sensor 1/2 Downstream (Gas) . . . 8W-80-87
Park/Neutral Position Switch (ATX)..... 8W-80-87
Passenger Airbag................... 8W-80-87
Passenger Blend Door Actuator (ATC) . . . 8W-80-87
Passenger Blend Door Actuator (MTC) . . . 8W-80-87
Passenger Door Courtesy Lamp........ 8W-80-88
Passenger Door Lock Switch........... 8W-80-88
Passenger Folding Mirror Relay
(Built-Up-Export)................. 8W-80-88
Passenger Heated Seat Back........... 8W-80-88
Passenger Heated Seat Cushion........ 8W-80-88
Passenger Heated Seat Module C1...... 8W-80-89
Passenger Heated Seat Module C2...... 8W-80-89
Passenger Heated Seat Module C3...... 8W-80-89
Passenger Power Seat Front Riser Motor . 8W-80-89
Passenger Power Seat Horizontal Motor . . 8W-80-90
Passenger Power Seat Rear Riser Motor . . 8W-80-90
Passenger Power Seat Recliner Motor.... 8W-80-90
Passenger Power Seat Switch.......... 8W-80-90
Passenger Power Window Motor........ 8W-80-90
Passenger Power Window Switch....... 8W-80-91
Passenger Seat Belt Switch........... 8W-80-91
Passenger Seat Belt Tensioner......... 8W-80-91
Power Folding Mirror Switch
(Built-Up-Export)................. 8W-80-91
Power Liftgate Module C1............ 8W-80-92
Power Liftgate Module C2............ 8W-80-92
Power Liftgate Motor................ 8W-80-92
Power Mirror Switch................. 8W-80-93
Power Outlet....................... 8W-80-93
Power Seat Circuit Breaker (30A)....... 8W-80-93
Power Window Circuit Breaker (25A).... 8W-80-93
Power Window Switch (Lowline)........ 8W-80-94
Powertrain Control Module C1 (Gas).... 8W-80-94
Powertrain Control Module C2 (Gas).... 8W-80-95
Radiator Fan No. 1 (Diesel)........... 8W-80-96
Radiator Fan No. 1 (Gas)............. 8W-80-96
Radiator Fan No. 2 (Diesel)........... 8W-80-96
Radiator Fan No. 2 (Gas)............. 8W-80-96
Radiator Fan Relay (Gas)............. 8W-80-96
Radiator Fan Relay No. 1 (Diesel)....... 8W-80-97
Radiator Fan Relay No. 2 (Diesel)....... 8W-80-97
Radiator Fan Relay No. 3 (Diesel)....... 8W-80-97
Radio C1.......................... 8W-80-98
Radio C2.......................... 8W-80-98
Radio Choke....................... 8W-80-99Component Page
Rear A/C-Heater Unit (3 Zone HVAC).... 8W-80-99
Rear Auto Temp Control Switch (ATC) . . . 8W-80-99
Rear Blower Front Control Switch
(3 Zone HVAC)................... 8W-80-99
Rear Blower Motor Power Module
C1(ATC) ....................... 8W-80-100
Rear Blower Motor Power Module C2
(ATC).......................... 8W-80-100
Rear Blower Rear Control Switch C1
(3 Zone HVAC).................. 8W-80-100
Rear Blower Rear Control Switch C2
(3 Zone HVAC).................. 8W-80-100
Rear Dome Lamp (Except Luxury)..... 8W-80-100
Rear Mode Motor (ATC)............. 8W-80-101
Rear Power Outlet................. 8W-80-101
Rear Temperature Motor (ATC)........ 8W-80-101
Rear Washer Pump Motor............ 8W-80-101
Rear Wiper Motor.................. 8W-80-101
Recirculation Door Actuator (ATC)..... 8W-80-102
Recirculation Door Actuator (MTC)..... 8W-80-102
Remote Keyless Entry Antenna
(Japan)........................ 8W-80-102
Remote Keyless Entry Module........ 8W-80-102
Right B-Pillar Switch
(Power Sliding Door).............. 8W-80-102
Right Cinch/Release Motor
(Power Sliding Door).............. 8W-80-103
Right Combination Relay (Trailer Tow) . . 8W-80-103
Right Cylinder Lock Switch.......... 8W-80-103
Right Door Speaker................. 8W-80-103
Right Fog Lamp (Built-Up-Export)..... 8W-80-103
Right Fog Lamp (Except
Built-Up-Export)................. 8W-80-104
Right Front Door Ajar Switch (Base).... 8W-80-104
Right Front Door Lock Motor/Ajar
Switch (Except Base).............. 8W-80-104
Right Front Park/Turn Signal Lamp
(Except Built-Up-Export).......... 8W-80-104
Right Front Wheel Speed Sensor...... 8W-80-104
Right Full Open Switch
(Power Sliding Door).............. 8W-80-105
Right Headlamp (Except
Built-Up-Export)................. 8W-80-105
Right Headlamp Leveling Motor
(Built-Up-Export)................ 8W-80-105
Right High Beam Lamp
(Built-Up-Export)................ 8W-80-105
Right Instrument Panel Speaker...... 8W-80-105
Right Liftgate Flood Lamp........... 8W-80-106
Right Low Beam Lamp
(Built-Up-Export)................ 8W-80-106
Right Mid Reading Lamp
(Premium/Luxury)................ 8W-80-106
Right Park Lamp (Built-Up-Export).... 8W-80-106
Right Power Mirror................. 8W-80-106
8W - 80 - 4 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com
Page 1036 of 2399

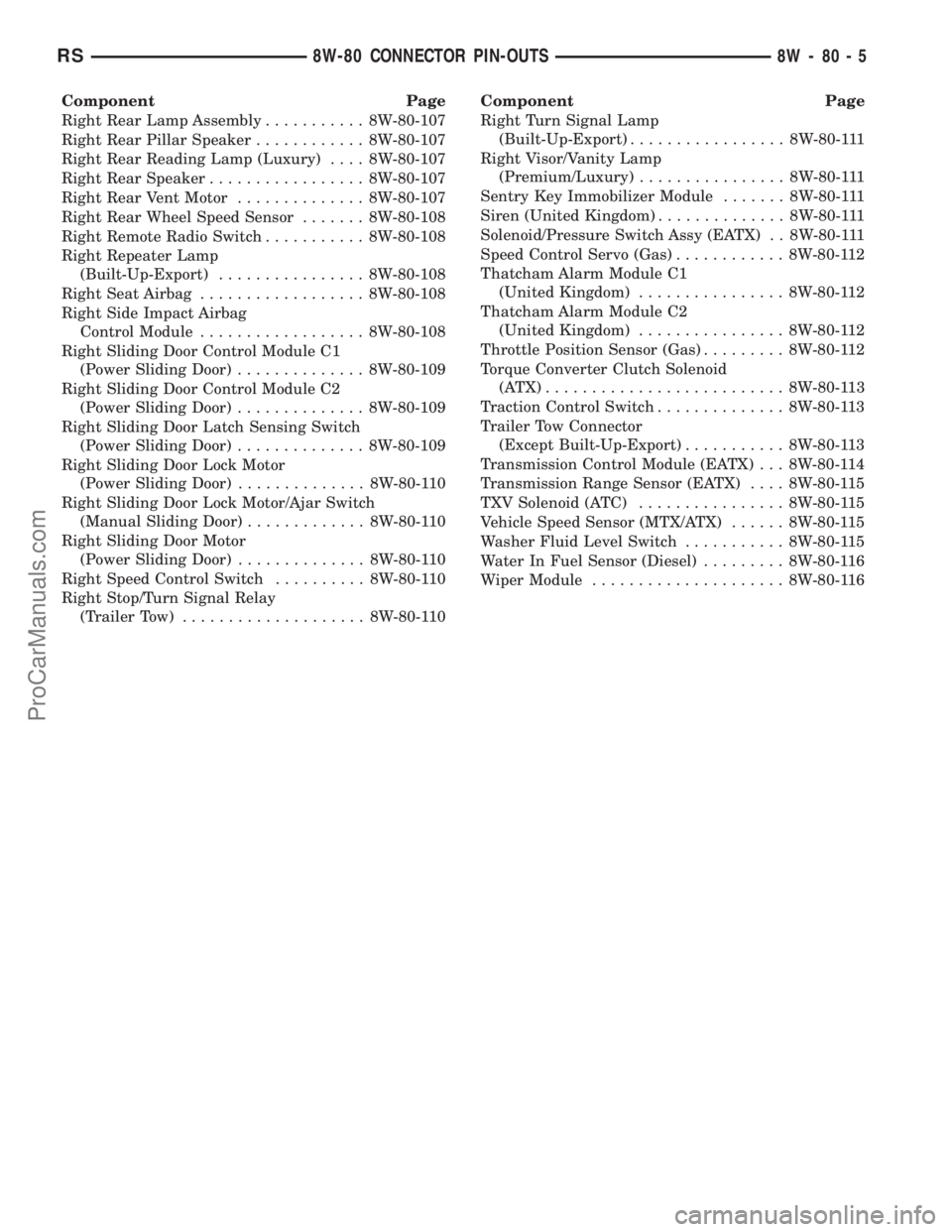

Component Page
Right Rear Lamp Assembly........... 8W-80-107
Right Rear Pillar Speaker............ 8W-80-107
Right Rear Reading Lamp (Luxury).... 8W-80-107
Right Rear Speaker................. 8W-80-107
Right Rear Vent Motor.............. 8W-80-107
Right Rear Wheel Speed Sensor....... 8W-80-108
Right Remote Radio Switch........... 8W-80-108
Right Repeater Lamp
(Built-Up-Export)................ 8W-80-108
Right Seat Airbag.................. 8W-80-108
Right Side Impact Airbag
Control Module.................. 8W-80-108
Right Sliding Door Control Module C1
(Power Sliding Door).............. 8W-80-109
Right Sliding Door Control Module C2
(Power Sliding Door).............. 8W-80-109
Right Sliding Door Latch Sensing Switch
(Power Sliding Door).............. 8W-80-109
Right Sliding Door Lock Motor
(Power Sliding Door).............. 8W-80-110
Right Sliding Door Lock Motor/Ajar Switch
(Manual Sliding Door)............. 8W-80-110
Right Sliding Door Motor
(Power Sliding Door).............. 8W-80-110
Right Speed Control Switch.......... 8W-80-110
Right Stop/Turn Signal Relay
(Trailer Tow).................... 8W-80-110Component Page
Right Turn Signal Lamp
(Built-Up-Export)................. 8W-80-111
Right Visor/Vanity Lamp
(Premium/Luxury)................ 8W-80-111
Sentry Key Immobilizer Module....... 8W-80-111
Siren (United Kingdom).............. 8W-80-111
Solenoid/Pressure Switch Assy (EATX) . . 8W-80-111
Speed Control Servo (Gas)............ 8W-80-112
Thatcham Alarm Module C1
(United Kingdom)................ 8W-80-112
Thatcham Alarm Module C2
(United Kingdom)................ 8W-80-112
Throttle Position Sensor (Gas)......... 8W-80-112
Torque Converter Clutch Solenoid
(ATX).......................... 8W-80-113
Traction Control Switch.............. 8W-80-113
Trailer Tow Connector
(Except Built-Up-Export)........... 8W-80-113
Transmission Control Module (EATX) . . . 8W-80-114
Transmission Range Sensor (EATX).... 8W-80-115
TXV Solenoid (ATC)................ 8W-80-115
Vehicle Speed Sensor (MTX/ATX)...... 8W-80-115
Washer Fluid Level Switch........... 8W-80-115
Water In Fuel Sensor (Diesel)......... 8W-80-116
Wiper Module..................... 8W-80-116
RS8W-80 CONNECTOR PIN-OUTS8W-80-5
ProCarManuals.com
Page 1037 of 2399

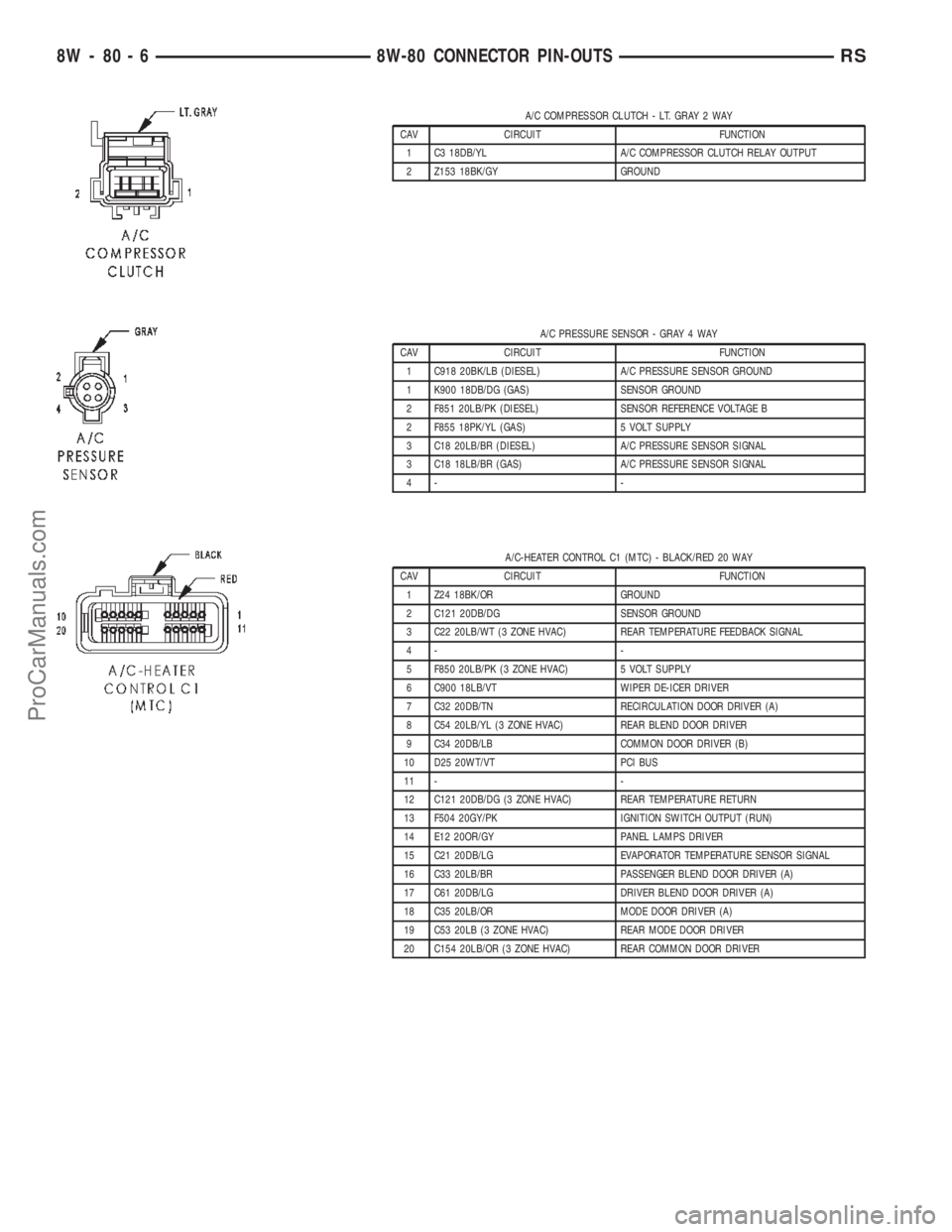

A/C COMPRESSOR CLUTCH - LT. GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C3 18DB/YL A/C COMPRESSOR CLUTCH RELAY OUTPUT
2 Z153 18BK/GY GROUND
A/C PRESSURE SENSOR - GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 C918 20BK/LB (DIESEL) A/C PRESSURE SENSOR GROUND
1 K900 18DB/DG (GAS) SENSOR GROUND
2 F851 20LB/PK (DIESEL) SENSOR REFERENCE VOLTAGE B
2 F855 18PK/YL (GAS) 5 VOLT SUPPLY
3 C18 20LB/BR (DIESEL) A/C PRESSURE SENSOR SIGNAL
3 C18 18LB/BR (GAS) A/C PRESSURE SENSOR SIGNAL
4- -
A/C-HEATER CONTROL C1 (MTC) - BLACK/RED 20 WAY
CAV CIRCUIT FUNCTION
1 Z24 18BK/OR GROUND
2 C121 20DB/DG SENSOR GROUND
3 C22 20LB/WT (3 ZONE HVAC) REAR TEMPERATURE FEEDBACK SIGNAL
4- -
5 F850 20LB/PK (3 ZONE HVAC) 5 VOLT SUPPLY
6 C900 18LB/VT WIPER DE-ICER DRIVER
7 C32 20DB/TN RECIRCULATION DOOR DRIVER (A)
8 C54 20LB/YL (3 ZONE HVAC) REAR BLEND DOOR DRIVER
9 C34 20DB/LB COMMON DOOR DRIVER (B)
10 D25 20WT/VT PCI BUS
11 - -
12 C121 20DB/DG (3 ZONE HVAC) REAR TEMPERATURE RETURN
13 F504 20GY/PK IGNITION SWITCH OUTPUT (RUN)
14 E12 20OR/GY PANEL LAMPS DRIVER
15 C21 20DB/LG EVAPORATOR TEMPERATURE SENSOR SIGNAL
16 C33 20LB/BR PASSENGER BLEND DOOR DRIVER (A)
17 C61 20DB/LG DRIVER BLEND DOOR DRIVER (A)
18 C35 20LB/OR MODE DOOR DRIVER (A)
19 C53 20LB (3 ZONE HVAC) REAR MODE DOOR DRIVER
20 C154 20LB/OR (3 ZONE HVAC) REAR COMMON DOOR DRIVER
8W - 80 - 6 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com
Page 1038 of 2399

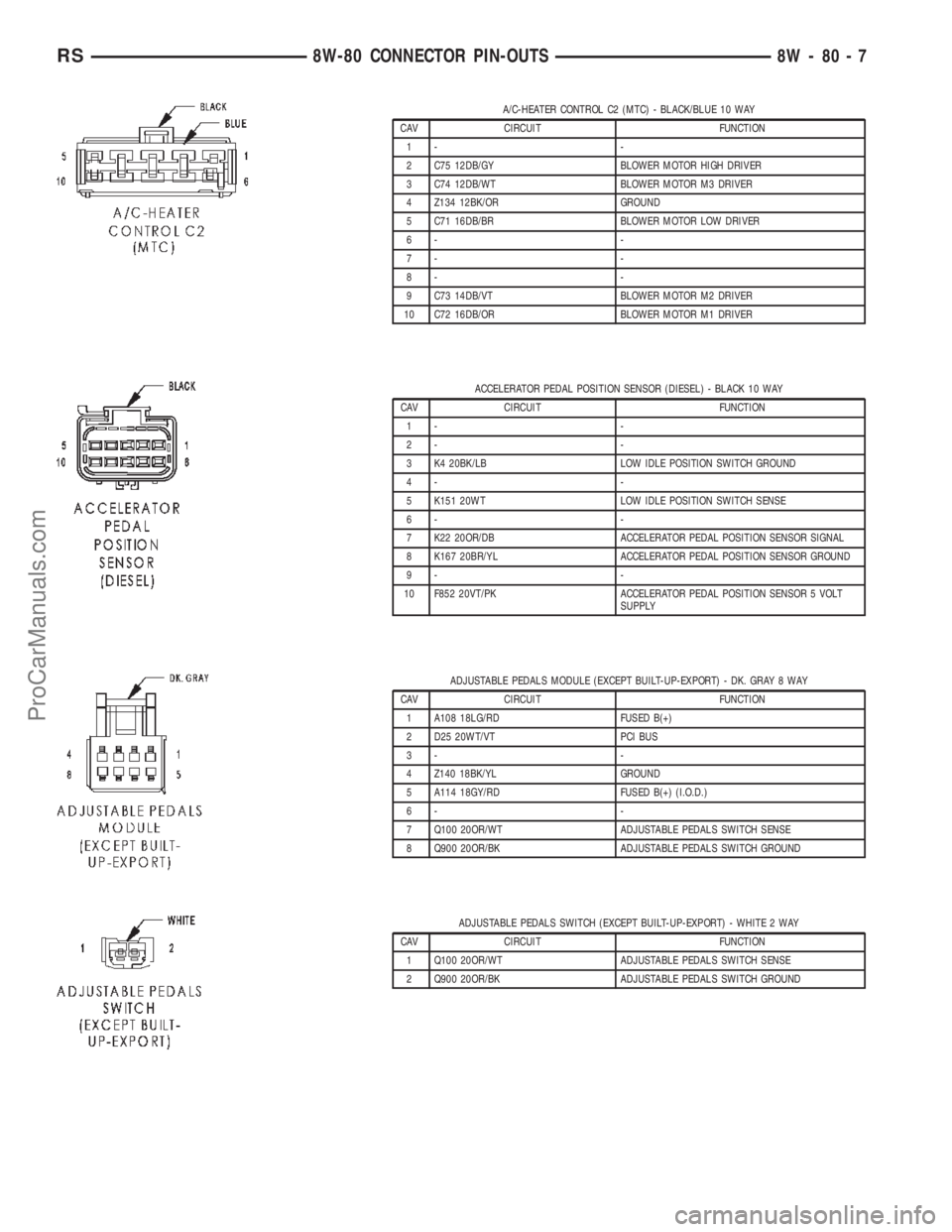

A/C-HEATER CONTROL C2 (MTC) - BLACK/BLUE 10 WAY
CAV CIRCUIT FUNCTION
1- -
2 C75 12DB/GY BLOWER MOTOR HIGH DRIVER
3 C74 12DB/WT BLOWER MOTOR M3 DRIVER
4 Z134 12BK/OR GROUND
5 C71 16DB/BR BLOWER MOTOR LOW DRIVER
6- -
7- -
8- -
9 C73 14DB/VT BLOWER MOTOR M2 DRIVER
10 C72 16DB/OR BLOWER MOTOR M1 DRIVER
ACCELERATOR PEDAL POSITION SENSOR (DIESEL) - BLACK 10 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3 K4 20BK/LB LOW IDLE POSITION SWITCH GROUND
4- -
5 K151 20WT LOW IDLE POSITION SWITCH SENSE
6- -
7 K22 20OR/DB ACCELERATOR PEDAL POSITION SENSOR SIGNAL
8 K167 20BR/YL ACCELERATOR PEDAL POSITION SENSOR GROUND
9- -
10 F852 20VT/PK ACCELERATOR PEDAL POSITION SENSOR 5 VOLT
SUPPLY
ADJUSTABLE PEDALS MODULE (EXCEPT BUILT-UP-EXPORT) - DK. GRAY 8 WAY
CAV CIRCUIT FUNCTION
1 A108 18LG/RD FUSED B(+)
2 D25 20WT/VT PCI BUS
3- -
4 Z140 18BK/YL GROUND
5 A114 18GY/RD FUSED B(+) (I.O.D.)
6- -
7 Q100 20OR/WT ADJUSTABLE PEDALS SWITCH SENSE
8 Q900 20OR/BK ADJUSTABLE PEDALS SWITCH GROUND
ADJUSTABLE PEDALS SWITCH (EXCEPT BUILT-UP-EXPORT) - WHITE 2 WAY
CAV CIRCUIT FUNCTION
1 Q100 20OR/WT ADJUSTABLE PEDALS SWITCH SENSE
2 Q900 20OR/BK ADJUSTABLE PEDALS SWITCH GROUND
RS8W-80 CONNECTOR PIN-OUTS8W-80-7
ProCarManuals.com
Page 1039 of 2399

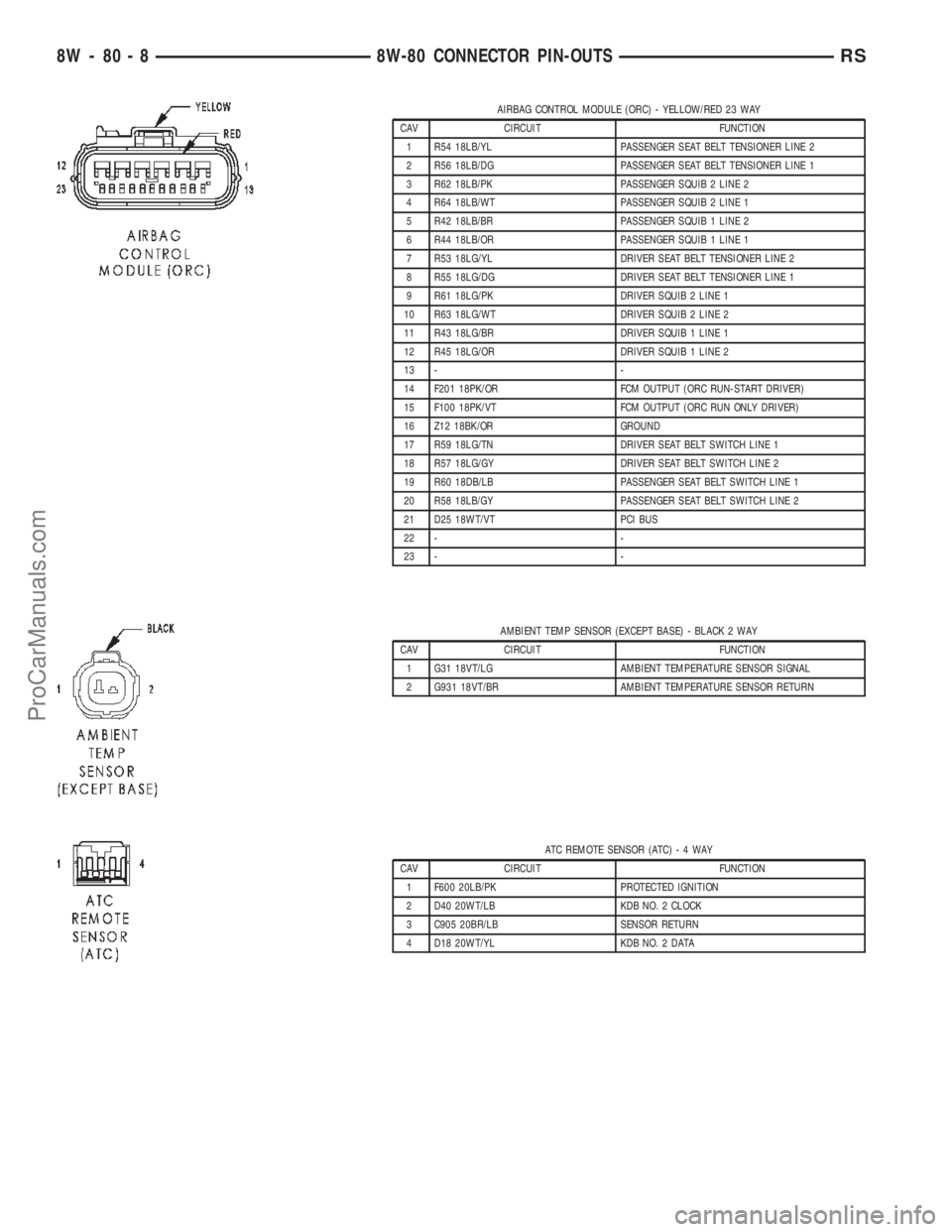

AIRBAG CONTROL MODULE (ORC) - YELLOW/RED 23 WAY
CAV CIRCUIT FUNCTION
1 R54 18LB/YL PASSENGER SEAT BELT TENSIONER LINE 2
2 R56 18LB/DG PASSENGER SEAT BELT TENSIONER LINE 1
3 R62 18LB/PK PASSENGER SQUIB 2 LINE 2
4 R64 18LB/WT PASSENGER SQUIB 2 LINE 1
5 R42 18LB/BR PASSENGER SQUIB 1 LINE 2
6 R44 18LB/OR PASSENGER SQUIB 1 LINE 1
7 R53 18LG/YL DRIVER SEAT BELT TENSIONER LINE 2
8 R55 18LG/DG DRIVER SEAT BELT TENSIONER LINE 1
9 R61 18LG/PK DRIVER SQUIB 2 LINE 1
10 R63 18LG/WT DRIVER SQUIB 2 LINE 2
11 R43 18LG/BR DRIVER SQUIB 1 LINE 1
12 R45 18LG/OR DRIVER SQUIB 1 LINE 2
13 - -
14 F201 18PK/OR FCM OUTPUT (ORC RUN-START DRIVER)
15 F100 18PK/VT FCM OUTPUT (ORC RUN ONLY DRIVER)
16 Z12 18BK/OR GROUND
17 R59 18LG/TN DRIVER SEAT BELT SWITCH LINE 1
18 R57 18LG/GY DRIVER SEAT BELT SWITCH LINE 2
19 R60 18DB/LB PASSENGER SEAT BELT SWITCH LINE 1
20 R58 18LB/GY PASSENGER SEAT BELT SWITCH LINE 2
21 D25 18WT/VT PCI BUS
22 - -
23 - -
AMBIENT TEMP SENSOR (EXCEPT BASE) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 G31 18VT/LG AMBIENT TEMPERATURE SENSOR SIGNAL
2 G931 18VT/BR AMBIENT TEMPERATURE SENSOR RETURN
ATC REMOTE SENSOR (ATC)-4WAY
CAV CIRCUIT FUNCTION
1 F600 20LB/PK PROTECTED IGNITION
2 D40 20WT/LB KDB NO. 2 CLOCK
3 C905 20BR/LB SENSOR RETURN
4 D18 20WT/YL KDB NO. 2 DATA
8W - 80 - 8 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com
Page 1040 of 2399

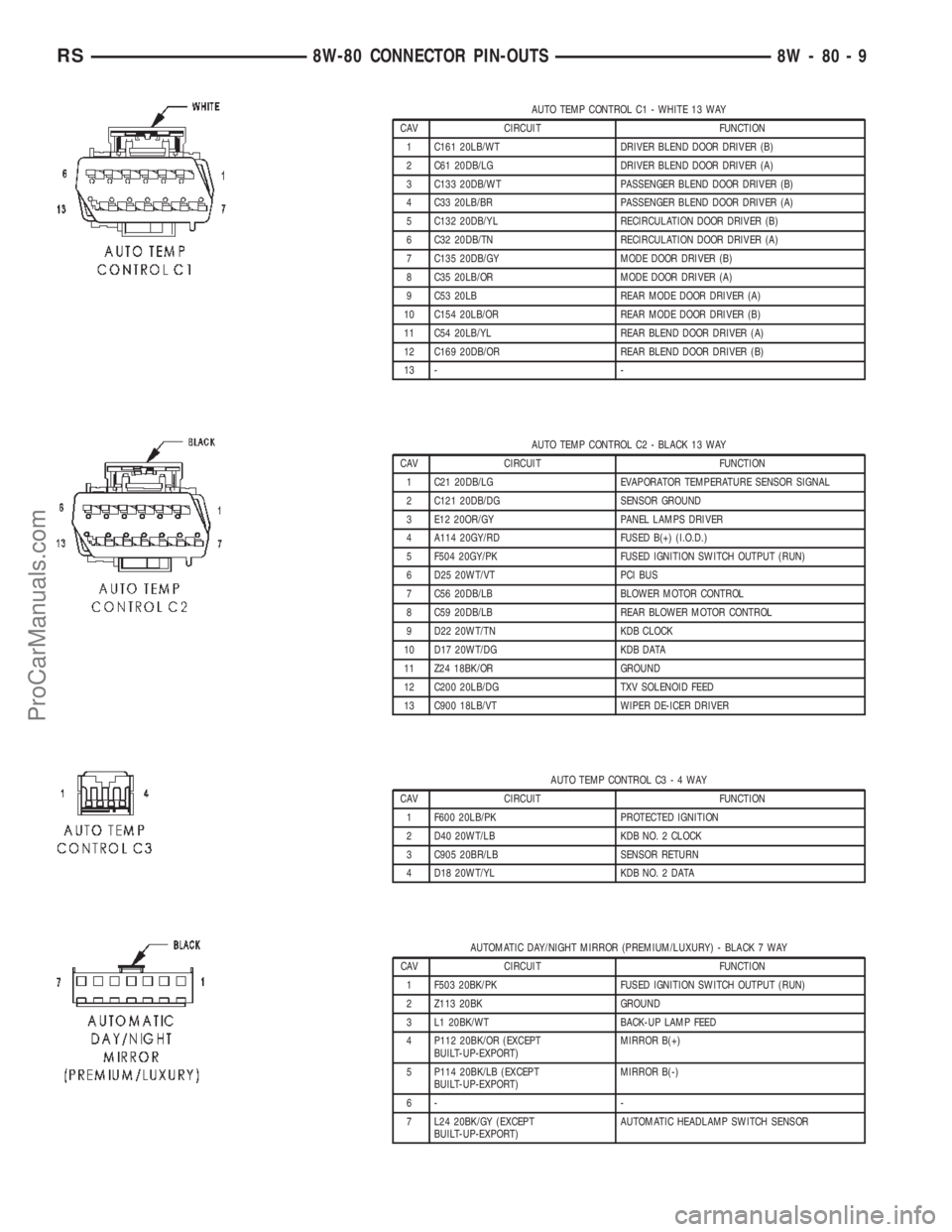

AUTO TEMP CONTROL C1 - WHITE 13 WAY
CAV CIRCUIT FUNCTION
1 C161 20LB/WT DRIVER BLEND DOOR DRIVER (B)
2 C61 20DB/LG DRIVER BLEND DOOR DRIVER (A)
3 C133 20DB/WT PASSENGER BLEND DOOR DRIVER (B)
4 C33 20LB/BR PASSENGER BLEND DOOR DRIVER (A)
5 C132 20DB/YL RECIRCULATION DOOR DRIVER (B)
6 C32 20DB/TN RECIRCULATION DOOR DRIVER (A)
7 C135 20DB/GY MODE DOOR DRIVER (B)
8 C35 20LB/OR MODE DOOR DRIVER (A)
9 C53 20LB REAR MODE DOOR DRIVER (A)
10 C154 20LB/OR REAR MODE DOOR DRIVER (B)
11 C54 20LB/YL REAR BLEND DOOR DRIVER (A)
12 C169 20DB/OR REAR BLEND DOOR DRIVER (B)
13 - -
AUTO TEMP CONTROL C2 - BLACK 13 WAY
CAV CIRCUIT FUNCTION
1 C21 20DB/LG EVAPORATOR TEMPERATURE SENSOR SIGNAL
2 C121 20DB/DG SENSOR GROUND
3 E12 20OR/GY PANEL LAMPS DRIVER
4 A114 20GY/RD FUSED B(+) (I.O.D.)
5 F504 20GY/PK FUSED IGNITION SWITCH OUTPUT (RUN)
6 D25 20WT/VT PCI BUS
7 C56 20DB/LB BLOWER MOTOR CONTROL
8 C59 20DB/LB REAR BLOWER MOTOR CONTROL
9 D22 20WT/TN KDB CLOCK
10 D17 20WT/DG KDB DATA
11 Z24 18BK/OR GROUND
12 C200 20LB/DG TXV SOLENOID FEED
13 C900 18LB/VT WIPER DE-ICER DRIVER
AUTO TEMP CONTROL C3-4WAY
CAV CIRCUIT FUNCTION
1 F600 20LB/PK PROTECTED IGNITION
2 D40 20WT/LB KDB NO. 2 CLOCK
3 C905 20BR/LB SENSOR RETURN
4 D18 20WT/YL KDB NO. 2 DATA
AUTOMATIC DAY/NIGHT MIRROR (PREMIUM/LUXURY) - BLACK 7 WAY
CAV CIRCUIT FUNCTION
1 F503 20BK/PK FUSED IGNITION SWITCH OUTPUT (RUN)
2 Z113 20BK GROUND
3 L1 20BK/WT BACK-UP LAMP FEED
4 P112 20BK/OR (EXCEPT
BUILT-UP-EXPORT)MIRROR B(+)
5 P114 20BK/LB (EXCEPT
BUILT-UP-EXPORT)MIRROR B(-)
6- -
7 L24 20BK/GY (EXCEPT
BUILT-UP-EXPORT)AUTOMATIC HEADLAMP SWITCH SENSOR
RS8W-80 CONNECTOR PIN-OUTS8W-80-9
ProCarManuals.com
Page 1041 of 2399

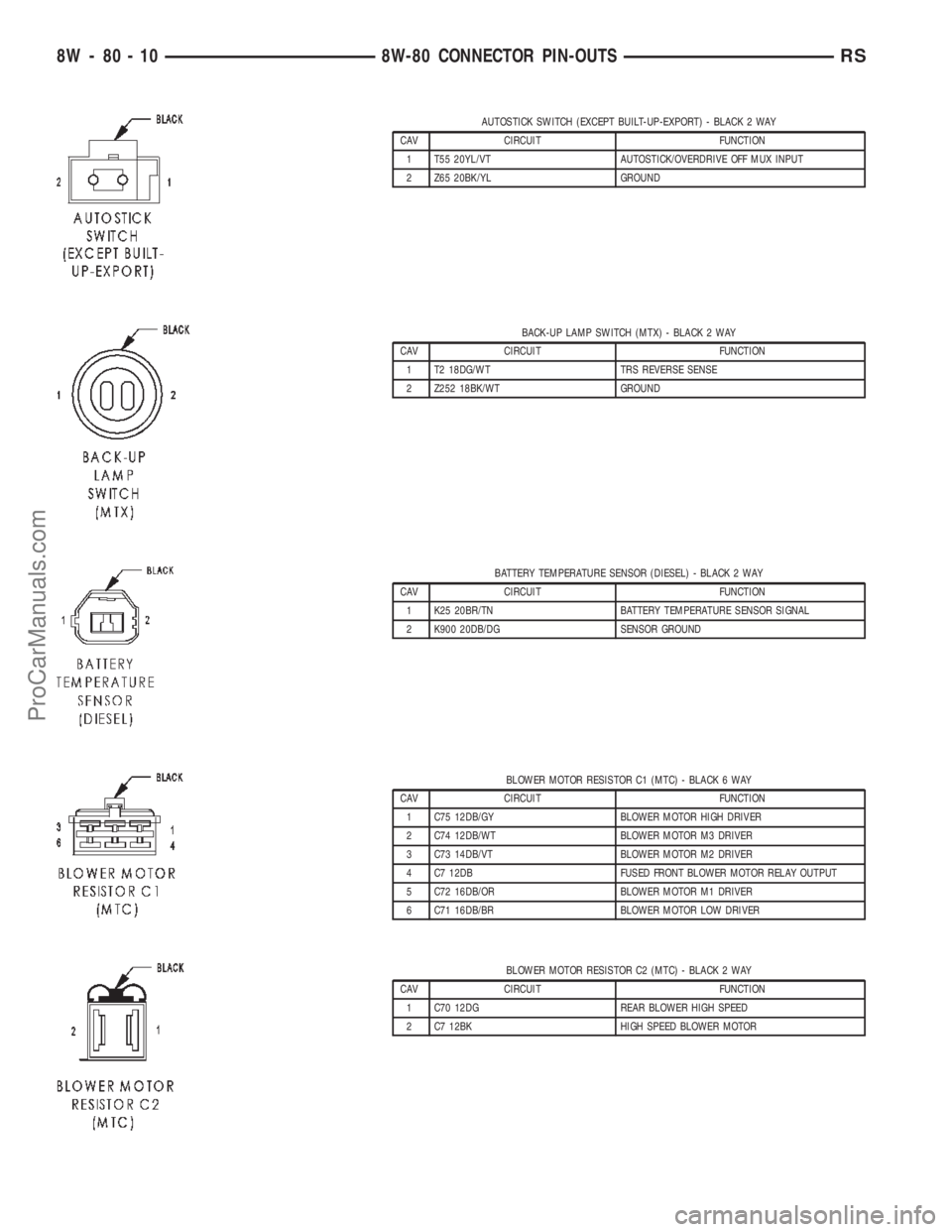

AUTOSTICK SWITCH (EXCEPT BUILT-UP-EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 T55 20YL/VT AUTOSTICK/OVERDRIVE OFF MUX INPUT
2 Z65 20BK/YL GROUND
BACK-UP LAMP SWITCH (MTX) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 T2 18DG/WT TRS REVERSE SENSE
2 Z252 18BK/WT GROUND
BATTERY TEMPERATURE SENSOR (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K25 20BR/TN BATTERY TEMPERATURE SENSOR SIGNAL
2 K900 20DB/DG SENSOR GROUND
BLOWER MOTOR RESISTOR C1 (MTC) - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 C75 12DB/GY BLOWER MOTOR HIGH DRIVER
2 C74 12DB/WT BLOWER MOTOR M3 DRIVER
3 C73 14DB/VT BLOWER MOTOR M2 DRIVER
4 C7 12DB FUSED FRONT BLOWER MOTOR RELAY OUTPUT
5 C72 16DB/OR BLOWER MOTOR M1 DRIVER
6 C71 16DB/BR BLOWER MOTOR LOW DRIVER
BLOWER MOTOR RESISTOR C2 (MTC) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 C70 12DG REAR BLOWER HIGH SPEED
2 C7 12BK HIGH SPEED BLOWER MOTOR
8W - 80 - 10 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com
Page 1043 of 2399

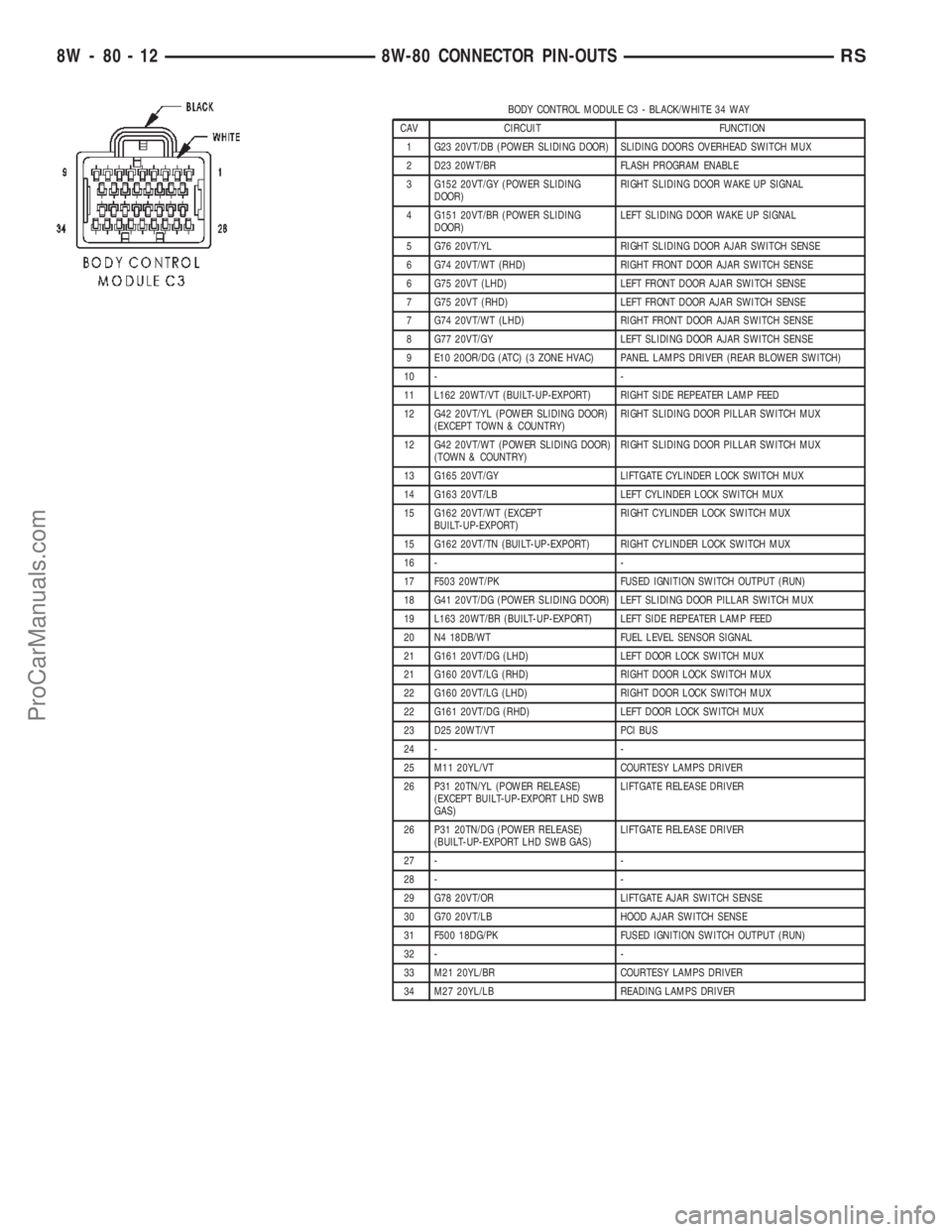

BODY CONTROL MODULE C3 - BLACK/WHITE 34 WAY
CAV CIRCUIT FUNCTION
1 G23 20VT/DB (POWER SLIDING DOOR) SLIDING DOORS OVERHEAD SWITCH MUX
2 D23 20WT/BR FLASH PROGRAM ENABLE
3 G152 20VT/GY (POWER SLIDING
DOOR)RIGHT SLIDING DOOR WAKE UP SIGNAL
4 G151 20VT/BR (POWER SLIDING
DOOR)LEFT SLIDING DOOR WAKE UP SIGNAL
5 G76 20VT/YL RIGHT SLIDING DOOR AJAR SWITCH SENSE
6 G74 20VT/WT (RHD) RIGHT FRONT DOOR AJAR SWITCH SENSE
6 G75 20VT (LHD) LEFT FRONT DOOR AJAR SWITCH SENSE
7 G75 20VT (RHD) LEFT FRONT DOOR AJAR SWITCH SENSE
7 G74 20VT/WT (LHD) RIGHT FRONT DOOR AJAR SWITCH SENSE
8 G77 20VT/GY LEFT SLIDING DOOR AJAR SWITCH SENSE
9 E10 20OR/DG (ATC) (3 ZONE HVAC) PANEL LAMPS DRIVER (REAR BLOWER SWITCH)
10 - -
11 L162 20WT/VT (BUILT-UP-EXPORT) RIGHT SIDE REPEATER LAMP FEED
12 G42 20VT/YL (POWER SLIDING DOOR)
(EXCEPT TOWN & COUNTRY)RIGHT SLIDING DOOR PILLAR SWITCH MUX
12 G42 20VT/WT (POWER SLIDING DOOR)
(TOWN & COUNTRY)RIGHT SLIDING DOOR PILLAR SWITCH MUX
13 G165 20VT/GY LIFTGATE CYLINDER LOCK SWITCH MUX
14 G163 20VT/LB LEFT CYLINDER LOCK SWITCH MUX
15 G162 20VT/WT (EXCEPT
BUILT-UP-EXPORT)RIGHT CYLINDER LOCK SWITCH MUX
15 G162 20VT/TN (BUILT-UP-EXPORT) RIGHT CYLINDER LOCK SWITCH MUX
16 - -
17 F503 20WT/PK FUSED IGNITION SWITCH OUTPUT (RUN)
18 G41 20VT/DG (POWER SLIDING DOOR) LEFT SLIDING DOOR PILLAR SWITCH MUX
19 L163 20WT/BR (BUILT-UP-EXPORT) LEFT SIDE REPEATER LAMP FEED
20 N4 18DB/WT FUEL LEVEL SENSOR SIGNAL
21 G161 20VT/DG (LHD) LEFT DOOR LOCK SWITCH MUX
21 G160 20VT/LG (RHD) RIGHT DOOR LOCK SWITCH MUX
22 G160 20VT/LG (LHD) RIGHT DOOR LOCK SWITCH MUX
22 G161 20VT/DG (RHD) LEFT DOOR LOCK SWITCH MUX
23 D25 20WT/VT PCI BUS
24 - -
25 M11 20YL/VT COURTESY LAMPS DRIVER
26 P31 20TN/YL (POWER RELEASE)
(EXCEPT BUILT-UP-EXPORT LHD SWB
GAS)LIFTGATE RELEASE DRIVER
26 P31 20TN/DG (POWER RELEASE)
(BUILT-UP-EXPORT LHD SWB GAS)LIFTGATE RELEASE DRIVER
27 - -
28 - -
29 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
30 G70 20VT/LB HOOD AJAR SWITCH SENSE
31 F500 18DG/PK FUSED IGNITION SWITCH OUTPUT (RUN)
32 - -
33 M21 20YL/BR COURTESY LAMPS DRIVER
34 M27 20YL/LB READING LAMPS DRIVER
8W - 80 - 12 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com
Page 1045 of 2399

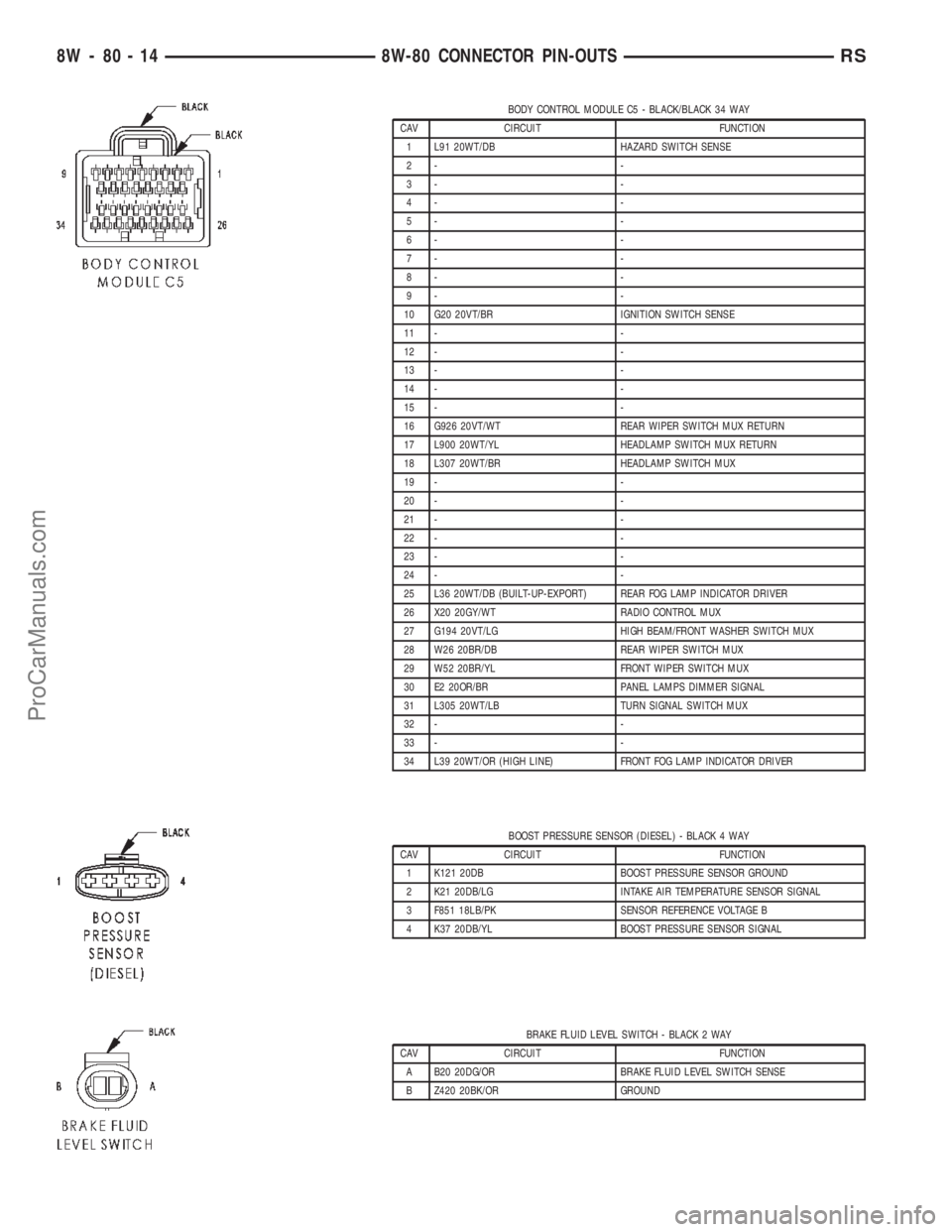

BODY CONTROL MODULE C5 - BLACK/BLACK 34 WAY
CAV CIRCUIT FUNCTION
1 L91 20WT/DB HAZARD SWITCH SENSE
2- -
3- -
4- -
5- -
6- -
7- -
8- -
9- -
10 G20 20VT/BR IGNITION SWITCH SENSE
11 - -
12 - -
13 - -
14 - -
15 - -
16 G926 20VT/WT REAR WIPER SWITCH MUX RETURN
17 L900 20WT/YL HEADLAMP SWITCH MUX RETURN
18 L307 20WT/BR HEADLAMP SWITCH MUX
19 - -
20 - -
21 - -
22 - -
23 - -
24 - -
25 L36 20WT/DB (BUILT-UP-EXPORT) REAR FOG LAMP INDICATOR DRIVER
26 X20 20GY/WT RADIO CONTROL MUX
27 G194 20VT/LG HIGH BEAM/FRONT WASHER SWITCH MUX
28 W26 20BR/DB REAR WIPER SWITCH MUX
29 W52 20BR/YL FRONT WIPER SWITCH MUX
30 E2 20OR/BR PANEL LAMPS DIMMER SIGNAL
31 L305 20WT/LB TURN SIGNAL SWITCH MUX
32 - -
33 - -
34 L39 20WT/OR (HIGH LINE) FRONT FOG LAMP INDICATOR DRIVER
BOOST PRESSURE SENSOR (DIESEL) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 K121 20DB BOOST PRESSURE SENSOR GROUND
2 K21 20DB/LG INTAKE AIR TEMPERATURE SENSOR SIGNAL
3 F851 18LB/PK SENSOR REFERENCE VOLTAGE B
4 K37 20DB/YL BOOST PRESSURE SENSOR SIGNAL
BRAKE FLUID LEVEL SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
A B20 20DG/OR BRAKE FLUID LEVEL SWITCH SENSE
B Z420 20BK/OR GROUND
8W - 80 - 14 8W-80 CONNECTOR PIN-OUTSRS
