SEALER LOCATIONS

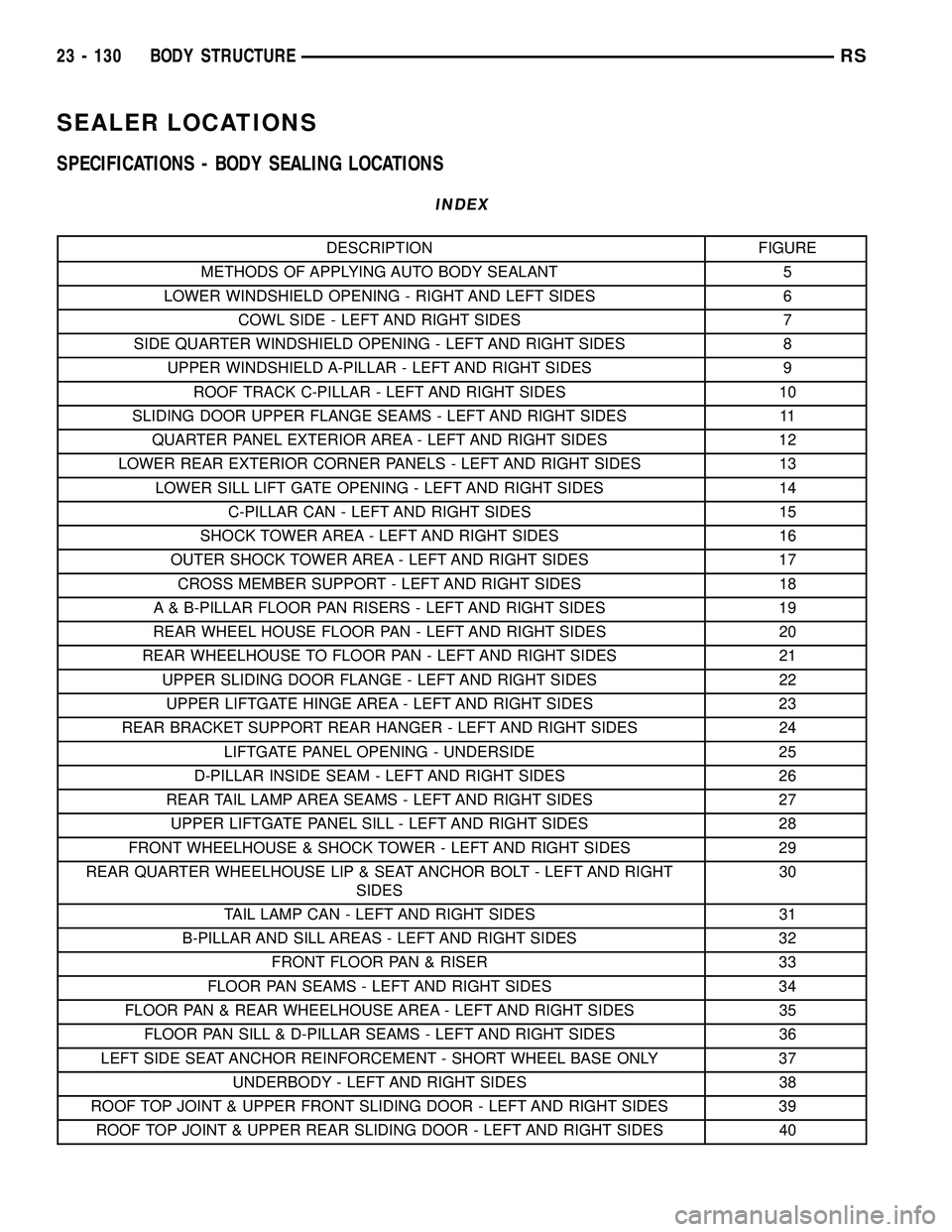

SPECIFICATIONS - BODY SEALING LOCATIONS
INDEX
DESCRIPTION FIGURE
METHODS OF APPLYING AUTO BODY SEALANT 5
LOWER WINDSHIELD OPENING - RIGHT AND LEFT SIDES 6
COWL SIDE - LEFT AND RIGHT SIDES 7
SIDE QUARTER WINDSHIELD OPENING - LEFT AND RIGHT SIDES 8
UPPER WINDSHIELD A-PILLAR - LEFT AND RIGHT SIDES 9
ROOF TRACK C-PILLAR - LEFT AND RIGHT SIDES 10
SLIDING DOOR UPPER FLANGE SEAMS - LEFT AND RIGHT SIDES 11
QUARTER PANEL EXTERIOR AREA - LEFT AND RIGHT SIDES 12
LOWER REAR EXTERIOR CORNER PANELS - LEFT AND RIGHT SIDES 13
LOWER SILL LIFT GATE OPENING - LEFT AND RIGHT SIDES 14
C-PILLAR CAN - LEFT AND RIGHT SIDES 15
SHOCK TOWER AREA - LEFT AND RIGHT SIDES 16
OUTER SHOCK TOWER AREA - LEFT AND RIGHT SIDES 17
CROSS MEMBER SUPPORT - LEFT AND RIGHT SIDES 18
A & B-PILLAR FLOOR PAN RISERS - LEFT AND RIGHT SIDES 19
REAR WHEEL HOUSE FLOOR PAN - LEFT AND RIGHT SIDES 20
REAR WHEELHOUSE TO FLOOR PAN - LEFT AND RIGHT SIDES 21
UPPER SLIDING DOOR FLANGE - LEFT AND RIGHT SIDES 22
UPPER LIFTGATE HINGE AREA - LEFT AND RIGHT SIDES 23
REAR BRACKET SUPPORT REAR HANGER - LEFT AND RIGHT SIDES 24
LIFTGATE PANEL OPENING - UNDERSIDE 25
D-PILLAR INSIDE SEAM - LEFT AND RIGHT SIDES 26
REAR TAIL LAMP AREA SEAMS - LEFT AND RIGHT SIDES 27
UPPER LIFTGATE PANEL SILL - LEFT AND RIGHT SIDES 28
FRONT WHEELHOUSE & SHOCK TOWER - LEFT AND RIGHT SIDES 29
REAR QUARTER WHEELHOUSE LIP & SEAT ANCHOR BOLT - LEFT AND RIGHT
SIDES30
TAIL LAMP CAN - LEFT AND RIGHT SIDES 31
B-PILLAR AND SILL AREAS - LEFT AND RIGHT SIDES 32
FRONT FLOOR PAN & RISER 33
FLOOR PAN SEAMS - LEFT AND RIGHT SIDES 34
FLOOR PAN & REAR WHEELHOUSE AREA - LEFT AND RIGHT SIDES 35
FLOOR PAN SILL & D-PILLAR SEAMS - LEFT AND RIGHT SIDES 36
LEFT SIDE SEAT ANCHOR REINFORCEMENT - SHORT WHEEL BASE ONLY 37
UNDERBODY - LEFT AND RIGHT SIDES 38
ROOF TOP JOINT & UPPER FRONT SLIDING DOOR - LEFT AND RIGHT SIDES 39
ROOF TOP JOINT & UPPER REAR SLIDING DOOR - LEFT AND RIGHT SIDES 40
23 - 130 BODY STRUCTURERS

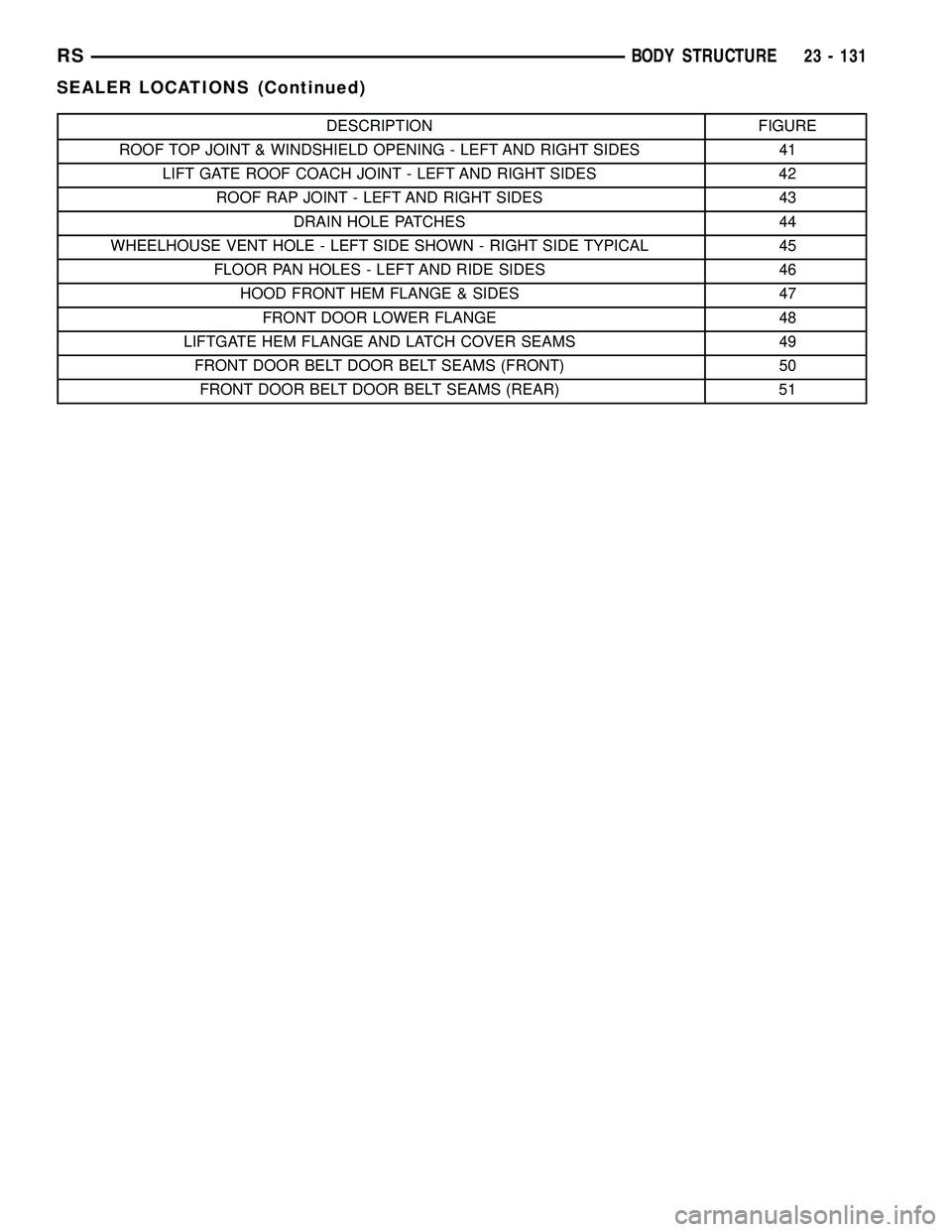

DESCRIPTION FIGURE
ROOF TOP JOINT & WINDSHIELD OPENING - LEFT AND RIGHT SIDES 41
LIFT GATE ROOF COACH JOINT - LEFT AND RIGHT SIDES 42
ROOF RAP JOINT - LEFT AND RIGHT SIDES 43
DRAIN HOLE PATCHES 44
WHEELHOUSE VENT HOLE - LEFT SIDE SHOWN - RIGHT SIDE TYPICAL 45
FLOOR PAN HOLES - LEFT AND RIDE SIDES 46
HOOD FRONT HEM FLANGE & SIDES 47
FRONT DOOR LOWER FLANGE 48
LIFTGATE HEM FLANGE AND LATCH COVER SEAMS 49
FRONT DOOR BELT DOOR BELT SEAMS (FRONT) 50
FRONT DOOR BELT DOOR BELT SEAMS (REAR) 51
RSBODY STRUCTURE23 - 131
SEALER LOCATIONS (Continued)

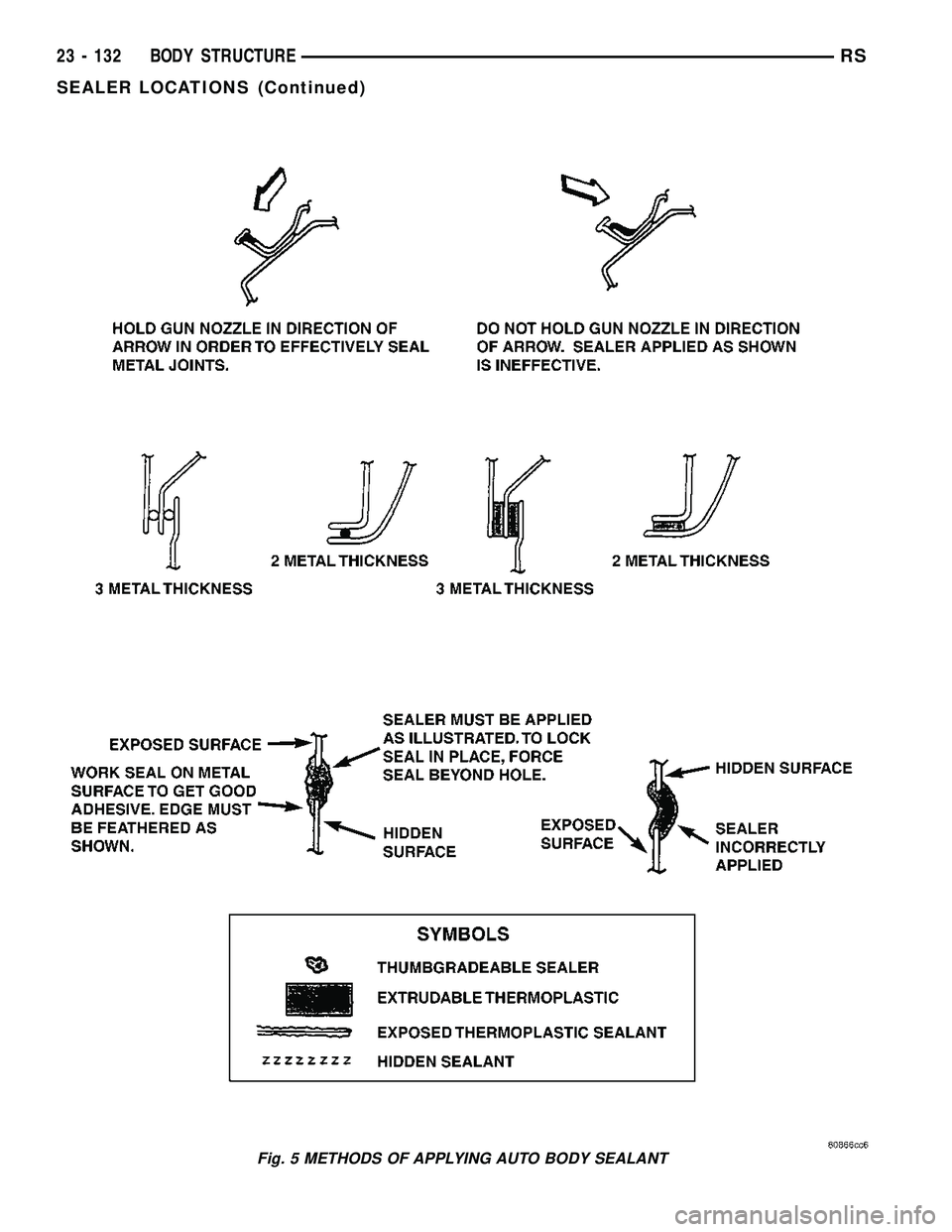

Fig. 5 METHODS OF APPLYING AUTO BODY SEALANT
23 - 132 BODY STRUCTURERS
SEALER LOCATIONS (Continued)

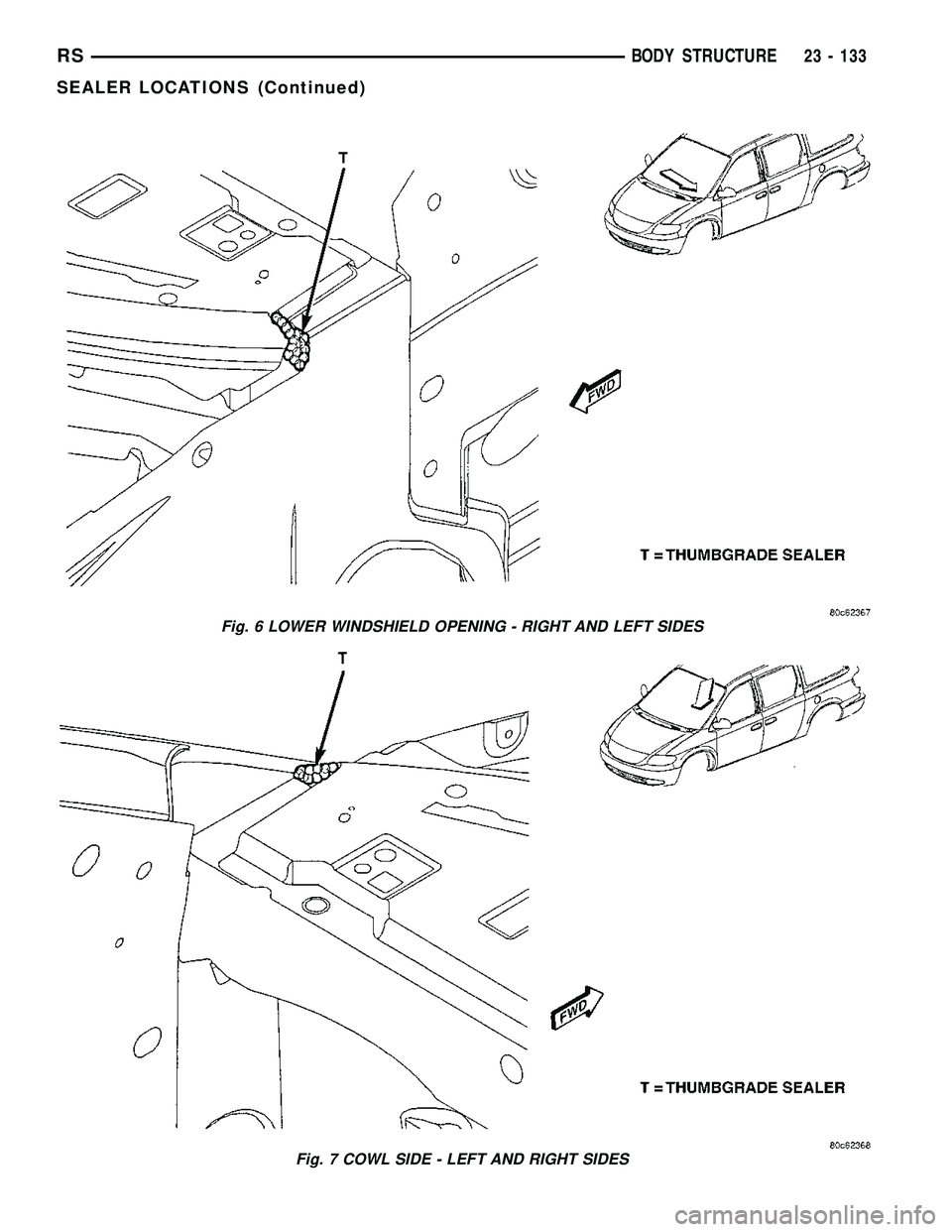

Fig. 6 LOWER WINDSHIELD OPENING - RIGHT AND LEFT SIDES
Fig. 7 COWL SIDE - LEFT AND RIGHT SIDES
RSBODY STRUCTURE23 - 133
SEALER LOCATIONS (Continued)

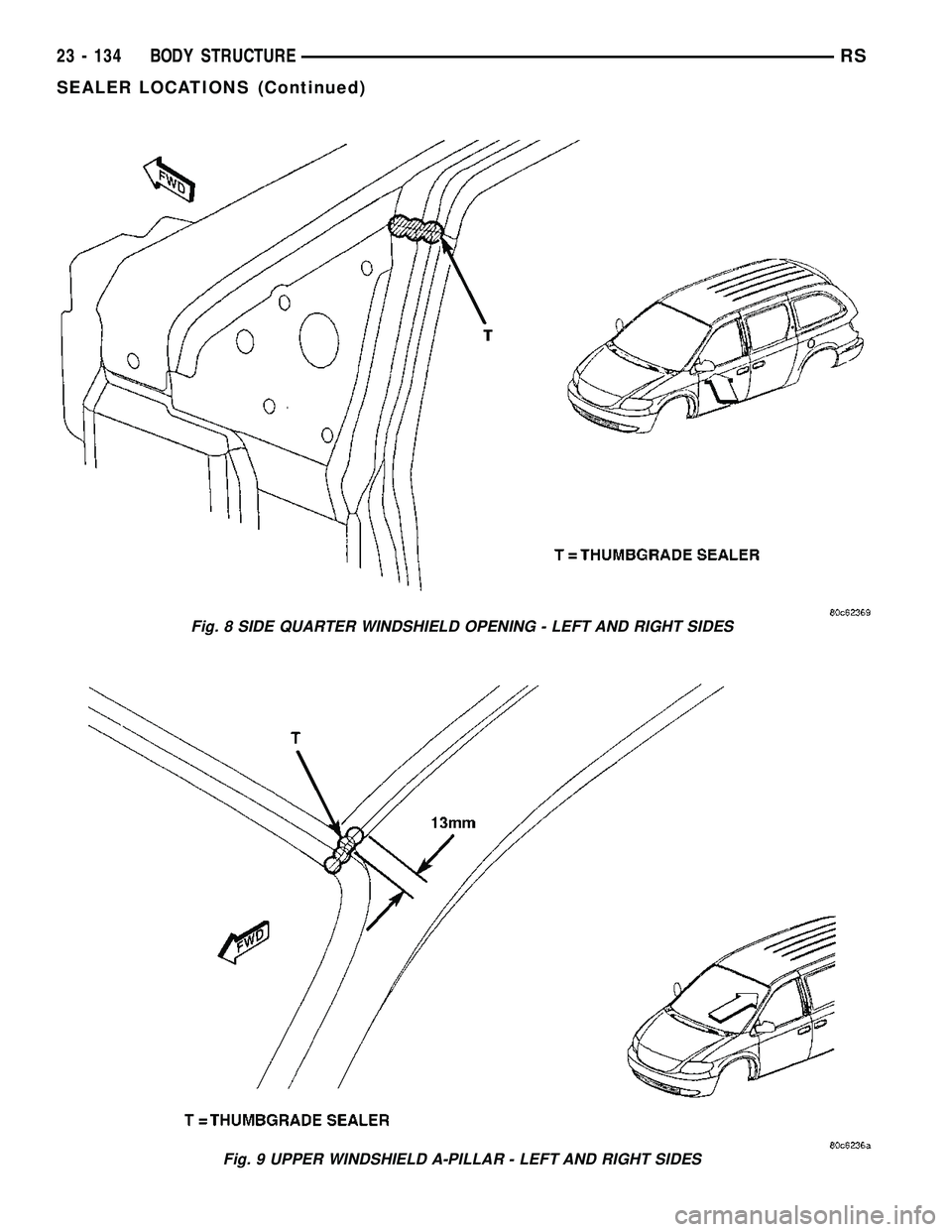

Fig. 8 SIDE QUARTER WINDSHIELD OPENING - LEFT AND RIGHT SIDES
Fig. 9 UPPER WINDSHIELD A-PILLAR - LEFT AND RIGHT SIDES
23 - 134 BODY STRUCTURERS
SEALER LOCATIONS (Continued)

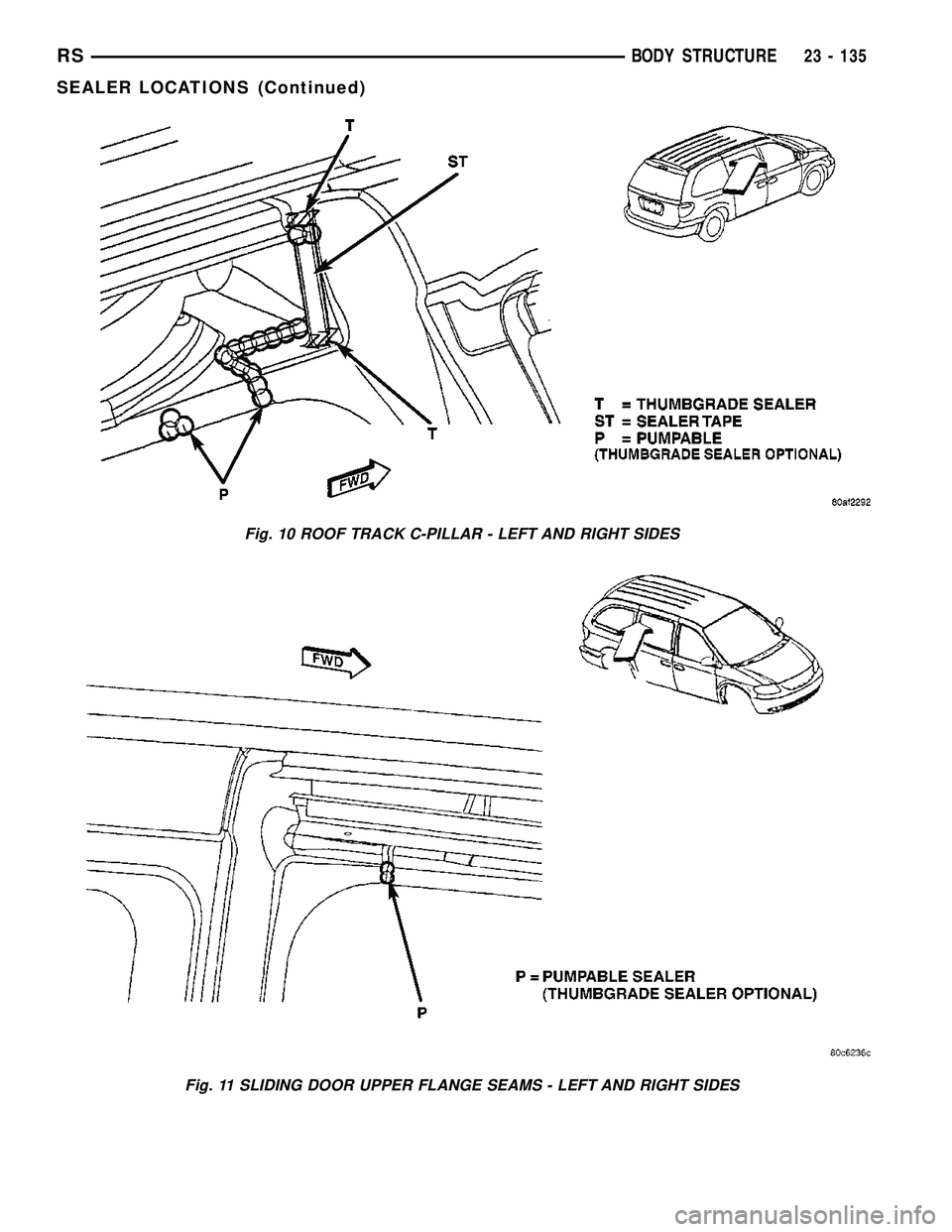

Fig. 10 ROOF TRACK C-PILLAR - LEFT AND RIGHT SIDES
Fig. 11 SLIDING DOOR UPPER FLANGE SEAMS - LEFT AND RIGHT SIDES
RSBODY STRUCTURE23 - 135
SEALER LOCATIONS (Continued)

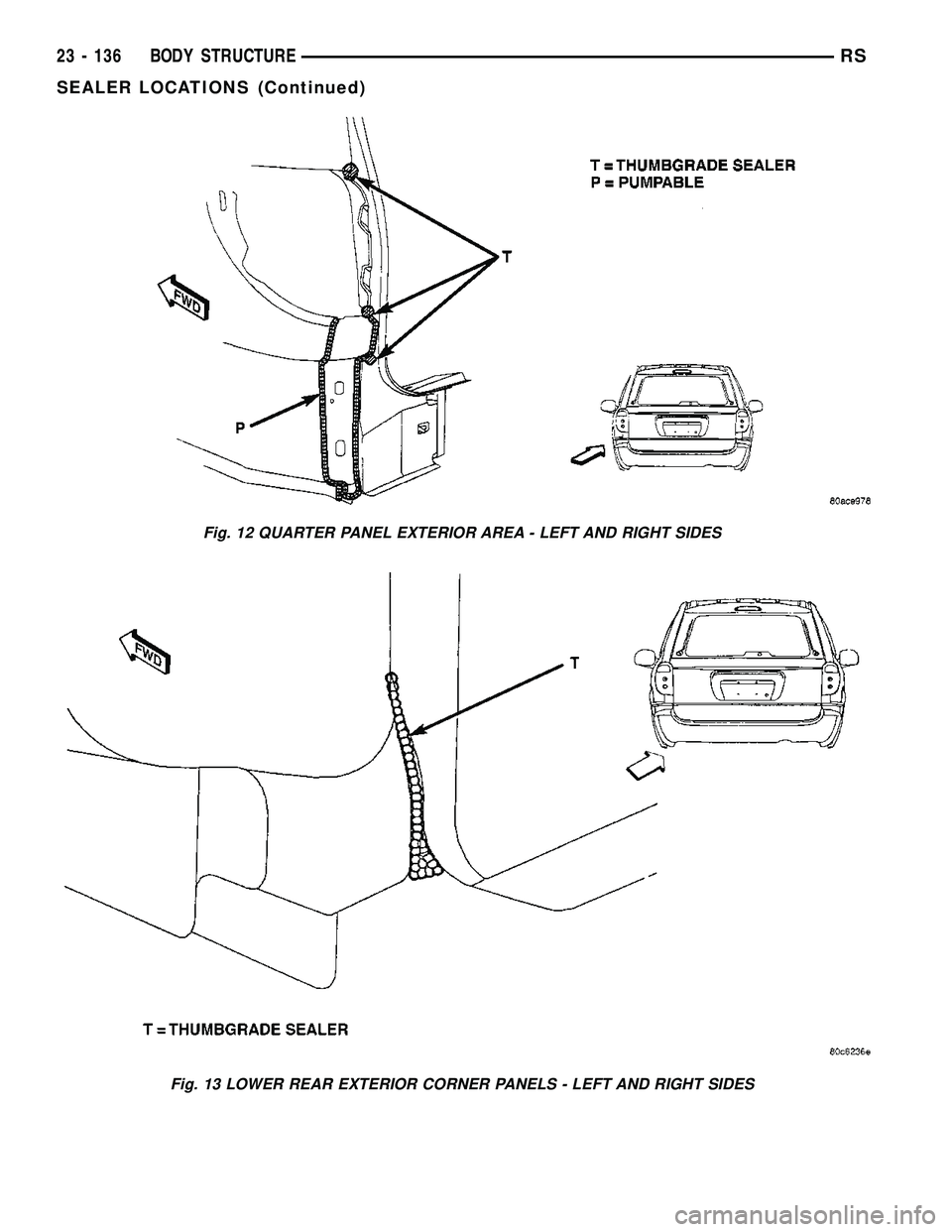

Fig. 12 QUARTER PANEL EXTERIOR AREA - LEFT AND RIGHT SIDES
Fig. 13 LOWER REAR EXTERIOR CORNER PANELS - LEFT AND RIGHT SIDES
23 - 136 BODY STRUCTURERS
SEALER LOCATIONS (Continued)

Fig. 14 LOWER SILL LIFTGATE OPENING - LEFT AND RIGHT SIDES
Fig. 15 C-PILLAR CAN - LEFT AND RIGHT SIDES
RSBODY STRUCTURE23 - 137
SEALER LOCATIONS (Continued)

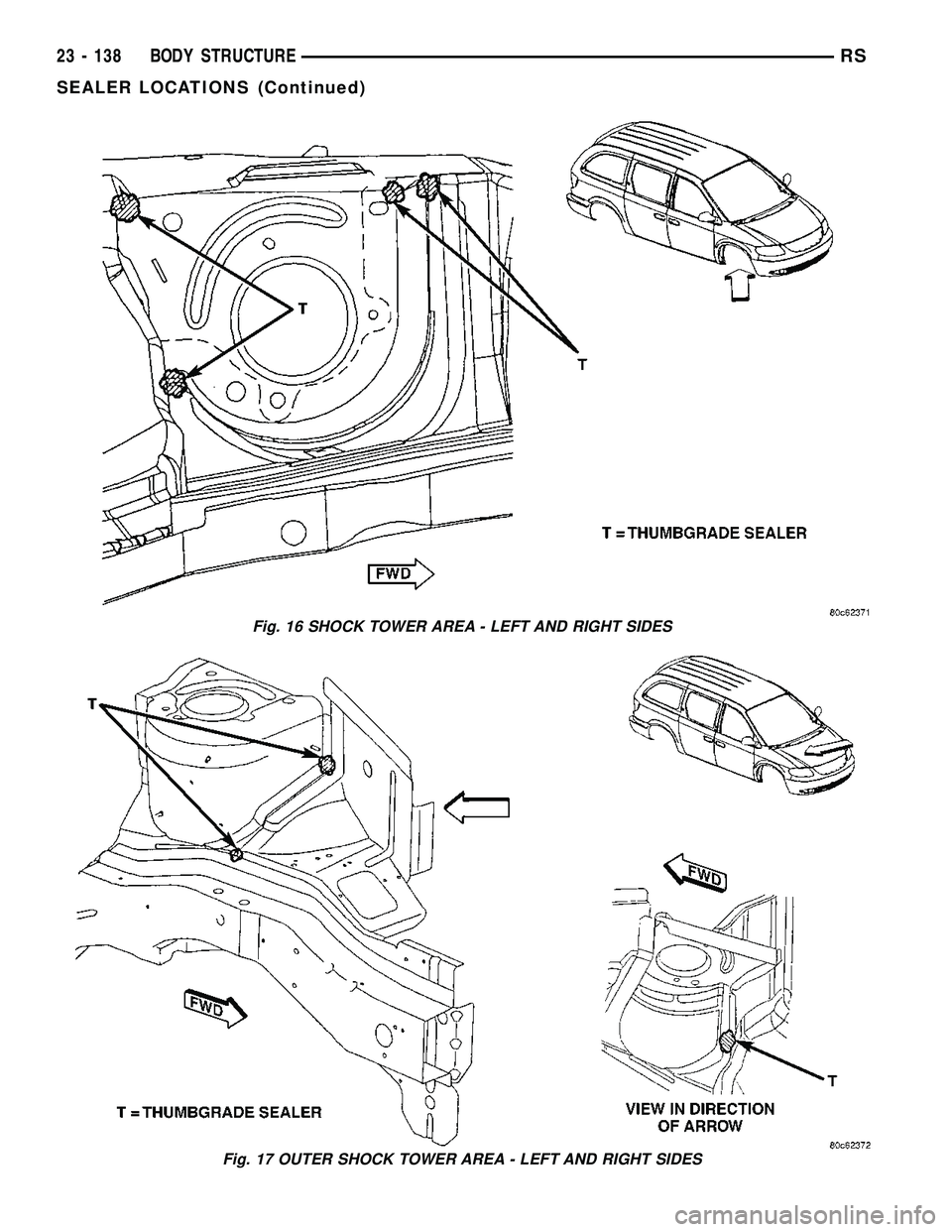

Fig. 16 SHOCK TOWER AREA - LEFT AND RIGHT SIDES
Fig. 17 OUTER SHOCK TOWER AREA - LEFT AND RIGHT SIDES
23 - 138 BODY STRUCTURERS
SEALER LOCATIONS (Continued)

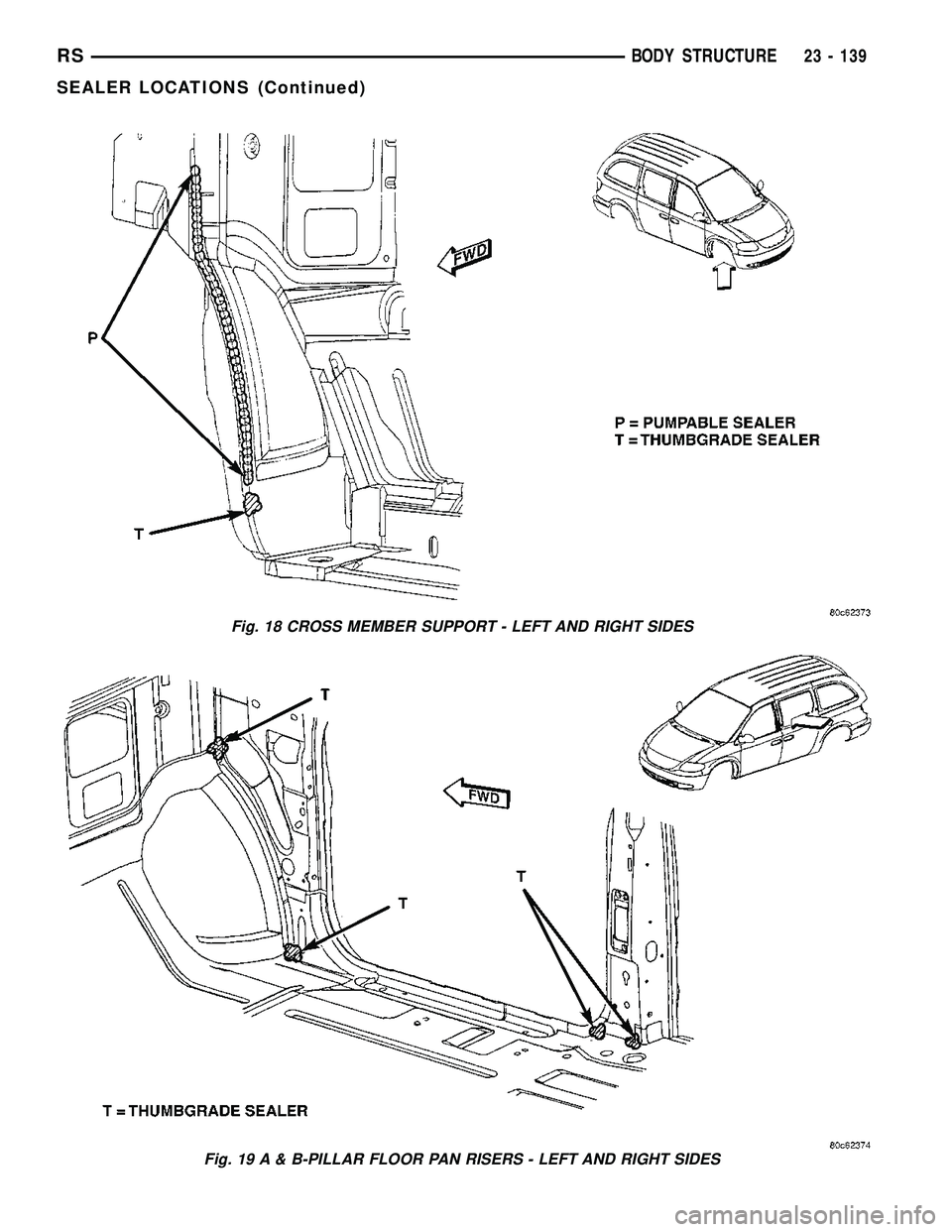

Fig. 18 CROSS MEMBER SUPPORT - LEFT AND RIGHT SIDES
Fig. 19 A & B-PILLAR FLOOR PAN RISERS - LEFT AND RIGHT SIDES
RSBODY STRUCTURE23 - 139
SEALER LOCATIONS (Continued)
