DODGE TOWN AND COUNTRY 2004 Service Manual

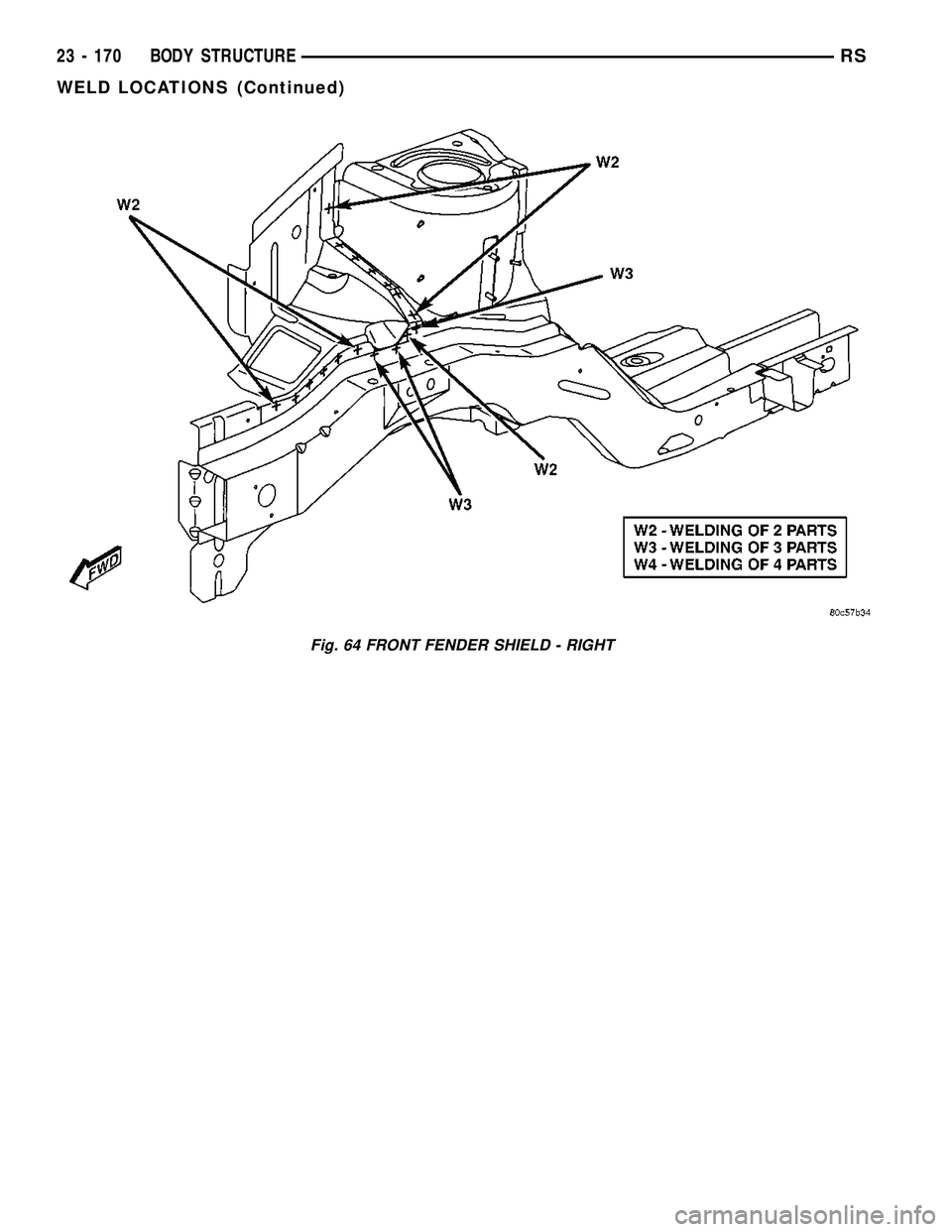

Fig. 64 FRONT FENDER SHIELD - RIGHT
23 - 170 BODY STRUCTURERS
WELD LOCATIONS (Continued)

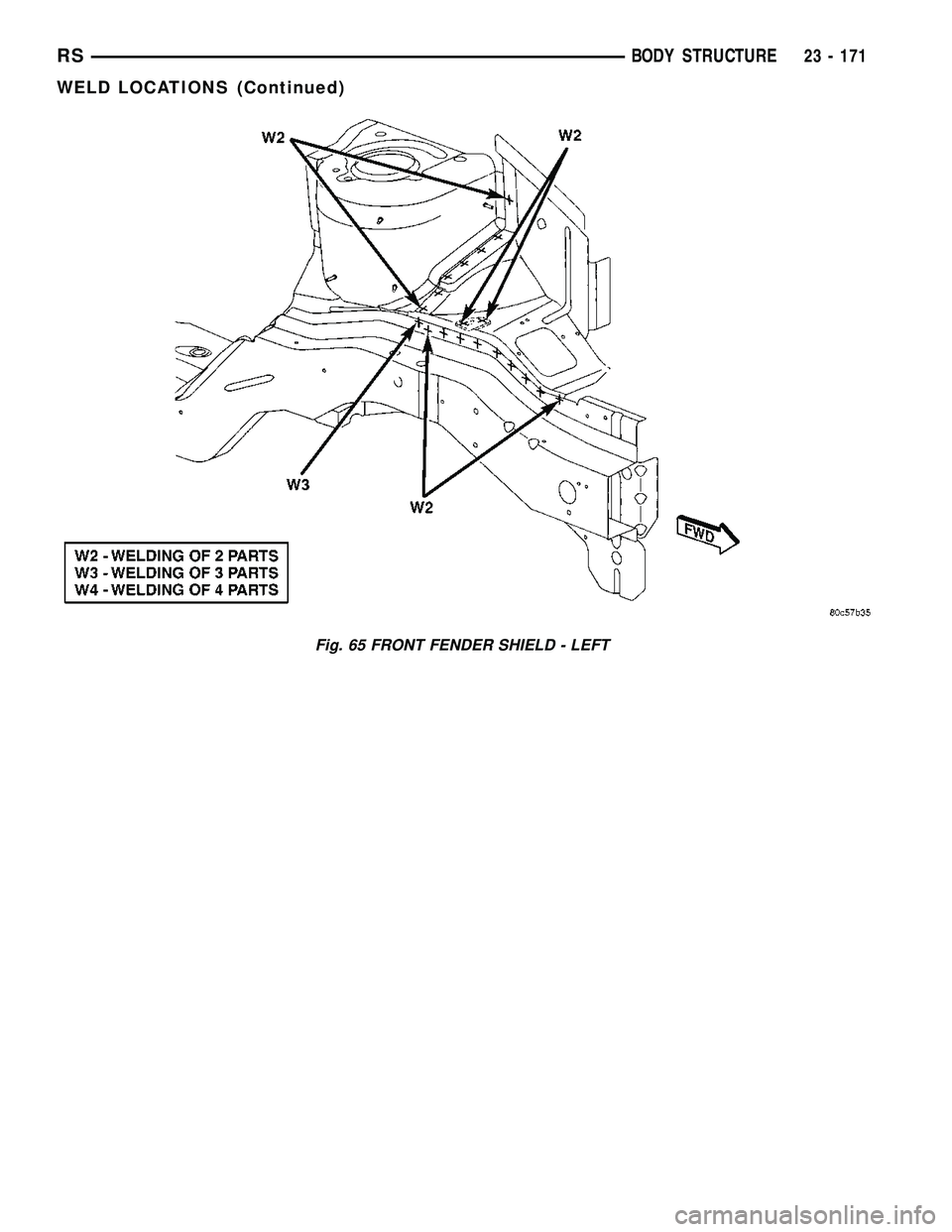

Fig. 65 FRONT FENDER SHIELD - LEFT
RSBODY STRUCTURE23 - 171
WELD LOCATIONS (Continued)

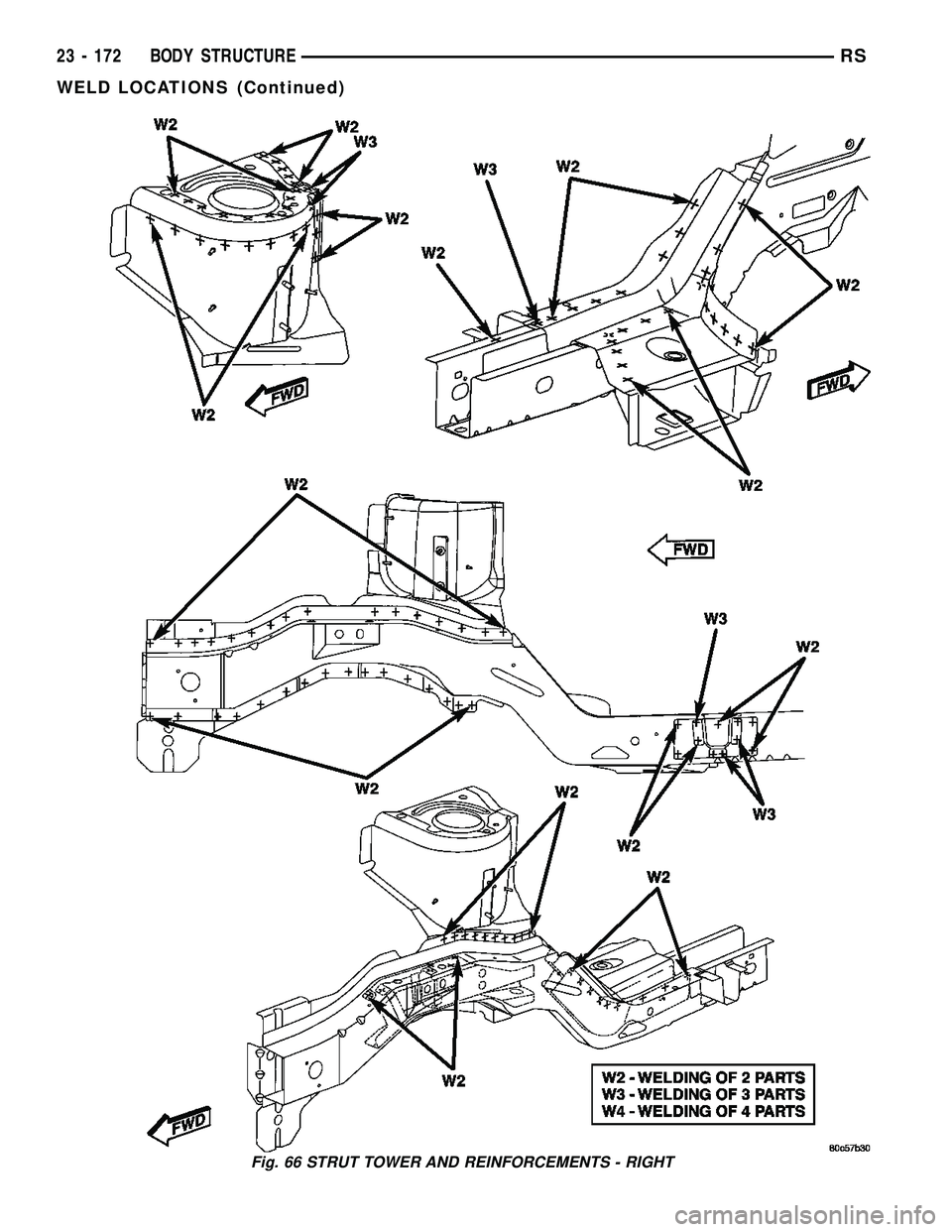

Fig. 66 STRUT TOWER AND REINFORCEMENTS - RIGHT
23 - 172 BODY STRUCTURERS
WELD LOCATIONS (Continued)

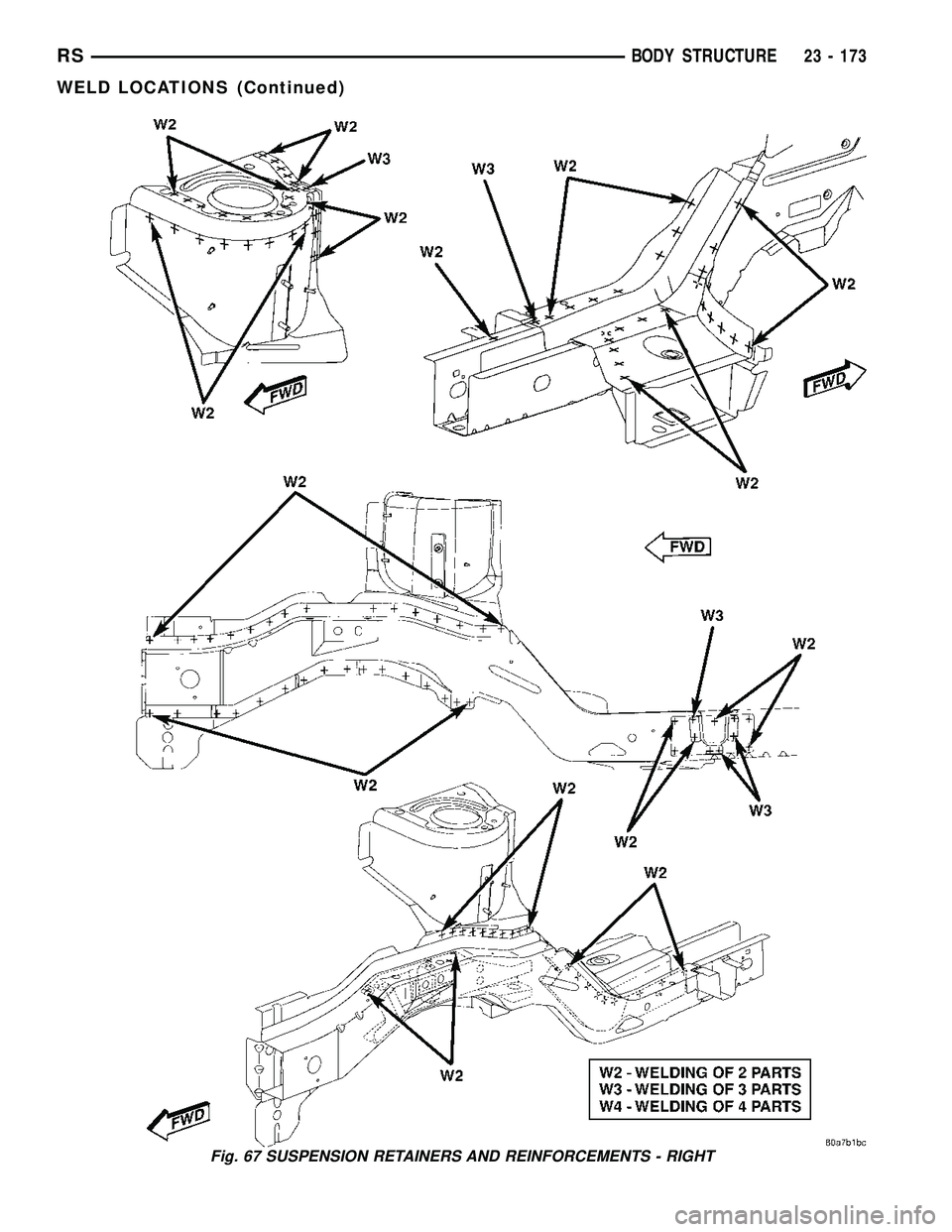

Fig. 67 SUSPENSION RETAINERS AND REINFORCEMENTS - RIGHT
RSBODY STRUCTURE23 - 173
WELD LOCATIONS (Continued)

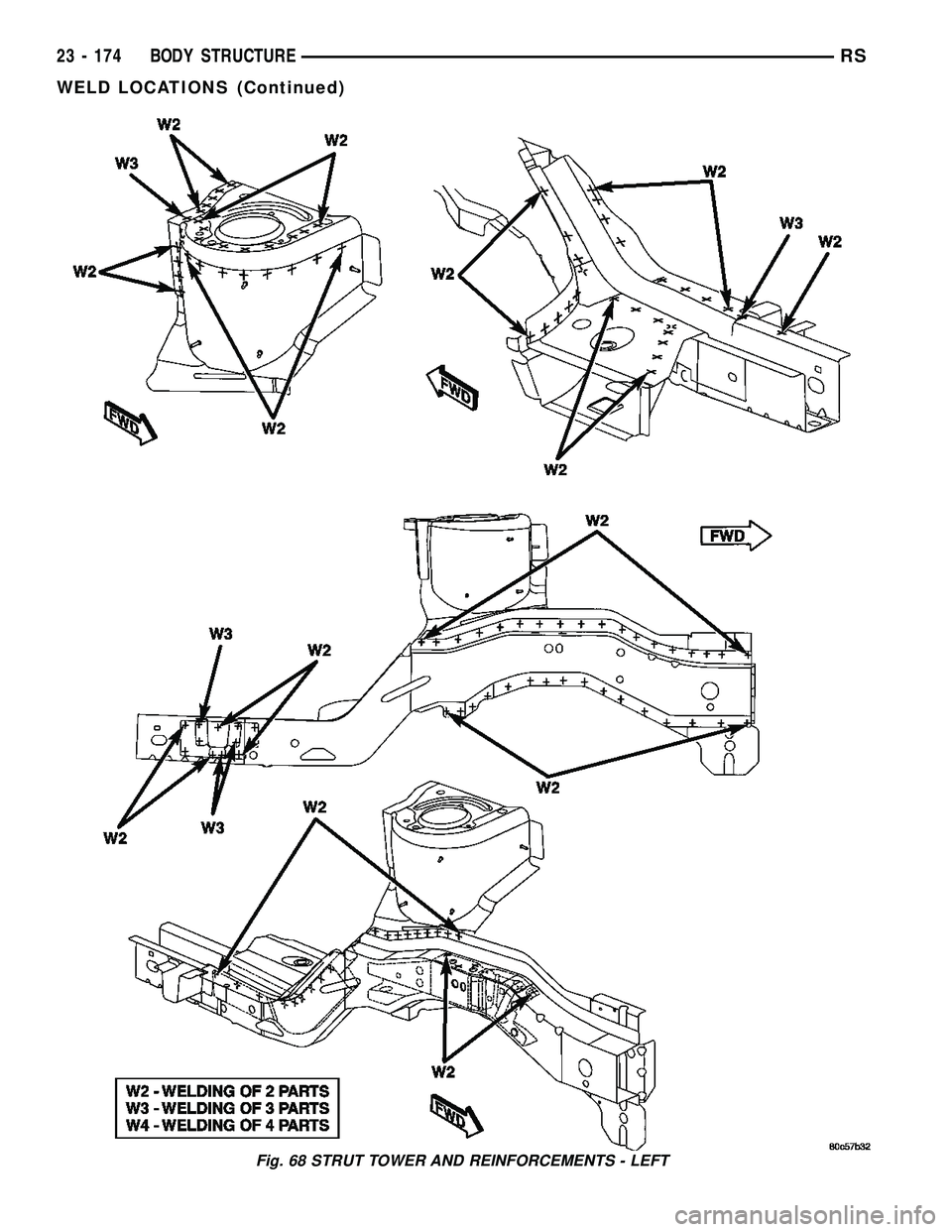

Fig. 68 STRUT TOWER AND REINFORCEMENTS - LEFT
23 - 174 BODY STRUCTURERS
WELD LOCATIONS (Continued)

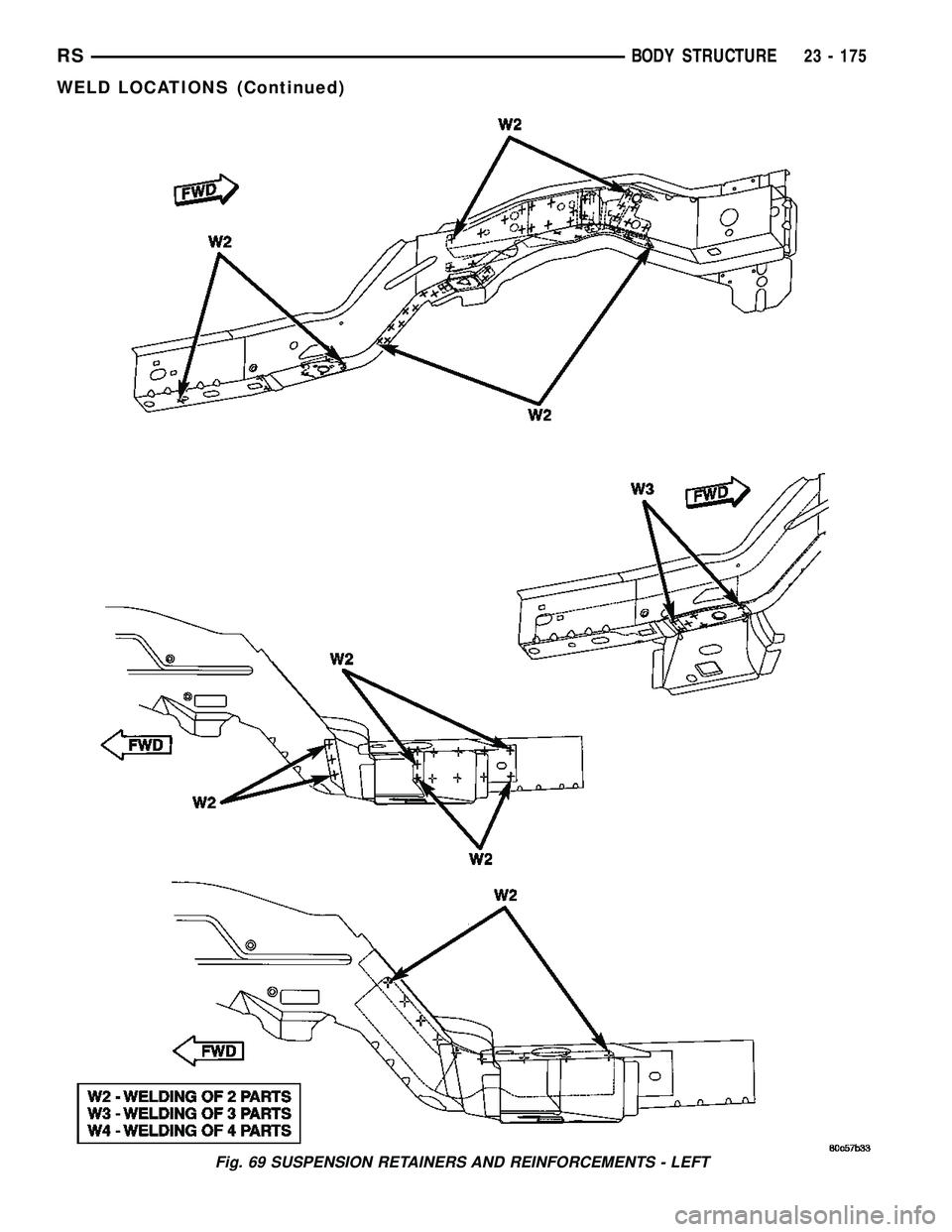

Fig. 69 SUSPENSION RETAINERS AND REINFORCEMENTS - LEFT
RSBODY STRUCTURE23 - 175
WELD LOCATIONS (Continued)

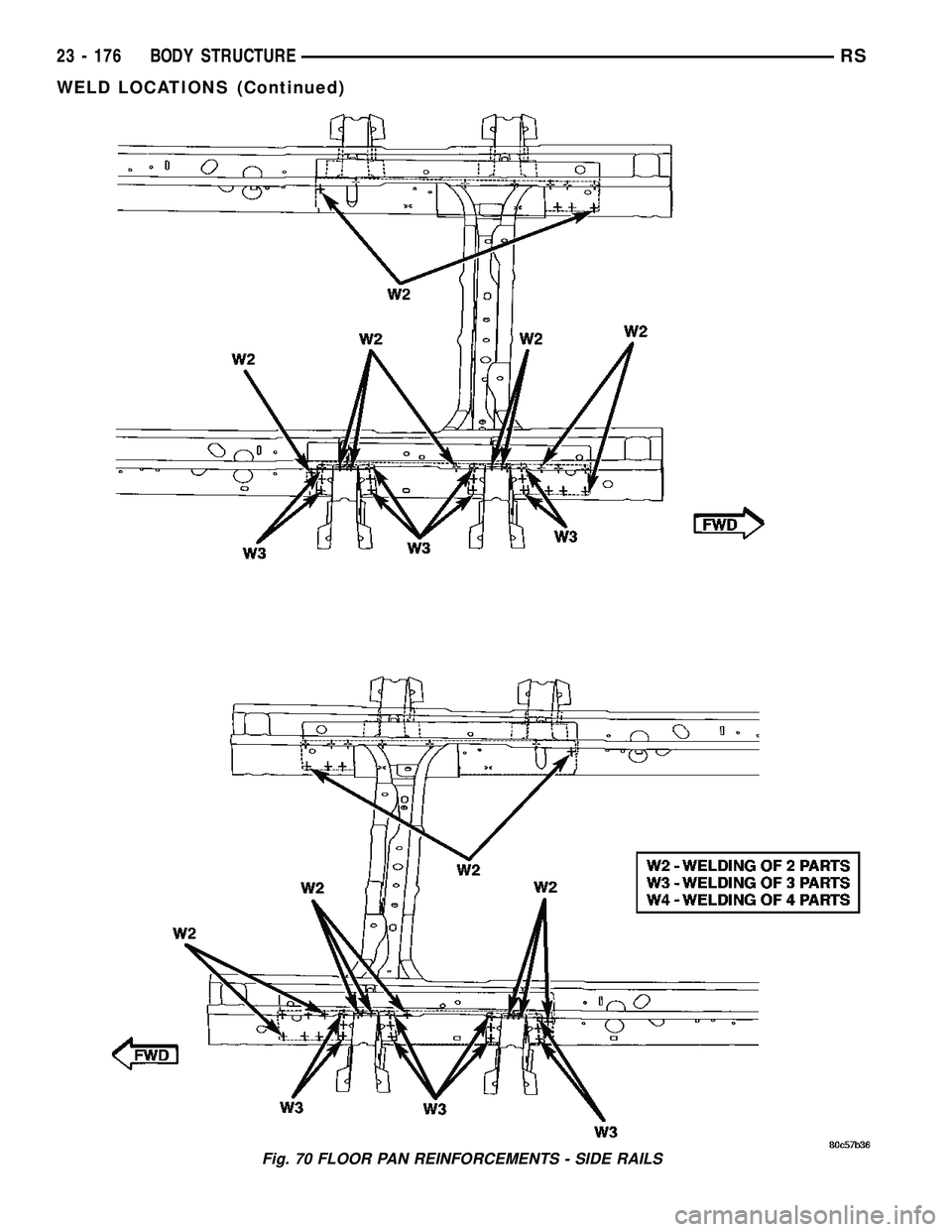

Fig. 70 FLOOR PAN REINFORCEMENTS - SIDE RAILS
23 - 176 BODY STRUCTURERS
WELD LOCATIONS (Continued)

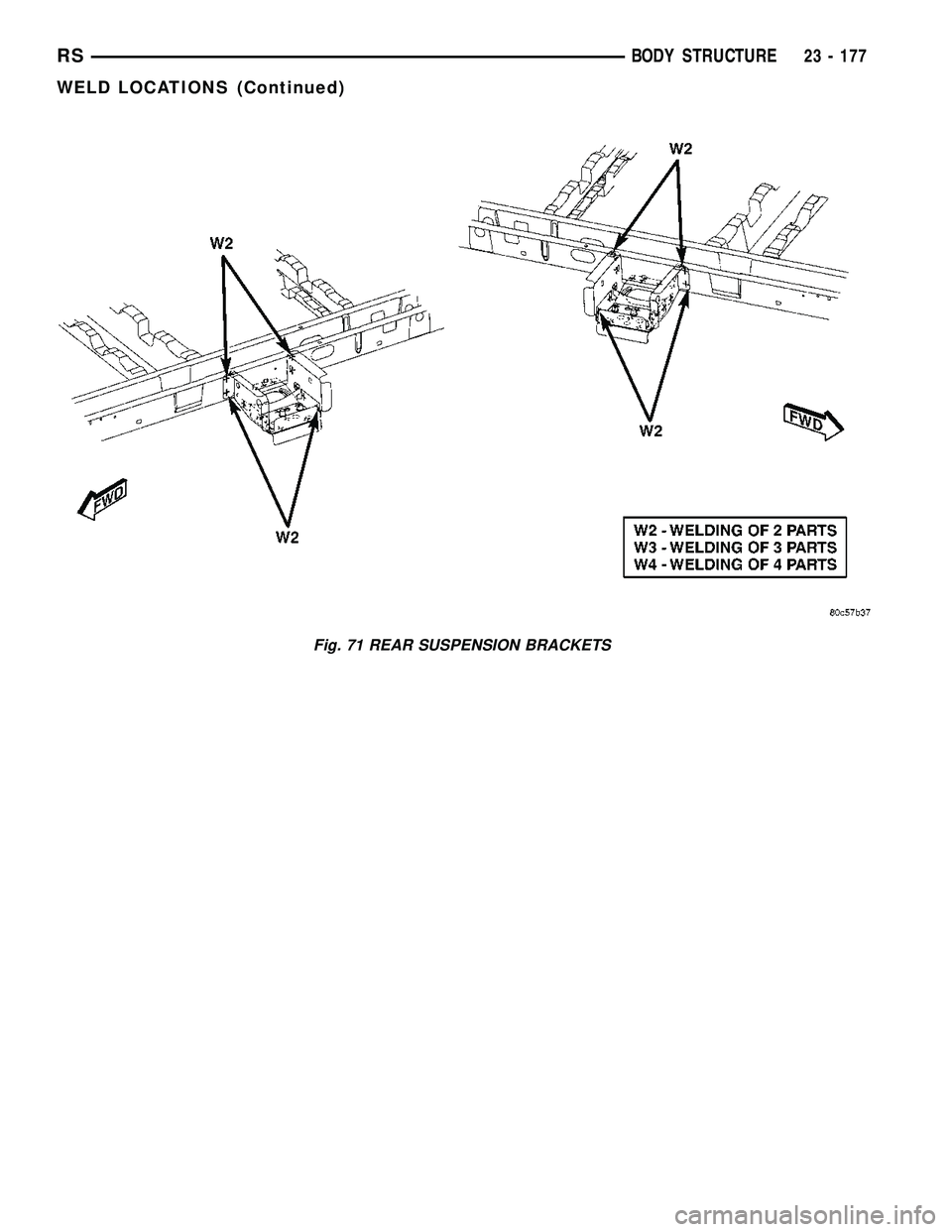

Fig. 71 REAR SUSPENSION BRACKETS
RSBODY STRUCTURE23 - 177
WELD LOCATIONS (Continued)

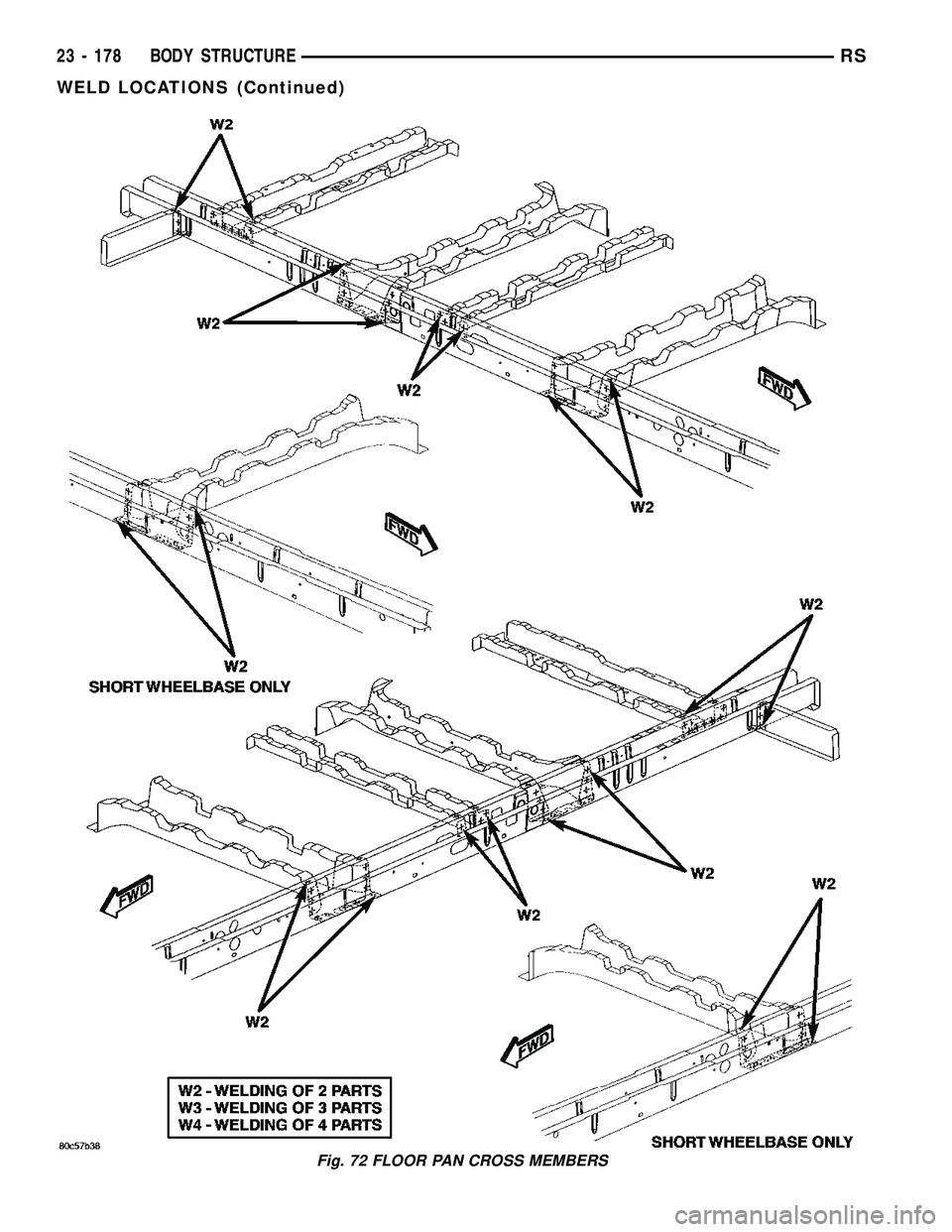

Fig. 72 FLOOR PAN CROSS MEMBERS
23 - 178 BODY STRUCTURERS
WELD LOCATIONS (Continued)

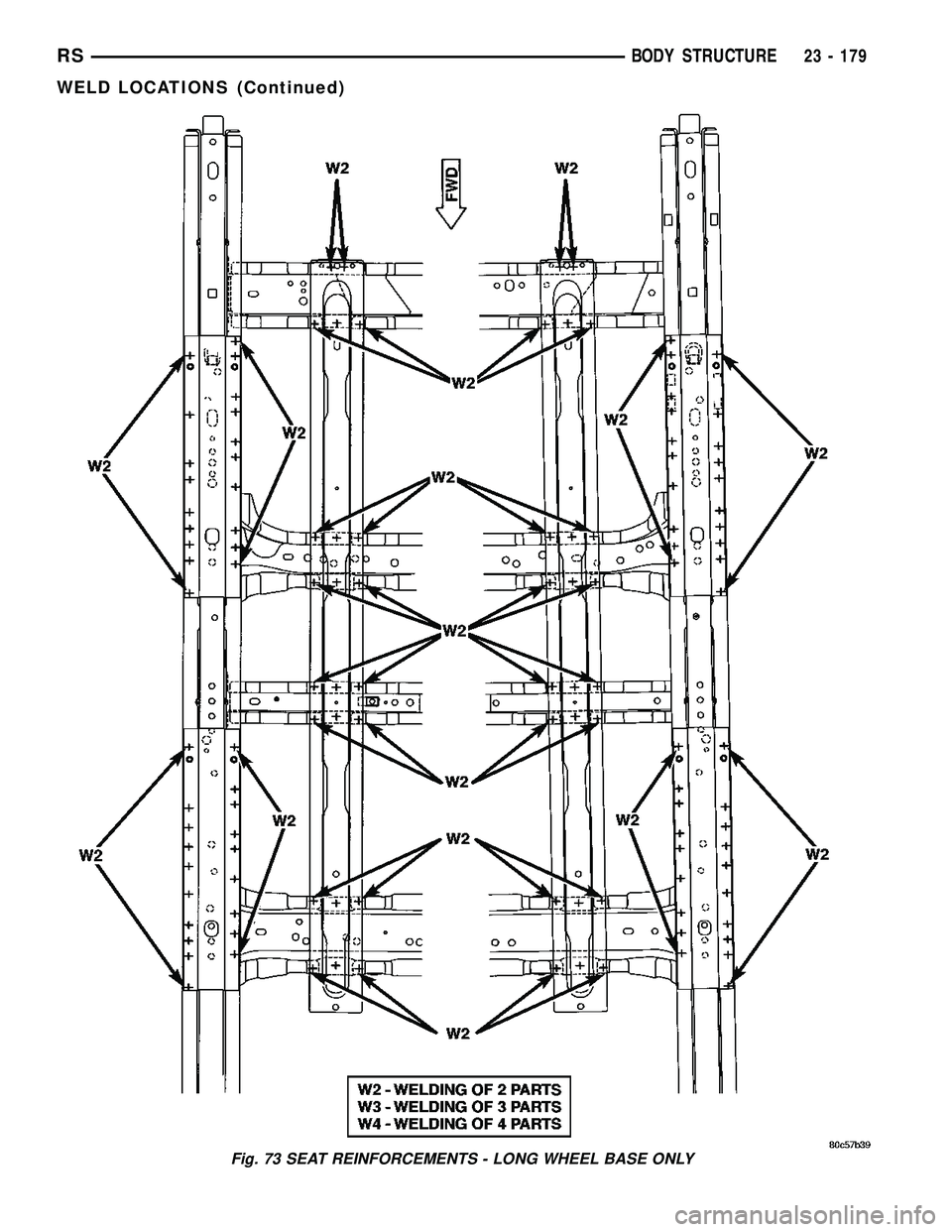

Fig. 73 SEAT REINFORCEMENTS - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 179
WELD LOCATIONS (Continued)
