Fig. 177 LOWER LIFTGATE OPENING - SHORT WHEEL BASE ONLY
23 - 270 BODY STRUCTURERS
WELD LOCATIONS (Continued)

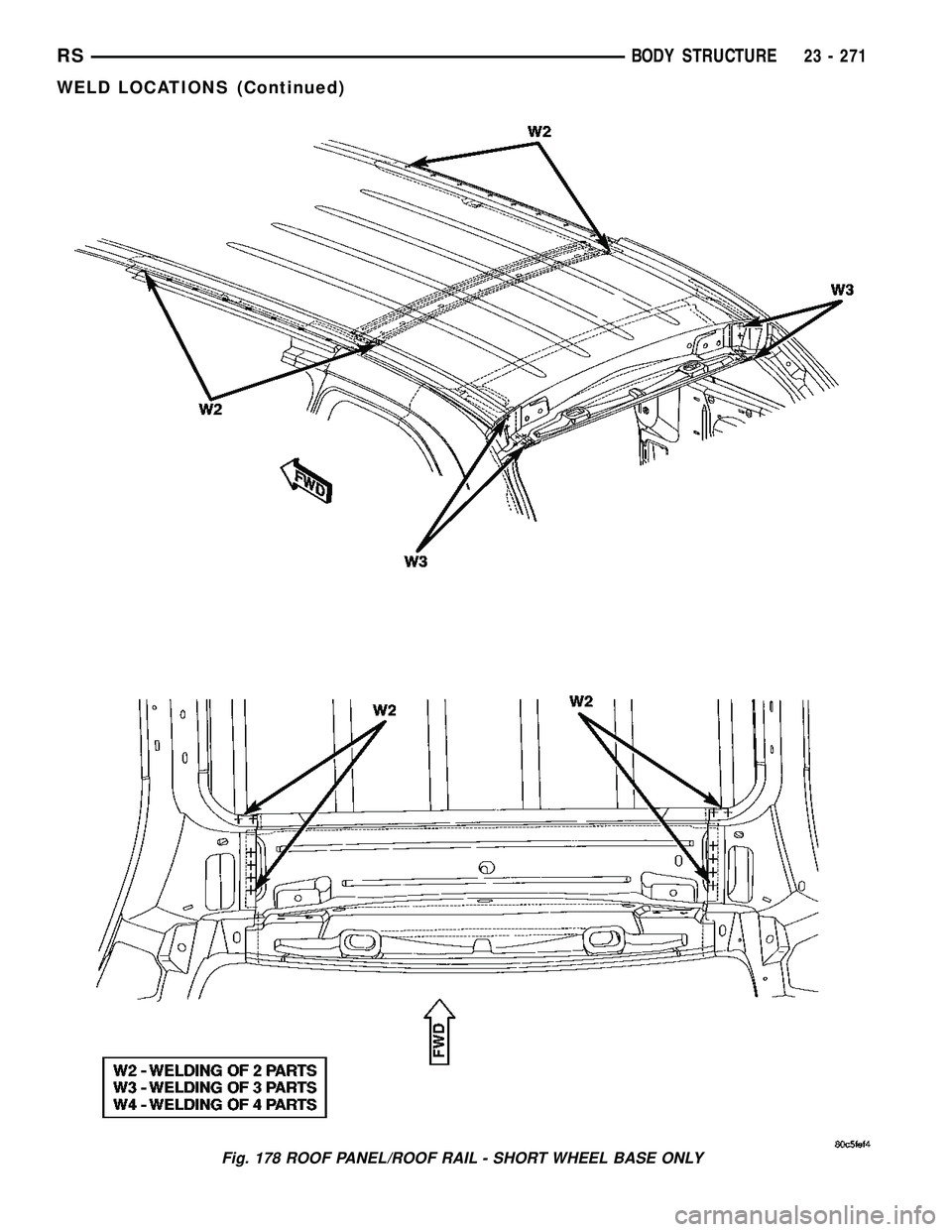

Fig. 178 ROOF PANEL/ROOF RAIL - SHORT WHEEL BASE ONLY
RSBODY STRUCTURE23 - 271
WELD LOCATIONS (Continued)

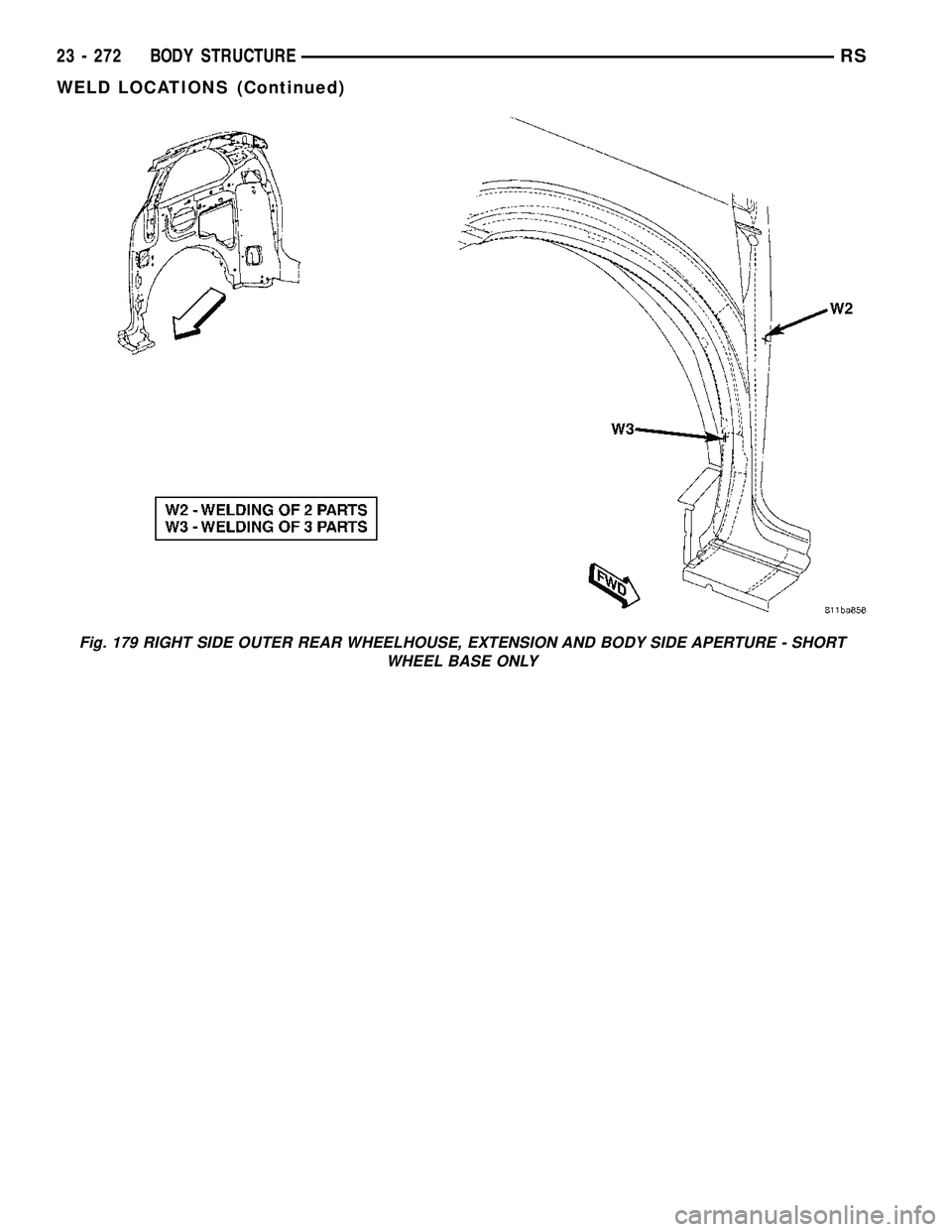

Fig. 179 RIGHT SIDE OUTER REAR WHEELHOUSE, EXTENSION AND BODY SIDE APERTURE - SHORT
WHEEL BASE ONLY
23 - 272 BODY STRUCTURERS
WELD LOCATIONS (Continued)

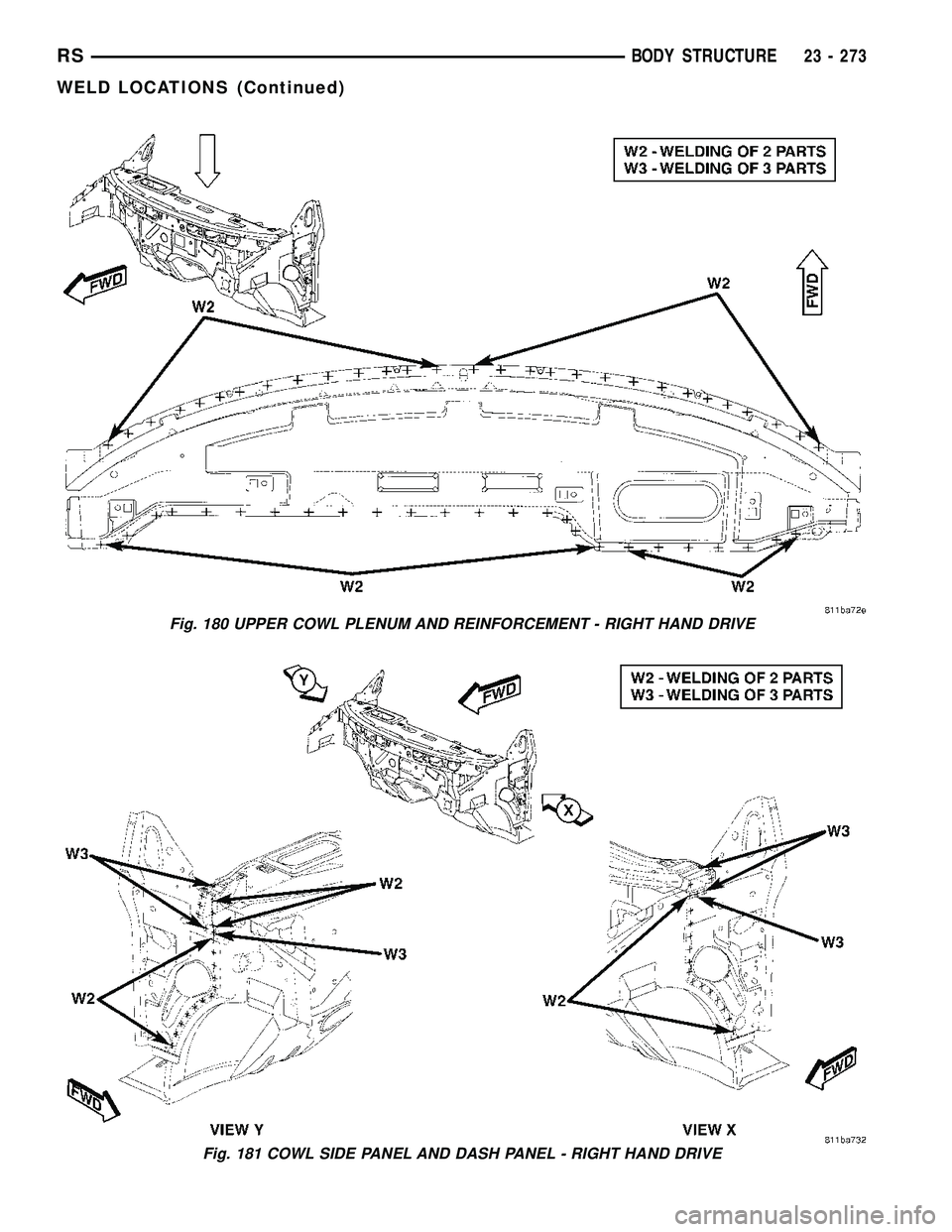

Fig. 180 UPPER COWL PLENUM AND REINFORCEMENT - RIGHT HAND DRIVE
Fig. 181 COWL SIDE PANEL AND DASH PANEL - RIGHT HAND DRIVE
RSBODY STRUCTURE23 - 273
WELD LOCATIONS (Continued)

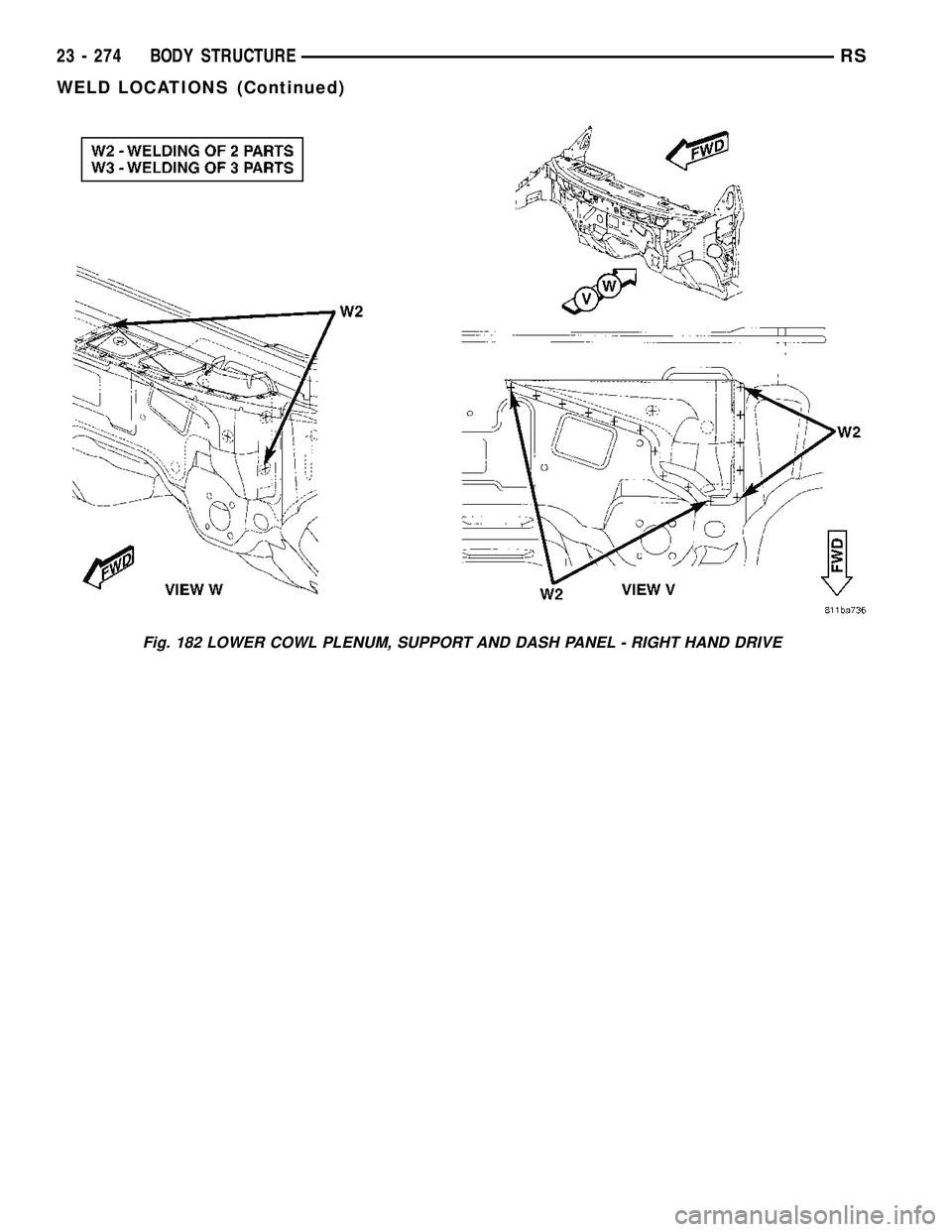

Fig. 182 LOWER COWL PLENUM, SUPPORT AND DASH PANEL - RIGHT HAND DRIVE
23 - 274 BODY STRUCTURERS
WELD LOCATIONS (Continued)

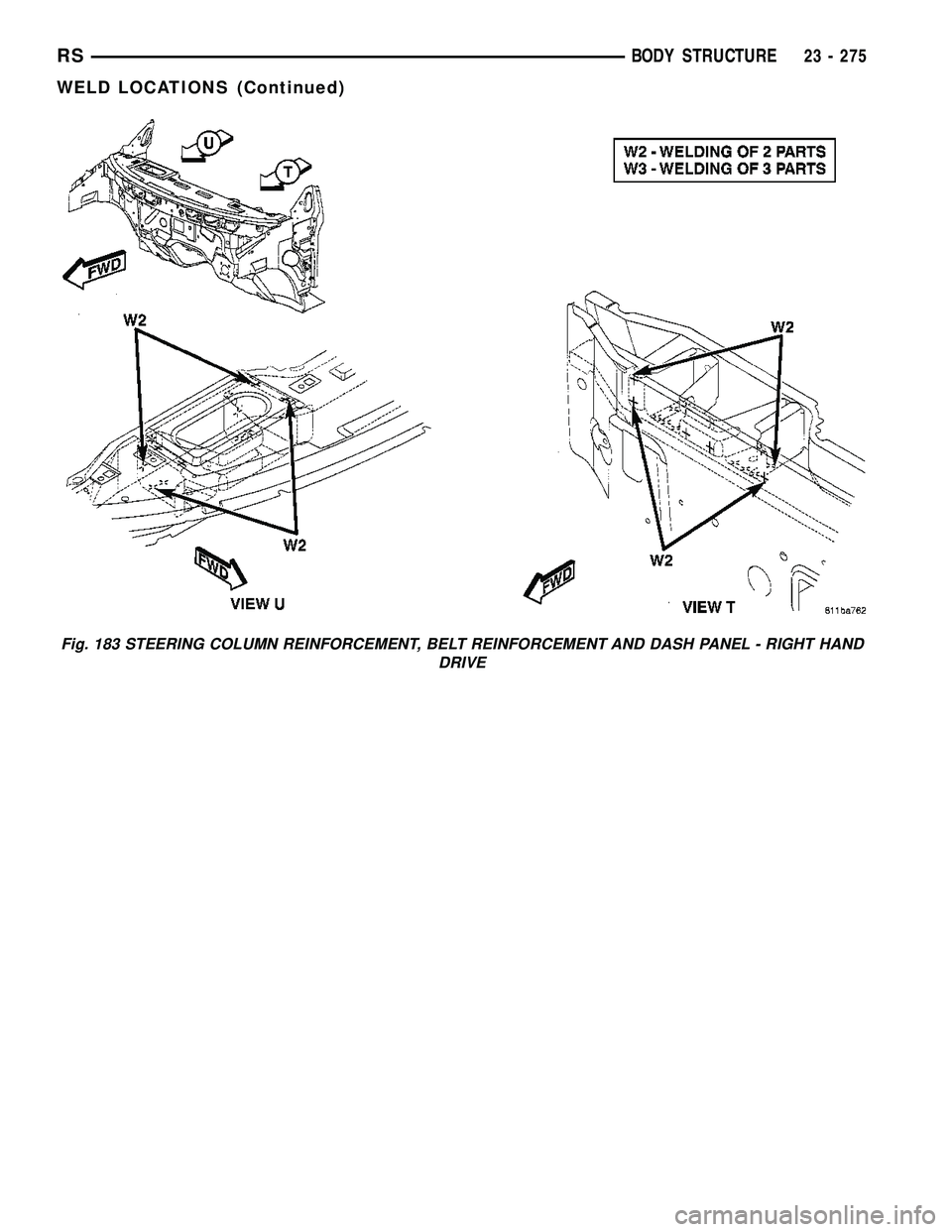

Fig. 183 STEERING COLUMN REINFORCEMENT, BELT REINFORCEMENT AND DASH PANEL - RIGHT HAND
DRIVE
RSBODY STRUCTURE23 - 275
WELD LOCATIONS (Continued)

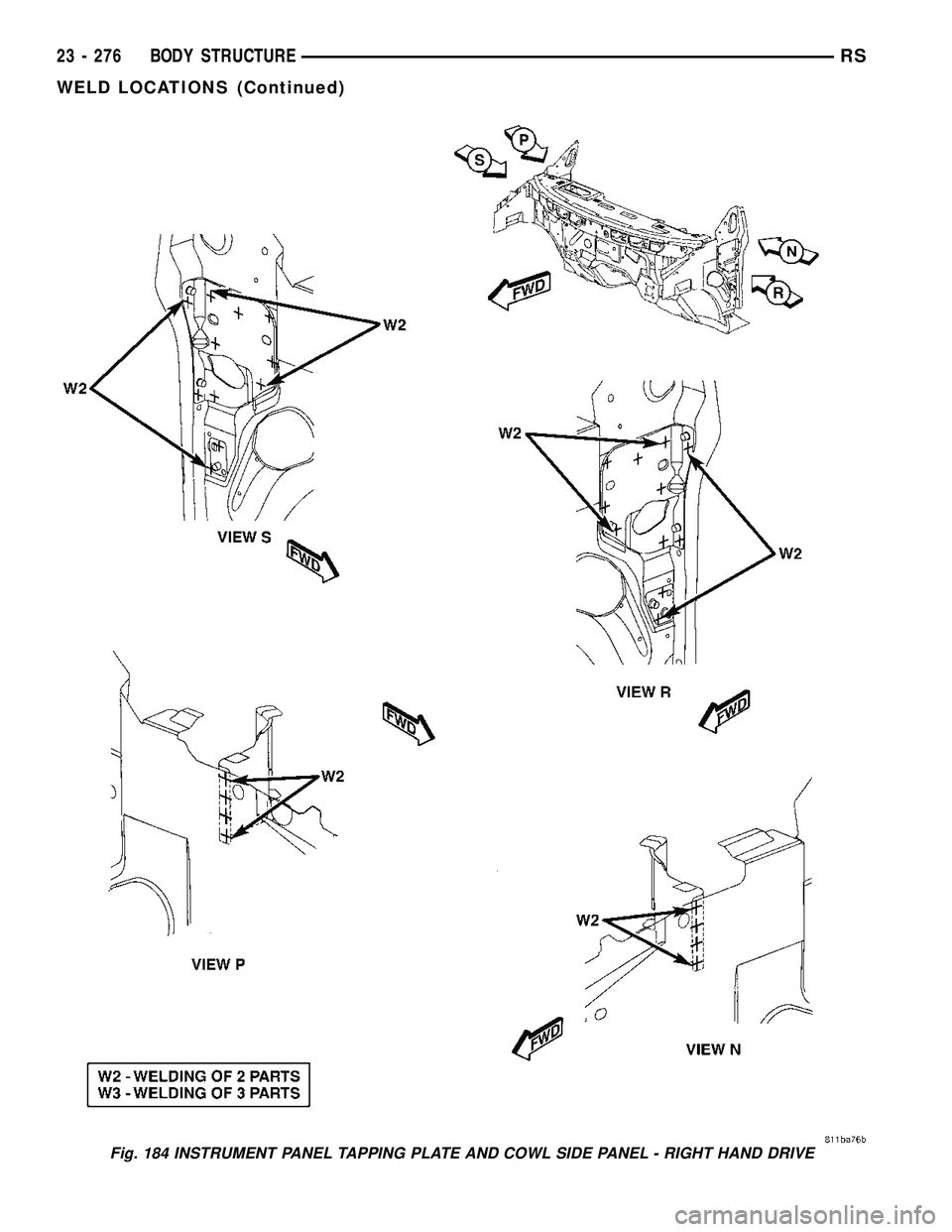

Fig. 184 INSTRUMENT PANEL TAPPING PLATE AND COWL SIDE PANEL - RIGHT HAND DRIVE
23 - 276 BODY STRUCTURERS
WELD LOCATIONS (Continued)

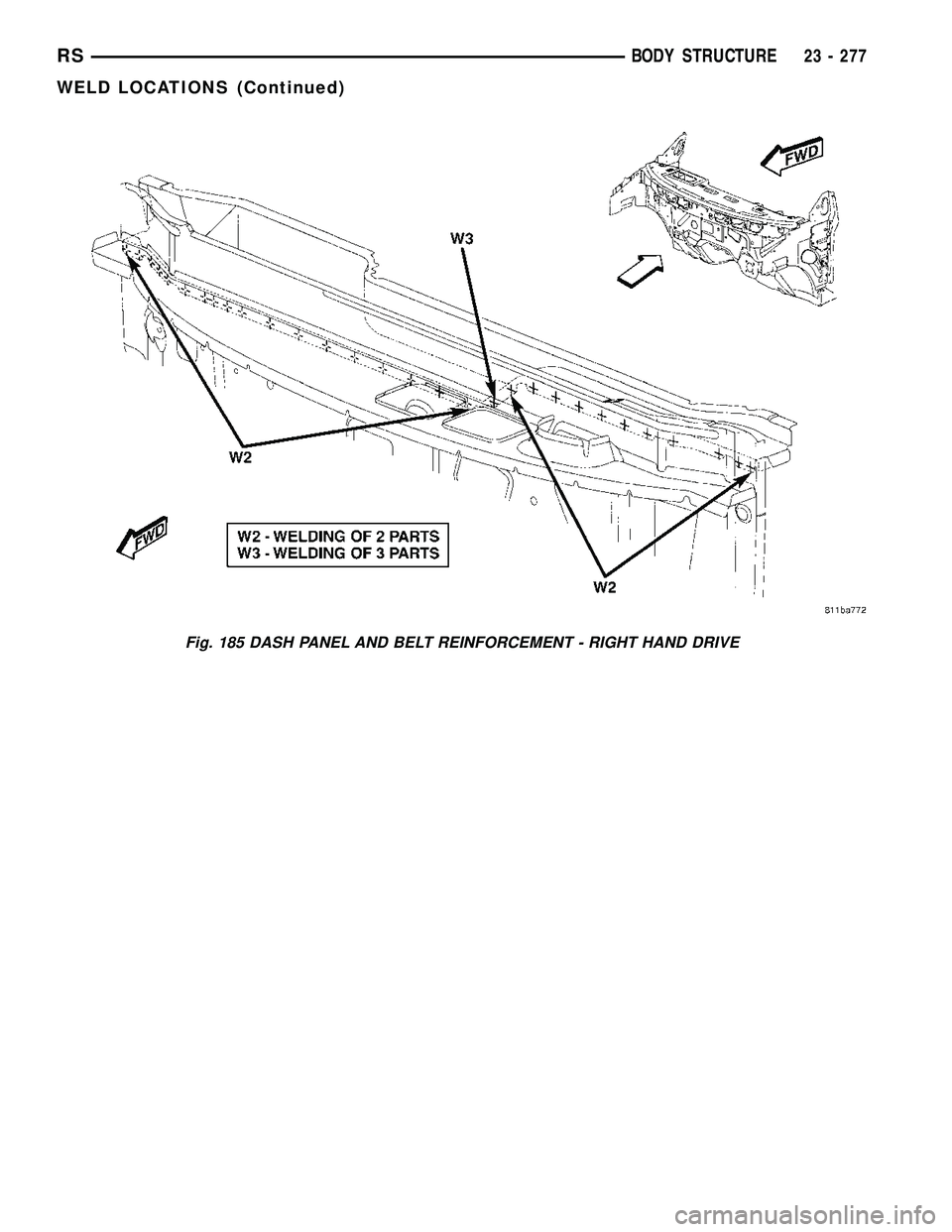

Fig. 185 DASH PANEL AND BELT REINFORCEMENT - RIGHT HAND DRIVE
RSBODY STRUCTURE23 - 277
WELD LOCATIONS (Continued)

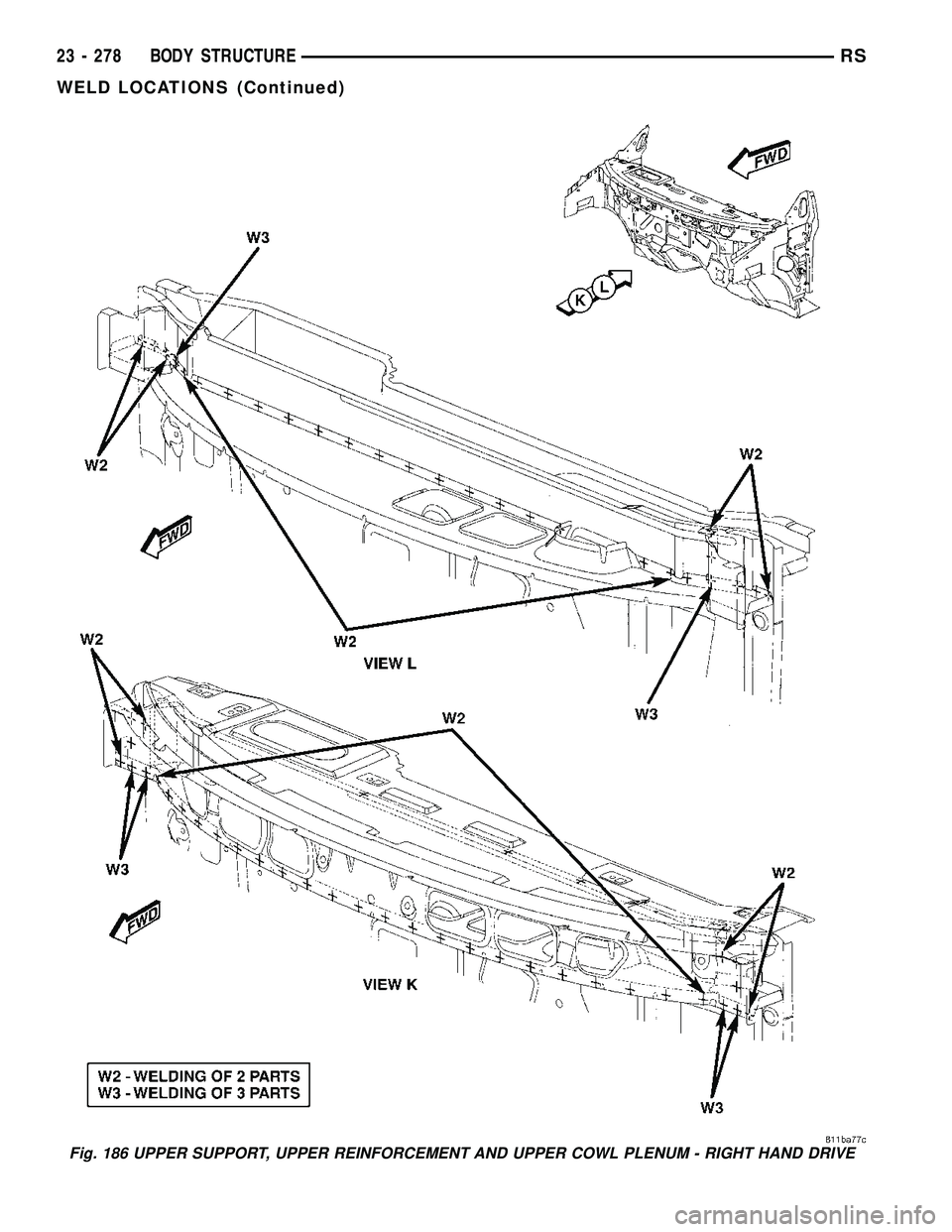

Fig. 186 UPPER SUPPORT, UPPER REINFORCEMENT AND UPPER COWL PLENUM - RIGHT HAND DRIVE
23 - 278 BODY STRUCTURERS
WELD LOCATIONS (Continued)

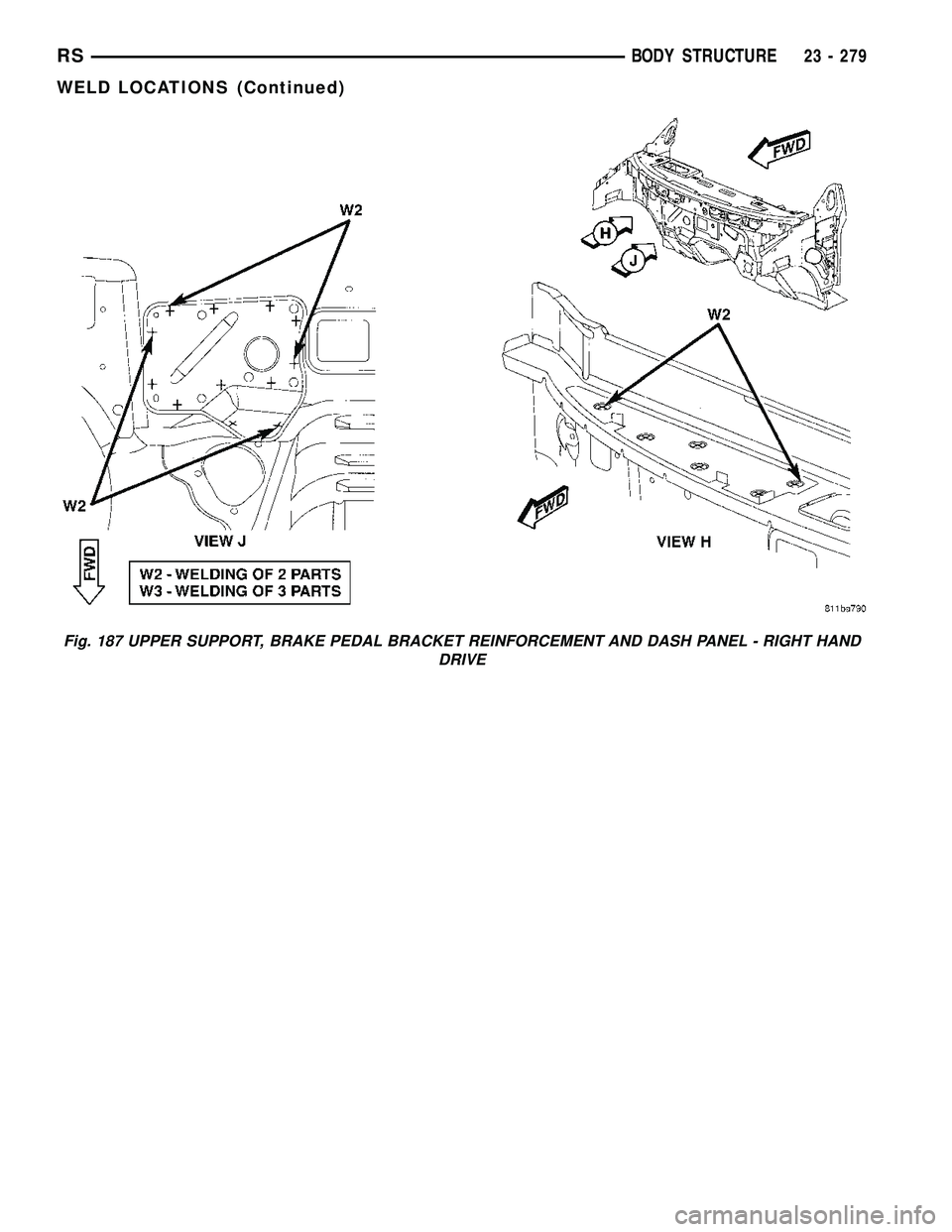

Fig. 187 UPPER SUPPORT, BRAKE PEDAL BRACKET REINFORCEMENT AND DASH PANEL - RIGHT HAND
DRIVE
RSBODY STRUCTURE23 - 279
WELD LOCATIONS (Continued)
