DODGE TOWN AND COUNTRY 2004 Service Manual

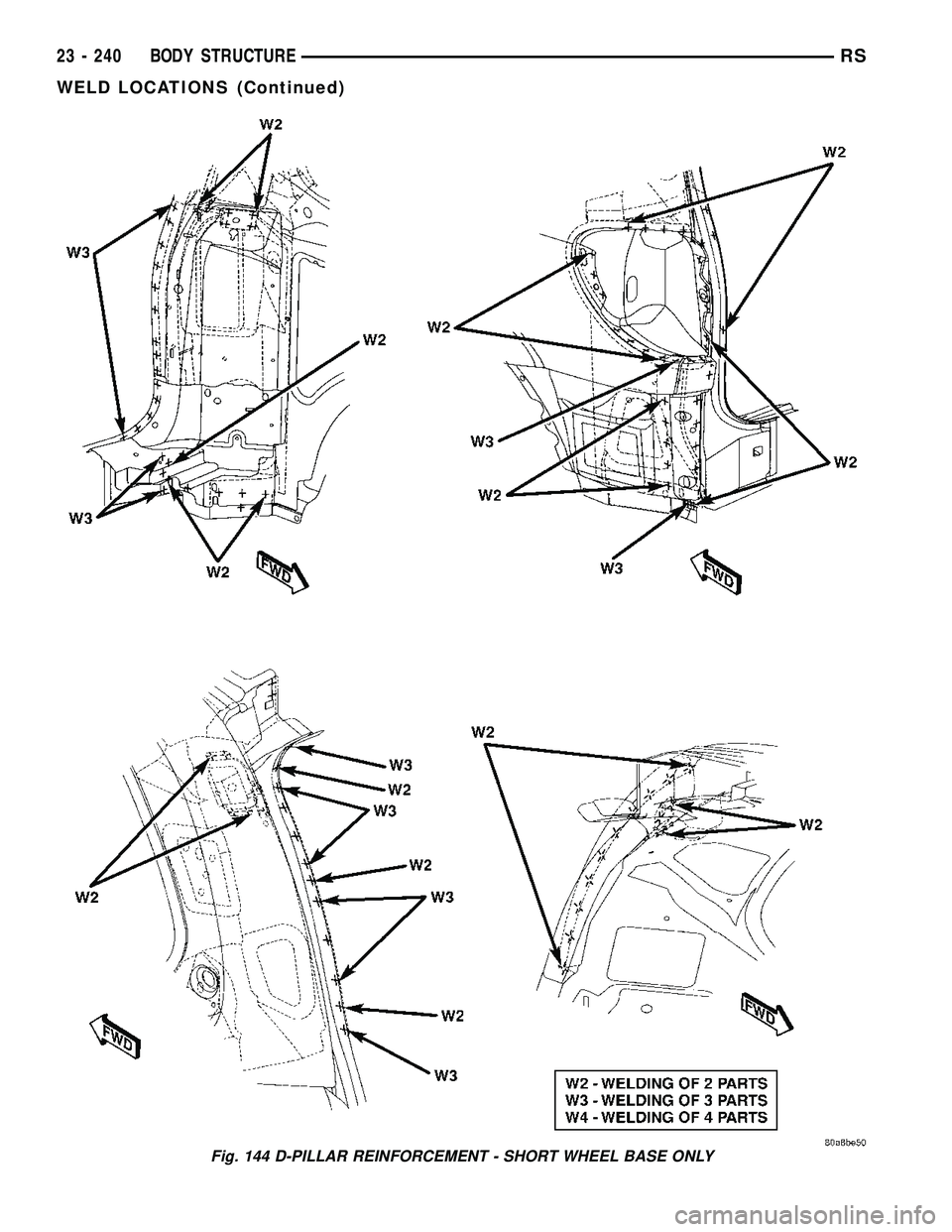

Fig. 144 D-PILLAR REINFORCEMENT - SHORT WHEEL BASE ONLY
23 - 240 BODY STRUCTURERS
WELD LOCATIONS (Continued)

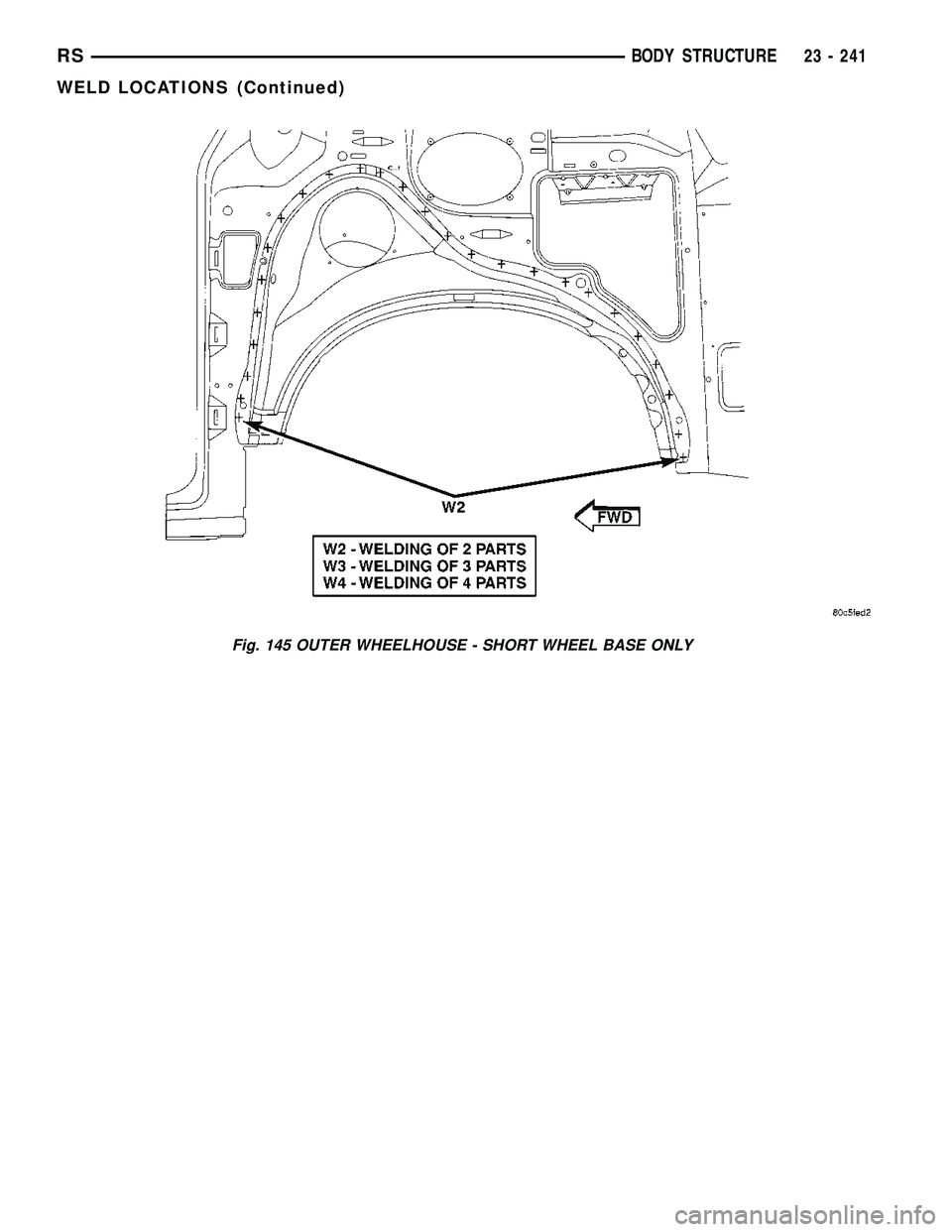

Fig. 145 OUTER WHEELHOUSE - SHORT WHEEL BASE ONLY
RSBODY STRUCTURE23 - 241
WELD LOCATIONS (Continued)

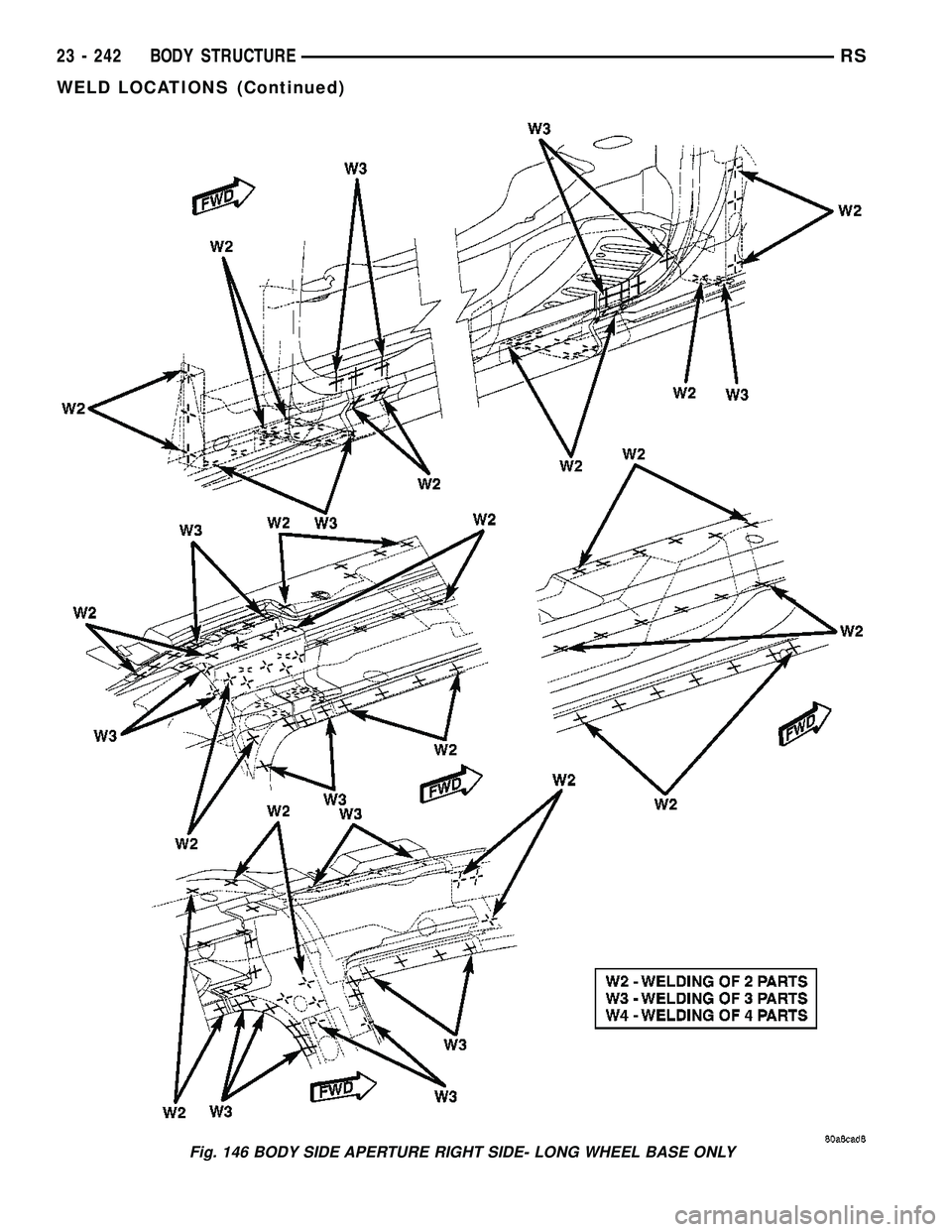

Fig. 146 BODY SIDE APERTURE RIGHT SIDE- LONG WHEEL BASE ONLY
23 - 242 BODY STRUCTURERS
WELD LOCATIONS (Continued)

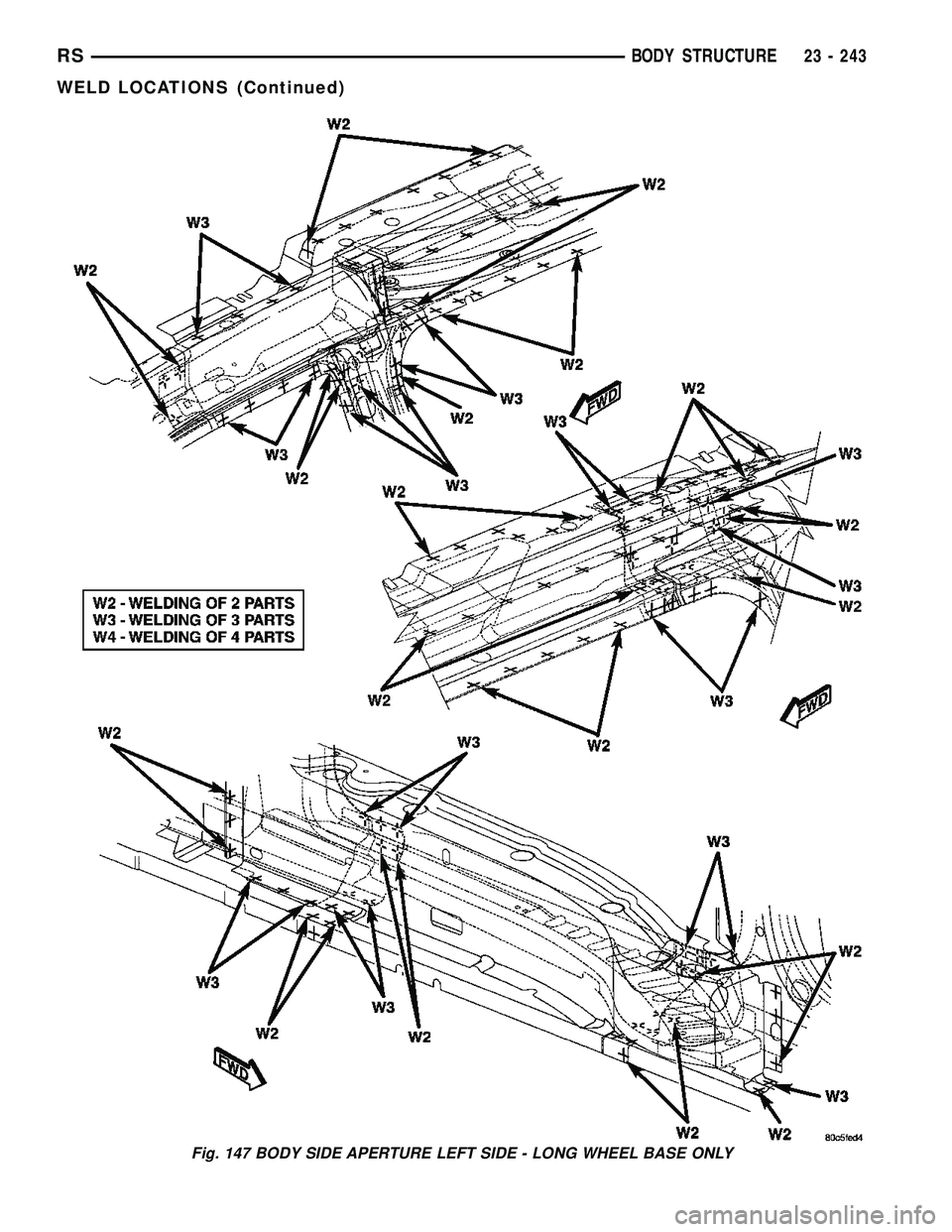

Fig. 147 BODY SIDE APERTURE LEFT SIDE - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 243
WELD LOCATIONS (Continued)

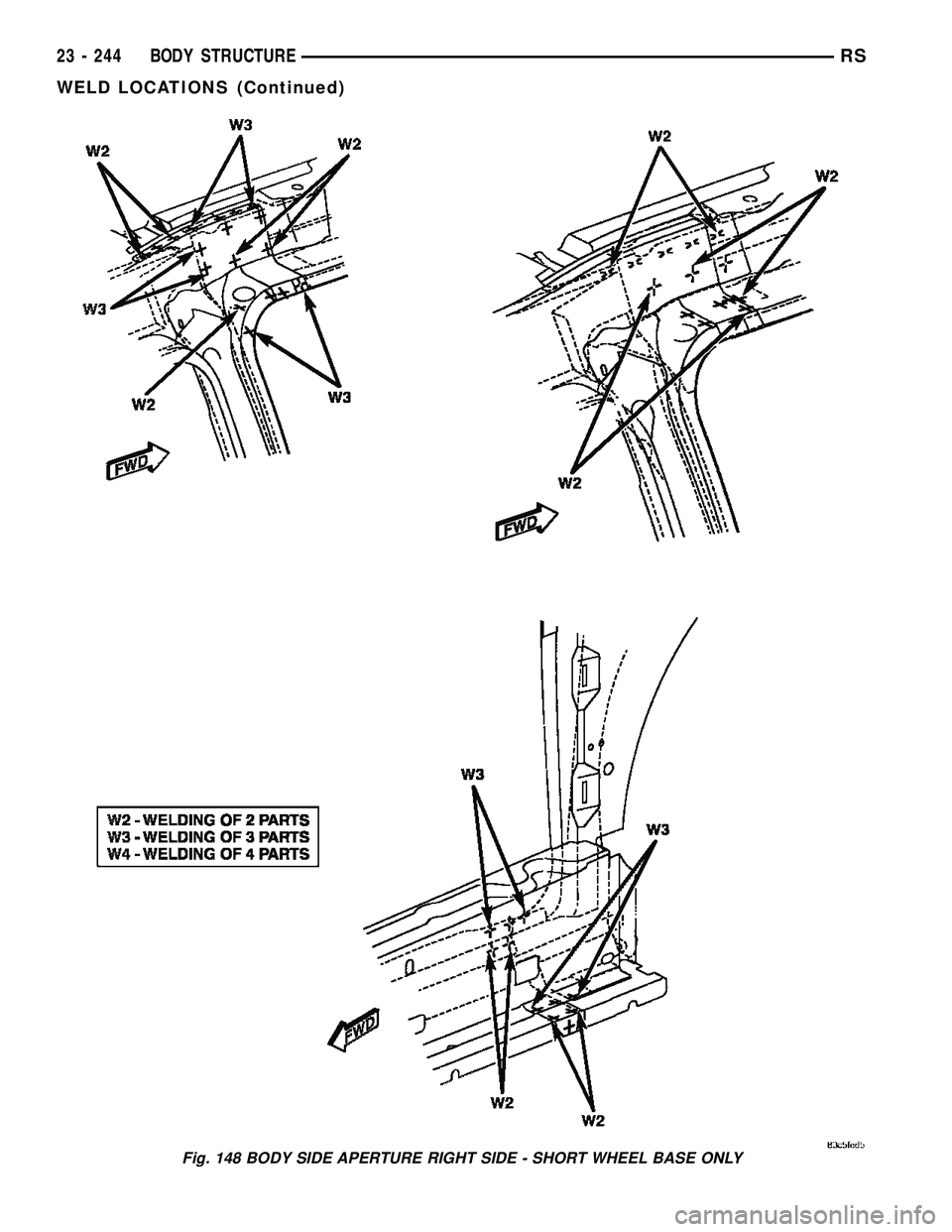

Fig. 148 BODY SIDE APERTURE RIGHT SIDE - SHORT WHEEL BASE ONLY
23 - 244 BODY STRUCTURERS
WELD LOCATIONS (Continued)

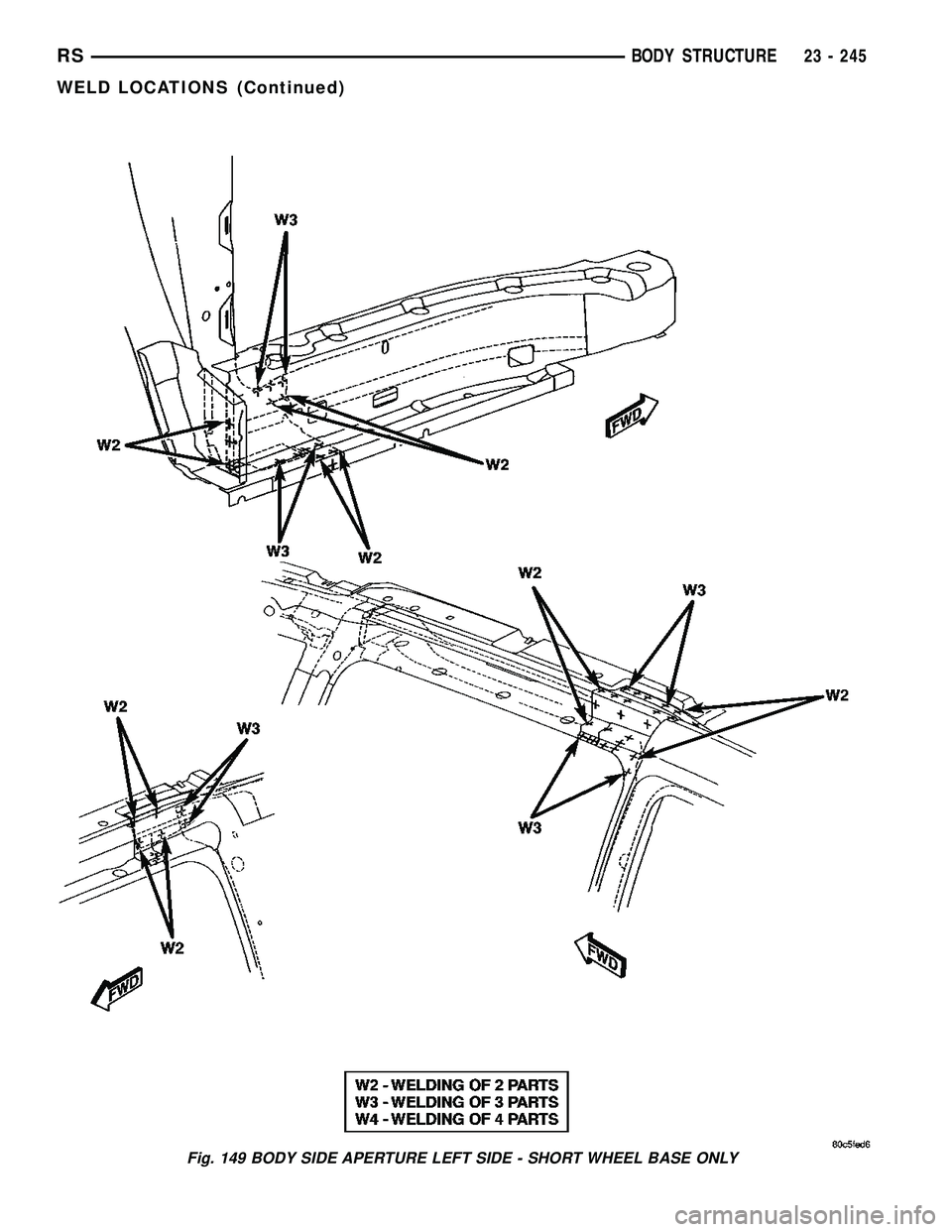

Fig. 149 BODY SIDE APERTURE LEFT SIDE - SHORT WHEEL BASE ONLY
RSBODY STRUCTURE23 - 245
WELD LOCATIONS (Continued)

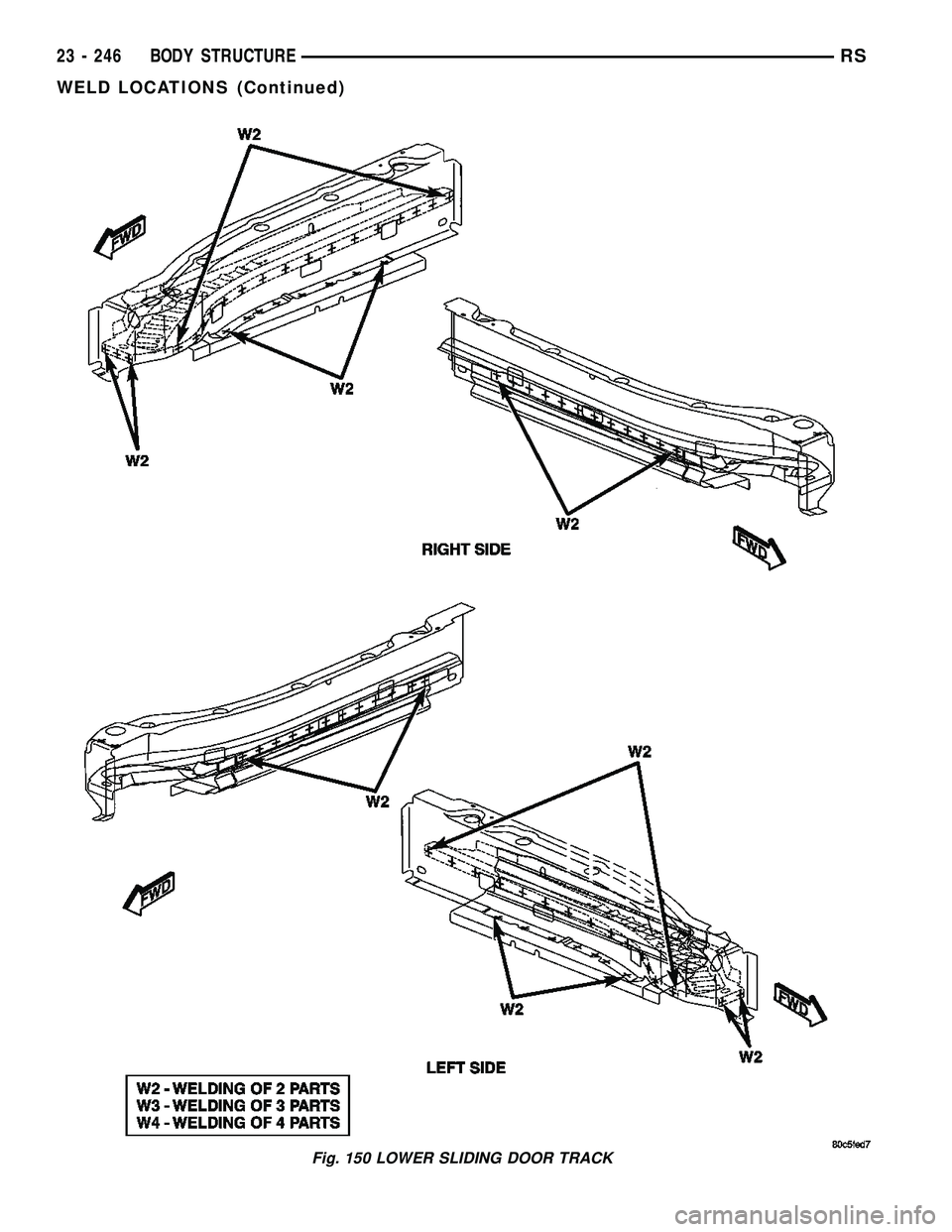

Fig. 150 LOWER SLIDING DOOR TRACK
23 - 246 BODY STRUCTURERS
WELD LOCATIONS (Continued)

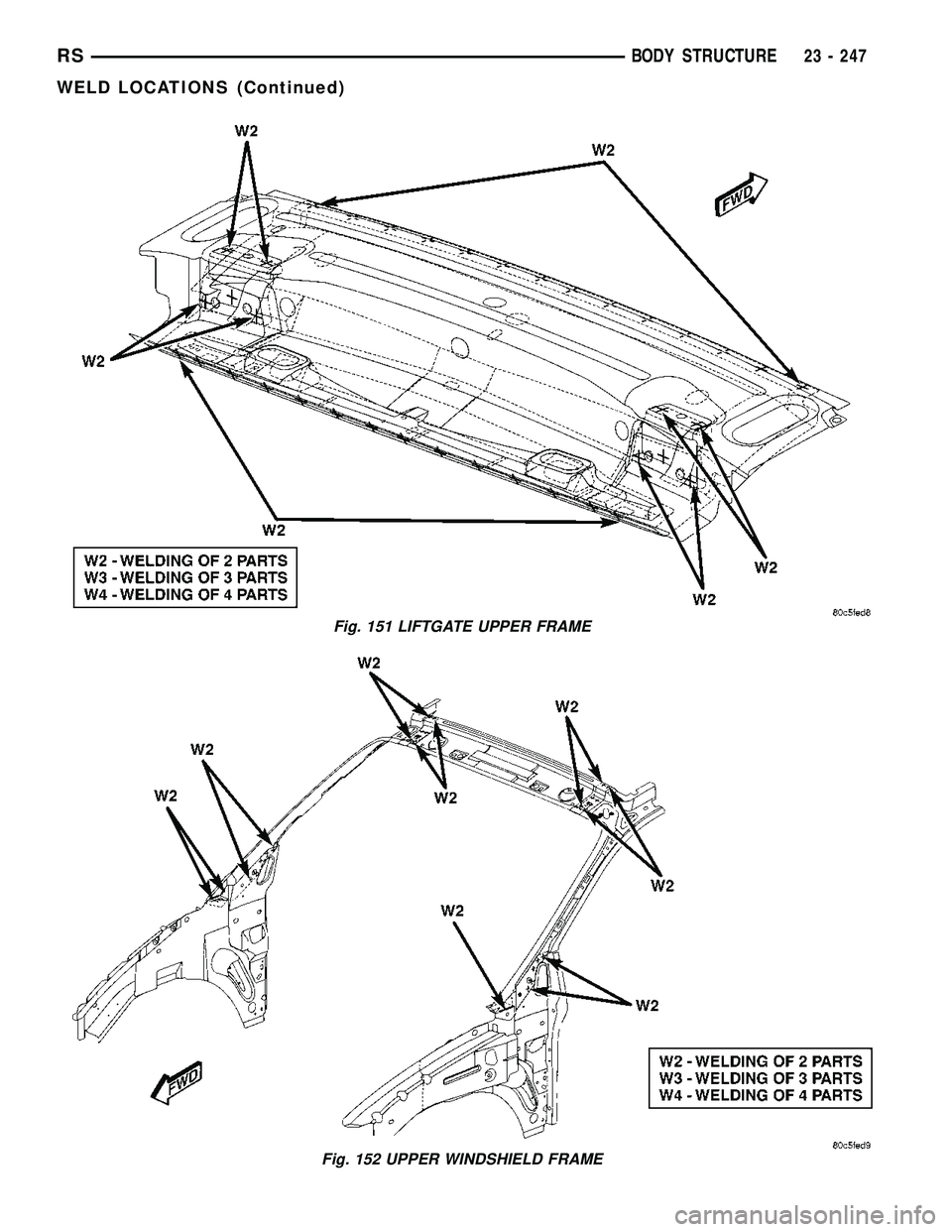

Fig. 151 LIFTGATE UPPER FRAME
Fig. 152 UPPER WINDSHIELD FRAME
RSBODY STRUCTURE23 - 247
WELD LOCATIONS (Continued)

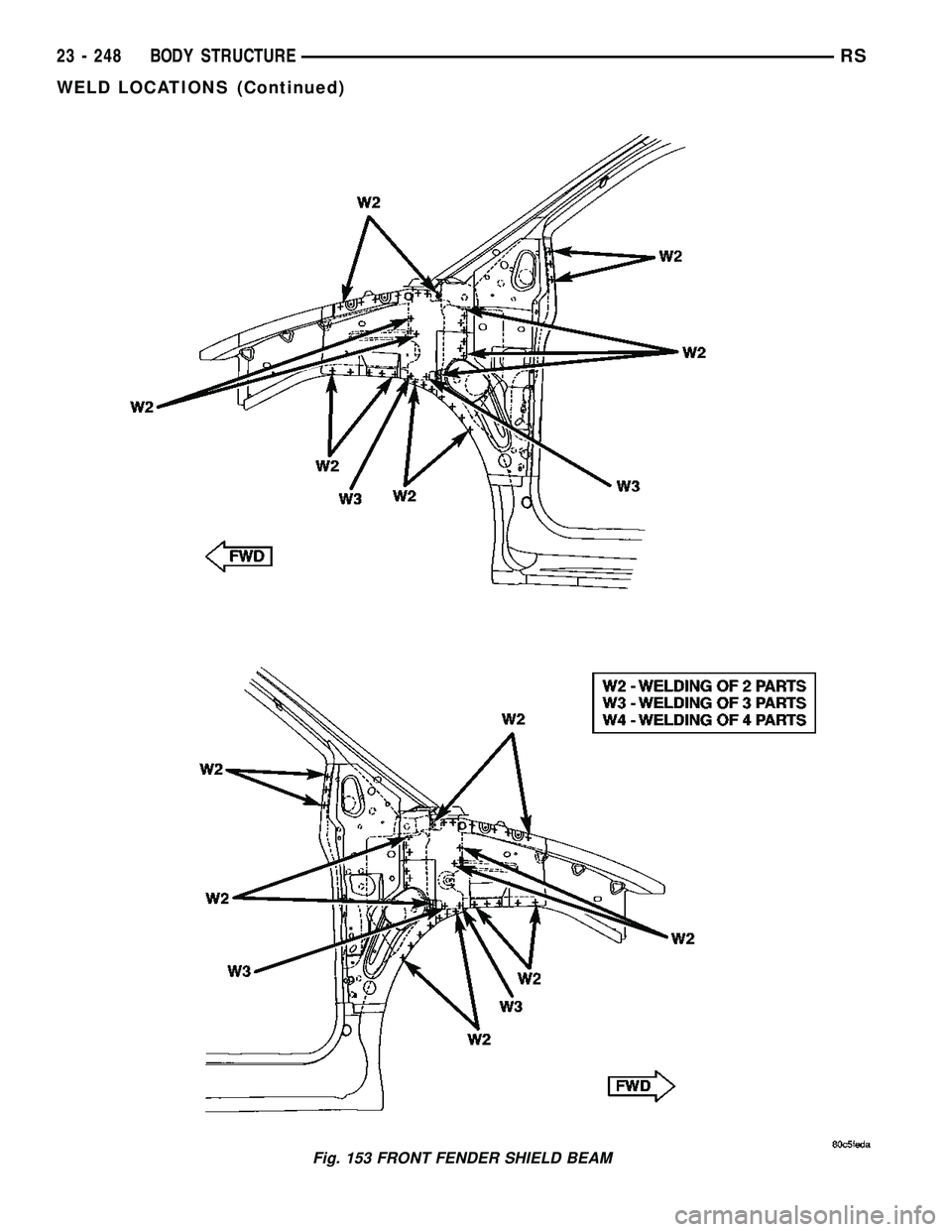

Fig. 153 FRONT FENDER SHIELD BEAM
23 - 248 BODY STRUCTURERS
WELD LOCATIONS (Continued)

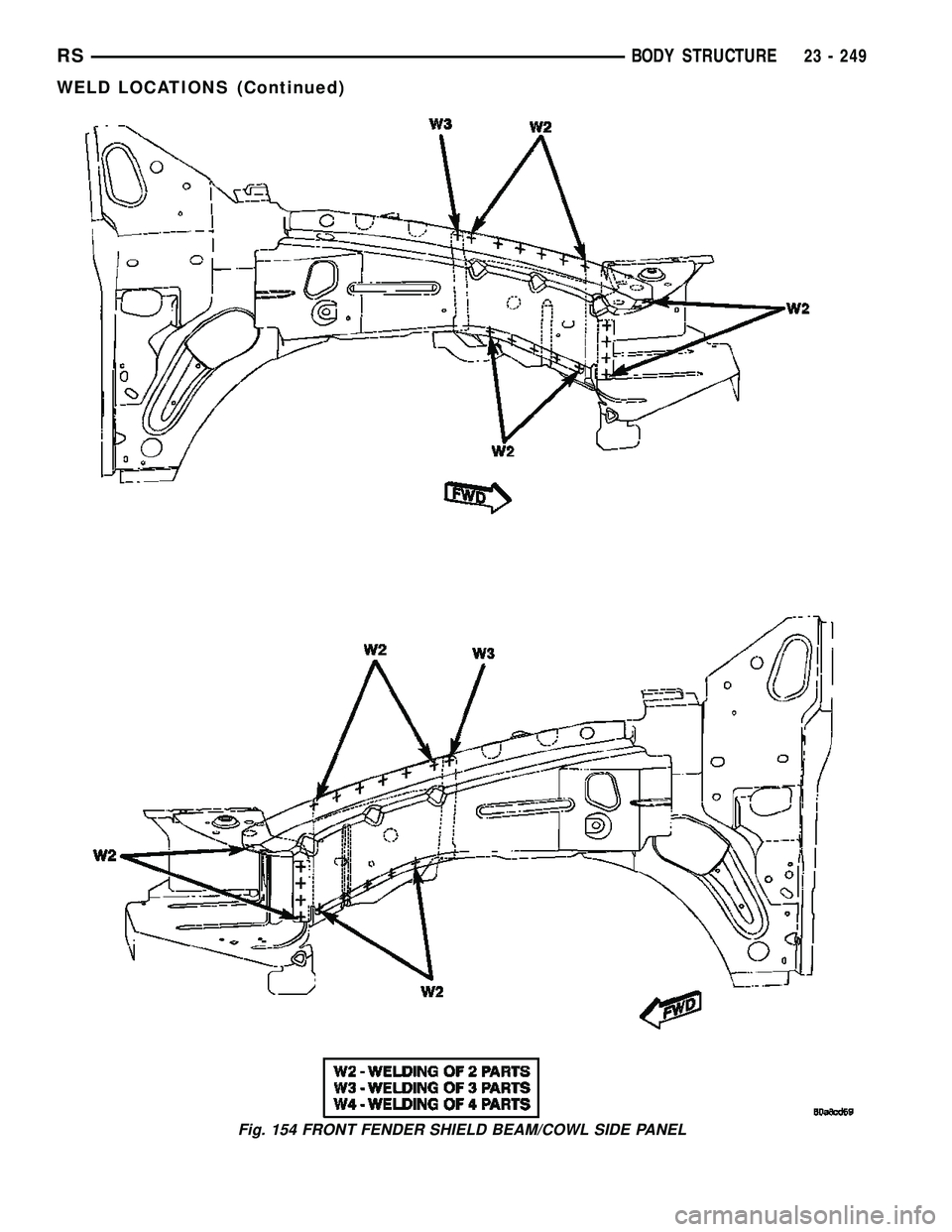

Fig. 154 FRONT FENDER SHIELD BEAM/COWL SIDE PANEL
RSBODY STRUCTURE23 - 249
WELD LOCATIONS (Continued)
