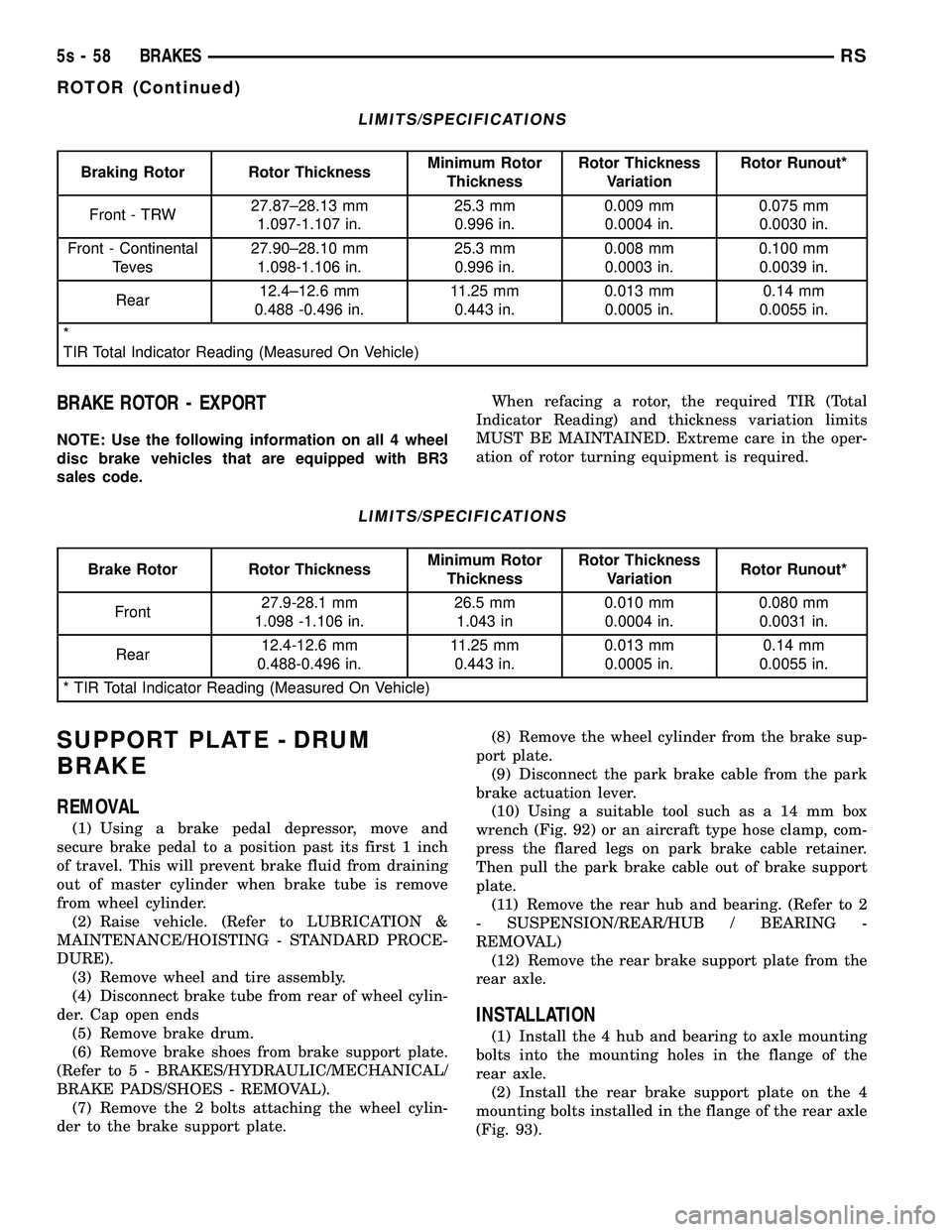

DODGE TOWN AND COUNTRY 2004  Service Manual LIMITS/SPECIFICATIONS
Braking Rotor Rotor ThicknessMinimum Rotor
Thickness Rotor Thickness
Variation Rotor Runout*
Front - TRW 27.87±28.13 mm
1.097-1.107 in. 25.3 mm
0.996 in. 0.009 mm
0.0004 in. 0.0

Page 302 of 2585

DODGE TOWN AND COUNTRY 2004  Service Manual (3) Install the rear hub and bearing (and connect
wheel speed sensor where applicable) stopping short
of installing the brake drum. (Refer t o 2 - SUSPEN-
SION/REAR/HUB / BEARING - INSTALLATION) (4) I

Page 303 of 2585

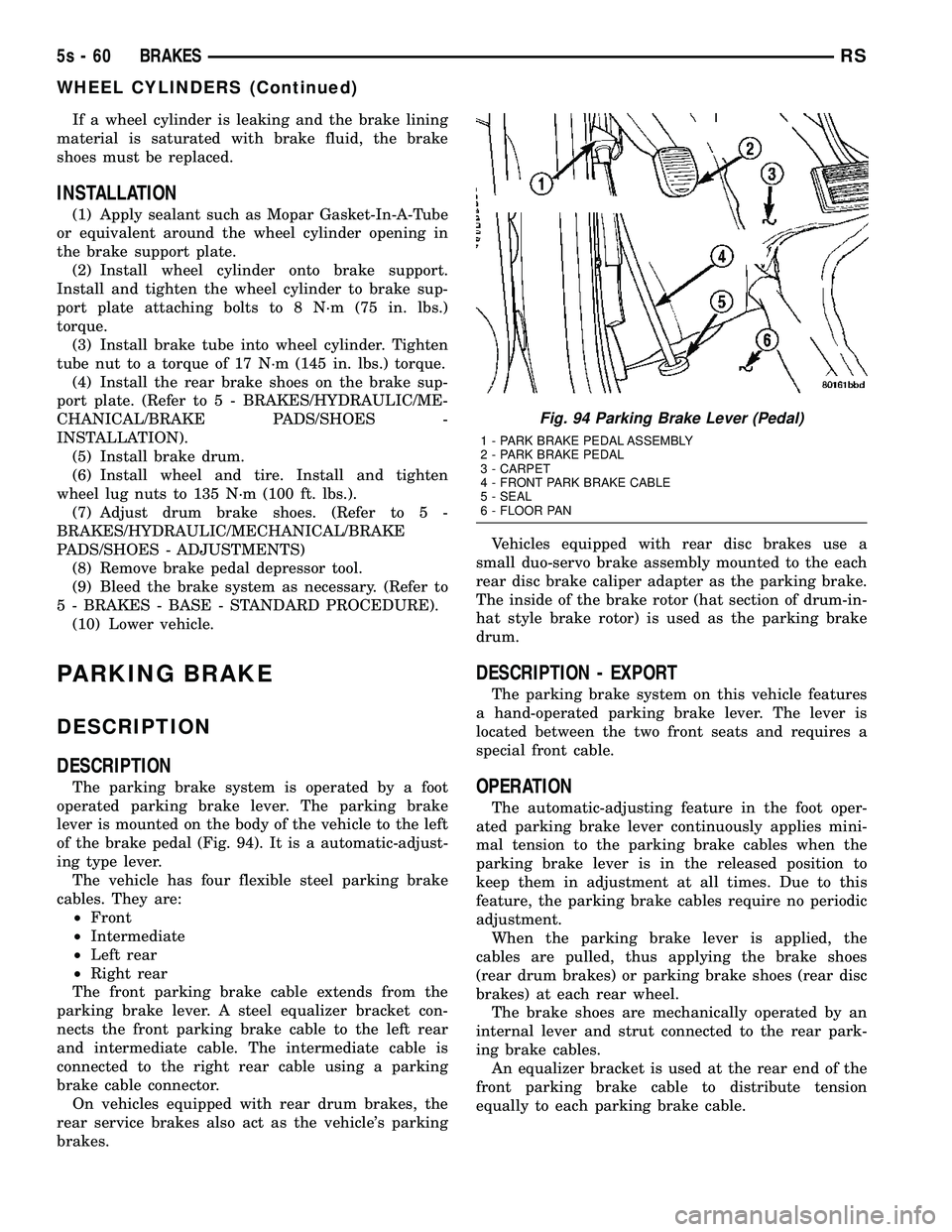

DODGE TOWN AND COUNTRY 2004  Service Manual If a wheel cylinder is leaking and the brake lining
material is saturated with brake fluid, the brake
shoes must be replaced.
INSTALLATION
(1) Apply sealant such as Mopar Gasket-In-A-Tube
or equivalen

Page 304 of 2585

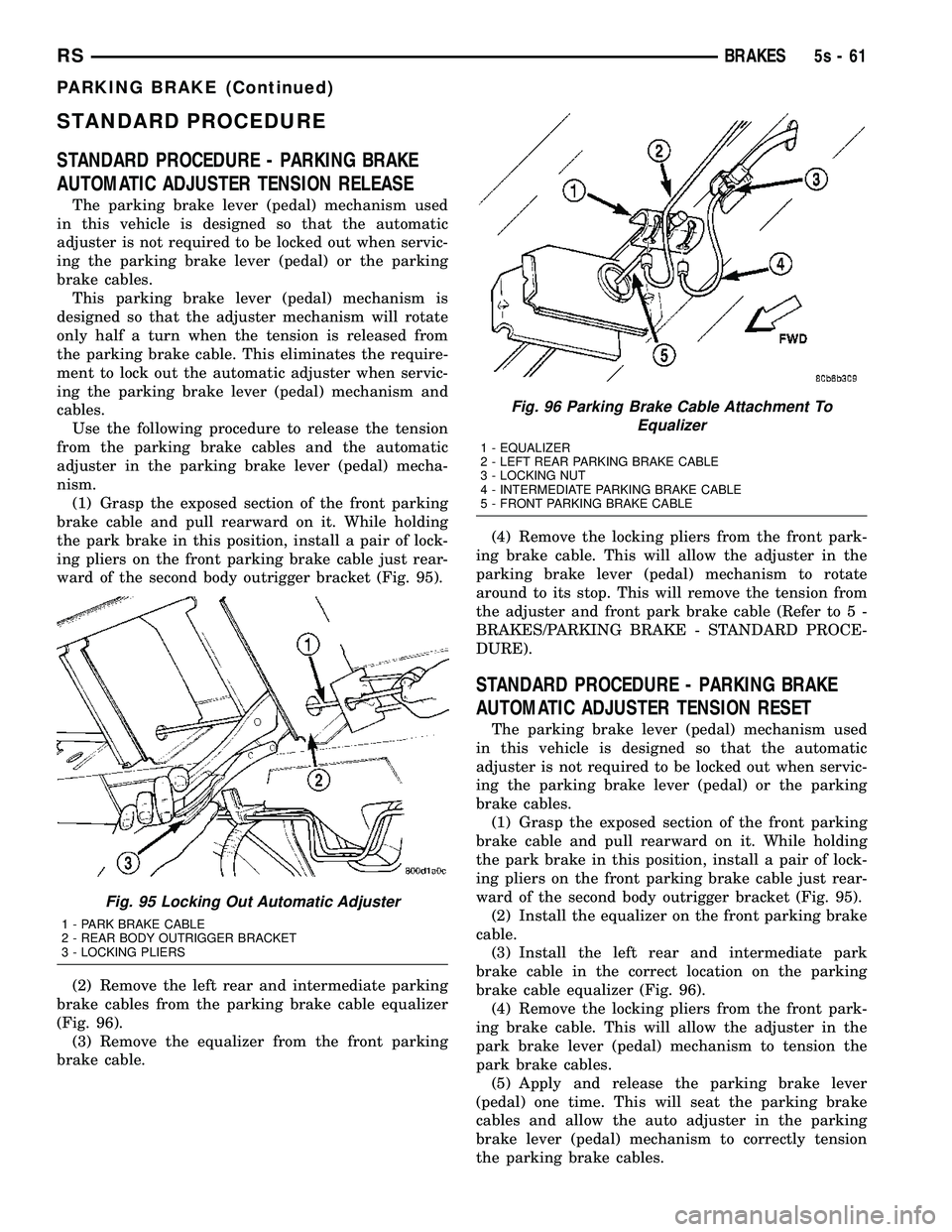

DODGE TOWN AND COUNTRY 2004  Service Manual STANDARD PROCEDURE
STANDARD PROCEDURE - PARKING BRAKE
AUTOMATIC ADJUSTER TENSION RELEASE
The parking brake lever (pedal) mechanism used
in this vehicle is designed so that the automatic
adjuster is no

Page 305 of 2585

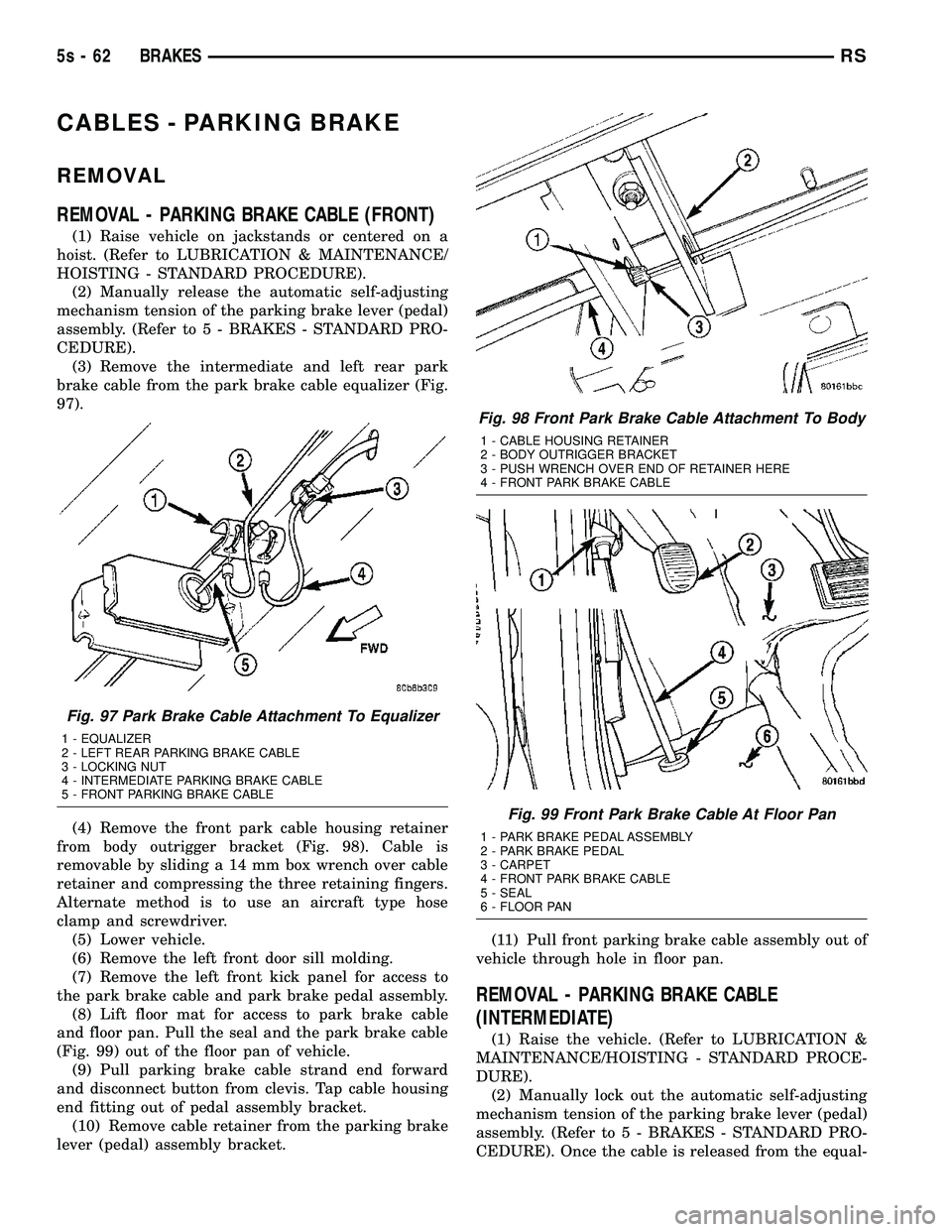

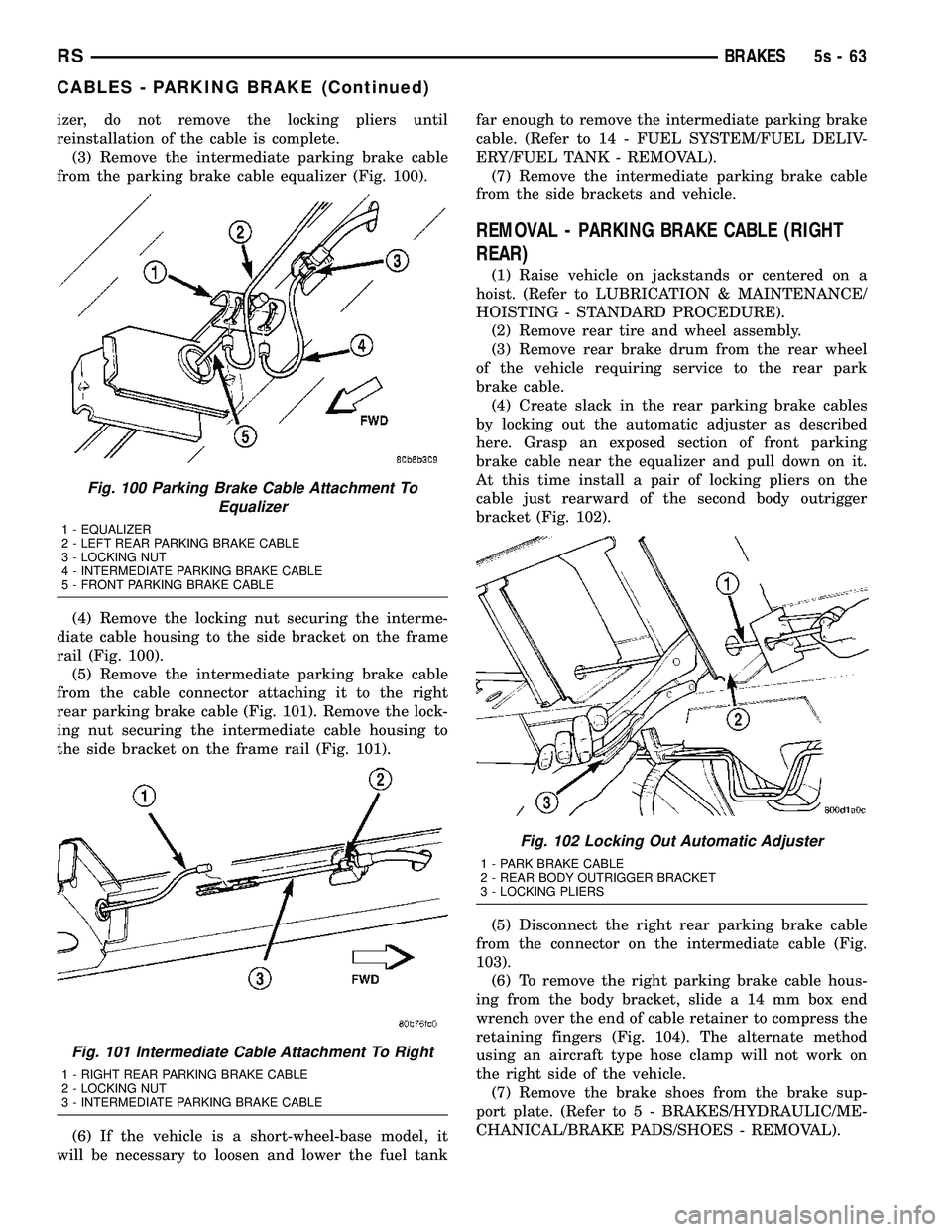

DODGE TOWN AND COUNTRY 2004  Service Manual CABLES - PARKING BRAKE
REMOVAL
REMOVAL - PARKING BRAKE CABLE (FRONT)
(1) Raise vehicle on jackstands or centered on a
hoist. (Refer to LUBRICATION & MAINTENANCE/
HOISTING - STANDARD PROCEDURE). (2) Ma

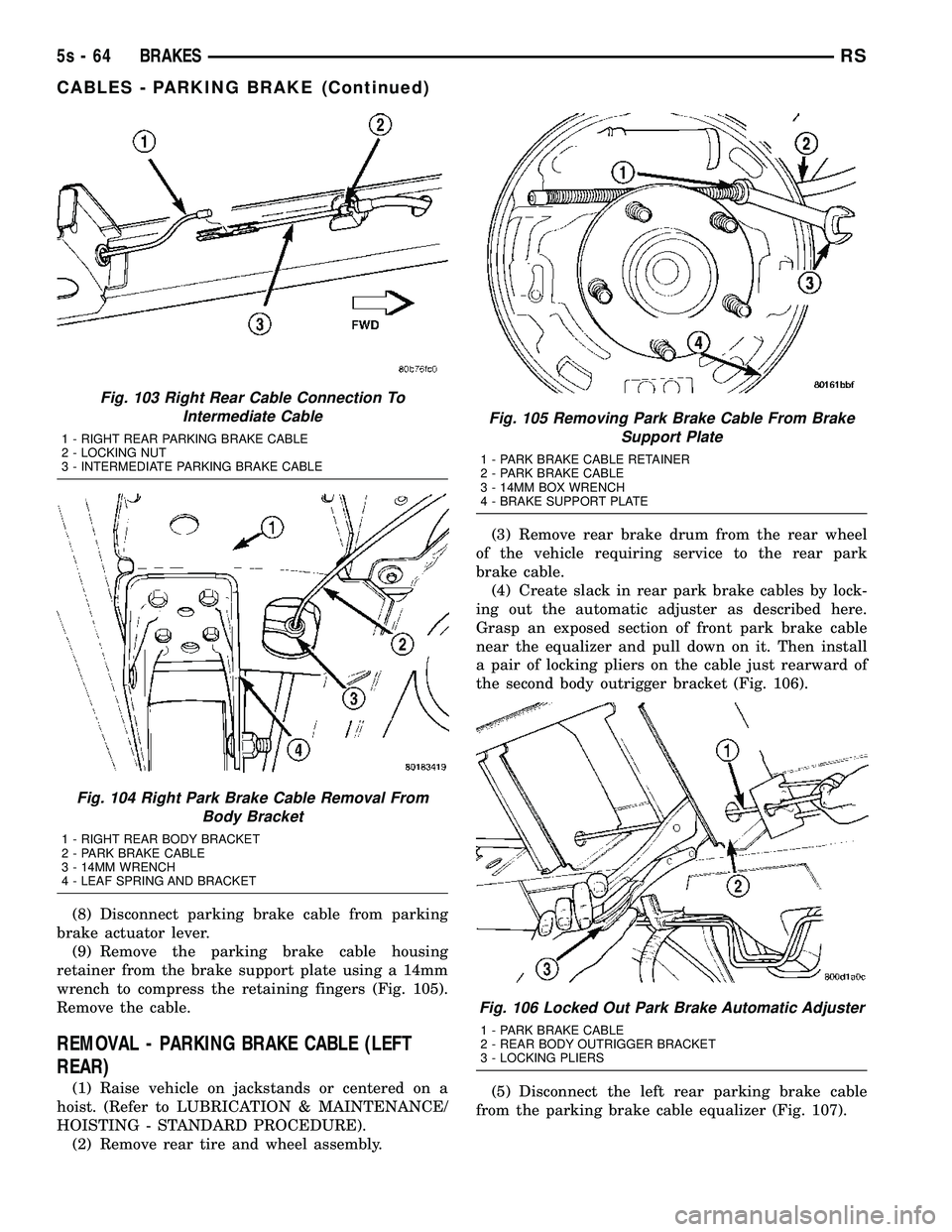

Page 306 of 2585

DODGE TOWN AND COUNTRY 2004  Service Manual izer, do not remove the locking pliers until
reinstallation of the cable is complete.(3) Remove the intermediate parking brake cable
from the parking brake cable equalizer (Fig. 100).
(4) Remove the l

Page 307 of 2585

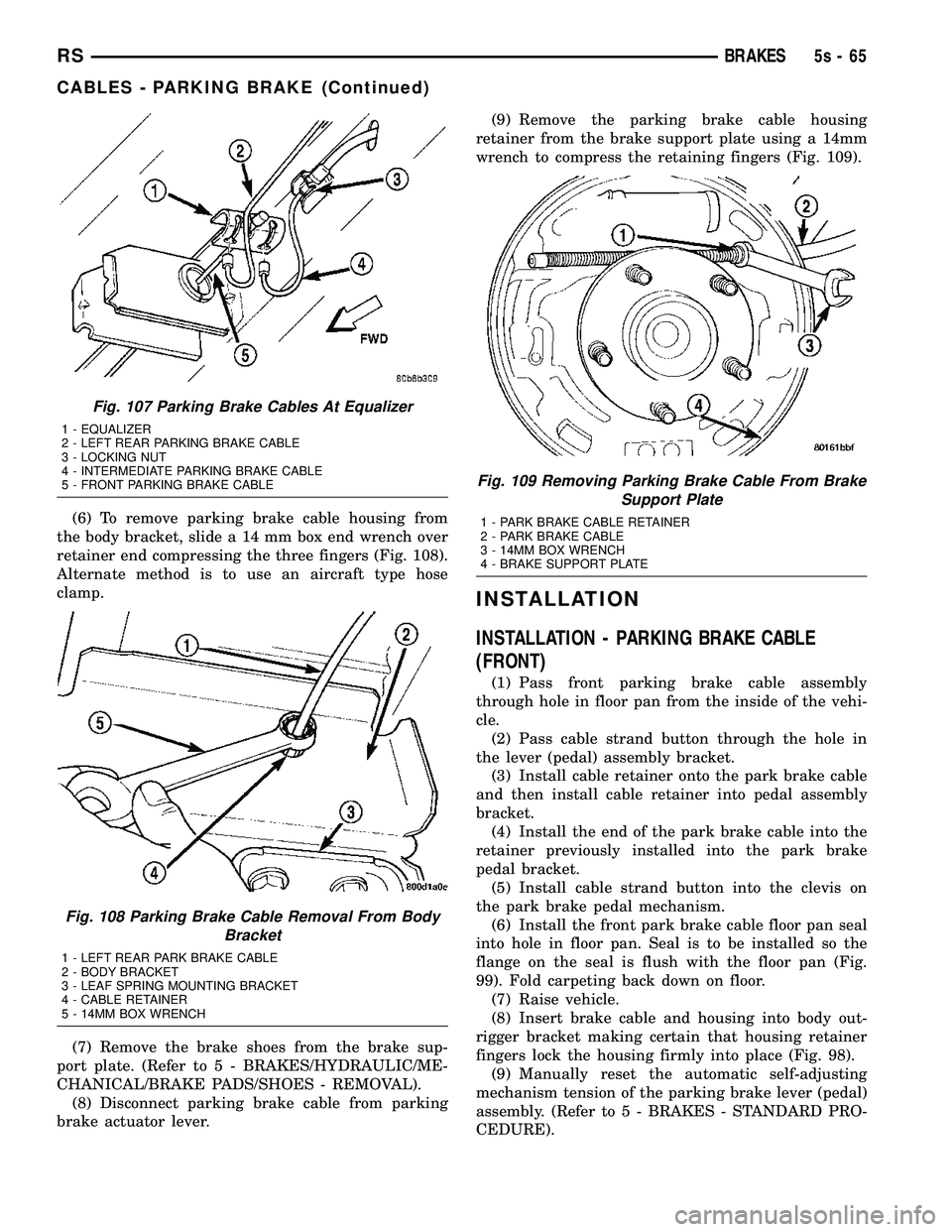

DODGE TOWN AND COUNTRY 2004  Service Manual (8) Disconnect parking brake cable from parking
brake actuator lever. (9) Remove the parking brake cable housing
retainer from the brake support plate using a 14mm
wrench to compress the retaining fin

Page 308 of 2585

DODGE TOWN AND COUNTRY 2004  Service Manual (6) To remove parking brake cable housing from
the body bracket, slide a 14 mm box end wrench over
retainer end compressing the three fingers (Fig. 108).
Alternate method is to use an aircraft type ho

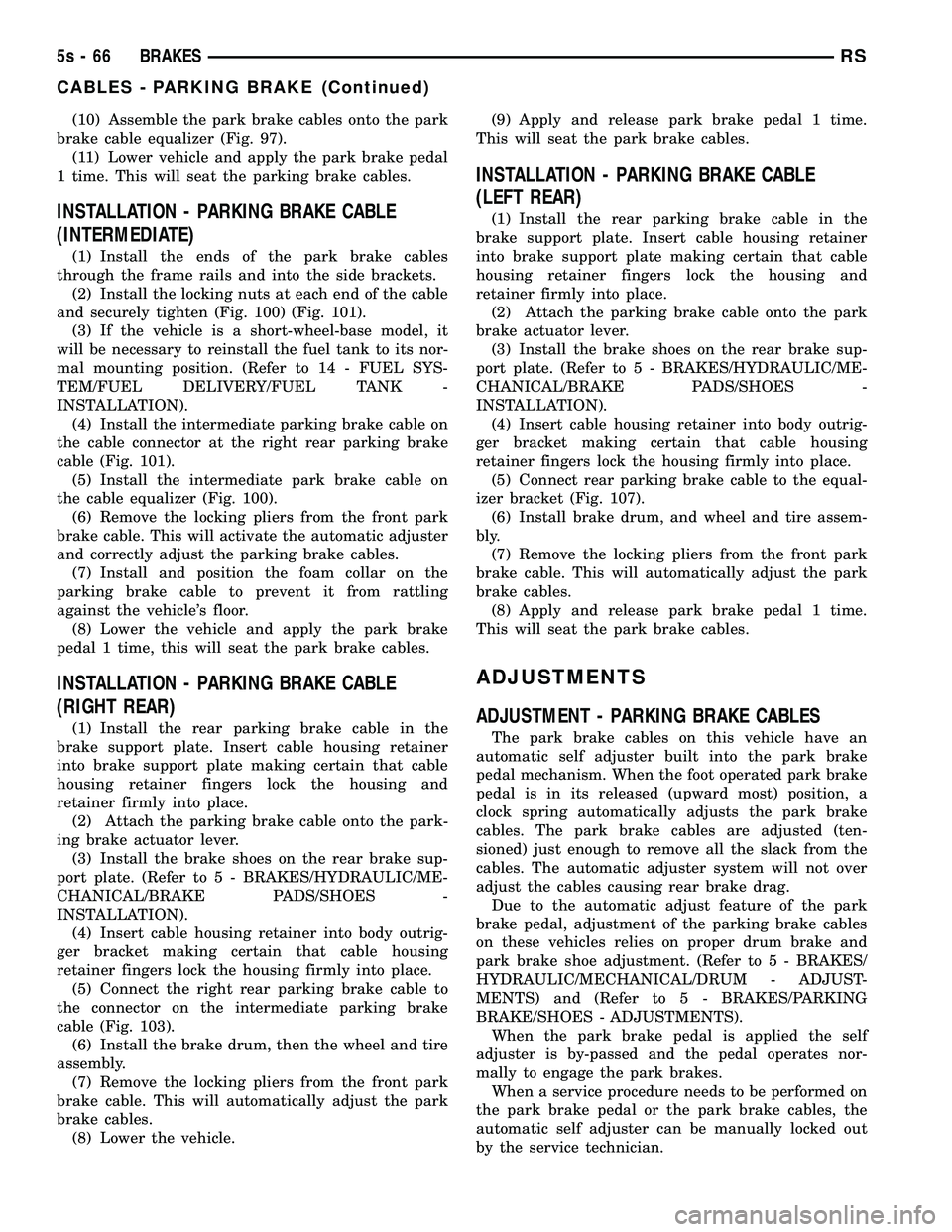

Page 309 of 2585

DODGE TOWN AND COUNTRY 2004  Service Manual (10) Assemble the park brake cables onto the park
brake cable equalizer (Fig. 97). (11) Lower vehicle and apply the park brake pedal
1 time. This will seat the parking brake cables.
INSTALLATION - PAR

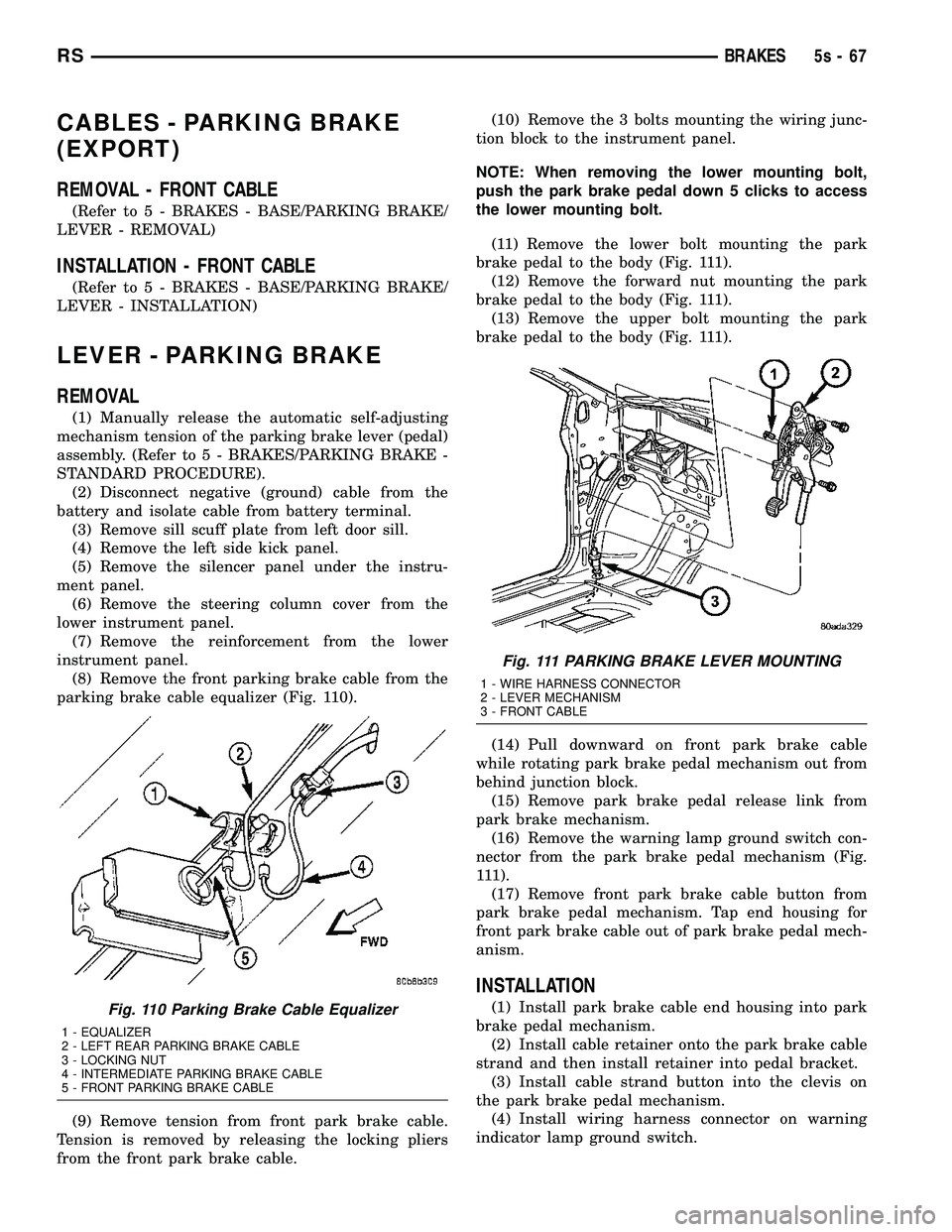

Page 310 of 2585

DODGE TOWN AND COUNTRY 2004  Service Manual CABLES - PARKING BRAKE
(EXPORT)
REMOVAL - FRONT CABLE
(Refer to 5 - BRAKES - BASE/PARKING BRAKE/
LEVER - REMOVAL)
INSTALLATION - FRONT CABLE
(Refer t o 5 - BRAKES - BASE/PARKING BRAKE/
LEVER - INSTALL
