INSTRUMENT PANEL FEATURES
1 Ð Air Outlet 7 Ð Speedometer/Odometer 13 Ð Climate Control
2 Ð Sound System Speaker 8 Ð Oil Pressure Gauge 14 Ð Engine Start Button
3 Ð Main Message Center 9 Ð Passenger Airbag Off Light 15 Ð Voltage Gauge
4 Ð Fuel Gauge 10 Ð Passenger Airbag 16Ð Engine Coolant Temperature Gauge
5 Ð Auxiliary Message Center 11 Ð Glove Box 17Ð Engine Oil Temperature Gauge
6 Ð Tachometer 12 Ð Sound System Controls 18 Ð Trip ButtonUNDERSTANDING YOUR INSTRUMENT PANEL 95
4

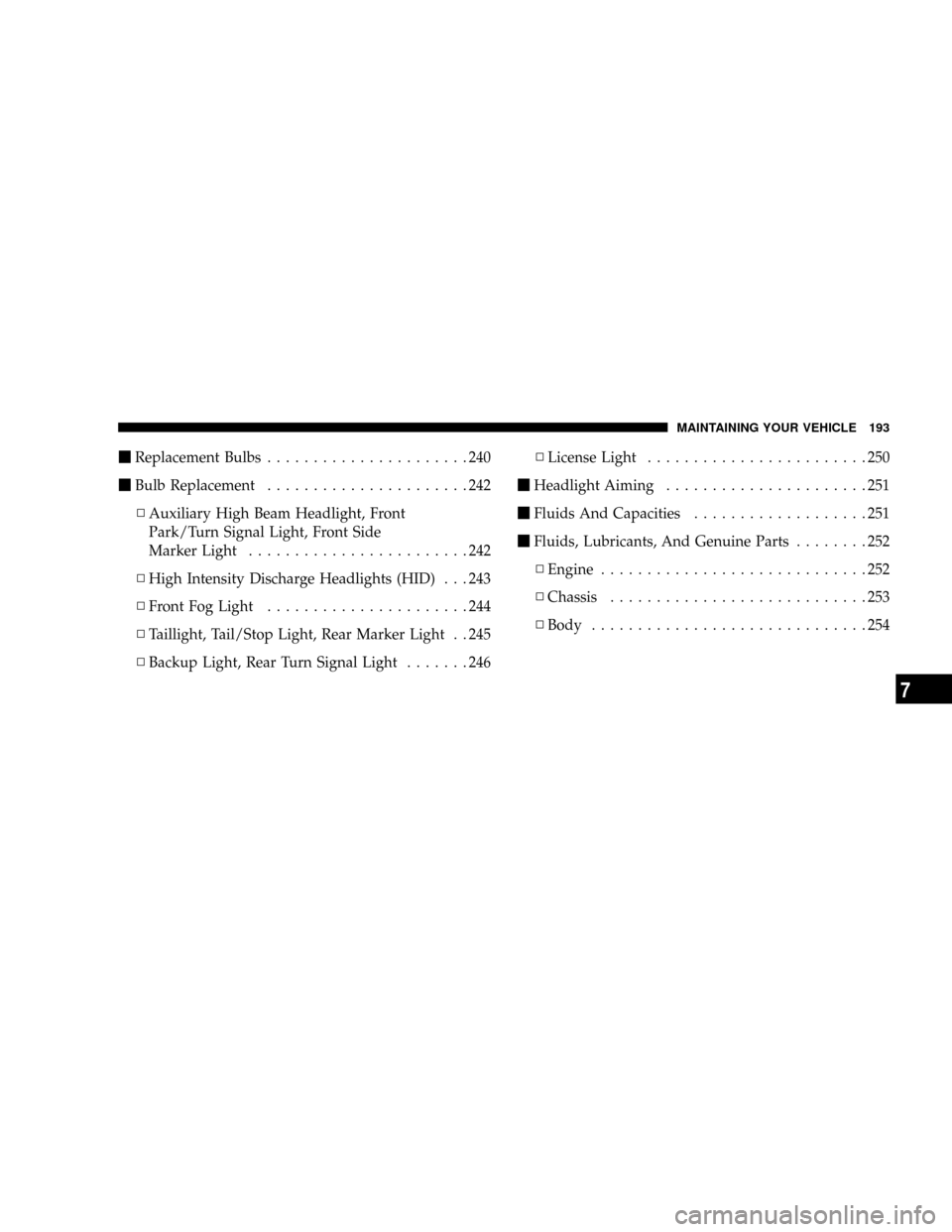

mReplacement Bulbs......................240
mBulb Replacement......................242
NAuxiliary High Beam Headlight, Front
Park/Turn Signal Light, Front Side
Marker Light........................242
NHigh Intensity Discharge Headlights (HID) . . . 243
NFront Fog Light......................244
NTaillight, Tail/Stop Light, Rear Marker Light . . 245
NBackup Light, Rear Turn Signal Light.......246NLicense Light........................250
mHeadlight Aiming......................251
mFluids And Capacities...................251
mFluids, Lubricants, And Genuine Parts........252
NEngine.............................252
NChassis............................253
NBody..............................254
MAINTAINING YOUR VEHICLE 193
7

LIGHT BULBS Ð Exterior
(Convertible Models) Bulb Number
Low/High Beam High Intensity
Discharge (HID) Headlight.... Serviced at dealer only
Auxiliary High Beam Headlight......(HB3A) 9005XS
Front Park/Turn Signal Light.............3157AK
Fog Light.......................(H10 U) 9145
Front Side Marker Light..................2886X
Center High Mounted Stop
Light (CHMSL)........... 16LED(not serviceable)
Tail/Stop Light.........................3157
Taillight............................... 194
Rear Marker Light........................ 194
Backup Light...........................3157
Rear Turn Signal Light..................3457AK
License Light........................... 168LIGHT BULBS Ð Exterior
(Coupe Models) Bulb Number
Low/High Beam High Intensity
Discharge (HID) Headlight.... Serviced at dealer only
Auxiliary High Beam Headlight......(HB3A) 9005XS
Front Park/Turn Signal Light.............3157AK
Fog Light.......................(H10 U) 9145
Front Side Marker Light..................2886X
Center High Mounted Stop
Light (CHMSL)........... 16LED(not serviceable)
Tail/Stop/Turn Signal Light................3157
Rear Marker Light........................ 194
Backup Light...........................3157
License Light........................... 168
NOTE:Upon turning the High Intensity Discharge
(HID) Headlights on, there is a blue hue to the lamps.
This diminishes and becomes more white after approxi-
mately 10 seconds as the system charges.
MAINTAINING YOUR VEHICLE 241
7

BULB REPLACEMENT
Auxiliary High Beam Headlight, Front Park/Turn
Signal Light, Front Side Marker Light
1. Remove the push pin from the upper outer corner of
the splash shield and remove the splash shield.2. Turn the appropriate bulb and socket assembly
counter-clockwise, and then pull it out of the headlight
assembly.
1 Ð Front Side Marker Light
2 Ð Front Park/Turn Signal Light
3 Ð Low/High Beam HID Headlight
4 Ð Auxiliary High Beam Headlight
5 Ð Headlight Adjustment Ð Aim Up & Down 242 MAINTAINING YOUR VEHICLE
