JUMP-STARTING PROCEDURES
WARNING!
•Take care to avoid the radiator cooling fans when-
ever the hood is raised. They can start anytime the
ignition switch is on. You can be hurt by the fans.
•Take care to avoid the accessory drive whenever
the hood is raised. You can be hurt by the moving
components.
•Do not attempt to push or tow your vehicle to get
it started. Unburned fuel could enter the catalytic
converter and once the engine has started, ignite
and damage the converter and vehicle. If the
vehicle has a discharged battery, booster cables
may be used to obtain a start from a booster
battery or the battery in another vehicle. This type
of start can be dangerous if done improperly, so
follow this procedure carefully.(Continued)
WARNING! (Continued)
•Battery fluid is a corrosive acid solution; do not
allow battery fluid to contact eyes, skin, or cloth-
ing. Do not lean over a battery when attaching
clamps or allow the clamps to touch each other. If
acid splashes in eyes or on skin, flush contami-
nated area immediately with large quantities of
water.
•A battery generates hydrogen gas, which is flam-
mable and explosive. Keep flame or spark away
from the vent holes.
•Do not use a booster battery or any other booster
source with an output that exceeds 12 Volts.
NOTE: The battery is located underneath an access
panel inside the rear compartment on the left side of the
vehicle. A remote battery terminal is located in the engine
compartment for jump-starting.
202 WHAT TO DO IN EMERGENCIES

1. Wear eye protection and remove any metal jewelry
such as watchbands or bracelets that might make an
inadvertent electrical contact.
2. When boost is provided by a battery in another
vehicle, park that vehicle within booster cable reach, but
without allowing the vehicles touch one another.
3. Set the parking brake, place the transmission in NEU-
TRAL, and turn the ignition OFF on both vehicles.
4. Turn off the heater, radio, and all unnecessary electri-
cal loads.
5. Remove the plastic cover from the remote jump-start
positive post(+)in the engine compartment. Refer to the
following illustration for remote jump-starting connec-
tions. 6.
If you are jump-starting your vehicle, connect one
end of a jumper cable to the positive (+)terminal on the
booster battery. Connect the other end of the same cable
to the remote jump-start positive post (+).
7. If you are jump-starting another vehicle, connect one
end of a jumper cable to the remote jump-start positive
Remote Jump-Start Connections6
WHAT TO DO IN EMERGENCIES 203

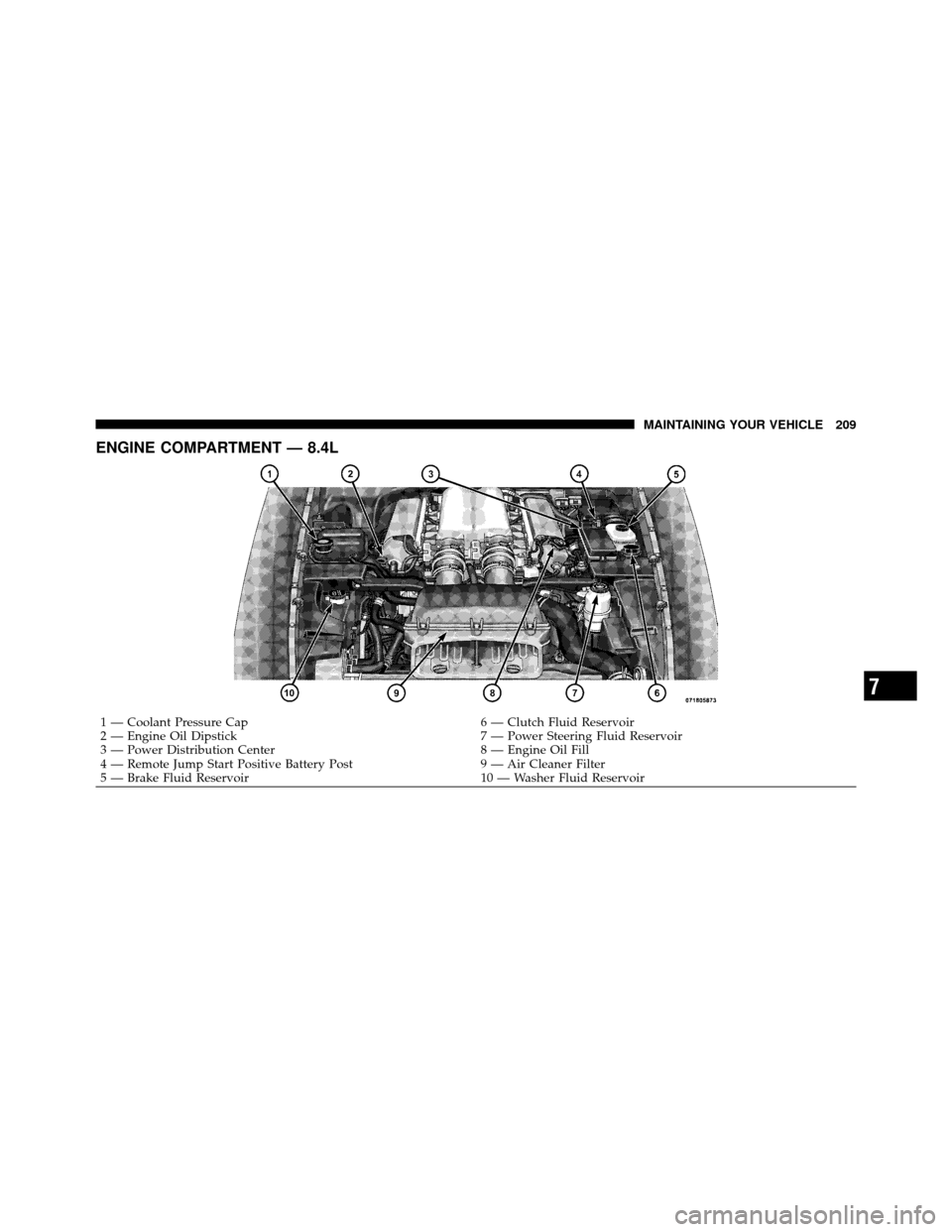

ENGINE COMPARTMENT — 8.4L
1 — Coolant Pressure Cap6 — Clutch Fluid Reservoir
2 — Engine Oil Dipstick 7 — Power Steering Fluid Reservoir
3 — Power Distribution Center 8 — Engine Oil Fill
4 — Remote Jump Start Positive Battery Post 9 — Air Cleaner Filter
5 — Brake Fluid Reservoir 10 — Washer Fluid Reservoir
7
MAINTAINING YOUR VEHICLE 209

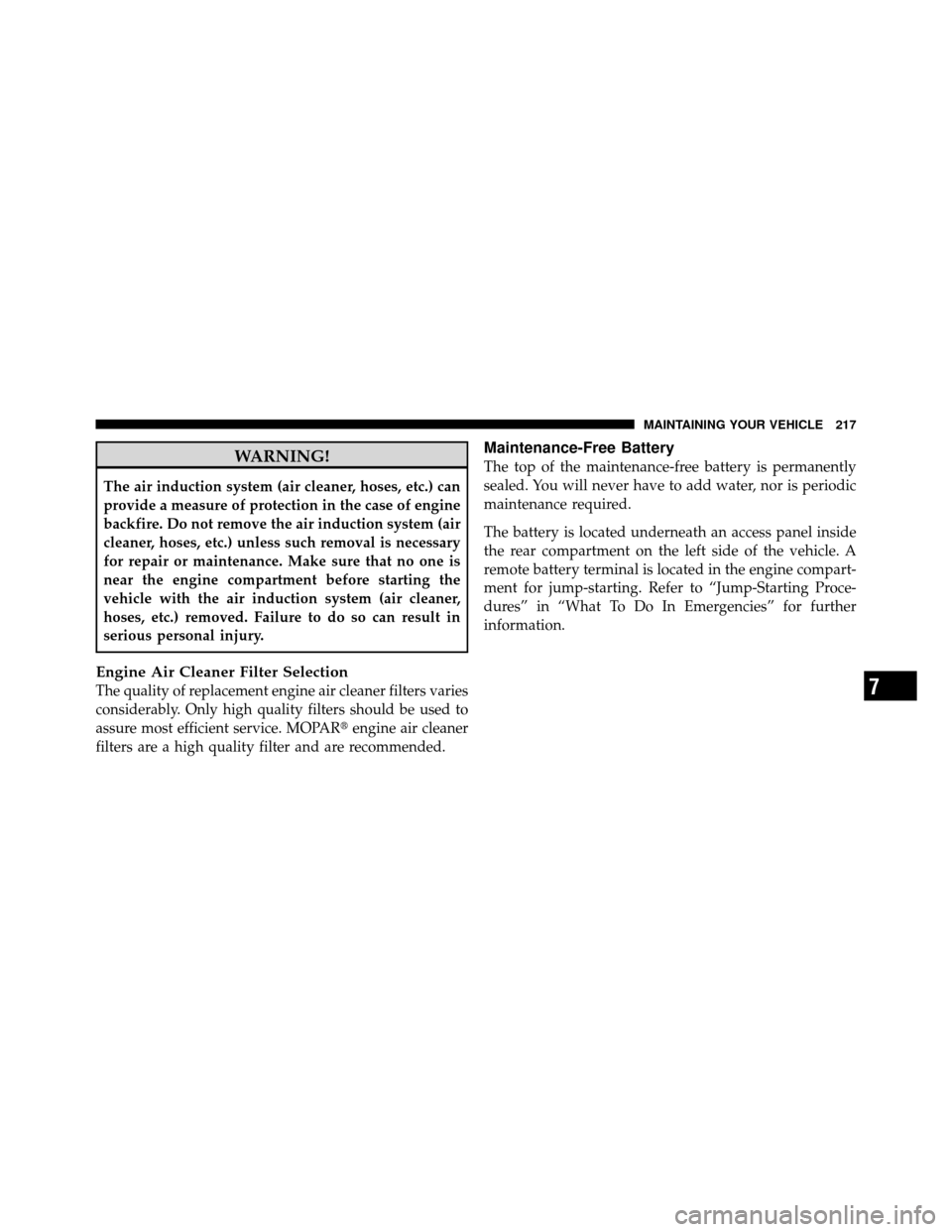

WARNING!
The air induction system (air cleaner, hoses, etc.) can
provide a measure of protection in the case of engine
backfire. Do not remove the air induction system (air
cleaner, hoses, etc.) unless such removal is necessary
for repair or maintenance. Make sure that no one is
near the engine compartment before starting the
vehicle with the air induction system (air cleaner,
hoses, etc.) removed. Failure to do so can result in
serious personal injury.
Engine Air Cleaner Filter Selection
The quality of replacement engine air cleaner filters varies
considerably. Only high quality filters should be used to
assure most efficient service. MOPARengine air cleaner
filters are a high quality filter and are recommended.
Maintenance-Free Battery
The top of the maintenance-free battery is permanently
sealed. You will never have to add water, nor is periodic
maintenance required.
The battery is located underneath an access panel inside
the rear compartment on the left side of the vehicle. A
remote battery terminal is located in the engine compart-
ment for jump-starting. Refer to “Jump-Starting Proce-
dures” in “What To Do In Emergencies” for further
information.
7
MAINTAINING YOUR VEHICLE 217

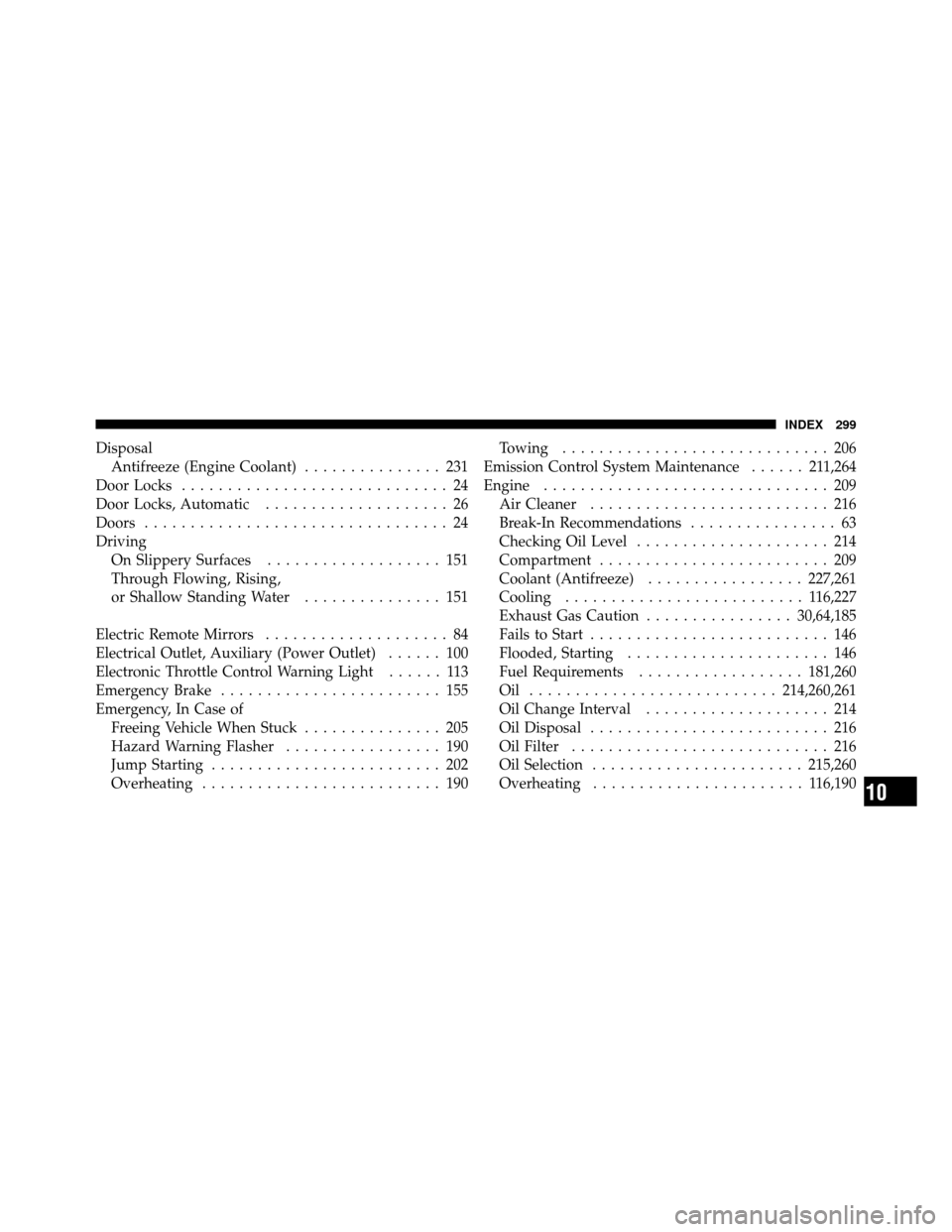

DisposalAntifreeze (Engine Coolant) ............... 231
Door Locks ............................. 24
Door Locks, Automatic .................... 26
Doors ................................. 24
Driving On Slippery Surfaces ................... 151
Through Flowing, Rising,
or Shallow Standing Water ............... 151
Electric Remote Mirrors .................... 84
Electrical Outlet, Auxiliary (Power Outlet) ...... 100
Electronic Throttle Control Warning Light ...... 113
Emergency Brake ........................ 155
Emergency, In Case of Freeing Vehicle When Stuck ............... 205
Hazard Warning Flasher ................. 190
Jump Starting ......................... 202
Overheating .......................... 190 Towing
............................. 206
Emission Control System Maintenance ...... 211,264
Engine ............................... 209
Air Cleaner .......................... 216
Break-In Recommendations ................ 63
Checking Oil Level ..................... 214
Compartment ......................... 209
Coolant (Antifreeze) ................. 227,261
Cooling .......................... 1 16,227
Exhaust Gas Caution ................ 30,64,185
Fails to Start .......................... 146
Flooded, Starting ...................... 146
Fuel Requirements .................. 181,260
Oil ........................... 214,260,261
Oil Change Interval .................... 214
Oil Disposal .......................... 216
Oil Filter ............................ 216
Oil Selection ....................... 215,260
Overheating ....................... 1 16,190
