THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A Word About Your Keys ................. 12
▫ Ignition Key Removal .................. 12
▫ Key-In-Ignition Reminder ............... 13
 Vehicle Security Alarm System ............. 13
▫ Rearming Of The System ................ 13
▫ To Arm The System ................... 13
▫ To Disarm The System ................. 15
▫ Electronic Immobilization System — Canada
Only .............................. 16
Illuminated Entry ...................... 17
 Remote Keyless Entry (RKE) .............. 18
▫ To Unlock The Doors .................. 19
▫ To Lock The Doors .................... 20
▫ To Unlatch The Trunk/Liftgate ............ 21
▫ Using The Panic Alarm ................. 21
▫ Remote Open Window Feature ............ 21
▫ Programming Additional Transmitters ...... 22
▫ Battery Replacement ................... 22
2

NOTE:The Power Accessory Delay feature allows you
to operate the radio and the power windows for two
minutes after turning OFF the ignition switch. Removing
the key from the ignition switch and opening the driver’s
door will cancel this feature. Your authorized dealership
can enable or disable the Power Accessory Delay feature
as desired.
Key-In-Ignition Reminder
If you open the driver’s door when the key is in the
ignition, a chime will sound to remind you to remove the
key.
NOTE: The Key-In-Ignition reminder only sounds
when the ignition switch is placed in the OFF/LOCK or
ACC positions.
VEHICLE SECURITY ALARM SYSTEM
The Vehicle Security Alarm monitors the doors, trunk/
liftgate, and hood for unauthorized entry and the ignition
switch for unauthorized operation. If something triggers
the alarm, the Vehicle Security Alarm will prevent the
vehicle from starting. It will also sound the horn and
flash the park lights, the taillights and the fog lights.
Rearming of the System
If something triggers the alarm, and no action is taken to
disarm it, the Vehicle Security Alarm will turn off the
horn after three minutes, turn off all of the visual signals
(flashing lights) after 15 minutes, and then rearm itself.
To Arm the System
Remove the key from the ignition switch and either press
a power door LOCK switch while the driver’s or passen-
ger’s door is open or press the LOCK button on the
Remote Keyless Entry (RKE) transmitter. After the last
door is closed, or if all doors are closed, the system will
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

the door.At this time the Vehicle Security Alarm will
also arm itself in approximately 16 seconds.
•Always remove the key and RKE transmitter from the
vehicle, and lock all doors when leaving the vehicle
unattended.
To Disarm the System
Pressing the UNLOCK button on the RKE transmitter
after the Electronic Immobilization system is activated,
will allow the driver 60 seconds to start the vehicle.
Failure to complete the process within 60 seconds will
cause the system to passively re-arm. The driver must
repeat the process again by pressing the UNLOCK button
on the RKE transmitter to start the vehicle.
NOTE: Pressing the RKE transmitter UNLOCK button
during the 30 second Electronic Immobilization arming
process will allow the driver 60 seconds to start the
vehicle.
ILLUMINATED ENTRY
The interior lights will turn on whenever a door is
opened or the liftgate is opened (Coupe models) and the
dimmer switch is not in the defeat position.
The interior lights will turn on, remain on for approxi-
mately 30 seconds, and then fade to off if any of the
following occur:
•A door is opened using the outside door handle and
then closed.
•A door is unlocked using the Remote Keyless Entry
(RKE) transmitter.
•A door is unlocked using the outside driver’s door key
cylinder.
The interior lights will turn on and remain on for about
four seconds and then fade to off if a door is opened
using the inside door handle.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

NOTE:None of the courtesy lights will operate if the
dimmer control is in the “defeat” position (extreme
downward position), unless the overhead map/reading
lights are turned on manually.
REMOTE KEYLESS ENTRY (RKE)
This system allows you to lock or unlock the doors, open
the trunk/liftgate, or activate the Panic Alarm from
distances up to approximately 23 ft (7 m) using a Remote
Keyless Entry (RKE) transmitter. The RKE transmitter
does not need to be pointed at the vehicle to activate the
system.
RKE Transmitter
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

To Unlock the Doors
Press and release the UNLOCK button on the RKE
transmitter once to unlock the driver’s door or twice to
unlock both doors. The park lights and turn signal lights
will flash to acknowledge the signal and the illuminated
entry system will turn on. In addition, the words DOOR
UNLOCKED will flash in the odometer if one door is
unlocked or will remain on steadily if both doors are
unlocked.
NOTE:On Coupe models, pressing either the UNLOCK
button or the LIFTGATE button will allow liftgate access.
Remote Key Unlock, Driver Door/Both Doors First
This feature lets you program the system to unlock either
the driver’s door or both doors on the first press of the
UNLOCK button on the RKE transmitter. To change the
current setting, proceed as follows:
1. Press the UNLOCK button on a programmed RKE
transmitter for at least four seconds, but not longer than
10 seconds. Then, press the LOCK button. 2. Release both buttons at the same time.
3. Test the feature while outside of the vehicle, by
pressing the UNLOCK button on the RKE transmitter
with the ignition in the OFF/LOCK position, and the key
removed.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:
Pressing the LOCK button on the RKE transmit-
ter while you are in the vehicle will activate the Vehicle
Security Alarm. Opening a door with the Vehicle Security
Alarm System activated will cause the alarm to sound.
Press the UNLOCK button to deactivate the Vehicle
Security Alarm System.
Flash Lights with Remote Key Lock
This feature will cause the park lights and turn signal
lights to flash when the doors are locked or unlocked
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19

with the RKE transmitter. This feature can be turned on
or turned off. To change the current setting, proceed as
follows:
1. Press the LOCK button on a programmed RKE trans-
mitter for at least four seconds, but no longer then
10 seconds. Then, press the TRUNK/LIFTGATE button.
2. Release both buttons at the same time.
3. Test the feature while outside of the vehicle, by
pressing the LOCK/UNLOCK buttons on the RKE trans-
mitter with the ignition in the OFF/LOCK position, and
the key removed.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:Pressing the LOCK button on the RKE transmit-
ter while you are in the vehicle will activate the Vehicle
Security Alarm. Opening a door with the Vehicle Security Alarm activated will cause the alarm to sound. Press the
UNLOCK button to deactivate the Vehicle Security
Alarm System.
To Lock the Doors
Press and release the LOCK button on the RKE transmit-
ter to lock the doors. The horn will chirp once and the
park lights and turn signal lights will flash to acknowl-
edge the signal.
Sound Horn with Remote Key Lock
This feature will cause the horn to chirp when the doors
are locked with the RKE transmitter. This feature can be
turned on or turned off. To change the current setting,
proceed as follows:
1. Press the LOCK button on a programmed RKE trans-
mitter for at least four seconds, but no longer then
10 seconds. Then, press the UNLOCK button.
2. Release both buttons at the same time.
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

3. Test the feature while outside of the vehicle, by
pressing the LOCK button on the RKE transmitter with
the ignition in the OFF/LOCK position, and the key
removed.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:Pressing the LOCK button on the RKE transmit-
ter while you are in the vehicle will activate the Vehicle
Security Alarm System. Opening a door with the Vehicle
Security Alarm System activated will cause the alarm to
sound. Press the UNLOCK button to deactivate the
Vehicle Security Alarm System.
To Unlatch the Trunk/Liftgate
Press and hold the TRUNK/LIFTGATE button on the
RKE transmitter for at least one second to unlatch the
trunk/liftgate. The parking lights and turn signal lights
will flash three times to acknowledge the signal.
Using the Panic Alarm
The Panic Alarm unlocks the driver’s door, turns on the
interior lights, flashes the park lights and fog lights, and
sounds the horn. The Panic Alarm will not work when
driving the vehicle.
To turn the Panic Alarm on or off, press and hold the
PANIC button on the RKE transmitter for at least one
second and release. The alarm can also be turned off by
inserting the key into the ignition switch and turning it to
the ON/RUN position. If not deactivated through the
RKE transmitter or the ignition switch, the alarm will
turn off automatically after three minutes.
Remote Open Window Feature
This feature allows you to remotely lower both front door
windows at the same time. To use this feature, press and
release the UNLOCK button on the RKE transmitter and
then immediately press and hold the UNLOCK button
until the windows lower to the level desired or until they
lower completely.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21

Auto-Down Feature
Both windows have an Auto-Down feature. Press the
WINDOW switch to the second detent, release, and the
window will go down automatically. Press the switch a
second time in either direction to stop the window.To open the window to a desired position, press and hold
the WINDOW switch in the first detent. Release the
switch when you want the window to stop.
Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the top down (convertible models).
This is a normal occurrence and can be minimized by
adjusting one or both windows up or down slightly.
LIFTGATE — COUPE MODELS ONLY
The liftgate can be unlocked or locked by the Remote
Keyless Entry (RKE) transmitter or by activating either of
the power door lock switches located on the door trim
panels.
To unlock the liftgate with the RKE transmitter, press the
LIFTGATE button on the RKE transmitter for at least onePower Window Switches
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29

Gas props support the liftgate in the open position.
However, because the gas pressure drops with tempera-
ture, it may be necessary to assist the props when
opening the liftgate in cold weather.
TRUNK LOCK AND RELEASE — CONVERTIBLE
MODELS ONLY
You can unlatch the trunk lid by pressing the TRUNK
button on the Remote Keyless Entry (RKE) transmitter
for at least one second. The park lights and turn signal
lights will flash three times to acknowledge the signal
and the trunk lid will pop open.
You can also unlatch the trunk lid with the key. The key
cylinder is located on the trunk lid.
The word “DECK” will flash in the odometer when the
trunk lid is open. With the key in the ignition switch, this
display will turn off approximately 40 seconds after
switching OFF the ignition, or if the Power AccessoryDelay feature is active, it will turn off approximately
40 seconds after the delay feature times out.
NOTE:
Gas props support the trunk lid in the open
position. However, because the gas pressure drops with
temperature, it may be necessary to assist the props when
opening the trunk lid in cold weather.TRUNK SAFETY WARNING — CONVERTIBLE
MODELS ONLY
WARNING!
Do not allow children to have access to the trunk,
either by climbing into the trunk from outside, or
through the inside of the vehicle. Always close the
trunk lid when your vehicle is unattended. Once in
the trunk, young children may not be able to escape.
If trapped in the trunk, children can die from suffo-
cation or heat stroke.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31

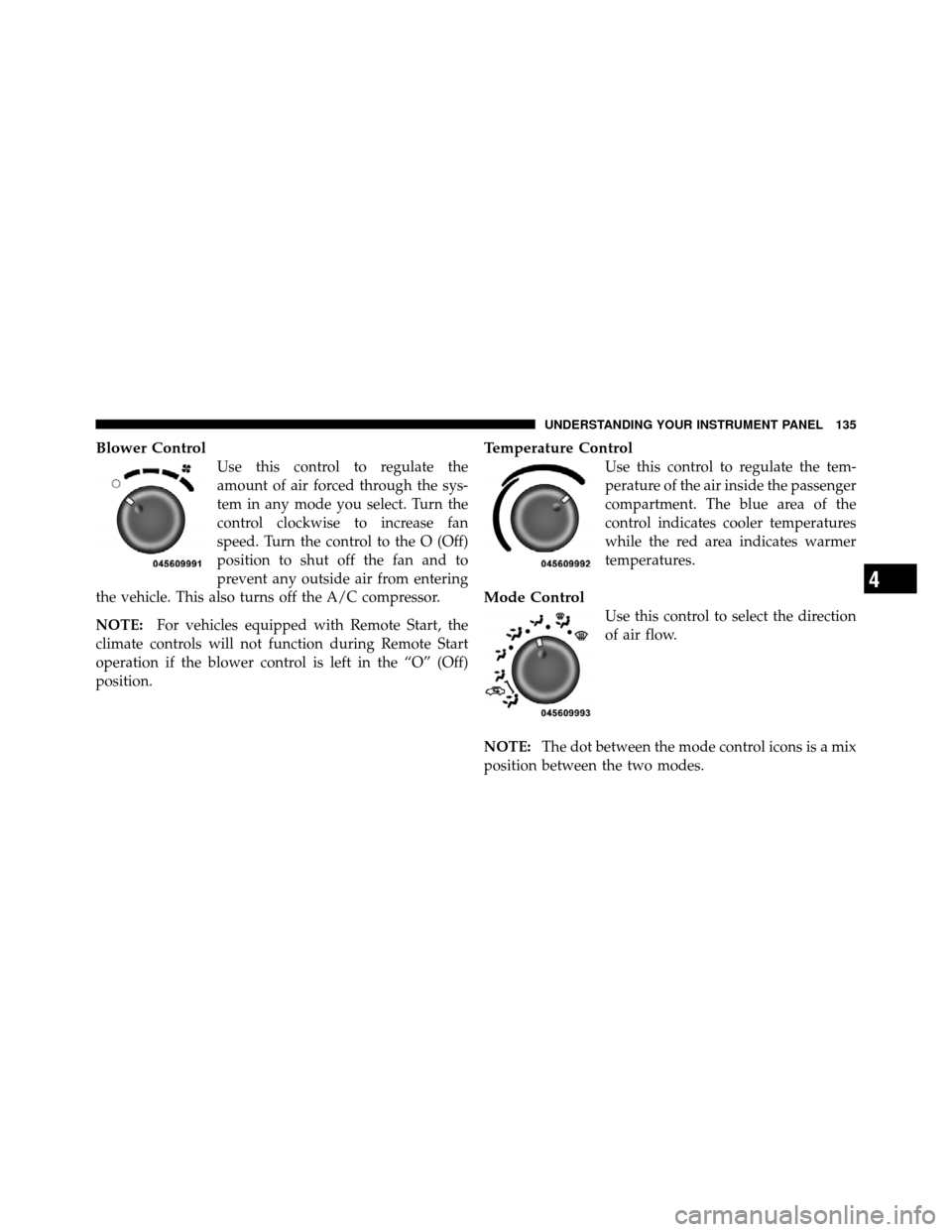

Blower Control
Use this control to regulate the
amount of air forced through the sys-
tem in any mode you select. Turn the
control clockwise to increase fan
speed. Turn the control to the O (Off)
position to shut off the fan and to
prevent any outside air from entering
the vehicle. This also turns off the A/C compressor.
NOTE: For vehicles equipped with Remote Start, the
climate controls will not function during Remote Start
operation if the blower control is left in the “O” (Off)
position.
Temperature Control
Use this control to regulate the tem-
perature of the air inside the passenger
compartment. The blue area of the
control indicates cooler temperatures
while the red area indicates warmer
temperatures.
Mode Control
Use this control to select the direction
of air flow.
NOTE: The dot between the mode control icons is a mix
position between the two modes.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 135
