key DODGE VIPER 2010 ZB II / 2.G Owner's Guide

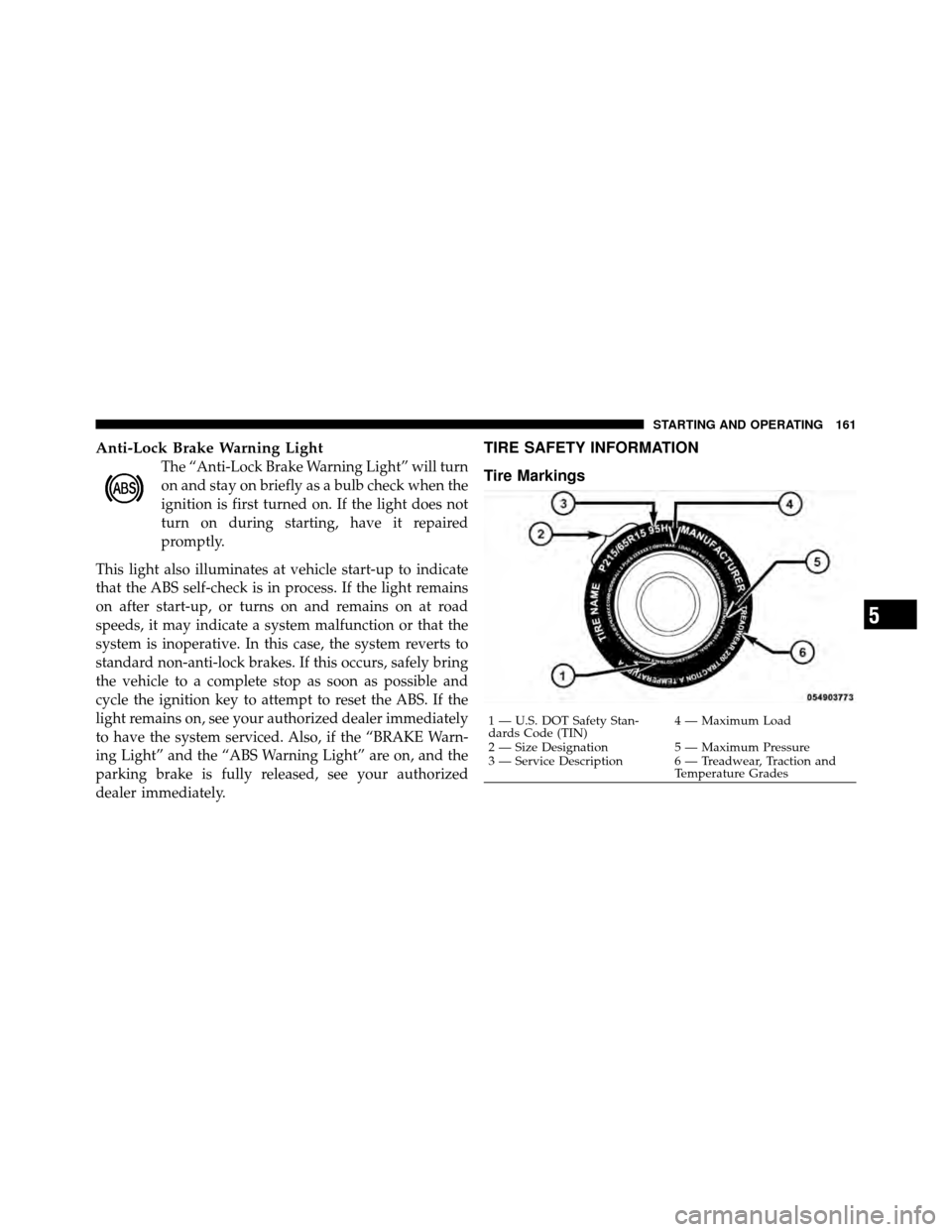

Anti-Lock Brake Warning Light
The “Anti-Lock Brake Warning Light” will turn
on and stay on briefly as a bulb check when the
ignition is first turned on. If the light does not
turn on during starting, have it repaired
promptly.
This light also illuminates at vehicle start-up to indicate
that the ABS self-check is in process. If the light remains
on after start-up, or turns on and remains on at road
speeds, it may indicate a system malfunction or that the
system is inoperative. In this case, the system reverts to
standard non-anti-lock brakes. If this occurs, safely bring
the vehicle to a complete stop as soon as possible and
cycle the ignition key to attempt to reset the ABS. If the
light remains on, see your authorized dealer immediately
to have the system serviced. Also, if the “BRAKE Warn-
ing Light” and the “ABS Warning Light” are on, and the
parking brake is fully released, see your authorized
dealer immediately.
TIRE SAFETY INFORMATION
Tire Markings
1 — U.S. DOT Safety Stan-
dards Code (TIN) 4 — Maximum Load
2 — Size Designation 5 — Maximum Pressure
3 — Service Description 6 — Treadwear, Traction and Temperature Grades
5
STARTING AND OPERATING 161

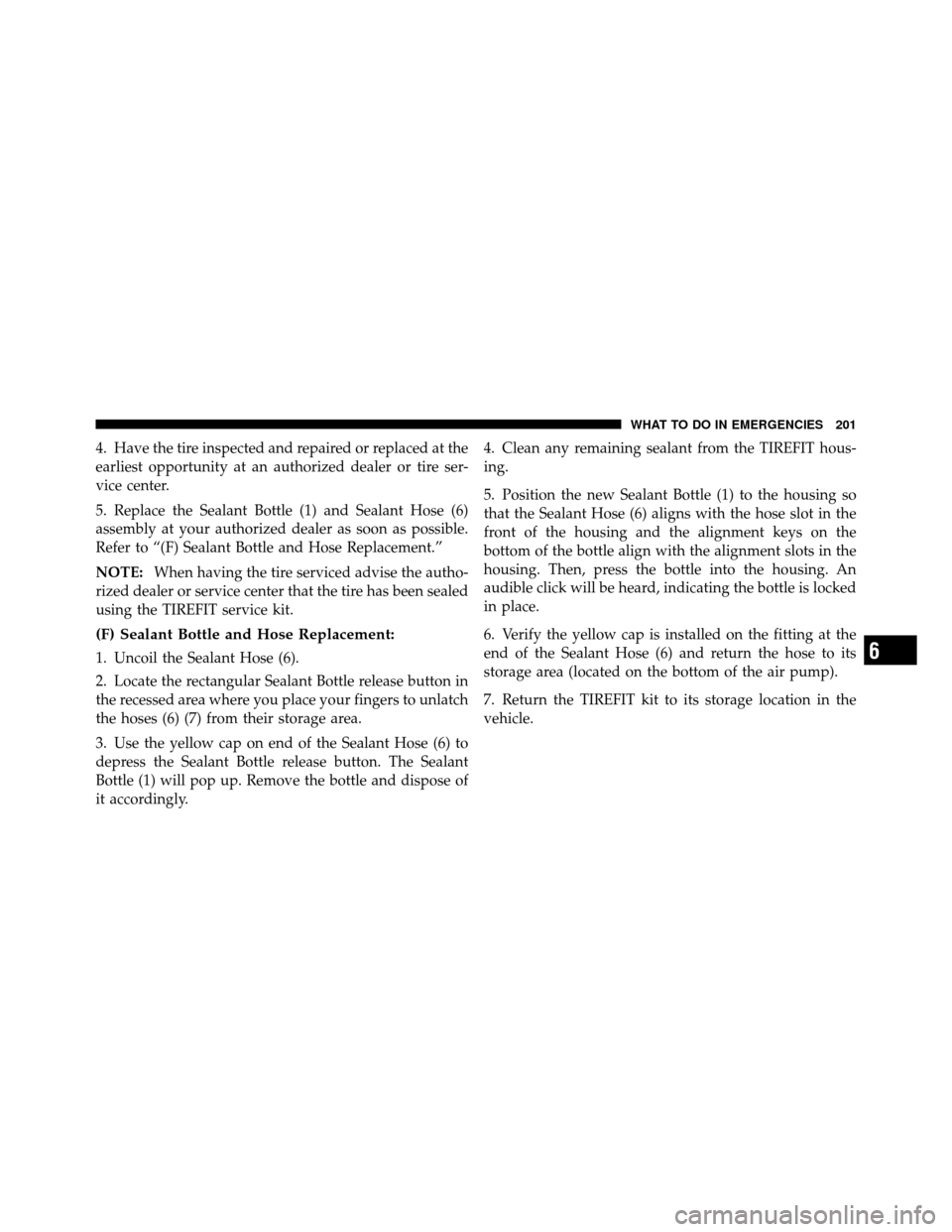

4. Have the tire inspected and repaired or replaced at the
earliest opportunity at an authorized dealer or tire ser-
vice center.
5. Replace the Sealant Bottle (1) and Sealant Hose (6)
assembly at your authorized dealer as soon as possible.
Refer to “(F) Sealant Bottle and Hose Replacement.”
NOTE:When having the tire serviced advise the autho-
rized dealer or service center that the tire has been sealed
using the TIREFIT service kit.
(F) Sealant Bottle and Hose Replacement:
1. Uncoil the Sealant Hose (6).
2. Locate the rectangular Sealant Bottle release button in
the recessed area where you place your fingers to unlatch
the hoses (6) (7) from their storage area.
3. Use the yellow cap on end of the Sealant Hose (6) to
depress the Sealant Bottle release button. The Sealant
Bottle (1) will pop up. Remove the bottle and dispose of
it accordingly. 4. Clean any remaining sealant from the TIREFIT hous-
ing.
5. Position the new Sealant Bottle (1) to the housing so
that the Sealant Hose (6) aligns with the hose slot in the
front of the housing and the alignment keys on the
bottom of the bottle align with the alignment slots in the
housing. Then, press the bottle into the housing. An
audible click will be heard, indicating the bottle is locked
in place.
6. Verify the yellow cap is installed on the fitting at the
end of the Sealant Hose (6) and return the hose to its
storage area (located on the bottom of the air pump).
7. Return the TIREFIT kit to its storage location in the
vehicle.6
WHAT TO DO IN EMERGENCIES 201

EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.For states that require an Inspection and Mainte-
nance (I/M), this check verifies the “Malfunction
Indicator Light (MIL)” is functioning and is not
on when the engine is running, and that the OBD II
system is ready for testing.
Normally, the OBD II system will be ready. The OBD II
system may notbe ready if your vehicle was recently
serviced, recently had a dead battery or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, your vehicle may fail the test. Your vehicle has a simple ignition key-actuated test,
which you can use prior to going to the test station. To
check if your vehicle’s OBD II system is ready, you must
do the following:
1. Turn the ignition switch to the ON position, but do not
crank or start the engine.
2. If you crank or start the engine, you will have to start
this test over.
3. As soon as you turn the ignition switch to the ON
position, you will see the MIL symbol come on as part of
a normal bulb check.
4. Approximately 15 seconds later, one of two things will
happen:
a. The MIL will flash for about 10 seconds and then
return to being fully illuminated until you turn OFF
7
MAINTAINING YOUR VEHICLE 211

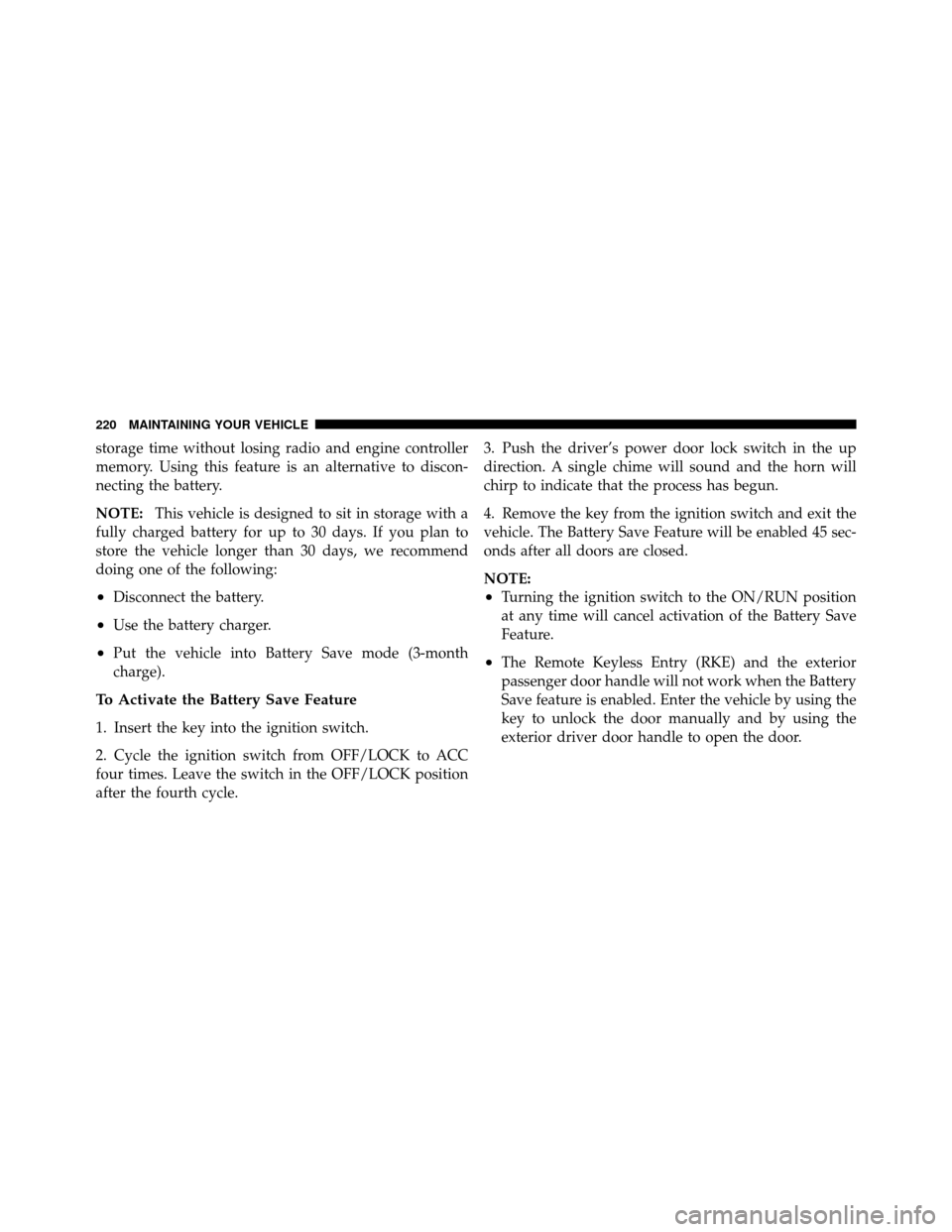

storage time without losing radio and engine controller
memory. Using this feature is an alternative to discon-
necting the battery.
NOTE:This vehicle is designed to sit in storage with a
fully charged battery for up to 30 days. If you plan to
store the vehicle longer than 30 days, we recommend
doing one of the following:
•Disconnect the battery.
•Use the battery charger.
•Put the vehicle into Battery Save mode (3-month
charge).
To Activate the Battery Save Feature
1. Insert the key into the ignition switch.
2. Cycle the ignition switch from OFF/LOCK to ACC
four times. Leave the switch in the OFF/LOCK position
after the fourth cycle. 3. Push the driver’s power door lock switch in the up
direction. A single chime will sound and the horn will
chirp to indicate that the process has begun.
4. Remove the key from the ignition switch and exit the
vehicle. The Battery Save Feature will be enabled 45 sec-
onds after all doors are closed.
NOTE:
•Turning the ignition switch to the ON/RUN position
at any time will cancel activation of the Battery Save
Feature.
•The Remote Keyless Entry (RKE) and the exterior
passenger door handle will not work when the Battery
Save feature is enabled. Enter the vehicle by using the
key to unlock the door manually and by using the
exterior driver door handle to open the door.
220 MAINTAINING YOUR VEHICLE

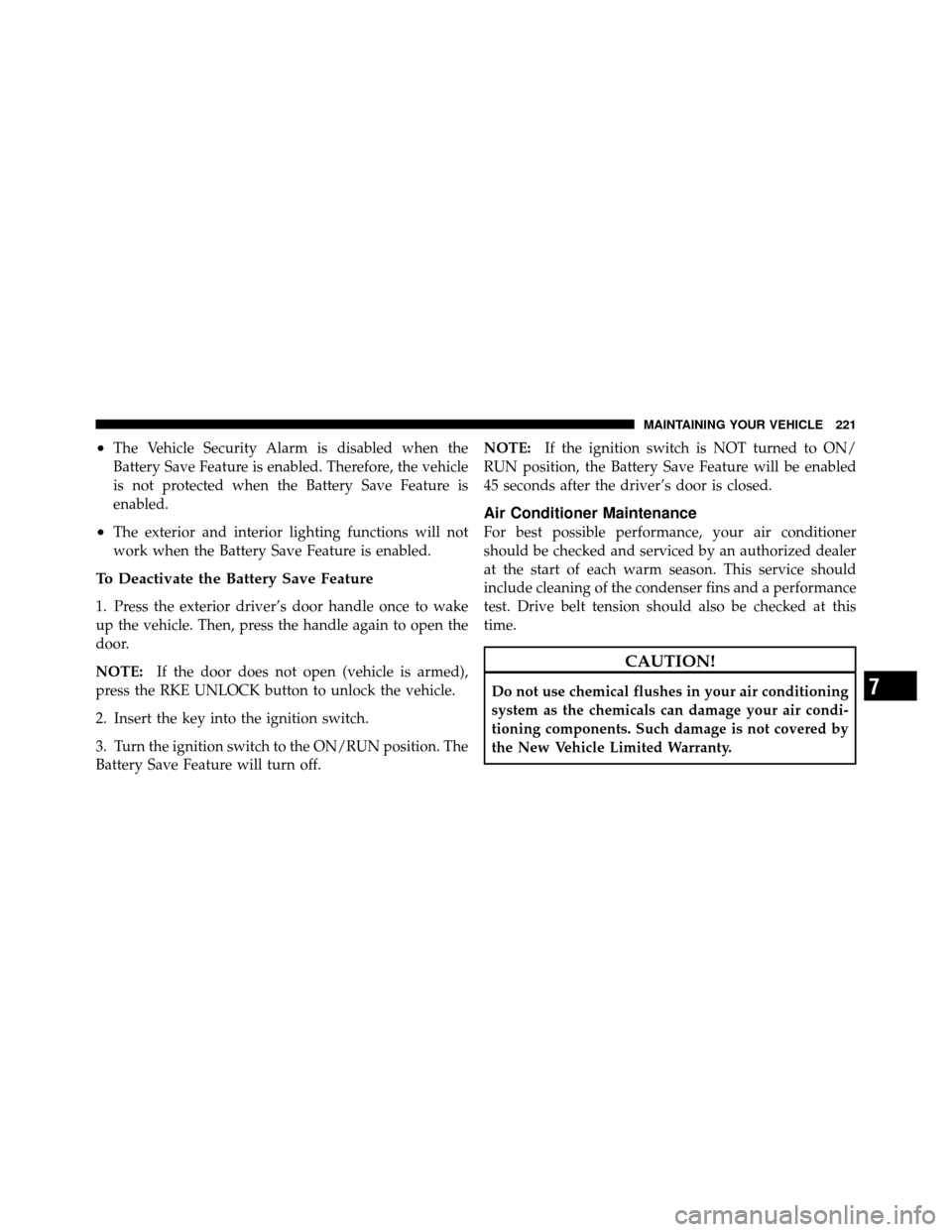

•The Vehicle Security Alarm is disabled when the
Battery Save Feature is enabled. Therefore, the vehicle
is not protected when the Battery Save Feature is
enabled.
•The exterior and interior lighting functions will not
work when the Battery Save Feature is enabled.
To Deactivate the Battery Save Feature
1. Press the exterior driver’s door handle once to wake
up the vehicle. Then, press the handle again to open the
door.
NOTE:If the door does not open (vehicle is armed),
press the RKE UNLOCK button to unlock the vehicle.
2. Insert the key into the ignition switch.
3. Turn the ignition switch to the ON/RUN position. The
Battery Save Feature will turn off. NOTE:
If the ignition switch is NOT turned to ON/
RUN position, the Battery Save Feature will be enabled
45 seconds after the driver’s door is closed.
Air Conditioner Maintenance
For best possible performance, your air conditioner
should be checked and serviced by an authorized dealer
at the start of each warm season. This service should
include cleaning of the condenser fins and a performance
test. Drive belt tension should also be checked at this
time.
CAUTION!
Do not use chemical flushes in your air conditioning
system as the chemicals can damage your air condi-
tioning components. Such damage is not covered by
the New Vehicle Limited Warranty.7
MAINTAINING YOUR VEHICLE 221

terminal or use the “Battery Save Feature” to conserve
battery power. Refer to “Maintenance Procedures/
Battery Save Feature” in “Maintaining Your Vehicle”
for further information.
NOTE: Disconnecting the battery causes the engine
control system to lose memory of some “learned” func-
tions. After reconnecting the battery, the engine may run
rough until the control module “relearns” these func-
tions. Using the Battery Save Feature will prevent the
engine controller from loosing its memory.
CAUTION!
Use care when disconnecting the remote positive
cable. It is connected to the battery and can short out
to any metal on the vehicle. Always tape or wrap the
exposed cable end to prevent electrical shorts. Check the battery every four to six weeks to ensure that
the voltage is above 12.40 Volts. The voltage will drop
more rapidly in hot temperatures. If battery voltage
drops below 12.40 Volts, follow the battery recharge
procedure in the Service Manual.
NOTE:
To help prevent the battery from discharging
during shorter periods of inactivity, perform the follow-
ing:
1. Make sure that the trunk/liftgate, hood, doors, win-
dows, and convertible top are completely closed.
2. Make sure that Remote Keyless Entry (RKE) transmit-
ter is operating and that the battery is good.
3. Make sure that the HOOD, TRUNK/LIFTGATE, and
DOOR switches are in adjustment. Perform the quick
system check, which follows:
Use the remote transmitter to set the alarm. If the alarm
SET light comes on and flashes, the system is operating7
MAINTAINING YOUR VEHICLE 249

2. Turn the appropriate bulb and socket assembly coun-
terclockwise, and then pull it out of the headlamp
assembly.3. Pull the bulb out of the socket assembly.
4. Push the replacement bulb into the socket assembly.
5. Reinstall the bulb and socket assembly into the head-
lamp assembly, and then turn it clockwise.
6. Install the splash shield and push pin.
High Intensity Discharge Headlamps (HID)
The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off and the key removed.
Because of
this, you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to
an authorized dealer for service.
1 — Front Side Marker Lamp
2 — Front Park/Turn Signal Lamp
3 — Low/High Beam HID Headlamp
4 — Auxiliary High Beam Headlamp
5 — Headlamp Adjustment — Aim Up and Down
252 MAINTAINING YOUR VEHICLE

Jump Starting......................... 202
Keyless Transmitter Replacement (RKE) ....... 22
Location .......................... 202,217
Saving Feature (Protection) ............... 219
Storing Vehicle ........................ 219
Belts, Seat .......................... 32,34,65
Body Mechanism Lubrication ............... 223
Boot, Convertible Top ................... 75,79
B-Pillar Location ........................ 167
Brake, Parking .......................... 155
Brake System ........................ 157,232
Anti-Lock (ABS) .................... 157,158
Fluid Check ....................... 233,262
Master Cylinder ....................... 233
Warning Light ........................ 112
Break-In Recommendations, New Vehicle .....63,157
Bulb Replacement ....................... 251
Bulbs, Light .......................... 67,250Capacities, Antifreeze (Engine Coolant)
........ 260
Capacities, Fluid ........................ 260
Caps, Filler Fuel ............................... 185
Power Steering ........................ 154
Radiator (Coolant Pressure) ............... 230
Car Washes ............................ 238
Carbon Monoxide Warning ...............64,185
CD (Compact Disc) Changer ................ 125
CD (Compact Disc) Player ............... 119,123
Cellular Phone .......................... 134
Charging System Light .................... 118
Chart, Tire Sizing ........................ 163
Check Engine Light
(Malfunction Indicator Light) ............... 211
Checking Your Vehicle For Safety ............. 64
Checks, Safety ........................... 64
Child Restraint ...................... 56,58,62
Child Restraint Tether Anchors ............... 60
10
INDEX 297

Time Delay........................... 89
Heater ............................... 134
High Beam Indicator ..................... 109
High Beam/Low Beam Select (Dimmer) Switch . . . 91
Hood Release ........................... 86
Hydraulic Clutch Fluid .................... 236
Ignition ............................... 12
Key ................................ 12
Ignition Key Removal ..................... 12
Illuminated Entry ........................ 17
Infant Restraint ........................ 56,57
Inflation Pressure Tires .................... 113
Inside Rearview Mirror .................... 82
Instrument Panel and Controls .............. 107
Instrument Panel Lens Cleaning ............. 240
Interior Appearance Care .................. 239
Interior Lighting ....................... 88,91
Interior Lights ......................... 91,93Intermittent Wipers (Delay Wipers)
............ 95
Introduction ............................. 4
Jump Starting .......................... 202
Key-In Reminder ......................... 13
Keyless Entry System ...................... 18
Keys ................................. 12
Knee Bolster ............................ 42
Lane Change and Turn Signals ............... 91
Lap/Shoulder Belts ....................... 34
Latch Plate ............................. 35
Latches ................................ 67
Hood ............................... 86
Lead Free Gasoline ...................... 181
Leaks, Fluid ............................ 67
Life of Tires ............................ 176
Liftgate ................................ 29
302 INDEX

Door Locks........................... 26
Mirrors .............................. 84
Outlet (Auxiliary Electrical Outlet) .......... 100
Steering ............................. 154
Windows ............................. 27
Windows, Express Down ................. 21
Pregnant Women and Seat Belts .............. 42
Pretensioners Seat Belts ............................ 41
Programming Transmitters
(Remote Keyless Entry) .................... 22
Radial Ply Tires ......................... 174
Radiator Cap (Coolant Pressure Cap) .......... 230
Radio Antenna ......................... 133
Radio Operation ........................ 134
Radio, Satellite (Uconnect studios)........... 129
Radio (Sound Systems) .................... 119
Rear Axle (Differential) .................... 237 Rear Liftgate
............................ 29
Rear Window Defroster ................... 104
Rear Window Features .................... 104
Rearview Mirrors ........................ 82
Reclining Front Seats ...................... 86
Recreational Towing ...................... 187
Reformulated Gasoline .................... 181
Refrigerant ............................ 222
Reminder, Lights On ...................... 90
Reminder, Seat Belt .................... 39,115
Remote Keyless Entry (RKE) ................. 18
Remote Trunk Release ..................... 31
Replacement Parts ....................... 212
Replacement Tires ....................... 176
Reporting Safety Defects ................... 290
Restraints, Child ......................... 56
Restraints, Infant ......................... 57
Restraints, Occupant ...................... 32
Rocking Vehicle When Stuck ................ 205
306 INDEX
