trunk DODGE VIPER 2010 ZB II / 2.G Owners Manual

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A Word About Your Keys ................. 12
▫ Ignition Key Removal .................. 12
▫ Key-In-Ignition Reminder ............... 13
 Vehicle Security Alarm System ............. 13
▫ Rearming Of The System ................ 13
▫ To Arm The System ................... 13
▫ To Disarm The System ................. 15
▫ Electronic Immobilization System — Canada
Only .............................. 16
Illuminated Entry ...................... 17
 Remote Keyless Entry (RKE) .............. 18
▫ To Unlock The Doors .................. 19
▫ To Lock The Doors .................... 20
▫ To Unlatch The Trunk/Liftgate ............ 21
▫ Using The Panic Alarm ................. 21
▫ Remote Open Window Feature ............ 21
▫ Programming Additional Transmitters ...... 22
▫ Battery Replacement ................... 22
2

▫General Information ................... 23
 Door Locks ........................... 24
▫ Manual Door Lock .................... 25
▫ Power Door Locks .................... 26
 Windows ............................ 27
▫ Power Windows ...................... 27
▫ Auto-Down Feature ................... 29
▫ Wind Buffeting ....................... 29
 Liftgate — Coupe Models Only ............ 29
 Trunk Lock And Release — Convertible Models
Only ................................ 31
 Trunk Safety Warning — Convertible Models
Only ................................ 31
▫ Trunk Emergency Release ............... 32
Occupant Restraints ..................... 32
▫ Lap/Shoulder Belts .................... 34
▫ Lap/Shoulder Belt Untwisting Procedure .... 38
▫ Enhanced Seat Belt Use Reminder System
(BeltAlert) ......................... 39
▫ Automatic Locking Retractors
(ALR) Mode — If Equipped .............. 41
▫ Seat Belt Pretensioners — If Equipped ...... 41
▫ Seat Belts And Pregnant Women .......... 42
▫ Seat Belt Extender ..................... 42
▫ Driver And Passenger Supplemental
Restraint System (SRS) - Airbags .......... 42
▫ Airbag Deployment Sensors And Controls . . . 47
▫ Child Restraints ...................... 56
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:The Power Accessory Delay feature allows you
to operate the radio and the power windows for two
minutes after turning OFF the ignition switch. Removing
the key from the ignition switch and opening the driver’s
door will cancel this feature. Your authorized dealership
can enable or disable the Power Accessory Delay feature
as desired.
Key-In-Ignition Reminder
If you open the driver’s door when the key is in the
ignition, a chime will sound to remind you to remove the
key.
NOTE: The Key-In-Ignition reminder only sounds
when the ignition switch is placed in the OFF/LOCK or
ACC positions.
VEHICLE SECURITY ALARM SYSTEM
The Vehicle Security Alarm monitors the doors, trunk/
liftgate, and hood for unauthorized entry and the ignition
switch for unauthorized operation. If something triggers
the alarm, the Vehicle Security Alarm will prevent the
vehicle from starting. It will also sound the horn and
flash the park lights, the taillights and the fog lights.
Rearming of the System
If something triggers the alarm, and no action is taken to
disarm it, the Vehicle Security Alarm will turn off the
horn after three minutes, turn off all of the visual signals
(flashing lights) after 15 minutes, and then rearm itself.
To Arm the System
Remove the key from the ignition switch and either press
a power door LOCK switch while the driver’s or passen-
ger’s door is open or press the LOCK button on the
Remote Keyless Entry (RKE) transmitter. After the last
door is closed, or if all doors are closed, the system will
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

arm itself in approximately 16 seconds. During the
arming process, the Vehicle Security Light will flash at a
fast rate. Once the system is armed, the light will flash
once every six seconds.NOTE:
•The system will not cancel the arming process if you
open the hood or trunk/liftgate. It will, however,
cancel the arming process if you open a door or turn
on the ignition. If this occurs, and you wish to rearm
the system, simply repeat either of the previously
described arming sequences.
•The Vehicle Security Light will remain on steady if the
hood or trunk/liftgate is open during the arming
process or if there is a fault in the system. If you verify
that the hood and trunk/liftgate are not open, and the
light remains on steady, see your authorized dealer for
service.
Entering the Trunk with the System Armed —
Convertible
NOTE:
Using the key to open the trunk while the
system is armed will trigger the alarm.Vehicle Security Light
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Press the TRUNK button on the RKE transmitter to allow
access without triggering the alarm or having to disarm
the system. The trunk lid will pop open.
Entering the Liftgate with the System Armed —
Coupe
NOTE:Using the key to open the liftgate while the
Vehicle Security Alarm is armed will trigger the alarm.
Press the LIFTGATE button on the RKE transmitter to
allow access without triggering the alarm or having to
disarm the Vehicle Security Alarm. Then, within 30 sec-
onds, open the liftgate by using the key cylinder or the
LIFTGATE RELEASE switch located in the exterior lift-
gate handle.
NOTE: If you do not open the liftgate within 30 seconds,
the system will rearm and ignore the switch input.
After closing the liftgate, the Vehicle Security Alarm will
arm immediately without having to re-lock the vehicle.
To Disarm the System
There are two ways to disarm the system:
•Use the key to unlock the driver’s door. The door lock
is located on the outside door panel beneath the
mirror.
Mechanical Door Lock
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

NOTE:None of the courtesy lights will operate if the
dimmer control is in the “defeat” position (extreme
downward position), unless the overhead map/reading
lights are turned on manually.
REMOTE KEYLESS ENTRY (RKE)
This system allows you to lock or unlock the doors, open
the trunk/liftgate, or activate the Panic Alarm from
distances up to approximately 23 ft (7 m) using a Remote
Keyless Entry (RKE) transmitter. The RKE transmitter
does not need to be pointed at the vehicle to activate the
system.
RKE Transmitter
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

with the RKE transmitter. This feature can be turned on
or turned off. To change the current setting, proceed as
follows:
1. Press the LOCK button on a programmed RKE trans-
mitter for at least four seconds, but no longer then
10 seconds. Then, press the TRUNK/LIFTGATE button.
2. Release both buttons at the same time.
3. Test the feature while outside of the vehicle, by
pressing the LOCK/UNLOCK buttons on the RKE trans-
mitter with the ignition in the OFF/LOCK position, and
the key removed.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:Pressing the LOCK button on the RKE transmit-
ter while you are in the vehicle will activate the Vehicle
Security Alarm. Opening a door with the Vehicle Security Alarm activated will cause the alarm to sound. Press the
UNLOCK button to deactivate the Vehicle Security
Alarm System.
To Lock the Doors
Press and release the LOCK button on the RKE transmit-
ter to lock the doors. The horn will chirp once and the
park lights and turn signal lights will flash to acknowl-
edge the signal.
Sound Horn with Remote Key Lock
This feature will cause the horn to chirp when the doors
are locked with the RKE transmitter. This feature can be
turned on or turned off. To change the current setting,
proceed as follows:
1. Press the LOCK button on a programmed RKE trans-
mitter for at least four seconds, but no longer then
10 seconds. Then, press the UNLOCK button.
2. Release both buttons at the same time.
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

3. Test the feature while outside of the vehicle, by
pressing the LOCK button on the RKE transmitter with
the ignition in the OFF/LOCK position, and the key
removed.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:Pressing the LOCK button on the RKE transmit-
ter while you are in the vehicle will activate the Vehicle
Security Alarm System. Opening a door with the Vehicle
Security Alarm System activated will cause the alarm to
sound. Press the UNLOCK button to deactivate the
Vehicle Security Alarm System.
To Unlatch the Trunk/Liftgate
Press and hold the TRUNK/LIFTGATE button on the
RKE transmitter for at least one second to unlatch the
trunk/liftgate. The parking lights and turn signal lights
will flash three times to acknowledge the signal.
Using the Panic Alarm
The Panic Alarm unlocks the driver’s door, turns on the
interior lights, flashes the park lights and fog lights, and
sounds the horn. The Panic Alarm will not work when
driving the vehicle.
To turn the Panic Alarm on or off, press and hold the
PANIC button on the RKE transmitter for at least one
second and release. The alarm can also be turned off by
inserting the key into the ignition switch and turning it to
the ON/RUN position. If not deactivated through the
RKE transmitter or the ignition switch, the alarm will
turn off automatically after three minutes.
Remote Open Window Feature
This feature allows you to remotely lower both front door
windows at the same time. To use this feature, press and
release the UNLOCK button on the RKE transmitter and
then immediately press and hold the UNLOCK button
until the windows lower to the level desired or until they
lower completely.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21

Gas props support the liftgate in the open position.
However, because the gas pressure drops with tempera-
ture, it may be necessary to assist the props when
opening the liftgate in cold weather.
TRUNK LOCK AND RELEASE — CONVERTIBLE
MODELS ONLY
You can unlatch the trunk lid by pressing the TRUNK
button on the Remote Keyless Entry (RKE) transmitter
for at least one second. The park lights and turn signal
lights will flash three times to acknowledge the signal
and the trunk lid will pop open.
You can also unlatch the trunk lid with the key. The key
cylinder is located on the trunk lid.
The word “DECK” will flash in the odometer when the
trunk lid is open. With the key in the ignition switch, this
display will turn off approximately 40 seconds after
switching OFF the ignition, or if the Power AccessoryDelay feature is active, it will turn off approximately
40 seconds after the delay feature times out.
NOTE:
Gas props support the trunk lid in the open
position. However, because the gas pressure drops with
temperature, it may be necessary to assist the props when
opening the trunk lid in cold weather.TRUNK SAFETY WARNING — CONVERTIBLE
MODELS ONLY
WARNING!
Do not allow children to have access to the trunk,
either by climbing into the trunk from outside, or
through the inside of the vehicle. Always close the
trunk lid when your vehicle is unattended. Once in
the trunk, young children may not be able to escape.
If trapped in the trunk, children can die from suffo-
cation or heat stroke.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31

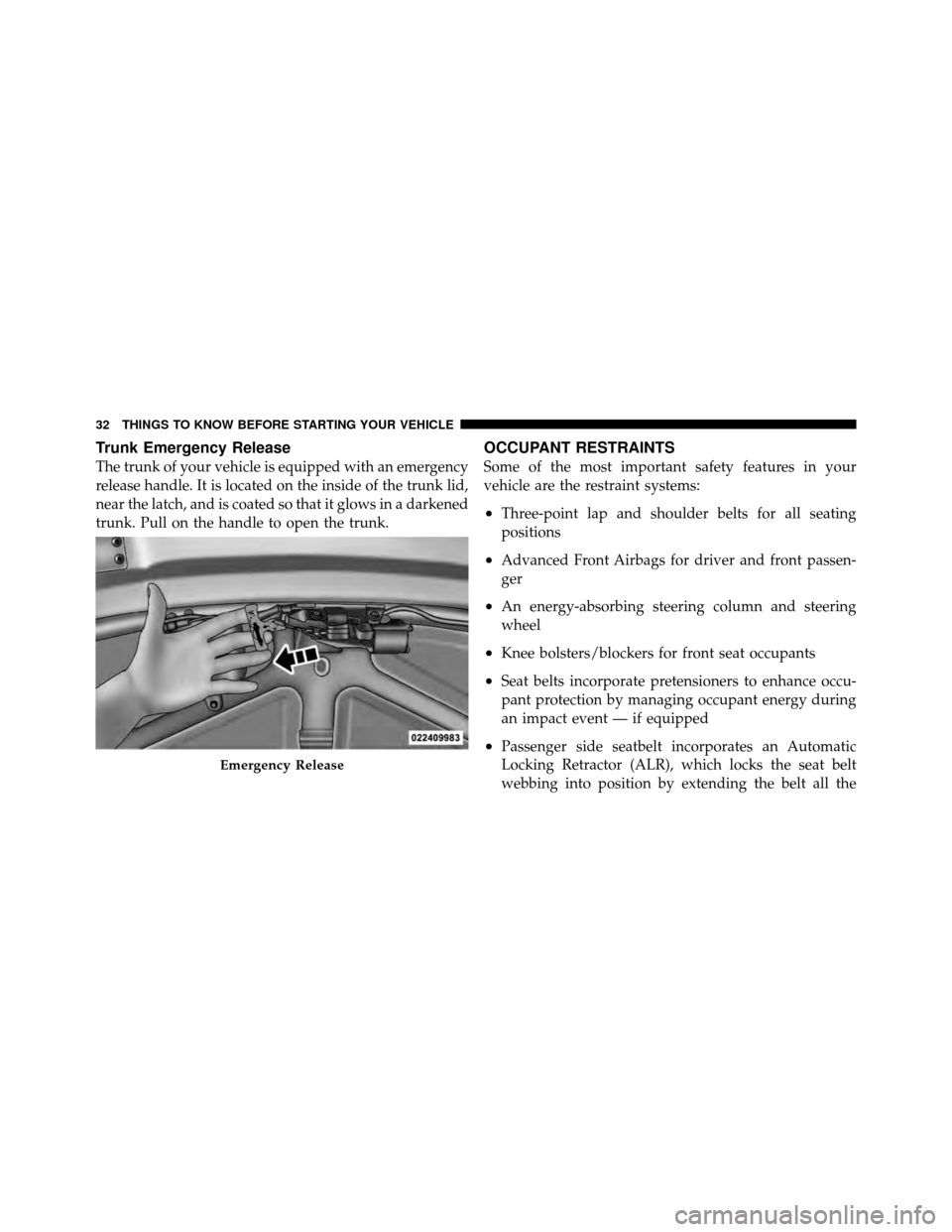

Trunk Emergency Release
The trunk of your vehicle is equipped with an emergency
release handle. It is located on the inside of the trunk lid,
near the latch, and is coated so that it glows in a darkened
trunk. Pull on the handle to open the trunk.
OCCUPANT RESTRAINTS
Some of the most important safety features in your
vehicle are the restraint systems:
•Three-point lap and shoulder belts for all seating
positions
•Advanced Front Airbags for driver and front passen-
ger
•An energy-absorbing steering column and steering
wheel
•Knee bolsters/blockers for front seat occupants
•Seat belts incorporate pretensioners to enhance occu-
pant protection by managing occupant energy during
an impact event — if equipped
•Passenger side seatbelt incorporates an Automatic
Locking Retractor (ALR), which locks the seat belt
webbing into position by extending the belt all the
Emergency Release
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
