Indicators
- Turn Signal/Hazard Indicators
- High Beam Indicator
- Front Fog Light Indicator
- Skip Shift/Upshift Indicator
Odometer Messages
DOOR UNLOCKED - Door Unlocked LOW TIRE - Low tire pressure
DOOR AJAR - Door Ajar FLAT TIRE - Critically low tire pressure
DECK - Trunk/Liftgate is open
* Bulb Check with Key On
7
CONTROLS AT A GLANCE

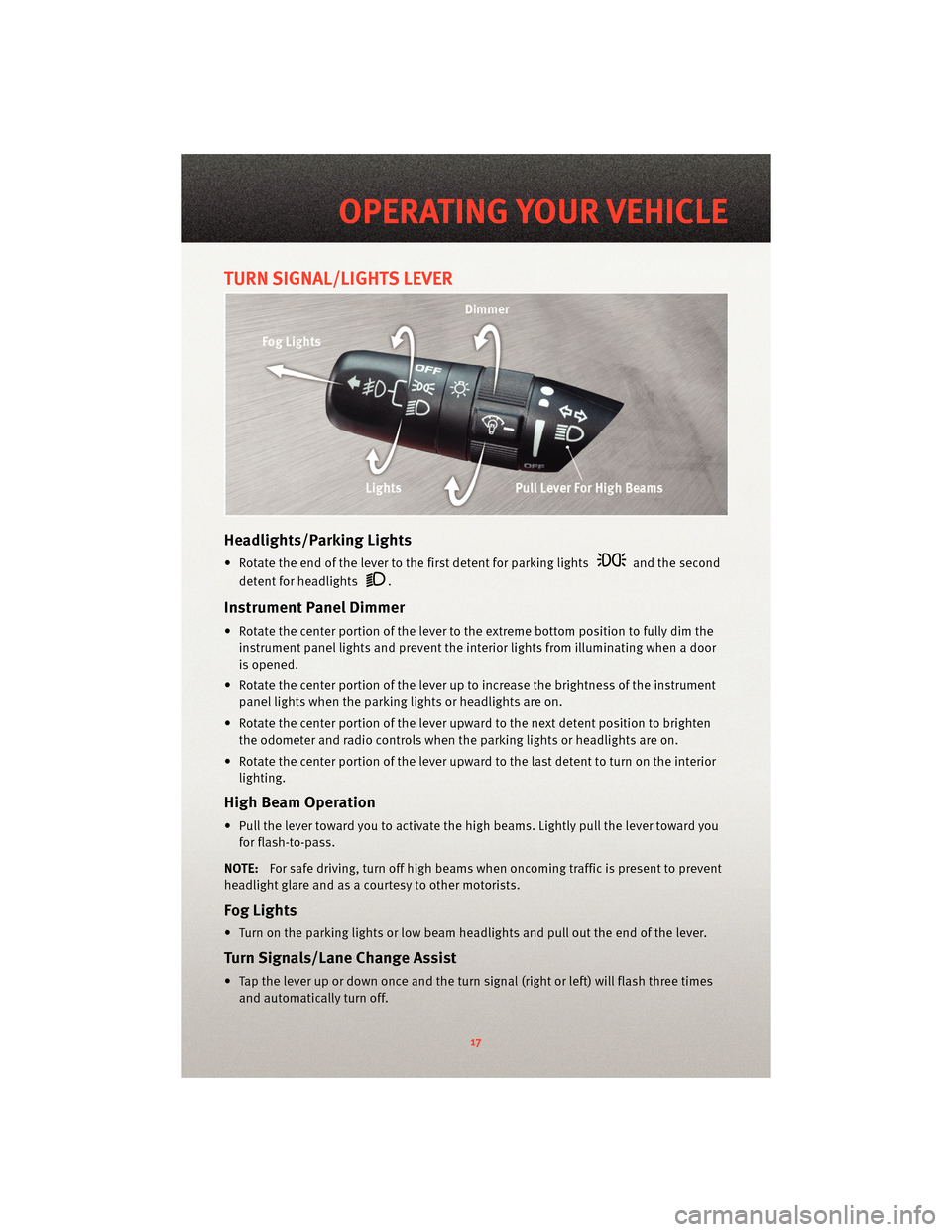

TURN SIGNAL/LIGHTS LEVER
Headlights/Parking Lights
• Rotate the end of the lever to the first detent for parking lightsand the second
detent for headlights
.
Instrument Panel Dimmer
• Rotate the center portion of the lever t o the extreme bottom position to fully dim the
instrument panel lights and prevent the int erior lights from illuminating when a door
is opened.
• Rotate the center portion of the lever up to increase the brightness of the instrument panel lights when the parking lights or headlights are on.
• Rotate the center portion of the lever u pward to the next detent position to brighten
the odometer and radio controls when the parking lights or headlights are on.
• Rotate the center portion of the lever upward to the last detent to turn on the interior lighting.
High Beam Operation
• Pull the lever toward you to activate the high beams. Lightly pull the lever toward youfor flash-to-pass.
NOTE: For safe driving, turn off high beams when oncoming traffic is present to prevent
headlight glare and as a courtesy to other motorists.
Fog Lights
• Turn on the parking lights or low beam headlights and pull out the end of the lever.
Turn Signal s/Lane Change Assist
• Tap the lever up or down once and the turn signal (right or left) will flash three times
and automatically turn off.
17
OPERATING YOUR VEHICLE

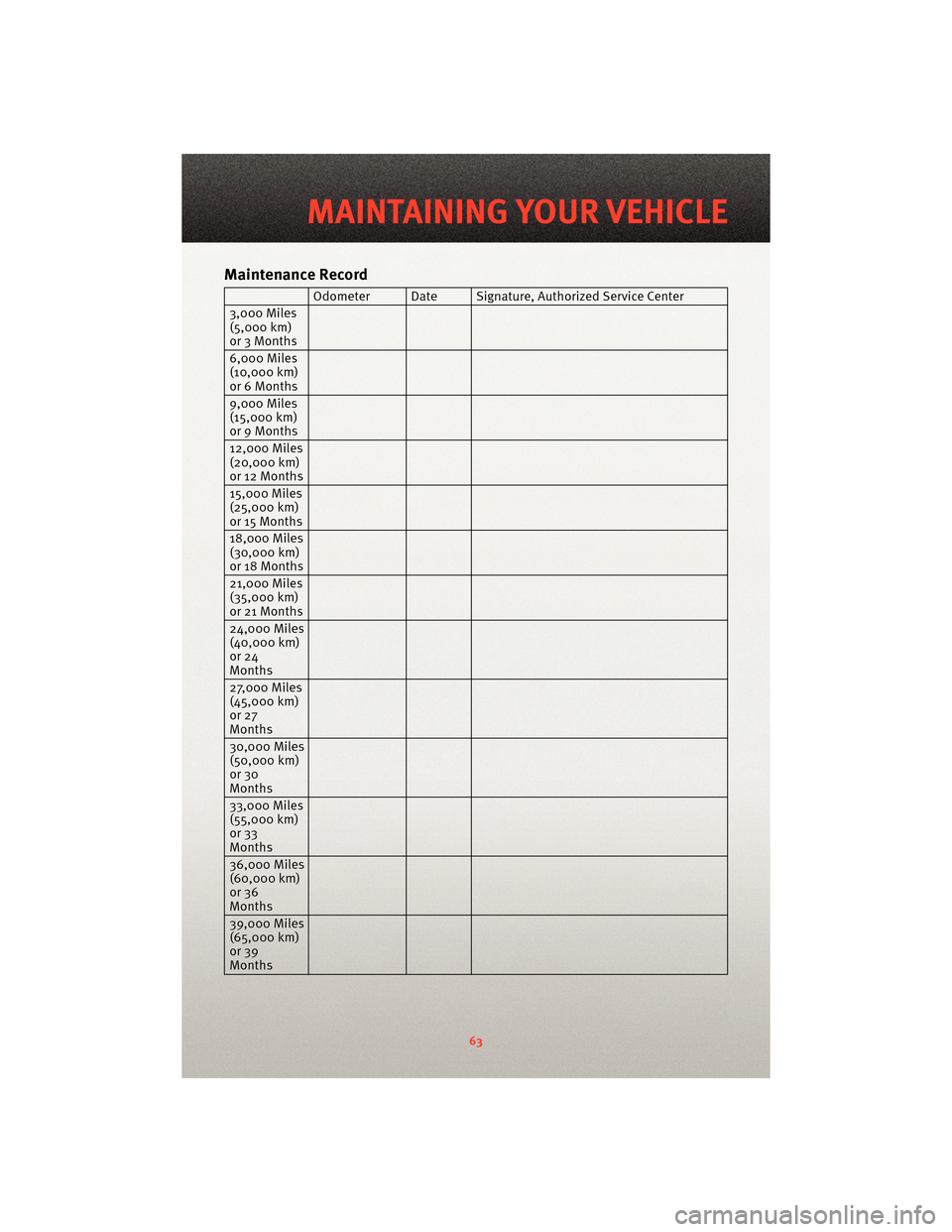

Maintenance Record
Odometer Date Signature,Authorized Service Center
3,000 Miles
(5,000 km)
or 3 Months
6,000 Miles
(10,000 km)
or 6 Months
9,000 Miles
(15,000 km)
or 9 Months
12,000 Miles
(20,000 km)
or 12 Months
15,000 Miles
(25,000 km)
or 15 Months
18,000 Miles
(30,000 km)
or 18 Months
21,000 Miles
(35,000 km)
or 21 Months
24,000 Miles
(40,000 km)
or 24
Months
27,000 Miles
(45,000 km)
or 27
Months
30,000 Miles
(50,000 km)
or 30
Months
33,000 Miles
(55,000 km)
or 33
Months
36,000 Miles
(60,000 km)
or 36
Months
39,000 Miles
(65,000 km)
or 39
Months
63
MAINTAINING YOUR VEHICLE
