DODGE VIPER 2013 VX / 3.G Owners Manual

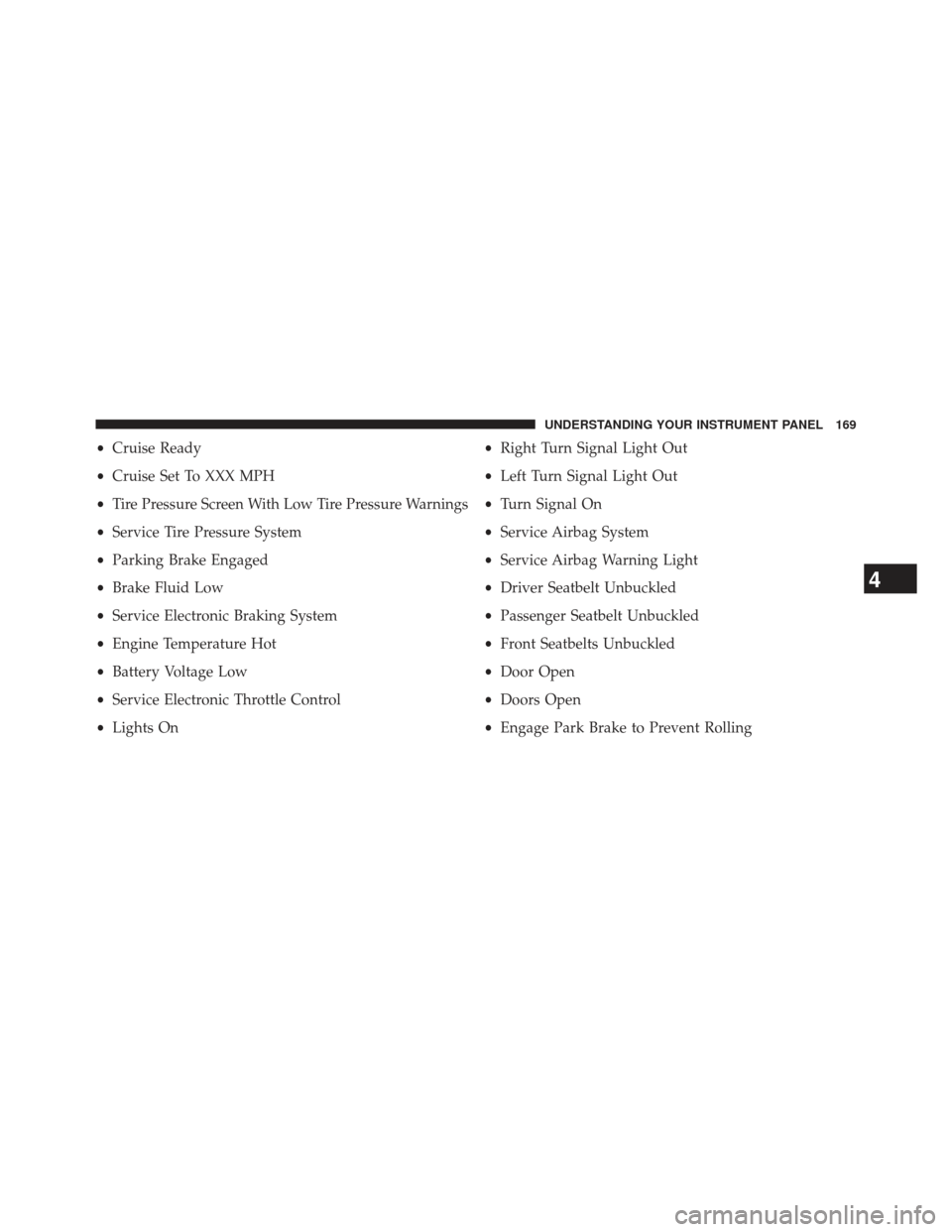

•Cruise Ready
• Cruise Set To XXX MPH
• Tire Pressure Screen With Low Tire Pressure Warnings
• Service Tire Pressure System
• Parking Brake Engaged
• Brake Fluid Low
• Service Electronic Braking System
• Engine Temperature Hot
• Battery Voltage Low
• Service Electronic Throttle Control
• Lights On •
Right Turn Signal Light Out
• Left Turn Signal Light Out
• Turn Signal On
• Service Airbag System
• Service Airbag Warning Light
• Driver Seatbelt Unbuckled
• Passenger Seatbelt Unbuckled
• Front Seatbelts Unbuckled
• Door Open
• Doors Open
• Engage Park Brake to Prevent Rolling
4
UNDERSTANDING YOUR INSTRUMENT PANEL 169

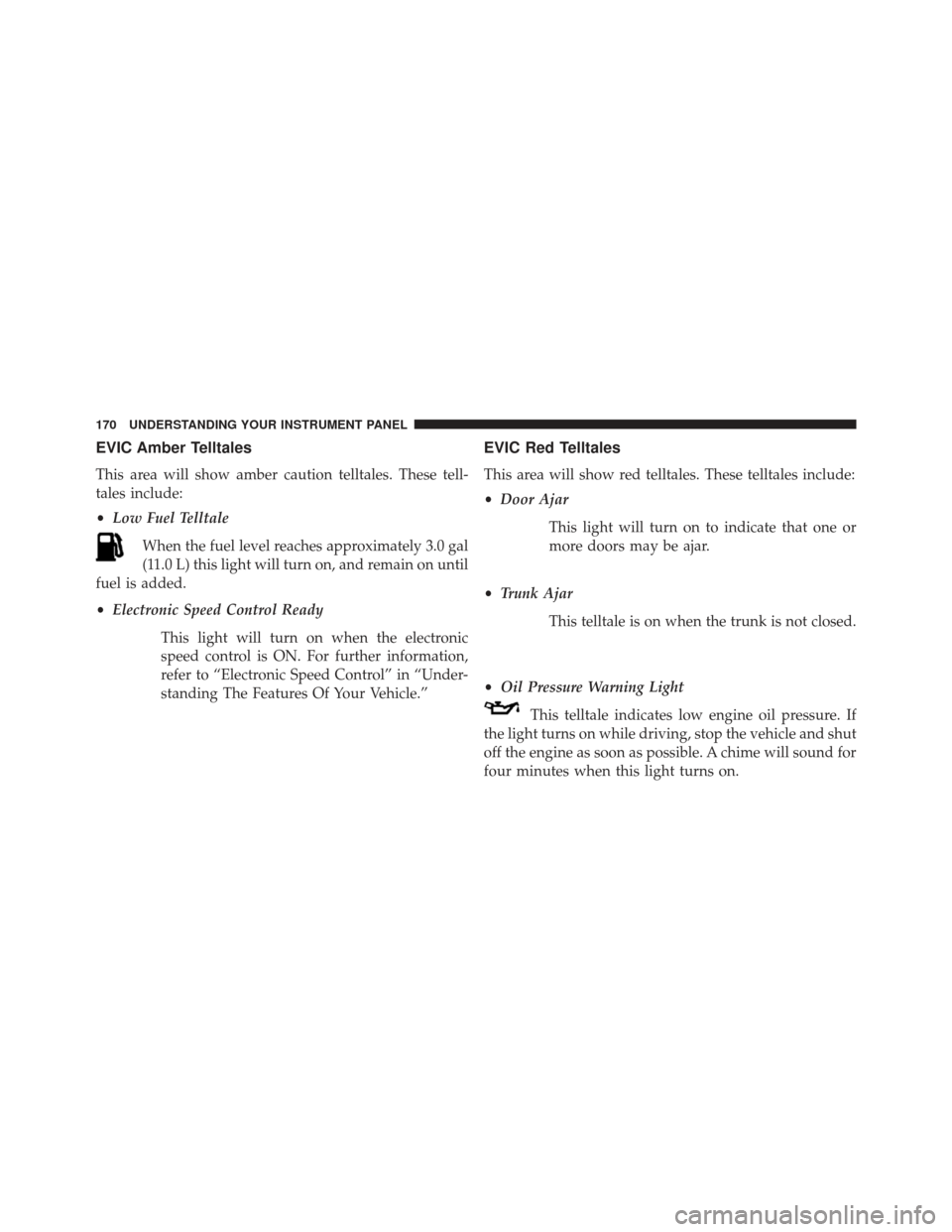

EVIC Amber Telltales
This area will show amber caution telltales. These tell-
tales include:
•Low Fuel Telltale
When the fuel level reaches approximately 3.0 gal
(11.0 L) this light will turn on, and remain on until
fuel is added.
• Electronic Speed Control Ready
This light will turn on when the electronic
speed control is ON. For further information,
refer to “Electronic Speed Control” in “Under-
standing The Features Of Your Vehicle.”
EVIC Red Telltales
This area will show red telltales. These telltales include:
•Door Ajar
This light will turn on to indicate that one or
more doors may be ajar.
• Trunk Ajar
This telltale is on when the trunk is not closed.
• Oil Pressure Warning Light
This telltale indicates low engine oil pressure. If
the light turns on while driving, stop the vehicle and shut
off the engine as soon as possible. A chime will sound for
four minutes when this light turns on.
170 UNDERSTANDING YOUR INSTRUMENT PANEL

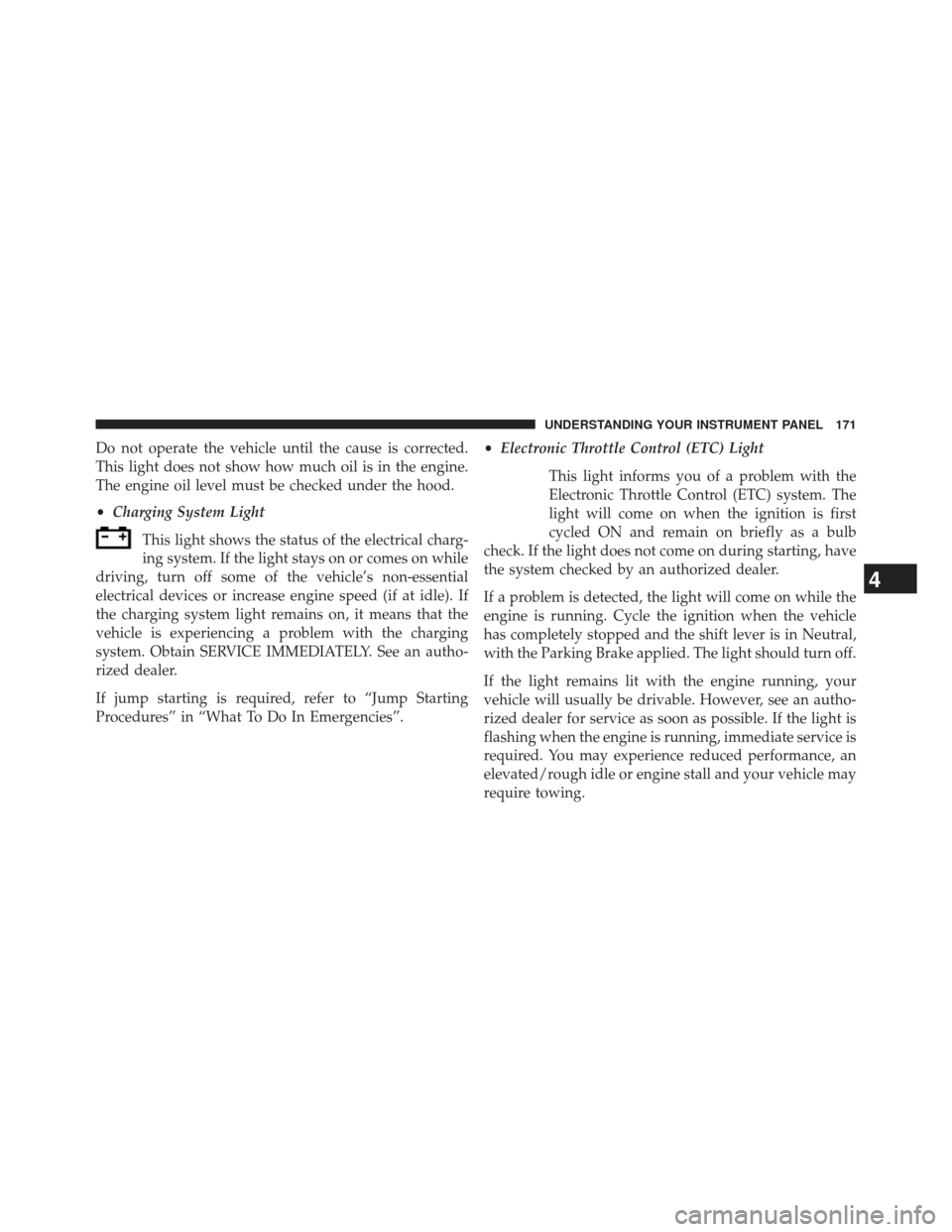

Do not operate the vehicle until the cause is corrected.
This light does not show how much oil is in the engine.
The engine oil level must be checked under the hood.
•Charging System Light
This light shows the status of the electrical charg-
ing system. If the light stays on or comes on while
driving, turn off some of the vehicle’s non-essential
electrical devices or increase engine speed (if at idle). If
the charging system light remains on, it means that the
vehicle is experiencing a problem with the charging
system. Obtain SERVICE IMMEDIATELY. See an autho-
rized dealer.
If jump starting is required, refer to “Jump Starting
Procedures” in “What To Do In Emergencies”. •
Electronic Throttle Control (ETC) Light
This light informs you of a problem with the
Electronic Throttle Control (ETC) system. The
light will come on when the ignition is first
cycled ON and remain on briefly as a bulb
check. If the light does not come on during starting, have
the system checked by an authorized dealer.
If a problem is detected, the light will come on while the
engine is running. Cycle the ignition when the vehicle
has completely stopped and the shift lever is in Neutral,
with the Parking Brake applied. The light should turn off.
If the light remains lit with the engine running, your
vehicle will usually be drivable. However, see an autho-
rized dealer for service as soon as possible. If the light is
flashing when the engine is running, immediate service is
required. You may experience reduced performance, an
elevated/rough idle or engine stall and your vehicle may
require towing.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 171

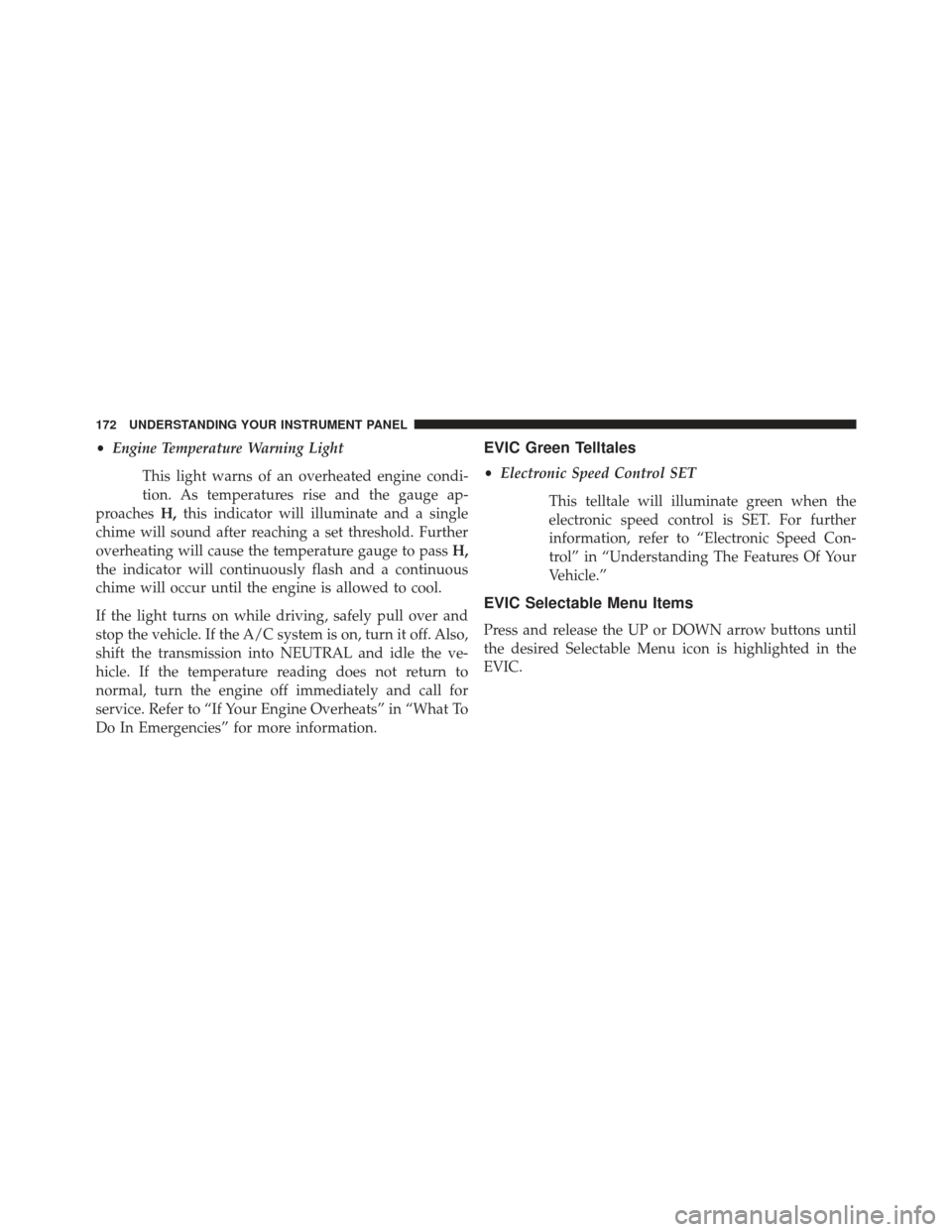

•Engine Temperature Warning Light
This light warns of an overheated engine condi-
tion. As temperatures rise and the gauge ap-
proaches H,this indicator will illuminate and a single
chime will sound after reaching a set threshold. Further
overheating will cause the temperature gauge to pass H,
the indicator will continuously flash and a continuous
chime will occur until the engine is allowed to cool.
If the light turns on while driving, safely pull over and
stop the vehicle. If the A/C system is on, turn it off. Also,
shift the transmission into NEUTRAL and idle the ve-
hicle. If the temperature reading does not return to
normal, turn the engine off immediately and call for
service. Refer to “If Your Engine Overheats” in “What To
Do In Emergencies” for more information.EVIC Green Telltales
• Electronic Speed Control SET
This telltale will illuminate green when the
electronic speed control is SET. For further
information, refer to “Electronic Speed Con-
trol” in “Understanding The Features Of Your
Vehicle.”
EVIC Selectable Menu Items
Press and release the UP or DOWN arrow buttons until
the desired Selectable Menu icon is highlighted in the
EVIC.
172 UNDERSTANDING YOUR INSTRUMENT PANEL

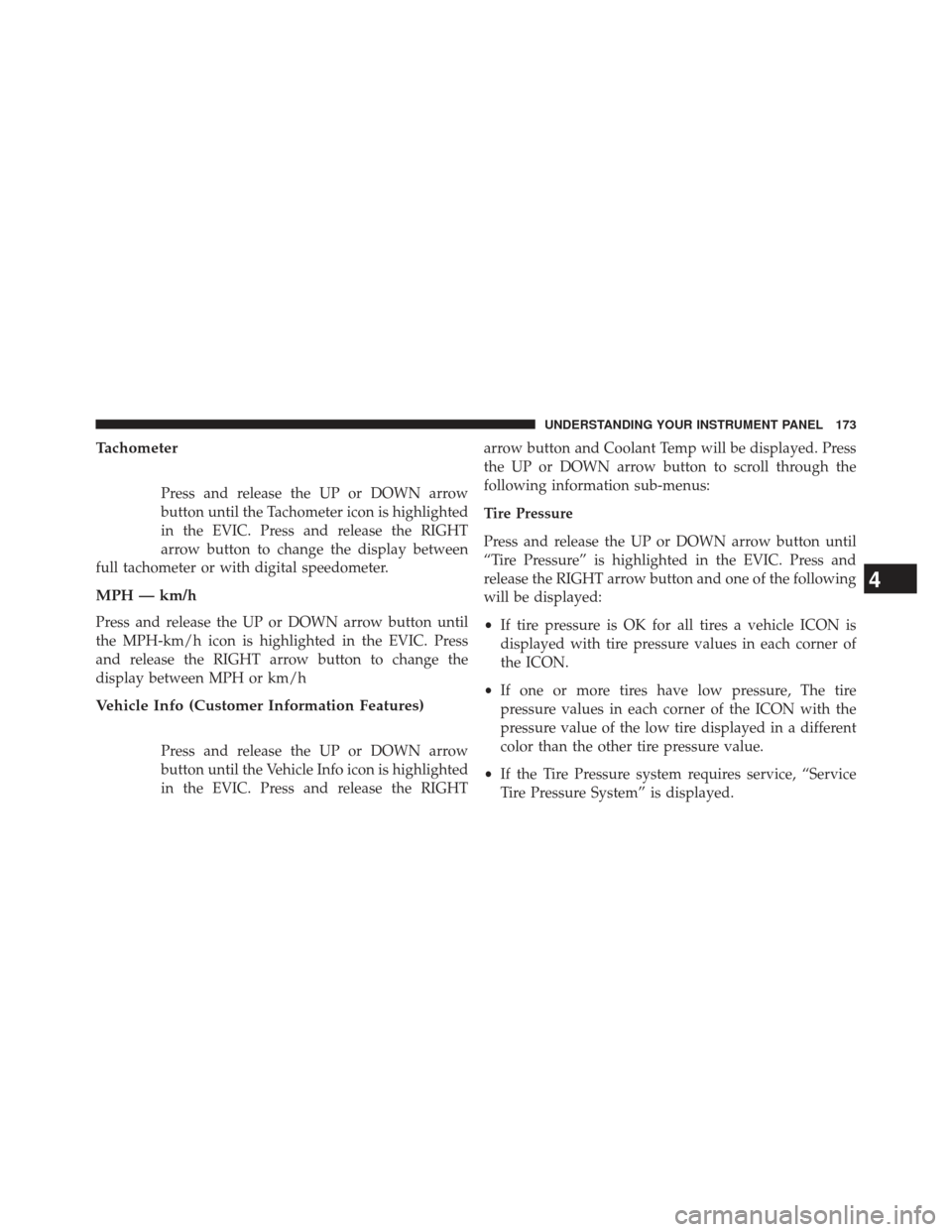

Tachometer
Press and release the UP or DOWN arrow
button until the Tachometer icon is highlighted
in the EVIC. Press and release the RIGHT
arrow button to change the display between
full tachometer or with digital speedometer.
MPH — km/h
Press and release the UP or DOWN arrow button until
the MPH-km/h icon is highlighted in the EVIC. Press
and release the RIGHT arrow button to change the
display between MPH or km/h
Vehicle Info (Customer Information Features)
Press and release the UP or DOWN arrow
button until the Vehicle Info icon is highlighted
in the EVIC. Press and release the RIGHT arrow button and Coolant Temp will be displayed. Press
the UP or DOWN arrow button to scroll through the
following information sub-menus:
Tire Pressure
Press and release the UP or DOWN arrow button until
“Tire Pressure” is highlighted in the EVIC. Press and
release the RIGHT arrow button and one of the following
will be displayed:
•
If tire pressure is OK for all tires a vehicle ICON is
displayed with tire pressure values in each corner of
the ICON.
• If one or more tires have low pressure, The tire
pressure values in each corner of the ICON with the
pressure value of the low tire displayed in a different
color than the other tire pressure value.
• If the Tire Pressure system requires service, “Service
Tire Pressure System” is displayed.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 173

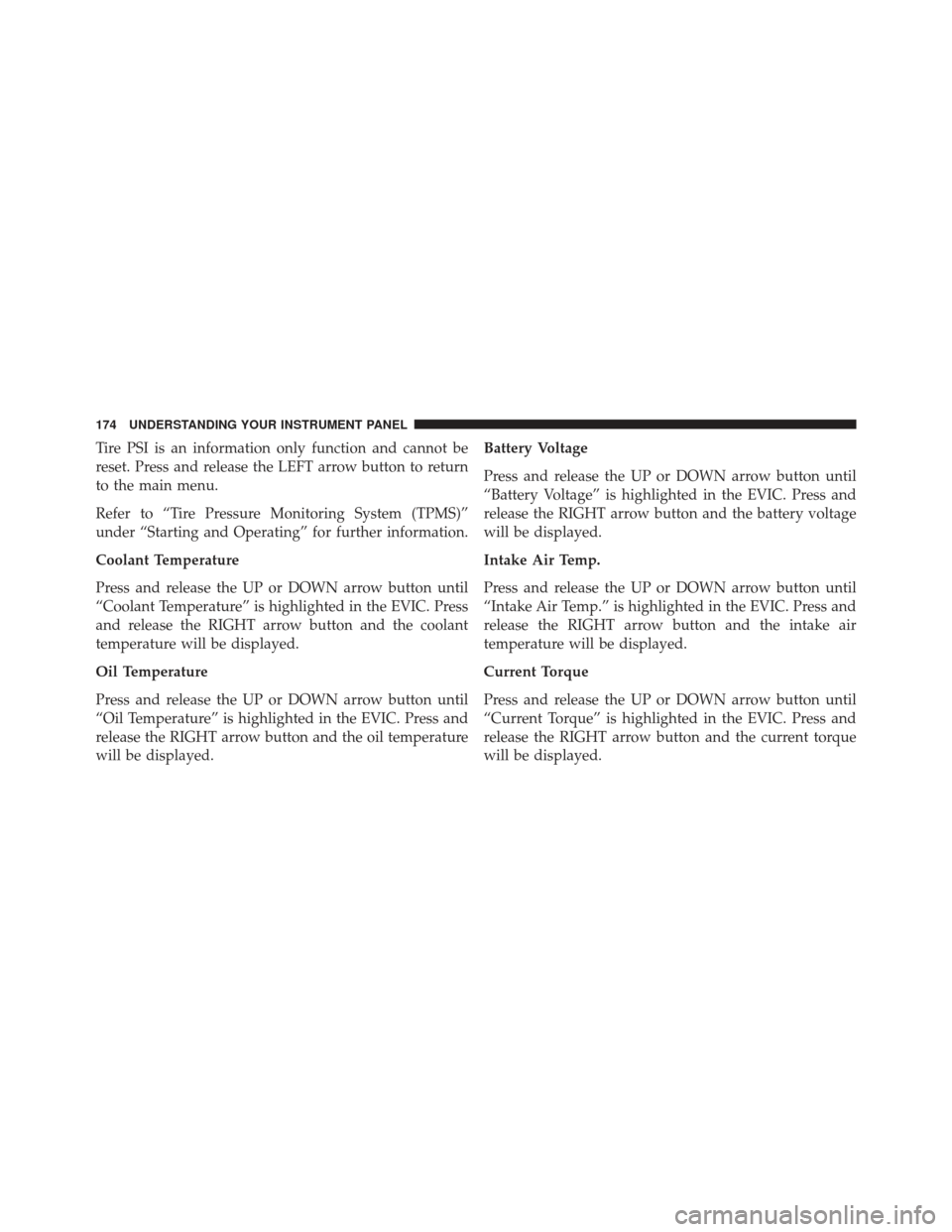

Tire PSI is an information only function and cannot be
reset. Press and release the LEFT arrow button to return
to the main menu.
Refer to “Tire Pressure Monitoring System (TPMS)”
under “Starting and Operating” for further information.
Coolant Temperature
Press and release the UP or DOWN arrow button until
“Coolant Temperature” is highlighted in the EVIC. Press
and release the RIGHT arrow button and the coolant
temperature will be displayed.
Oil Temperature
Press and release the UP or DOWN arrow button until
“Oil Temperature” is highlighted in the EVIC. Press and
release the RIGHT arrow button and the oil temperature
will be displayed.Battery Voltage
Press and release the UP or DOWN arrow button until
“Battery Voltage” is highlighted in the EVIC. Press and
release the RIGHT arrow button and the battery voltage
will be displayed.
Intake Air Temp.
Press and release the UP or DOWN arrow button until
“Intake Air Temp.” is highlighted in the EVIC. Press and
release the RIGHT arrow button and the intake air
temperature will be displayed.
Current Torque
Press and release the UP or DOWN arrow button until
“Current Torque” is highlighted in the EVIC. Press and
release the RIGHT arrow button and the current torque
will be displayed.
174 UNDERSTANDING YOUR INSTRUMENT PANEL

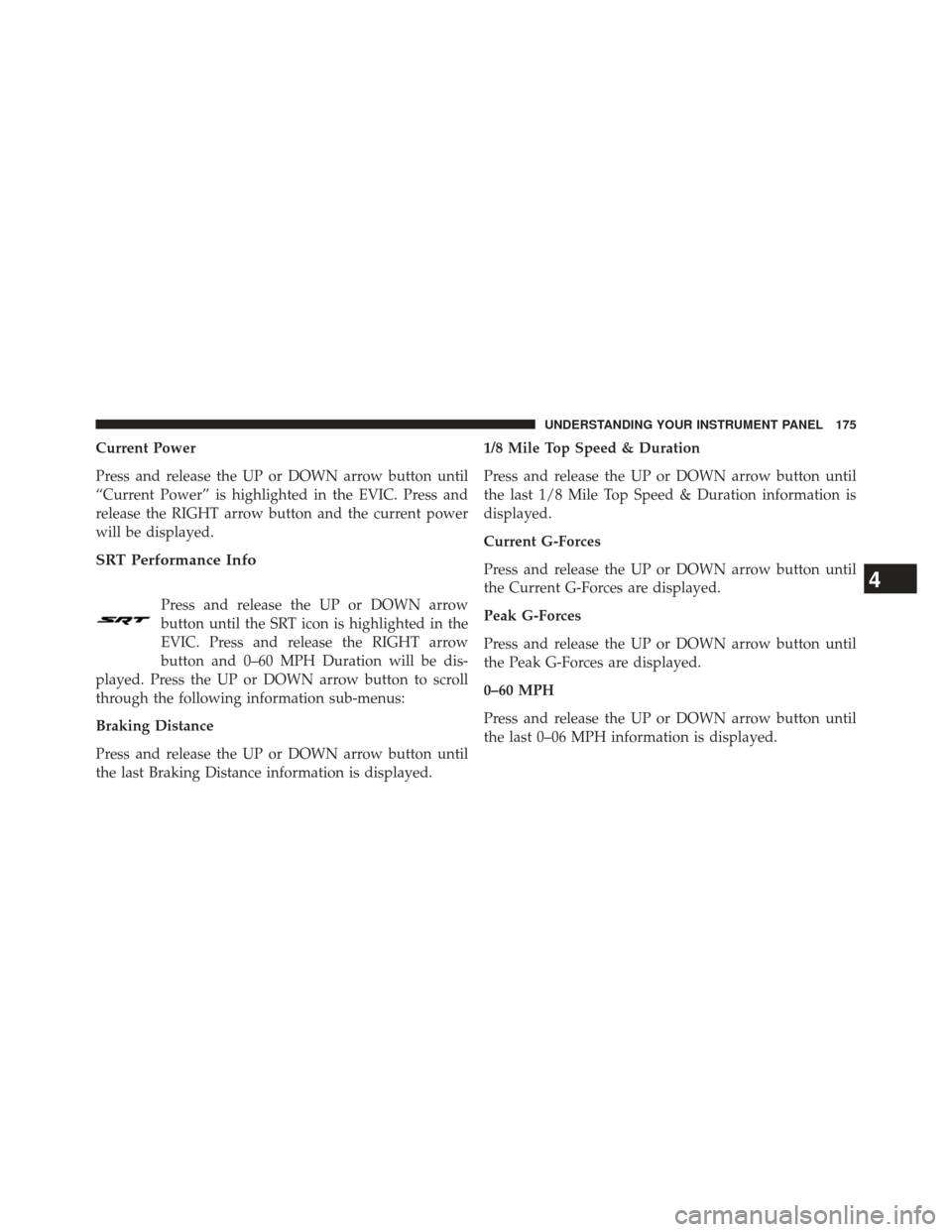

Current Power
Press and release the UP or DOWN arrow button until
“Current Power” is highlighted in the EVIC. Press and
release the RIGHT arrow button and the current power
will be displayed.
SRT Performance Info
Press and release the UP or DOWN arrow
button until the SRT icon is highlighted in the
EVIC. Press and release the RIGHT arrow
button and 0–60 MPH Duration will be dis-
played. Press the UP or DOWN arrow button to scroll
through the following information sub-menus:
Braking Distance
Press and release the UP or DOWN arrow button until
the last Braking Distance information is displayed. 1/8 Mile Top Speed & Duration
Press and release the UP or DOWN arrow button until
the last 1/8 Mile Top Speed & Duration information is
displayed.
Current G-Forces
Press and release the UP or DOWN arrow button until
the Current G-Forces are displayed.
Peak G-Forces
Press and release the UP or DOWN arrow button until
the Peak G-Forces are displayed.
0–60 MPH
Press and release the UP or DOWN arrow button until
the last 0–06 MPH information is displayed.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 175

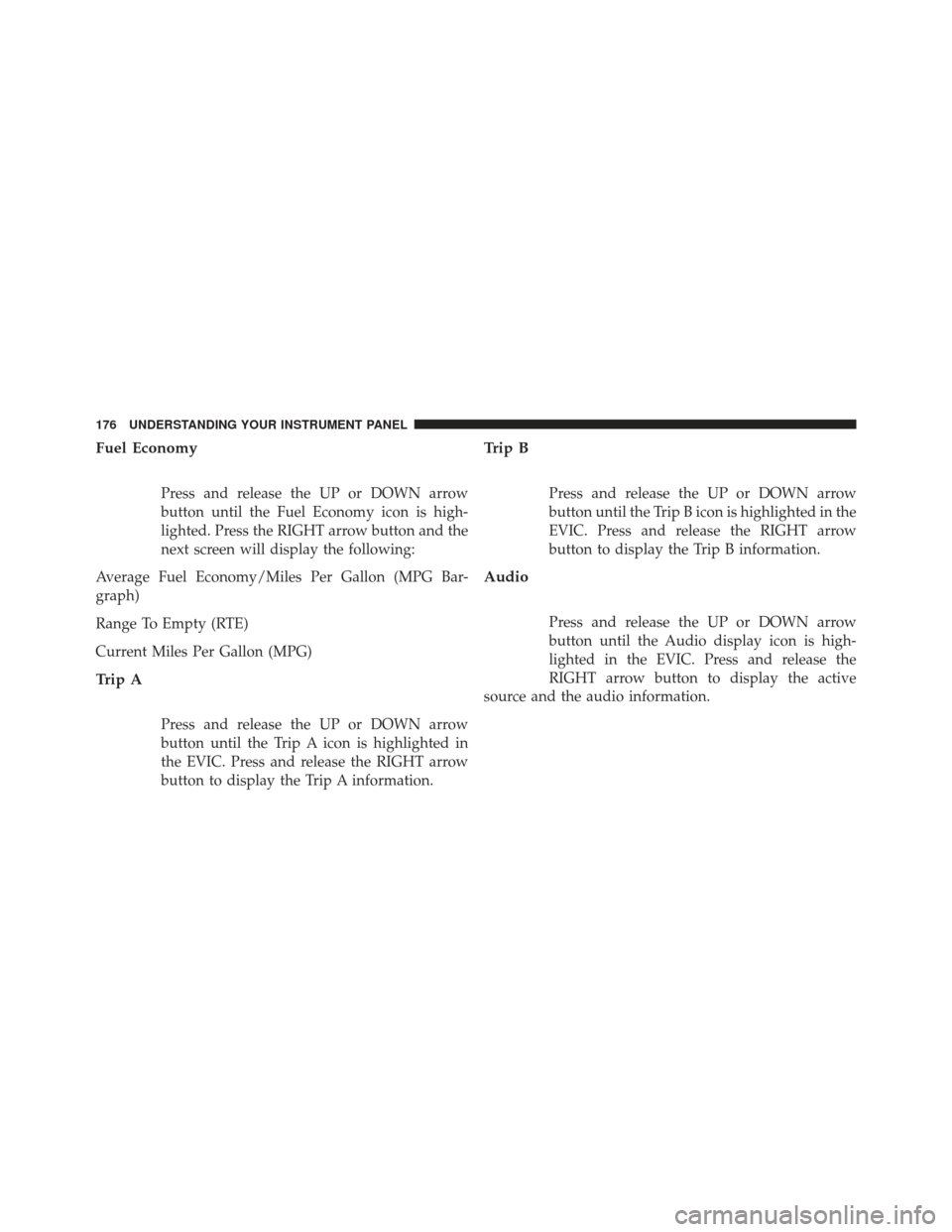

Fuel Economy
Press and release the UP or DOWN arrow
button until the Fuel Economy icon is high-
lighted. Press the RIGHT arrow button and the
next screen will display the following:
Average Fuel Economy/Miles Per Gallon (MPG Bar-
graph)
Range To Empty (RTE)
Current Miles Per Gallon (MPG)
Trip A
Press and release the UP or DOWN arrow
button until the Trip A icon is highlighted in
the EVIC. Press and release the RIGHT arrow
button to display the Trip A information.
Trip B
Press and release the UP or DOWN arrow
button until the Trip B icon is highlighted in the
EVIC. Press and release the RIGHT arrow
button to display the Trip B information.
Audio
Press and release the UP or DOWN arrow
button until the Audio display icon is high-
lighted in the EVIC. Press and release the
RIGHT arrow button to display the active
source and the audio information.
176 UNDERSTANDING YOUR INSTRUMENT PANEL

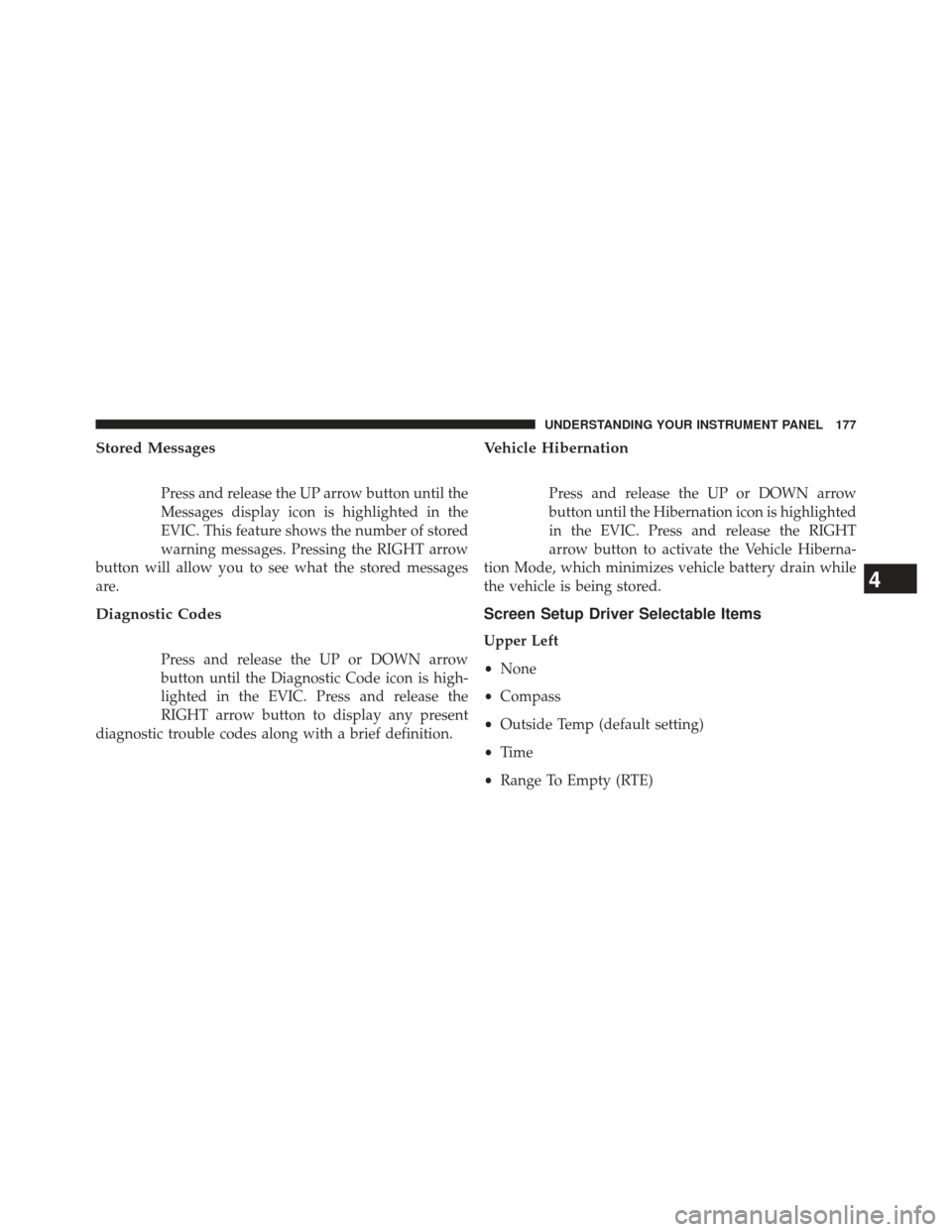

Stored Messages
Press and release the UP arrow button until the
Messages display icon is highlighted in the
EVIC. This feature shows the number of stored
warning messages. Pressing the RIGHT arrow
button will allow you to see what the stored messages
are.
Diagnostic Codes
Press and release the UP or DOWN arrow
button until the Diagnostic Code icon is high-
lighted in the EVIC. Press and release the
RIGHT arrow button to display any present
diagnostic trouble codes along with a brief definition.
Vehicle Hibernation
Press and release the UP or DOWN arrow
button until the Hibernation icon is highlighted
in the EVIC. Press and release the RIGHT
arrow button to activate the Vehicle Hiberna-
tion Mode, which minimizes vehicle battery drain while
the vehicle is being stored.
Screen Setup Driver Selectable Items
Upper Left
• None
• Compass
• Outside Temp (default setting)
• Time
• Range To Empty (RTE)
4
UNDERSTANDING YOUR INSTRUMENT PANEL 177

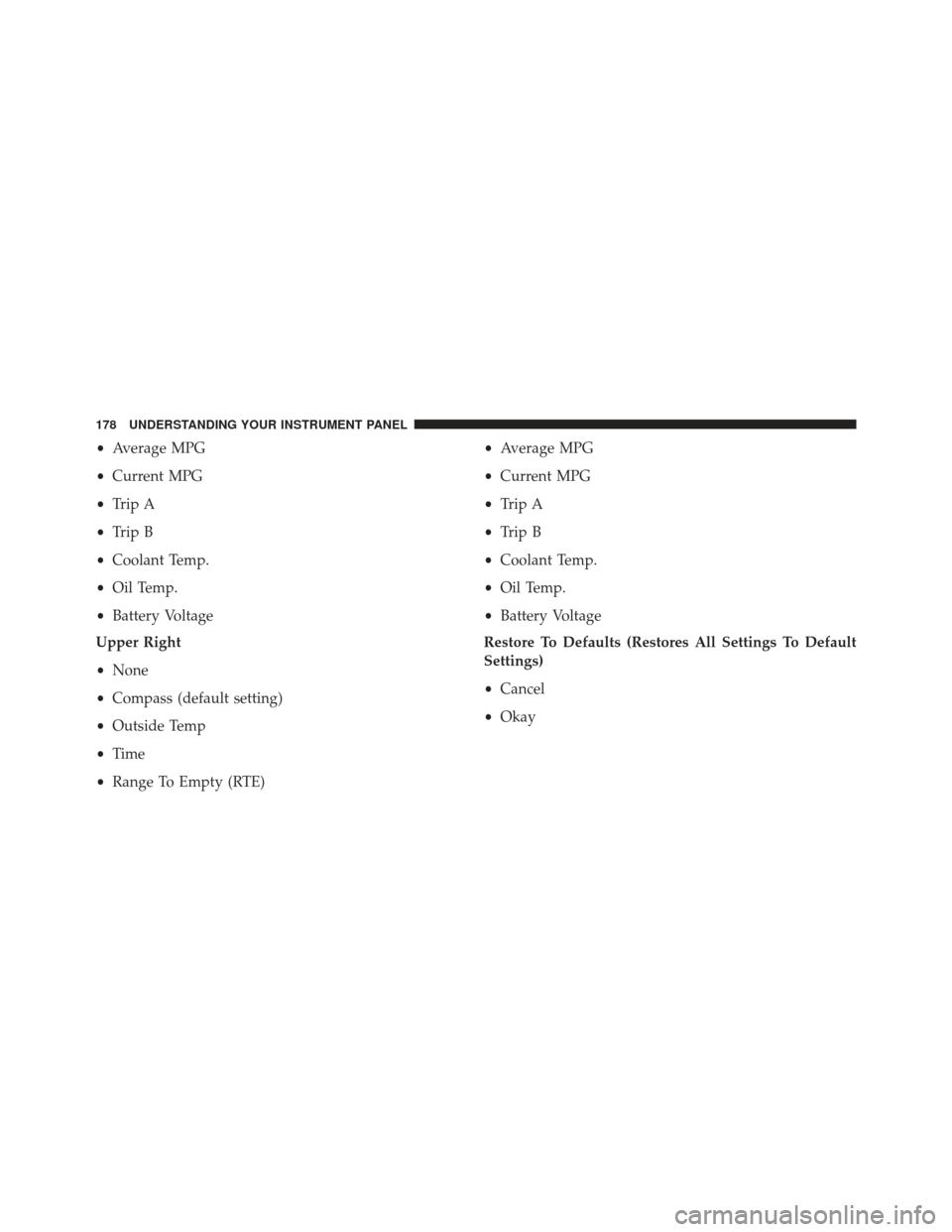

•Average MPG
• Current MPG
• Trip A
• Trip B
• Coolant Temp.
• Oil Temp.
• Battery Voltage
Upper Right
• None
• Compass (default setting)
• Outside Temp
• Time
• Range To Empty (RTE) •
Average MPG
• Current MPG
• Trip A
• Trip B
• Coolant Temp.
• Oil Temp.
• Battery Voltage
Restore To Defaults (Restores All Settings To Default
Settings)
• Cancel
• Okay
