UNDERSTANDING YOUR INSTRUMENT PANEL

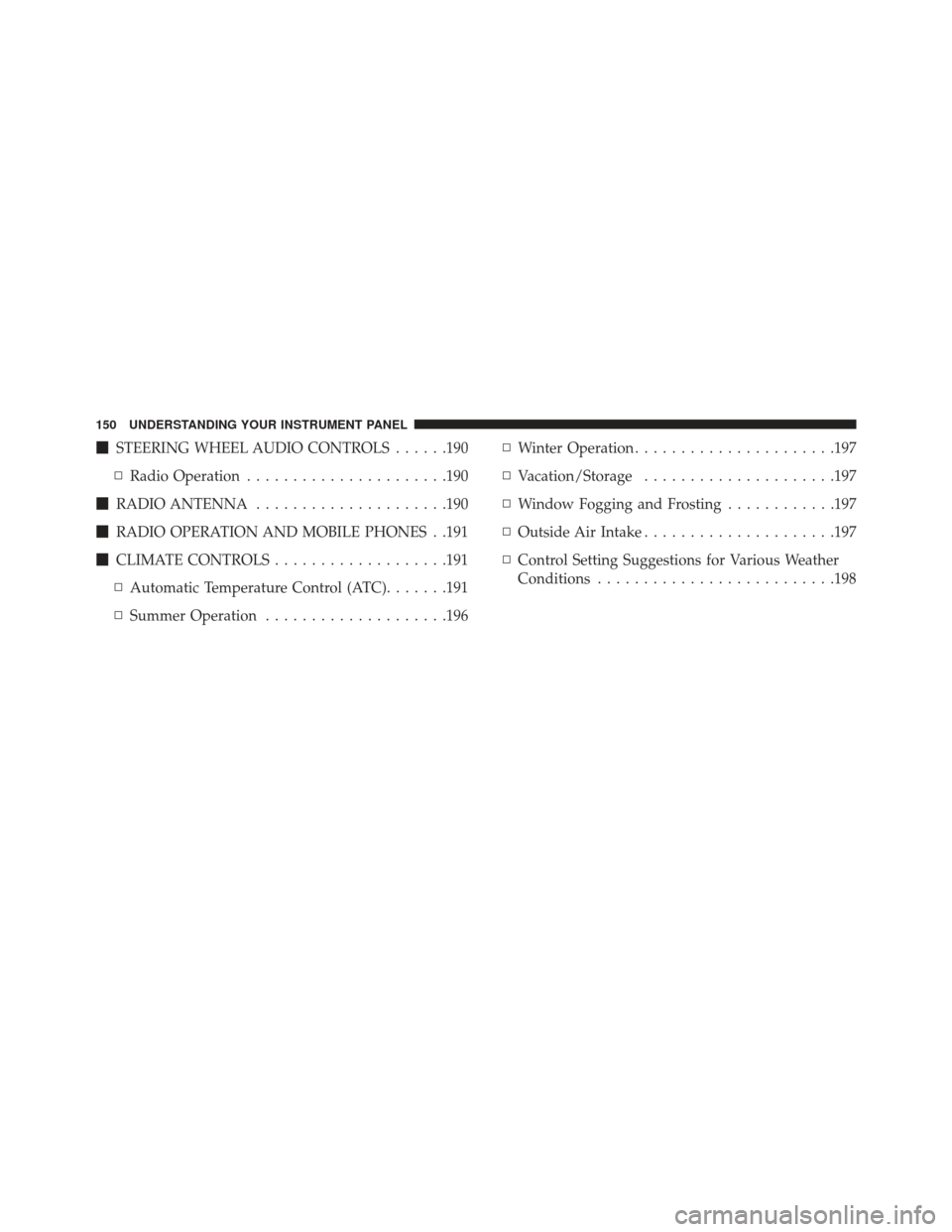

CONTENTS
INSTRUMENT PANEL FEATURES ..........151
 INSTRUMENT CLUSTER .................152
 INSTRUMENT CLUSTER DESCRIPTIONS .....153
 ELECTRONIC VEHICLE INFORMATION CENTER
(EVIC) .............................. .164
▫ Electronic Vehicle Information Center (EVIC)
Displays ........................... .166
▫ Electronic Vehicle Information Center (EVIC)
Messages .......................... .168
▫ EVIC Amber Telltales ...................170
▫ EVIC Red Telltales .....................170 ▫
EVIC Green Telltales ...................172
▫ EVIC Selectable Menu Items ..............172
▫ Screen Setup Driver Selectable Items ........177
 Uconnect™ ACCESS SETTINGS .............179
▫ Hard-Keys ......................... .179
▫ Soft-Keys .......................... .179
▫ Customer Programmable Features —
Uconnect™ Access System Settings .........179
 Uconnect™ ACCESS RADIOS – IF EQUIPPED . .189
 iPod/USB/MP3 CONTROL — IF EQUIPPED . .189
4

STEERING WHEEL AUDIO CONTROLS ......190
▫ Radio Operation ..................... .190
 RADIO ANTENNA .....................190
 RADIO OPERATION AND MOBILE PHONES . .191
 CLIMATE CONTROLS ...................191
▫ Automatic Temperature Control (ATC) .......191
▫ Summer Operation ....................196 ▫
Winter Operation ..................... .197
▫ Vacation/Storage .....................197
▫ Window Fogging and Frosting ............197
▫ Outside Air Intake .....................197
▫ Control Setting Suggestions for Various Weather
Conditions ......................... .198
150 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT PANEL FEATURES
1 — Air Outlet6 — Passenger Air Bag 11 — Climate Controls
2 — Sound System Speaker 7 — Glove Compartment 12 — Dimmer Controls
3 — Instrument Cluster 8 — Uconnect Touch™ System 13 — Headlight Switch
4 — Keyless Enter-N-Go™ Start/Stop Button 9 — Uconnect Touch™ System Hard Controls
5 — Glove Compartment Lock 10 — Switch Bank (Screen Off, Hazard Switch, Back Button)
4
UNDERSTANDING YOUR INSTRUMENT PANEL 151

INSTRUMENT CLUSTER
152 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT CLUSTER DESCRIPTIONS
1. Speedometer
Indicates vehicle speed.
2. Air Bag Warning LightThis light will turn on for four to eight seconds
as a bulb check when the ignition is first cycled
to ON/RUN. If the light is either not on during
starting, stays on, or turns on while driving,
have the system inspected at an authorized dealer as
soon as possible. Refer to “Occupant Restraints” in
“Things To Know Before Starting Your Vehicle” for
further information.
3. Seat Belt Reminder Light
When the ignition is first cycled to ON/RUN, this
light will turn on for four to eight seconds as a
bulb check. During the bulb check, if the driver’s
seat belt is unbuckled, a chime will sound. After the bulb check or when driving, if the driver’s seat belt remains
unbuckled, the Seat Belt Reminder Light will illuminate
and the chime will sound. Refer to “Occupant Restraints”
in “Things To Know Before Starting Your Vehicle” for
further information.
4. Turn Signal Indicators
The arrow will flash with the exterior turn signal
when the turn signal lever is operated.
If the vehicle electronics sense that the vehicle is driven
more than 1 mile (1.6 km) with either turn signal on, a
continuous chime will sound to alert you to turn the
signals off. If either indicator flashes at a rapid rate, check
for a defective outside light bulb.
Both turn signal arrows will flash in unison with the front
and rear turn signals when the HAZARD WARNING
button is operated.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 153

NOTE:Leaving the hazard flashers on for extended
periods will wear down the battery.
5. High Beam Indicator
This indicator shows that the high beam head-
lights are on. Push the multifunction lever for-
ward to switch the headlights to high beam, and pull
toward yourself (normal position) to return to low beam.
6. EVIC Menu Set (Selectable ICONS)
The EVIC displays are located In the center portion of the
cluster and consists of eight section:
• Speedometer (Digital or Analog) (km/h or mph)
• Main Screen — The inner ring of the display will
illuminate in gray under normal conditions, yellow for
non critical warning, red for critical warnings and
white for on demand information. •
Selectable Information (Compass, Temp, Range, to
Empty, Trip A, Trip B, Average MPG)
• Menu Titles / Odometer
• Menu Set (Selectable Icons)
• Shift Lever Status (PRNDL)
• Reconfigurable Telltales
• Audio / Phone Information
• Sub-menu Current Position — Whenever there are
sub-menus available, the position within the sub-
menus is here
Refer to Electronic Vehicle Information Center (EVIC) for
further information.
154 UNDERSTANDING YOUR INSTRUMENT PANEL

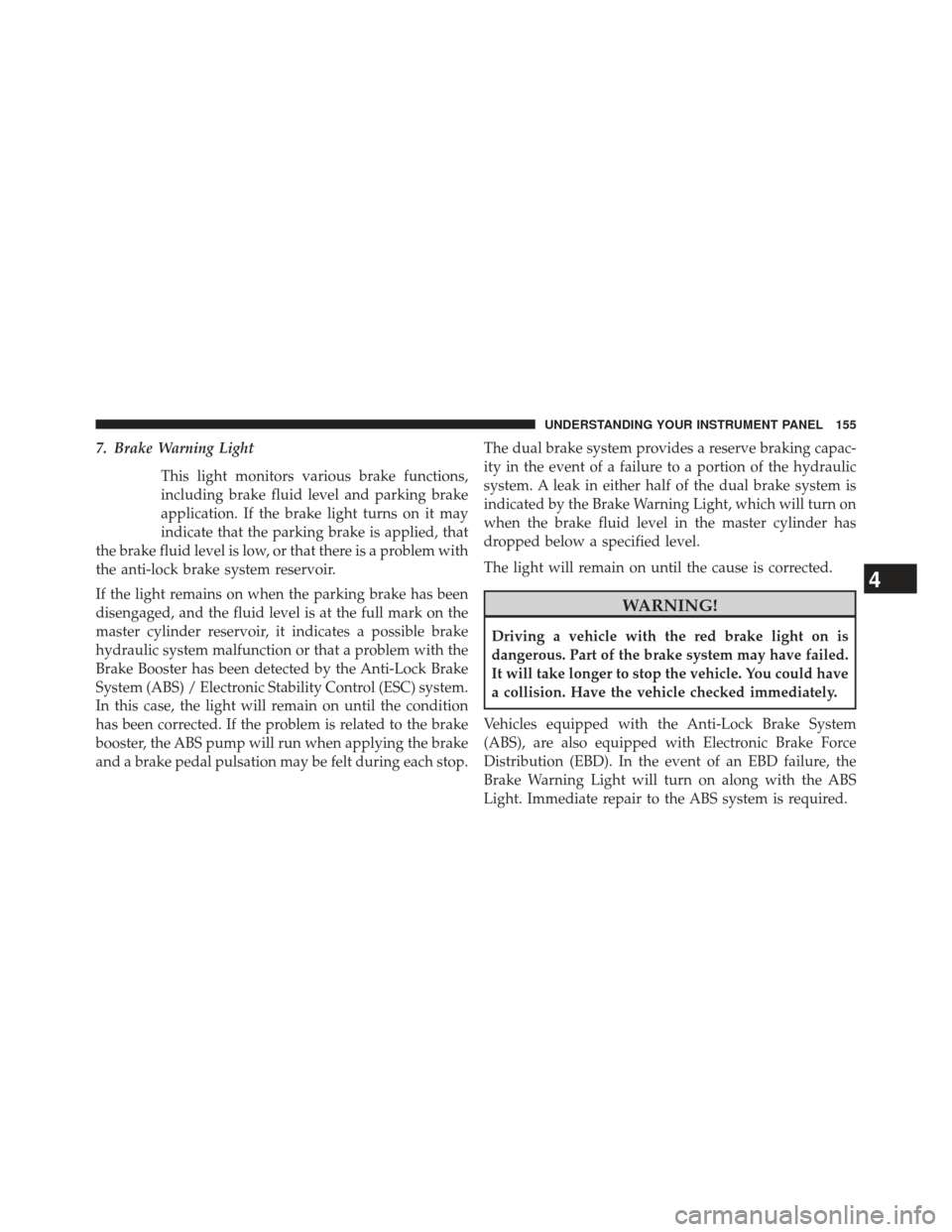

7. Brake Warning LightThis light monitors various brake functions,
including brake fluid level and parking brake
application. If the brake light turns on it may
indicate that the parking brake is applied, that
the brake fluid level is low, or that there is a problem with
the anti-lock brake system reservoir.
If the light remains on when the parking brake has been
disengaged, and the fluid level is at the full mark on the
master cylinder reservoir, it indicates a possible brake
hydraulic system malfunction or that a problem with the
Brake Booster has been detected by the Anti-Lock Brake
System (ABS) / Electronic Stability Control (ESC) system.
In this case, the light will remain on until the condition
has been corrected. If the problem is related to the brake
booster, the ABS pump will run when applying the brake
and a brake pedal pulsation may be felt during each stop. The dual brake system provides a reserve braking capac-
ity in the event of a failure to a portion of the hydraulic
system. A leak in either half of the dual brake system is
indicated by the Brake Warning Light, which will turn on
when the brake fluid level in the master cylinder has
dropped below a specified level.
The light will remain on until the cause is corrected.
WARNING!
Driving a vehicle with the red brake light on is
dangerous. Part of the brake system may have failed.
It will take longer to stop the vehicle. You could have
a collision. Have the vehicle checked immediately.
Vehicles equipped with the Anti-Lock Brake System
(ABS), are also equipped with Electronic Brake Force
Distribution (EBD). In the event of an EBD failure, the
Brake Warning Light will turn on along with the ABS
Light. Immediate repair to the ABS system is required.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 155

Operation of the Brake Warning Light can be checked by
cycling the ignition from the OFF position to the ON/
RUN position. The light should illuminate for approxi-
mately two seconds. The light should then turn off unless
the parking brake is applied or a brake fault is detected.
If the light does not illuminate, have the light inspected
by an authorized dealer.
The light also will turn on when the parking brake is
applied with the ignition in the ON/RUN position.
NOTE:This light shows only that the parking brake is
applied. It does not show the degree of brake application.
8. Tachometer
This gauge measures engine revolutions-per-minute
(RPM x 1000) 9. Oil Pressure Warning Light
This light indicates low engine oil pressure. The
light should turn on momentarily when the engine is
started. If the light turns on while driving, stop the
vehicle and shut off the engine as soon as possible. A
chime will sound when this light turns on.
Do not operate the vehicle until the cause is corrected.
This light does not indicate how much oil is in the engine.
The engine oil level must be checked under the hood.
10. Vehicle Security Light — If Equipped
This light will flash at a fast rate for approxi-
mately 15 seconds, when the vehicle security
alarm is arming, and then will flash slowly
until the vehicle is disarmed.
11. Fuel Gauge
The pointer shows the level of fuel in the fuel tank when
the ignition is in the ON/RUN position.
156 UNDERSTANDING YOUR INSTRUMENT PANEL

12. Tire Pressure Monitoring Telltale Light — If
Equipped
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recommended
by the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If your vehicle has
tires of a different size than the size indicated on the
vehicle placard or tire inflation pressure label, you should
determine the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been
equipped with a Tire Pressure Monitoring System
(TPMS) that illuminates a low tire pressure telltale when
one or more of your tires is significantly under-inflated.
Accordingly, when the low tire pressure telltale illumi-
nates, you should stop and check your tires as soon as
possible, and inflate them to the proper pressure. Driving
on a significantly under-inflated tire causes the tire to
overheat and can lead to tire failure. Under-inflation also reduces fuel efficiency and tire tread life, and may affect
the vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for proper
tire maintenance, and it is the driver ’s responsibility to
maintain correct tire pressure, even if under-inflation has
not reached the level to trigger illumination of the TPMS
low tire pressure telltale.
Your vehicle has also been equipped with a TPMS
malfunction indicator to indicate when the system is not
operating properly. The TPMS malfunction indicator is
combined with the low tire pressure telltale. When the
system detects a malfunction, the telltale will flash for
approximately one minute and then remain continuously
illuminated. This sequence will continue upon subse-
quent vehicle start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the sys-
tem may not be able to detect or signal low tire pressure
as intended. TPMS malfunctions may occur for a variety
of reasons, including the installation of replacement or
4
UNDERSTANDING YOUR INSTRUMENT PANEL 157

alternate tires or wheels on the vehicle that prevent the
TPMS from functioning properly. Always check the
TPMS malfunction telltale after replacing one or more
tires or wheels on your vehicle, to ensure that the
replacement or alternate tires and wheels allow the TPMS
to continue to function properly.
CAUTION!
The TPMS has been optimized for the original
equipment tires and wheels. TPMS pressures and
warning have been established for the tire size
equipped on your vehicle. Undesirable system opera-
tion or sensor damage may result when using re-
placement equipment that is not of the same size,
type, and/or style. Aftermarket wheels can cause
sensor damage. Do not use tire sealant from a can or
balance beads if your vehicle is equipped with a
TPMS, as damage to the sensors may result.13. Malfunction Indicator Light (MIL)

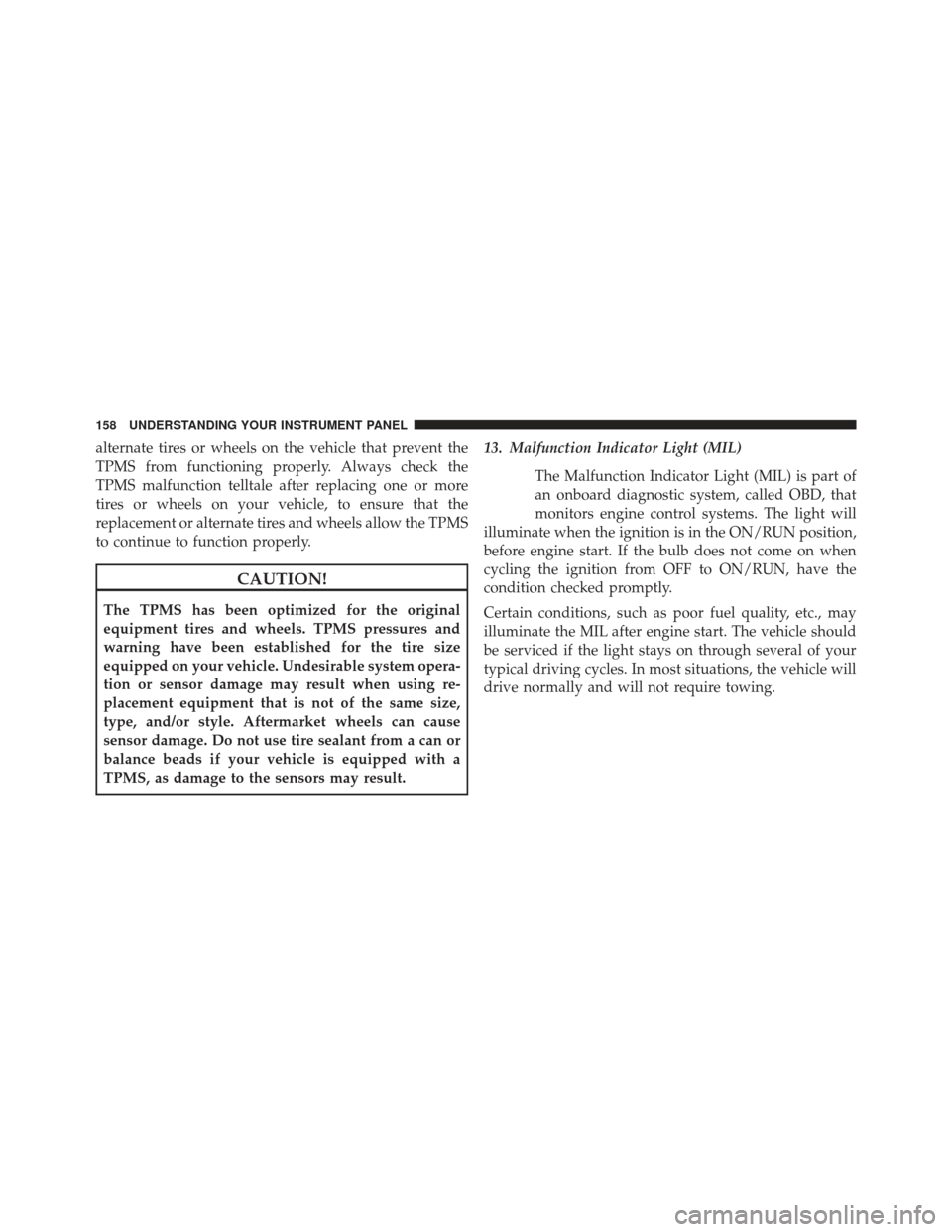

The Malfunction Indicator Light (MIL) is part of
an onboard diagnostic system, called OBD, that
monitors engine control systems. The light will
illuminate when the ignition is in the ON/RUN position,
before engine start. If the bulb does not come on when
cycling the ignition from OFF to ON/RUN, have the
condition checked promptly.
Certain conditions, such as poor fuel quality, etc., may
illuminate the MIL after engine start. The vehicle should
be serviced if the light stays on through several of your
typical driving cycles. In most situations, the vehicle will
drive normally and will not require towing.
158 UNDERSTANDING YOUR INSTRUMENT PANEL
