Stubborn soils can be removed easily with a soft cloth
and MOPAR® Total Clean. Care should be taken to avoid
soaking your leather upholstery with any liquid. Please
do not use polishes, oils, cleaning fluids, solvents, deter-
gents, or ammonia-based cleaners to clean your leather
upholstery. Application of a leather conditioner is not
required to maintain the original condition.
WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas they may cause respiratory harm.
CAUTION!
Do not use Alcohol and Alcohol-based and/or Keton
based cleaning products to clean leather seats, as
damage to the seat may result.
Leather or Vinyl Seat/Trim Care and Cleaning
Leather is best preserved by regular cleaning with a
damp soft cloth. Small particles of dirt can act as an
abrasive and damage the leather surface and should be
removed immediately with a damp cloth. Stubborn soils
can be removed easily with a soft cloth and MOPAR®
Total Clean or equivalent. Care should be taken to avoid
soaking the leather with any liquid. Please do not use
polishes, oils, cleaning fluids, solvents, detergents, or
ammonia-based cleaners to clean the leather. Application
of a leather conditioner is not required to maintain the
original condition.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPAR® Glass Cleaner, or any commercial
household-type glass cleaner. Never use an abrasive type
cleaner. Use caution when cleaning the inside rear win-
dow equipped with electric defrosters or windows
7
MAINTAINING YOUR VEHICLE 339

equipped with radio antennas. Do not use scrapers or
other sharp instrument that may scratch the elements.
When cleaning the rear view mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft cloth.
Seat Belt Maintenance
Do not bleach, dye or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the belts from the car to
wash them. Dry with a soft cloth.
Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
WARNING!
A frayed or torn belt could rip apart in a collision and
leave you with no protection. Inspect the belt system
periodically, checking for cuts, frays, or loose parts.
Damaged parts must be replaced immediately. Do
not disassemble or modify the system. Seat belt
(Continued)
340 MAINTAINING YOUR VEHICLE

WARNING!(Continued)
assemblies must be replaced after a collision if they
have been damaged (i.e., bent retractor, torn web-
bing, etc.).

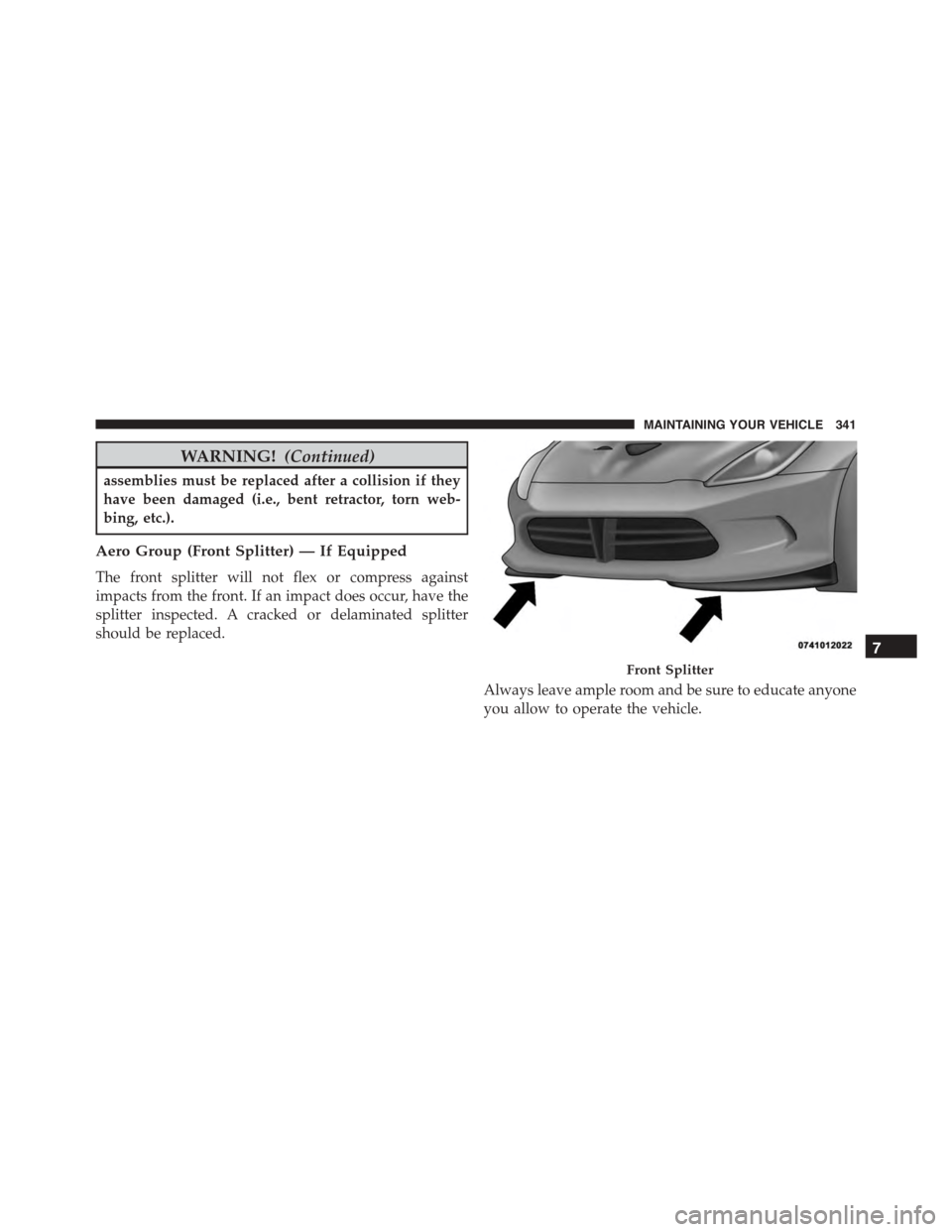

Aero Group (Front Splitter) — If Equipped
The front splitter will not flex or compress against
impacts from the front. If an impact does occur, have the
splitter inspected. A cracked or delaminated splitter
should be replaced.
Always leave ample room and be sure to educate anyone
you allow to operate the vehicle.
Front Splitter
7
MAINTAINING YOUR VEHICLE 341

CAUTION!
Use care when approaching parking blocks, tall
speed bumps and garage curbs. These surfaces can
damage your splitter.
Use caution when driving up to sloped surfaces or over
speed bumps. Approaching a speed bump or a slope at a
slight angle may improve your clearance.
CAUTION!
•Hard contact with steep ramps may cause damage
to your splitter.
•Replace rub strips when they are worn down to 1/8
inch (3 mm) on the front edge. This will avoid
damage to the carbon fiber panel.
FUSES
WARNING!
•When replacing a blown fuse, always use an ap-
propriate replacement fuse with the same amp
rating as the original fuse. Never replace a fuse
with another fuse of higher amp rating. Never
replace a blown fuse with metal wires or any other
material. Failure to use proper fuses may result in
serious personal injury, fire and/or property dam-
age.
•Before replacing a fuse, make sure that the ignition
is off and that all the other services are switched off
and/or disengaged.
•If the replaced fuse blows again, contact an autho-
rized dealer.
(Continued)
342 MAINTAINING YOUR VEHICLE

WARNING!(Continued)
•If a general protection fuse for safety systems (air
bag system, braking system), power unit systems
(engine system, gearbox system) or steering system
blows, contact an authorized dealer.

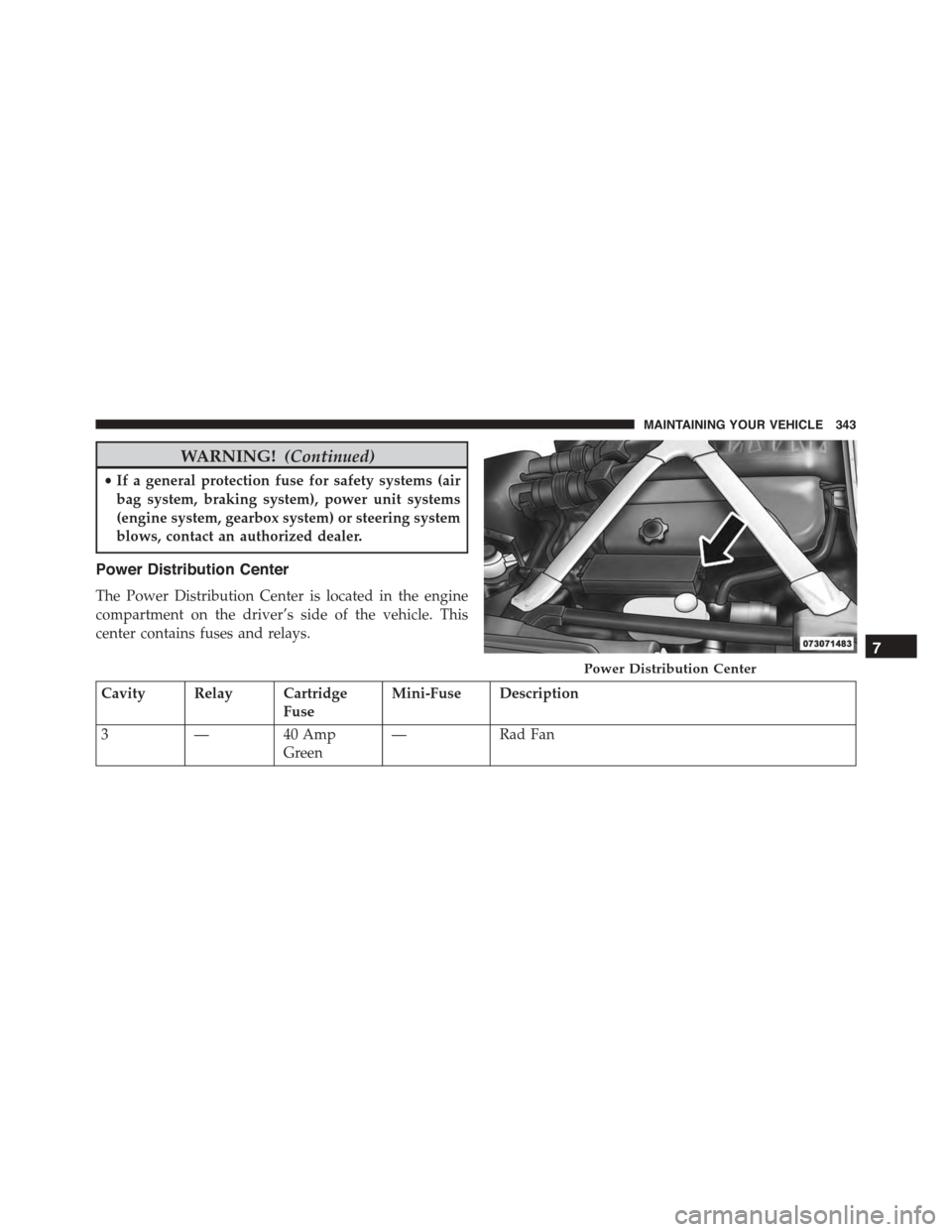

Power Distribution Center
The Power Distribution Center is located in the engine
compartment on the driver’s side of the vehicle. This
center contains fuses and relays.
Cavity Relay Cartridge
Fuse
Mini-Fuse Description
3 — 40 Amp
Green
— Rad Fan
Power Distribution Center
7
MAINTAINING YOUR VEHICLE 343

Cavity Relay Cartridge
Fuse
Mini-Fuse Description
4 — 40 Amp
Green
— Rad Fan Rly High
5 — 40 Amp
Green
— ABS/ESP Pump Feed
6 — 40 Amp
Green
— Starter
7 — 40 Amp
Green
— CBC (Ext. Lighting #1)
8 — 40 Amp
Green
— CBC (Ext. Lighting #2)
9 — 30 Amp Pink — Washer Pump
10 — 30 Amp Pink — CBC (Power Lock)
11 — Jumper Black — B+ Jumper
12 — 25 Amp
Clear
— ABS/ESP Valve Feed
344 MAINTAINING YOUR VEHICLE

Cavity Relay Cartridge
Fuse
Mini-Fuse Description
13 — — 20 Amp
Yellow
Horn
14 — — 10 Amp Red A/C Clutch
15——10 Amp Red Diagnostic, Fuel Door, Stop Switch
16——15 Amp Blue KIN, RF Hub
17——25 Amp cir-
cuit breaker
Power Seats
18—30 Amp Pink —Driver Door Mod
19—30 Amp Pink —Passenger Door Mod
20—30 Amp Pink —Rear Window Defroster
21—20 Amp Blue —Wiper
22———B+ Jumper
23——15 Amp Blue HVAC MOD, Cluster, ICS-Switch Bank
7
MAINTAINING YOUR VEHICLE 345

Cavity Relay Cartridge
Fuse
Mini-Fuse Description
24 — — 25 Amp
Clear
PCM-Powertrain Control Module
25 — — 25 Amp
Clear
Fuel Pump
26 — — 20 Amp
Yellow
ASD #1
27 — — 20 Amp
Yellow
ASD #2
28 — — — Spare
29 — 40 Amp
Green
— HVAC Blower

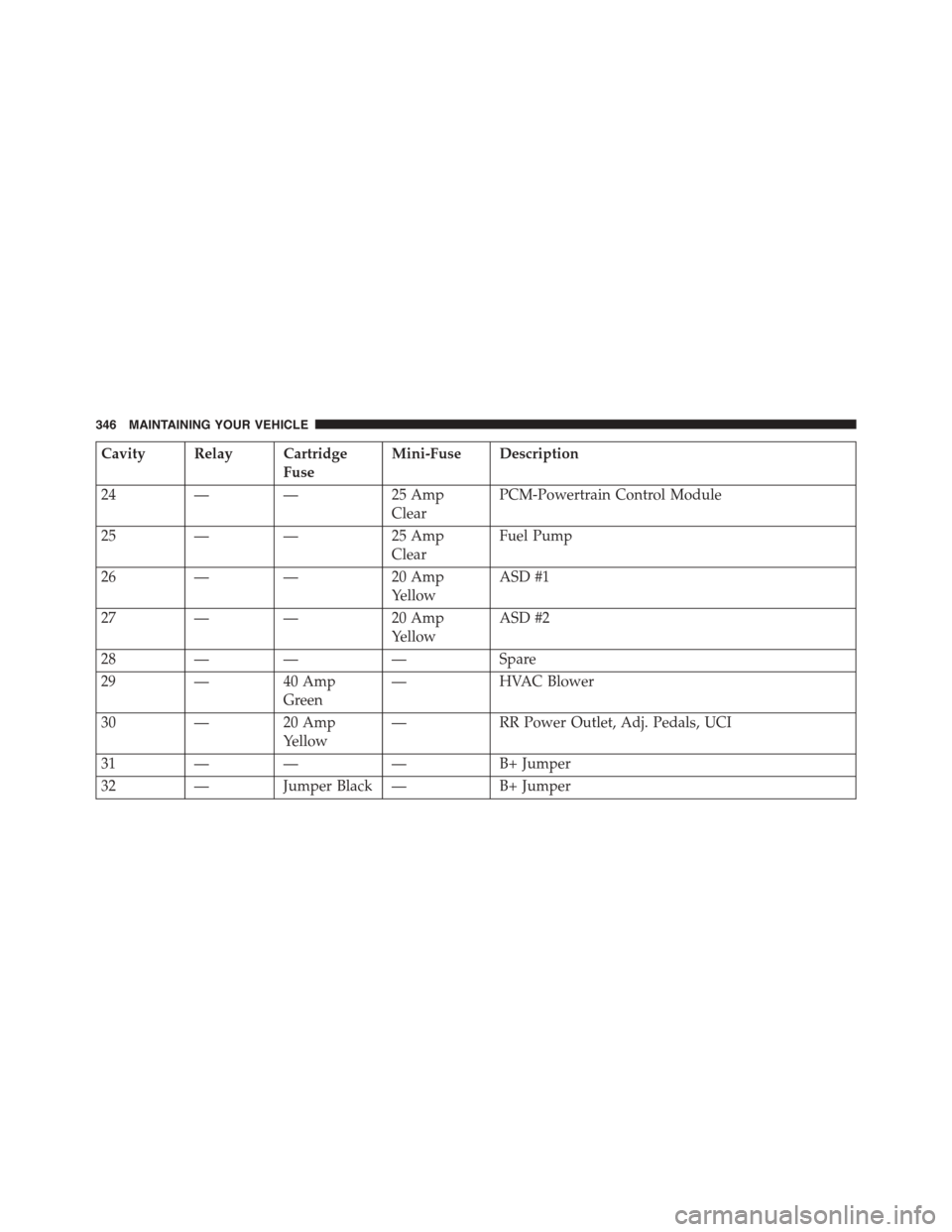

30 — 20 Amp
Yellow
— RR Power Outlet, Adj. Pedals, UCI
31 — — — B+ Jumper
32 — Jumper Black — B+ Jumper
346 MAINTAINING YOUR VEHICLE

Cavity Relay Cartridge
Fuse
Mini-Fuse Description
33 — 20 Amp
Yellow
— Run Acc relay
34 — — — B+ Jumper
35———Spare
36——10 Amp Red ORC Mod Run
37——15 Amp Blue Cluster, Camera
38——20 Amp
Yellow
Active Damping Suspension
39——10 Amp Red HVAC Module, In Car Temp, Blower Relay
40———Spare
41G8VA ——Run/Start
42G8VA ——Fuel Door
7
MAINTAINING YOUR VEHICLE 347

Cavity Relay Cartridge
Fuse
Mini-Fuse Description

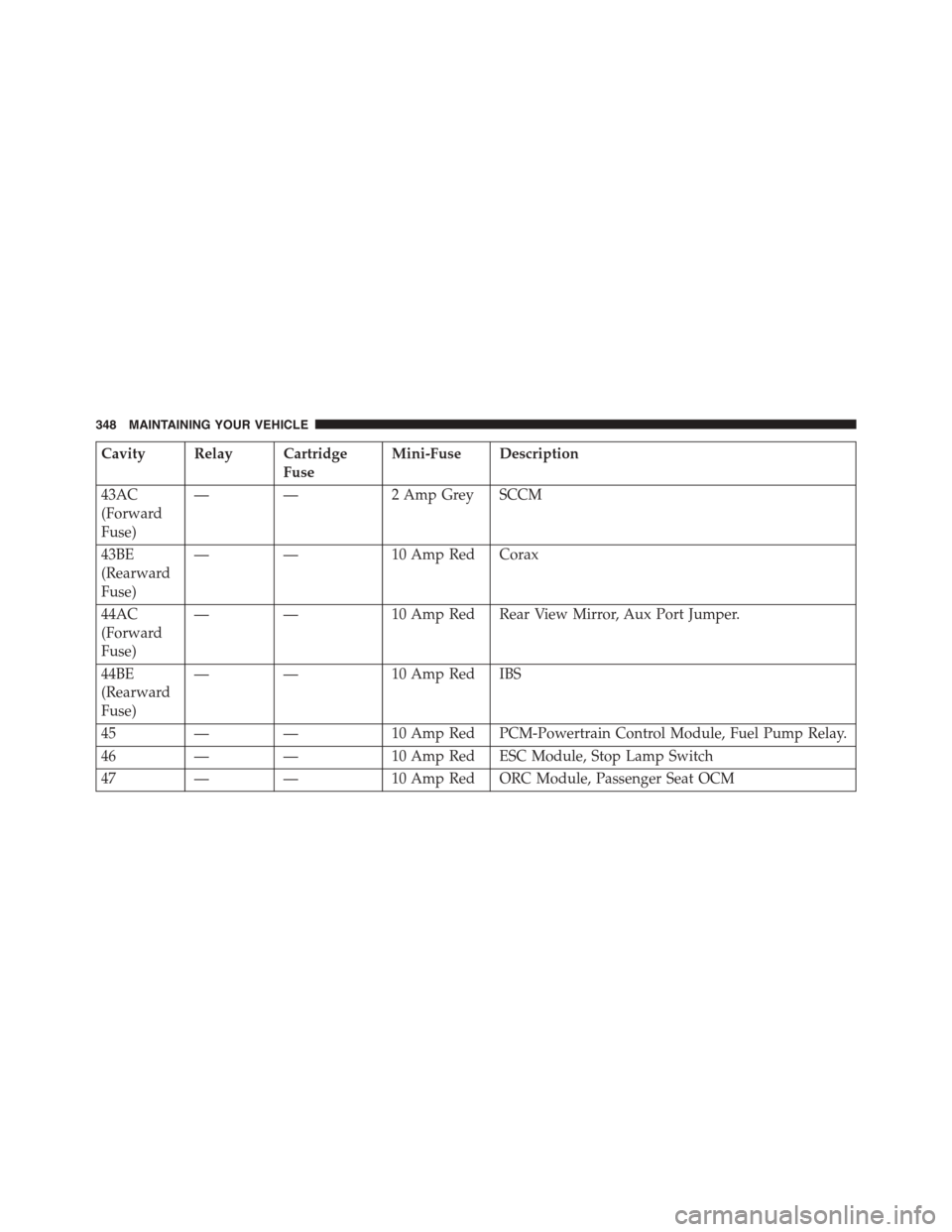

43AC
(Forward
Fuse)
— — 2 Amp Grey SCCM
43BE
(Rearward
Fuse)
— — 10 Amp Red Corax
44AC
(Forward
Fuse)
— — 10 Amp Red Rear View Mirror, Aux Port Jumper.
44BE
(Rearward
Fuse)
— — 10 Amp Red IBS
45 — — 10 Amp Red PCM-Powertrain Control Module, Fuel Pump Relay.
46 — — 10 Amp Red ESC Module, Stop Lamp Switch
47 — — 10 Amp Red ORC Module, Passenger Seat OCM
