DODGE VIPER 2015 VX / 3.G Owners Manual

Cavity Relay Cartridge
Fuse
Mini-Fuse Description
48 — — 10 Amp Red SCCM
49 — — 25 Amp
Clear
Amplifier
50 HC Micro — — Rad Fan
51 HC Micro — — Rad Fan Relay SER/PAR
52 HC Micro — — Starter Relay
53 HC Micro — — Rear Window Defroster Relay
54 HC Relay — — Rad Fan Relay High
55 HC Micro — — Wiper ON/OFF
56 HC Micro — — Wiper LO/HI
57 G8VA — — Horn Relay
58 G8VA — — A/C Clutch Relay
59 HC Micro — — HVAC Blower
60 HC Micro — — Fuel Pump
7
MAINTAINING YOUR VEHICLE 349

Cavity Relay Cartridge
Fuse
Mini-Fuse Description
61 G8VA — — Run Relay #1
62 G8VA — — Run Relay #2
63HC Micro ——ASD #1
64HC Micro ——ASD #2
65G8VA ——Run Accy #1, Pop Up, Driver Door Window Switch
NOTE:A 15 Amp fuse for the radio system is located
in-line at the battery positive terminal.CAUTION!
•When installing the power distribution center
cover, it is important to ensure the cover is properly
positioned and fully latched. Failure to do so may
allow water to get into the power distribution
center and possibly result in an electrical system
failure.
(Continued)
350 MAINTAINING YOUR VEHICLE

CAUTION!(Continued)
•When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
VEHICLE STORAGE
We recommend that you follow these guidelines for
storing your vehicle for extended periods.
•Fill the fuel tank. This will prevent water condensation
inside the tank. If you plan to store your vehicle more
than two months, add an anti-oxidant fuel stabilizer to
the fuel tank.
•Change the oil to remove any corrosive combustion
related acids in the crankcase.
•Check that the radiator coolant level of protection is to
at least -20°F (-29°C).
•Make sure that all tires are inflated to the optimum
pressure.
•Wash and wax the vehicle to protect the finish.
•Store the vehicle in a dry, well-ventilated location.
•Move the wiper blades away from the windshield.
•Block the wheels. Do not apply the parking brake.
•Cut blocks of plywood about the same size of the tires.
Cover each block with indoor/outdoor carpeting and
place them between the tires and concrete. This will
prevent tire flat spotting.
•For long-term storage, remove the tires and put the
vehicle up on blocks. Stack the tires on plywood and
cover with a tarp to prevent flat spotting.
7
MAINTAINING YOUR VEHICLE 351

•If the vehicle will be subjected to freezing tempera-
tures, either remove the battery and store it in a dry,
well ventilated area or connect a trickle charger (1.5
Amp) with automatic shutdown / overcharge protec-
tion to the battery. However, do not leave the trickle
charger hooked up to the battery without being
plugged in to a 110 Volt AC outlet, as this will result in
further drain on the vehicle’s battery. If the vehicle is
not going to be driven in the next three weeks, perform
the battery recharge procedure in the Service Manual.
Then, either disconnect the battery at the negative
terminal or use the “Battery Save Feature” to conserve
battery power. Refer to “Maintenance Procedures/
Battery Save Feature” in “Maintaining Your Vehicle”
for further information.
•Cover the vehicle whenever possible to prevent acci-
dental damage to the finish.
NOTE:Disconnecting the battery causes the engine con-
trol system to lose memory of some “learned” functions.
After reconnecting the battery, the engine may run rough
until the control module “relearns” these functions. Us-
ing the Battery Save Feature will prevent the engine
controller from loosing its memory.
CAUTION!
Use care when disconnecting the remote positive
cable. It is connected to the battery and can short out
to any metal on the vehicle. Always tape or wrap the
exposed cable end to prevent electrical shorts.
352 MAINTAINING YOUR VEHICLE

Check the battery every four to six weeks to ensure that
the voltage is above 12.10 Volts. The voltage will drop
more rapidly in hot temperatures. If battery voltage
drops below 12.10 Volts, follow the battery recharge
procedure in the Service Manual.
NOTE:To help prevent the battery from discharging
during shorter periods of inactivity, perform the follow-
ing:
1. Make sure that the liftgate, hood, doors, windows are
completely closed.
2. Make sure that Remote Keyless Entry (RKE) transmit-
ter is operating and that the battery is good.
3. Make sure that the HOOD, LIFTGATE, and DOOR
switches are in adjustment. Perform the quick system
check, which follows:
Use the remote transmitter to set the alarm. If the alarm
SET light comes on and flashes, the system is operating
properly. If not, there is a problem with a switch or the
system. See your authorized dealer for service.
If you plan to store the vehicle longer than 30 days, we
recommend using Hibernation Mode to conserve bat-
tery power. Refer to “Hibernation Mode” in Mainte-
nance Procedures for further information.7
MAINTAINING YOUR VEHICLE 353

REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Message Center Indicators103
ClusterLED (Serviced at Authorized Dealer)
Gauge Pack103
Heater Control37
Interior LampLED (Serviced at Authorized Dealer)
Courtesy Foot Well LightsLED (Serviced at Authorized Dealer)
Cargo Lamp (Coupe Liftgate)168
354 MAINTAINING YOUR VEHICLE

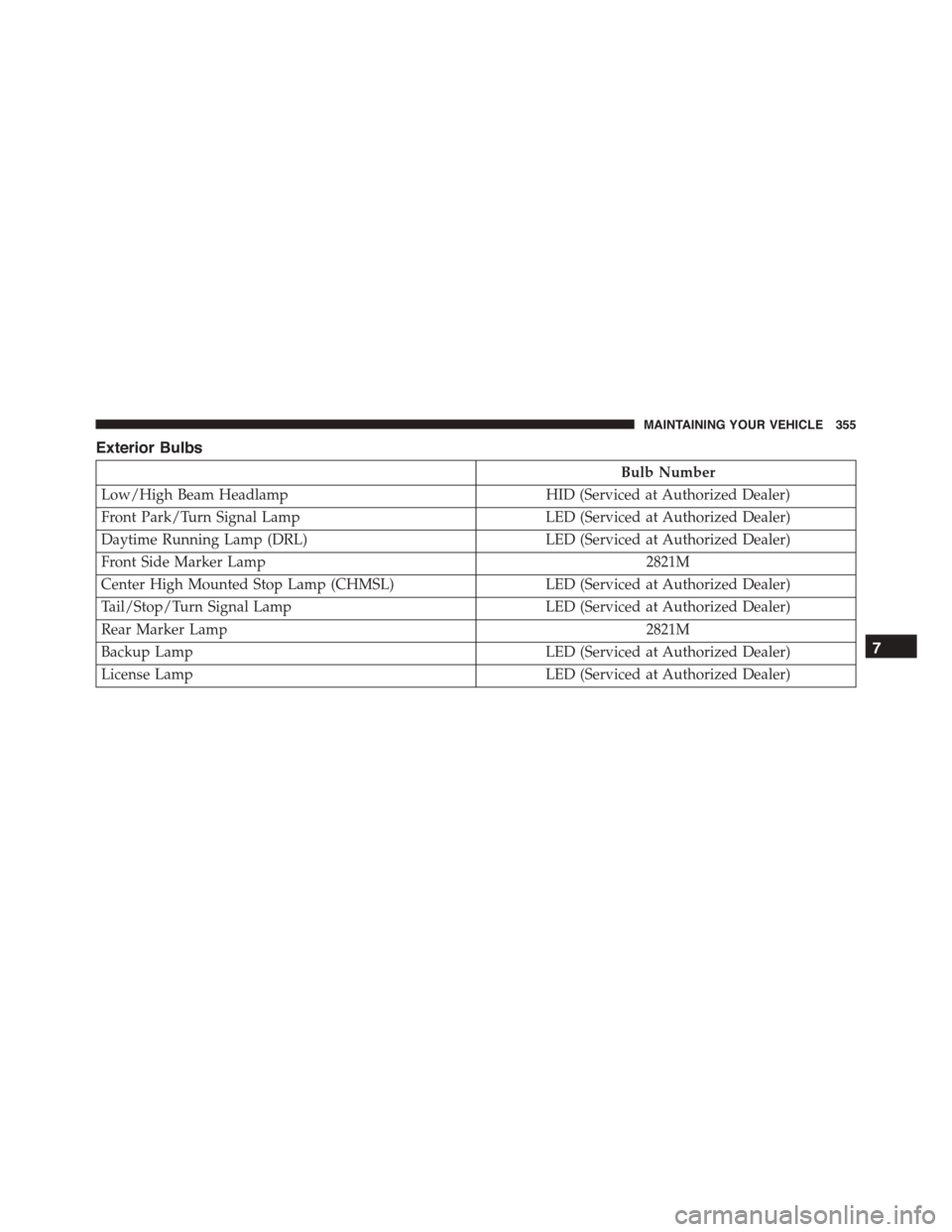

Exterior Bulbs
Bulb Number
Low/High Beam HeadlampHID (Serviced at Authorized Dealer)
Front Park/Turn Signal LampLED (Serviced at Authorized Dealer)
Daytime Running Lamp (DRL)LED (Serviced at Authorized Dealer)
Front Side Marker Lamp2821M
Center High Mounted Stop Lamp (CHMSL)LED (Serviced at Authorized Dealer)
Tail/Stop/Turn Signal LampLED (Serviced at Authorized Dealer)
Rear Marker Lamp2821M
Backup LampLED (Serviced at Authorized Dealer)
License LampLED (Serviced at Authorized Dealer)
7
MAINTAINING YOUR VEHICLE 355

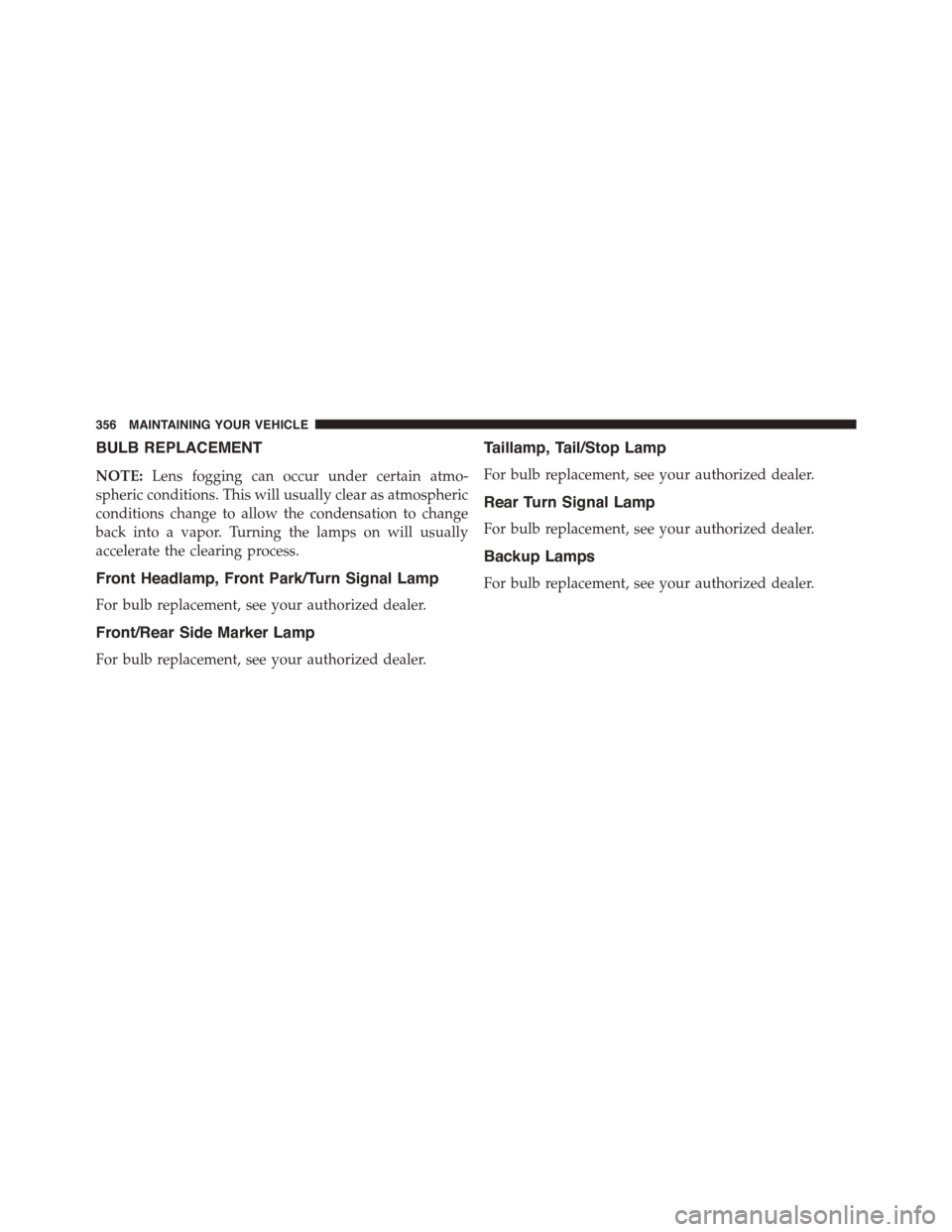

BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Front Headlamp, Front Park/Turn Signal Lamp
For bulb replacement, see your authorized dealer.
Front/Rear Side Marker Lamp
For bulb replacement, see your authorized dealer.
Taillamp, Tail/Stop Lamp
For bulb replacement, see your authorized dealer.
Rear Turn Signal Lamp
For bulb replacement, see your authorized dealer.
Backup Lamps
For bulb replacement, see your authorized dealer.
356 MAINTAINING YOUR VEHICLE

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)16 Gallons60.6 Liters
Engine Oil With Filter
We recommend you use synthetic SAE 0W-40, API Certified. 11 Quarts10.4 Liters
Transmission
We recommend you use MOPAR® ATF+4® Automatic
Transmission Fluid.
3.4 Quarts3.2 Liters
Rear Axle
We recommend you use Castrol SAF-XJ/SAE 75W-140 Syn-
thetic Gear and Axle Lubricant.
1.5 Quarts1.4 Liters
Cooling System *
We recommend you use MOPAR® Antifreeze/Engine Cool-
ant (OAT coolant conforming to MS.90032) 10 Year/150,000
Mile Formula or equivalent).
16 Quarts15 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
7
MAINTAINING YOUR VEHICLE 357

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine CoolantWe recommend you use MOPAR® Antifreeze/Coolant 10 Year/150,000
Mile Formula OAT coolant conforming to MS.90032.
Engine OilWe recommend you use a full synthetic 0W-40 engine oil such as MOPAR®
or Pennzoil Ultra or equivalent engine oil.
Engine Oil FilterWe recommend you use MOPAR® Engine Oil Filters.
Spark PlugsWe recommend you use MOPAR® Spark Plugs, see your authorized dealer.
Fuel SelectionWe recommend you use Unleaded 91 Octane Only or Higher.
