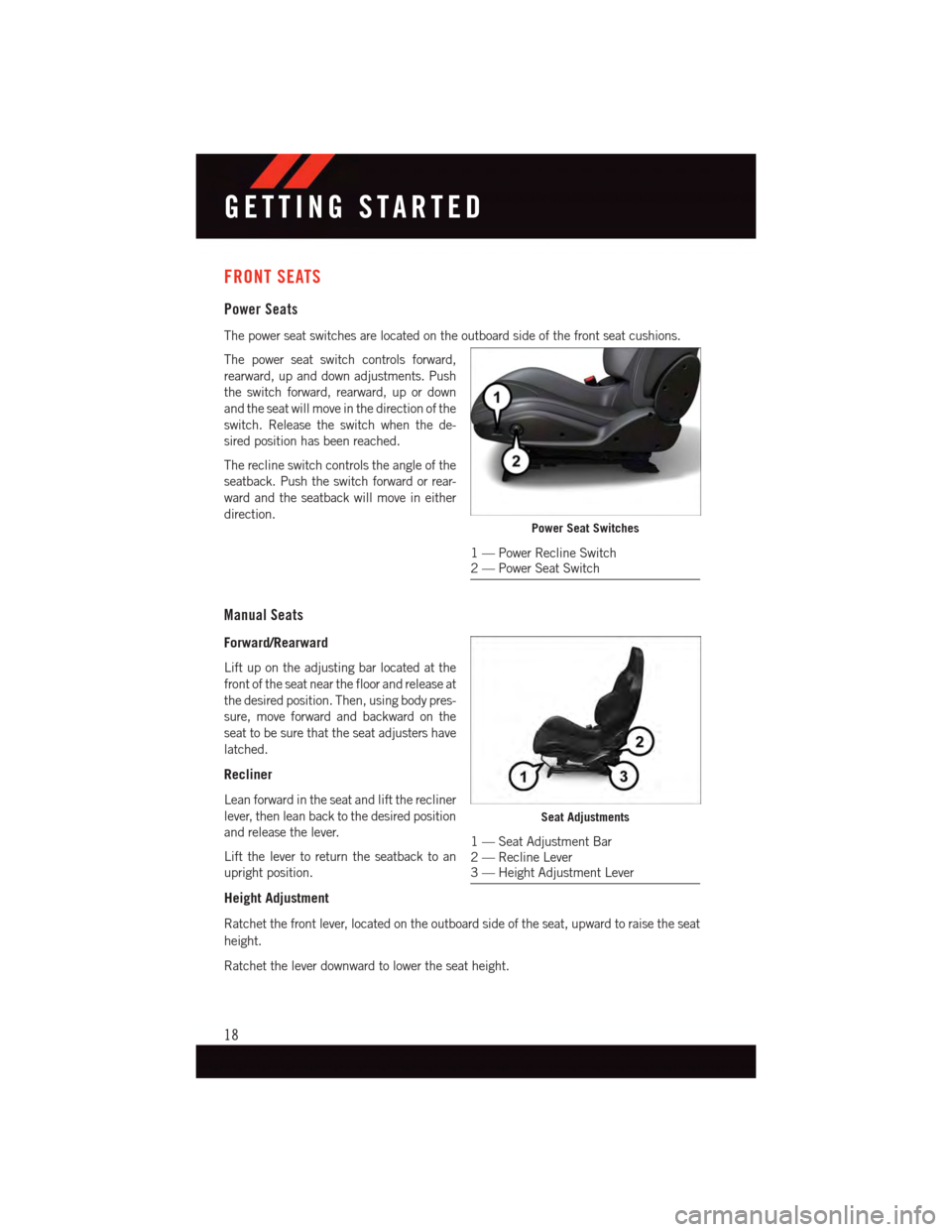

FRONT SEATS
Power Seats
The power seat switches are located on the outboard side of the front seat cushions.
The power seat switch controls forward,
rearward, up and down adjustments. Push
the switch forward, rearward, up or down
and the seat will move in the direction of the
switch. Release the switch when the de-
sired position has been reached.
The recline switch controls the angle of the
seatback. Push the switch forward or rear-
ward and the seatback will move in either
direction.
Manual Seats
Forward/Rearward
Lift up on the adjusting bar located at the
front of the seat near the floor and release at
the desired position. Then, using body pres-
sure, move forward and backward on the
seat to be sure that the seat adjusters have
latched.
Recliner
Lean forward in the seat and lift the recliner
lever, then lean back to the desired position
and release the lever.
Lift the lever to return the seatback to an
upright position.
Height Adjustment
Ratchet the front lever, located on the outboard side of the seat, upward to raise the seat
height.
Ratchet the lever downward to lower the seat height.
Power Seat Switches
1—PowerReclineSwitch2—PowerSeatSwitch
Seat Adjustments
1—SeatAdjustmentBar2—ReclineLever3—HeightAdjustmentLever
GETTING STARTED
18
