WARNING!
Do not operate this vehicle with a console compart-
ment lid in the open position. Driving with the
console compartment lid open may result in injury in
a collision.
Door Storage
The door panels contain storage areas located in the
lower center area of the door panel.
Door Panel Storage
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 139

REAR WINDOW FEATURES
Rear Window Defroster
The rear window defroster button is located on
the climate control panel. Push this button to turn
on the rear window defroster. An indicator in the button
will illuminate when the rear window defroster is on. The
rear window defroster automatically turns off after ap-
proximately 10 minutes. For an additional five minutes of
operation, push the button a second time.
NOTE: To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.
CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
• Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to the
heating elements. Labels can be peeled off after
soaking with warm water.
• Do not use scrapers, sharp instruments, or abrasive
window cleaners on the interior surface of the
window.
• Keep all objects a safe distance from the window.
140 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

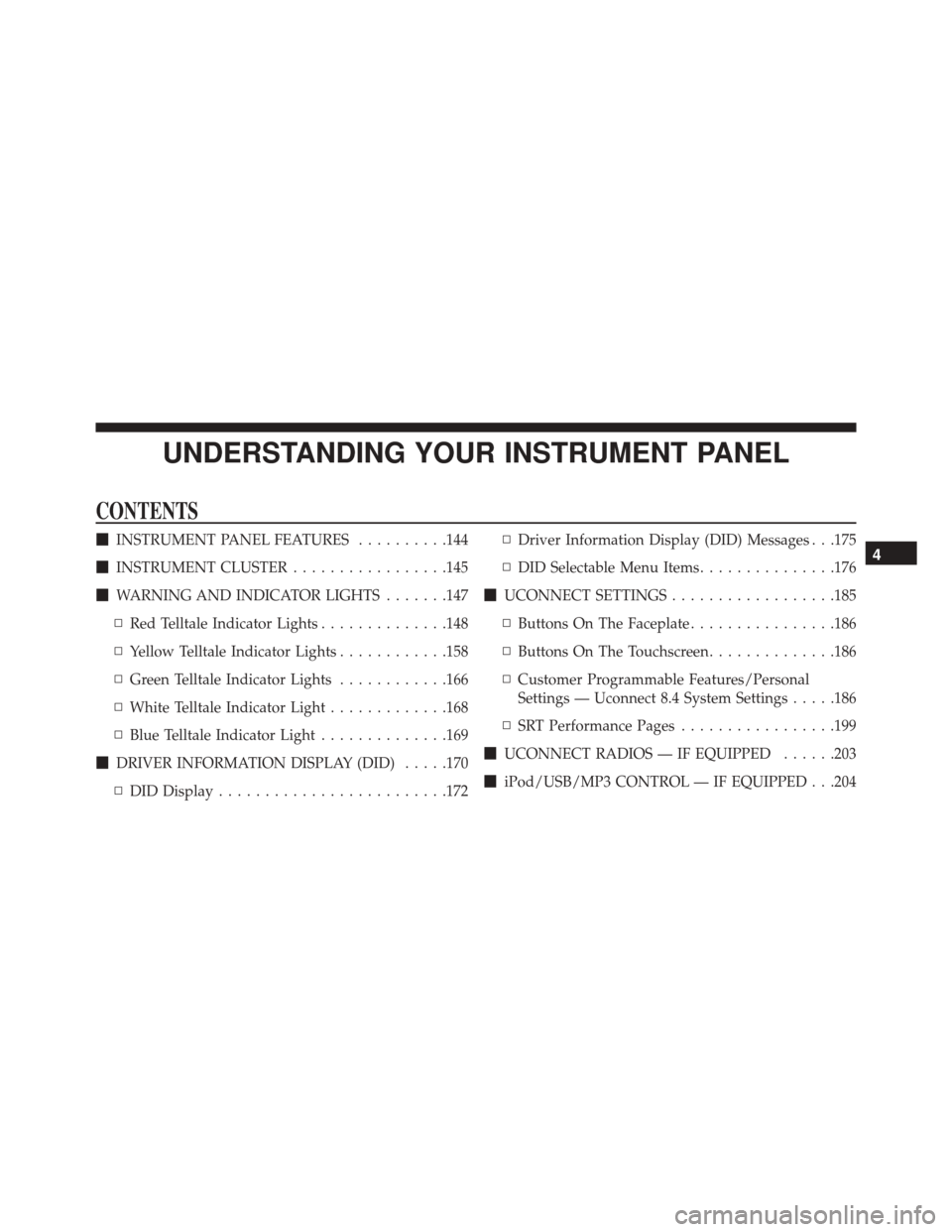

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT PANEL FEATURES ..........144
 INSTRUMENT CLUSTER .................145
 WARNING AND INDICATOR LIGHTS .......147
▫ Red Telltale Indicator Lights ..............148
▫ Yellow Telltale Indicator Lights ............158
▫ Green Telltale Indicator Lights ............166
▫ White Telltale Indicator Light .............168
▫ Blue Telltale Indicator Light ..............169
 DRIVER INFORMATION DISPLAY (DID) .....170
▫ DID Display ........................ .172▫
Driver Information Display (DID) Messages . . .175
▫ DID Selectable Menu Items ...............176
 UCONNECT SETTINGS ..................185
▫ Buttons On The Faceplate ................186
▫ Buttons On The Touchscreen ..............186
▫ Customer Programmable Features/Personal
Settings — Uconnect 8.4 System Settings .....186
▫ SRT Performance Pages .................199
 UCONNECT RADIOS — IF EQUIPPED ......203
 iPod/USB/MP3 CONTROL — IF EQUIPPED . . .2044

STEERING WHEEL AUDIO CONTROLS ......204
▫ Radio Operation ..................... .205
 RADIO ANTENNA .....................206
 RADIO OPERATION AND MOBILE DEVICES . .206
▫ General Information ...................206
 CLIMATE CONTROLS ...................206
▫ Automatic Temperature Control (ATC) .......207
▫ Summer Operation ....................212
▫ Winter Operation ..................... .212
▫ Vacation/Storage .....................213
▫ Window Fogging and Frosting ............213
▫ Outside Air Intake .....................213 ▫
Control Setting Suggestions For Various Weather
Conditions ......................... .214
 PERSONALIZED MENU BAR ..............215
 UCONNECT VOICE RECOGNITION QUICK
TIPS ............................... .215
▫ Introducing Uconnect ...................215
▫ Get Started ......................... .216
▫ Basic Voice Commands ..................217
▫ Radio ............................. .218
▫ Media ............................. .219
▫ Phone ............................. .220
▫ Voice Text Reply ..................... .221
▫ Climate (8.4AN) ..................... .223
▫ Navigation (8.4AN) ....................224
142 UNDERSTANDING YOUR INSTRUMENT PANEL

▫Uconnect Access (8.4AN) ................225
▫ Register (8.4A/8.4AN) ..................226
▫ Mobile App (8.4A/8.4AN) ...............227
▫ Voice Texting (8.4A/8.4AN) ..............228
▫ Yelp (8.4A/8.4AN) .....................229 ▫
SiriusXM Travel Link (8.4AN) .............231
▫ Siri Eyes Free — If Equipped .............231
▫ Do Not Disturb ...................... .232
▫ General Information ....................233
▫ Additional Information .................234
4
UNDERSTANDING YOUR INSTRUMENT PANEL 143

INSTRUMENT PANEL FEATURES
1 — Air Outlet6 — Passenger Air Bag11 — Climate Controls
2 — Sound System Speaker 7 — Glove Compartment12 — Dimmer Controls
3 — Instrument Cluster 8 — Uconnect System13 — Headlight Switch
4 — Keyless Enter-N-Go Start/Stop Button 9 — Uconnect System Hard Controls
5 — Glove Compartment Lock 10 — Switch Bank (Screen Off, Hazard
Switch, Back Button)
144 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT CLUSTER
Instrument Cluster
4
UNDERSTANDING YOUR INSTRUMENT PANEL 145

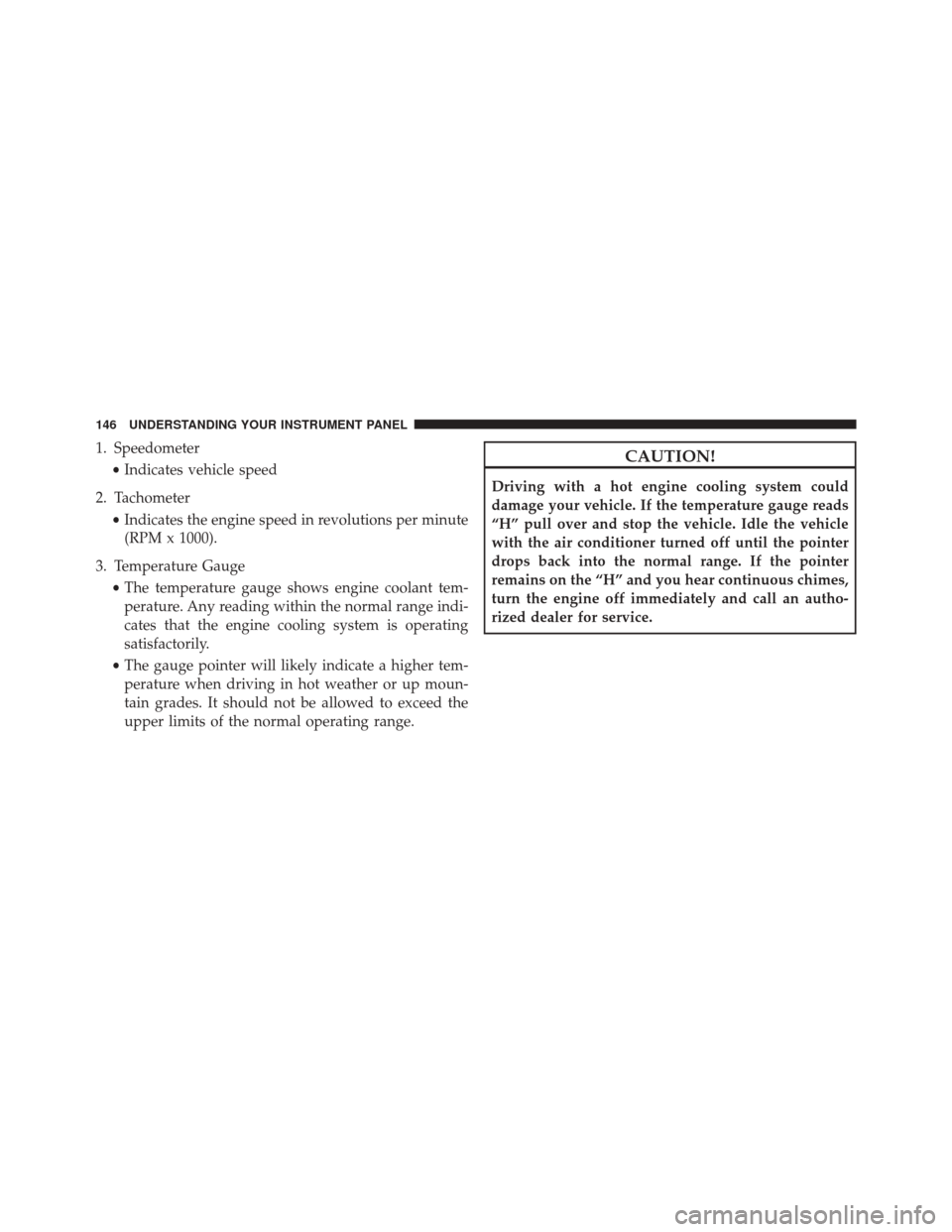

1. Speedometer•Indicates vehicle speed
2. Tachometer •Indicates the engine speed in revolutions per minute
(RPM x 1000).
3. Temperature Gauge •The temperature gauge shows engine coolant tem-
perature. Any reading within the normal range indi-
cates that the engine cooling system is operating
satisfactorily.
• The gauge pointer will likely indicate a higher tem-
perature when driving in hot weather or up moun-
tain grades. It should not be allowed to exceed the
upper limits of the normal operating range.CAUTION!
Driving with a hot engine cooling system could
damage your vehicle. If the temperature gauge reads
“H” pull over and stop the vehicle. Idle the vehicle
with the air conditioner turned off until the pointer
drops back into the normal range. If the pointer
remains on the “H” and you hear continuous chimes,
turn the engine off immediately and call an autho-
rized dealer for service.
146 UNDERSTANDING YOUR INSTRUMENT PANEL

WARNING!
A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call an authorized dealer
for service if your vehicle overheats. If you decide to
look under the hood yourself, see “Maintaining Your
Vehicle”. Follow the warnings under the Cooling
System Pressure Cap paragraph.
4. Fuel Gauge •The pointer shows the level of fuel in the fuel tank
when the ignition switch is in the ON/RUN position
WARNING AND INDICATOR LIGHTS
IMPORTANT: The warning / indicator light switches on
in the instrument panel together with a dedicated mes-
sage and/or acoustic signal when applicable. These
indications are indicative and precautionary and as such
must not be considered as exhaustive and/or alternative
to the information contained in the Owner Manual,
which you are advised to read carefully in all cases.
Always refer to the information in this chapter in the
event of a failure indication.
All active telltales will display first if applicable. The
system check menu may appear different based upon
equipment options and current vehicle status. Some
telltales are optional and may not appear.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 147

Red Telltale Indicator Lights
Seat Belt Reminder Warning Light
Red TelltaleLight What It Means
Seat Belt Reminder Warning Light
When the ignition switch is first turned to ON/RUN, this light will turn on for four to eight
seconds as a bulb check. During the bulb check, if the driver’s seat belt is unbuckled, a
chime will sound. After the bulb check or when driving, if the driver seat belt remains un-
buckled, the Seat Belt Reminder Light will flash or remain on continuously. Refer to “Occu-
pant Restraints” in “Things To Know Before Starting Your Vehicle” for further information.
