Buttons On The Faceplate
Buttons on the faceplate are located below the Uconnect
system in the center of the instrument panel. In addition,
there is a Scroll/Enter control knob located on the right
side of the Climate Controls in the center of the instru-
ment panel. Turn the control knob to scroll through
menus and change settings (i.e., 30, 60, 90), push the
center of the control knob one or more times to select or
change a setting (i.e., ON, OFF).
Buttons On The Touchscreen
Buttons on the touchscreen are accessible on the
Uconnect display.
Customer Programmable Features/Personal
Settings — Uconnect 8.4 System Settings
Press the “Apps” button on the touchscreen, then press
the “Settings” button on the touchscreen to display the
menu setting screen. In this mode the Uconnect systemallows you to access programmable features that may be
equipped such as Display, Voice, Clock, Safety & Driving
Assistance, Lights, Doors & Locks, Engine Off Options,
Audio, Phone/Bluetooth, SiriusXM Setup, Restore Set-
tings, Clear Personal Data, and System Information.
NOTE:
Only one category may be selected at a time.
To adjust the setting of a programmable feature, press the
desired setting option. Once in the desired setting option,
press and release the preferred setting until a check-mark
appears next to the setting, showing that the setting has
been selected.
Once the setting is complete, press the Back Arrow
button on the touchscreen to return to the previous menu
or press the X button on the touchscreen to close out of
the settings screen. Pressing the Up or Down Arrow
button on the right side of the screen will allow you to
toggle up or down through the list of available settings.
186 UNDERSTANDING YOUR INSTRUMENT PANEL

STARTING AND OPERATING
CONTENTS
STARTING PROCEDURES ................238
▫ Normal Starting ...................... .238
▫ If Engine Fails To Start .................240
▫ After Starting ....................... .241
 MANUAL TRANSMISSION ...............241
▫ Shifting ............................ .242
▫ Recommended Shift Speeds ..............244
▫ Skip Shift Indicator Light ...............244
 STREET/RACE MODE — IF EQUIPPED ......245
 LAUNCH MODE ...................... .247
TRACK USE ......................... .249
▫ Guidelines For Track Use ................249
 DRIVING ON SLIPPERY SURFACES .........250
▫ Acceleration ........................ .250
▫ Traction ........................... .251
 DRIVING THROUGH WATER .............251
▫ Flowing/Rising Water ..................252
▫ Shallow Standing Water .................252
 POWER STEERING .....................253
▫ Power Steering Fluid Check ..............254
5

ONBOARD DIAGNOSTIC SYSTEM (OBD II)
To meet new government regulations and promote
cleaner air, your vehicle is equipped with a sophisticated
onboard diagnostic system called OBD II. This system
monitors the performance of the emissions and engine
control systems. When these systems are operating prop-
erly, your vehicle will provide excellent performance and
fuel economy, as well as engine emissions well within
current government regulations.
If any of these systems require service, the OBD II system
will turn on the Malfunction Indicator Light. It will also
store diagnostic codes and other information to assist
your service technician in making repairs. Although your
vehicle will usually be drivable and not need towing, see
your authorized dealer for service as soon as possible.
CAUTION!
Prolonged driving with the light on could cause
further damage to the emission control system. It
could also affect fuel economy and driveability. The
vehicle must be serviced before any state emissions
tests can be performed.
If the light is flashing, severe catalytic converter damage
and power loss will soon occur. Immediate service is
required.
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration. For states that require an Inspection and Mainte-
nance (I/M), this check verifies the “Malfunction
334 MAINTAINING YOUR VEHICLE

Indicator Light (MIL)” is functioning and is not on when
the engine is running, and that the OBD II system is
ready for testing.
Normally, the OBD II system will be ready. The OBD II
system maynotbe ready if your vehicle was recently
serviced, recently had a dead battery or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, your vehicle may fail the test.
Your vehicle has a simple ignition actuated test, which
you can use prior to going to the test station. To check if
your vehicle’s OBD II system is ready, you must do the
following:
1. Cycle the ignition switch to the ON position, but do not crank or start the engine.
NOTE: If you crank or start the engine, you will have to
start this test over. 2. As soon as you cycle the ignition switch to the ON
position, you will see the Malfunction Indicator Light
(MIL) symbol come on as part of a normal bulb check.
3. Approximately 15 seconds later, one of two things will happen:
• The MIL will flash for about 10 seconds and then
return to being fully illuminated until you turn OFF
the ignition or start the engine. This means that your
vehicle’s OBD II system is not readyand you should
not proceed to the I/M station.
• The MIL will not flash at all and will remain fully
illuminated until you place the ignition in the off
position or start the engine. This means that your
vehicle’s OBD II system is readyand you can proceed
to the I/M station.
If your OBD II system is not ready,you should see your
authorized dealer or repair facility. If your vehicle was
7
MAINTAINING YOUR VEHICLE 335

•Do not change the thermostat for Summer or Winter
operation. If replacement is ever necessary, install
ONLY the correct type thermostat. Other designs may
result in unsatisfactory engine coolant (antifreeze)
performance, poor gas mileage, and increased emis-
sions.
Brake System
To ensure brake system performance, all brake system
components should be inspected periodically. Refer to
“Maintenance Schedule” for the proper maintenance
intervals.
WARNING!
Riding the brakes can lead to brake failure and
possibly an accident. Driving with your foot resting
or riding on the brake pedal can result in abnormally
(Continued)
WARNING! (Continued)
high brake temperatures, excessive lining wear, and
possible brake damage. You would not have your full
braking capacity in an emergency.
Master Cylinder — Brake Fluid Level Check
Check the fluid level in the master cylinder immediately
if the brake system warning light indicates system fail-
ure.
Check the fluid level in the master cylinder when per-
forming underhood services.
Clean the top of the master cylinder area before removing
the cap. If necessary, add fluid to bring the fluid level up
to the requirements described on the brake fluid reser-
voir.
Overfilling of fluid is not recommended because it may
cause leaking in the system.
7
MAINTAINING YOUR VEHICLE 355

Once A Month
•Check tire pressure and look for unusual wear or
damage. Rotate tires at the first sign of irregular wear,
even if it occurs before your next scheduled service.
• Inspect the battery, and clean and tighten the terminals
as required.
• Check the fluid levels of the coolant reservoir, brake
master cylinder, power steering, and transmission, and
add as needed.
• Check all lights and all other electrical items for correct
operation. At Each Oil Change
•
Change the engine oil filter.
• Inspect the exhaust system.
NOTE: Also, inspect the exhaust system if you notice a
change in the sound of the exhaust system, or if the
exhaust fumes can be detected inside the vehicle.
• Inspect the brake hoses.
• Inspect the suspension components.
• Lubricate door hinges and check springs.
• Check the engine coolant level, hoses, and clamps.
• Check power steering fluid level.
8
MAINTENANCE SCHEDULES 387

Automatic Door Locks....................27, 28
Automatic Headlights ..................... .106
Auto Unlock, Doors ........................28
Auto Up Power Windows ....................30
Auxiliary Electrical Outlet (Power Outlet) ........132
Auxiliary Power Outlet .....................132
Battery ............................ .153, 341
Charging System Light ...................153
Emergency Starting ..................... .323
Jump Starting ......................... .323
Keyless Transmitter Replacement (RKE) ........23
Location ............................. .341
Remote Battery Replacement ................23
Saving Feature (Protection) ................342
Storing Vehicle ........................ .342
Transmitter Battery Replacement .............23
Belts, Seat ...............................87
Body Mechanism Lubrication .................345B-Pillar Location
......................... .273
Brake Control System, Electronic ..............259
Brake, Parking .......................... .255
Brake System ........................ .257, 355
Anti-Lock (ABS) .....................257, 259
Fluid Check ....................... .355, 383
Master Cylinder ....................... .355
Warning Light ........................ .150
Break-In Recommendations, New Vehicle ........258
Brightness, Interior Lights ...................110
Bulb Replacement ........................ .379
Bulbs, Light .......................... .88, 377
Camera, Rear ........................... .121
Capacities, Antifreeze (Engine Coolant) ..........380
Capacities, Fluid ......................... .380
Caps, Filler Oil (Engine) .......................... .339
Power Steering ........................ .254
10
INDEX 405

Radiator (Coolant Pressure)................352
Carbon Monoxide Warning ................86, 301
Car Washes ............................ .359
Chains, Tire ............................ .290
Chart, Tire Sizing ........................ .268
Check Engine Light (Malfunction Indicator Light) . .334
Checking Your Vehicle For Safety ...............85
Checks, Safety ............................85
Child Restraint ............................72
Child Restraints Booster Seats ...........................77
Child Restraints .........................72
Infants And Child Restraints ................75
Installing Child Restraints Using The Vehicle Seat
Belt ..................................78
Older Children And Child Restraints ..........75
Using The Top Tether Anchorage .............81
Clean Air Gasoline ....................... .297Cleaning
Wheels .............................. .360
Windshield Wiper Blades ..................345
Climate Control ......................... .206
Clutch Fluid ............................ .358
Compact Spare Tire ....................... .284
Contract, Service ......................... .397
Coolant Pressure Cap (Radiator Cap) ...........352
Cooling System .......................... .349
Adding Coolant (Antifreeze) ...............351
Coolant Capacity ...................... .380
Coolant Level ..................... .349, 353
Disposal Of Used Coolant .................353
Drain, Flush, And Refill ...................350
Inspection ........................... .353
Points To Remember .....................354
Pressure Cap ......................... .352
Radiator Cap ......................... .352
Selection Of Coolant (Antifreeze) ......350, 380, 381
406 INDEX

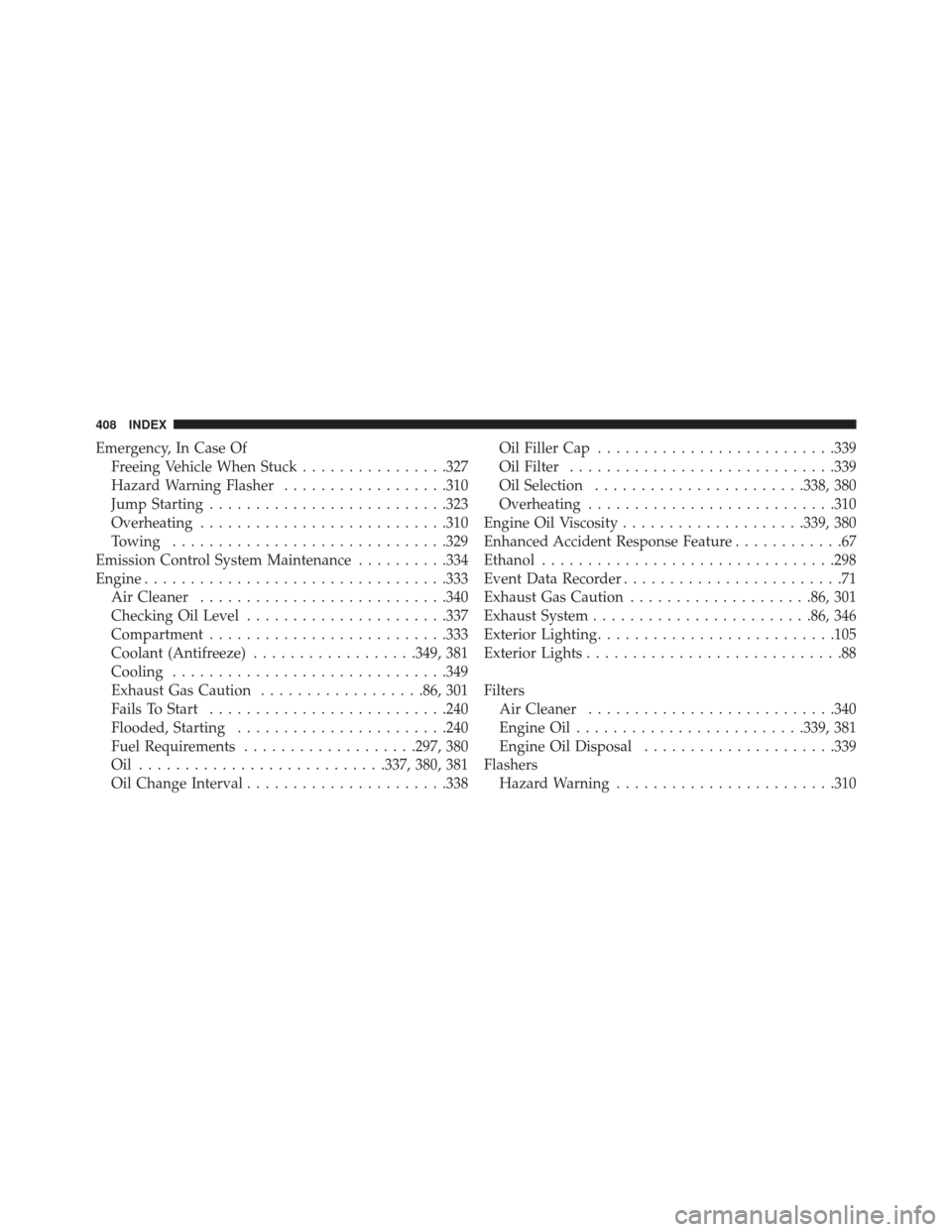

Emergency, In Case OfFreeing Vehicle When Stuck ................327
Hazard Warning Flasher ..................310
Jump Starting ......................... .323
Overheating .......................... .310
Towing ............................. .329
Emission Control System Maintenance ..........334
Engine ................................ .333
Air Cleaner .......................... .340
Checking Oil Level ..................... .337
Compartment ......................... .333
Coolant (Antifreeze) ..................349, 381
Cooling ............................. .349
Exhaust Gas Caution ..................86, 301
Fails To Start ......................... .240
Flooded, Starting ...................... .240
Fuel Requirements ...................297, 380
Oil .......................... .337, 380, 381
Oil Change Interval ..................... .338Oil Filler Cap
......................... .339
Oil Filter ............................ .339
Oil Selection ...................... .338, 380
Overheating .......................... .310
Engine Oil Viscosity ....................339, 380
Enhanced Accident Response Feature ............67
Ethanol ............................... .298
Event Data Recorder ........................71
Exhaust Gas Caution ....................86, 301
Exhaust System ....................... .86, 346
Exterior Lighting ......................... .105
Exterior Lights ............................88
Filters Air Cleaner .......................... .340
Engine Oil ........................ .339, 381
Engine Oil Disposal .....................339
Flashers Hazard Warning ....................... .310
408 INDEX

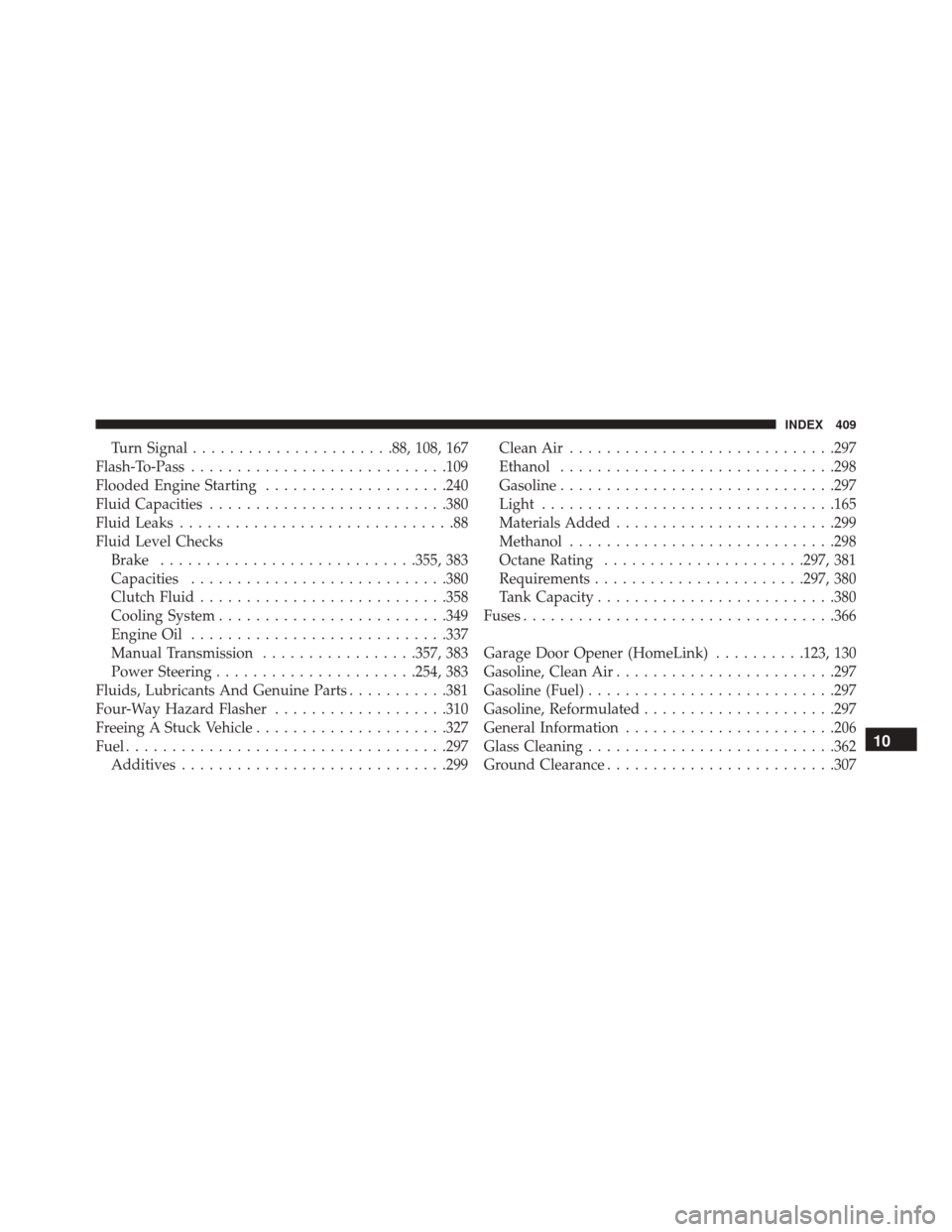

Turn Signal..................... .88, 108, 167
Flash-To-Pass ........................... .109
Flooded Engine Starting ....................240
Fluid Capacities ......................... .380
Fluid Leaks ..............................88
Fluid Level Checks Brake ........................... .355, 383
Capacities ........................... .380
Clutch Fluid .......................... .358
Cooling System ........................ .349
Engine Oil ........................... .337
Manual Transmission .................357, 383
Power Steering ..................... .254, 383
Fluids, Lubricants And Genuine Parts ...........381
Four-Way Hazard Flasher ...................310
Freeing A Stuck Vehicle .....................327
Fuel .................................. .297
Additives ............................ .299Clean Air
............................ .297
Ethanol ............................. .298
Gasoline ............................. .297
Light ............................... .165
Materials Added ....................... .299
Methanol ............................ .298
Octane Rating ..................... .297, 381
Requirements ...................... .297, 380
Tank Capacity ......................... .380
Fuses ................................. .366
Garage Door Opener (HomeLink) ..........123, 130
Gasoline, Clean Air ....................... .297
Gasoline (Fuel) .......................... .297
Gasoline, Reformulated .....................297
General Information ...................... .206
Glass Cleaning .......................... .362
Ground Clearance ........................ .307
10
INDEX 409
