DODGE VIPER 2016 VX / 3.G Owner's Manual

The Vehicle Security Alarm is designed to protect your
vehicle. However, you can create conditions where the
system will give you a false alarm. If one of the previ-
ously described arming sequences has occurred, the
Vehicle Security Alarm will arm regardless of whether
you are in the vehicle or not. If you remain in the vehicle
and open a door, the alarm will sound. If this occurs,
disarm the Vehicle Security Alarm.
If the Vehicle Security Alarm is armed and the battery
becomes disconnected, the Vehicle Security Alarm will
remain armed when the battery is reconnected; the
exterior lights will flash, and the horn will sound. If this
occurs, disarm the Vehicle Security Alarm.
Tamper Alert
If something has triggered the Vehicle Security Alarm in
your absence, the horn will sound three times, and the
exterior lights will blink three times when you disarm the
Vehicle Security Alarm. Check the vehicle for tampering.
Electronic Immobilization System
The Electronic Immobilization system prevents unau-
thorized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
ILLUMINATED ENTRY
The interior lights will turn on whenever a door is
opened or the liftgate is opened and the dimmer switch is
not in the defeat position.
The interior lights will turn on, remain on for approxi-
mately 30 seconds, and then fade to off if any of the
following occur:
•A door is opened using the outside door handle and
then closed.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19

•A door is unlocked using the Remote Keyless Entry
(RKE) transmitter.
The interior lights will turn on, remain on for about four
seconds, and then fade to off if a door is opened using the
inside door handle.
NOTE: None of the courtesy lights will operate if the
dimmer control is in the “defeat” position (extreme
downward position), unless the overhead map/reading
lights are turned on manually.
REMOTE KEYLESS ENTRY (RKE)
The RKE system allows you to lock or unlock the doors
and liftgate, or activate the Panic Alarm from distances
up to approximately 66ft (20 m) using a hand-held Key
Fob with RKE transmitter. The RKE transmitter does not
need to be pointed at the vehicle to activate the system.To Unlock The Doors
Push and release the UNLOCKbutton on the RKE
transmitter once to unlock the driver’s door or twice to
unlock both doors and the liftgate. The park lights and
turn signal lights will flash to acknowledge the signal,
Remote Keyless Entry (RKE) Transmitter
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

and the illuminated entry system will turn on. Refer to
“Uconnect Settings” in “Understanding Your Instru-
ment Panel” for further information.
NOTE:The Door Unlock Indicatorwill illuminate in
the instrument cluster when one or both doors are
unlocked.
Remote Key Unlock, Driver Door/Both Doors First
This feature lets you program the system to unlock either
the driver’s door or all doors on the first push of the
UNLOCK
button on the RKE transmitter. To change
the current setting, refer to “Uconnect Settings” in
“Understanding Your Instrument Panel” for further
information.
Flash Lights With Lock
This feature lets you program the lights to flash when the
doors are locked with the Remote Keyless Entry (RKE) transmitter. Refer to “Uconnect Settings” in “Under-
standing Your Instrument Panel” for further information.
Unlock On 1st Press
This feature lets you program the system to unlock either
the driver’s door or all doors on the first push of the
UNLOCK
button on the RKE transmitter. To change
the current setting, refer to “Uconnect Settings” in
“Understanding Your Instrument Panel” for further
information.
Autolock
This vehicle is equipped with Autolock. If the vehicle is
unlocked while the Key Fob is outside the vehicle and the
door is not opened for 30 seconds, the car will relock.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21

To Lock The Doors
Push and release the LOCKbutton on the RKE
transmitter to lock the doors. The horn will chirp once,
and the park lights and turn signal lights will flash to
acknowledge the signal.
Sound Horn With Remote Key Lock
This feature will cause the horn to chirp when the doors
are locked with the RKE transmitter. This feature can be
turned on or turned off. To change the current setting,
refer to “Uconnect Settings” in “Understanding Your
Instrument Panel” for further information.
To Unlatch The Liftgate
Push the LIFTGATEbutton on the RKE transmitter
two times within five seconds to unlatch the liftgate.
Push and hold the liftgate release button while pulling
up on the trunk/hatch to open. Using The Panic Alarm
To turn the Panic Alarm feature on or off, push and hold
the PANIC
button on the RKE transmitter for at
least one second and release. When the Panic Alarm is
on, the headlights will turn on, the park lights will
flash, the horn will pulse on and off, and the interior
lights will turn on.
The Panic Alarm will stay on for three minutes unless
you turn it off by either pushing the PANIC
button a
second time or drive the vehicle at a speed of 15 MPH
(24 km/h) or greater.
NOTE: The interior lights will turn off if you cycle the
ignition switch to the ACC or ON/RUN position while
the Panic Alarm is activated. However, the exterior lights
and horn will remain on.
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Programming Additional Transmitters
Programming Key Fobs or RKE transmitters may be
performed at an authorized dealer.
Transmitter Battery Replacement
The recommended replacement battery is one CR2032
battery.
NOTE:
•Perchlorate Material — special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate
• Do not touch the battery terminals that are on the back
housing or the printed circuit board.
1. Remove the emergency key by sliding the mechanical latch on the back of the RKE transmitter sideways
with your thumb and then pull the key out with your
other hand. 2. Insert the tip of the emergency key or a #2 flat blade
screwdriver into the slot and gently pry the two halves
of the RKE transmitter apart. Make sure not to damage
the seal during removal.
Emergency Key Removal
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23

3. Remove the battery by turning the back cover over(battery facing downward) and tapping it lightly on a
solid surface such as a table or similar, then replace the
battery. When replacing the battery, match the + sign
on the battery to the + sign on the inside of the battery
clip, located on the back cover. Avoid touching the new battery with your fingers. Skin oils may cause
battery deterioration. If you touch a battery, clean it
with rubbing alcohol.
4. To assemble the RKE transmitter case, snap the two halves together.
General Information
This device complies with Part 15 of the FCC rules and
RSS-210 of Industry Canada. Operation is subject to the
following conditions:
•This device may not cause harmful interference.
• This device must accept any interference received,
including interference that may cause undesired op-
eration.
NOTE: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user’s authority to operate the equipment.
Separating The RKE Transmitter Case
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

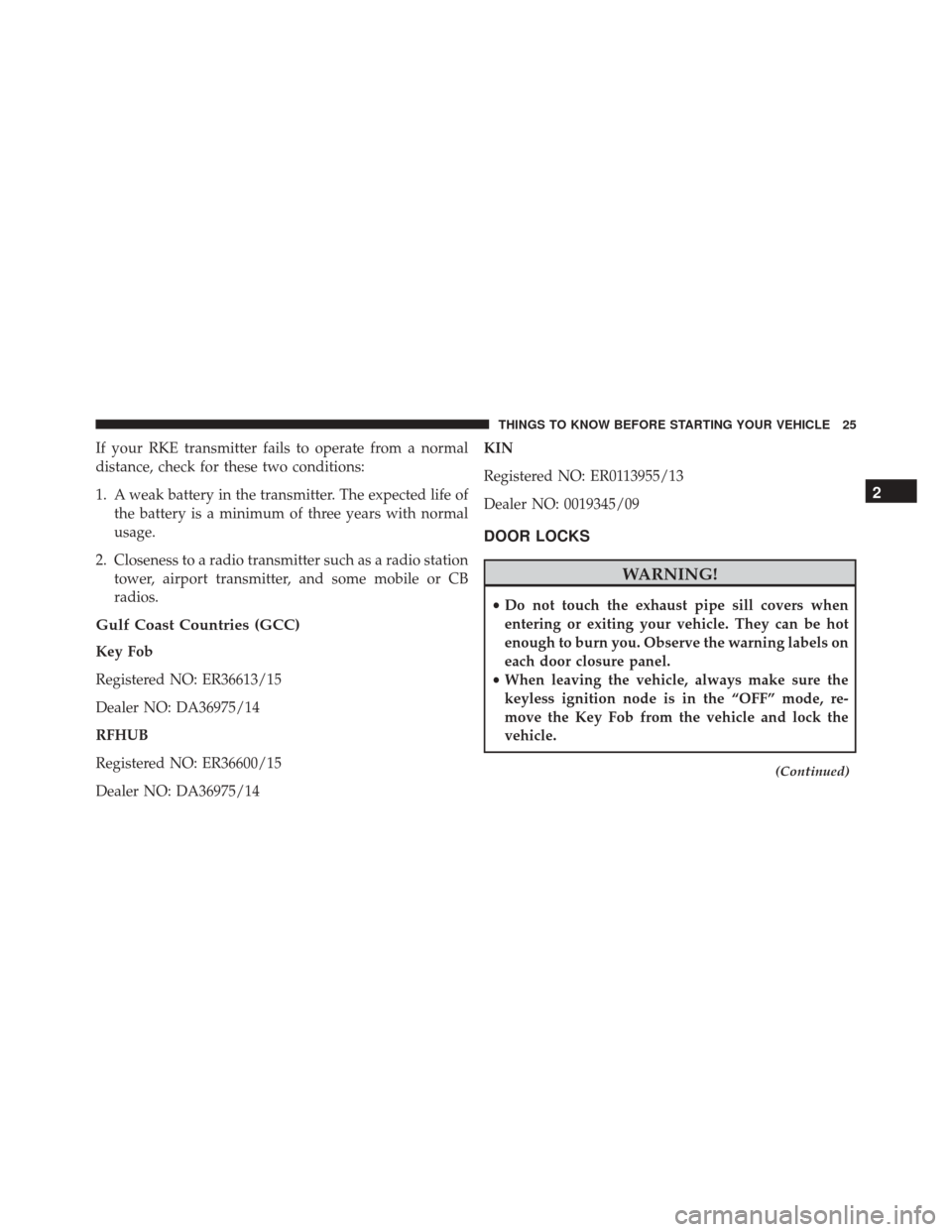

If your RKE transmitter fails to operate from a normal
distance, check for these two conditions:
1. A weak battery in the transmitter. The expected life ofthe battery is a minimum of three years with normal
usage.
2. Closeness to a radio transmitter such as a radio station tower, airport transmitter, and some mobile or CB
radios.
Gulf Coast Countries (GCC)
Key Fob
Registered NO: ER36613/15
Dealer NO: DA36975/14
RFHUB
Registered NO: ER36600/15
Dealer NO: DA36975/14 KIN
Registered NO: ER0113955/13
Dealer NO: 0019345/09
DOOR LOCKS
WARNING!
•
Do not touch the exhaust pipe sill covers when
entering or exiting your vehicle. They can be hot
enough to burn you. Observe the warning labels on
each door closure panel.
• When leaving the vehicle, always make sure the
keyless ignition node is in the “OFF” mode, re-
move the Key Fob from the vehicle and lock the
vehicle.
(Continued)
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25

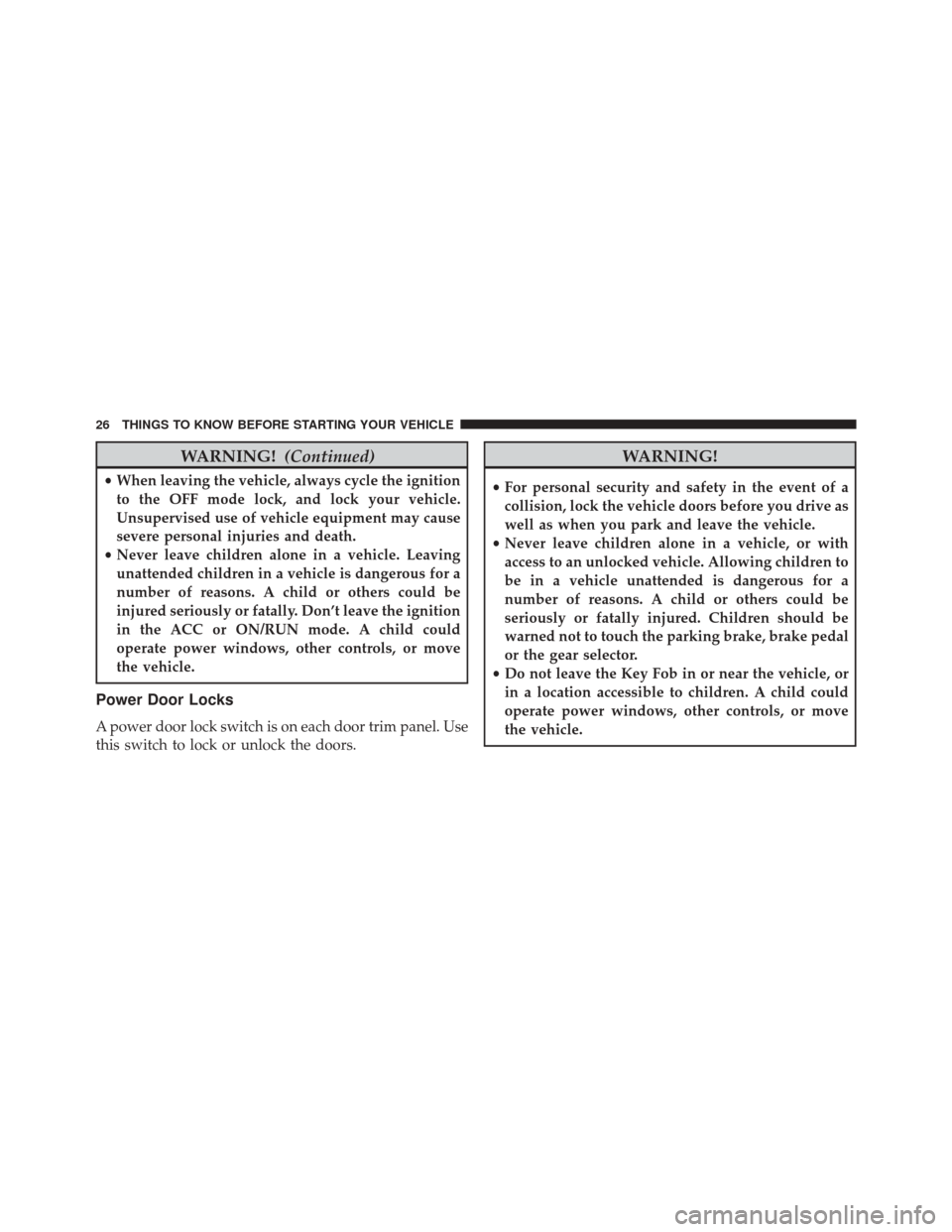

WARNING!(Continued)
•When leaving the vehicle, always cycle the ignition
to the OFF mode lock, and lock your vehicle.
Unsupervised use of vehicle equipment may cause
severe personal injuries and death.
• Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be
injured seriously or fatally. Don’t leave the ignition
in the ACC or ON/RUN mode. A child could
operate power windows, other controls, or move
the vehicle.
Power Door Locks
A power door lock switch is on each door trim panel. Use
this switch to lock or unlock the doors.
WARNING!
• For personal security and safety in the event of a
collision, lock the vehicle doors before you drive as
well as when you park and leave the vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Allowing children to
be in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Children should be
warned not to touch the parking brake, brake pedal
or the gear selector.
• Do not leave the Key Fob in or near the vehicle, or
in a location accessible to children. A child could
operate power windows, other controls, or move
the vehicle.
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

If you push the power door lock switchwhile the
ignition is in the ACC or ON/RUN position, and any
front door is open, the power locks will not operate.
This prevents you from accidentally locking the Key Fob in the vehicle. Cycling the ignition to the OFF
position or closing the door will allow the locks to
operate. If a door is open, and the ignition is in the
ACC or ON/RUN position, a chime will sound as a
reminder to remove the Key Fob.
NOTE:
The Door Unlock Indicatorwill illuminate in
the instrument cluster when one or both doors are
unlocked.
Automatic Door Locks
The auto door lock feature default condition is enabled.
When enabled, the door locks will lock automatically
when the vehicle’s speed exceeds 5 mph (8 km/h). The
auto door lock feature can be enabled or disabled by your
authorized dealer per written request of the customer.
Please see your authorized dealer.
Power Door Lock Switch
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27

Automatic Unlock Doors On Exit
The doors will unlock automatically on vehicles with
power door locks if:
1. The Automatic Unlock Doors On Exit feature is en-abled.
2. The driver door is opened.
3. The doors were not previously unlocked.
Automatic Unlock Doors On Exit Programming
To change the current setting, refer to “Uconnect Set-
tings” in “Understanding Your Instrument Panel” for
further information.
NOTE: Use the Automatic Unlock Doors On Exit feature
in accordance with local laws.
WINDOWS
Power Windows
The window controls on the driver’s door control both of
the door windows.
Power Window Switches
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
