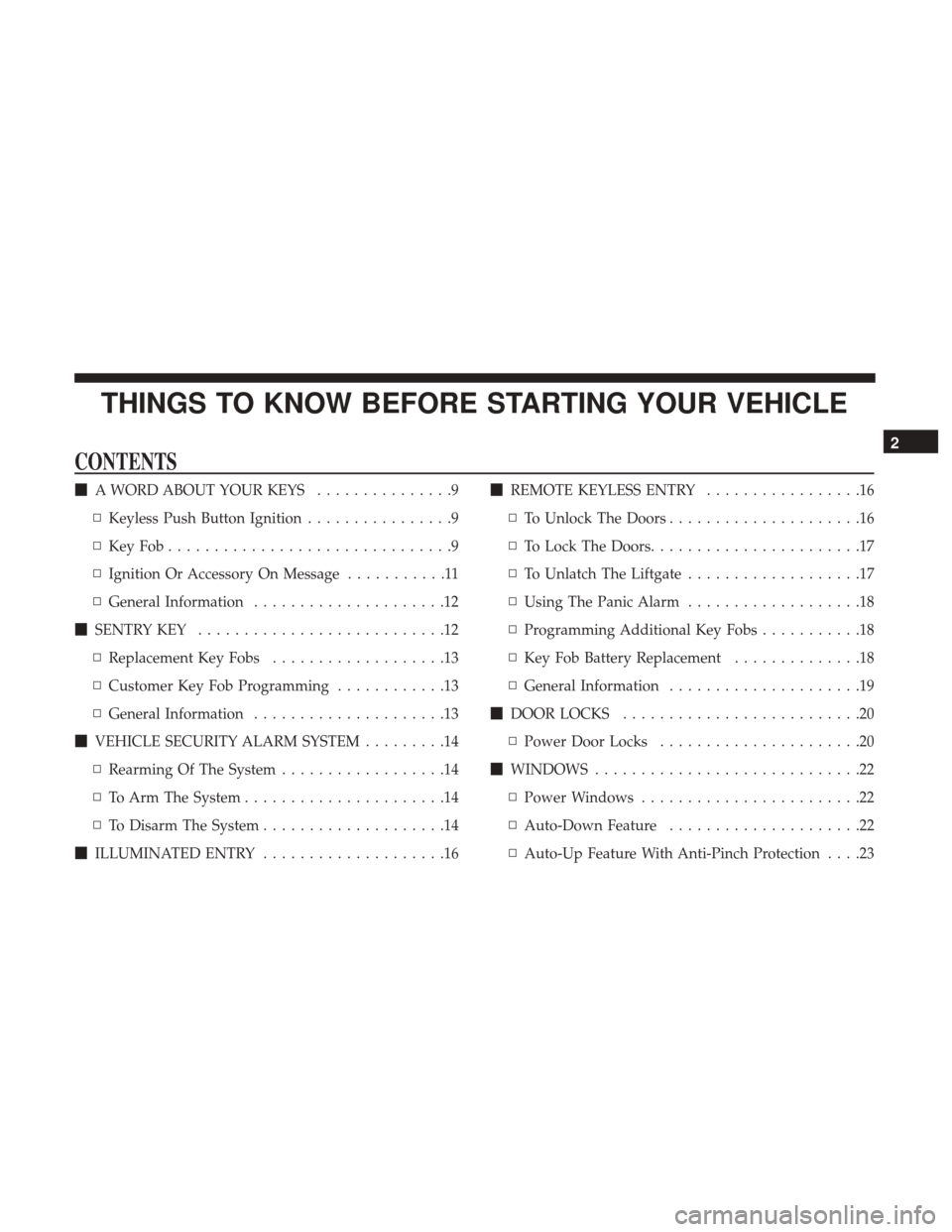

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A WORD ABOUT YOUR KEYS ...............9
▫ Keyless Push Button Ignition ................9
▫ KeyFob...............................9
▫ Ignition Or Accessory On Message ...........11
▫ General Information .....................12
 SENTRY KEY ...........................12
▫ Replacement Key Fobs ...................13
▫ Customer Key Fob Programming ............13
▫ General Information .....................13
 VEHICLE SECURITY ALARM SYSTEM .........14
▫ Rearming Of The System ..................14
▫ To Arm The System ......................14
▫ To Disarm The System ....................14
 ILLUMINATED ENTRY ....................16
REMOTE KEYLESS ENTRY .................16
▫ To Unlock The Doors .....................16
▫ To Lock The Doors .......................17
▫ To Unlatch The Liftgate ...................17
▫ Using The Panic Alarm ...................18
▫ Programming Additional Key Fobs ...........18
▫ Key Fob Battery Replacement ..............18
▫ General Information .....................19
 DOOR LOCKS ..........................20
▫ Power Door Locks ......................20
 WINDOWS .............................22
▫ Power Windows ........................22
▫ Auto-Down Feature .....................22
▫ Auto-Up Feature With Anti-Pinch Protection ....23
2

A WORD ABOUT YOUR KEYS
Your vehicle uses a keyless ignition system. This system
consists of a key fob with Remote Keyless Entry (RKE) Key
Fob and a Keyless Push Button Ignition.
Keyless Enter-N-Go Feature
This vehicle is equipped with the Keyless Enter-N-Go
ignition feature.
Keyless Push Button Ignition
This feature allows the driver to operate the ignition with
the push of a button, as long as the Remote Keyless Entry
key fob is in the passenger compartment.
The Keyless Push Button Ignition has three operating
positions, which are labeled and will illuminate when in
position. The three positions are OFF, ACC, and ON/RUN.
NOTE:In case the ignition does not change with the push
of a button, the key fob may have a low or dead battery.
Key Fob
The key fob also contains the Remote Keyless Entry key fob
and an emergency key, which stores in the rear of the key
fob.
The emergency key allows for entry into the vehicle should
the battery in the vehicle or the key fob go dead. You can
keep the emergency key with you when valet parking.
Keyless Push Button Ignition
1—OFF
2 — ACC (ACCESSORY)
3 — ON/RUN
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 9

To remove the emergency key, slide the mechanical latch
on the back of the key fob sideways with your thumb and
then pull the key out with your other hand.
NOTE:In the event that the FOB does not start the vehicle
(FOB not Found message) use the FOB nose (furthest
point from key ring) and push the start button. FOB
replaces the finger.
Remote Keyless Entry Key Fob
Emergency Key Removal
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

General Information
The following regulatory statement applies to all Radio
Frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2.
This device must accept any interference received, includ-
ing interference that may cause undesired operation.
NOTE:Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.
SENTRY KEY
The Sentry Key Immobilizer system prevents unauthorized
vehicle operation by disabling the engine. The system does not
need to be armed or activated. Operation is automatic, regard-
less of whether the vehicle is locked or unlocked.
The system uses a factory-mated key fob, a Keyless Push
Button Ignition and a RF receiver to prevent unauthorized
vehicle operation. Therefore, only key fobs that are pro-
grammed to the vehicle can be used to start and operate the
vehicle. The system will not allow the engine to crank with
an invalid key fob. After placing the ignition to the ON/RUN position, the
vehicle security light will turn on for three seconds for a
bulb check. If the light remains on after the bulb check, it
indicates that there is a problem with the system. In
addition, if the light begins to flash after the bulb check, it
indicates that someone tried to use an invalid key fob to
start the engine. Either of these conditions will result in the
engine being shut off after two seconds.
If the vehicle security light turns on during normal vehicle
operation (vehicle running for longer than 10 seconds), it
indicates that there is a fault in the system. Should this
occur, have the vehicle serviced as soon as possible by an
authorized dealer.
CAUTION!
•
Do not make modifications or alterations to the
immobilizer system. Modifications or alterations to
the immobilization system may result in a loss of
security protection.
• The Sentry Key Immobilizer system is not compat-
ible with some aftermarket remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

VEHICLE SECURITY ALARM SYSTEM
The vehicle security alarm monitors the doors, liftgate, and
hood for unauthorized entry and the ignition for unauthor-
ized operation. If something triggers the alarm, the vehicle
security alarm will prevent the vehicle from starting. It will
also sound the horn and flash the park lights, and taillights.
Rearming Of The System
If something triggers the alarm, and no action is taken to
disarm it, the vehicle security alarm will turn off the horn
after three minutes, turn off all of the visual signals
(flashing lights) after 15 minutes, and then rearm itself.
To Arm The System
Follow these steps to arm the vehicle security alarm:
1. Make sure the vehicle ignition system is in the OFFposition.
2. Perform one of the following methods to lock the vehicle:
• Push the lock button on the interior power door lock
switch with the driver and/or passenger door open.
• Push the lock button on the key fob.
3. If any doors are open, close them.
Entering The Liftgate With The System Armed
NOTE: Using the key to open the liftgate while the vehicle
security alarm is armed will trigger the alarm.
Push the liftgate release button on the key fob twice to
allow access without triggering the alarm or having to
disarm the vehicle security alarm. Then, within 30 seconds,
open the liftgate by using the key cylinder or the liftgate
release switch located in the exterior liftgate handle.
To Disarm The System
The vehicle security alarm can be disarmed using any of
the following methods:
• Push the unlock button on the Remote Keyless Entry key
fob.
• Cycle the vehicle ignition system out of the OFF posi-
tion:
• Push the Keyless Enter-N-Go Start/Stop button (re-
quires at least one valid key fob in the vehicle).
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

ILLUMINATED ENTRY
The interior lights will turn on whenever a door is opened
or the liftgate is opened and the dimmer switch is not in the
defeat position.
The interior lights will turn on, remain on for approxi-
mately 30 seconds, and then fade to off if any of the
following occur:
•A door is opened using the outside door handle and
then closed.
• A door is unlocked using the Remote Keyless Entry key
fob.
The interior lights will turn on, remain on for about four
seconds, and then fade to off if a door is opened using the
inside door handle.
NOTE: None of the courtesy lights will operate if the
dimmer control is in the “defeat” position (extreme down-
ward position), unless the overhead map/reading lights
are turned on manually.
REMOTE KEYLESS ENTRY
The Remote Keyless Entry system allows you to lock or
unlock the doors and liftgate, or activate the Panic Alarm
from distances up to approximately 66ft (20 m) using a
hand-held key fob. The key fob does not need to be pointed
at the vehicle to activate the system.
To Unlock The Doors
Push and release the unlock button on the key fob once to
unlock the driver’s door or twice to unlock both doors and
the liftgate. The park lights and turn signal lights will flash
to acknowledge the signal, and the illuminated entry
Remote Keyless Entry Key Fob
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

system will turn on. Refer to “Uconnect Settings” in
“Understanding Your Instrument Panel” for further infor-
mation.
NOTE:The Door Unlock Indicator will illuminate in the
instrument cluster when one or both doors are unlocked.
Remote Key Unlock, Driver Door/Both Doors First
This feature lets you program the system to unlock either
the driver’s door or all doors on the first push of the unlock
button on the key fob. To change the current setting, refer
to “Uconnect Settings” in “Understanding Your Instrument
Panel” for further information.
Flash Lights With Lock
This feature lets you program the lights to flash when the
doors are locked with the key fob. Refer to “Uconnect
Settings” in “Understanding Your Instrument Panel” for
further information.
Unlock On 1st Press
This feature lets you program the system to unlock either
the driver’s door or all doors on the first push of the unlock
button on the key fob. To change the current setting, refer
to “Uconnect Settings” in “Understanding Your Instrument
Panel” for further information.
Autolock
This vehicle is equipped with Autolock. If the vehicle is
unlocked while the key fob is outside the vehicle and the
door is not opened for 30 seconds, the car will relock.
To Lock The Doors
Push and release the lock button on the key fob to lock the
doors. The horn will chirp once, and the park lights and
turn signal lights will flash to acknowledge the signal.
Sound Horn With Remote Key Lock
This feature will cause the horn to chirp when the doors are
locked with the key fob. This feature can be turned on or
turned off. To change the current setting, refer to
“Uconnect Settings” in “Understanding Your Instrument
Panel” for further information.
To Unlatch The Liftgate
Push the liftgate button on the key fob two times within
five seconds to unlatch the liftgate. Push and hold the
liftgate release button while pulling up on the trunk/hatch
to open.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

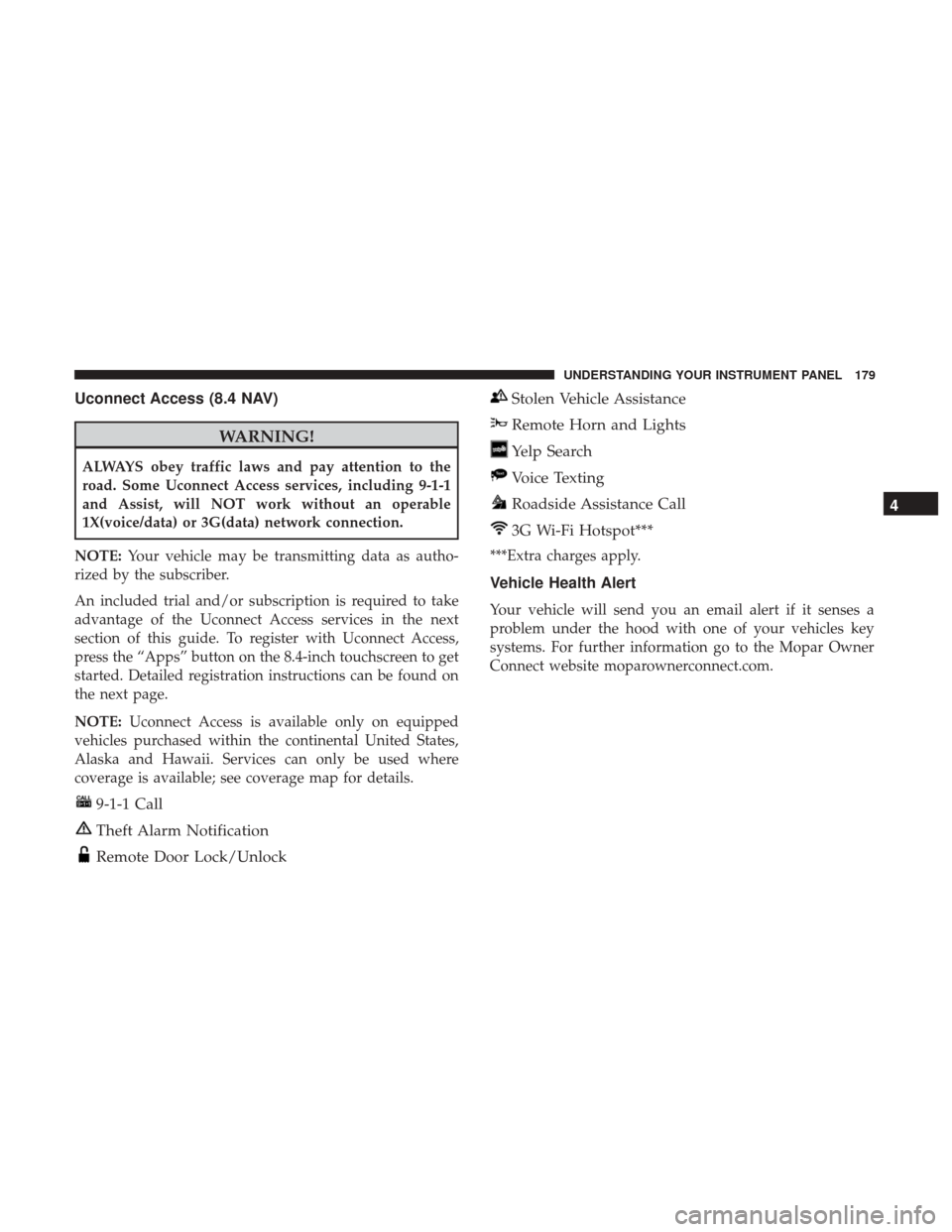

Uconnect Access (8.4 NAV)
WARNING!
ALWAYS obey traffic laws and pay attention to the
road. Some Uconnect Access services, including 9-1-1
and Assist, will NOT work without an operable
1X(voice/data) or 3G(data) network connection.
NOTE: Your vehicle may be transmitting data as autho-
rized by the subscriber.
An included trial and/or subscription is required to take
advantage of the Uconnect Access services in the next
section of this guide. To register with Uconnect Access,
press the “Apps” button on the 8.4-inch touchscreen to get
started. Detailed registration instructions can be found on
the next page.
NOTE: Uconnect Access is available only on equipped
vehicles purchased within the continental United States,
Alaska and Hawaii. Services can only be used where
coverage is available; see coverage map for details.
9-1-1 Call
Theft Alarm Notification
Remote Door Lock/Unlock
Stolen Vehicle Assistance
Remote Horn and Lights
Yelp Search
Voice Texting
Roadside Assistance Call
3G Wi-Fi Hotspot***
***Extra charges apply.
Vehicle Health Alert
Your vehicle will send you an email alert if it senses a
problem under the hood with one of your vehicles key
systems. For further information go to the Mopar Owner
Connect website moparownerconnect.com.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 179

NOTE:The battery is located underneath an access panel
inside the rear compartment on the left side of the vehicle.
A remote battery terminal is located in the engine compart-
ment for jump-starting. Connecting The Jumper Cables
1. Wear eye protection and remove any metal jewelry such
as watchbands or bracelets that might make an inadver-
tent electrical contact.
2. When boost is provided by a battery in another vehicle, park that vehicle within booster cable reach, but without
allowing the vehicles to touch one another.
3. Set the parking brake, place the transmission in NEU- TRAL, and turn the ignition OFF on both vehicles.
4. Turn off the heater, radio, and all unnecessary electrical loads.
5. Remove the plastic fuse cover to gain access to the remote jump-start positive (+)post in the engine com-
partment. Refer to the following illustration for remote
jump-starting connections.
Battery Location
1 — Positive Battery Post
2 — Negative Battery Post
6
WHAT TO DO IN EMERGENCIES 257

CAUTION!
Failure to follow these procedures could result in
damage to the charging system of the booster vehicle
or the discharged vehicle.
6. Connect the positive (+)end of the jumper cable to the
remote positive (+)post of the discharged vehicle. 7. Connect the opposite end of the positive
(+)jumper
cable to the positive (+)post of the booster battery.
8. Connect the negative (-)end of the jumper cable to the
negative (-)post of the booster battery.
9. Connect the opposite end of the negative (-)jumper
cable to the remote negative (-)post of the vehicle with
the discharged battery.
WARNING!
Do not connect the jumper cable to the negative (-) post
of the discharged battery. The resulting electrical spark
could cause the battery to explode and could result in
personal injury. Only use the specific ground point, do
not use any other exposed metal parts.
10. Start the engine in the vehicle that has the booster battery, let the engine idle a few minutes, and then start
the engine in the vehicle with the discharged battery.
11. Once the engine is started, remove the jumper cables in the reverse sequence:
Remote Jump Start Connections
1 — Remote Positive (+) Post
2 — Remote Negative (-) Post 258 WHAT TO DO IN EMERGENCIES
