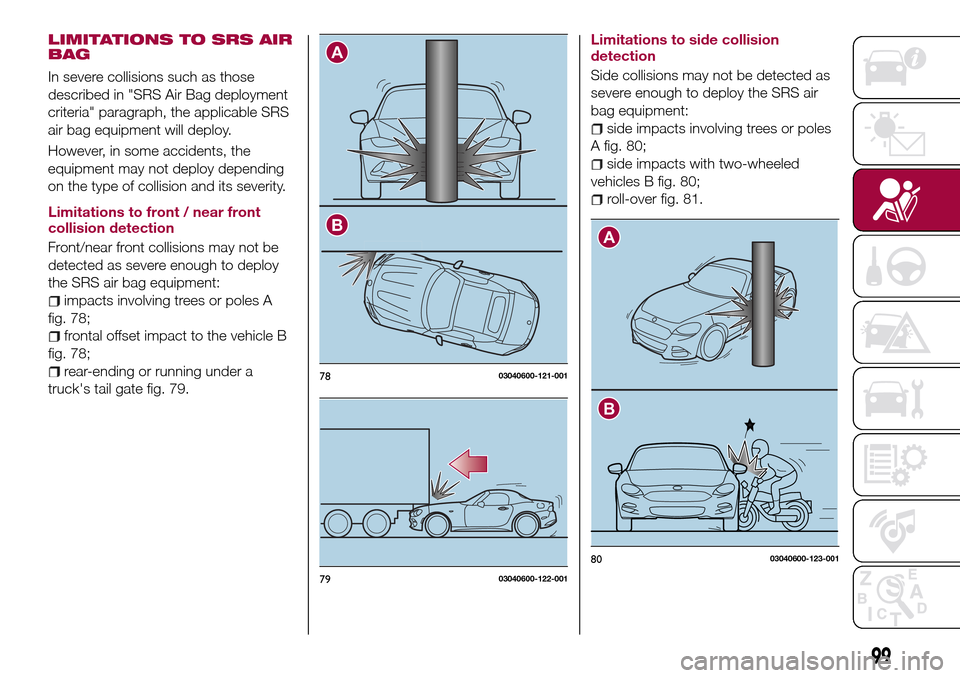

LIMITATIONS TO SRS AIR
BAG
In severe collisions such as those
described in "SRS Air Bag deployment
criteria" paragraph, the applicable SRS
air bag equipment will deploy.
However, in some accidents, the
equipment may not deploy depending
on the type of collision and its severity.
Limitations to front / near front
collision detection
Front/near front collisions may not be
detected as severe enough to deploy
the SRS air bag equipment:
impacts involving trees or poles A
fig. 78;
frontal offset impact to the vehicle B
fig. 78;
rear-ending or running under a
truck's tail gate fig. 79.Limitations to side collision
detection
Side collisions may not be detected as
severe enough to deploy the SRS air
bag equipment:
side impacts involving trees or poles
A fig. 80;
side impacts with two-wheeled
vehicles B fig. 80;
roll-over fig. 81.
A
B
7803040600-121-001
7903040600-122-001
A
B
8003040600-123-001
99
Page 102 of 216

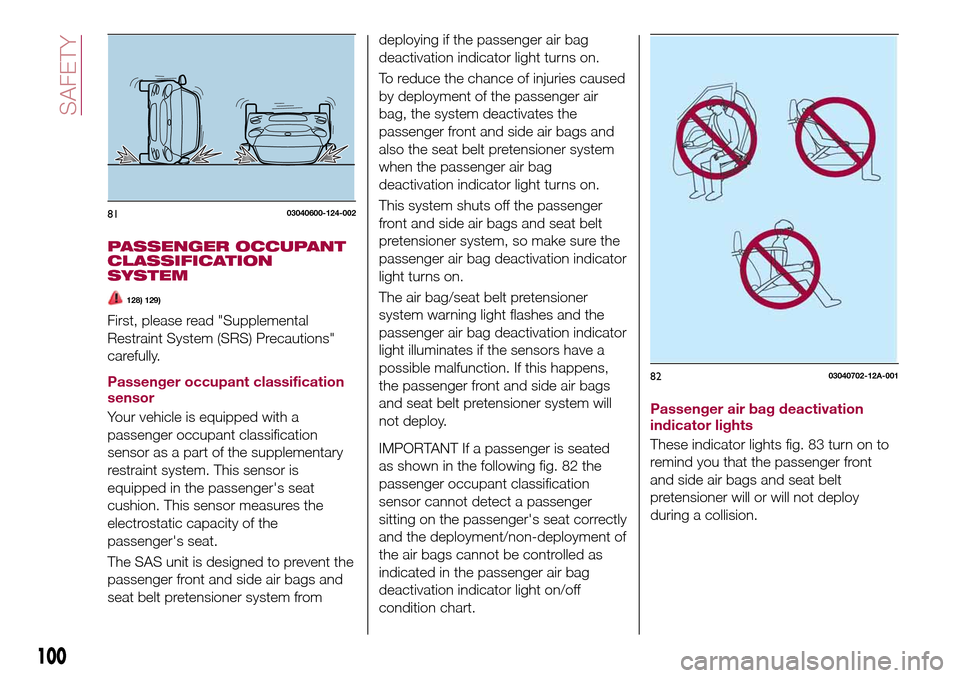

PASSENGER OCCUPANT
CLASSIFICATION
SYSTEM
128) 129)
First, please read "Supplemental
Restraint System (SRS) Precautions"
carefully.
Passenger occupant classification
sensor
Your vehicle is equipped with a
passenger occupant classification
sensor as a part of the supplementary
restraint system. This sensor is
equipped in the passenger's seat
cushion. This sensor measures the
electrostatic capacity of the
passenger's seat.
The SAS unit is designed to prevent the
passenger front and side air bags and
seat belt pretensioner system fromdeploying if the passenger air bag
deactivation indicator light turns on.
To reduce the chance of injuries caused
by deployment of the passenger air
bag, the system deactivates the
passenger front and side air bags and
also the seat belt pretensioner system
when the passenger air bag
deactivation indicator light turns on.
This system shuts off the passenger
front and side air bags and seat belt
pretensioner system, so make sure the
passenger air bag deactivation indicator
light turns on.
The air bag/seat belt pretensioner
system warning light flashes and the
passenger air bag deactivation indicator
light illuminates if the sensors have a
possible malfunction. If this happens,
the passenger front and side air bags
and seat belt pretensioner system will
not deploy.
IMPORTANT If a passenger is seated
as shown in the following fig. 82 the
passenger occupant classification
sensor cannot detect a passenger
sitting on the passenger's seat correctly
and the deployment/non-deployment of
the air bags cannot be controlled as
indicated in the passenger air bag
deactivation indicator light on/off
condition chart.
Passenger air bag deactivation
indicator lights
These indicator lights fig. 83 turn on to
remind you that the passenger front
and side air bags and seat belt
pretensioner will or will not deploy
during a collision.
8103040600-124-002
8203040702-12A-001
100
SAFETY
Page 103 of 216
22) 23)

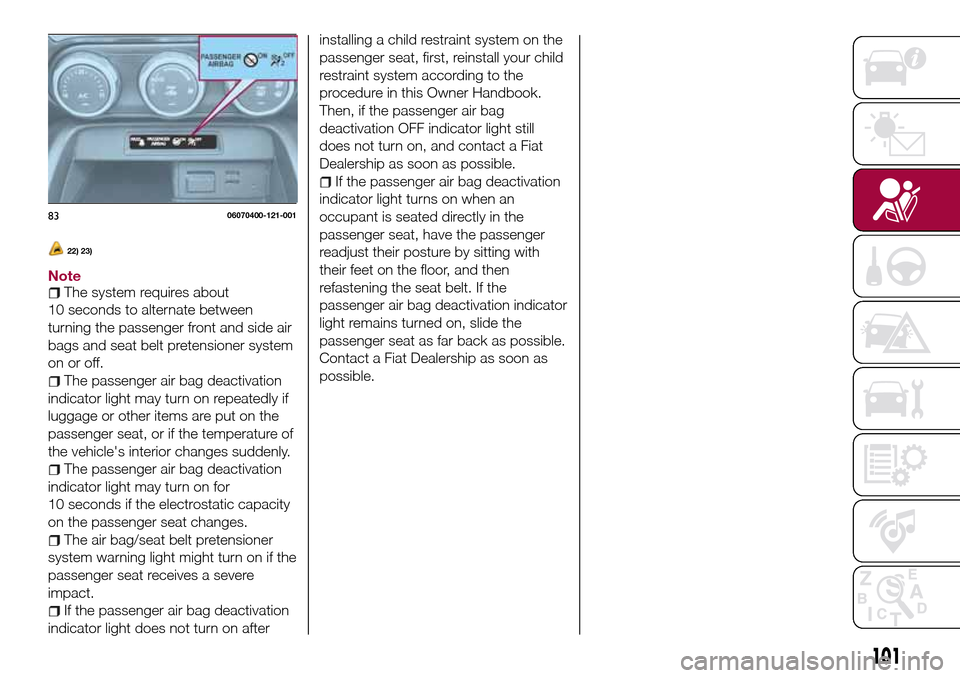

NoteThe system requires about
10 seconds to alternate between
turning the passenger front and side air
bags and seat belt pretensioner system
on or off.
The passenger air bag deactivation
indicator light may turn on repeatedly if
luggage or other items are put on the
passenger seat, or if the temperature of
the vehicle's interior changes suddenly.
The passenger air bag deactivation
indicator light may turn on for
10 seconds if the electrostatic capacity
on the passenger seat changes.
The air bag/seat belt pretensioner
system warning light might turn on if the
passenger seat receives a severe
impact.
If the passenger air bag deactivation
indicator light does not turn on afterinstalling a child restraint system on the
passenger seat, first, reinstall your child
restraint system according to the
procedure in this Owner Handbook.
Then, if the passenger air bag
deactivation OFF indicator light still
does not turn on, and contact a Fiat
Dealership as soon as possible.
If the passenger air bag deactivation
indicator light turns on when an
occupant is seated directly in the
passenger seat, have the passenger
readjust their posture by sitting with
their feet on the floor, and then
refastening the seat belt. If the
passenger air bag deactivation indicator
light remains turned on, slide the
passenger seat as far back as possible.
Contact a Fiat Dealership as soon as
possible.
8306070400-121-001
101
Page 104 of 216

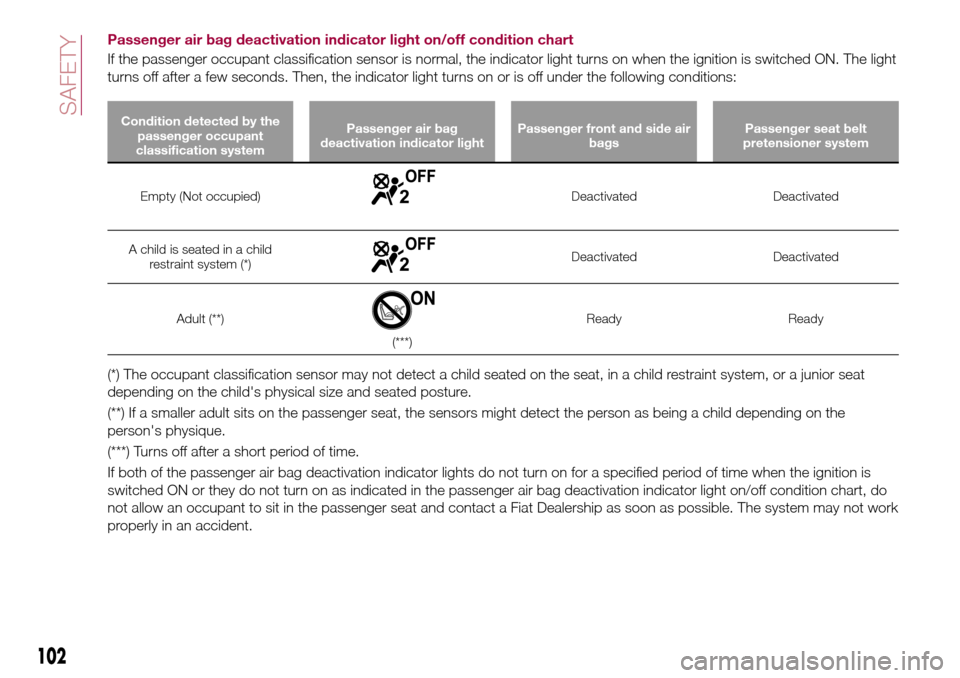

Passenger air bag deactivation indicator light on/off condition chart
If the passenger occupant classification sensor is normal, the indicator light turns on when the ignition is switched ON. The light
turns off after a few seconds. Then, the indicator light turns on or is off under the following conditions:
Condition detected by the
passenger occupant
classification systemPassenger air bag
deactivation indicator lightPassenger front and side air
bagsPassenger seat belt
pretensioner system
Empty (Not occupied)Deactivated Deactivated
A child is seated in a child
restraint system (*)
Deactivated Deactivated
Adult (**)
(***)Ready Ready
(*) The occupant classification sensor may not detect a child seated on the seat, in a child restraint system, or a junior seat
depending on the child's physical size and seated posture.
(**) If a smaller adult sits on the passenger seat, the sensors might detect the person as being a child depending on the
person's physique.
(***) Turns off after a short period of time.
If both of the passenger air bag deactivation indicator lights do not turn on for a specified period of time when the ignition is
switched ON or they do not turn on as indicated in the passenger air bag deactivation indicator light on/off condition chart, do
not allow an occupant to sit in the passenger seat and contact a Fiat Dealership as soon as possible. The system may not work
properly in an accident.
102
SAFETY
Page 105 of 216

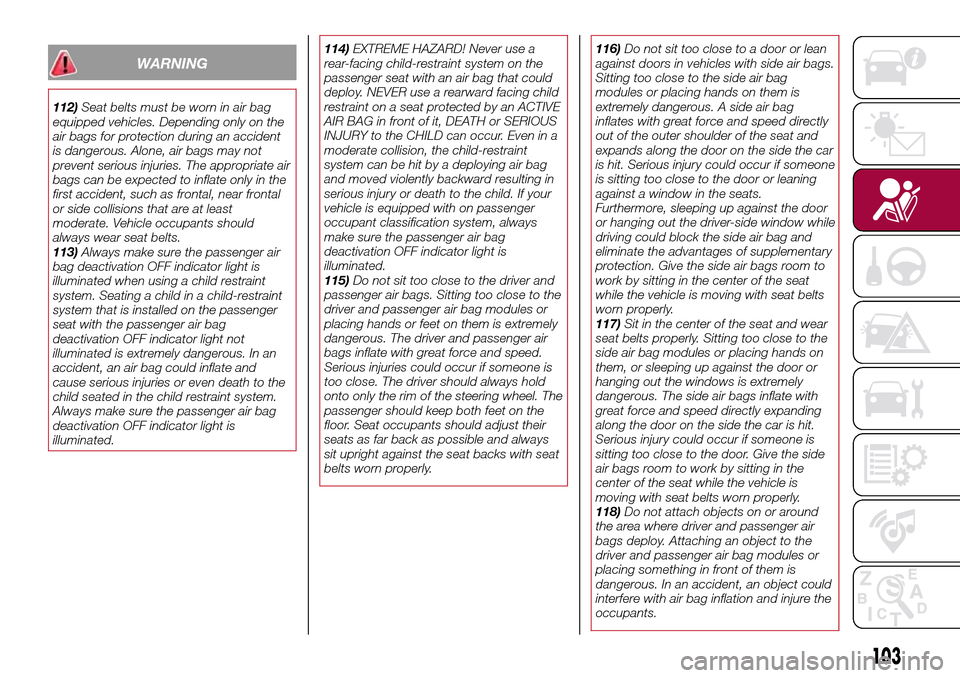

WARNING
112)Seat belts must be worn in air bag
equipped vehicles. Depending only on the
air bags for protection during an accident
is dangerous. Alone, air bags may not
prevent serious injuries. The appropriate air
bags can be expected to inflate only in the
first accident, such as frontal, near frontal
or side collisions that are at least
moderate. Vehicle occupants should
always wear seat belts.
113)Always make sure the passenger air
bag deactivation OFF indicator light is
illuminated when using a child restraint
system. Seating a child in a child-restraint
system that is installed on the passenger
seat with the passenger air bag
deactivation OFF indicator light not
illuminated is extremely dangerous. In an
accident, an air bag could inflate and
cause serious injuries or even death to the
child seated in the child restraint system.
Always make sure the passenger air bag
deactivation OFF indicator light is
illuminated.114)EXTREME HAZARD! Never use a
rear-facing child-restraint system on the
passenger seat with an air bag that could
deploy. NEVER use a rearward facing child
restraint on a seat protected by an ACTIVE
AIR BAG in front of it, DEATH or SERIOUS
INJURY to the CHILD can occur. Even in a
moderate collision, the child-restraint
system can be hit by a deploying air bag
and moved violently backward resulting in
serious injury or death to the child. If your
vehicle is equipped with on passenger
occupant classification system, always
make sure the passenger air bag
deactivation OFF indicator light is
illuminated.
115)Do not sit too close to the driver and
passenger air bags. Sitting too close to the
driver and passenger air bag modules or
placing hands or feet on them is extremely
dangerous. The driver and passenger air
bags inflate with great force and speed.
Serious injuries could occur if someone is
too close. The driver should always hold
onto only the rim of the steering wheel. The
passenger should keep both feet on the
floor. Seat occupants should adjust their
seats as far back as possible and always
sit upright against the seat backs with seat
belts worn properly.116)Do not sit too close to a door or lean
against doors in vehicles with side air bags.
Sitting too close to the side air bag
modules or placing hands on them is
extremely dangerous. A side air bag
inflates with great force and speed directly
out of the outer shoulder of the seat and
expands along the door on the side the car
is hit. Serious injury could occur if someone
is sitting too close to the door or leaning
against a window in the seats.
Furthermore, sleeping up against the door
or hanging out the driver-side window while
driving could block the side air bag and
eliminate the advantages of supplementary
protection. Give the side air bags room to
work by sitting in the center of the seat
while the vehicle is moving with seat belts
worn properly.
117)Sit in the center of the seat and wear
seat belts properly. Sitting too close to the
side air bag modules or placing hands on
them, or sleeping up against the door or
hanging out the windows is extremely
dangerous. The side air bags inflate with
great force and speed directly expanding
along the door on the side the car is hit.
Serious injury could occur if someone is
sitting too close to the door. Give the side
air bags room to work by sitting in the
center of the seat while the vehicle is
moving with seat belts worn properly.
118)Do not attach objects on or around
the area where driver and passenger air
bags deploy. Attaching an object to the
driver and passenger air bag modules or
placing something in front of them is
dangerous. In an accident, an object could
interfere with air bag inflation and injure the
occupants.
103
Page 106 of 216

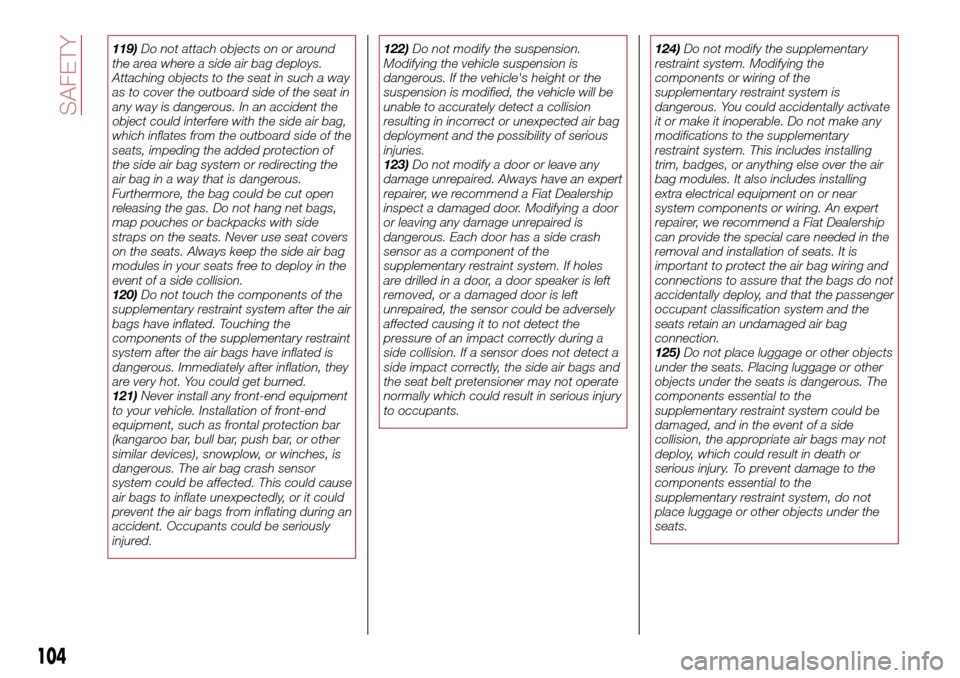

119)Do not attach objects on or around
the area where a side air bag deploys.
Attaching objects to the seat in such a way
as to cover the outboard side of the seat in
any way is dangerous. In an accident the
object could interfere with the side air bag,
which inflates from the outboard side of the
seats, impeding the added protection of
the side air bag system or redirecting the
air bag in a way that is dangerous.
Furthermore, the bag could be cut open
releasing the gas. Do not hang net bags,
map pouches or backpacks with side
straps on the seats. Never use seat covers
on the seats. Always keep the side air bag
modules in your seats free to deploy in the
event of a side collision.
120)Do not touch the components of the
supplementary restraint system after the air
bags have inflated. Touching the
components of the supplementary restraint
system after the air bags have inflated is
dangerous. Immediately after inflation, they
are very hot. You could get burned.
121)Never install any front-end equipment
to your vehicle. Installation of front-end
equipment, such as frontal protection bar
(kangaroo bar, bull bar, push bar, or other
similar devices), snowplow, or winches, is
dangerous. The air bag crash sensor
system could be affected. This could cause
air bags to inflate unexpectedly, or it could
prevent the air bags from inflating during an
accident. Occupants could be seriously
injured.122)Do not modify the suspension.
Modifying the vehicle suspension is
dangerous. If the vehicle's height or the
suspension is modified, the vehicle will be
unable to accurately detect a collision
resulting in incorrect or unexpected air bag
deployment and the possibility of serious
injuries.
123)Do not modify a door or leave any
damage unrepaired. Always have an expert
repairer, we recommend a Fiat Dealership
inspect a damaged door. Modifying a door
or leaving any damage unrepaired is
dangerous. Each door has a side crash
sensor as a component of the
supplementary restraint system. If holes
are drilled in a door, a door speaker is left
removed, or a damaged door is left
unrepaired, the sensor could be adversely
affected causing it to not detect the
pressure of an impact correctly during a
side collision. If a sensor does not detect a
side impact correctly, the side air bags and
the seat belt pretensioner may not operate
normally which could result in serious injury
to occupants.124)Do not modify the supplementary
restraint system. Modifying the
components or wiring of the
supplementary restraint system is
dangerous. You could accidentally activate
it or make it inoperable. Do not make any
modifications to the supplementary
restraint system. This includes installing
trim, badges, or anything else over the air
bag modules. It also includes installing
extra electrical equipment on or near
system components or wiring. An expert
repairer, we recommend a Fiat Dealership
can provide the special care needed in the
removal and installation of seats. It is
important to protect the air bag wiring and
connections to assure that the bags do not
accidentally deploy, and that the passenger
occupant classification system and the
seats retain an undamaged air bag
connection.
125)Do not place luggage or other objects
under the seats. Placing luggage or other
objects under the seats is dangerous. The
components essential to the
supplementary restraint system could be
damaged, and in the event of a side
collision, the appropriate air bags may not
deploy, which could result in death or
serious injury. To prevent damage to the
components essential to the
supplementary restraint system, do not
place luggage or other objects under the
seats.
104
SAFETY
Page 107 of 216

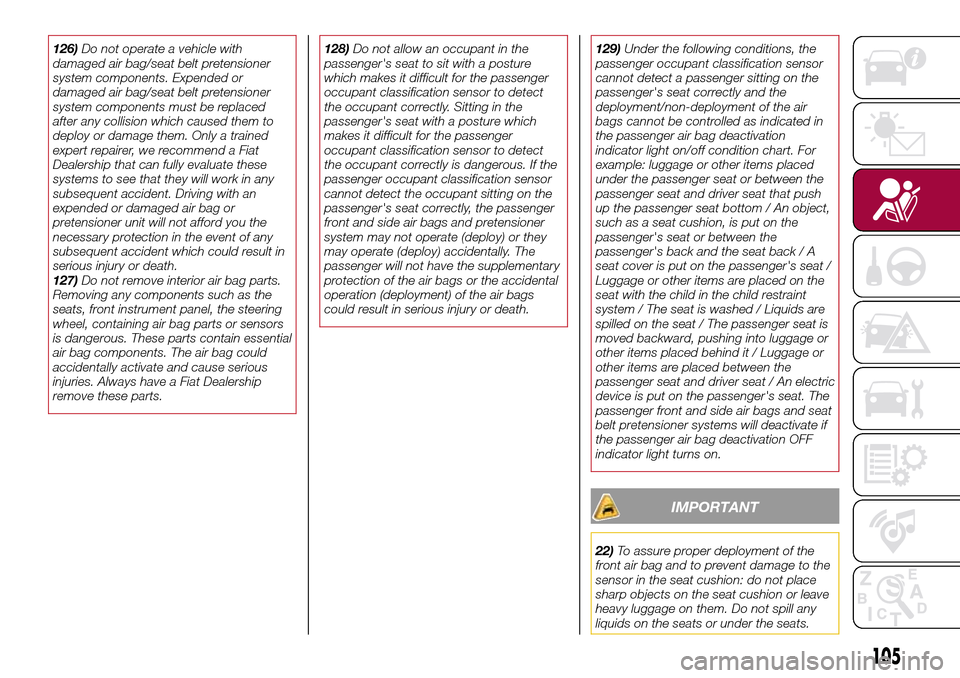

126)Do not operate a vehicle with
damaged air bag/seat belt pretensioner
system components. Expended or
damaged air bag/seat belt pretensioner
system components must be replaced
after any collision which caused them to
deploy or damage them. Only a trained
expert repairer, we recommend a Fiat
Dealership that can fully evaluate these
systems to see that they will work in any
subsequent accident. Driving with an
expended or damaged air bag or
pretensioner unit will not afford you the
necessary protection in the event of any
subsequent accident which could result in
serious injury or death.
127)Do not remove interior air bag parts.
Removing any components such as the
seats, front instrument panel, the steering
wheel, containing air bag parts or sensors
is dangerous. These parts contain essential
air bag components. The air bag could
accidentally activate and cause serious
injuries. Always have a Fiat Dealership
remove these parts.128)Do not allow an occupant in the
passenger's seat to sit with a posture
which makes it difficult for the passenger
occupant classification sensor to detect
the occupant correctly. Sitting in the
passenger's seat with a posture which
makes it difficult for the passenger
occupant classification sensor to detect
the occupant correctly is dangerous. If the
passenger occupant classification sensor
cannot detect the occupant sitting on the
passenger's seat correctly, the passenger
front and side air bags and pretensioner
system may not operate (deploy) or they
may operate (deploy) accidentally. The
passenger will not have the supplementary
protection of the air bags or the accidental
operation (deployment) of the air bags
could result in serious injury or death.129)Under the following conditions, the
passenger occupant classification sensor
cannot detect a passenger sitting on the
passenger's seat correctly and the
deployment/non-deployment of the air
bags cannot be controlled as indicated in
the passenger air bag deactivation
indicator light on/off condition chart. For
example: luggage or other items placed
under the passenger seat or between the
passenger seat and driver seat that push
up the passenger seat bottom / An object,
such as a seat cushion, is put on the
passenger's seat or between the
passenger's back and the seat back / A
seat cover is put on the passenger's seat /
Luggage or other items are placed on the
seat with the child in the child restraint
system / The seat is washed / Liquids are
spilled on the seat / The passenger seat is
moved backward, pushing into luggage or
other items placed behind it / Luggage or
other items are placed between the
passenger seat and driver seat / An electric
device is put on the passenger's seat. The
passenger front and side air bags and seat
belt pretensioner systems will deactivate if
the passenger air bag deactivation OFF
indicator light turns on.
IMPORTANT
22)To assure proper deployment of the
front air bag and to prevent damage to the
sensor in the seat cushion: do not place
sharp objects on the seat cushion or leave
heavy luggage on them. Do not spill any
liquids on the seats or under the seats.
105
Page 108 of 216

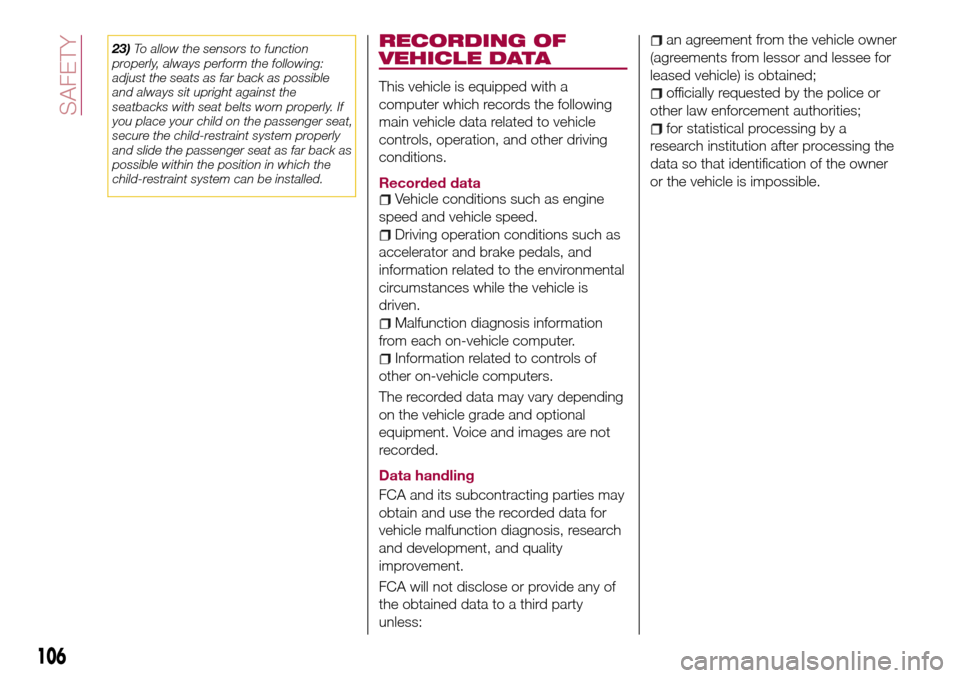

23)To allow the sensors to function
properly, always perform the following:
adjust the seats as far back as possible
and always sit upright against the
seatbacks with seat belts worn properly. If
you place your child on the passenger seat,
secure the child-restraint system properly
and slide the passenger seat as far back as
possible within the position in which the
child-restraint system can be installed.RECORDING OF
VEHICLE DATA
This vehicle is equipped with a
computer which records the following
main vehicle data related to vehicle
controls, operation, and other driving
conditions.
Recorded data
Vehicle conditions such as engine
speed and vehicle speed.
Driving operation conditions such as
accelerator and brake pedals, and
information related to the environmental
circumstances while the vehicle is
driven.
Malfunction diagnosis information
from each on-vehicle computer.
Information related to controls of
other on-vehicle computers.
The recorded data may vary depending
on the vehicle grade and optional
equipment. Voice and images are not
recorded.
Data handling
FCA and its subcontracting parties may
obtain and use the recorded data for
vehicle malfunction diagnosis, research
and development, and quality
improvement.
FCA will not disclose or provide any of
the obtained data to a third party
unless:
an agreement from the vehicle owner
(agreements from lessor and lessee for
leased vehicle) is obtained;
officially requested by the police or
other law enforcement authorities;
for statistical processing by a
research institution after processing the
data so that identification of the owner
or the vehicle is impossible.
106
SAFETY
Page 109 of 216

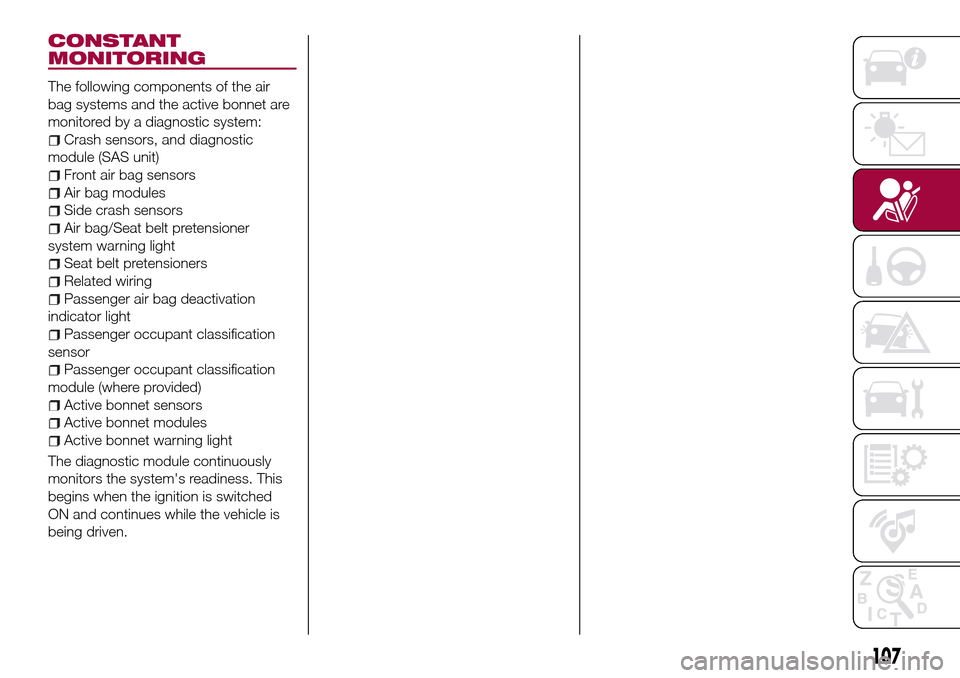

CONSTANT
MONITORING
The following components of the air
bag systems and the active bonnet are
monitored by a diagnostic system:
Crash sensors, and diagnostic
module (SAS unit)
Front air bag sensors
Air bag modules
Side crash sensors
Air bag/Seat belt pretensioner
system warning light
Seat belt pretensioners
Related wiring
Passenger air bag deactivation
indicator light
Passenger occupant classification
sensor
Passenger occupant classification
module (where provided)
Active bonnet sensors
Active bonnet modules
Active bonnet warning light
The diagnostic module continuously
monitors the system's readiness. This
begins when the ignition is switched
ON and continues while the vehicle is
being driven.
107
Page 110 of 216

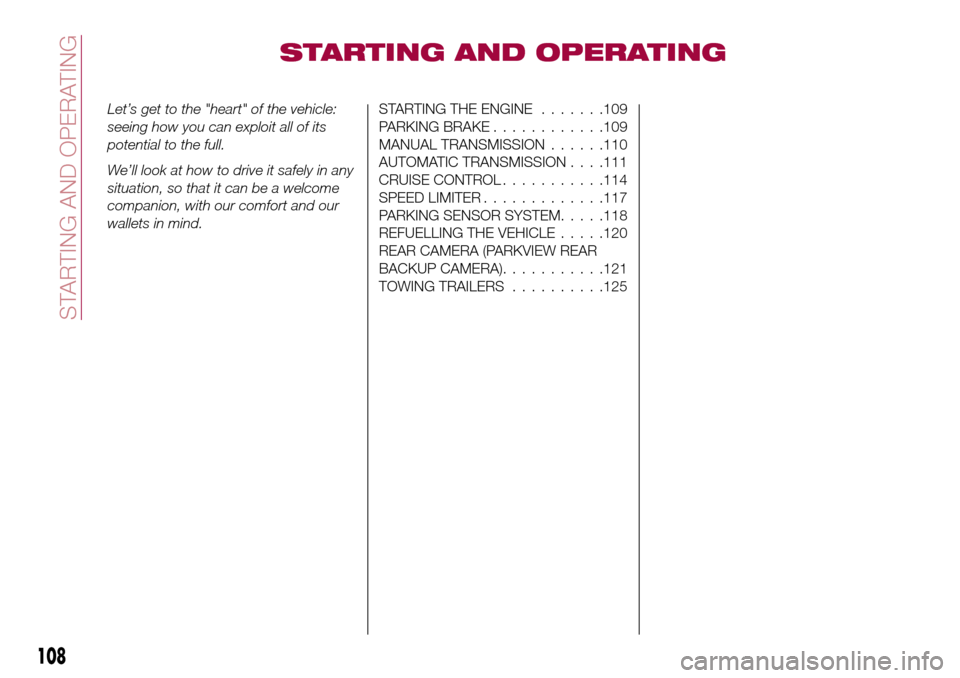

STARTING AND OPERATING
Let’s get to the "heart" of the vehicle:
seeing how you can exploit all of its
potential to the full.
We’ll look at how to drive it safely in any
situation, so that it can be a welcome
companion, with our comfort and our
wallets in mind.STARTING THE ENGINE.......109
PARKING BRAKE............109
MANUAL TRANSMISSION......110
AUTOMATIC TRANSMISSION. . . .111
CRUISE CONTROL...........114
SPEED LIMITER.............117
PARKING SENSOR SYSTEM.....118
REFUELLING THE VEHICLE.....120
REAR CAMERA (PARKVIEW REAR
BACKUP CAMERA)...........121
TOWING TRAILERS..........125
108
STARTING AND OPERATING
