Page 61 of 216

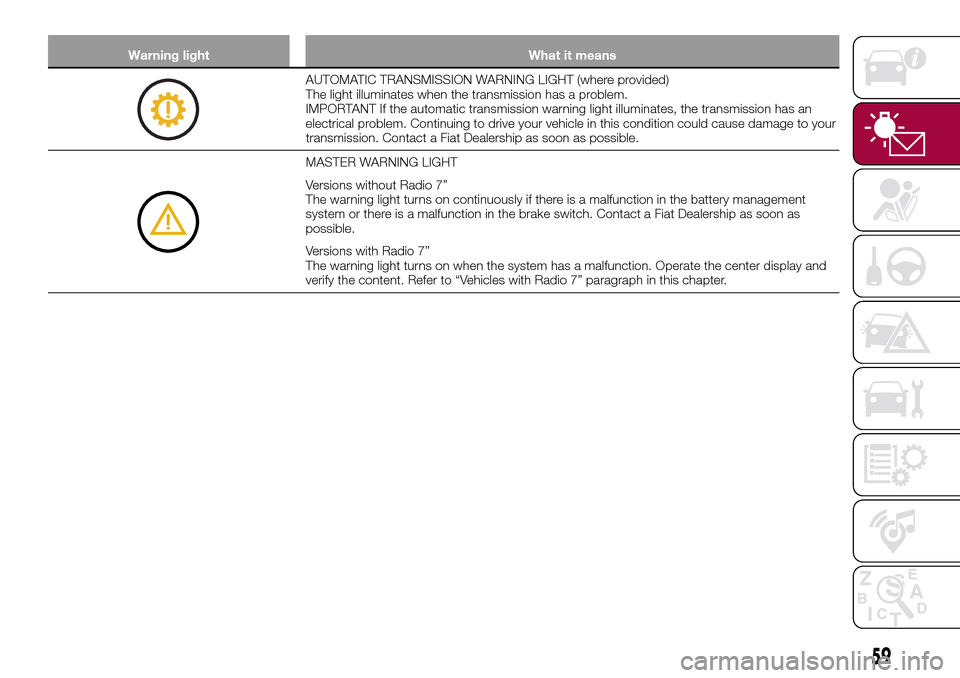

FIAT 124 SPIDER 2016 2.G Repair Manual Warning light What it means
AUTOMATIC TRANSMISSION WARNING LIGHT (where provided)
The light illuminates when the transmission has a problem.
IMPORTANT If the automatic transmission warning light illum

Page 62 of 216

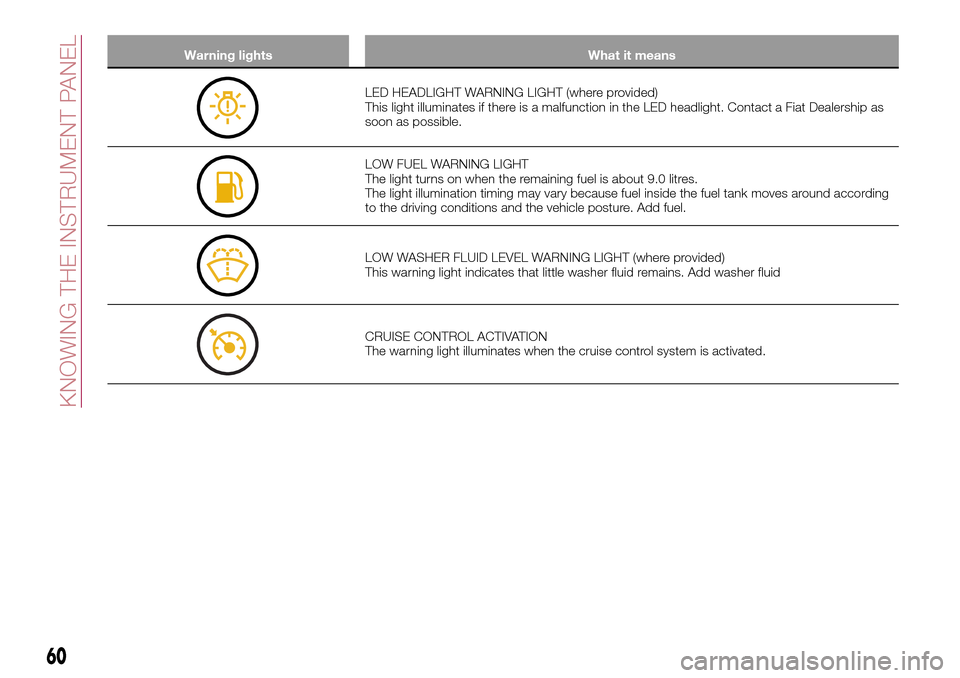

FIAT 124 SPIDER 2016 2.G Repair Manual Warning lights What it means
LED HEADLIGHT WARNING LIGHT (where provided)
This light illuminates if there is a malfunction in the LED headlight. Contact a Fiat Dealership as
soon as possible.
LOW FUEL

Page 63 of 216

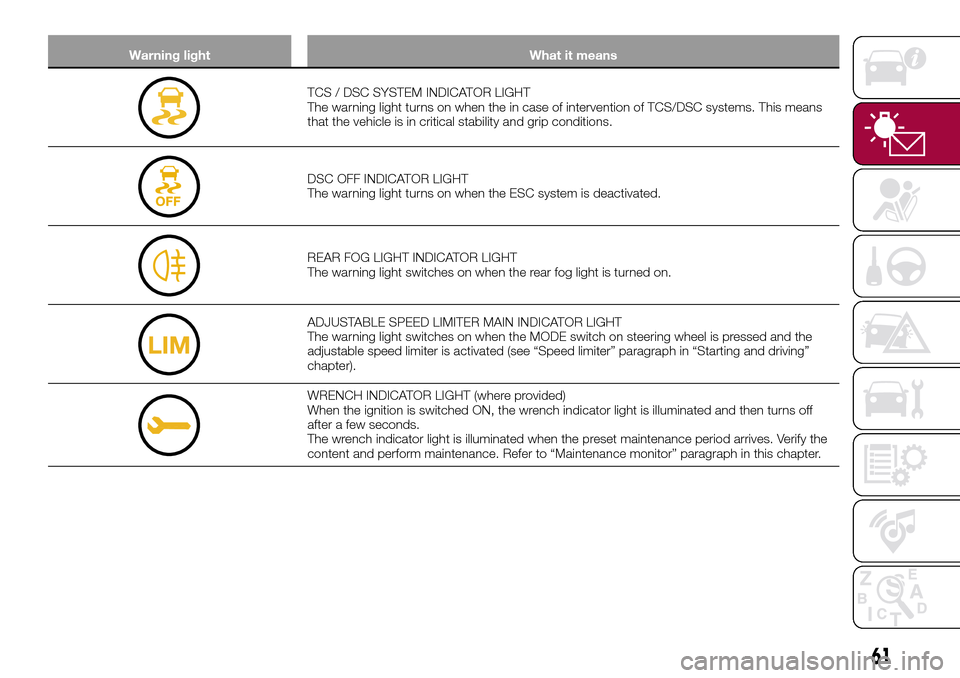

FIAT 124 SPIDER 2016 2.G Repair Manual Warning light What it means
TCS / DSC SYSTEM INDICATOR LIGHT
The warning light turns on when the in case of intervention of TCS/DSC systems. This means
that the vehicle is in critical stability and gr

Page 64 of 216

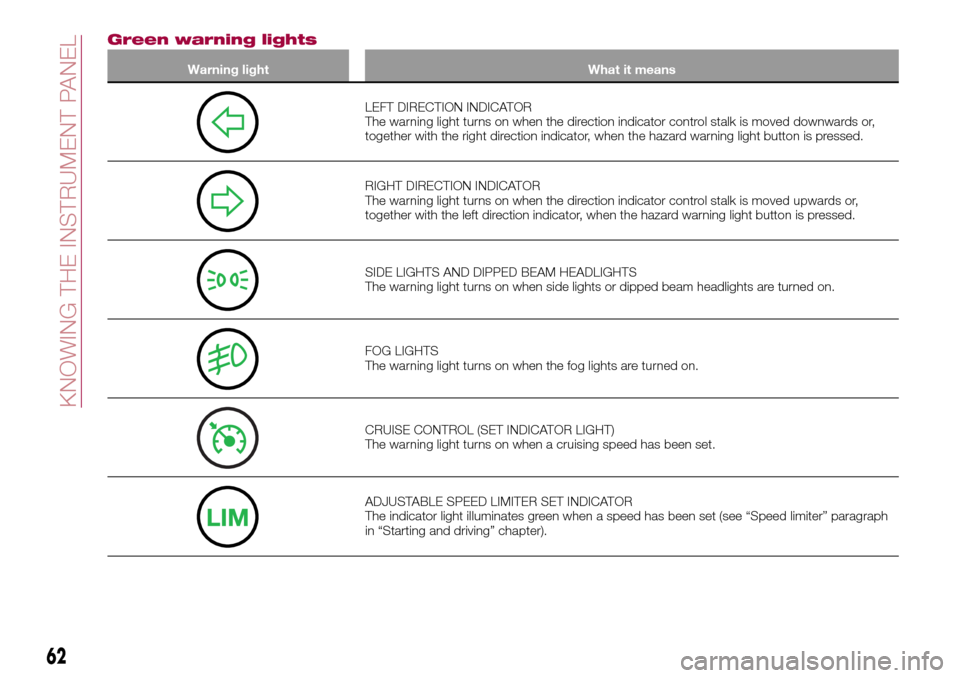

FIAT 124 SPIDER 2016 2.G Repair Manual Green warning lights
Warning light What it means
LEFT DIRECTION INDICATOR
The warning light turns on when the direction indicator control stalk is moved downwards or,
together with the right direction

Page 65 of 216

FIAT 124 SPIDER 2016 2.G Repair Manual Warning light What it means
KEY INDICATOR LIGHT
Warning light flashing
When the push button start is pressed from ON to ACC or OFF, the warning light may flash for
approximately 30 seconds indicating

Page 66 of 216

FIAT 124 SPIDER 2016 2.G Repair Manual Warning light (red color) on dashboard trim
Warning light What it means
SEAT BELT WARNING LIGHT
The seat belt warning light turns on if the driver or passengers seat is occupied and the seat
belt is

Page 67 of 216

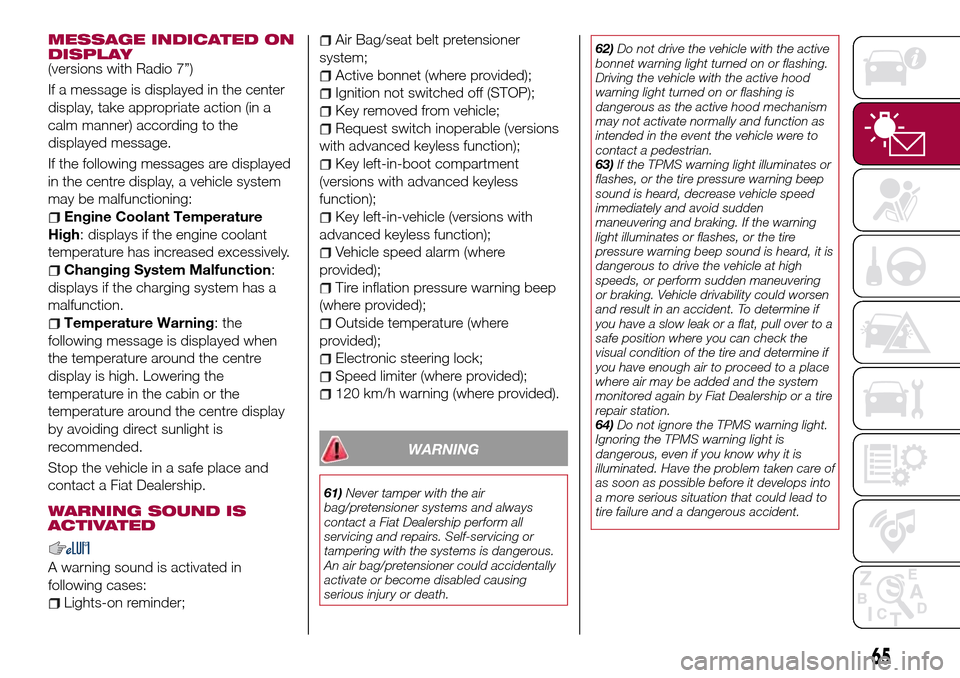

FIAT 124 SPIDER 2016 2.G Repair Manual MESSAGE INDICATED ON
DISPLAY
(versions with Radio 7”)
If a message is displayed in the center
display, take appropriate action (in a
calm manner) according to the
displayed message.
If the following

Page 68 of 216

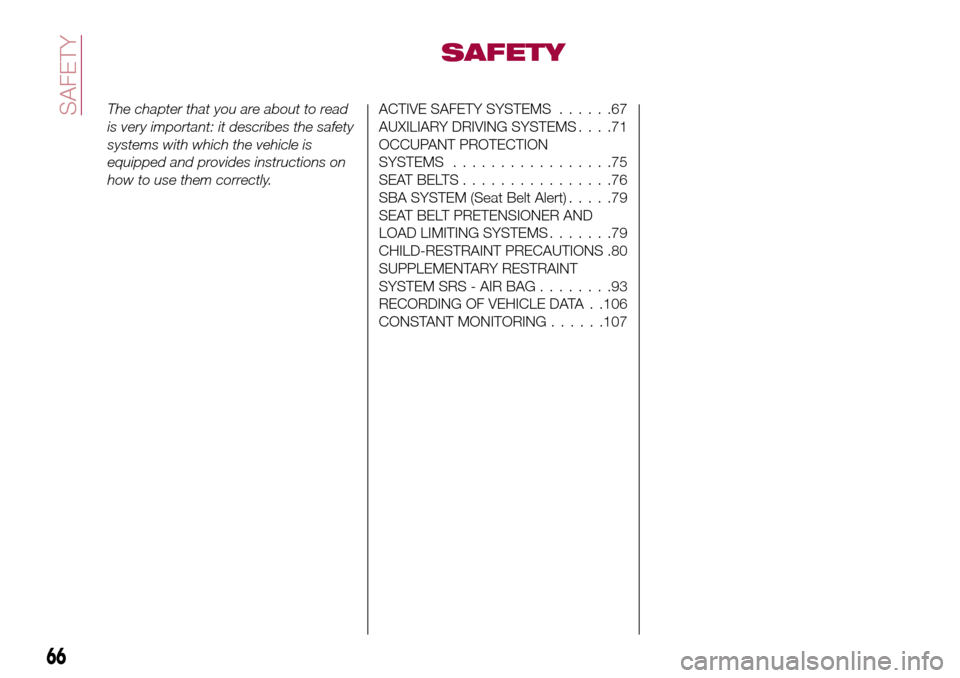

FIAT 124 SPIDER 2016 2.G Repair Manual SAFETY
The chapter that you are about to read
is very important: it describes the safety
systems with which the vehicle is
equipped and provides instructions on
how to use them correctly.ACTIVE SAFETY

Page 69 of 216

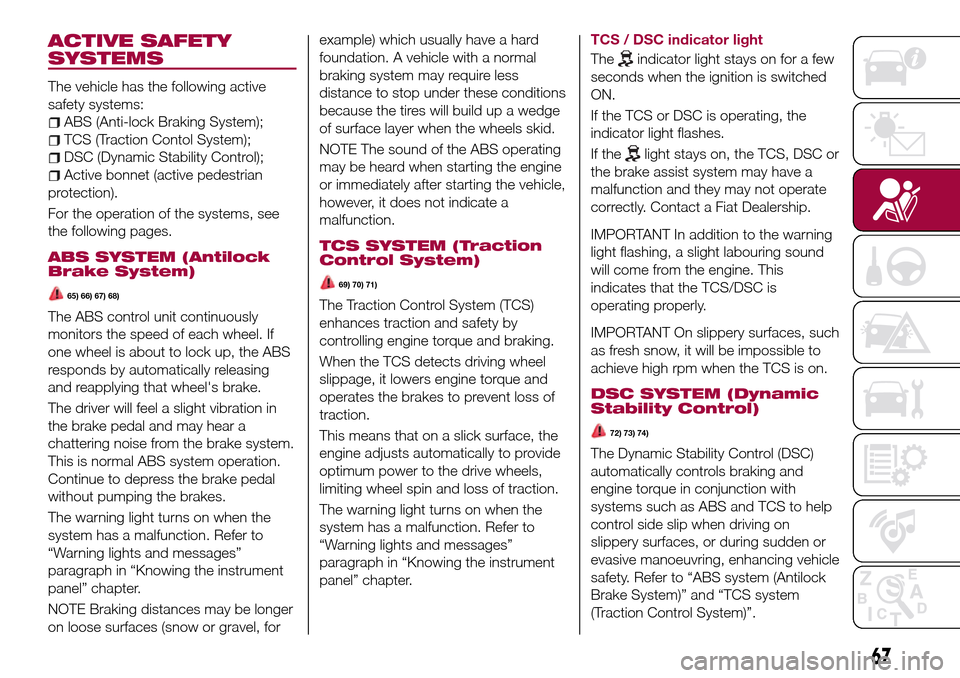

FIAT 124 SPIDER 2016 2.G Repair Manual ACTIVE SAFETY
SYSTEMS
The vehicle has the following active
safety systems:
ABS (Anti-lock Braking System);
TCS (Traction Contol System);
DSC (Dynamic Stability Control);
Active bonnet (active pedestri

Page 70 of 216

FIAT 124 SPIDER 2016 2.G Repair Manual DSC operation is possible at speeds
greater than 20 km/h.
The warning light turns on when the
system has a malfunction. Refer to
“Warning lights and messages”
paragraph in “Knowing the instrumen
