FIAT 124 SPIDER 2017 2.G Workshop Manual
Manufacturer: FIAT, Model Year: 2017, Model line: 124 SPIDER, Model: FIAT 124 SPIDER 2017 2.GPages: 300, PDF Size: 121.24 MB
Page 51 of 300

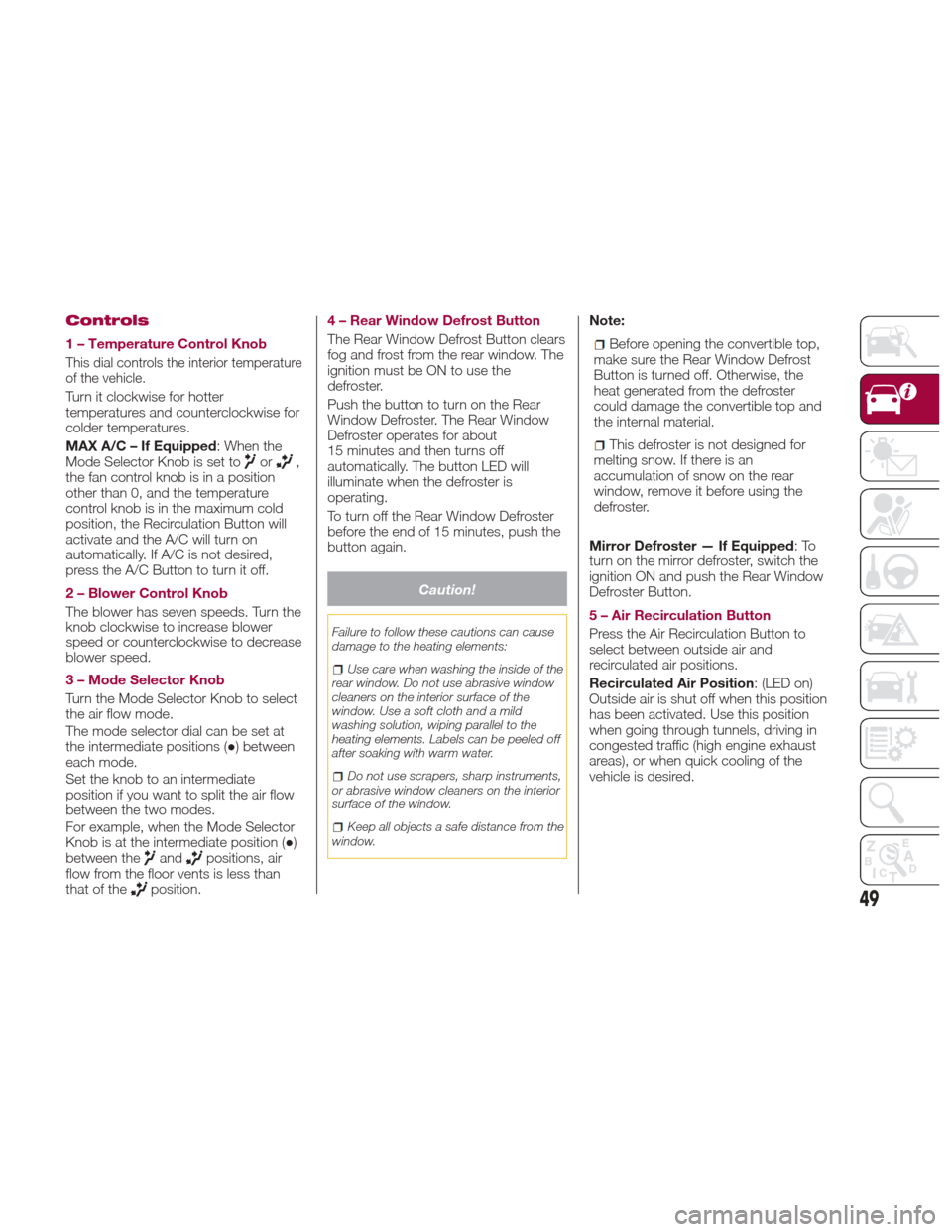

Controls
1 – Temperature Control Knob
This dial controls the interior temperature
of the vehicle.
Turn it clockwise for hotter
temperatures and counterclockwise for
colder temperatures.
MAX A/C – If Equipped: When the
Mode Selector Knob is set to
or,
the fan control knob is in a position
other than 0, and the temperature
control knob is in the maximum cold
position, the Recirculation Button will
activate and the A/C will turn on
automatically. If A/C is not desired,
press the A/C Button to turn it off.
2 – Blower Control Knob
The blower has seven speeds. Turn the
knob clockwise to increase blower
speed or counterclockwise to decrease
blower speed.
3 – Mode Selector Knob
Turn the Mode Selector Knob to select
the air flow mode.
The mode selector dial can be set at
the intermediate positions ( ●) between
each mode.
Set the knob to an intermediate
position if you want to split the air flow
between the two modes.
For example, when the Mode Selector
Knob is at the intermediate position ( ●)
between the
andpositions, air
flow from the floor vents is less than
that of the
position. 4 – Rear Window Defrost Button
The Rear Window Defrost Button clears
fog and frost from the rear window. The
ignition must be ON to use the
defroster.
Push the button to turn on the Rear
Window Defroster. The Rear Window
Defroster operates for about
15 minutes and then turns off
automatically. The button LED will
illuminate when the defroster is
operating.
To turn off the Rear Window Defroster
before the end of 15 minutes, push the
button again.
Caution!
Failure to follow these cautions can cause
damage to the heating elements:
Use care when washing the inside of the
rear window. Do not use abrasive window
cleaners on the interior surface of the
window. Use a soft cloth and a mild
washing solution, wiping parallel to the
heating elements. Labels can be peeled off
after soaking with warm water.
Do not use scrapers, sharp instruments,
or abrasive window cleaners on the interior
surface of the window.
Keep all objects a safe distance from the
window.
Note:
Before opening the convertible top,
make sure the Rear Window Defrost
Button is turned off. Otherwise, the
heat generated from the defroster
could damage the convertible top and
the internal material.
This defroster is not designed for
melting snow. If there is an
accumulation of snow on the rear
window, remove it before using the
defroster.
Mirror Defroster — If Equipped :To
turn on the mirror defroster, switch the
ignition ON and push the Rear Window
Defroster Button.
5 – Air Recirculation Button
Press the Air Recirculation Button to
select between outside air and
recirculated air positions.
Recirculated Air Position : (LED on)
Outside air is shut off when this position
has been activated. Use this position
when going through tunnels, driving in
congested traffic (high engine exhaust
areas), or when quick cooling of the
vehicle is desired.
49
Page 52 of 300

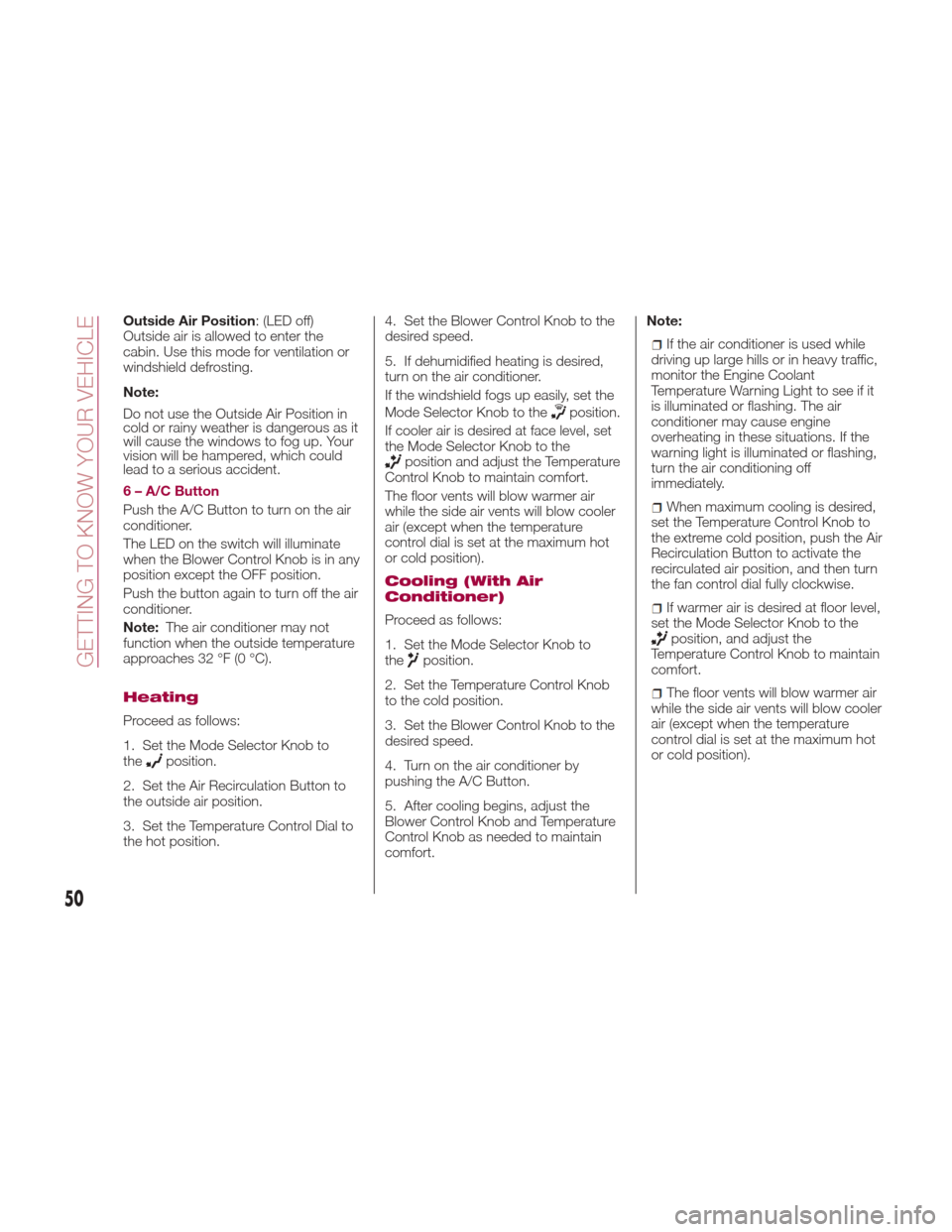

Outside Air Position: (LED off)
Outside air is allowed to enter the
cabin. Use this mode for ventilation or
windshield defrosting.
Note:
Do not use the Outside Air Position in
cold or rainy weather is dangerous as it
will cause the windows to fog up. Your
vision will be hampered, which could
lead to a serious accident.
6 – A/C Button
Push the A/C Button to turn on the air
conditioner.
The LED on the switch will illuminate
when the Blower Control Knob is in any
position except the OFF position.
Push the button again to turn off the air
conditioner.
Note: The air conditioner may not
function when the outside temperature
approaches 32 °F (0 °C).
Heating
Proceed as follows:
1. Set the Mode Selector Knob to
the
position.
2. Set the Air Recirculation Button to
the outside air position.
3. Set the Temperature Control Dial to
the hot position. 4. Set the Blower Control Knob to the
desired speed.
5. If dehumidified heating is desired,
turn on the air conditioner.
If the windshield fogs up easily, set the
Mode Selector Knob to the
position.
If cooler air is desired at face level, set
the Mode Selector Knob to the
position and adjust the Temperature
Control Knob to maintain comfort.
The floor vents will blow warmer air
while the side air vents will blow cooler
air (except when the temperature
control dial is set at the maximum hot
or cold position).
Cooling (With Air
Conditioner)
Proceed as follows:
1. Set the Mode Selector Knob to
the
position.
2. Set the Temperature Control Knob
to the cold position.
3. Set the Blower Control Knob to the
desired speed.
4. Turn on the air conditioner by
pushing the A/C Button.
5. After cooling begins, adjust the
Blower Control Knob and Temperature
Control Knob as needed to maintain
comfort. Note:
If the air conditioner is used while
driving up large hills or in heavy traffic,
monitor the Engine Coolant
Temperature Warning Light to see if it
is illuminated or flashing. The air
conditioner may cause engine
overheating in these situations. If the
warning light is illuminated or flashing,
turn the air conditioning off
immediately.
When maximum cooling is desired,
set the Temperature Control Knob to
the extreme cold position, push the Air
Recirculation Button to activate the
recirculated air position, and then turn
the fan control dial fully clockwise.
If warmer air is desired at floor level,
set the Mode Selector Knob to the
position, and adjust the
Temperature Control Knob to maintain
comfort.
The floor vents will blow warmer air
while the side air vents will blow cooler
air (except when the temperature
control dial is set at the maximum hot
or cold position).
50
GETTING TO KNOW YOUR VEHICLE
Page 53 of 300

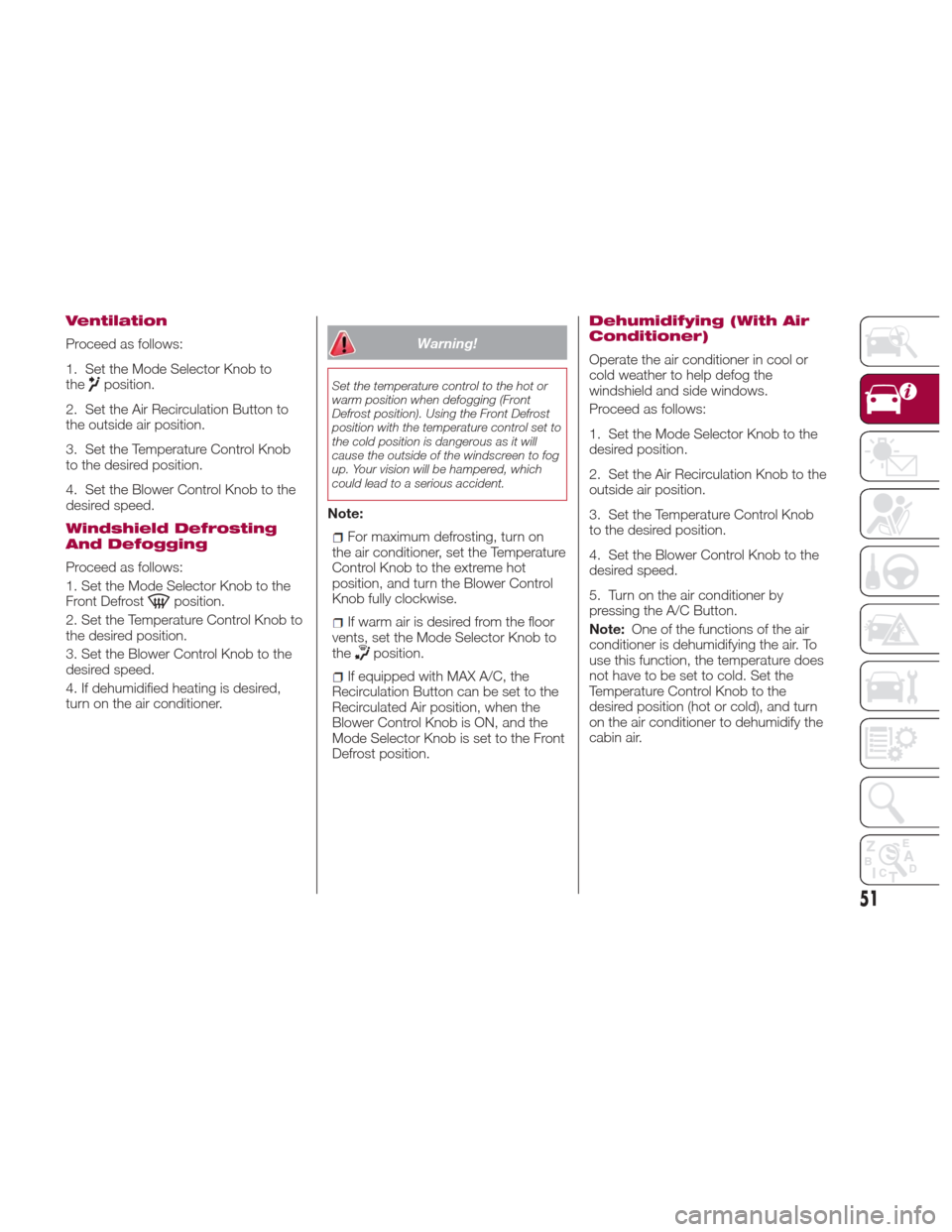

Ventilation
Proceed as follows:
1. Set the Mode Selector Knob to
the
position.
2. Set the Air Recirculation Button to
the outside air position.
3. Set the Temperature Control Knob
to the desired position.
4. Set the Blower Control Knob to the
desired speed.
Windshield Defrosting
And Defogging
Proceed as follows:
1. Set the Mode Selector Knob to the
Front Defrost
position.
2. Set the Temperature Control Knob to
the desired position.
3. Set the Blower Control Knob to the
desired speed.
4. If dehumidified heating is desired,
turn on the air conditioner.
Warning!
Set the temperature control to the hot or
warm position when defogging (Front
Defrost position). Using the Front Defrost
position with the temperature control set to
the cold position is dangerous as it will
cause the outside of the windscreen to fog
up. Your vision will be hampered, which
could lead to a serious accident.
Note:
For maximum defrosting, turn on
the air conditioner, set the Temperature
Control Knob to the extreme hot
position, and turn the Blower Control
Knob fully clockwise.
If warm air is desired from the floor
vents, set the Mode Selector Knob to
the
position.
If equipped with MAX A/C, the
Recirculation Button can be set to the
Recirculated Air position, when the
Blower Control Knob is ON, and the
Mode Selector Knob is set to the Front
Defrost position.
Dehumidifying (With Air
Conditioner)
Operate the air conditioner in cool or
cold weather to help defog the
windshield and side windows.
Proceed as follows:
1. Set the Mode Selector Knob to the
desired position.
2. Set the Air Recirculation Knob to the
outside air position.
3. Set the Temperature Control Knob
to the desired position.
4. Set the Blower Control Knob to the
desired speed.
5. Turn on the air conditioner by
pressing the A/C Button.
Note: One of the functions of the air
conditioner is dehumidifying the air. To
use this function, the temperature does
not have to be set to cold. Set the
Temperature Control Knob to the
desired position (hot or cold), and turn
on the air conditioner to dehumidify the
cabin air.
51
Page 54 of 300
Automatic Climate Control System
06010900-122-999Automatic Climate Controls — Type A
1 — Temperature Control Knob4 — Rear Window Defrost Button
2 — Blower Control Knob 5 — Air Recirculation Button
3 — Mode Selector Knob 6 — A/C Button
52
GETTING TO KNOW YOUR VEHICLE
Page 55 of 300
GUID-06010900122Automatic Climate Controls — Type B
1 — Temperature Control Knob4 — Rear Window Defrost Button
2 — Blower Control Knob 5 — Air Recirculation Button
3 — Mode Selector Knob 6 — A/C Button
53
Page 56 of 300

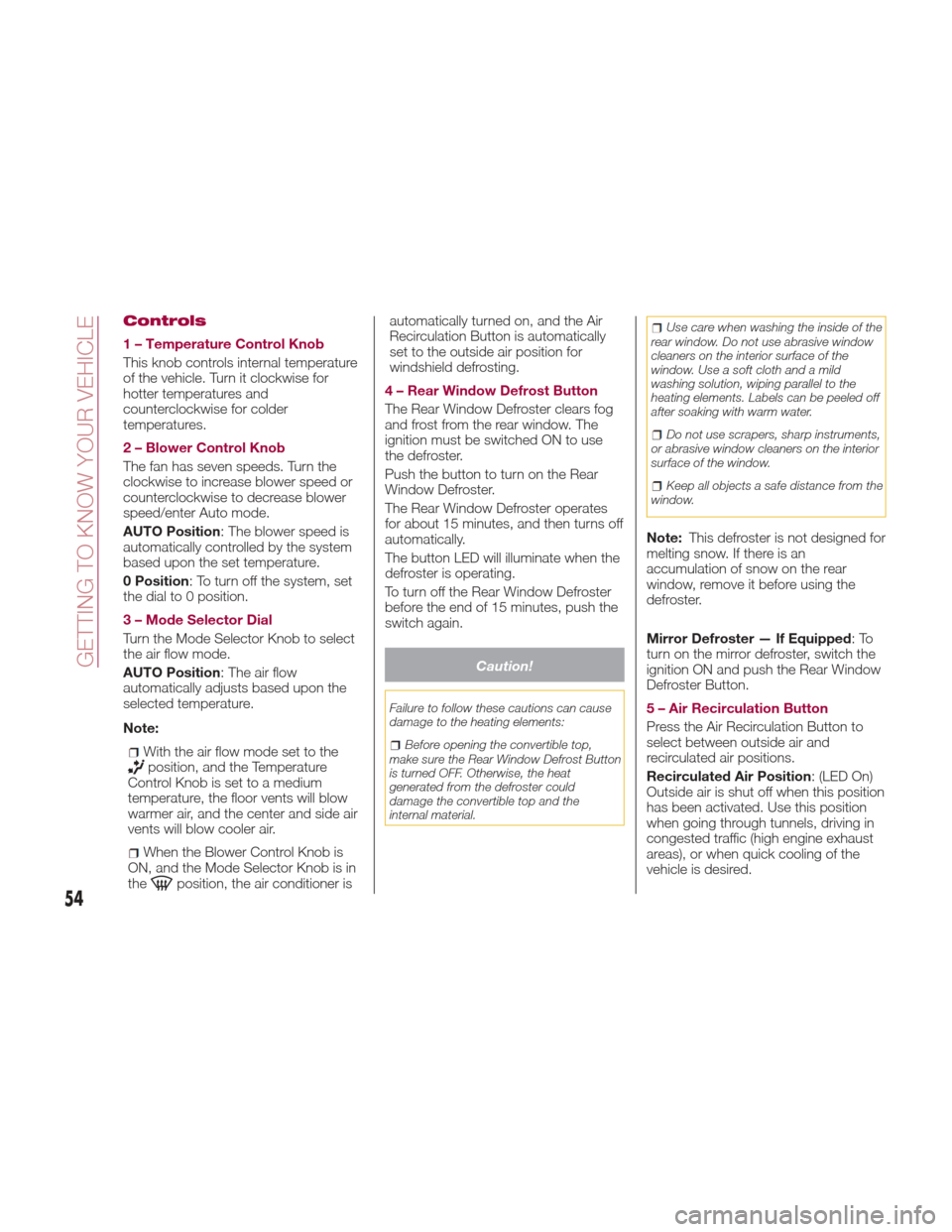

Controls
1 – Temperature Control Knob
This knob controls internal temperature
of the vehicle. Turn it clockwise for
hotter temperatures and
counterclockwise for colder
temperatures.
2 – Blower Control Knob
The fan has seven speeds. Turn the
clockwise to increase blower speed or
counterclockwise to decrease blower
speed/enter Auto mode.
AUTO Position: The blower speed is
automatically controlled by the system
based upon the set temperature.
0 Position : To turn off the system, set
the dial to 0 position.
3 – Mode Selector Dial
Turn the Mode Selector Knob to select
the air flow mode.
AUTO Position : The air flow
automatically adjusts based upon the
selected temperature.
Note:
With the air flow mode set to theposition, and the Temperature
Control Knob is set to a medium
temperature, the floor vents will blow
warmer air, and the center and side air
vents will blow cooler air.
When the Blower Control Knob is
ON, and the Mode Selector Knob is in
the
position, the air conditioner is automatically turned on, and the Air
Recirculation Button is automatically
set to the outside air position for
windshield defrosting.
4 – Rear Window Defrost Button
The Rear Window Defroster clears fog
and frost from the rear window. The
ignition must be switched ON to use
the defroster.
Push the button to turn on the Rear
Window Defroster.
The Rear Window Defroster operates
for about 15 minutes, and then turns off
automatically.
The button LED will illuminate when the
defroster is operating.
To turn off the Rear Window Defroster
before the end of 15 minutes, push the
switch again.
Caution!
Failure to follow these cautions can cause
damage to the heating elements:
Before opening the convertible top,
make sure the Rear Window Defrost Button
is turned OFF. Otherwise, the heat
generated from the defroster could
damage the convertible top and the
internal material.
Use care when washing the inside of the
rear window. Do not use abrasive window
cleaners on the interior surface of the
window. Use a soft cloth and a mild
washing solution, wiping parallel to the
heating elements. Labels can be peeled off
after soaking with warm water.
Do not use scrapers, sharp instruments,
or abrasive window cleaners on the interior
surface of the window.
Keep all objects a safe distance from the
window.
Note: This defroster is not designed for
melting snow. If there is an
accumulation of snow on the rear
window, remove it before using the
defroster.
Mirror Defroster — If Equipped :To
turn on the mirror defroster, switch the
ignition ON and push the Rear Window
Defroster Button.
5 – Air Recirculation Button
Press the Air Recirculation Button to
select between outside air and
recirculated air positions.
Recirculated Air Position : (LED On)
Outside air is shut off when this position
has been activated. Use this position
when going through tunnels, driving in
congested traffic (high engine exhaust
areas), or when quick cooling of the
vehicle is desired.
54
GETTING TO KNOW YOUR VEHICLE
Page 57 of 300
Outside Air Position: (LED Off)
Outside air is allowed to enter the
cabin. Use this mode for ventilation or
windshield defrosting.
Note:
Do not Recirculated Air Position use the
position in cold or rainy weather. Using
the Recirculated Air Position in cold or
rainy weather is dangerous as it will
cause the windows to fog up. Your
vision will be hampered, which could
lead to a serious accident.
6 – A/C Switch
Push the A/C Button to turn on the air
conditioner.
The LED on the switch will illuminate
when the Blower Control Knob is in any
position except the OFF position.
Push the button again to turn off the air
conditioner.
Note: The air conditioner may not
function when the outside temperature
approaches 32 ° F(0°C).Operation Of Automatic
Air Conditioning
Proceed as follows:
1. Set the mode selector dial to the
AUTO position.
2. Set the air intake selector to the
outside air position (indicator light
turned off).
Note:If the recirculated air position is
used for long periods in cold weather or
high humidity, the windshield may fog
up more easily.
3. Set the fan control dial to the AUTO
position.
4. Push the A/C switch to operate the
air conditioning (indicator light on).
5. Set the temperature control dial to
the desired position.
6. To turn off the system, set the fan
control dial to the 0 position.
Setting the temperature to maximum
hot or cold will not provide the desired
temperature at a faster rate.
When selecting heat, the system will
restrict air flow until it has warmed to
prevent cold air from blowing out of the
vents.
For an optimal cabin temperature, set
the temperature close to “77”. Adjust to
the desired temperature if necessary.
Windshield Defrosting
And Defogging
Set the mode selector dial to theposition and turn the fan control
dial to the desired speed.
In this position, the outside air position
is automatically selected, and when the
fan control dial is ON, the air
conditioner automatically turns on. The
air conditioner will directly dehumidify
the air to the front windscreen and side
windows. Air flow amount will be
increased.
Use the temperature control dial to
increase the air flow temperature and
defog the windscreen more quickly.
Warning!
Set the temperature control to the hot or
warm position when defogging (Front
Defrost position). Using the Front Defrost
position with the temperature control set to
the cold position is dangerous as it will
cause the outside of the windscreen to fog
up. Your vision will be hampered, which
could lead to a serious accident.
Sunlight/Temperature
Sensor
The air conditioning system measures
inside and outside temperatures, and
sunlight.
It then sets temperatures inside the
cabin accordingly.
55
Page 58 of 300
Note:Do not obstruct either sensor,
otherwise the air-conditioning system
will not operate properly.
POWER WINDOWS
Power Window Controls
The ignition must be placed in the ON
position for the power windows to
operate.
A power window may no longer
open/close if you continue to push the
switch after opening/closing the power
window.
If the power window does not
open/close, wait a moment and then
operate the switch again.
Note: To prevent burning out the fuse
and damaging the power window
system, do not open or close both
windows at once.
The passenger window can be
operated with each door switch when
the power window lock switch on the
driver's door is in the unlocked position. Passenger Control Switches
The passenger window can also be
operated using the master control
switches on the driver's door:
GUID-06010904333003Exterior Sensor
1 — Sunlight Sensor
06010904-121-002-high.jpgInterior Sensor
2 — Interior Temperature Sensor
04070103-LN2-002Power Window Switches
1 — Driver's Window
2 — Passenger's Window
56
GETTING TO KNOW YOUR VEHICLE
Page 59 of 300

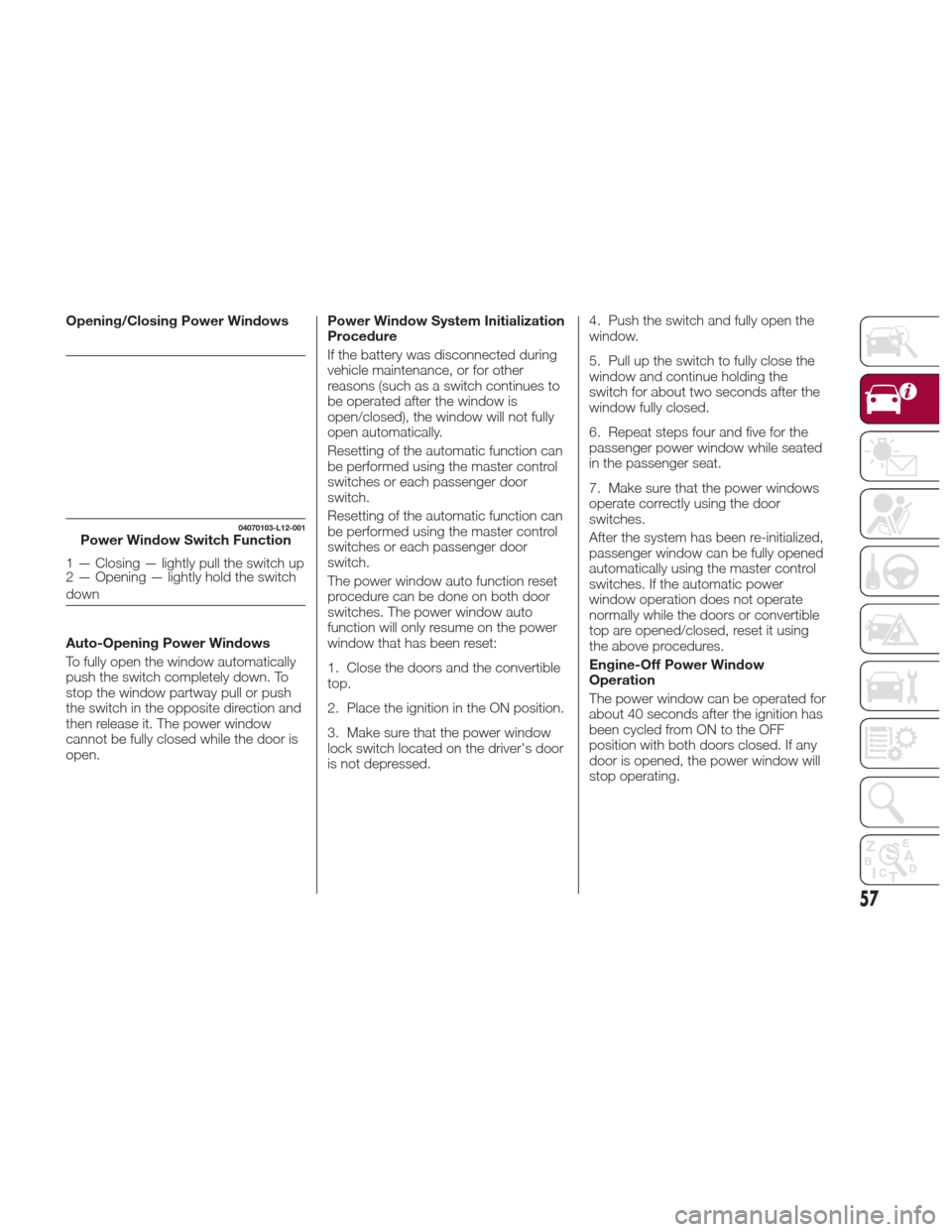

Opening/Closing Power Windows
Auto-Opening Power Windows
To fully open the window automatically
push the switch completely down. To
stop the window partway pull or push
the switch in the opposite direction and
then release it. The power window
cannot be fully closed while the door is
open.Power Window System Initialization
Procedure
If the battery was disconnected during
vehicle maintenance, or for other
reasons (such as a switch continues to
be operated after the window is
open/closed), the window will not fully
open automatically.
Resetting of the automatic function can
be performed using the master control
switches or each passenger door
switch.
Resetting of the automatic function can
be performed using the master control
switches or each passenger door
switch.
The power window auto function reset
procedure can be done on both door
switches. The power window auto
function will only resume on the power
window that has been reset:
1. Close the doors and the convertible
top.
2. Place the ignition in the ON position.
3. Make sure that the power window
lock switch located on the driver's door
is not depressed.4. Push the switch and fully open the
window.
5. Pull up the switch to fully close the
window and continue holding the
switch for about two seconds after the
window fully closed.
6. Repeat steps four and five for the
passenger power window while seated
in the passenger seat.
7. Make sure that the power windows
operate correctly using the door
switches.
After the system has been re-initialized,
passenger window can be fully opened
automatically using the master control
switches. If the automatic power
window operation does not operate
normally while the doors or convertible
top are opened/closed, reset it using
the above procedures.
Engine-Off Power Window
Operation
The power window can be operated for
about 40 seconds after the ignition has
been cycled from ON to the OFF
position with both doors closed. If any
door is opened, the power window will
stop operating.
04070103-L12-001Power Window Switch Function
1 — Closing — lightly pull the switch up
2 — Opening — lightly hold the switch
down
57
Page 60 of 300

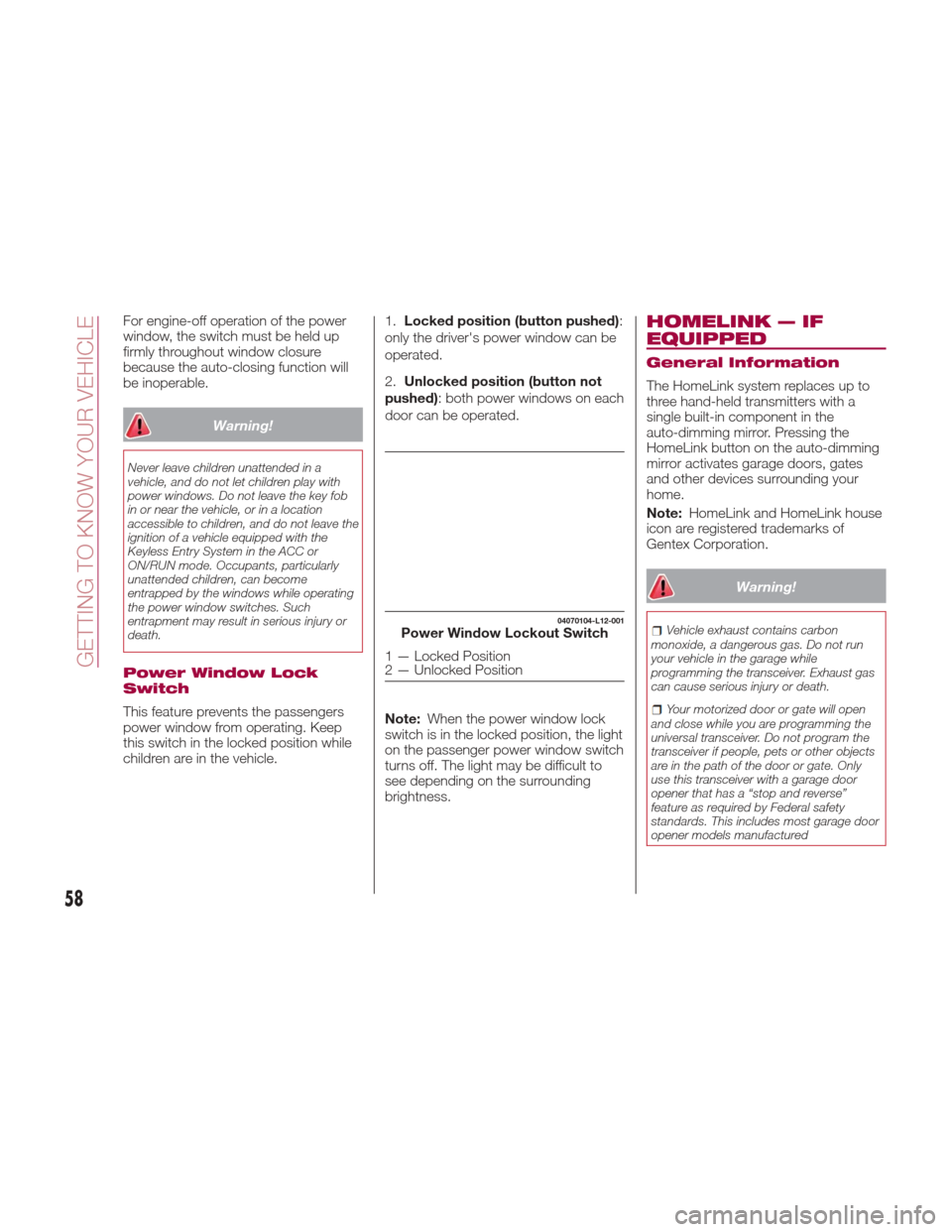

For engine-off operation of the power
window, the switch must be held up
firmly throughout window closure
because the auto-closing function will
be inoperable.
Warning!
Never leave children unattended in a
vehicle, and do not let children play with
power windows. Do not leave the key fob
in or near the vehicle, or in a location
accessible to children, and do not leave the
ignition of a vehicle equipped with the
Keyless Entry System in the ACC or
ON/RUN mode. Occupants, particularly
unattended children, can become
entrapped by the windows while operating
the power window switches. Such
entrapment may result in serious injury or
death.
Power Window Lock
Switch
This feature prevents the passengers
power window from operating. Keep
this switch in the locked position while
children are in the vehicle.1.
Locked position (button pushed) :
only the driver's power window can be
operated.
2. Unlocked position (button not
pushed): both power windows on each
door can be operated.
Note: When the power window lock
switch is in the locked position, the light
on the passenger power window switch
turns off. The light may be difficult to
see depending on the surrounding
brightness.
HOMELINK — IF
EQUIPPED
General Information
The HomeLink system replaces up to
three hand-held transmitters with a
single built-in component in the
auto-dimming mirror. Pressing the
HomeLink button on the auto-dimming
mirror activates garage doors, gates
and other devices surrounding your
home.
Note: HomeLink and HomeLink house
icon are registered trademarks of
Gentex Corporation.
Warning!
Vehicle exhaust contains carbon
monoxide, a dangerous gas. Do not run
your vehicle in the garage while
programming the transceiver. Exhaust gas
can cause serious injury or death.
Your motorized door or gate will open
and close while you are programming the
universal transceiver. Do not program the
transceiver if people, pets or other objects
are in the path of the door or gate. Only
use this transceiver with a garage door
opener that has a “stop and reverse”
feature as required by Federal safety
standards. This includes most garage door
opener models manufactured
04070104-L12-001Power Window Lockout Switch
1 — Locked Position
2 — Unlocked Position
58
GETTING TO KNOW YOUR VEHICLE
