GRAPHICAL TABLE OF CONTENTS
FRONT VIEW
Front View
1 — Engine Compartment3 — Doors5 — Exterior Lights
2 — Windshield Wiper Blades 4 — Wheels and Tires
01020304-000-100Spider Front View
9
Page 12 of 300
REAR VIEW
Rear View
1 — Outside Mirrors3 — Antenna5 — Exterior Lights
2 — Convertible Top (Soft Top) 4 — Trunk Lid6 — Fuel Door
01020304-001-100-high.jpgSpider Rear View
10
Page 13 of 300
INSTRUMENT PANEL
Instrument Panel
1 — Turn Signal/High Beams Lever 4 — Hazard Warning Lights Button 7 — Driver Air Bag
2 — Instrument Cluster 5 — Passenger Air Bag 8 — Control Buttons
3 — Windshield Wiper and Washers 6 — Ignition Switch
02010200-129-555-high.jpgSpider Instrument Panel
11
Page 14 of 300
INTERIOR OVERVIEW
INTERIOR OVERVIEW
1 — Steering Wheel4 — Climate Control System7 — Radio Control
2 — Inside Mirror 5 — Transmission8 — Seats
3 — Radio Systems 6 — Parking Break
01020304-002-100Interior Overview
12
Page 15 of 300
GETTING TO KNOW YOUR VEHICLE
KEYS....................14
IGNITION SWITCH ............21
ADVANCED KEYLESS ENTRY
SYSTEM — IF EQUIPPED .......22
VEHICLE SECURITY ALARM
SYSTEM — IF EQUIPPED .......24
DOORS...................26
SEATS ...................33
NON-ADJUSTABLE HEAD
RESTRAINTS ...............34
STEERING WHEEL ...........35
MIRRORS .................36
EXTERIOR LIGHTS ...........38
WINDSHEILD WIPERS / WASHER . .42
CLIMATE CONTROL SYSTEM ....44
POWER WINDOWS ...........56
HOMELINK — IF EQUIPPED .....58
INTERNAL EQUIPMENT ........61
TRUNKLID ................66
TRUNK EMERGENCY RELEASE . . .68
HOOD ...................69
CONVERTIBLE TOP (SOFT TOP) . .70
ELECTRIC POWER STEERING ....74
ENVIRONMENT PROTECTION
SYSTEMS .................74
13
Page 16 of 300
KEYS
Key Fob
A code number is stamped on the plate
attached to the key set; detach this
plate and store it in a safe place (not in
the vehicle) for use if you need to make
a replacement Emergency Key.
Also, write down the code number and
keep it in a separate safe and
convenient place, but not in the vehicle.
If your key fob is lost, contact an
Authorized Dealership and have your
code number ready.
Note:Your key fob configuration may
vary with different feature button icons
as well as the total number of feature
buttons depending on your vehicle
options/features. Key fob example as
shown. To use the Emergency Key, push the
mechanical latch on the back side of
the key fob and pull the emergency key
out that's housed inside the key fob.
Note:
Always keep a spare key fob in
case one is lost. If a key fob is lost, see
an Authorized Dealer as soon as
possible.
The driver must carry the key fob to
ensure the keyless entry system
functions properly.
Warning!
Before exiting a vehicle, always shift the
automatic transmission into PARK or the
manual transmission into FIRST gear or
REVERSE, apply the parking brake, turn the
engine OFF, remove the key fob from the
vehicle and lock your vehicle.
Never leave children alone in a vehicle,
or with access to an unlocked vehicle.
Allowing children to be in a vehicle
unattended is dangerous for a number of
reasons. A child or others could be
seriously or fatally injured. Children should
be warned not to touch the parking brake,
brake pedal or the gear selector.
Do not leave the key fob in or near the
vehicle, or in a location accessible to
children. A child could operate power
windows, other controls, or move the
vehicle.
Do not leave children or animals inside
parked vehicles in hot weather. Interior heat
build-up may cause serious injury or death.
04010177-361-002Spider Key Fob
1 — Emergency Key
2 — Key Fob
3 — Key Code Number Plate
14
GETTING TO KNOW YOUR VEHICLE
Page 17 of 300

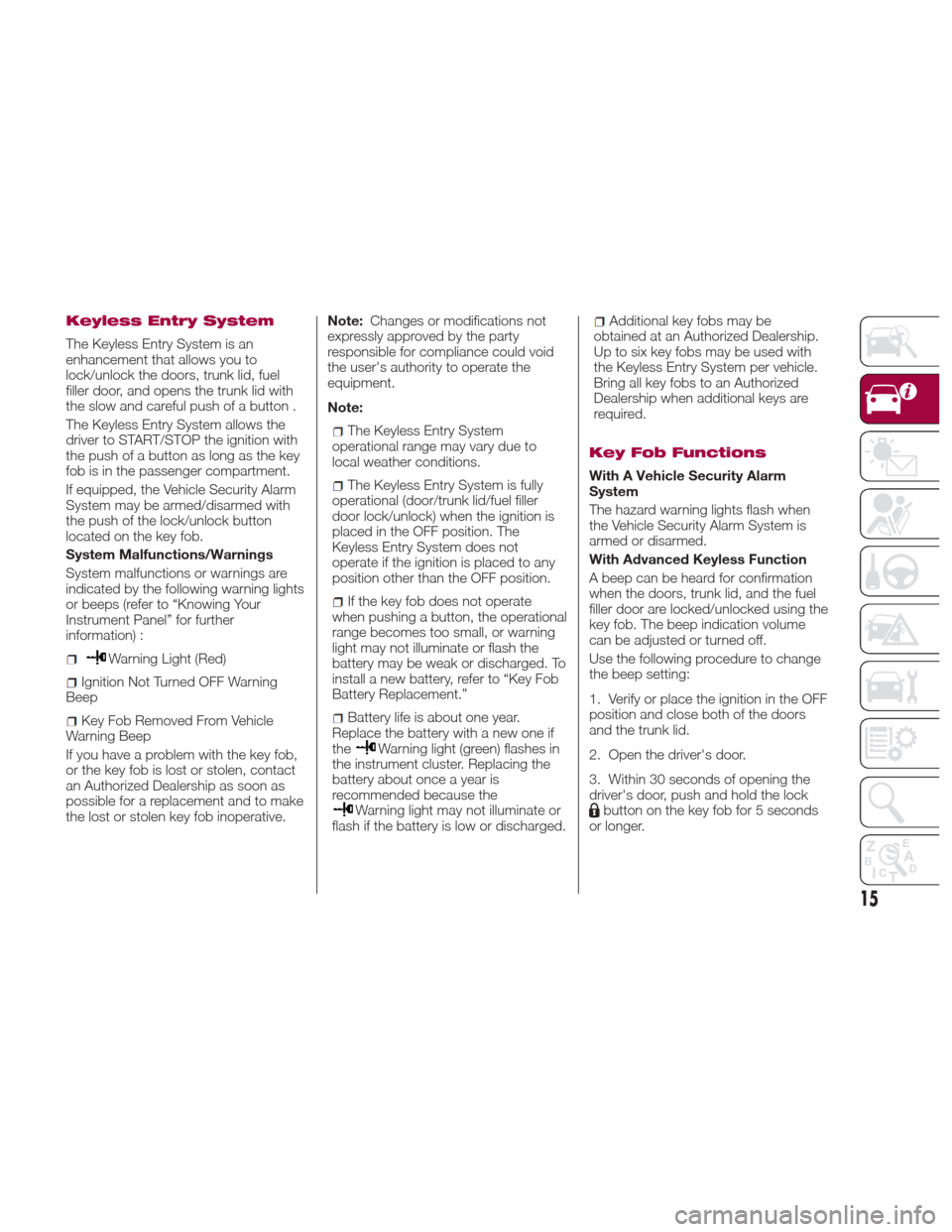

Keyless Entry System
The Keyless Entry System is an
enhancement that allows you to
lock/unlock the doors, trunk lid, fuel
filler door, and opens the trunk lid with
the slow and careful push of a button .
The Keyless Entry System allows the
driver to START/STOP the ignition with
the push of a button as long as the key
fob is in the passenger compartment.
If equipped, the Vehicle Security Alarm
System may be armed/disarmed with
the push of the lock/unlock button
located on the key fob.
System Malfunctions/Warnings
System malfunctions or warnings are
indicated by the following warning lights
or beeps (refer to “Knowing Your
Instrument Panel” for further
information) :
Warning Light (Red)
Ignition Not Turned OFF Warning
Beep
Key Fob Removed From Vehicle
Warning Beep
If you have a problem with the key fob,
or the key fob is lost or stolen, contact
an Authorized Dealership as soon as
possible for a replacement and to make
the lost or stolen key fob inoperative. Note:
Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
Note:
The Keyless Entry System
operational range may vary due to
local weather conditions.
The Keyless Entry System is fully
operational (door/trunk lid/fuel filler
door lock/unlock) when the ignition is
placed in the OFF position. The
Keyless Entry System does not
operate if the ignition is placed to any
position other than the OFF position.
If the key fob does not operate
when pushing a button, the operational
range becomes too small, or warning
light may not illuminate or flash the
battery may be weak or discharged. To
install a new battery, refer to “Key Fob
Battery Replacement.”
Battery life is about one year.
Replace the battery with a new one if
the
Warning light (green) flashes in
the instrument cluster. Replacing the
battery about once a year is
recommended because the
Warning light may not illuminate or
flash if the battery is low or discharged.
Additional key fobs may be
obtained at an Authorized Dealership.
Up to six key fobs may be used with
the Keyless Entry System per vehicle.
Bring all key fobs to an Authorized
Dealership when additional keys are
required.
Key Fob Functions
With A Vehicle Security Alarm
System
The hazard warning lights flash when
the Vehicle Security Alarm System is
armed or disarmed.
With Advanced Keyless Function
A beep can be heard for confirmation
when the doors, trunk lid, and the fuel
filler door are locked/unlocked using the
key fob. The beep indication volume
can be adjusted or turned off.
Use the following procedure to change
the beep setting:
1. Verify or place the ignition in the OFF
position and close both of the doors
and the trunk lid.
2. Open the driver's door.
3. Within 30 seconds of opening the
driver's door, push and hold the lock
button on the key fob for 5 seconds
or longer.
15
Page 18 of 300

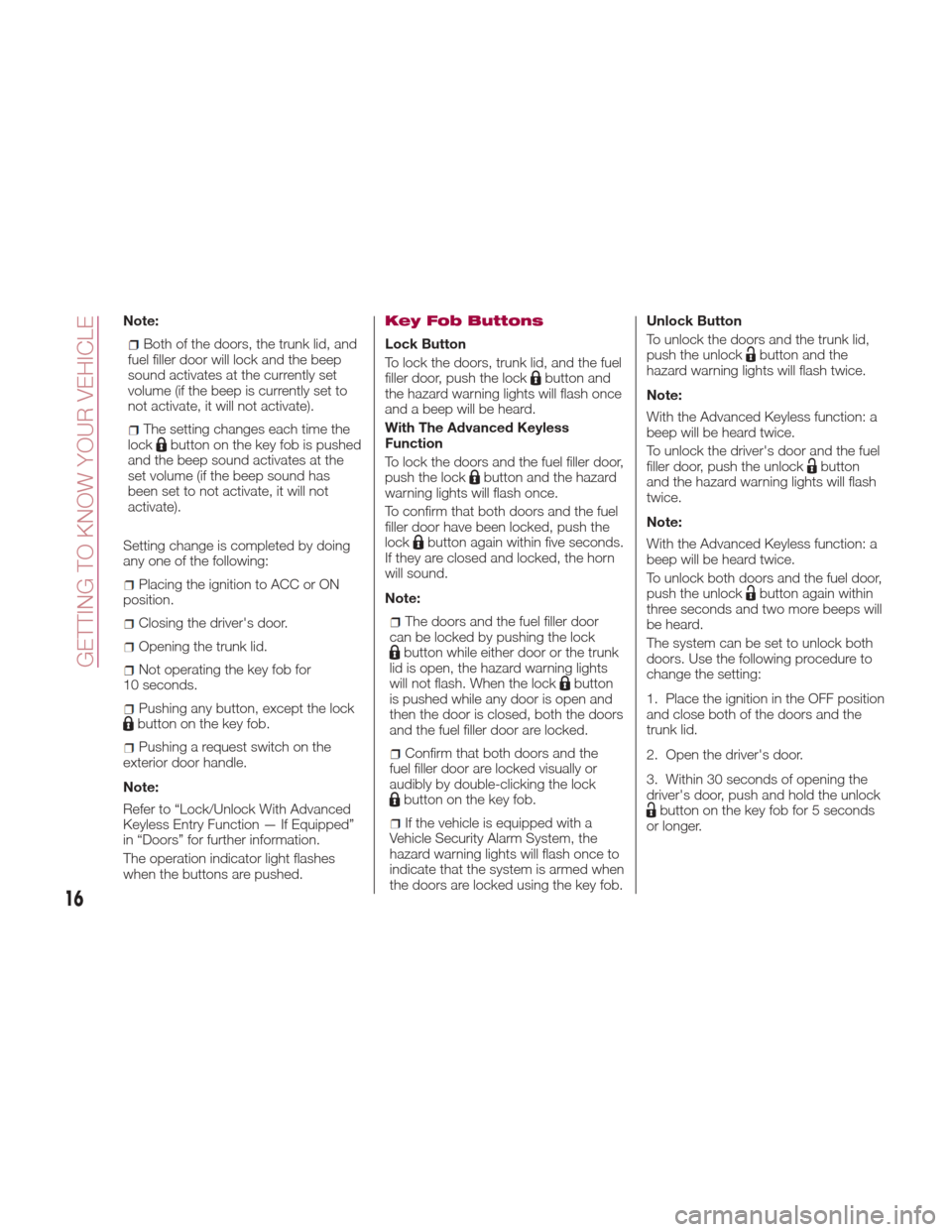

Note:
Both of the doors, the trunk lid, and
fuel filler door will lock and the beep
sound activates at the currently set
volume (if the beep is currently set to
not activate, it will not activate).
The setting changes each time the
lockbutton on the key fob is pushed
and the beep sound activates at the
set volume (if the beep sound has
been set to not activate, it will not
activate).
Setting change is completed by doing
any one of the following:
Placing the ignition to ACC or ON
position.
Closing the driver's door.
Opening the trunk lid.
Not operating the key fob for
10 seconds.
Pushing any button, except the lockbutton on the key fob.
Pushing a request switch on the
exterior door handle.
Note:
Refer to “Lock/Unlock With Advanced
Keyless Entry Function — If Equipped”
in “Doors” for further information.
The operation indicator light flashes
when the buttons are pushed.
Key Fob Buttons
Lock Button
To lock the doors, trunk lid, and the fuel
filler door, push the lock
button and
the hazard warning lights will flash once
and a beep will be heard.
With The Advanced Keyless
Function
To lock the doors and the fuel filler door,
push the lock
button and the hazard
warning lights will flash once.
To confirm that both doors and the fuel
filler door have been locked, push the
lock
button again within five seconds.
If they are closed and locked, the horn
will sound.
Note:
The doors and the fuel filler door
can be locked by pushing the lock
button while either door or the trunk
lid is open, the hazard warning lights
will not flash. When the lock
button
is pushed while any door is open and
then the door is closed, both the doors
and the fuel filler door are locked.
Confirm that both doors and the
fuel filler door are locked visually or
audibly by double-clicking the lock
button on the key fob.
If the vehicle is equipped with a
Vehicle Security Alarm System, the
hazard warning lights will flash once to
indicate that the system is armed when
the doors are locked using the key fob. Unlock Button
To unlock the doors and the trunk lid,
push the unlock
button and the
hazard warning lights will flash twice.
Note:
With the Advanced Keyless function: a
beep will be heard twice.
To unlock the driver's door and the fuel
filler door, push the unlock
button
and the hazard warning lights will flash
twice.
Note:
With the Advanced Keyless function: a
beep will be heard twice.
To unlock both doors and the fuel door,
push the unlock
button again within
three seconds and two more beeps will
be heard.
The system can be set to unlock both
doors. Use the following procedure to
change the setting:
1. Place the ignition in the OFF position
and close both of the doors and the
trunk lid.
2. Open the driver's door.
3. Within 30 seconds of opening the
driver's door, push and hold the unlock
button on the key fob for 5 seconds
or longer.
16
GETTING TO KNOW YOUR VEHICLE
Page 19 of 300

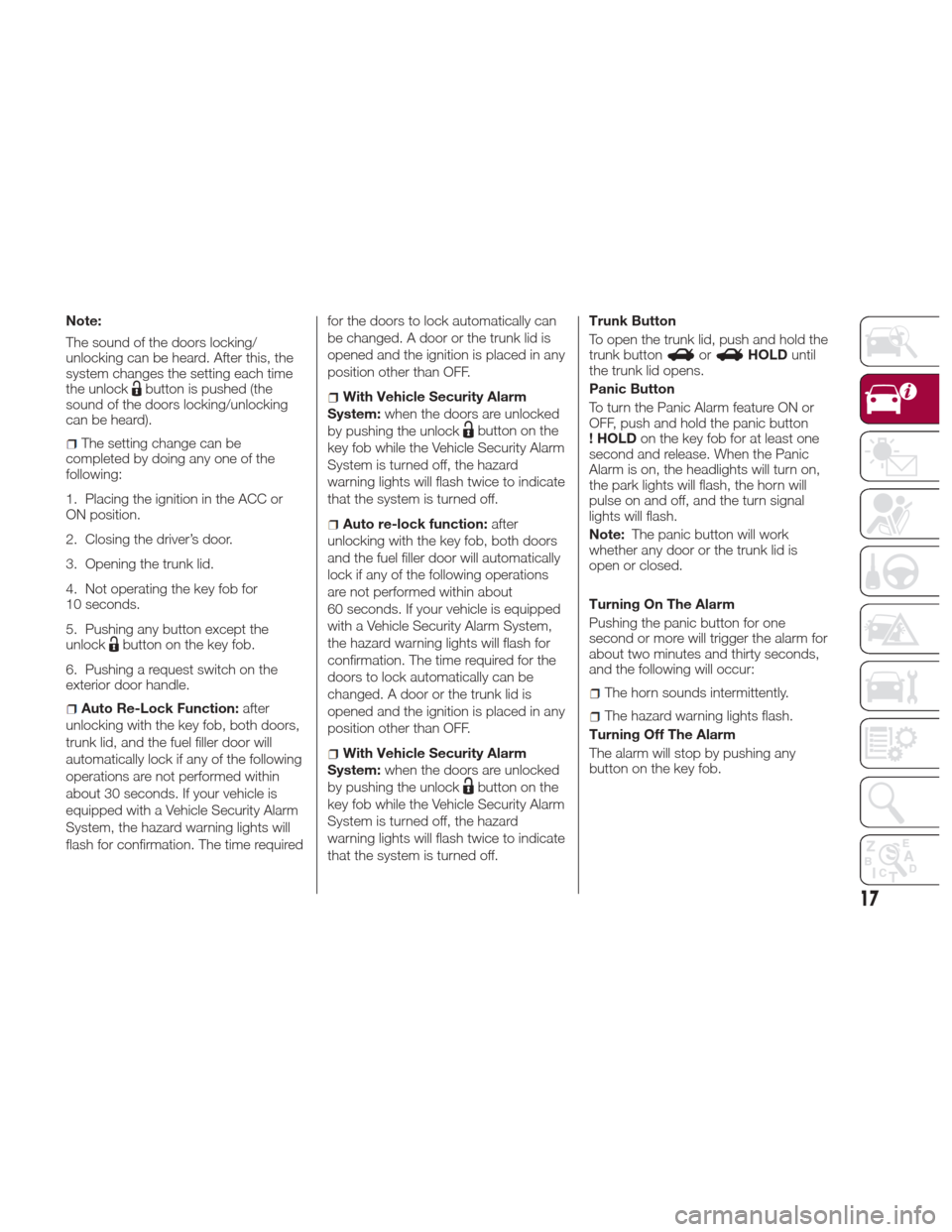

Note:
The sound of the doors locking/
unlocking can be heard. After this, the
system changes the setting each time
the unlock
button is pushed (the
sound of the doors locking/unlocking
can be heard).
The setting change can be
completed by doing any one of the
following:
1. Placing the ignition in the ACC or
ON position.
2. Closing the driver’s door.
3. Opening the trunk lid.
4. Not operating the key fob for
10 seconds.
5. Pushing any button except the
unlock
button on the key fob.
6. Pushing a request switch on the
exterior door handle.
Auto Re-Lock Function: after
unlocking with the key fob, both doors,
trunk lid, and the fuel filler door will
automatically lock if any of the following
operations are not performed within
about 30 seconds. If your vehicle is
equipped with a Vehicle Security Alarm
System, the hazard warning lights will
flash for confirmation. The time required for the doors to lock automatically can
be changed. A door or the trunk lid is
opened and the ignition is placed in any
position other than OFF.
With Vehicle Security Alarm
System: when the doors are unlocked
by pushing the unlock
button on the
key fob while the Vehicle Security Alarm
System is turned off, the hazard
warning lights will flash twice to indicate
that the system is turned off.
Auto re-lock function: after
unlocking with the key fob, both doors
and the fuel filler door will automatically
lock if any of the following operations
are not performed within about
60 seconds. If your vehicle is equipped
with a Vehicle Security Alarm System,
the hazard warning lights will flash for
confirmation. The time required for the
doors to lock automatically can be
changed. A door or the trunk lid is
opened and the ignition is placed in any
position other than OFF.
With Vehicle Security Alarm
System: when the doors are unlocked
by pushing the unlock
button on the
key fob while the Vehicle Security Alarm
System is turned off, the hazard
warning lights will flash twice to indicate
that the system is turned off. Trunk Button
To open the trunk lid, push and hold the
trunk button
orHOLD
until
the trunk lid opens.
Panic Button
To turn the Panic Alarm feature ON or
OFF, push and hold the panic button
! HOLD on the key fob for at least one
second and release. When the Panic
Alarm is on, the headlights will turn on,
the park lights will flash, the horn will
pulse on and off, and the turn signal
lights will flash.
Note: The panic button will work
whether any door or the trunk lid is
open or closed.
Turning On The Alarm
Pushing the panic button for one
second or more will trigger the alarm for
about two minutes and thirty seconds,
and the following will occur:
The horn sounds intermittently.
The hazard warning lights flash.
Turning Off The Alarm
The alarm will stop by pushing any
button on the key fob.
17
Page 20 of 300
Operational Range
The system operates only when the
driver is in the vehicle or within
operational range while the key fob is
being carried or on your person.
Starting The Engine
Starting the engine may be possible
even if the key fob is outside of the
vehicle and extremely close to a door
and window, however, always start the
engine from the driver's seat.
If the vehicle is started and the key fob
is not in the vehicle, the vehicle will not
restart after it is shut off and the ignition
is placed in the OFF position.
The trunk is out of the assured
operational range, however, if the key
fob is operable the engine will start.With The Advanced Keyless
Function
Without The Advanced Keyless
Function
Note:
The engine may not start if the
key fob is placed in or around the
following areas:
Around The Instrument Panel
In The Storage Compartments
04010202-12S-002With Advanced Keyless Entry Sensors
1 — Interior Antenna
2 — Operational Range
04010202-12R-001Without Advanced Keyless Entry Sensors
1 — Interior Antenna
2 — Operational Range
18
GETTING TO KNOW YOUR VEHICLE
