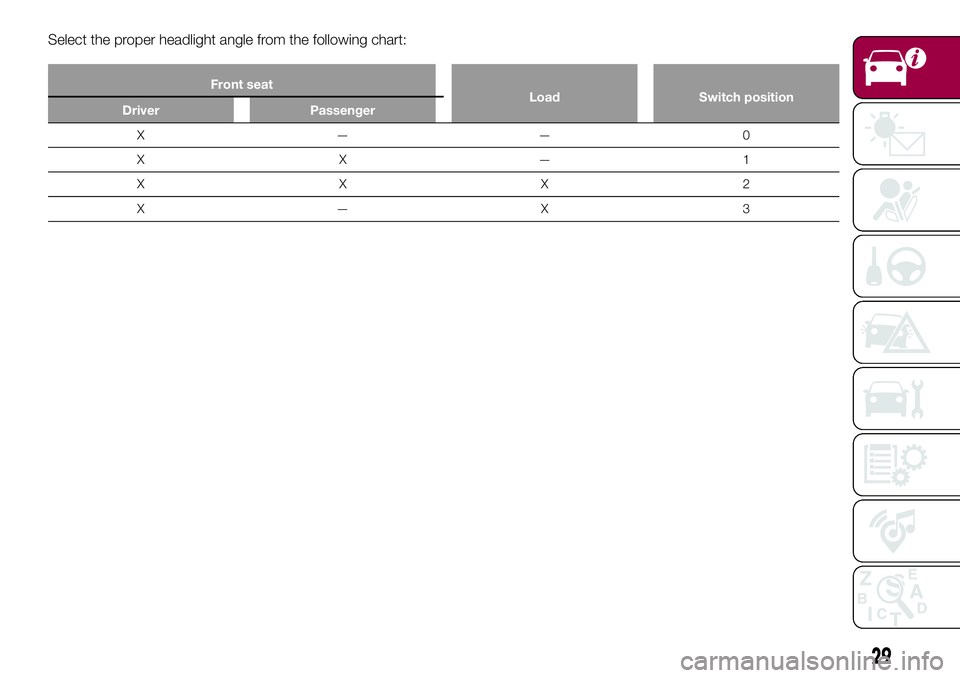

Select the proper headlight angle from the following chart:
Front seat
Load Switch position
Driver Passenger
X——0
XX—1
XXX2
X—X 3
29

WINDSCREEN
WIPERS / WASHER
42) 43) 44)
8) 9) 10) 11)
The ignition must be switched ON to
use the wipers.

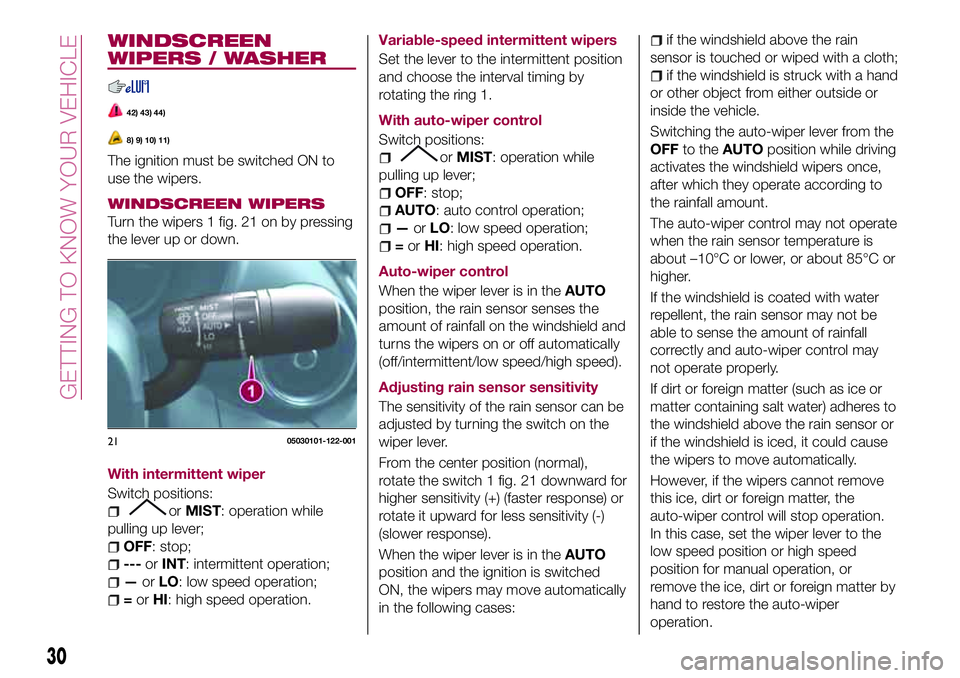

WINDSCREEN WIPERS
Turn the wipers 1 fig. 21 on by pressing
the lever up or down.
With intermittent wiper
Switch positions:
orMIST: operation while
pulling up lever;
OFF: stop;
---orINT: intermittent operation;
—orLO: low speed operation;
=orHI: high speed operation.Variable-speed intermittent wipers
Set the lever to the intermittent position
and choose the interval timing by
rotating the ring 1.
With auto-wiper control
Switch positions:
orMIST: operation while
pulling up lever;
OFF: stop;
AUTO: auto control operation;
—orLO: low speed operation;
=orHI: high speed operation.
Auto-wiper control
When the wiper lever is in theAUTO
position, the rain sensor senses the
amount of rainfall on the windshield and
turns the wipers on or off automatically
(off/intermittent/low speed/high speed).
Adjusting rain sensor sensitivity
The sensitivity of the rain sensor can be
adjusted by turning the switch on the
wiper lever.
From the center position (normal),
rotate the switch 1 fig. 21 downward for
higher sensitivity (+) (faster response) or
rotate it upward for less sensitivity (-)
(slower response).
When the wiper lever is in theAUTO
position and the ignition is switched
ON, the wipers may move automatically
in the following cases:
if the windshield above the rain
sensor is touched or wiped with a cloth;
if the windshield is struck with a hand
or other object from either outside or
inside the vehicle.
Switching the auto-wiper lever from the
OFFto theAUTOposition while driving
activates the windshield wipers once,
after which they operate according to
the rainfall amount.
The auto-wiper control may not operate
when the rain sensor temperature is
about –10°C or lower, or about 85°C or
higher.
If the windshield is coated with water
repellent, the rain sensor may not be
able to sense the amount of rainfall
correctly and auto-wiper control may
not operate properly.
If dirt or foreign matter (such as ice or
matter containing salt water) adheres to
the windshield above the rain sensor or
if the windshield is iced, it could cause
the wipers to move automatically.
However, if the wipers cannot remove
this ice, dirt or foreign matter, the
auto-wiper control will stop operation.
In this case, set the wiper lever to the
low speed position or high speed
position for manual operation, or
remove the ice, dirt or foreign matter by
hand to restore the auto-wiper
operation.
2105030101-122-001
30
GETTING TO KNOW YOUR VEHICLE

IMPORTANT Because heavy ice and
snow can jam the wiper blades, the
wiper motor is protected from motor
breakdown, overheating and possible
fire by a circuit breaker. This
mechanism will automatically stop
operation of the blades, but only for
about 5 minutes. If this happens, turn
off the wiper switch and park off the
right-of-way, and remove the snow and
ice. After 5 minutes, turn on the switch
and the blades should operate
normally. If they do not resume
functioning, contact a Fiat Dealership
as soon as possible. Drive to the side of
the road and park off the right-of-way.
Wait until the weather clears before
trying to drive with the wipers
inoperative.

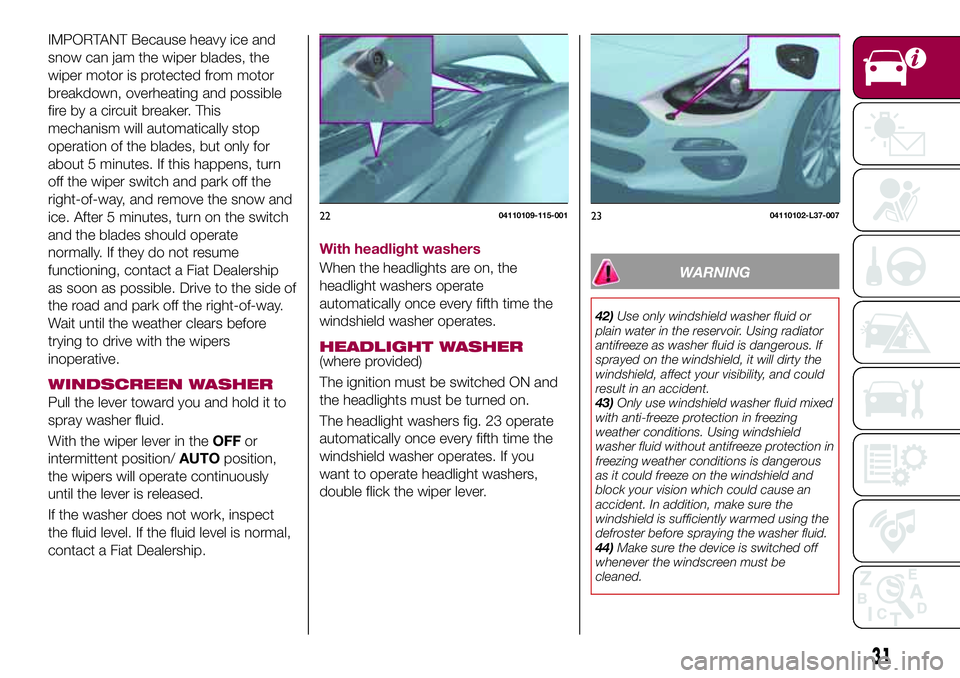

WINDSCREEN WASHER
Pull the lever toward you and hold it to
spray washer fluid.
With the wiper lever in theOFFor
intermittent position/AUTOposition,
the wipers will operate continuously
until the lever is released.
If the washer does not work, inspect
the fluid level. If the fluid level is normal,
contact a Fiat Dealership.With headlight washers
When the headlights are on, the
headlight washers operate
automatically once every fifth time the
windshield washer operates.
HEADLIGHT WASHER(where provided)
The ignition must be switched ON and
the headlights must be turned on.
The headlight washers fig. 23 operate
automatically once every fifth time the
windshield washer operates. If you
want to operate headlight washers,
double flick the wiper lever.
WARNING
42)Use only windshield washer fluid or
plain water in the reservoir. Using radiator
antifreeze as washer fluid is dangerous. If
sprayed on the windshield, it will dirty the
windshield, affect your visibility, and could
result in an accident.
43)Only use windshield washer fluid mixed
with anti-freeze protection in freezing
weather conditions. Using windshield
washer fluid without antifreeze protection in
freezing weather conditions is dangerous
as it could freeze on the windshield and
block your vision which could cause an
accident. In addition, make sure the
windshield is sufficiently warmed using the
defroster before spraying the washer fluid.
44)Make sure the device is switched off
whenever the windscreen must be
cleaned.
2204110109-115-0012304110102-L37-007
31

IMPORTANT
8)Do not use the screen wiper to remove
layers of snow or ice from the windscreen.
In such conditions, the windscreen wiper
may be subjected to excessive stress and
the motor cut-out switch, which prevents
operation for a few seconds, may
intervene. If operation is not subsequently
restored, even after the vehicle is restarted,
contact a Fiat Dealership.
9)Do not operate the windscreen wiper
with blades lifted from the windscreen.
10)Do not activate the rain sensor while
washing the vehicle in an automatic
washing system.
11)If ice is found on the windscreen, make
sure that the device was disconnected
properly.
CLIMATE CONTROL
SYSTEM

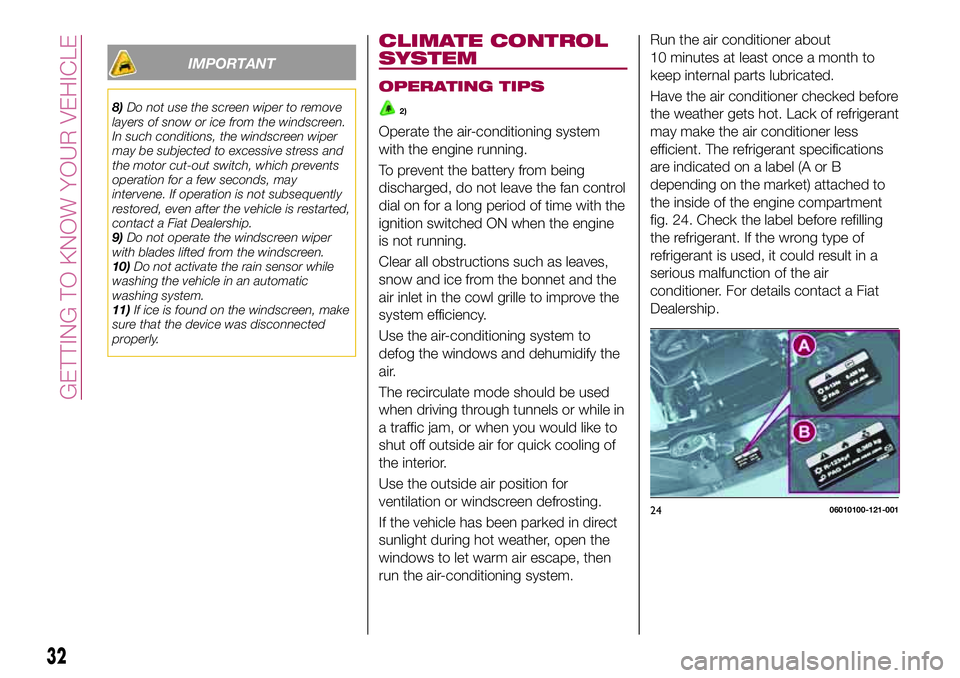

OPERATING TIPS
2)
Operate the air-conditioning system
with the engine running.
To prevent the battery from being
discharged, do not leave the fan control
dial on for a long period of time with the
ignition switched ON when the engine
is not running.
Clear all obstructions such as leaves,
snow and ice from the bonnet and the
air inlet in the cowl grille to improve the
system efficiency.
Use the air-conditioning system to
defog the windows and dehumidify the
air.
The recirculate mode should be used
when driving through tunnels or while in
a traffic jam, or when you would like to
shut off outside air for quick cooling of
the interior.
Use the outside air position for
ventilation or windscreen defrosting.
If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then
run the air-conditioning system.Run the air conditioner about
10 minutes at least once a month to
keep internal parts lubricated.
Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient. The refrigerant specifications
are indicated on a label (A or B
depending on the market) attached to
the inside of the engine compartment
fig. 24. Check the label before refilling
the refrigerant. If the wrong type of
refrigerant is used, it could result in a
serious malfunction of the air
conditioner. For details contact a Fiat
Dealership.
2406010100-121-001
32
GETTING TO KNOW YOUR VEHICLE

IMPORTANT

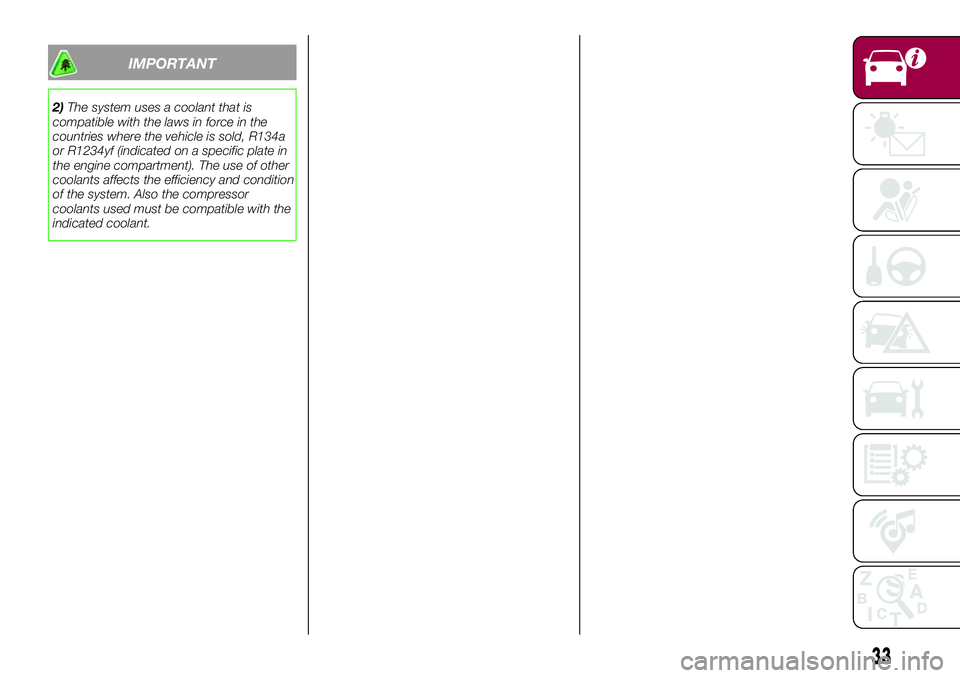

2)The system uses a coolant that is
compatible with the laws in force in the
countries where the vehicle is sold, R134a
or R1234yf (indicated on a specific plate in
the engine compartment). The use of other
coolants affects the efficiency and condition
of the system. Also the compressor
coolants used must be compatible with the
indicated coolant.
33

MANUAL CLIMATE CONTROL SYSTEM
2506010300-122-099
34
GETTING TO KNOW YOUR VEHICLE

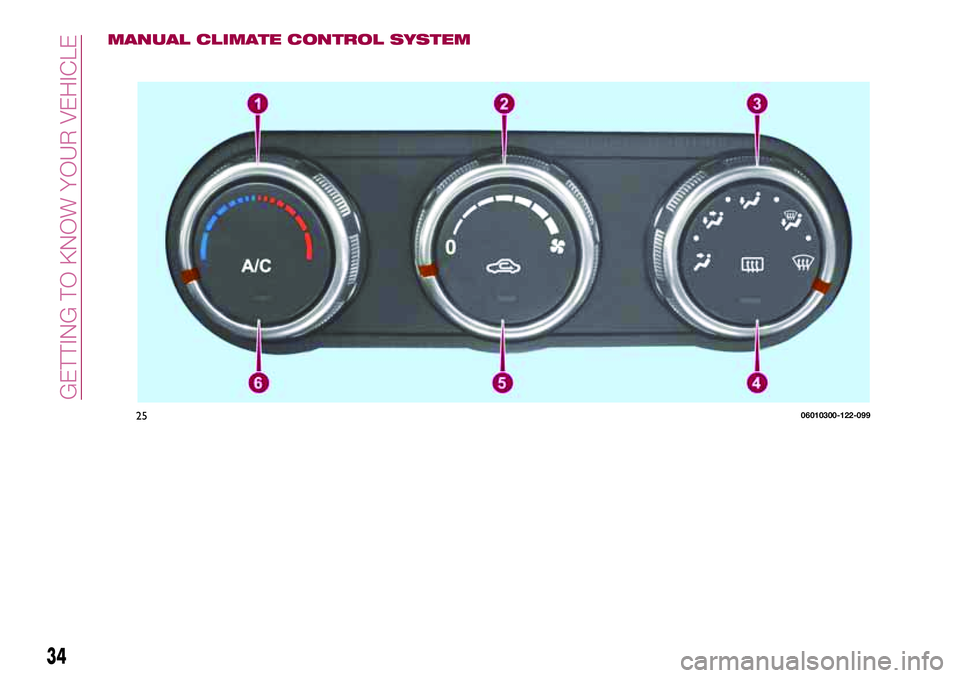

CONTROL SWITCHES

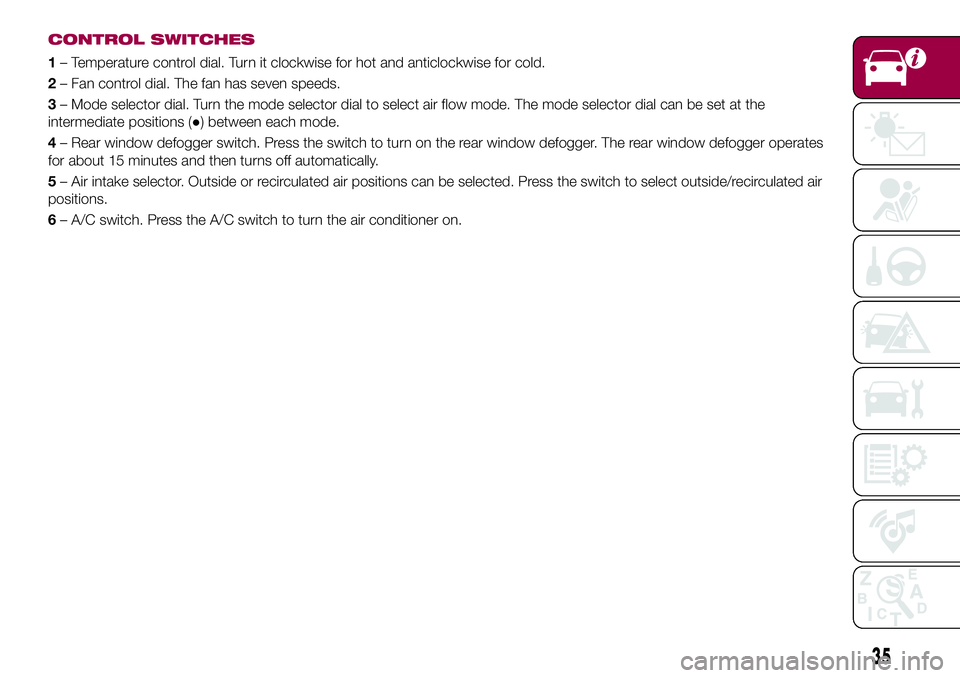

1– Temperature control dial. Turn it clockwise for hot and anticlockwise for cold.
2– Fan control dial. The fan has seven speeds.
3– Mode selector dial. Turn the mode selector dial to select air flow mode. The mode selector dial can be set at the
intermediate positions (●) between each mode.
4– Rear window defogger switch. Press the switch to turn on the rear window defogger. The rear window defogger operates
for about 15 minutes and then turns off automatically.
5– Air intake selector. Outside or recirculated air positions can be selected. Press the switch to select outside/recirculated air
positions.
6– A/C switch. Press the A/C switch to turn the air conditioner on.
35

AUTOMATIC CLIMATE CONTROL SYSTEM
2606010900-122-990
36
GETTING TO KNOW YOUR VEHICLE

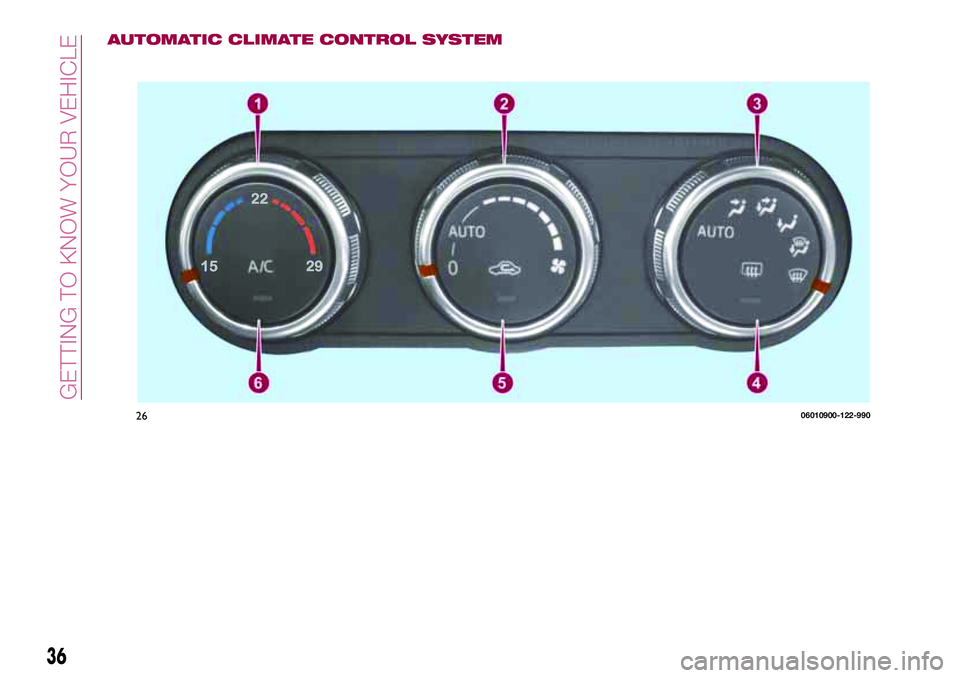

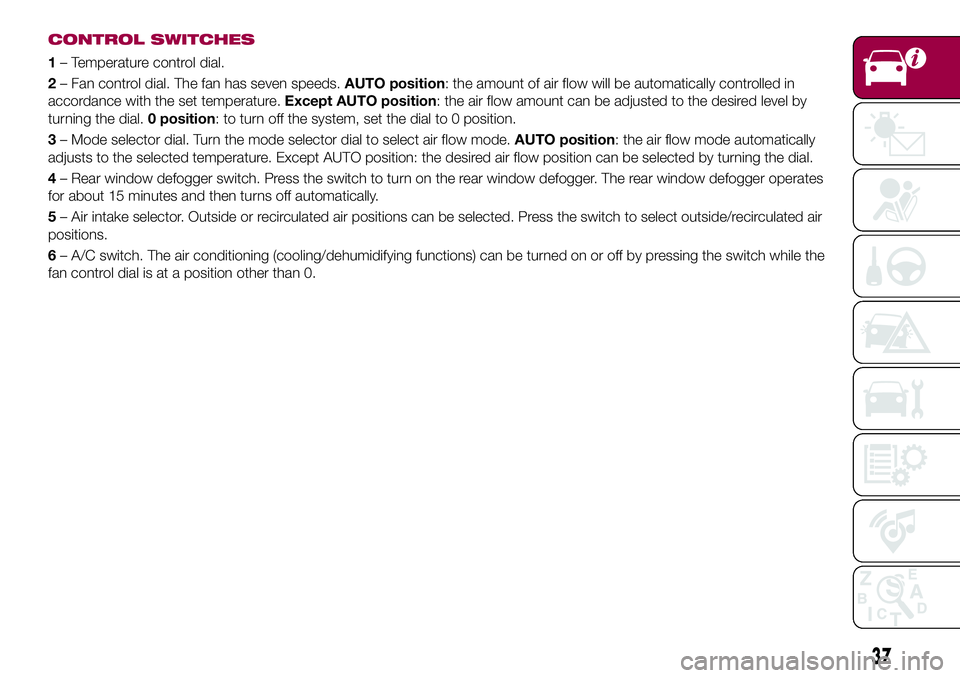

CONTROL SWITCHES
1– Temperature control dial.
2– Fan control dial. The fan has seven speeds.AUTO position: the amount of air flow will be automatically controlled in
accordance with the set temperature.Except AUTO position: the air flow amount can be adjusted to the desired level by
turning the dial.0 position: to turn off the system, set the dial to 0 position.
3– Mode selector dial. Turn the mode selector dial to select air flow mode.AUTO position: the air flow mode automatically
adjusts to the selected temperature. Except AUTO position: the desired air flow position can be selected by turning the dial.
4– Rear window defogger switch. Press the switch to turn on the rear window defogger. The rear window defogger operates
for about 15 minutes and then turns off automatically.
5– Air intake selector. Outside or recirculated air positions can be selected. Press the switch to select outside/recirculated air
positions.
6– A/C switch. The air conditioning (cooling/dehumidifying functions) can be turned on or off by pressing the switch while the
fan control dial is at a position other than 0.
37

POWER WINDOWS

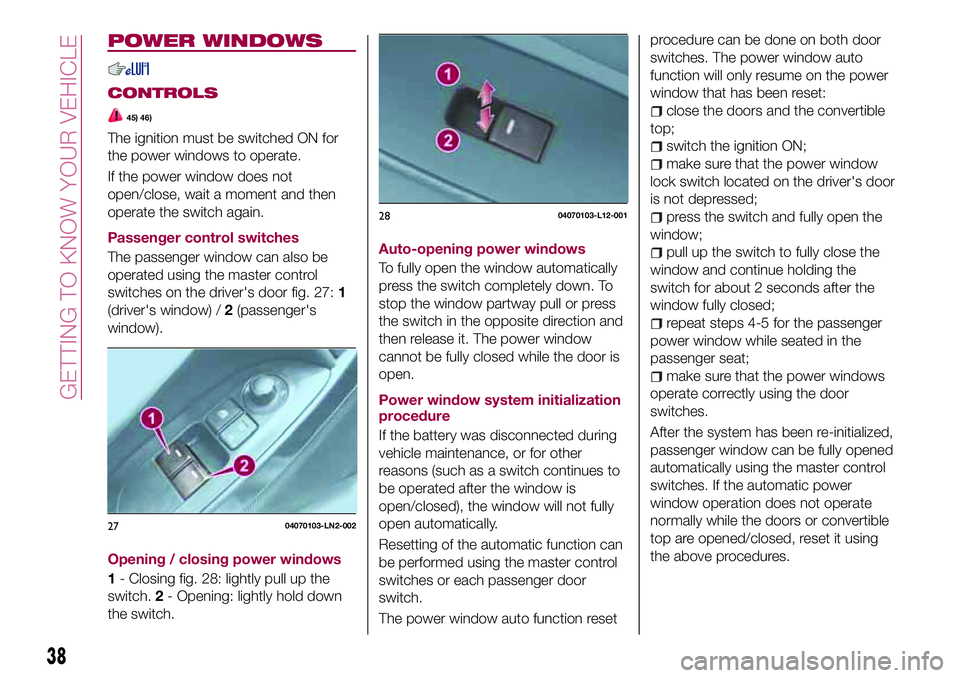

CONTROLS
45) 46)
The ignition must be switched ON for
the power windows to operate.
If the power window does not
open/close, wait a moment and then
operate the switch again.
Passenger control switches
The passenger window can also be
operated using the master control
switches on the driver's door fig. 27:1
(driver's window) /2(passenger's
window).
Opening / closing power windows
1- Closing fig. 28: lightly pull up the
switch.2- Opening: lightly hold down
the switch.Auto-opening power windows
To fully open the window automatically
press the switch completely down. To
stop the window partway pull or press
the switch in the opposite direction and
then release it. The power window
cannot be fully closed while the door is
open.
Power window system initialization
procedure
If the battery was disconnected during
vehicle maintenance, or for other
reasons (such as a switch continues to
be operated after the window is
open/closed), the window will not fully
open automatically.
Resetting of the automatic function can
be performed using the master control
switches or each passenger door
switch.
The power window auto function resetprocedure can be done on both door
switches. The power window auto
function will only resume on the power
window that has been reset:
close the doors and the convertible
top;
switch the ignition ON;
make sure that the power window
lock switch located on the driver's door
is not depressed;
press the switch and fully open the
window;
pull up the switch to fully close the
window and continue holding the
switch for about 2 seconds after the
window fully closed;
repeat steps 4-5 for the passenger
power window while seated in the
passenger seat;
make sure that the power windows
operate correctly using the door
switches.
After the system has been re-initialized,
passenger window can be fully opened
automatically using the master control
switches. If the automatic power
window operation does not operate
normally while the doors or convertible
top are opened/closed, reset it using
the above procedures.
2704070103-LN2-002
2804070103-L12-001
38
GETTING TO KNOW YOUR VEHICLE
