10)After closing the doors, always verify
that they are securely closed: doors not
securely closed are dangerous, if the
vehicle is driven with a door not securely
closed, the door could open unexpectedly
resulting in an accident.
11)Always confirm the safety around the
vehicle before opening a door: suddenly
opening a door is dangerous. A passing
vehicle or a pedestrian could be hit and
cause an accident.
12)Always confirm the conditions around
the vehicle before opening/closing the
doors and use caution during strong winds
or when parked on an incline. Not being
aware of the conditions around the vehicle
is dangerous because fingers could get
caught in the door or a passing pedestrian
could be hit, resulting in an unexpected
accident or injury.
13)If the power window does not go up or
down automatically because the battery is
dead, slowly open/close the power window
while pressing the glass inward. Otherwise,
the power window may contact the
convertible top and the door cannot be
opened/closed resulting in damage to the
window.
14)Never activate the double locking
system with passengers, especially
children, still inside the vehicle: activating
the system with passengers, especially
children, still inside the vehicle is
dangerous. The passengers cannot open
the doors from inside. They would be
trapped and subjected to extreme
temperatures. This could result in serious
injuries or even death.SEATS

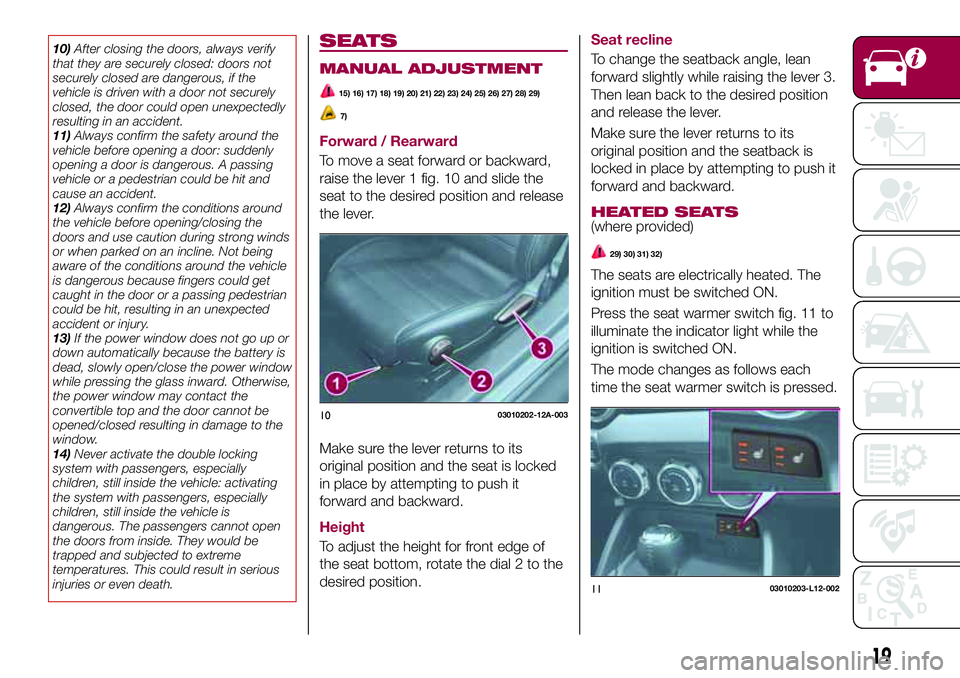

MANUAL ADJUSTMENT
15) 16) 17) 18) 19) 20) 21) 22) 23) 24) 25) 26) 27) 28) 29)
7)
Forward / Rearward
To move a seat forward or backward,
raise the lever 1 fig. 10 and slide the
seat to the desired position and release
the lever.
Make sure the lever returns to its
original position and the seat is locked
in place by attempting to push it
forward and backward.
Height
To adjust the height for front edge of
the seat bottom, rotate the dial 2 to the
desired position.Seat recline
To change the seatback angle, lean
forward slightly while raising the lever 3.
Then lean back to the desired position
and release the lever.
Make sure the lever returns to its
original position and the seatback is
locked in place by attempting to push it
forward and backward.
HEATED SEATS(where provided)
29) 30) 31) 32)
The seats are electrically heated. The
ignition must be switched ON.
Press the seat warmer switch fig. 11 to
illuminate the indicator light while the
ignition is switched ON.
The mode changes as follows each
time the seat warmer switch is pressed.
1003010202-12A-003
1103010203-L12-002
19
