FIAT 500 2017 2.G Owners Manual

INSTRUMENT PANEL FEATURES
1 — Side Vent7 — Passenger Air Bag13 — Power Windows Control Storage
Compartment
2 — Multifunction Lever – Light Control 8 — Glove Compartment 14 — Gear Selector
3 — Instrument Cluster And Warning
Lights 9 — Rear Defrost Button
15 — Sport Button
4 — Windshield Wiper, Washer, Trip Com-
puter 10 — Hazard Button
16 — Horn/Driver Airbag
5 — Central Air Vents 11 — Climate Controls
6 — Storage Compartment/Radio 12 — Storage Compartment
4
UNDERSTANDING YOUR INSTRUMENT PANEL 109

INSTRUMENT CLUSTERS
Your vehicle is equipped with one of the following
Instrument Clusters.
Lounge Instrument Cluster Base
110 UNDERSTANDING YOUR INSTRUMENT PANEL

Lounge Instrument Cluster Sport Mode
4
UNDERSTANDING YOUR INSTRUMENT PANEL 111

Sport Instrument Cluster Base
112 UNDERSTANDING YOUR INSTRUMENT PANEL

Sport Instrument Cluster Sport Mode
4
UNDERSTANDING YOUR INSTRUMENT PANEL 113

Sport Turbo Instrument Cluster Base
114 UNDERSTANDING YOUR INSTRUMENT PANEL

1.Tachometer
• This gauge measures engine revolutions per min-
ute (RPM x 1000). Before the pointer reaches the red
area, ease up on the accelerator to prevent engine
damage. 2.
Temperature Gauge
• The temperature gauge shows engine coolant tem-
perature. Any reading within the normal range
indicates that the engine cooling system is operat-
ing satisfactorily.
Sport Turbo Instrument Cluster Sport Mode
4
UNDERSTANDING YOUR INSTRUMENT PANEL 115

•The digital gauge will likely indicate a higher
temperature when driving in hot weather, or up
mountain grades. It should not be allowed to
exceed the upper limits of the normal operating
range.
WARNING!
Driving with a hot engine cooling system could
damage your vehicle. If the temperature gauge reads
“H” pull over and stop the vehicle. Idle the vehicle
with the air conditioner turned off until the pointer
drops back into the normal range. If the pointer
remains on the “H,” turn the engine off immediately
and call an authorized dealer for service.
WARNING!
A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call an authorized dealer
for service if your vehicle overheats. If you decide
to look under the hood yourself, see “Maintaining
Your Vehicle.” Follow the warnings under the Cool-
ing System Pressure Cap paragraph. 3.
Speedometer
• Indicates vehicle speed.
4. Fuel Gauge
• The digital display shows the amount of fuel in the
tank.
• The switching on of the digital warning light
indicates that 1 – 1.3 gallons of fuel are left in the
tank; in this situation, refuel as soon as possible.
• Do not travel with the fuel tank almost empty; any
gaps in fuel delivery could damage the catalytic
converter.
5. Base and Sport Mode Gauge Displays
Depending on what options and trim level, your vehicle
may be equipped with two gauge displays available
with the push of the Sport Mode button. •Instant Consumption Bargraph: This bargraph
shows the instant fuel consumption, the style
changes according to vehicle version while mini-
mum and maximum values change depending on
selected unit. The possible labels are:
• mpg
• Km/l
• l/100 km
116 UNDERSTANDING YOUR INSTRUMENT PANEL

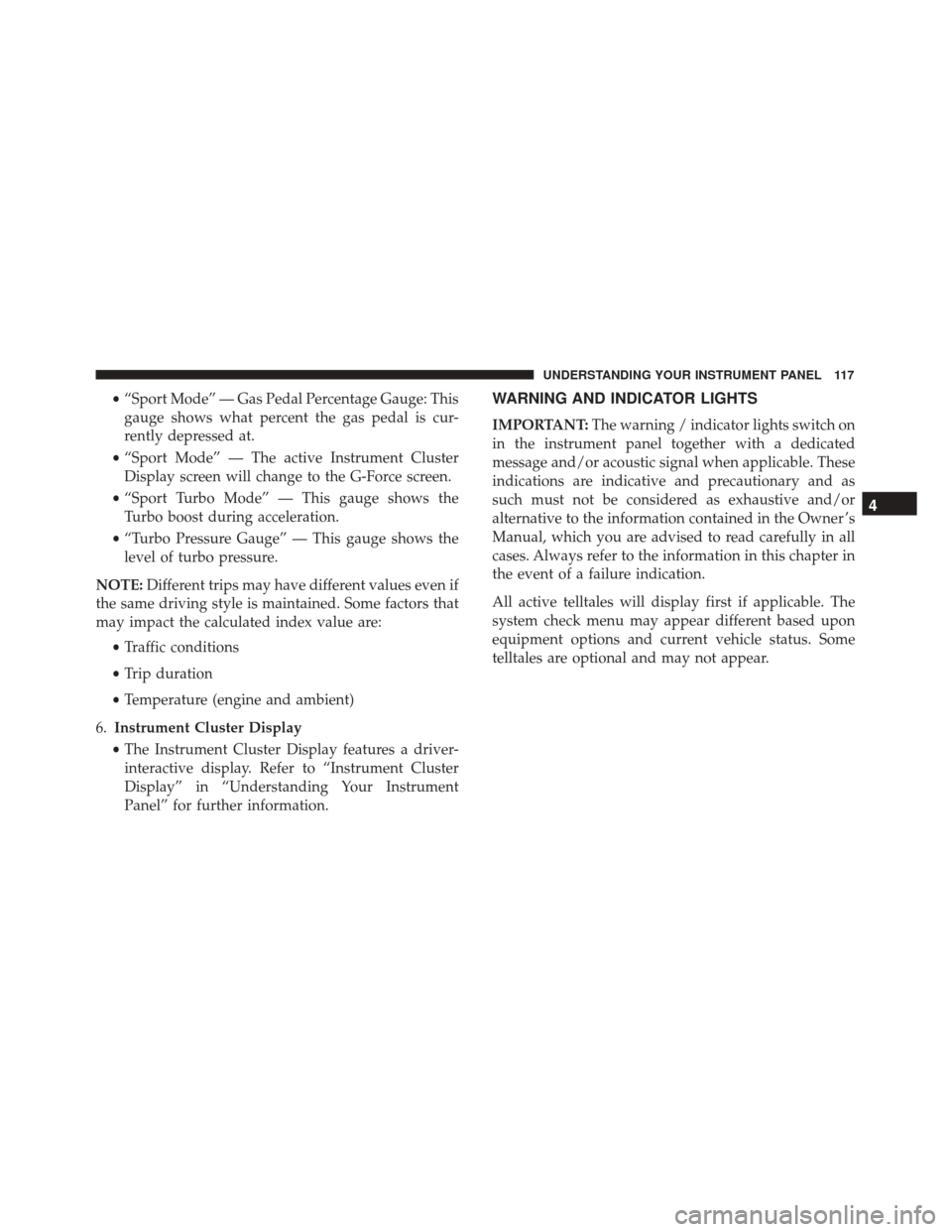

•“Sport Mode” — Gas Pedal Percentage Gauge: This
gauge shows what percent the gas pedal is cur-
rently depressed at.
• “Sport Mode” — The active Instrument Cluster
Display screen will change to the G-Force screen.
• “Sport Turbo Mode” — This gauge shows the
Turbo boost during acceleration.
• “Turbo Pressure Gauge” — This gauge shows the
level of turbo pressure.
NOTE: Different trips may have different values even if
the same driving style is maintained. Some factors that
may impact the calculated index value are:
•Traffic conditions
• Trip duration
• Temperature (engine and ambient)
6. Instrument Cluster Display
• The Instrument Cluster Display features a driver-
interactive display. Refer to “Instrument Cluster
Display” in “Understanding Your Instrument
Panel” for further information.WARNING AND INDICATOR LIGHTS
IMPORTANT: The warning / indicator lights switch on
in the instrument panel together with a dedicated
message and/or acoustic signal when applicable. These
indications are indicative and precautionary and as
such must not be considered as exhaustive and/or
alternative to the information contained in the Owner ’s
Manual, which you are advised to read carefully in all
cases. Always refer to the information in this chapter in
the event of a failure indication.
All active telltales will display first if applicable. The
system check menu may appear different based upon
equipment options and current vehicle status. Some
telltales are optional and may not appear.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 117

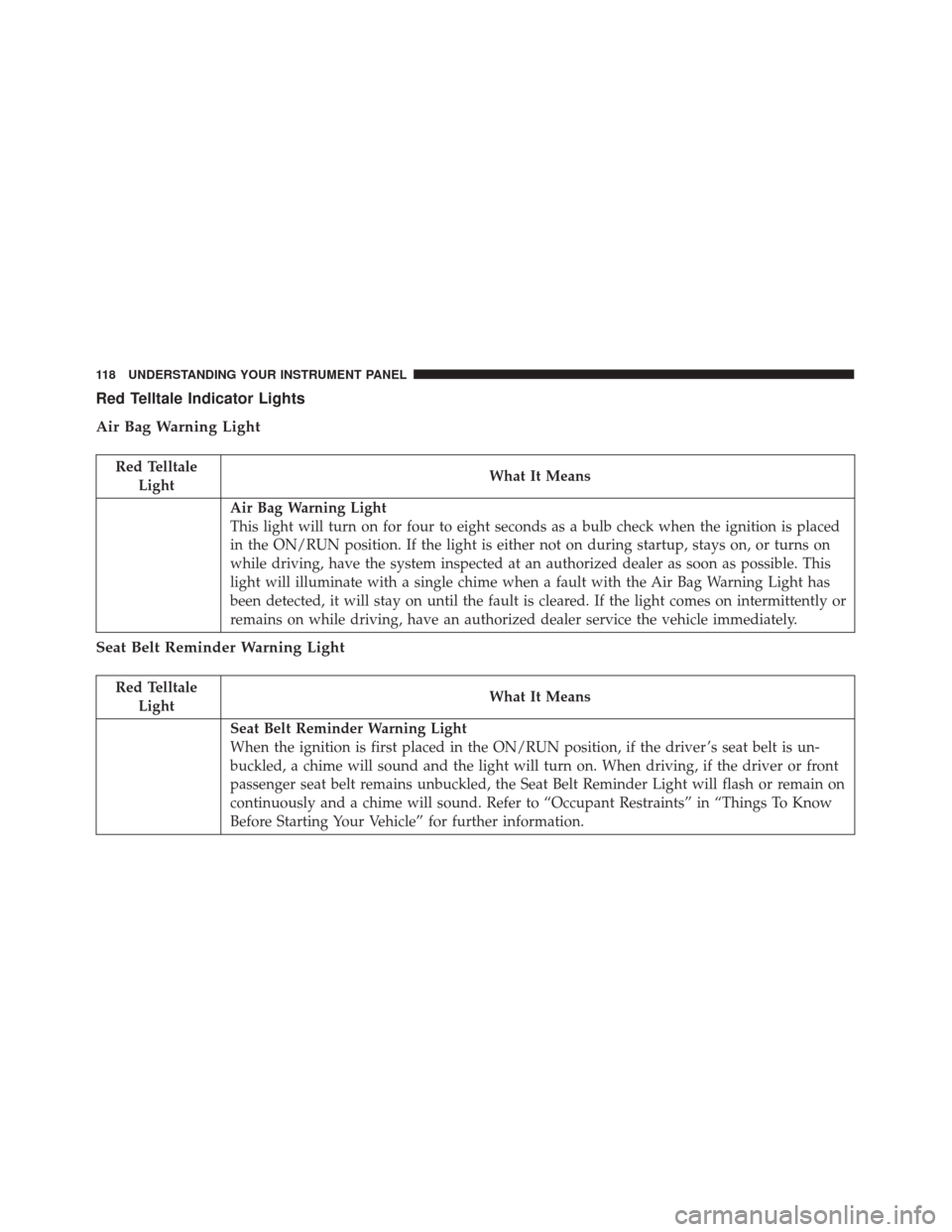

Red Telltale Indicator Lights
Air Bag Warning Light
Red TelltaleLight What It Means
Air Bag Warning Light
This light will turn on for four to eight seconds as a bulb check when the ignition is placed
in the ON/RUN position. If the light is either not on during startup, stays on, or turns on
while driving, have the system inspected at an authorized dealer as soon as possible. This
light will illuminate with a single chime when a fault with the Air Bag Warning Light has
been detected, it will stay on until the fault is cleared. If the light comes on intermittently or
remains on while driving, have an authorized dealer service the vehicle immediately.
Seat Belt Reminder Warning Light
Red Telltale
Light What It Means
Seat Belt Reminder Warning Light
When the ignition is first placed in the ON/RUN position, if the driver ’s seat belt is un-
buckled, a chime will sound and the light will turn on. When driving, if the driver or front
passenger seat belt remains unbuckled, the Seat Belt Reminder Light will flash or remain on
continuously and a chime will sound. Refer to “Occupant Restraints” in “Things To Know
Before Starting Your Vehicle” for further information.
