FIAT 500 2017 2.G Owners Manual

Preparations For Jump-Start
The battery in your vehicle is located between the left
front headlight assembly and the left front wheel splash
shield.
WARNING!
•Take care to avoid the radiator cooling fan when-
ever the hood is raised. It can start anytime the
ignition switch is ON. You can be injured by
moving fan blades.
• Remove any metal jewelry such as rings, watch
bands and bracelets that could make an inadver-
tent electrical contact. You could be seriously
injured.
• Batteries contain sulfuric acid that can burn your
skin or eyes and generate hydrogen gas which is
flammable and explosive. Keep open flames or
sparks away from the battery.
1. Set the parking brake, shift the automatic transmis- sion into PARK and turn the ignition to LOCK.
2. Turn off the heater, radio, and all unnecessary elec- trical accessories.
3. Remove the protective cover over the positive (+)
battery post. To remove the cover, push the locking
tab and pull upward on the cover.
Battery Posts
1 — Positive (+) Post (Covered With Protective Cap)
2 — Negative (-) Post
6
WHAT TO DO IN EMERGENCIES 269

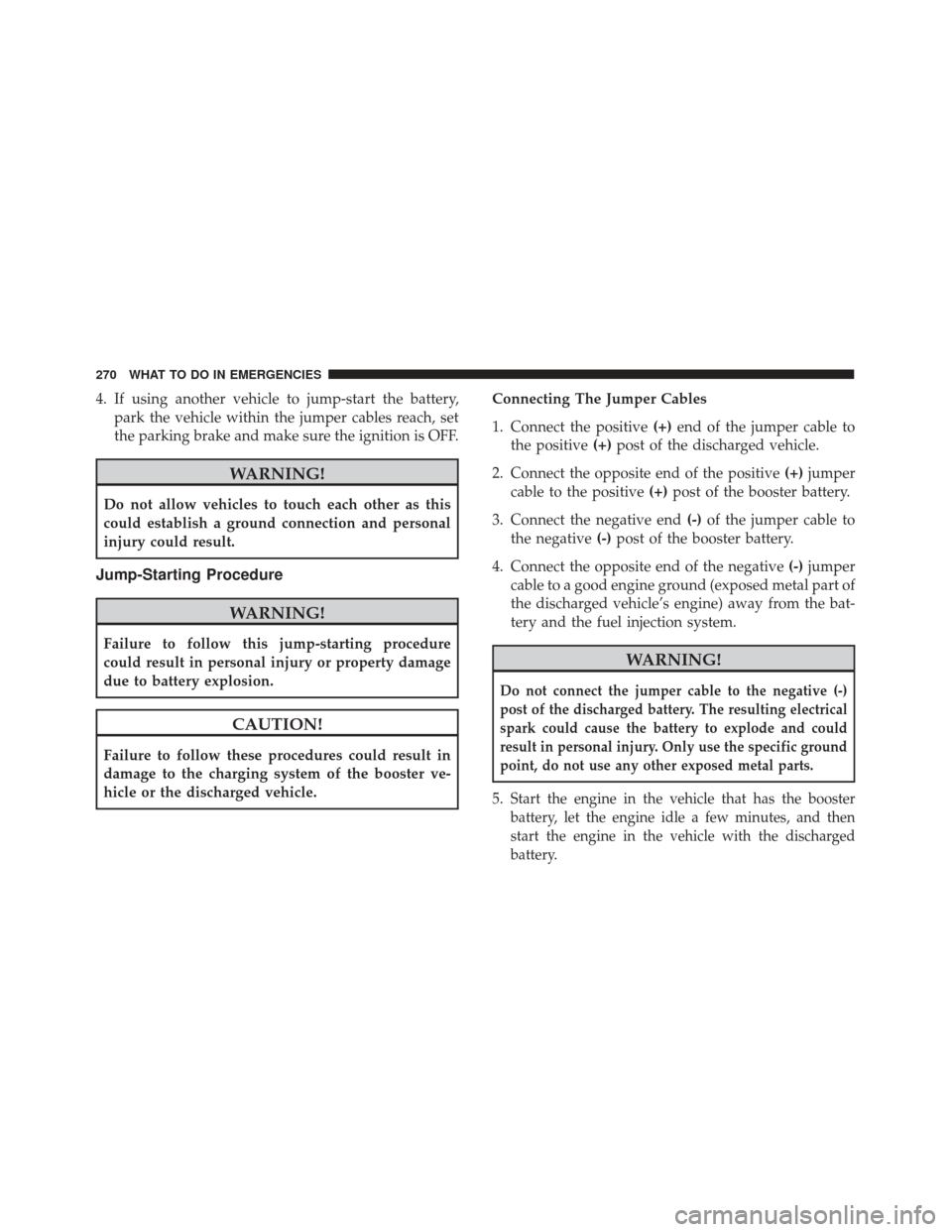

4. If using another vehicle to jump-start the battery,park the vehicle within the jumper cables reach, set
the parking brake and make sure the ignition is OFF.
WARNING!
Do not allow vehicles to touch each other as this
could establish a ground connection and personal
injury could result.
Jump-Starting Procedure
WARNING!
Failure to follow this jump-starting procedure
could result in personal injury or property damage
due to battery explosion.
CAUTION!
Failure to follow these procedures could result in
damage to the charging system of the booster ve-
hicle or the discharged vehicle. Connecting The Jumper Cables
1. Connect the positive
(+)end of the jumper cable to
the positive (+)post of the discharged vehicle.
2. Connect the opposite end of the positive (+)jumper
cable to the positive (+)post of the booster battery.
3. Connect the negative end (-)of the jumper cable to
the negative (-)post of the booster battery.
4. Connect the opposite end of the negative (-)jumper
cable to a good engine ground (exposed metal part of
the discharged vehicle’s engine) away from the bat-
tery and the fuel injection system.
WARNING!
Do not connect the jumper cable to the negative (-)
post of the discharged battery. The resulting electrical
spark could cause the battery to explode and could
result in personal injury. Only use the specific ground
point, do not use any other exposed metal parts.
5.Start the engine in the vehicle that has the booster
battery, let the engine idle a few minutes, and then
start the engine in the vehicle with the discharged
battery.
270 WHAT TO DO IN EMERGENCIES

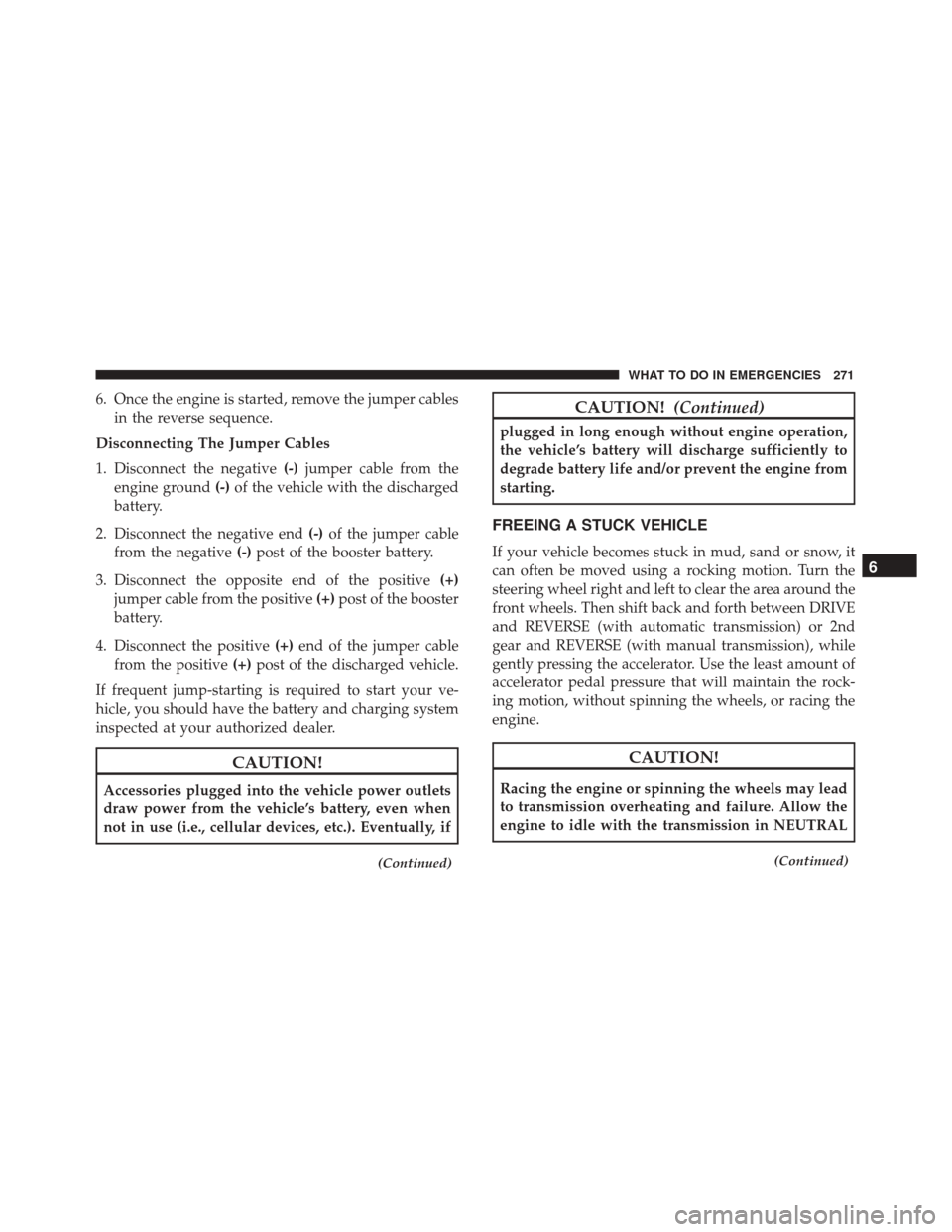

6. Once the engine is started, remove the jumper cablesin the reverse sequence.
Disconnecting The Jumper Cables
1. Disconnect the negative (-)jumper cable from the
engine ground (-)of the vehicle with the discharged
battery.
2. Disconnect the negative end (-)of the jumper cable
from the negative (-)post of the booster battery.
3. Disconnect the opposite end of the positive (+)
jumper cable from the positive (+)post of the booster
battery.
4. Disconnect the positive (+)end of the jumper cable
from the positive (+)post of the discharged vehicle.
If frequent jump-starting is required to start your ve-
hicle, you should have the battery and charging system
inspected at your authorized dealer.
CAUTION!
Accessories plugged into the vehicle power outlets
draw power from the vehicle’s battery, even when
not in use (i.e., cellular devices, etc.). Eventually, if
(Continued)
CAUTION! (Continued)
plugged in long enough without engine operation,
the vehicle’s battery will discharge sufficiently to
degrade battery life and/or prevent the engine from
starting.
FREEING A STUCK VEHICLE
If your vehicle becomes stuck in mud, sand or snow, it
can often be moved using a rocking motion. Turn the
steering wheel right and left to clear the area around the
front wheels. Then shift back and forth between DRIVE
and REVERSE (with automatic transmission) or 2nd
gear and REVERSE (with manual transmission), while
gently pressing the accelerator. Use the least amount of
accelerator pedal pressure that will maintain the rock-
ing motion, without spinning the wheels, or racing the
engine.
CAUTION!
Racing the engine or spinning the wheels may lead
to transmission overheating and failure. Allow the
engine to idle with the transmission in NEUTRAL
(Continued)
6
WHAT TO DO IN EMERGENCIES 271

CAUTION!(Continued)
for at least one minute after every five rocking-
motion cycles. This will minimize overheating and
reduce the risk of clutch or transmission failure
during prolonged efforts to free a stuck vehicle.
NOTE: Push the ESC Off switch, to place the Elec-
tronic Stability Control (ESC) system in Partial Off
mode, before rocking the vehicle. Refer to “Electronic
Brake Control” in “Starting And Operating” for further
information. Once the vehicle has been freed, push the
ESC Off switch again to restore ESC Onmode.
WARNING!
Fast spinning tires can be dangerous. Forces gener-
ated by excessive wheel speeds may cause damage,
or even failure, of the axle and tires. A tire could
explode and injure someone. Do not spin your
vehicle’s wheels faster than 30 mph (48 km/h) or for
longer than 30 seconds continuously without stop-
ping when you are stuck and do not let anyone near
a spinning wheel, no matter what the speed.
CAUTION!
•When “rocking” a stuck vehicle by shifting be-
tween DRIVE/2nd gear and REVERSE, do not
spin the wheels faster than 15 mph (24 km/h), or
drivetrain damage may result.
• Revving the engine or spinning the wheels too
fast may lead to transmission overheating and
failure. It can also damage the tires. Do not spin
the wheels above 30 mph (48 km/h) while in gear
(no transmission shifting occurring).
GEAR SELECTOR OVERRIDE
If a malfunction occurs and the gear selector cannot be
moved out of the PARK position, you can use the
following procedure to temporarily move the gear
selector:
1. Turn the engine OFF.
2. Firmly apply the parking brake.
272 WHAT TO DO IN EMERGENCIES

3. Remove the gear selector override access cover (lo-cated on the right side of the gear selector housing)
by prying at the bottom edge of the cover.
4. Press and maintain firm pressure on the brake pedal. 5. Insert a small screwdriver or similar tool into the
access hole, and push and hold the override release
lever in.
6. Move the gear selector to the NEUTRAL position.
7. The vehicle may then be started in NEUTRAL.
8. Reinstall the gear selector override access cover.
Gear Selector Override Access Hole
6
WHAT TO DO IN EMERGENCIES 273

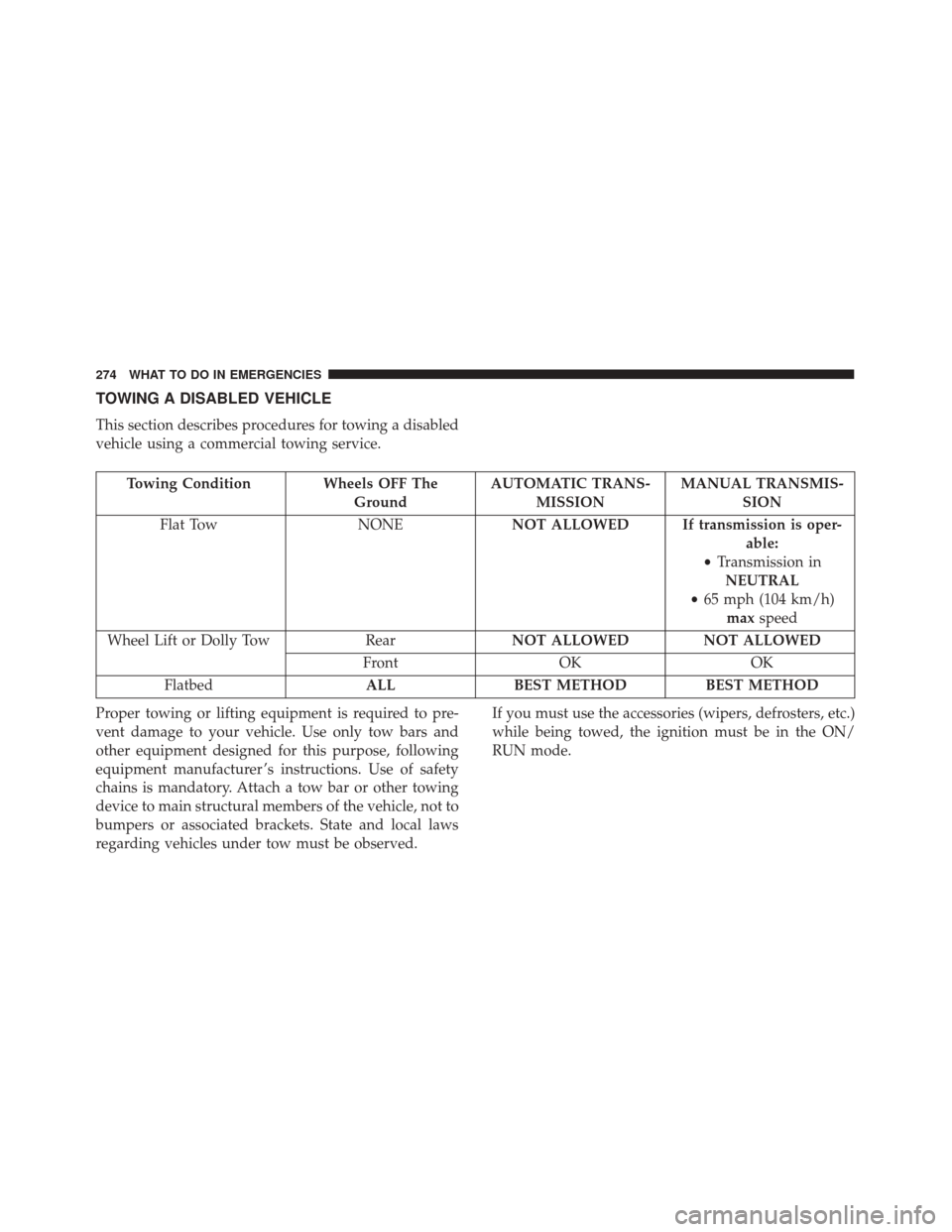

TOWING A DISABLED VEHICLE
This section describes procedures for towing a disabled
vehicle using a commercial towing service.
Towing Condition Wheels OFF TheGroundAUTOMATIC TRANS-
MISSION MANUAL TRANSMIS-
SION
Flat Tow NONENOT ALLOWED If transmission is oper-
able:
• Transmission in
NEUTRAL
• 65 mph (104 km/h)
max speed
Wheel Lift or Dolly Tow RearNOT ALLOWED NOT ALLOWED
Front OKOK
Flatbed ALLBEST METHOD BEST METHOD
Proper towing or lifting equipment is required to pre-
vent damage to your vehicle. Use only tow bars and
other equipment designed for this purpose, following
equipment manufacturer ’s instructions. Use of safety
chains is mandatory. Attach a tow bar or other towing
device to main structural members of the vehicle, not to
bumpers or associated brackets. State and local laws
regarding vehicles under tow must be observed. If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the ON/
RUN mode.
274 WHAT TO DO IN EMERGENCIES

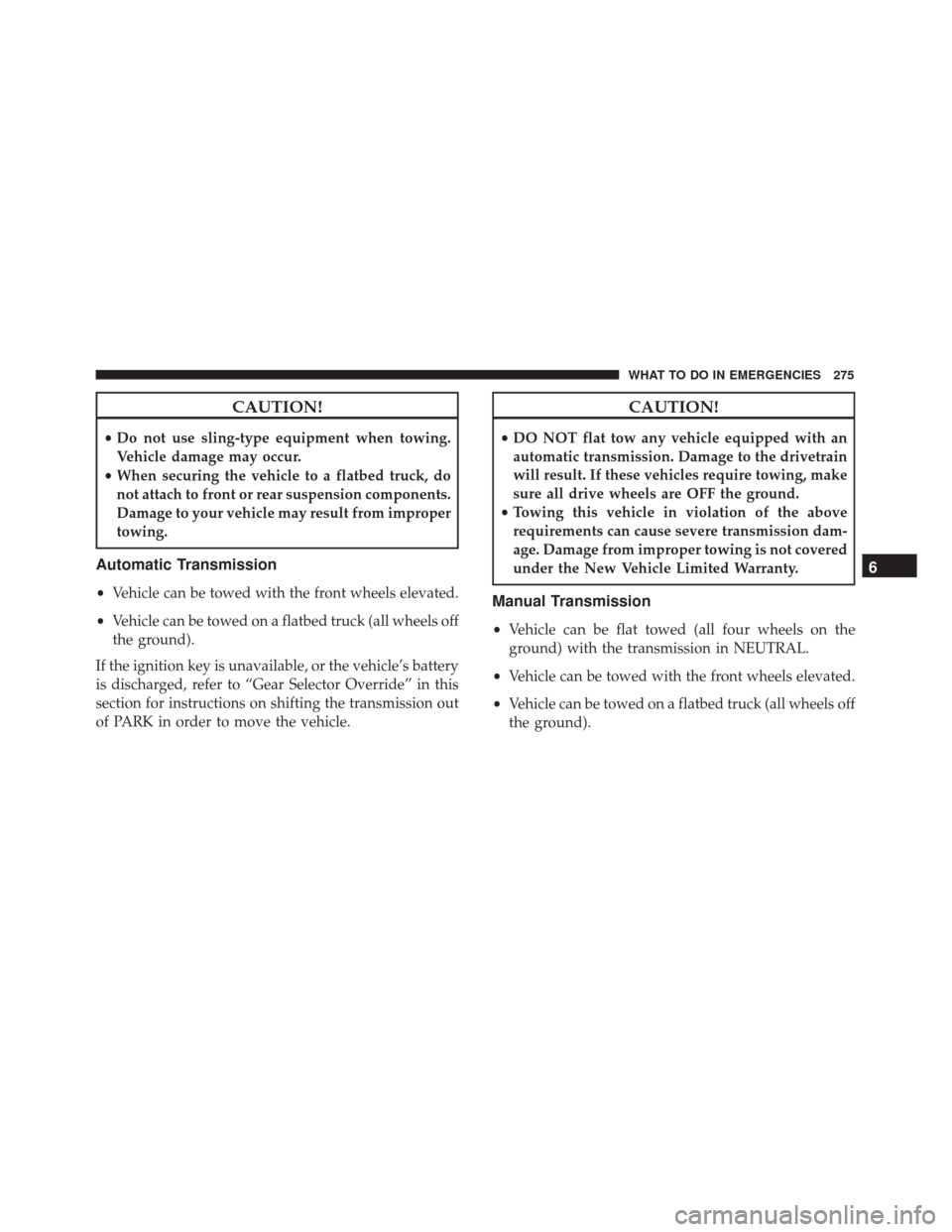

CAUTION!
•Do not use sling-type equipment when towing.
Vehicle damage may occur.
• When securing the vehicle to a flatbed truck, do
not attach to front or rear suspension components.
Damage to your vehicle may result from improper
towing.
Automatic Transmission
• Vehicle can be towed with the front wheels elevated.
• Vehicle can be towed on a flatbed truck (all wheels off
the ground).
If the ignition key is unavailable, or the vehicle’s battery
is discharged, refer to “Gear Selector Override” in this
section for instructions on shifting the transmission out
of PARK in order to move the vehicle.
CAUTION!
• DO NOT flat tow any vehicle equipped with an
automatic transmission. Damage to the drivetrain
will result. If these vehicles require towing, make
sure all drive wheels are OFF the ground.
• Towing this vehicle in violation of the above
requirements can cause severe transmission dam-
age. Damage from improper towing is not covered
under the New Vehicle Limited Warranty.
Manual Transmission
• Vehicle can be flat towed (all four wheels on the
ground) with the transmission in NEUTRAL.
• Vehicle can be towed with the front wheels elevated.
• Vehicle can be towed on a flatbed truck (all wheels off
the ground).
6
WHAT TO DO IN EMERGENCIES 275

CAUTION!
Towing this vehicle in violation of the above re-
quirements can cause severe engine and/or trans-
mission damage. Damage from improper towing is
not covered under the New Vehicle Limited War-
ranty.
ENHANCED ACCIDENT RESPONSE SYSTEM
(EARS)
This vehicle is equipped with an Enhanced Accident
Response System.
EVENT DATA RECORDER (EDR)
This vehicle is equipped with an Event Data Recorder
(EDR). The main purpose of an EDR is to record, in
certain crash or near crash-like situations, such as an air
bag deployment or hitting a road obstacle, data that will
assist in understanding how a vehicle’s systems per-
formed.
276 WHAT TO DO IN EMERGENCIES

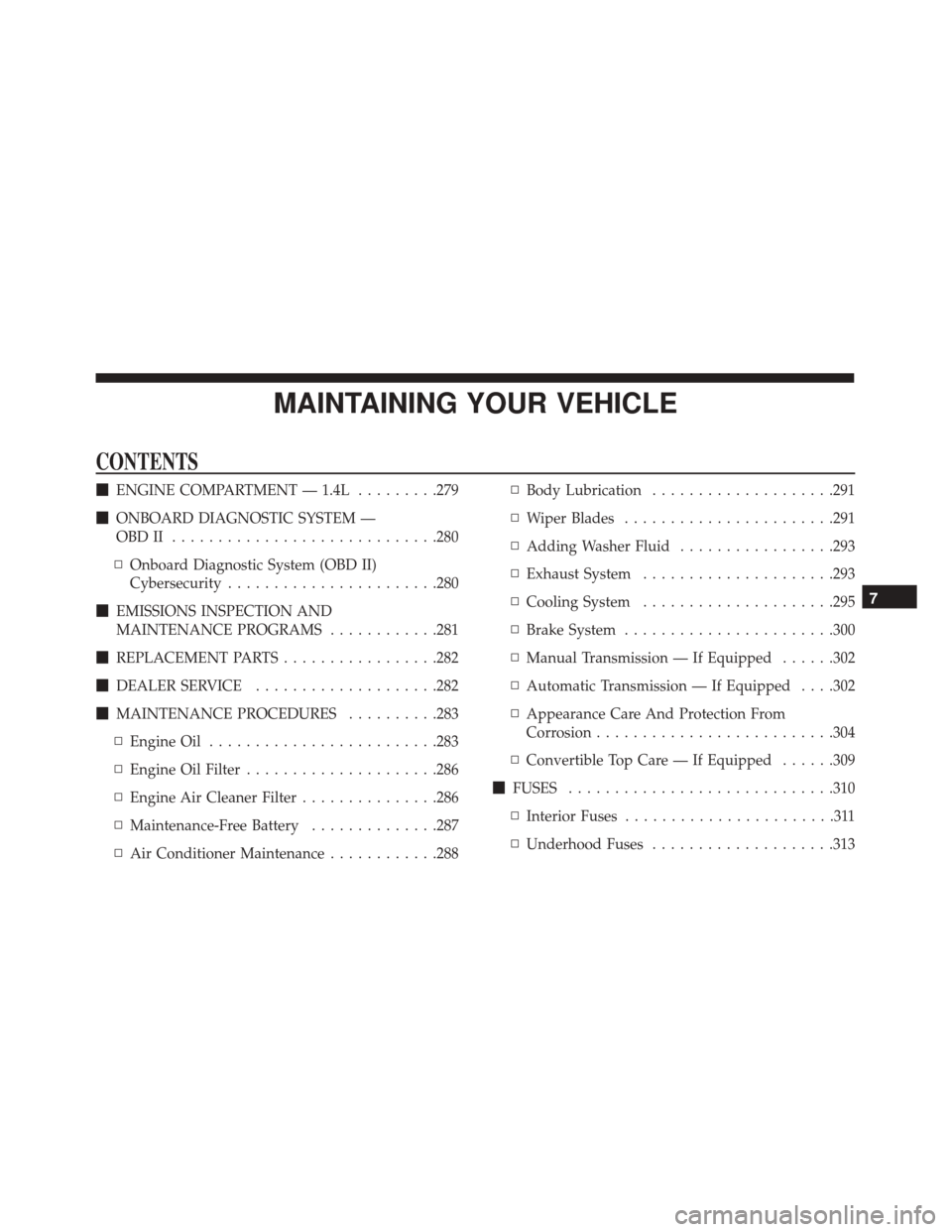

MAINTAINING YOUR VEHICLE
CONTENTS
ENGINE COMPARTMENT — 1.4L .........279
 ONBOARD DIAGNOSTIC SYSTEM —
OBDII ............................ .280
▫ Onboard Diagnostic System (OBD II)
Cybersecurity ...................... .280
 EMISSIONS INSPECTION AND
MAINTENANCE PROGRAMS ............281
 REPLACEMENT PARTS .................282
 DEALER SERVICE ....................282
 MAINTENANCE PROCEDURES ..........283
▫ Engine Oil ........................ .283
▫ Engine Oil Filter .....................286
▫ Engine Air Cleaner Filter ...............286
▫ Maintenance-Free Battery ..............287
▫ Air Conditioner Maintenance ............288▫
Body Lubrication ....................291
▫ Wiper Blades ...................... .291
▫ Adding Washer Fluid .................293
▫ Exhaust System .....................293
▫ Cooling System .....................295
▫ Brake System ...................... .300
▫ Manual Transmission — If Equipped ......302
▫ Automatic Transmission — If Equipped . . . .302
▫ Appearance Care And Protection From
Corrosion ......................... .304
▫ Convertible Top Care — If Equipped ......309
 FUSES ............................ .310
▫ Interior Fuses .......................311
▫ Underhood Fuses ....................313
7

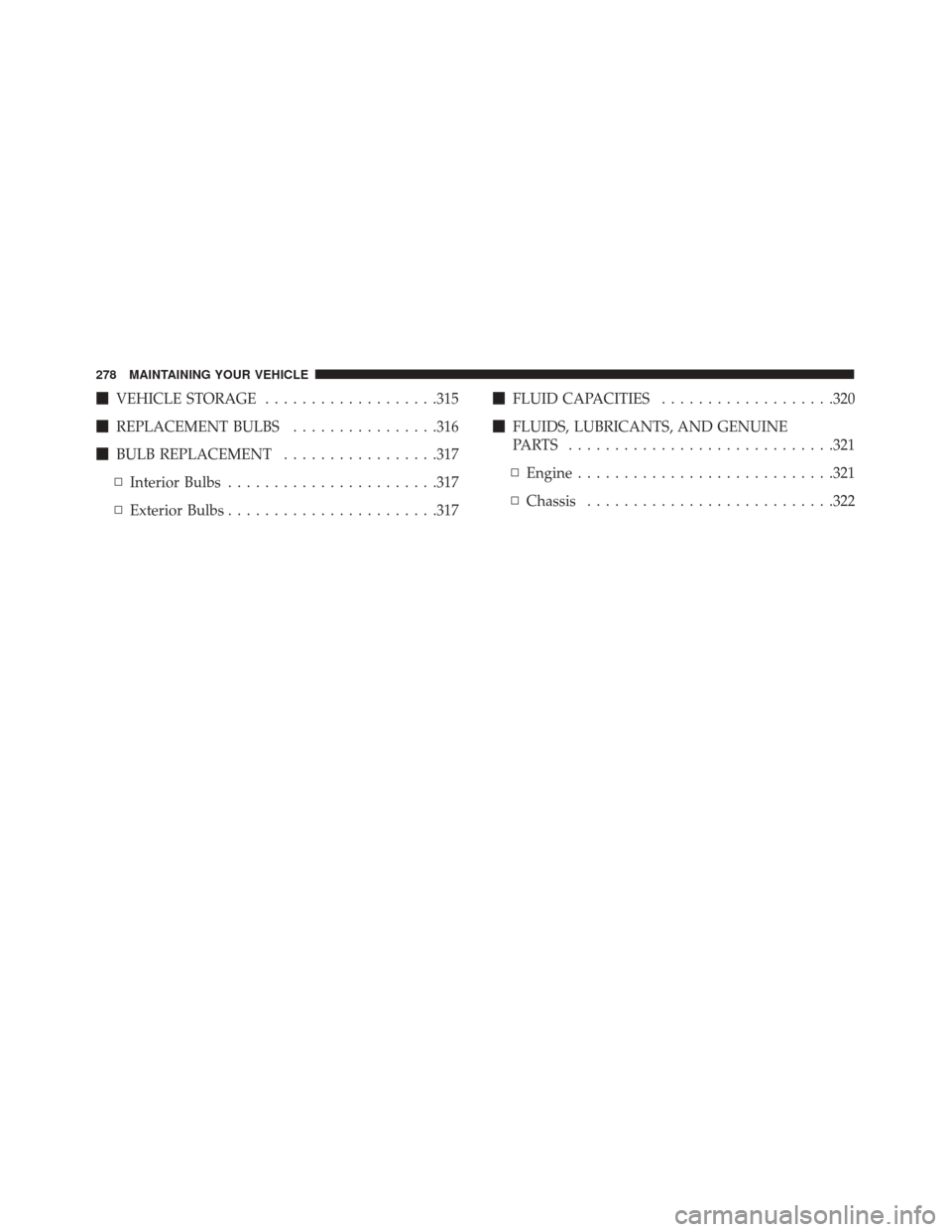

VEHICLE STORAGE ...................315
 REPLACEMENT BULBS ................316
 BULB REPLACEMENT .................317
▫ Interior Bulbs ...................... .317
▫ Exterior Bulbs ...................... .317
FLUID CAPACITIES ...................320
 FLUIDS, LUBRICANTS, AND GENUINE
PARTS ............................ .321
▫ Engine ........................... .321
▫ Chassis .......................... .322
278 MAINTAINING YOUR VEHICLE
