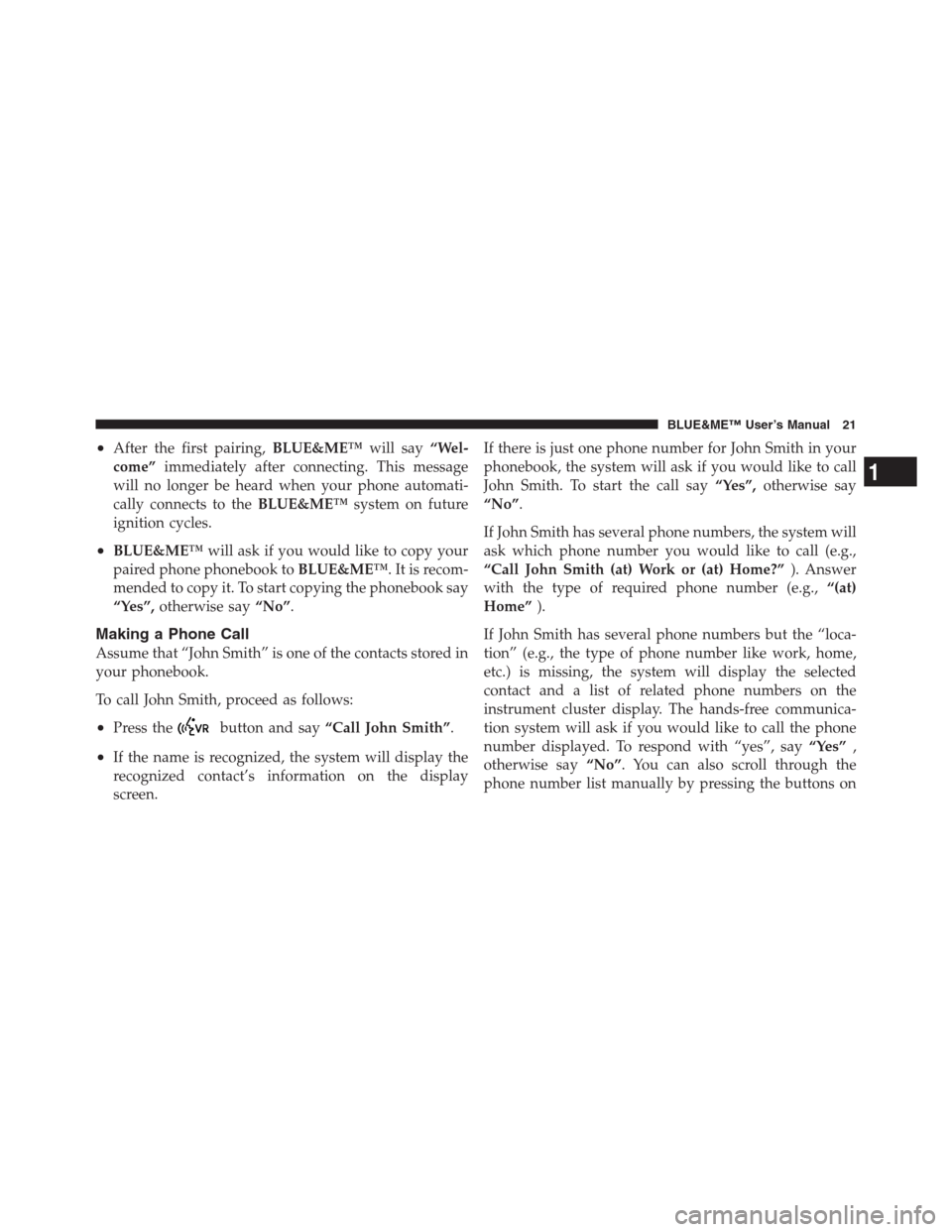

•After the first pairing,BLUE&ME™will say“Wel-
come”immediately after connecting. This message
will no longer be heard when your phone automati-
cally connects to theBLUE&ME™system on future
ignition cycles.
•BLUE&ME™will ask if you would like to copy your
paired phone phonebook toBLUE&ME™. It is recom-
mended to copy it. To start copying the phonebook say
“Yes”,otherwise say“No”.
Making a Phone Call
Assume that “John Smith” is one of the contacts stored in
your phonebook.
To call John Smith, proceed as follows:
•Press thebutton and say“Call John Smith”.
•If the name is recognized, the system will display the
recognized contact’s information on the display
screen.If there is just one phone number for John Smith in your
phonebook, the system will ask if you would like to call
John Smith. To start the call say“Yes”,otherwise say
“No”.
If John Smith has several phone numbers, the system will
ask which phone number you would like to call (e.g.,
“Call John Smith (at) Work or (at) Home?”). Answer
with the type of required phone number (e.g.,“(at)
Home”).
If John Smith has several phone numbers but the “loca-
tion” (e.g., the type of phone number like work, home,
etc.) is missing, the system will display the selected
contact and a list of related phone numbers on the
instrument cluster display. The hands-free communica-
tion system will ask if you would like to call the phone
number displayed. To respond with “yes”, say“Yes”,
otherwise say“No”. You can also scroll through the
phone number list manually by pressing the buttons on
1
BLUE&ME™ User’s Manual 21

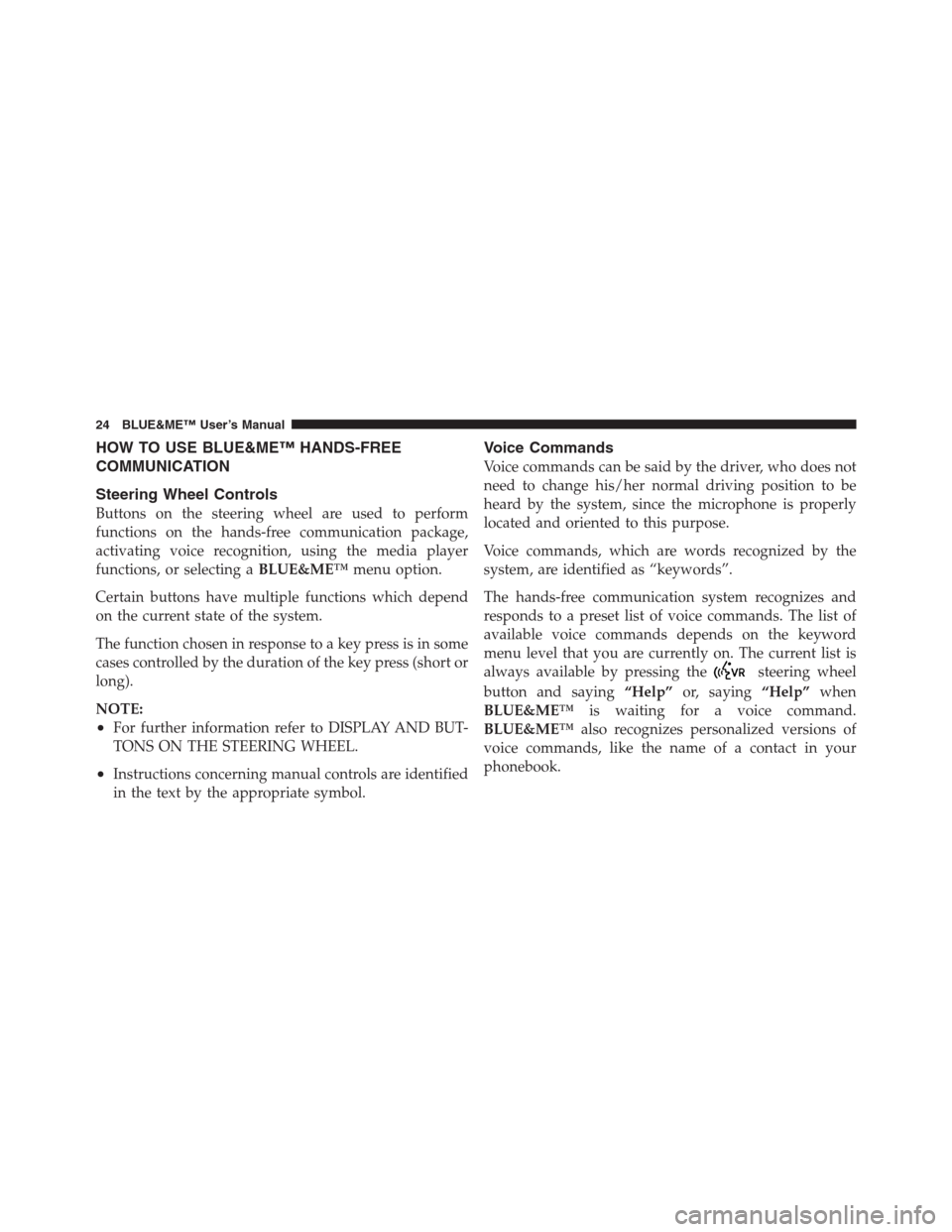

HOW TO USE BLUE&ME™ HANDS-FREE
COMMUNICATION
Steering Wheel Controls
Buttons on the steering wheel are used to perform
functions on the hands-free communication package,
activating voice recognition, using the media player
functions, or selecting aBLUE&ME™menu option.
Certain buttons have multiple functions which depend
on the current state of the system.
The function chosen in response to a key press is in some
cases controlled by the duration of the key press (short or
long).
NOTE:
•For further information refer to DISPLAY AND BUT-
TONS ON THE STEERING WHEEL.
•Instructions concerning manual controls are identified
in the text by the appropriate symbol.
Voice Commands
Voice commands can be said by the driver, who does not
need to change his/her normal driving position to be
heard by the system, since the microphone is properly
located and oriented to this purpose.
Voice commands, which are words recognized by the
system, are identified as “keywords”.
The hands-free communication system recognizes and
responds to a preset list of voice commands. The list of
available voice commands depends on the keyword
menu level that you are currently on. The current list is
always available by pressing the
steering wheel
button and saying“Help”or, saying“Help”when
BLUE&ME™is waiting for a voice command.
BLUE&ME™also recognizes personalized versions of
voice commands, like the name of a contact in your
phonebook.
24 BLUE&ME™ User’s Manual

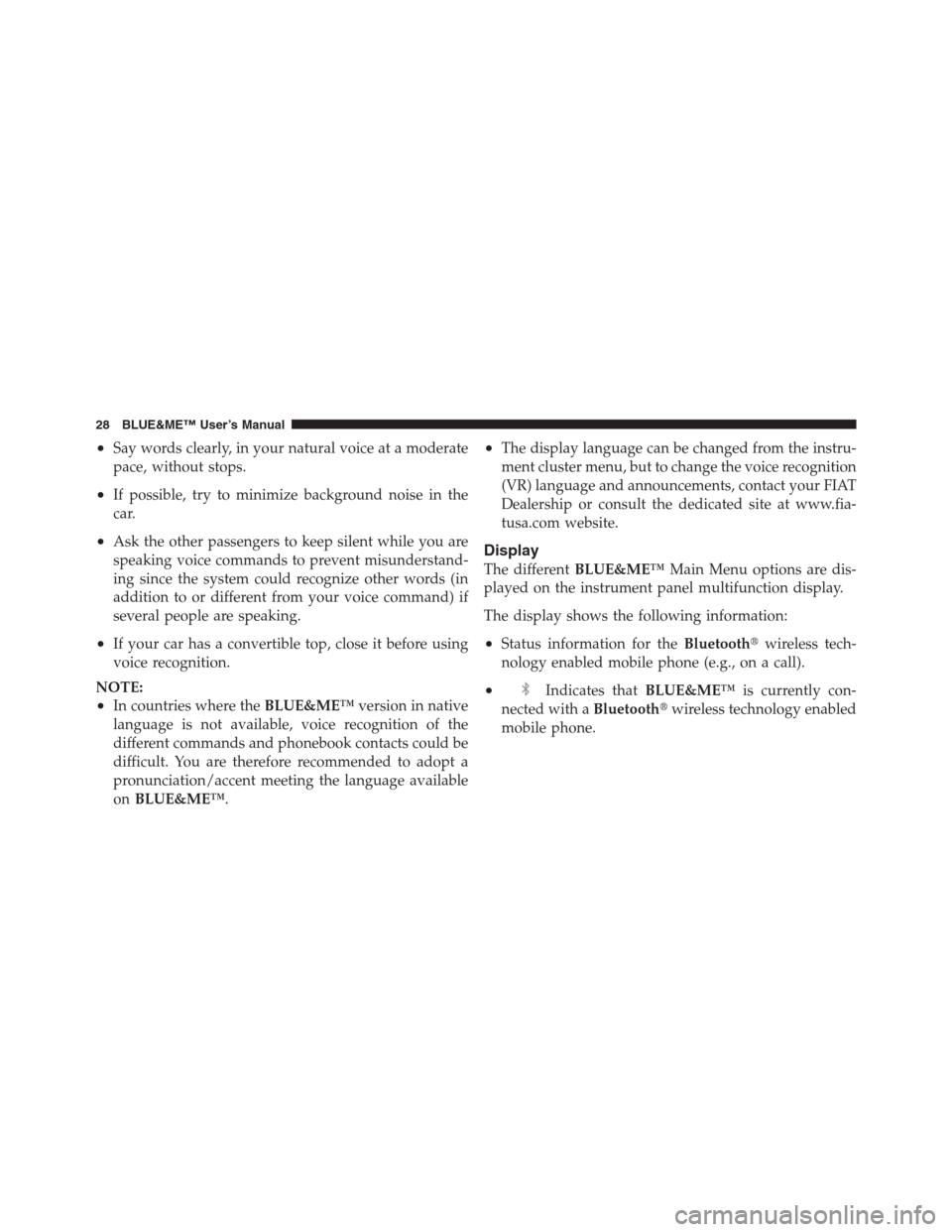

•Say words clearly, in your natural voice at a moderate
pace, without stops.
•If possible, try to minimize background noise in the
car.
•Ask the other passengers to keep silent while you are
speaking voice commands to prevent misunderstand-
ing since the system could recognize other words (in
addition to or different from your voice command) if
several people are speaking.
•If your car has a convertible top, close it before using
voice recognition.
NOTE:
•In countries where theBLUE&ME™version in native
language is not available, voice recognition of the
different commands and phonebook contacts could be
difficult. You are therefore recommended to adopt a
pronunciation/accent meeting the language available
onBLUE&ME™.
•The display language can be changed from the instru-
ment cluster menu, but to change the voice recognition
(VR) language and announcements, contact your FIAT
Dealership or consult the dedicated site at www.fia-
tusa.com website.
Display
The differentBLUE&ME™Main Menu options are dis-
played on the instrument panel multifunction display.
The display shows the following information:
•Status information for theBluetoothwireless tech-
nology enabled mobile phone (e.g., on a call).
•Indicates thatBLUE&ME™is currently con-
nected with aBluetoothwireless technology enabled
mobile phone.
28 BLUE&ME™ User’s Manual

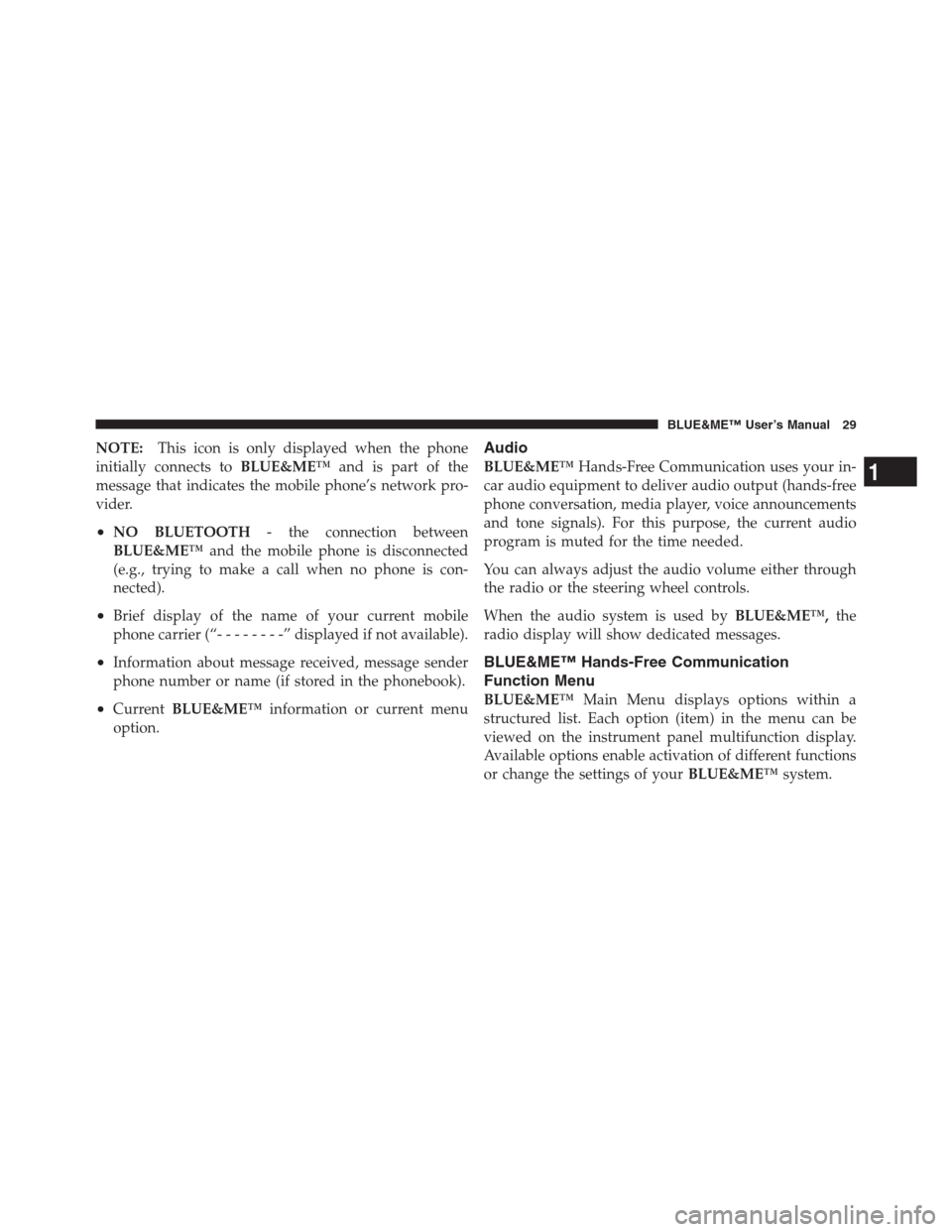

NOTE:This icon is only displayed when the phone
initially connects toBLUE&ME™and is part of the
message that indicates the mobile phone’s network pro-
vider.
•NO BLUETOOTH- the connection between
BLUE&ME™and the mobile phone is disconnected
(e.g., trying to make a call when no phone is con-
nected).
•Brief display of the name of your current mobile
phone carrier (“--------”displayed if not available).
•Information about message received, message sender
phone number or name (if stored in the phonebook).
•CurrentBLUE&ME™information or current menu
option.
Audio
BLUE&ME™Hands-Free Communication uses your in-
car audio equipment to deliver audio output (hands-free
phone conversation, media player, voice announcements
and tone signals). For this purpose, the current audio
program is muted for the time needed.
You can always adjust the audio volume either through
the radio or the steering wheel controls.
When the audio system is used byBLUE&ME™,the
radio display will show dedicated messages.
BLUE&ME™ Hands-Free Communication
Function Menu
BLUE&ME™Main Menu displays options within a
structured list. Each option (item) in the menu can be
viewed on the instrument panel multifunction display.
Available options enable activation of different functions
or change the settings of yourBLUE&ME™system.
1
BLUE&ME™ User’s Manual 29

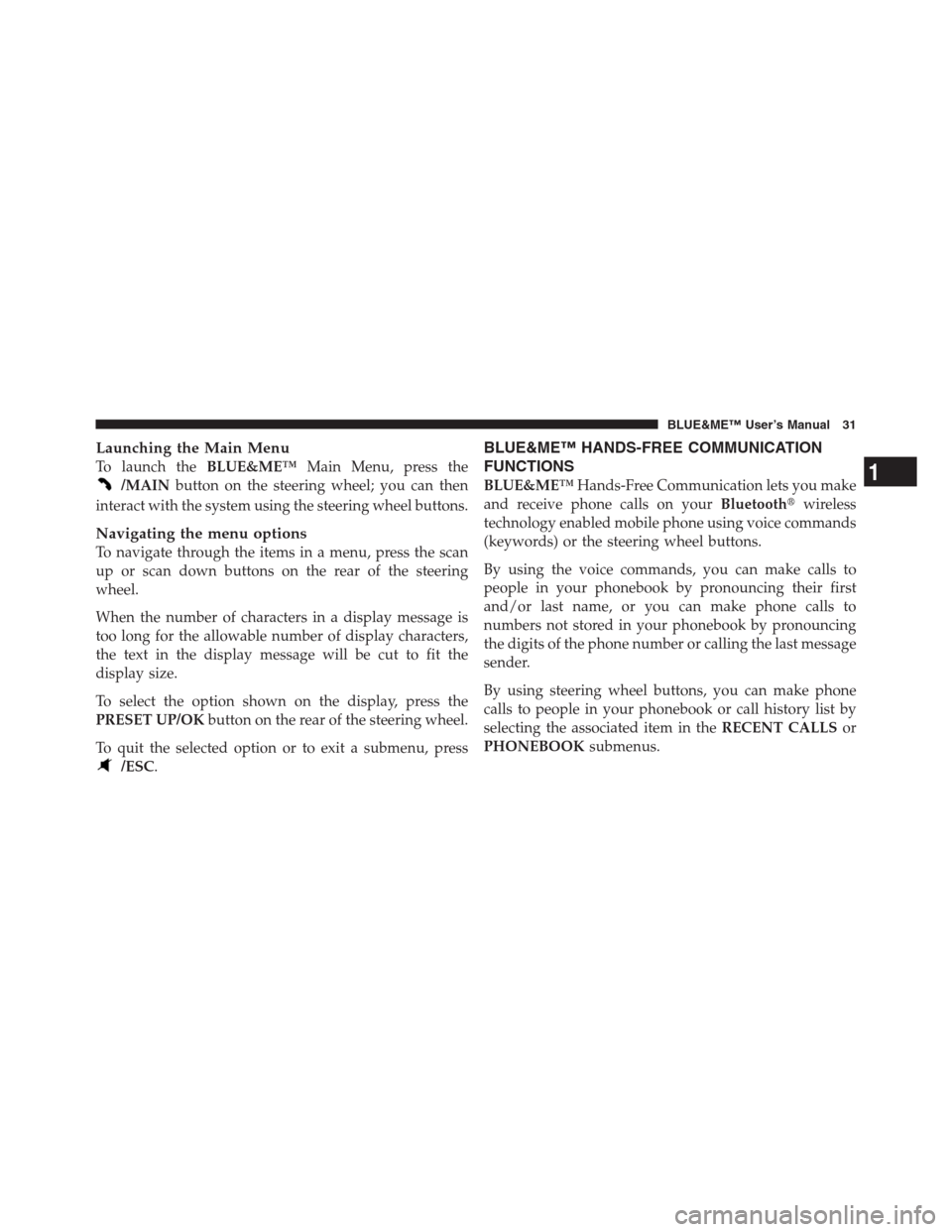

Launching the Main Menu
To launch theBLUE&ME™Main Menu, press the
/MAINbutton on the steering wheel; you can then
interact with the system using the steering wheel buttons.
Navigating the menu options
To navigate through the items in a menu, press the scan
up or scan down buttons on the rear of the steering
wheel.
When the number of characters in a display message is
too long for the allowable number of display characters,
the text in the display message will be cut to fit the
display size.
To select the option shown on the display, press the
PRESET UP/OKbutton on the rear of the steering wheel.
To quit the selected option or to exit a submenu, press
/ESC.
BLUE&ME™ HANDS-FREE COMMUNICATION
FUNCTIONS
BLUE&ME™Hands-Free Communication lets you make
and receive phone calls on yourBluetoothwireless
technology enabled mobile phone using voice commands
(keywords) or the steering wheel buttons.
By using the voice commands, you can make calls to
people in your phonebook by pronouncing their first
and/or last name, or you can make phone calls to
numbers not stored in your phonebook by pronouncing
the digits of the phone number or calling the last message
sender.
By using steering wheel buttons, you can make phone
calls to people in your phonebook or call history list by
selecting the associated item in theRECENT CALLSor
PHONEBOOKsubmenus.1
BLUE&ME™ User’s Manual 31

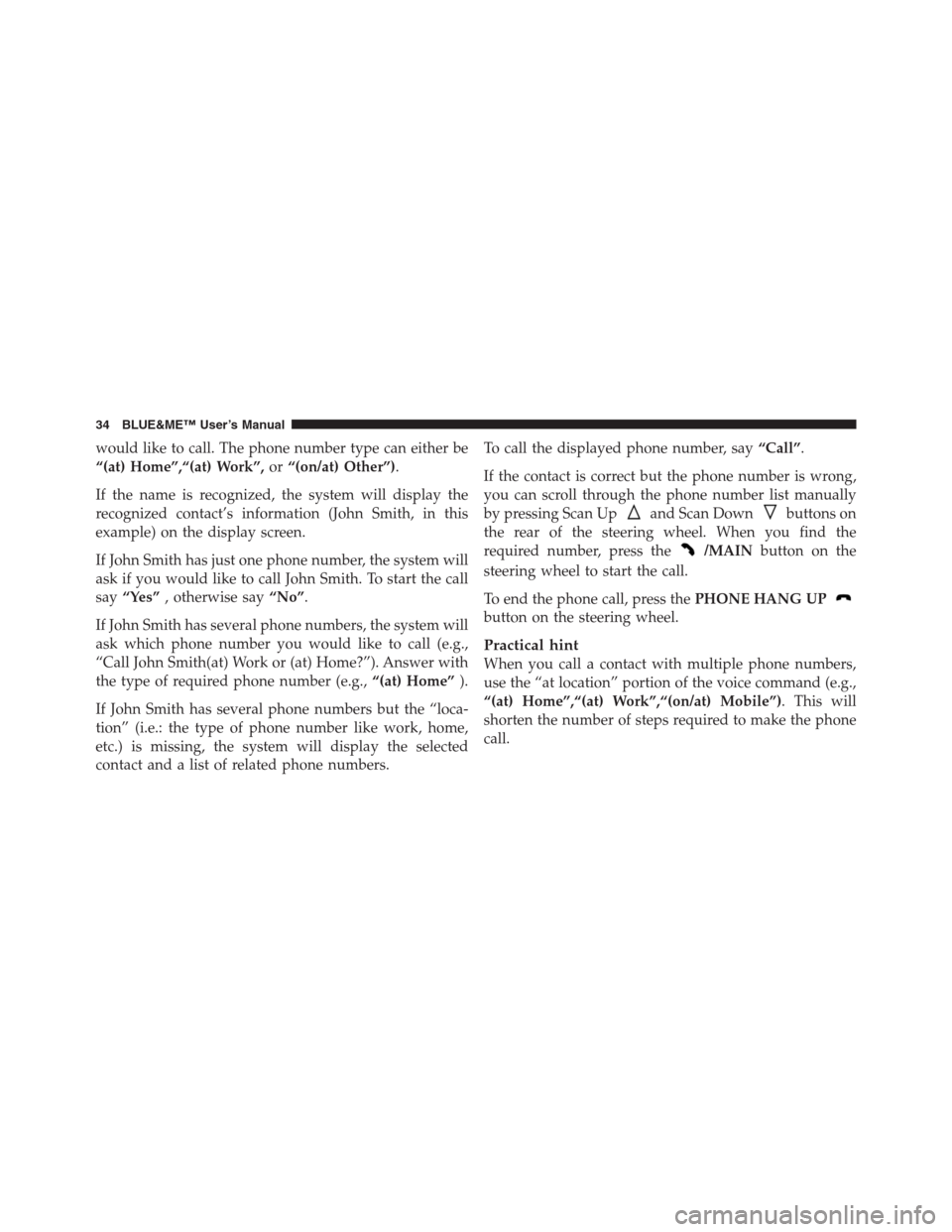

would like to call. The phone number type can either be
“(at) Home”,“(at) Work”,or“(on/at) Other”).
If the name is recognized, the system will display the
recognized contact’s information (John Smith, in this
example) on the display screen.
If John Smith has just one phone number, the system will
ask if you would like to call John Smith. To start the call
say“Yes”, otherwise say“No”.
If John Smith has several phone numbers, the system will
ask which phone number you would like to call (e.g.,
“Call John Smith(at) Work or (at) Home?”). Answer with
the type of required phone number (e.g.,“(at) Home”).
If John Smith has several phone numbers but the “loca-
tion” (i.e.: the type of phone number like work, home,
etc.) is missing, the system will display the selected
contact and a list of related phone numbers.To call the displayed phone number, say“Call”.
If the contact is correct but the phone number is wrong,
you can scroll through the phone number list manually
by pressing Scan Up
and Scan Downbuttons on
the rear of the steering wheel. When you find the
required number, press the
/MAINbutton on the
steering wheel to start the call.
To end the phone call, press thePHONE HANG UP
button on the steering wheel.
Practical hint
When you call a contact with multiple phone numbers,
use the “at location” portion of the voice command (e.g.,
“(at) Home”,“(at) Work”,“(on/at) Mobile”). This will
shorten the number of steps required to make the phone
call.
34 BLUE&ME™ User’s Manual

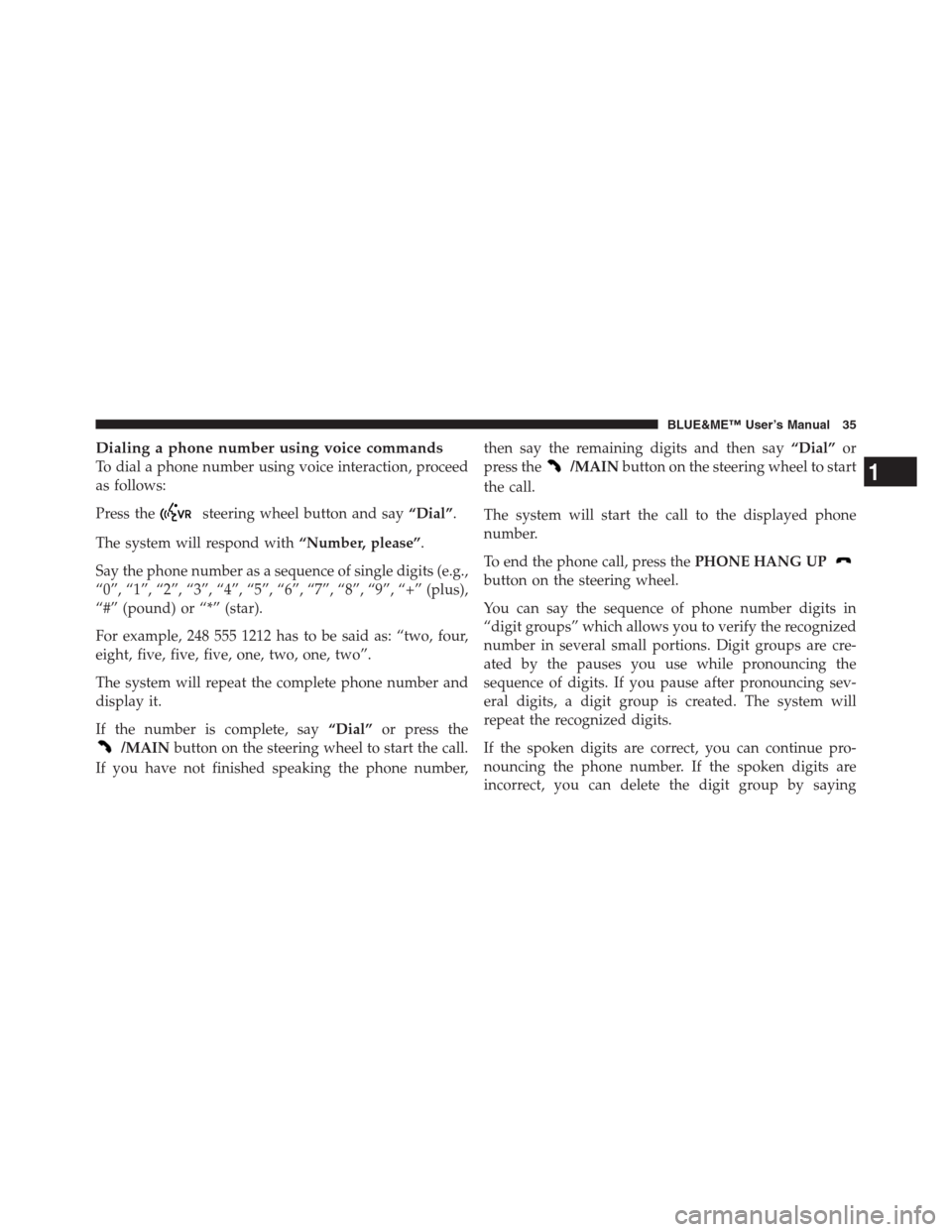

Dialing a phone number using voice commands
To dial a phone number using voice interaction, proceed
as follows:
Press the
steering wheel button and say“Dial”.
The system will respond with“Number, please”.
Say the phone number as a sequence of single digits (e.g.,
“0”, “1”, “2”, “3”, “4”, “5”, “6”, “7”, “8”, “9”, “+” (plus),
“#” (pound) or “*” (star).
For example, 248 555 1212 has to be said as: “two, four,
eight, five, five, five, one, two, one, two”.
The system will repeat the complete phone number and
display it.
If the number is complete, say“Dial”or press the
/MAINbutton on the steering wheel to start the call.
If you have not finished speaking the phone number,then say the remaining digits and then say“Dial”or
press the
/MAINbutton on the steering wheel to start
the call.
The system will start the call to the displayed phone
number.
To end the phone call, press thePHONE HANG UP
button on the steering wheel.
You can say the sequence of phone number digits in
“digit groups” which allows you to verify the recognized
number in several small portions. Digit groups are cre-
ated by the pauses you use while pronouncing the
sequence of digits. If you pause after pronouncing sev-
eral digits, a digit group is created. The system will
repeat the recognized digits.
If the spoken digits are correct, you can continue pro-
nouncing the phone number. If the spoken digits are
incorrect, you can delete the digit group by saying
1
BLUE&ME™ User’s Manual 35

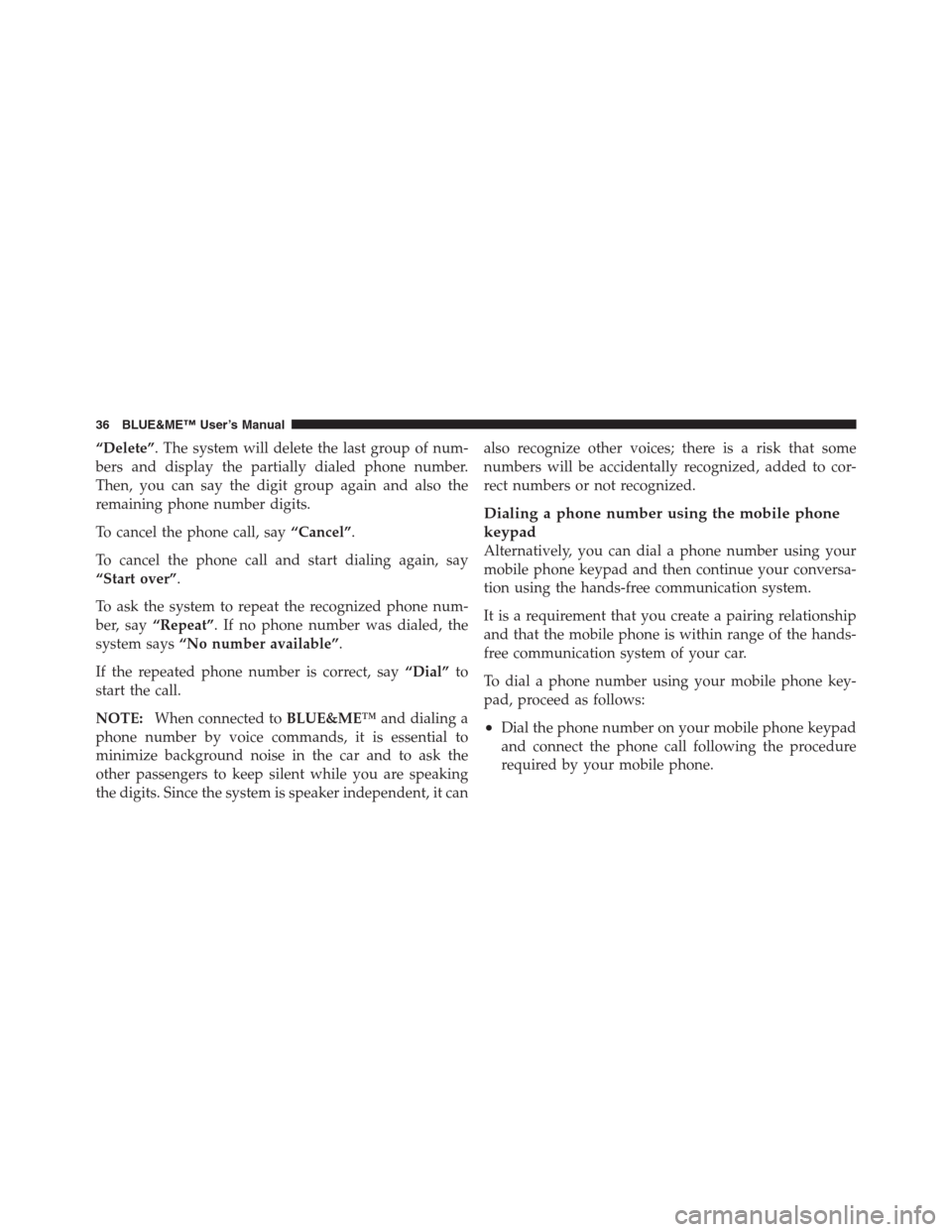

“Delete”. The system will delete the last group of num-
bers and display the partially dialed phone number.
Then, you can say the digit group again and also the
remaining phone number digits.
To cancel the phone call, say“Cancel”.
To cancel the phone call and start dialing again, say
“Start over”.
To ask the system to repeat the recognized phone num-
ber, say“Repeat”. If no phone number was dialed, the
system says“No number available”.
If the repeated phone number is correct, say“Dial”to
start the call.
NOTE:When connected toBLUE&ME™and dialing a
phone number by voice commands, it is essential to
minimize background noise in the car and to ask the
other passengers to keep silent while you are speaking
the digits. Since the system is speaker independent, it canalso recognize other voices; there is a risk that some
numbers will be accidentally recognized, added to cor-
rect numbers or not recognized.
Dialing a phone number using the mobile phone
keypad
Alternatively, you can dial a phone number using your
mobile phone keypad and then continue your conversa-
tion using the hands-free communication system.
It is a requirement that you create a pairing relationship
and that the mobile phone is within range of the hands-
free communication system of your car.
To dial a phone number using your mobile phone key-
pad, proceed as follows:
•Dial the phone number on your mobile phone keypad
and connect the phone call following the procedure
required by your mobile phone.
36 BLUE&ME™ User’s Manual

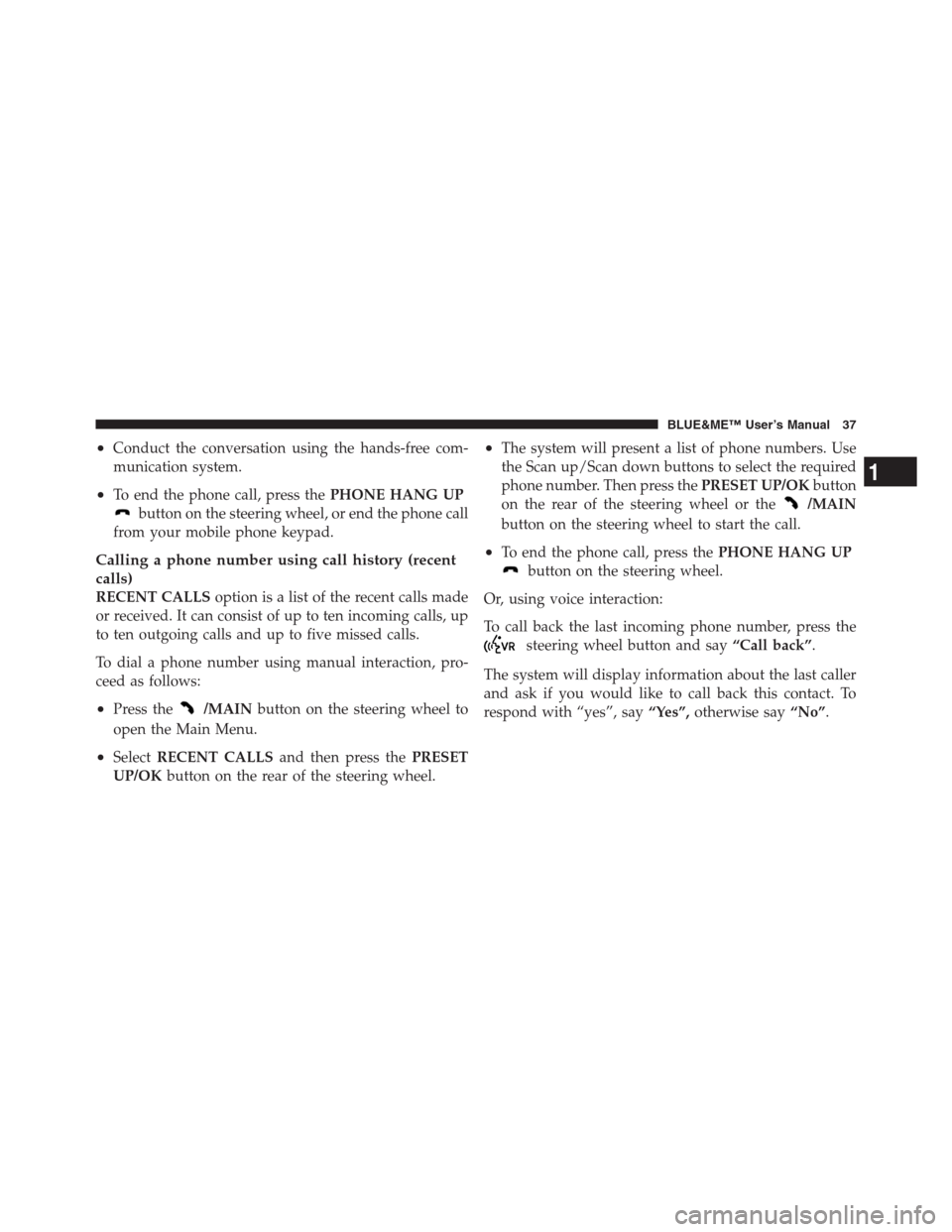

•Conduct the conversation using the hands-free com-
munication system.
•To end the phone call, press thePHONE HANG UP
button on the steering wheel, or end the phone call
from your mobile phone keypad.
Calling a phone number using call history (recent
calls)
RECENT CALLSoption is a list of the recent calls made
or received. It can consist of up to ten incoming calls, up
to ten outgoing calls and up to five missed calls.
To dial a phone number using manual interaction, pro-
ceed as follows:
•Press the/MAINbutton on the steering wheel to
open the Main Menu.
•SelectRECENT CALLSand then press thePRESET
UP/OKbutton on the rear of the steering wheel.
•The system will present a list of phone numbers. Use
the Scan up/Scan down buttons to select the required
phone number. Then press thePRESET UP/OKbutton
on the rear of the steering wheel or the
/MAIN
button on the steering wheel to start the call.
•To end the phone call, press thePHONE HANG UP
button on the steering wheel.
Or, using voice interaction:
To call back the last incoming phone number, press the
steering wheel button and say“Call back”.
The system will display information about the last caller
and ask if you would like to call back this contact. To
respond with “yes”, say“Yes”,otherwise say“No”.
1
BLUE&ME™ User’s Manual 37

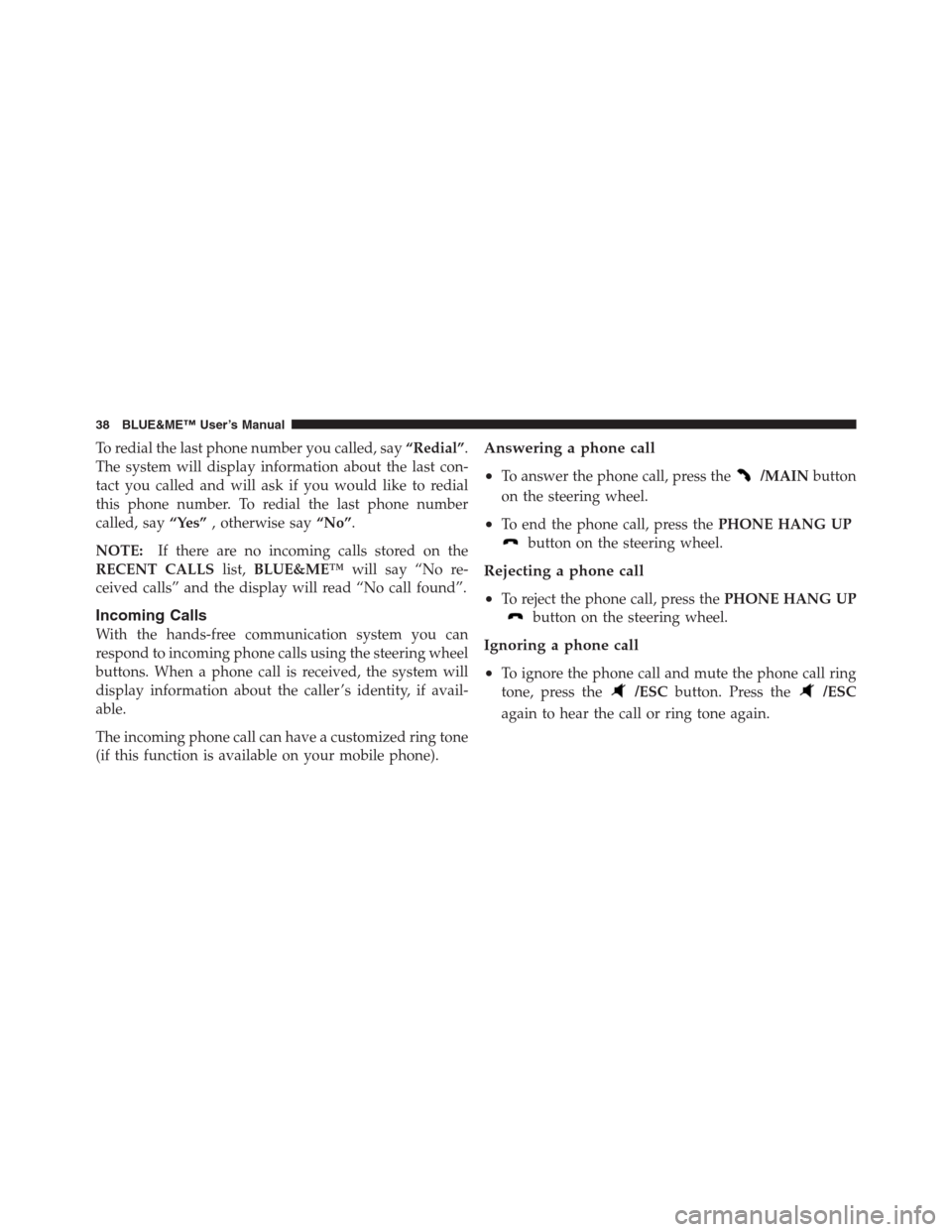

To redial the last phone number you called, say“Redial”.
The system will display information about the last con-
tact you called and will ask if you would like to redial
this phone number. To redial the last phone number
called, say“Yes”, otherwise say“No”.
NOTE:If there are no incoming calls stored on the
RECENT CALLSlist,BLUE&ME™will say “No re-
ceived calls” and the display will read “No call found”.
Incoming Calls
With the hands-free communication system you can
respond to incoming phone calls using the steering wheel
buttons. When a phone call is received, the system will
display information about the caller ’s identity, if avail-
able.
The incoming phone call can have a customized ring tone
(if this function is available on your mobile phone).
Answering a phone call
•
To answer the phone call, press the/MAINbutton
on the steering wheel.
•To end the phone call, press thePHONE HANG UP
button on the steering wheel.
Rejecting a phone call
•
To reject the phone call, press thePHONE HANG UP
button on the steering wheel.
Ignoring a phone call
•
To ignore the phone call and mute the phone call ring
tone, press the
/ESCbutton. Press the/ESC
again to hear the call or ring tone again.
38 BLUE&ME™ User’s Manual
