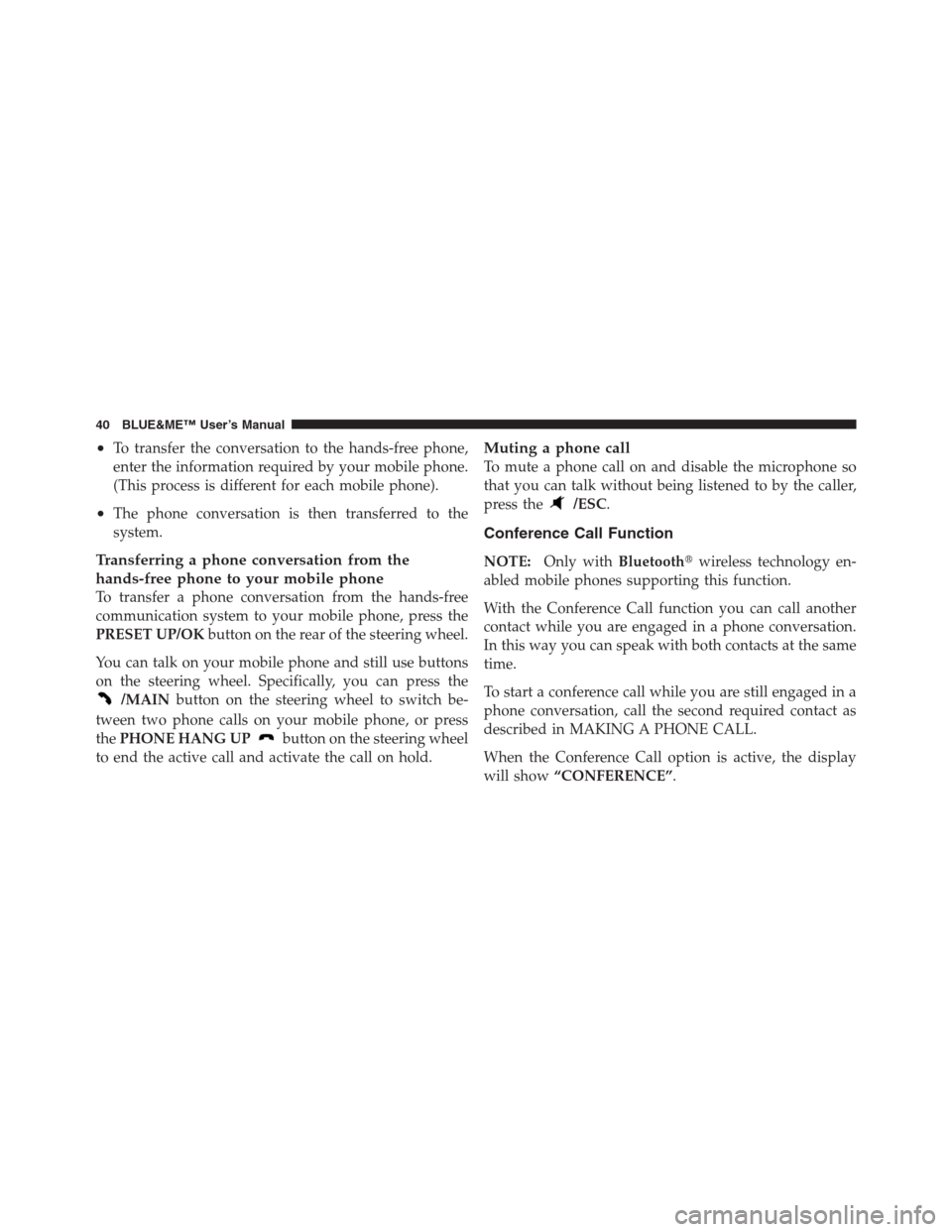

•To transfer the conversation to the hands-free phone,
enter the information required by your mobile phone.
(This process is different for each mobile phone).
•The phone conversation is then transferred to the
system.
Transferring a phone conversation from the
hands-free phone to your mobile phone
To transfer a phone conversation from the hands-free
communication system to your mobile phone, press the
PRESET UP/OKbutton on the rear of the steering wheel.
You can talk on your mobile phone and still use buttons
on the steering wheel. Specifically, you can press the
/MAINbutton on the steering wheel to switch be-
tween two phone calls on your mobile phone, or press
thePHONE HANG UP
button on the steering wheel
to end the active call and activate the call on hold.
Muting a phone call
To mute a phone call on and disable the microphone so
that you can talk without being listened to by the caller,
press the
/ESC.
Conference Call Function
NOTE:Only withBluetoothwireless technology en-
abled mobile phones supporting this function.
With the Conference Call function you can call another
contact while you are engaged in a phone conversation.
In this way you can speak with both contacts at the same
time.
To start a conference call while you are still engaged in a
phone conversation, call the second required contact as
described in MAKING A PHONE CALL.
When the Conference Call option is active, the display
will show“CONFERENCE”.
40 BLUE&ME™ User’s Manual

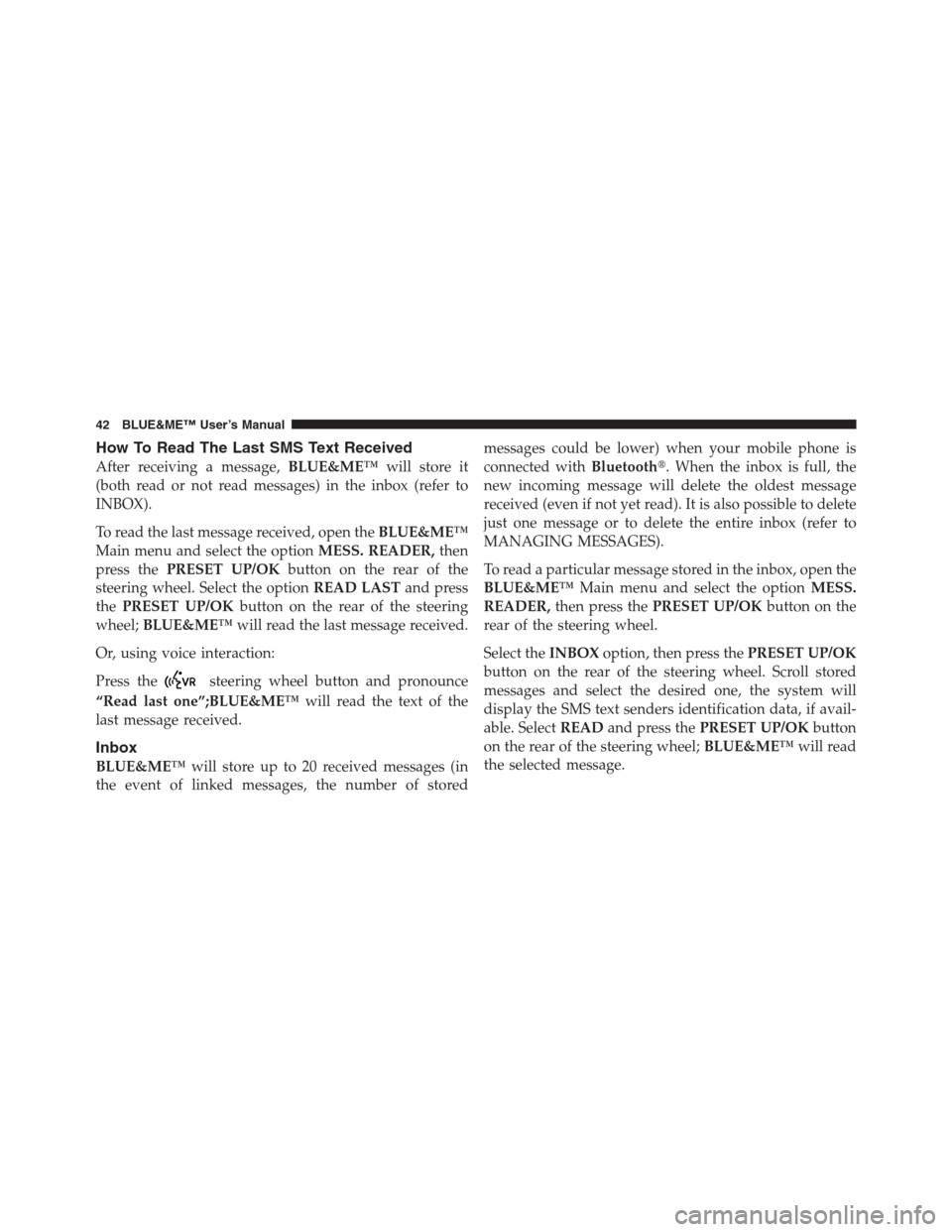

How To Read The Last SMS Text Received
After receiving a message,BLUE&ME™will store it
(both read or not read messages) in the inbox (refer to
INBOX).
To read the last message received, open theBLUE&ME™
Main menu and select the optionMESS. READER,then
press thePRESET UP/OKbutton on the rear of the
steering wheel. Select the optionREAD LASTand press
thePRESET UP/OKbutton on the rear of the steering
wheel;BLUE&ME™will read the last message received.
Or, using voice interaction:
Press the
steering wheel button and pronounce
“Read last one”;BLUE&ME™will read the text of the
last message received.
Inbox
BLUE&ME™will store up to 20 received messages (in
the event of linked messages, the number of storedmessages could be lower) when your mobile phone is
connected withBluetooth. When the inbox is full, the
new incoming message will delete the oldest message
received (even if not yet read). It is also possible to delete
just one message or to delete the entire inbox (refer to
MANAGING MESSAGES).
To read a particular message stored in the inbox, open the
BLUE&ME™Main menu and select the optionMESS.
READER,then press thePRESET UP/OKbutton on the
rear of the steering wheel.
Select theINBOXoption, then press thePRESET UP/OK
button on the rear of the steering wheel. Scroll stored
messages and select the desired one, the system will
display the SMS text senders identification data, if avail-
able. SelectREADand press thePRESET UP/OKbutton
on the rear of the steering wheel;BLUE&ME™will read
the selected message.
42 BLUE&ME™ User’s Manual

Or, using voice interaction:
Press the
steering wheel button and say“Message
reader”,after the audible tone, say“Inbox”;
BLUE&ME™will display the text sender’s identification
data for the first message contained in the inbox (and also
the phone number of the SMS text sender, if stored in the
phonebook).
To scroll theInbox,say“Previous”or“Next”; when the
required message is displayed, say“Read”,BLUE&ME™
will read the selected message.
Say“Delete”to delete the selected message.
Managing Messages
For every message received, whileBLUE&ME™is con-
nected to your phone,BLUE&ME™can:
read the message
call the sender directly
delete the messageTo access these options when reading a message, open
theBLUE&ME™Main menu and then press thePRE-
SET UP/OKbutton on the rear of the steering wheel to
select the desired option.
Or, using voice interaction:
Press the
steering wheel button and say“Read”or
“Call”or“Delete”;the system will perform the desired
option.
Deleting All Messages
BLUE&ME™can store a maximum of 20 messages; a
new incoming message will delete the oldest one re-
ceived from the inbox. All messages stored by
BLUE&ME™can be deleted by a single command.
To delete all messages, open theBLUE&ME™Main
menu and selectDELETE ALL,then press thePRESET
UP/OKbutton on the rear of the steering wheel. The
system will askDEL. MESS.?Press thePRESET UP/OK
1
BLUE&ME™ User’s Manual 43

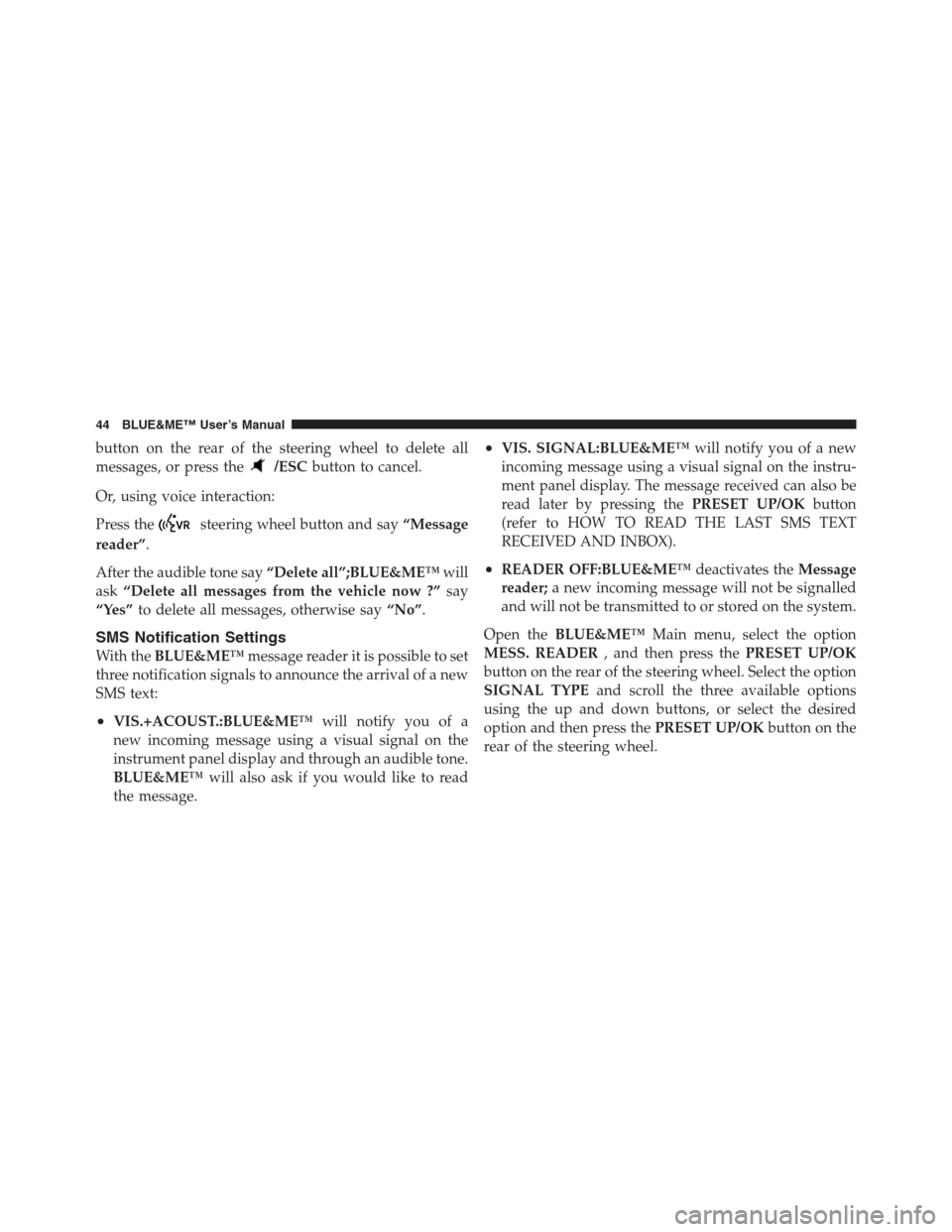

button on the rear of the steering wheel to delete all
messages, or press the
/ESCbutton to cancel.
Or, using voice interaction:
Press the
steering wheel button and say“Message
reader”.
After the audible tone say“Delete all”;BLUE&ME™will
ask“Delete all messages from the vehicle now ?”say
“Yes”to delete all messages, otherwise say“No”.
SMS Notification Settings
With theBLUE&ME™message reader it is possible to set
three notification signals to announce the arrival of a new
SMS text:
•VIS.+ACOUST.:BLUE&ME™will notify you of a
new incoming message using a visual signal on the
instrument panel display and through an audible tone.
BLUE&ME™will also ask if you would like to read
the message.
•VIS. SIGNAL:BLUE&ME™will notify you of a new
incoming message using a visual signal on the instru-
ment panel display. The message received can also be
read later by pressing thePRESET UP/OKbutton
(refer to HOW TO READ THE LAST SMS TEXT
RECEIVED AND INBOX).
•READER OFF:BLUE&ME™deactivates theMessage
reader;a new incoming message will not be signalled
and will not be transmitted to or stored on the system.
Open theBLUE&ME™Main menu, select the option
MESS. READER, and then press thePRESET UP/OK
button on the rear of the steering wheel. Select the option
SIGNAL TYPEand scroll the three available options
using the up and down buttons, or select the desired
option and then press thePRESET UP/OKbutton on the
rear of the steering wheel.
44 BLUE&ME™ User’s Manual

Or, using voice interaction:
Press the
steering wheel button and say“Message
reader”.After the audible tone say“Signal type”;
BLUE&ME™will list the available options and then you
can select the required one by saying“Reader off”or
“Visual and acoustic signal”or“Visual signal only”.

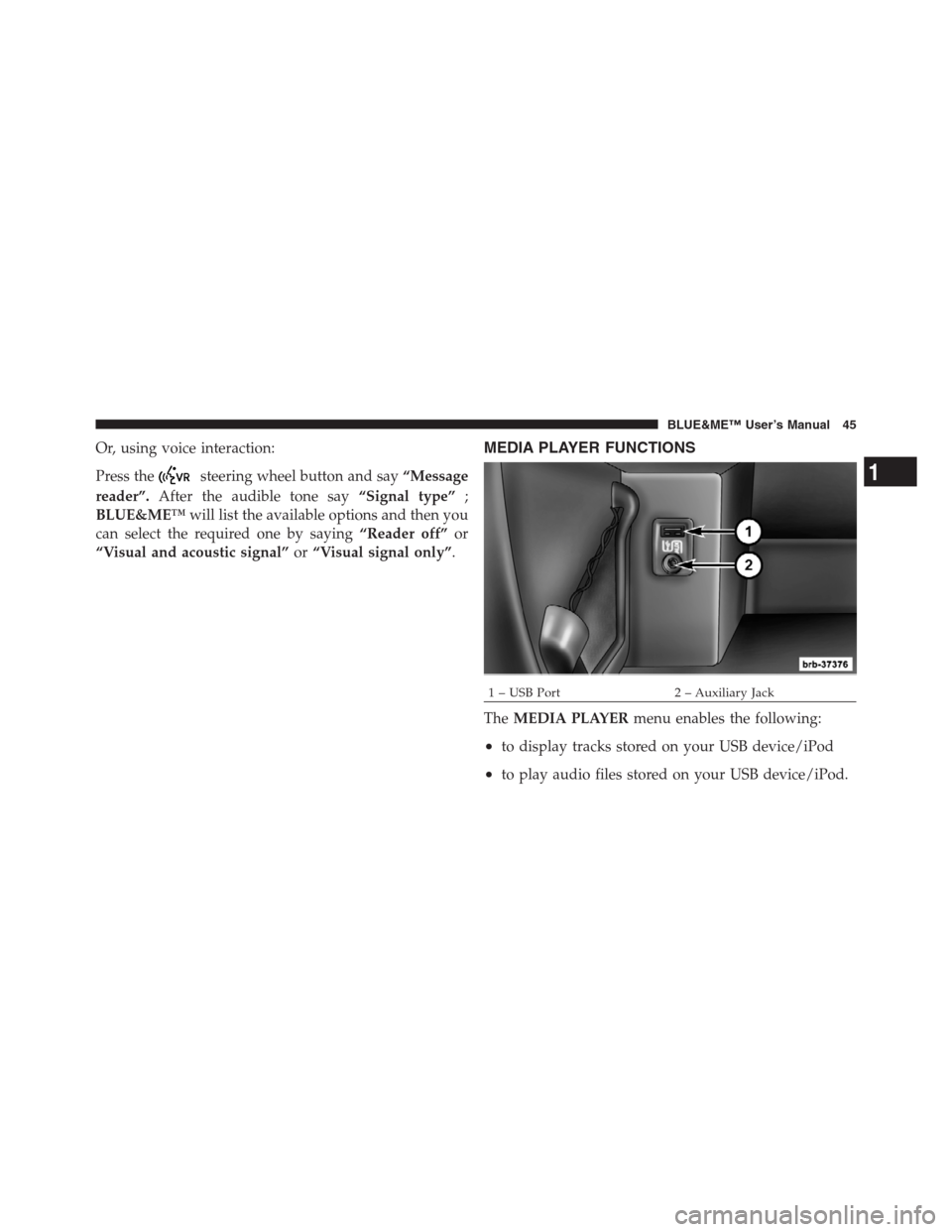

MEDIA PLAYER FUNCTIONS
TheMEDIA PLAYERmenu enables the following:
•to display tracks stored on your USB device/iPod
•to play audio files stored on your USB device/iPod.
1 – USB Port 2 – Auxiliary Jack
1
BLUE&ME™ User’s Manual 45

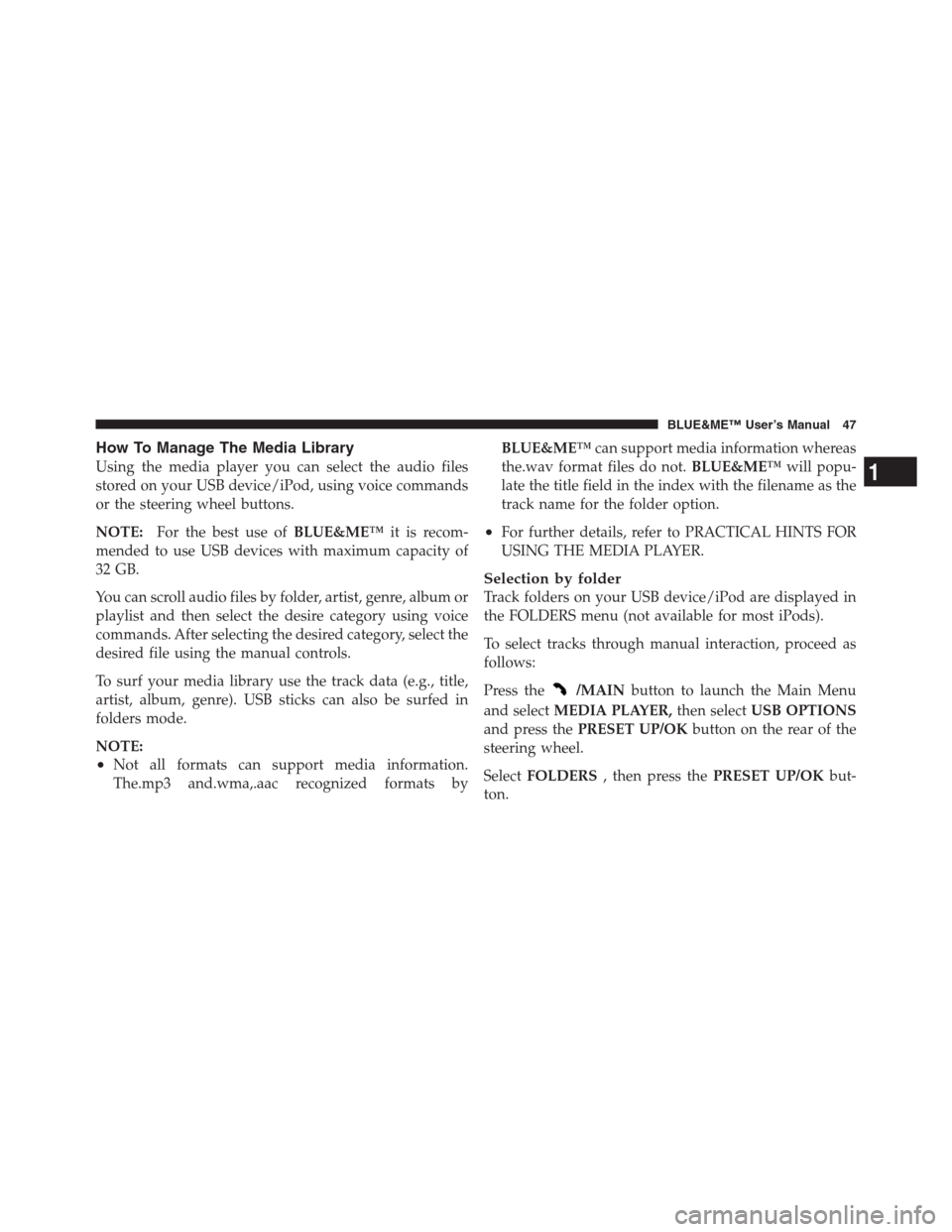

How To Manage The Media Library
Using the media player you can select the audio files
stored on your USB device/iPod, using voice commands
or the steering wheel buttons.
NOTE:For the best use ofBLUE&ME™it is recom-
mended to use USB devices with maximum capacity of
32 GB.
You can scroll audio files by folder, artist, genre, album or
playlist and then select the desire category using voice
commands. After selecting the desired category, select the
desired file using the manual controls.
To surf your media library use the track data (e.g., title,
artist, album, genre). USB sticks can also be surfed in
folders mode.
NOTE:
•Not all formats can support media information.
The.mp3 and.wma,.aac recognized formats byBLUE&ME™can support media information whereas
the.wav format files do not.BLUE&ME™will popu-
late the title field in the index with the filename as the
track name for the folder option.
•For further details, refer to PRACTICAL HINTS FOR
USING THE MEDIA PLAYER.
Selection by folder
Track folders on your USB device/iPod are displayed in
the FOLDERS menu (not available for most iPods).
To select tracks through manual interaction, proceed as
follows:
Press the
/MAINbutton to launch the Main Menu
and selectMEDIA PLAYER,then selectUSB OPTIONS
and press thePRESET UP/OKbutton on the rear of the
steering wheel.
SelectFOLDERS, then press thePRESET UP/OKbut-
ton.
1
BLUE&ME™ User’s Manual 47

Use the Scan Up/Scan Down buttons to scroll through
the folders. To play all song tracks in all folders, select
PLAY ALLand then press thePRESET UP/OKbutton. To
display folder tracks, select the desired folder and press
thePRESET UP/OKbutton.
Scroll the selected folder tracks. To play a desired track,
select the title and then press thePRESET UP/OKbutton
on the rear of the steering wheel.
Or, by using voice interaction:
Press the
steering wheel button and say“Media
Player”,then, after the beep, say“Advanced USB op-
tions”and finally, after the beep, say“Folders”.
Use the Scan Up/Scan Down buttons to scroll through
the folders. To play all song tracks in all folders, select
PLAY ALLand then press thePRESET UP/OKbutton. To
display folder tracks, press thePRESET UP/OKbutton.Scroll the selected folder tracks. To play a desired track,
select the title and then press thePRESET UP/OKbutton
on the rear of the steering wheel.
NOTE:For further details on FOLDERS, or menu
customization, refer to PRACTICAL HINTS FOR USING
THE MEDIA PLAYER.
Selection by artist
To select a specific artist’s song tracks, proceed as follows:
Press the
/MAINbutton to launch the Main Menu
and selectMEDIA PLAYER,and then selectUSB OP-
TIONSand press thePRESET UP/OKbutton on the rear
of the steering wheel.
SelectARTISTSand then press thePRESET UP/OK
button.
Use the Scan Up/Scan Down buttons to scroll through
the Artists. To play music from a desired artist, select the
artist and press thePRESET UP/OKbutton.
48 BLUE&ME™ User’s Manual

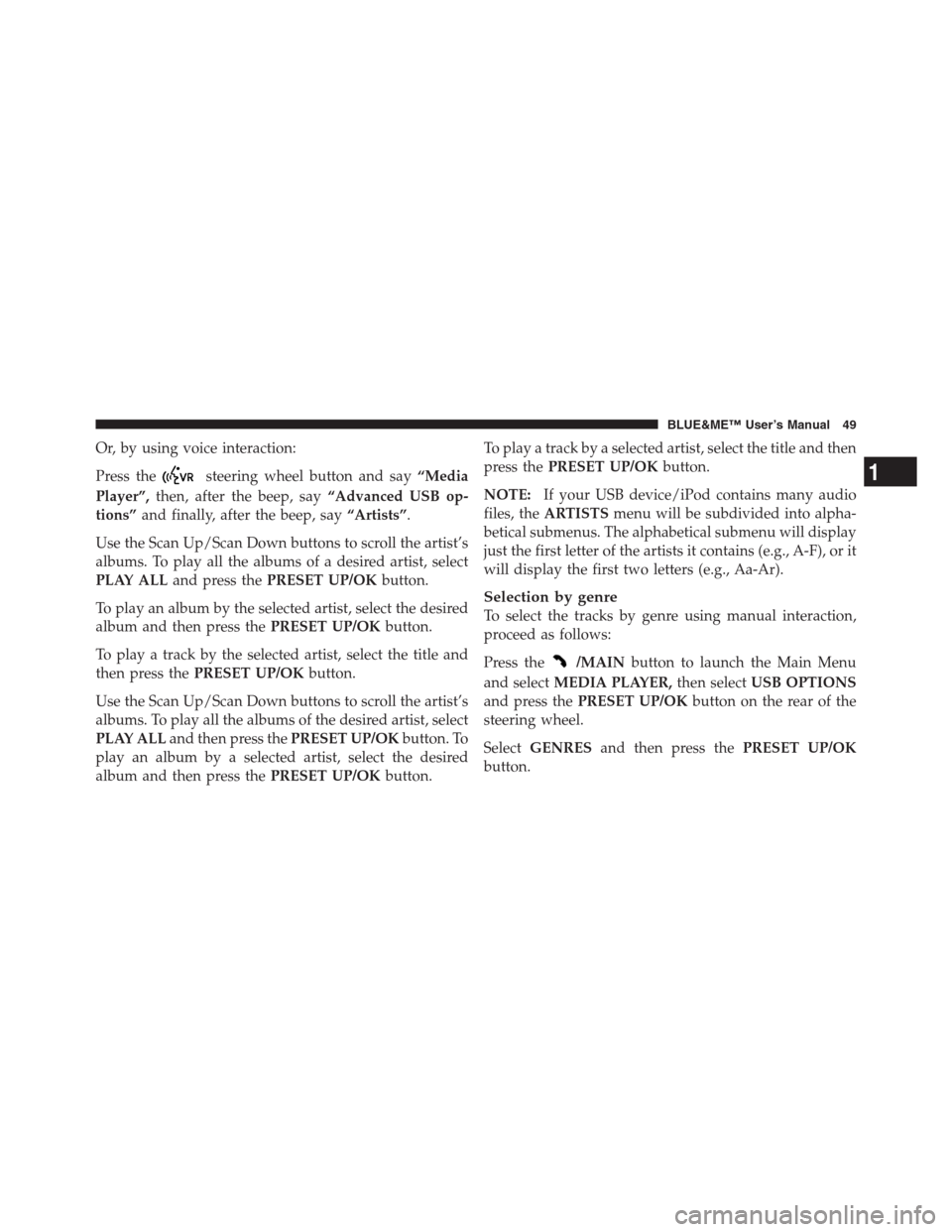

Or, by using voice interaction:
Press the
steering wheel button and say“Media
Player”,then, after the beep, say“Advanced USB op-
tions”and finally, after the beep, say“Artists”.
Use the Scan Up/Scan Down buttons to scroll the artist’s
albums. To play all the albums of a desired artist, select
PLAY ALLand press thePRESET UP/OKbutton.
To play an album by the selected artist, select the desired
album and then press thePRESET UP/OKbutton.
To play a track by the selected artist, select the title and
then press thePRESET UP/OKbutton.
Use the Scan Up/Scan Down buttons to scroll the artist’s
albums. To play all the albums of the desired artist, select
PLAY ALLand then press thePRESET UP/OKbutton. To
play an album by a selected artist, select the desired
album and then press thePRESET UP/OKbutton.To play a track by a selected artist, select the title and then
press thePRESET UP/OKbutton.
NOTE:If your USB device/iPod contains many audio
files, theARTISTSmenu will be subdivided into alpha-
betical submenus. The alphabetical submenu will display
just the first letter of the artists it contains (e.g., A-F), or it
will display the first two letters (e.g., Aa-Ar).
Selection by genre
To select the tracks by genre using manual interaction,
proceed as follows:
Press the
/MAINbutton to launch the Main Menu
and selectMEDIA PLAYER,then selectUSB OPTIONS
and press thePRESET UP/OKbutton on the rear of the
steering wheel.
SelectGENRESand then press thePRESET UP/OK
button.
1
BLUE&ME™ User’s Manual 49

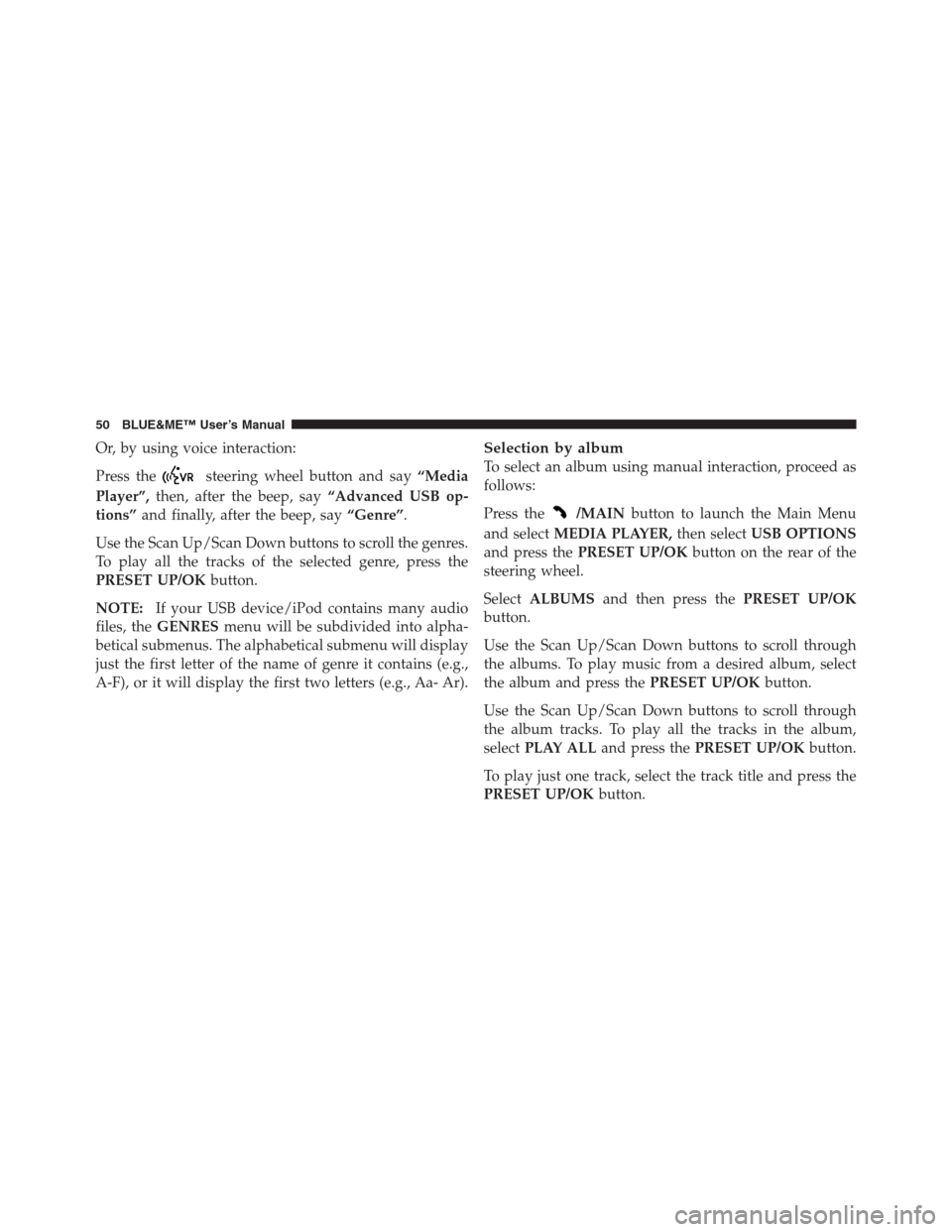

Or, by using voice interaction:
Press the
steering wheel button and say“Media
Player”,then, after the beep, say“Advanced USB op-
tions”and finally, after the beep, say“Genre”.
Use the Scan Up/Scan Down buttons to scroll the genres.
To play all the tracks of the selected genre, press the
PRESET UP/OKbutton.
NOTE:If your USB device/iPod contains many audio
files, theGENRESmenu will be subdivided into alpha-
betical submenus. The alphabetical submenu will display
just the first letter of the name of genre it contains (e.g.,
A-F), or it will display the first two letters (e.g., Aa- Ar).
Selection by album
To select an album using manual interaction, proceed as
follows:
Press the
/MAINbutton to launch the Main Menu
and selectMEDIA PLAYER,then selectUSB OPTIONS
and press thePRESET UP/OKbutton on the rear of the
steering wheel.
SelectALBUMSand then press thePRESET UP/OK
button.
Use the Scan Up/Scan Down buttons to scroll through
the albums. To play music from a desired album, select
the album and press thePRESET UP/OKbutton.
Use the Scan Up/Scan Down buttons to scroll through
the album tracks. To play all the tracks in the album,
selectPLAY ALLand press thePRESET UP/OKbutton.
To play just one track, select the track title and press the
PRESET UP/OKbutton.
50 BLUE&ME™ User’s Manual

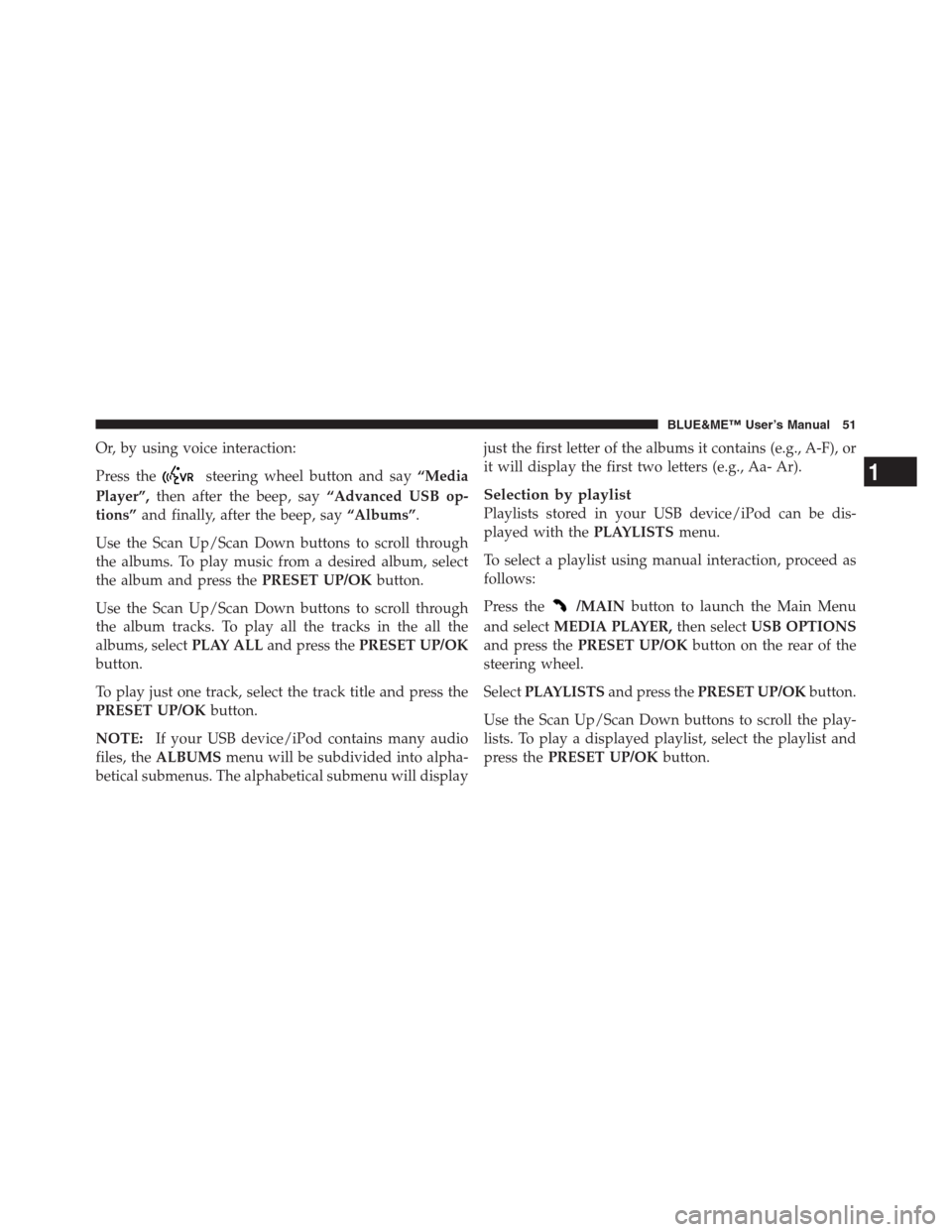

Or, by using voice interaction:
Press the
steering wheel button and say“Media
Player”,then after the beep, say“Advanced USB op-
tions”and finally, after the beep, say“Albums”.
Use the Scan Up/Scan Down buttons to scroll through
the albums. To play music from a desired album, select
the album and press thePRESET UP/OKbutton.
Use the Scan Up/Scan Down buttons to scroll through
the album tracks. To play all the tracks in the all the
albums, selectPLAY ALLand press thePRESET UP/OK
button.
To play just one track, select the track title and press the
PRESET UP/OKbutton.
NOTE:If your USB device/iPod contains many audio
files, theALBUMSmenu will be subdivided into alpha-
betical submenus. The alphabetical submenu will displayjust the first letter of the albums it contains (e.g., A-F), or
it will display the first two letters (e.g., Aa- Ar).
Selection by playlist
Playlists stored in your USB device/iPod can be dis-
played with thePLAYLISTSmenu.
To select a playlist using manual interaction, proceed as
follows:
Press the
/MAINbutton to launch the Main Menu
and selectMEDIA PLAYER,then selectUSB OPTIONS
and press thePRESET UP/OKbutton on the rear of the
steering wheel.
SelectPLAYLISTSand press thePRESET UP/OKbutton.
Use the Scan Up/Scan Down buttons to scroll the play-
lists. To play a displayed playlist, select the playlist and
press thePRESET UP/OKbutton.
1
BLUE&ME™ User’s Manual 51
