FIAT 500 ABARTH 2012 2.G Blue And Me Owner's Guide

NOTE:This icon is only displayed when the phone
initially connects toBLUE&ME™and is part of the
message that indicates the mobile phone’s network pro-
vider.
•NO BLUETOOTH- the connection between
BLUE&ME™and the mobile phone is disconnected
(e.g., trying to make a call when no phone is con-
nected).
•Brief display of the name of your current mobile
phone carrier (“--------”displayed if not available).
•Information about message received, message sender
phone number or name (if stored in the phonebook).
•CurrentBLUE&ME™information or current menu
option.
Audio
BLUE&ME™Hands-Free Communication uses your in-
car audio equipment to deliver audio output (hands-free
phone conversation, media player, voice announcements
and tone signals). For this purpose, the current audio
program is muted for the time needed.
You can always adjust the audio volume either through
the radio or the steering wheel controls.
When the audio system is used byBLUE&ME™,the
radio display will show dedicated messages.
BLUE&ME™ Hands-Free Communication
Function Menu
BLUE&ME™Main Menu displays options within a
structured list. Each option (item) in the menu can be
viewed on the instrument panel multifunction display.
Available options enable activation of different functions
or change the settings of yourBLUE&ME™system.
1
BLUE&ME™ User’s Manual 29

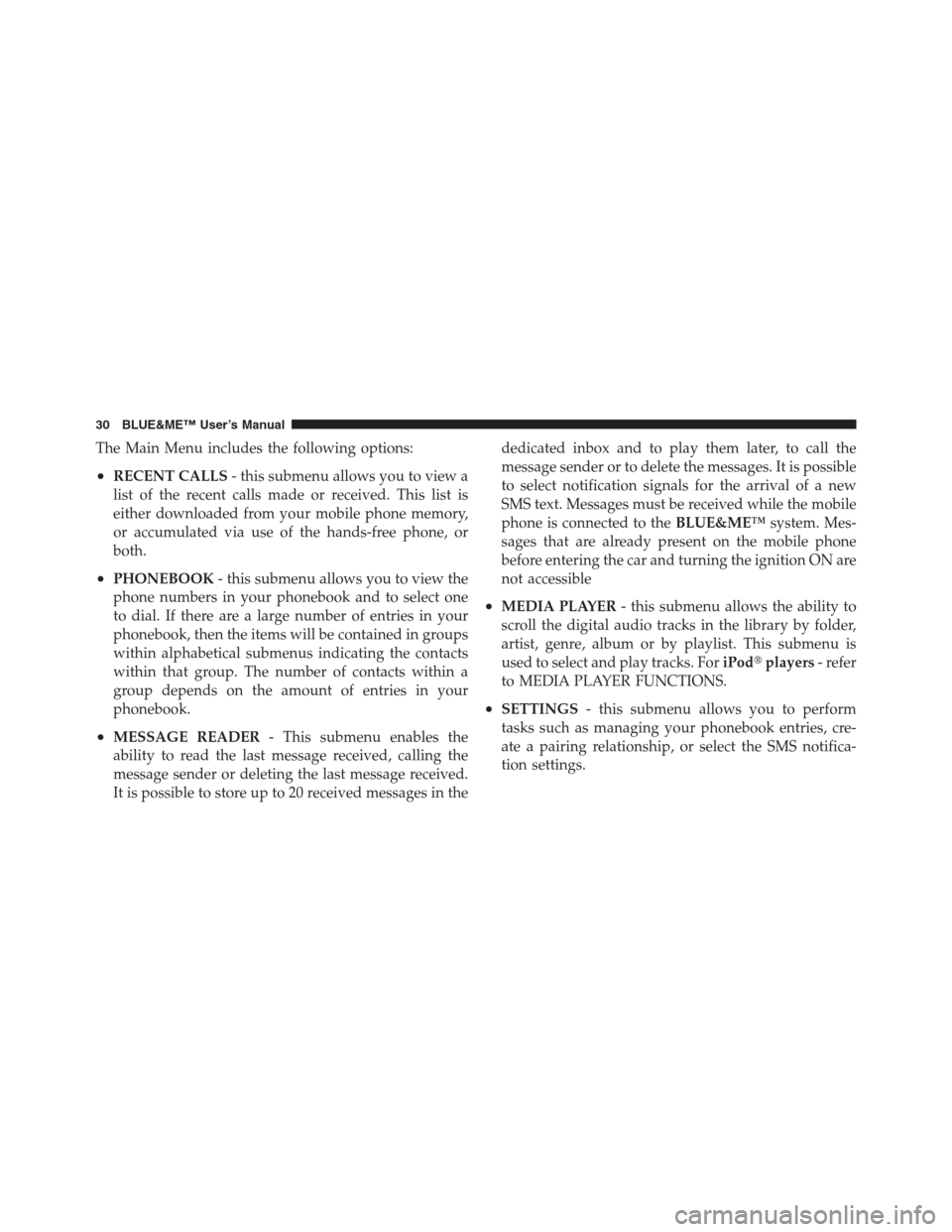

The Main Menu includes the following options:
•RECENT CALLS- this submenu allows you to view a
list of the recent calls made or received. This list is
either downloaded from your mobile phone memory,
or accumulated via use of the hands-free phone, or
both.
•PHONEBOOK- this submenu allows you to view the
phone numbers in your phonebook and to select one
to dial. If there are a large number of entries in your
phonebook, then the items will be contained in groups
within alphabetical submenus indicating the contacts
within that group. The number of contacts within a
group depends on the amount of entries in your
phonebook.
•MESSAGE READER- This submenu enables the
ability to read the last message received, calling the
message sender or deleting the last message received.
It is possible to store up to 20 received messages in thededicated inbox and to play them later, to call the
message sender or to delete the messages. It is possible
to select notification signals for the arrival of a new
SMS text. Messages must be received while the mobile
phone is connected to theBLUE&ME™system. Mes-
sages that are already present on the mobile phone
before entering the car and turning the ignition ON are
not accessible
•MEDIA PLAYER- this submenu allows the ability to
scroll the digital audio tracks in the library by folder,
artist, genre, album or by playlist. This submenu is
used to select and play tracks. ForiPodplayers- refer
to MEDIA PLAYER FUNCTIONS.
•SETTINGS- this submenu allows you to perform
tasks such as managing your phonebook entries, cre-
ate a pairing relationship, or select the SMS notifica-
tion settings.
30 BLUE&ME™ User’s Manual

Launching the Main Menu
To launch theBLUE&ME™Main Menu, press the
/MAINbutton on the steering wheel; you can then
interact with the system using the steering wheel buttons.
Navigating the menu options
To navigate through the items in a menu, press the scan
up or scan down buttons on the rear of the steering
wheel.
When the number of characters in a display message is
too long for the allowable number of display characters,
the text in the display message will be cut to fit the
display size.
To select the option shown on the display, press the
PRESET UP/OKbutton on the rear of the steering wheel.
To quit the selected option or to exit a submenu, press
/ESC.
BLUE&ME™ HANDS-FREE COMMUNICATION
FUNCTIONS
BLUE&ME™Hands-Free Communication lets you make
and receive phone calls on yourBluetoothwireless
technology enabled mobile phone using voice commands
(keywords) or the steering wheel buttons.
By using the voice commands, you can make calls to
people in your phonebook by pronouncing their first
and/or last name, or you can make phone calls to
numbers not stored in your phonebook by pronouncing
the digits of the phone number or calling the last message
sender.
By using steering wheel buttons, you can make phone
calls to people in your phonebook or call history list by
selecting the associated item in theRECENT CALLSor
PHONEBOOKsubmenus.1
BLUE&ME™ User’s Manual 31

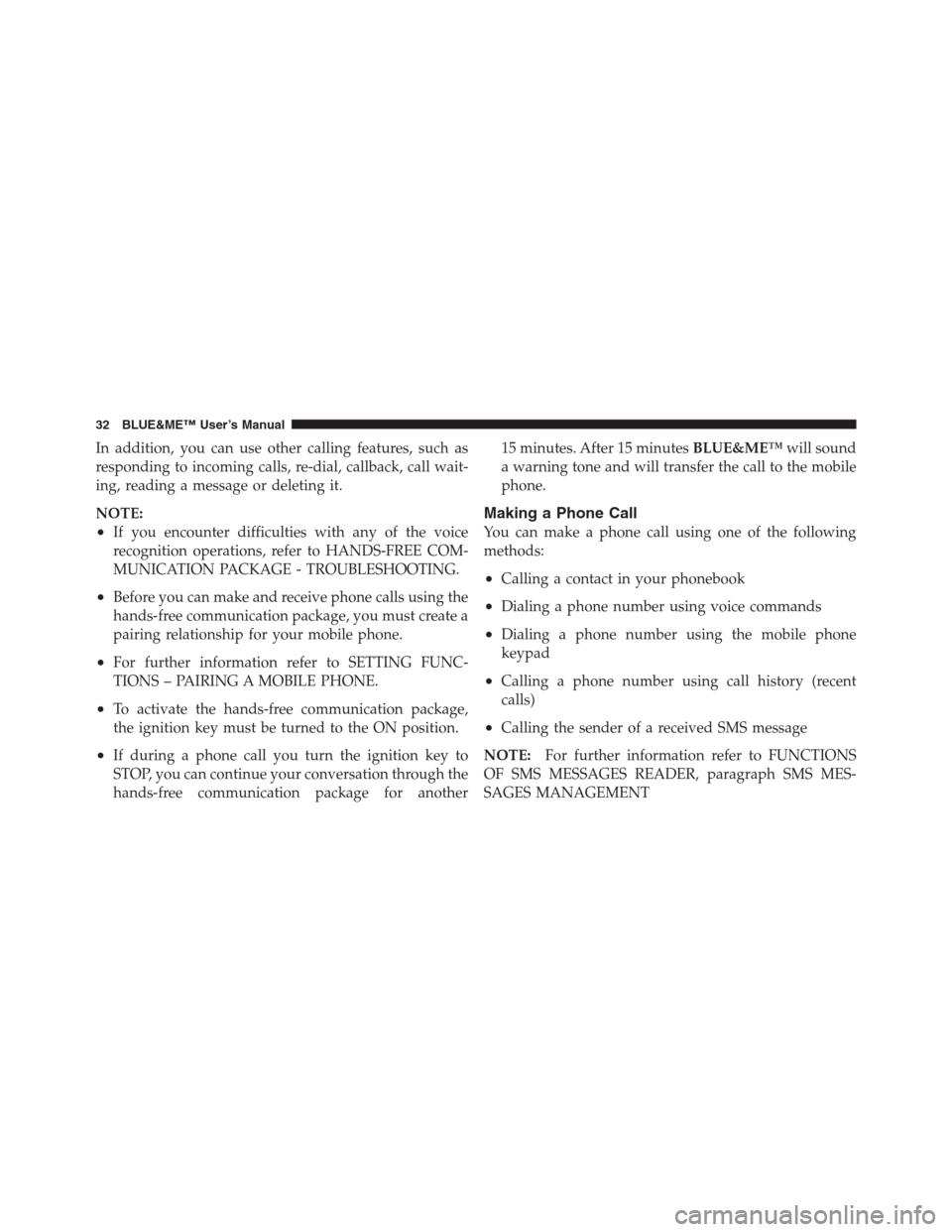

In addition, you can use other calling features, such as
responding to incoming calls, re-dial, callback, call wait-
ing, reading a message or deleting it.
NOTE:
•If you encounter difficulties with any of the voice
recognition operations, refer to HANDS-FREE COM-
MUNICATION PACKAGE - TROUBLESHOOTING.
•Before you can make and receive phone calls using the
hands-free communication package, you must create a
pairing relationship for your mobile phone.
•For further information refer to SETTING FUNC-
TIONS – PAIRING A MOBILE PHONE.
•To activate the hands-free communication package,
the ignition key must be turned to the ON position.
•If during a phone call you turn the ignition key to
STOP, you can continue your conversation through the
hands-free communication package for another15 minutes. After 15 minutesBLUE&ME™will sound
a warning tone and will transfer the call to the mobile
phone.
Making a Phone Call
You can make a phone call using one of the following
methods:
•Calling a contact in your phonebook
•Dialing a phone number using voice commands
•Dialing a phone number using the mobile phone
keypad
•Calling a phone number using call history (recent
calls)
•Calling the sender of a received SMS message
NOTE:For further information refer to FUNCTIONS
OF SMS MESSAGES READER, paragraph SMS MES-
SAGES MANAGEMENT
32 BLUE&ME™ User’s Manual

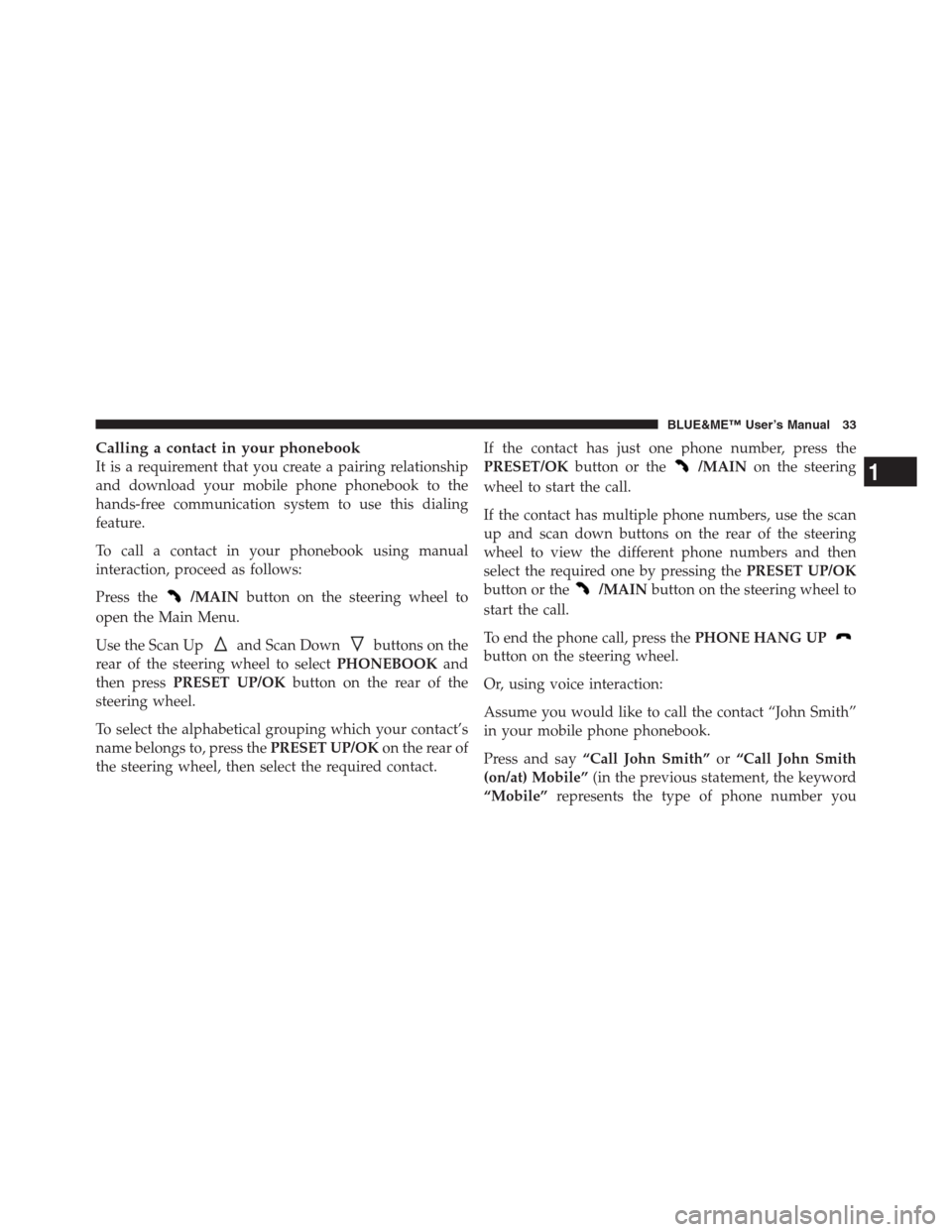

Calling a contact in your phonebook
It is a requirement that you create a pairing relationship
and download your mobile phone phonebook to the
hands-free communication system to use this dialing
feature.
To call a contact in your phonebook using manual
interaction, proceed as follows:
Press the
/MAINbutton on the steering wheel to
open the Main Menu.
Use the Scan Up
and Scan Downbuttons on the
rear of the steering wheel to selectPHONEBOOKand
then pressPRESET UP/OKbutton on the rear of the
steering wheel.
To select the alphabetical grouping which your contact’s
name belongs to, press thePRESET UP/OKon the rear of
the steering wheel, then select the required contact.If the contact has just one phone number, press the
PRESET/OKbutton or the
/MAINon the steering
wheel to start the call.
If the contact has multiple phone numbers, use the scan
up and scan down buttons on the rear of the steering
wheel to view the different phone numbers and then
select the required one by pressing thePRESET UP/OK
button or the
/MAINbutton on the steering wheel to
start the call.
To end the phone call, press thePHONE HANG UP
button on the steering wheel.
Or, using voice interaction:
Assume you would like to call the contact “John Smith”
in your mobile phone phonebook.
Press and say“Call John Smith”or“Call John Smith
(on/at) Mobile”(in the previous statement, the keyword
“Mobile”represents the type of phone number you
1
BLUE&ME™ User’s Manual 33

would like to call. The phone number type can either be
“(at) Home”,“(at) Work”,or“(on/at) Other”).
If the name is recognized, the system will display the
recognized contact’s information (John Smith, in this
example) on the display screen.
If John Smith has just one phone number, the system will
ask if you would like to call John Smith. To start the call
say“Yes”, otherwise say“No”.
If John Smith has several phone numbers, the system will
ask which phone number you would like to call (e.g.,
“Call John Smith(at) Work or (at) Home?”). Answer with
the type of required phone number (e.g.,“(at) Home”).
If John Smith has several phone numbers but the “loca-
tion” (i.e.: the type of phone number like work, home,
etc.) is missing, the system will display the selected
contact and a list of related phone numbers.To call the displayed phone number, say“Call”.
If the contact is correct but the phone number is wrong,
you can scroll through the phone number list manually
by pressing Scan Up
and Scan Downbuttons on
the rear of the steering wheel. When you find the
required number, press the
/MAINbutton on the
steering wheel to start the call.
To end the phone call, press thePHONE HANG UP
button on the steering wheel.
Practical hint
When you call a contact with multiple phone numbers,
use the “at location” portion of the voice command (e.g.,
“(at) Home”,“(at) Work”,“(on/at) Mobile”). This will
shorten the number of steps required to make the phone
call.
34 BLUE&ME™ User’s Manual

Dialing a phone number using voice commands
To dial a phone number using voice interaction, proceed
as follows:
Press the
steering wheel button and say“Dial”.
The system will respond with“Number, please”.
Say the phone number as a sequence of single digits (e.g.,
“0”, “1”, “2”, “3”, “4”, “5”, “6”, “7”, “8”, “9”, “+” (plus),
“#” (pound) or “*” (star).
For example, 248 555 1212 has to be said as: “two, four,
eight, five, five, five, one, two, one, two”.
The system will repeat the complete phone number and
display it.
If the number is complete, say“Dial”or press the
/MAINbutton on the steering wheel to start the call.
If you have not finished speaking the phone number,then say the remaining digits and then say“Dial”or
press the
/MAINbutton on the steering wheel to start
the call.
The system will start the call to the displayed phone
number.
To end the phone call, press thePHONE HANG UP
button on the steering wheel.
You can say the sequence of phone number digits in
“digit groups” which allows you to verify the recognized
number in several small portions. Digit groups are cre-
ated by the pauses you use while pronouncing the
sequence of digits. If you pause after pronouncing sev-
eral digits, a digit group is created. The system will
repeat the recognized digits.
If the spoken digits are correct, you can continue pro-
nouncing the phone number. If the spoken digits are
incorrect, you can delete the digit group by saying
1
BLUE&ME™ User’s Manual 35

“Delete”. The system will delete the last group of num-
bers and display the partially dialed phone number.
Then, you can say the digit group again and also the
remaining phone number digits.
To cancel the phone call, say“Cancel”.
To cancel the phone call and start dialing again, say
“Start over”.
To ask the system to repeat the recognized phone num-
ber, say“Repeat”. If no phone number was dialed, the
system says“No number available”.
If the repeated phone number is correct, say“Dial”to
start the call.
NOTE:When connected toBLUE&ME™and dialing a
phone number by voice commands, it is essential to
minimize background noise in the car and to ask the
other passengers to keep silent while you are speaking
the digits. Since the system is speaker independent, it canalso recognize other voices; there is a risk that some
numbers will be accidentally recognized, added to cor-
rect numbers or not recognized.
Dialing a phone number using the mobile phone
keypad
Alternatively, you can dial a phone number using your
mobile phone keypad and then continue your conversa-
tion using the hands-free communication system.
It is a requirement that you create a pairing relationship
and that the mobile phone is within range of the hands-
free communication system of your car.
To dial a phone number using your mobile phone key-
pad, proceed as follows:
•Dial the phone number on your mobile phone keypad
and connect the phone call following the procedure
required by your mobile phone.
36 BLUE&ME™ User’s Manual

•Conduct the conversation using the hands-free com-
munication system.
•To end the phone call, press thePHONE HANG UP
button on the steering wheel, or end the phone call
from your mobile phone keypad.
Calling a phone number using call history (recent
calls)
RECENT CALLSoption is a list of the recent calls made
or received. It can consist of up to ten incoming calls, up
to ten outgoing calls and up to five missed calls.
To dial a phone number using manual interaction, pro-
ceed as follows:
•Press the/MAINbutton on the steering wheel to
open the Main Menu.
•SelectRECENT CALLSand then press thePRESET
UP/OKbutton on the rear of the steering wheel.
•The system will present a list of phone numbers. Use
the Scan up/Scan down buttons to select the required
phone number. Then press thePRESET UP/OKbutton
on the rear of the steering wheel or the
/MAIN
button on the steering wheel to start the call.
•To end the phone call, press thePHONE HANG UP
button on the steering wheel.
Or, using voice interaction:
To call back the last incoming phone number, press the
steering wheel button and say“Call back”.
The system will display information about the last caller
and ask if you would like to call back this contact. To
respond with “yes”, say“Yes”,otherwise say“No”.
1
BLUE&ME™ User’s Manual 37

To redial the last phone number you called, say“Redial”.
The system will display information about the last con-
tact you called and will ask if you would like to redial
this phone number. To redial the last phone number
called, say“Yes”, otherwise say“No”.
NOTE:If there are no incoming calls stored on the
RECENT CALLSlist,BLUE&ME™will say “No re-
ceived calls” and the display will read “No call found”.
Incoming Calls
With the hands-free communication system you can
respond to incoming phone calls using the steering wheel
buttons. When a phone call is received, the system will
display information about the caller ’s identity, if avail-
able.
The incoming phone call can have a customized ring tone
(if this function is available on your mobile phone).
Answering a phone call
•
To answer the phone call, press the/MAINbutton
on the steering wheel.
•To end the phone call, press thePHONE HANG UP
button on the steering wheel.
Rejecting a phone call
•
To reject the phone call, press thePHONE HANG UP
button on the steering wheel.
Ignoring a phone call
•
To ignore the phone call and mute the phone call ring
tone, press the
/ESCbutton. Press the/ESC
again to hear the call or ring tone again.
38 BLUE&ME™ User’s Manual
