FIAT 500 ABARTH 2012 2.G Blue And Me User Manual

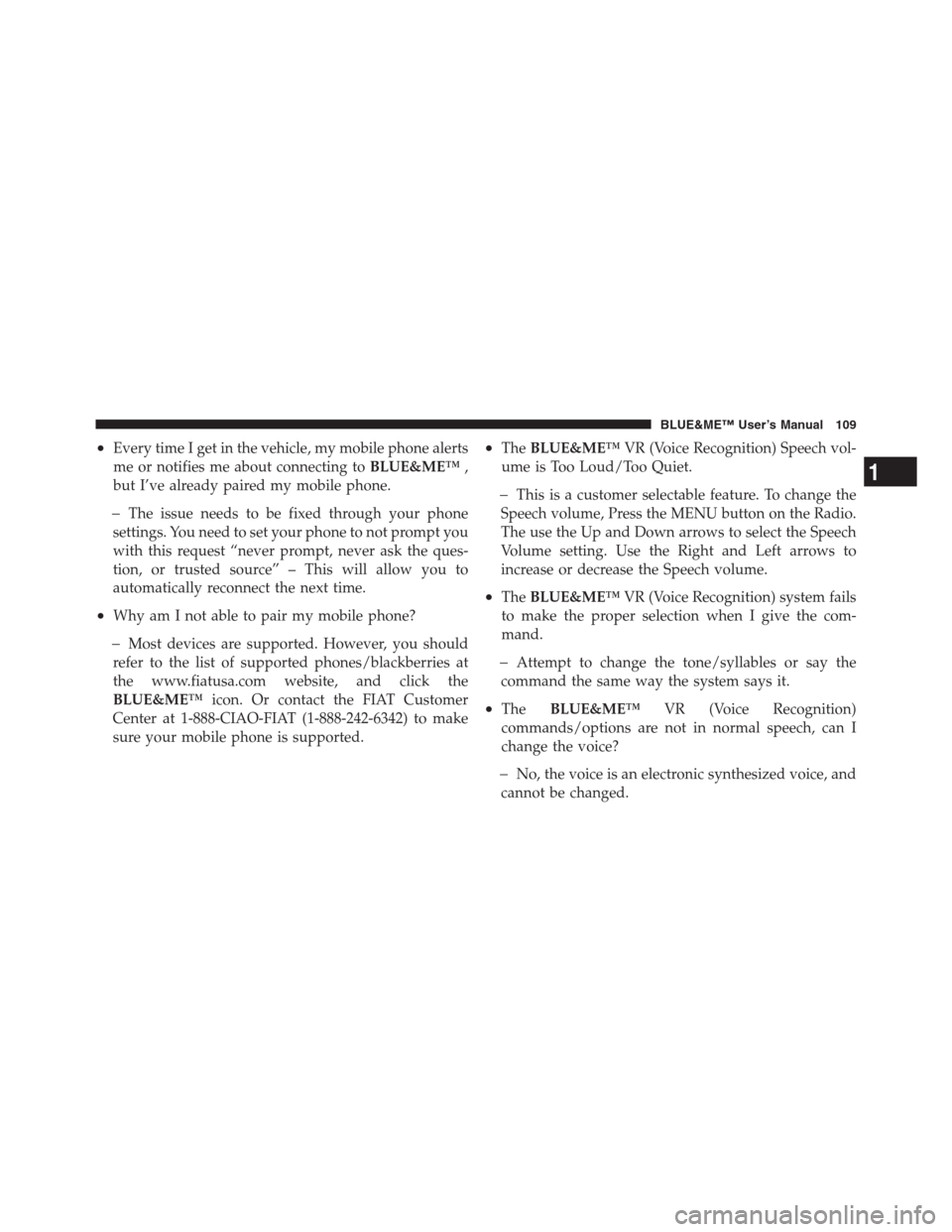

•Every time I get in the vehicle, my mobile phone alerts
me or notifies me about connecting toBLUE&ME™,
but I’ve already paired my mobile phone.
The issue needs to be fixed through your phone
settings. You need to set your phone to not prompt you
with this request “never prompt, never ask the ques-
tion, or trusted source” – This will allow you to
automatically reconnect the next time.
•Why am I not able to pair my mobile phone?
Most devices are supported. However, you should
refer to the list of supported phones/blackberries at
the www.fiatusa.com website, and click the
BLUE&ME™icon. Or contact the FIAT Customer
Center at 1-888-CIAO-FIAT (1-888-242-6342) to make
sure your mobile phone is supported.
•TheBLUE&ME™VR (Voice Recognition) Speech vol-
ume is Too Loud/Too Quiet.
This is a customer selectable feature. To change the
Speech volume, Press the MENU button on the Radio.
The use the Up and Down arrows to select the Speech
Volume setting. Use the Right and Left arrows to
increase or decrease the Speech volume.
•TheBLUE&ME™VR (Voice Recognition) system fails
to make the proper selection when I give the com-
mand.
Attempt to change the tone/syllables or say the
command the same way the system says it.
•TheBLUE&ME™VR (Voice Recognition)
commands/options are not in normal speech, can I
change the voice?
No, the voice is an electronic synthesized voice, and
cannot be changed.
1
BLUE&ME™ User’s Manual 109

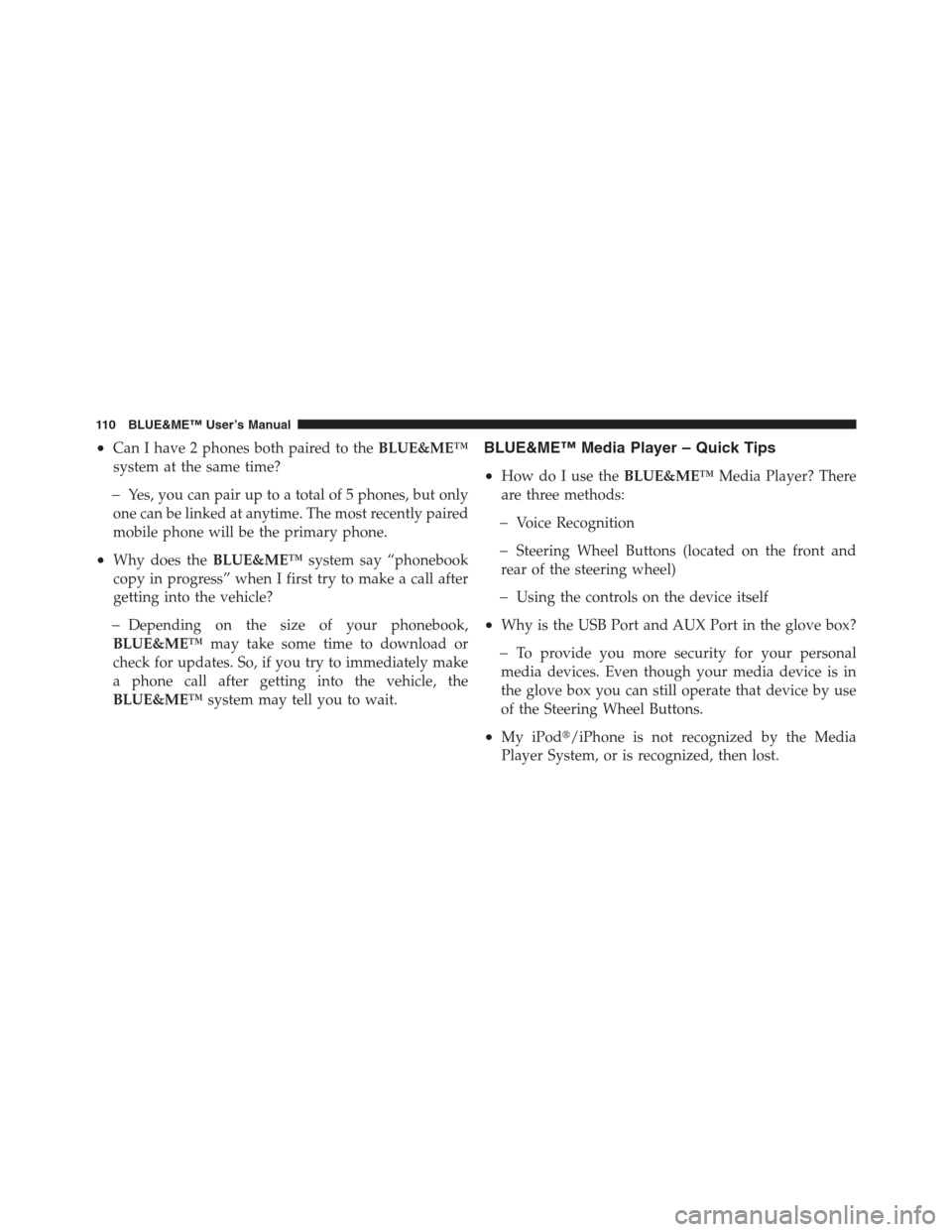

•Can I have 2 phones both paired to theBLUE&ME™
system at the same time?
Yes, you can pair up to a total of 5 phones, but only
one can be linked at anytime. The most recently paired
mobile phone will be the primary phone.
•Why does theBLUE&ME™system say “phonebook
copy in progress” when I first try to make a call after
getting into the vehicle?
Depending on the size of your phonebook,
BLUE&ME™may take some time to download or
check for updates. So, if you try to immediately make
a phone call after getting into the vehicle, the
BLUE&ME™system may tell you to wait.
BLUE&ME™ Media Player – Quick Tips
•
How do I use theBLUE&ME™Media Player? There
are three methods:
Voice Recognition
Steering Wheel Buttons (located on the front and
rear of the steering wheel)
Using the controls on the device itself
•Why is the USB Port and AUX Port in the glove box?
To provide you more security for your personal
media devices. Even though your media device is in
the glove box you can still operate that device by use
of the Steering Wheel Buttons.
•My iPod/iPhone is not recognized by the Media
Player System, or is recognized, then lost.
110 BLUE&ME™ User’s Manual

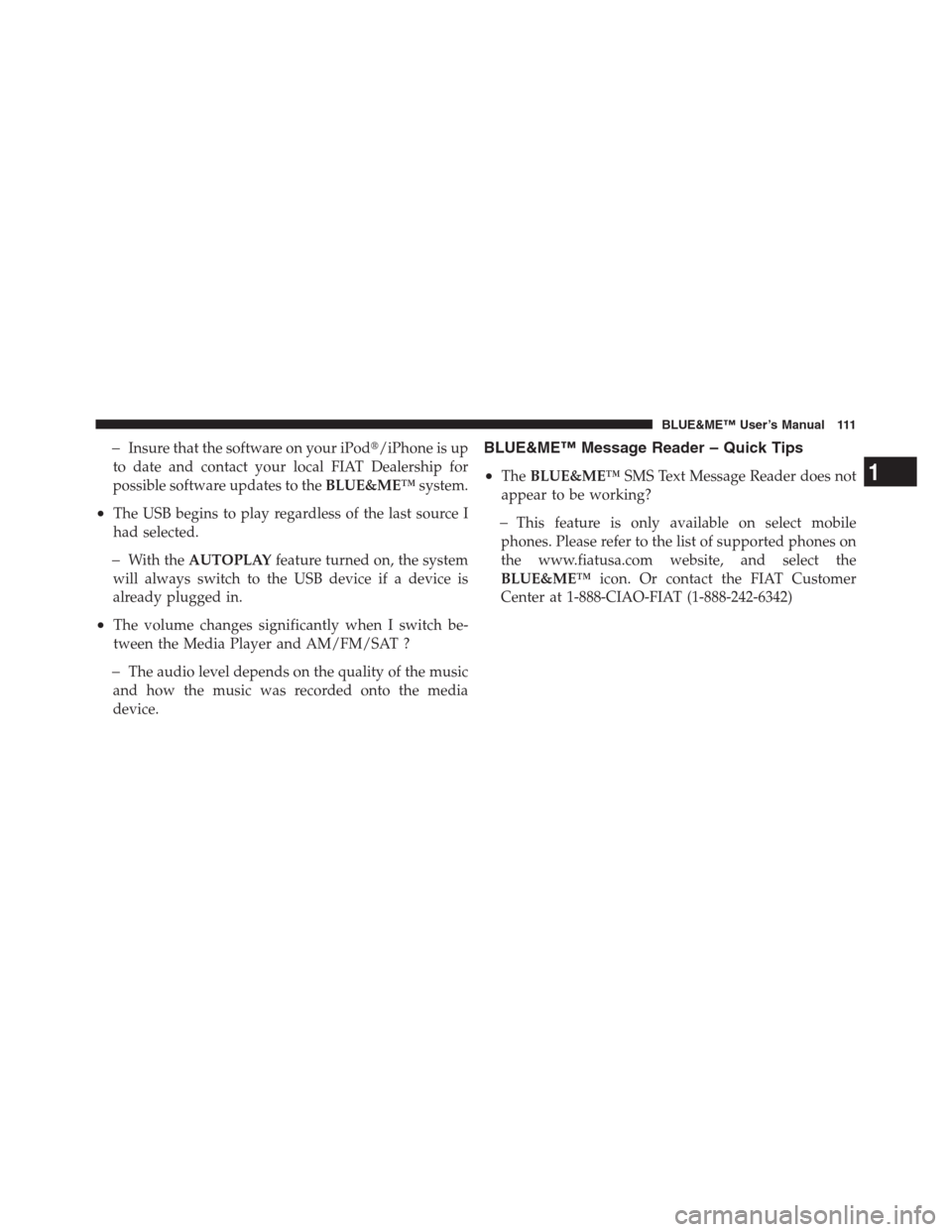

Insure that the software on your iPod/iPhone is up
to date and contact your local FIAT Dealership for
possible software updates to theBLUE&ME™system.
•The USB begins to play regardless of the last source I
had selected.
With theAUTOPLAYfeature turned on, the system
will always switch to the USB device if a device is
already plugged in.
•The volume changes significantly when I switch be-
tween the Media Player and AM/FM/SAT ?
The audio level depends on the quality of the music
and how the music was recorded onto the media
device.
BLUE&ME™ Message Reader – Quick Tips
•
TheBLUE&ME™SMS Text Message Reader does not
appear to be working?
This feature is only available on select mobile
phones. Please refer to the list of supported phones on
the www.fiatusa.com website, and select the
BLUE&ME™icon. Or contact the FIAT Customer
Center at 1-888-CIAO-FIAT (1-888-242-6342)
1
BLUE&ME™ User’s Manual 111

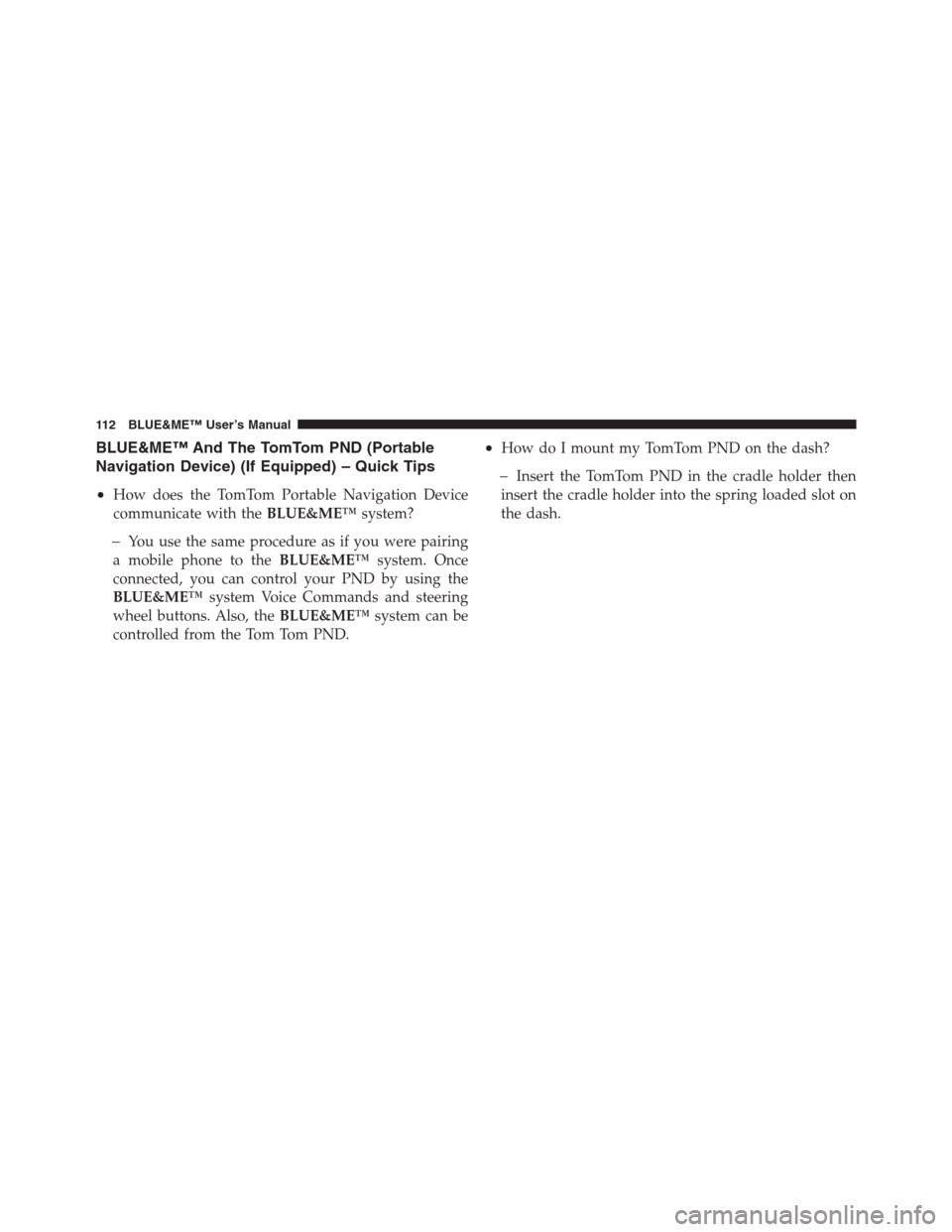

BLUE&ME™ And The TomTom PND (Portable
Navigation Device) (If Equipped) – Quick Tips
•
How does the TomTom Portable Navigation Device
communicate with theBLUE&ME™system?
You use the same procedure as if you were pairing
a mobile phone to theBLUE&ME™system. Once
connected, you can control your PND by using the
BLUE&ME™system Voice Commands and steering
wheel buttons. Also, theBLUE&ME™system can be
controlled from the Tom Tom PND.
•How do I mount my TomTom PND on the dash?
Insert the TomTom PND in the cradle holder then
insert the cradle holder into the spring loaded slot on
the dash.
112 BLUE&ME™ User’s Manual

872214.ps 12FF500-126-AA Fiat 1" gutter 10/04/2010 11:37:45
VEHICLES SOLD IN CANADA
With respect to any Vehicles Sold in Canada, the name
Chrysler Group LLC shall be deemed to be deleted and
the name Chrysler Canada Inc. used in substitution
therefore.
DRIVING AND ALCOHOL
Drunken driving is one of the most frequent causes of
accidents.
Your driving ability can be seriously impaired with blood
alcohol levels far below the legal minimum. If you are
drinking, don’t drive. Ride with a designated non-drinking
driver, call a cab, a friend, or use public transportation.
WARNING!
Driving after drinking can lead to an accident. Your
perceptions are less sharp, your reflexes are slower,
and your judgment is impaired when you have been
drinking. Never drink and then drive.
This manual illustrates and describes the operation of
features and equipment that are either standard or op-
tional on this vehicle. This manual may also include a
description of features and equipment that are no longer
available or were not ordered on this vehicle. Please
disregard any features and equipment described in this
manual that are not on this vehicle.
Chrysler Group LLC reserves the right to make changes
in design and specifications, and/or make additions to or
improvements to its products without imposing any
obligation upon itself to install them on products previ-
ously manufactured.
Copyright © 2011 Chrysler Group LLC
VEHICLES SOLD IN CANADA
With respect to any Vehicles Sold in Canada, the name
Chrysler Group LLC shall be deemed to be deleted and
the name Chrysler Canada Inc. used in substitution
therefore.
DRIVING AND ALCOHOL
Drunken driving is one of the most frequent causes of
accidents.
Your driving ability can be seriously impaired with blood
alcohol levels far below the legal minimum. If you are
drinking, don’t drive. Ride with a designated non-drinking
driver, call a cab, a friend, or use public transportation.
WARNING!
Driving after drinking can lead to an accident. Your
perceptions are less sharp, your reflexes are slower,
and your judgment is impaired when you have been
drinking. Never drink and then drive.
This manual illustrates and describes the operation of
features and equipment that are either standard or op-
tional on this vehicle. This manual may also include a
description of features and equipment that are no longer
available or were not ordered on this vehicle. Please
disregard any features and equipment described in this
manual that are not on this vehicle.
Chrysler Group LLC reserves the right to make changes
in design and specifications, and/or make additions to or
improvements to its products without imposing any
obligation upon itself to install them on products previ-
ously manufactured.
Copyright © 2011 Chrysler Group LLC

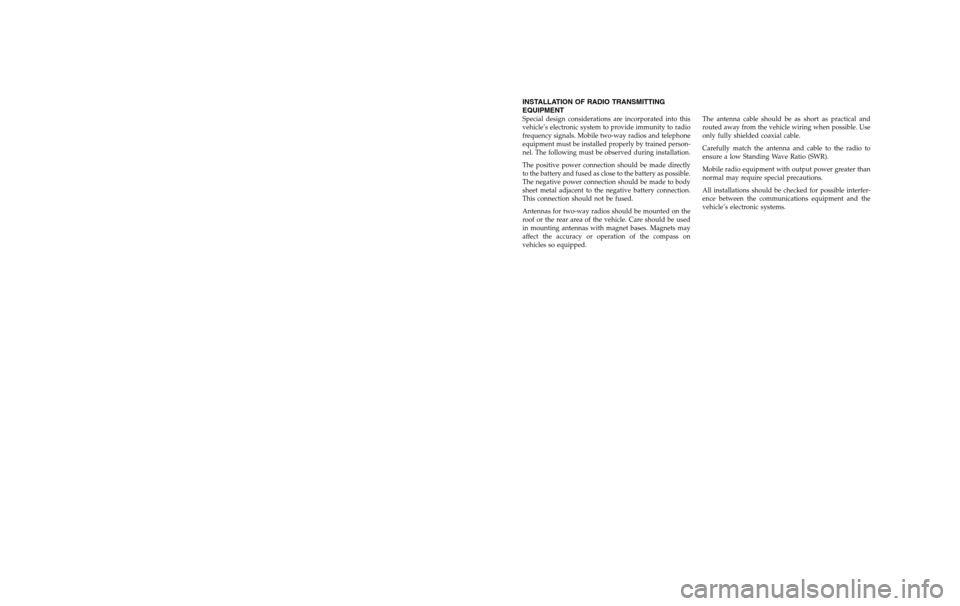

INSTALLATION OF RADIO TRANSMITTING
EQUIPMENT
Special design considerations are incorporated into this
vehicle’s electronic system to provide immunity to radio
frequency signals. Mobile two-way radios and telephone
equipment must be installed properly by trained person-
nel. The following must be observed during installation.
The positive power connection should be made directly
to the battery and fused as close to the battery as possible.
The negative power connection should be made to body
sheet metal adjacent to the negative battery connection.
This connection should not be fused.
Antennas for two-way radios should be mounted on the
roof or the rear area of the vehicle. Care should be used
in mounting antennas with magnet bases. Magnets may
affect the accuracy or operation of the compass on
vehicles so equipped.The antenna cable should be as short as practical and
routed away from the vehicle wiring when possible. Use
only fully shielded coaxial cable.
Carefully match the antenna and cable to the radio to
ensure a low Standing Wave Ratio (SWR).
Mobile radio equipment with output power greater than
normal may require special precautions.
All installations should be checked for possible interfer-
ence between the communications equipment and the
vehicle’s electronic systems.
INSTALLATION OF RADIO TRANSMITTING
EQUIPMENT
Special design considerations are incorporated into this
vehicle’s electronic system to provide immunity to radio
frequency signals. Mobile two-way radios and telephone
equipment must be installed properly by trained person-
nel. The following must be observed during installation.
The positive power connection should be made directly
to the battery and fused as close to the battery as possible.
The negative power connection should be made to body
sheet metal adjacent to the negative battery connection.
This connection should not be fused.
Antennas for two-way radios should be mounted on the
roof or the rear area of the vehicle. Care should be used
in mounting antennas with magnet bases. Magnets may
affect the accuracy or operation of the compass on
vehicles so equipped.The antenna cable should be as short as practical and
routed away from the vehicle wiring when possible. Use
only fully shielded coaxial cable.
Carefully match the antenna and cable to the radio to
ensure a low Standing Wave Ratio (SWR).
Mobile radio equipment with output power greater than
normal may require special precautions.
All installations should be checked for possible interfer-
ence between the communications equipment and the
vehicle’s electronic systems.
