FIAT 500 ABARTH 2012 2.G Owners Manual

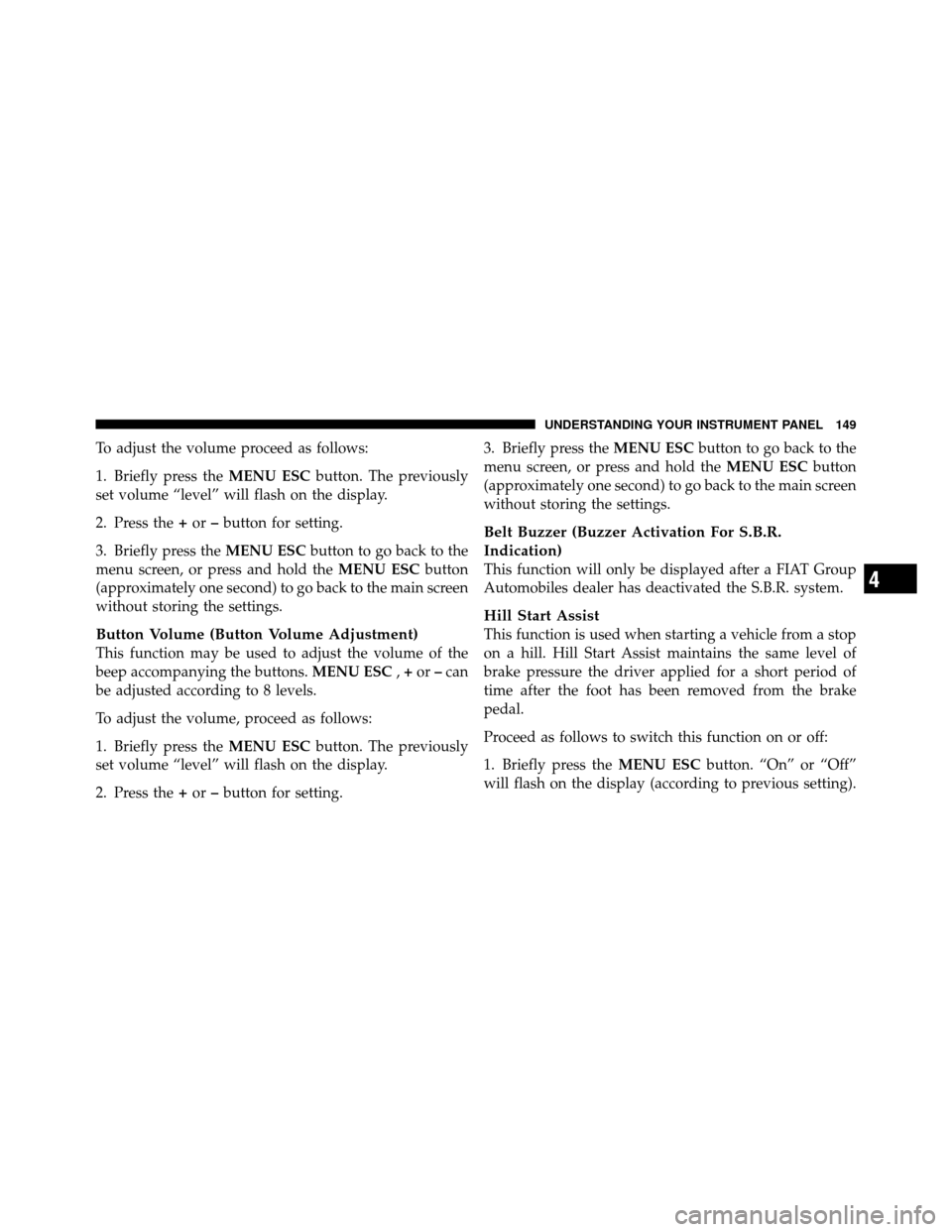

To adjust the volume proceed as follows:
1. Briefly press theMENU ESCbutton. The previously
set volume “level” will flash on the display.
2. Press the +or –button for setting.
3. Briefly press the MENU ESCbutton to go back to the
menu screen, or press and hold the MENU ESCbutton
(approximately one second) to go back to the main screen
without storing the settings.
Button Volume (Button Volume Adjustment)
This function may be used to adjust the volume of the
beep accompanying the buttons. MENU ESC,+ or –can
be adjusted according to 8 levels.
To adjust the volume, proceed as follows:
1. Briefly press the MENU ESCbutton. The previously
set volume “level” will flash on the display.
2. Press the +or –button for setting. 3. Briefly press the
MENU ESCbutton to go back to the
menu screen, or press and hold the MENU ESCbutton
(approximately one second) to go back to the main screen
without storing the settings.
Belt Buzzer (Buzzer Activation For S.B.R.
Indication)
This function will only be displayed after a FIAT Group
Automobiles dealer has deactivated the S.B.R. system.
Hill Start Assist
This function is used when starting a vehicle from a stop
on a hill. Hill Start Assist maintains the same level of
brake pressure the driver applied for a short period of
time after the foot has been removed from the brake
pedal.
Proceed as follows to switch this function on or off:
1. Briefly press the MENU ESCbutton. “On” or “Off”
will flash on the display (according to previous setting).
4
UNDERSTANDING YOUR INSTRUMENT PANEL 149

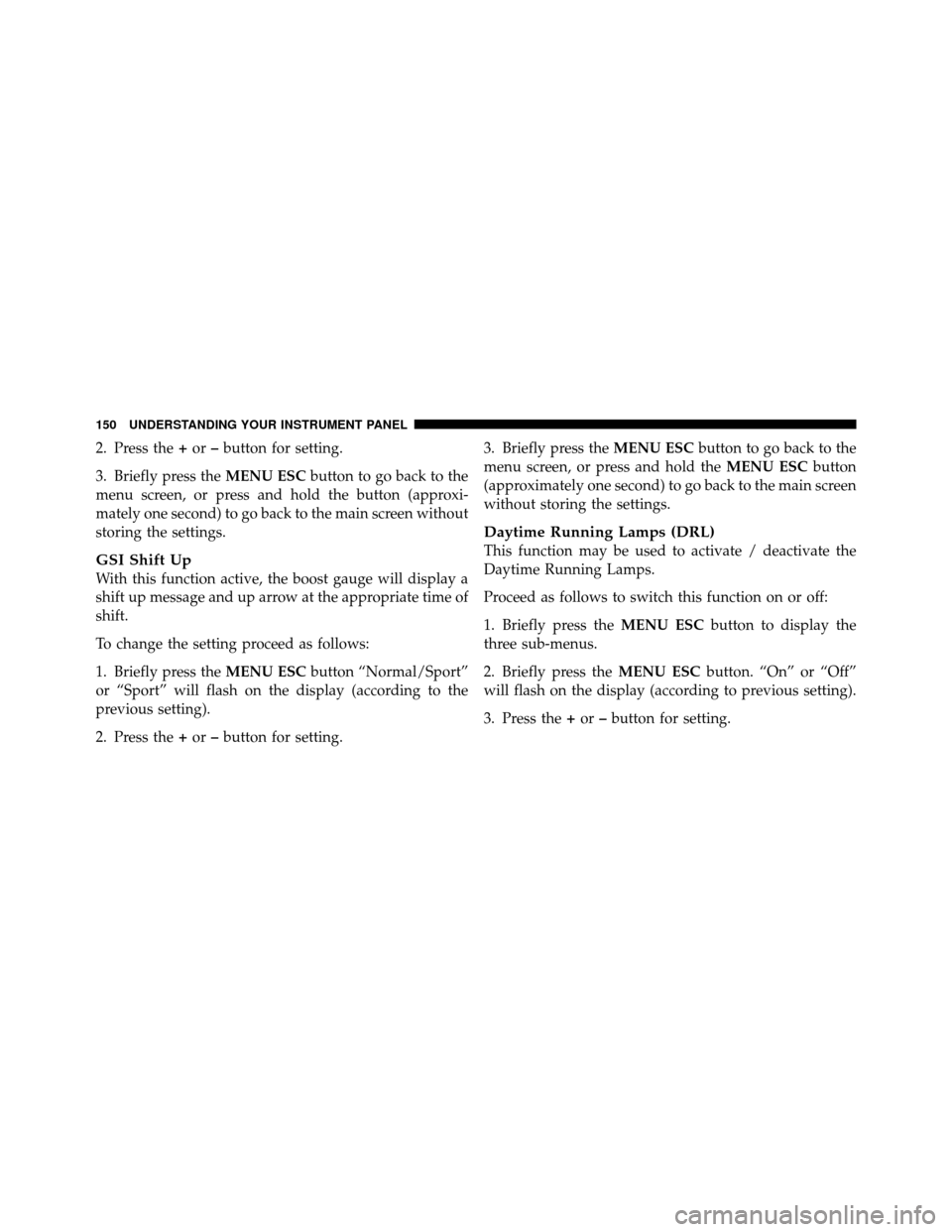

2. Press the+or –button for setting.
3. Briefly press the MENU ESCbutton to go back to the
menu screen, or press and hold the button (approxi-
mately one second) to go back to the main screen without
storing the settings.
GSI Shift Up
With this function active, the boost gauge will display a
shift up message and up arrow at the appropriate time of
shift.
To change the setting proceed as follows:
1. Briefly press the MENU ESCbutton “Normal/Sport”
or “Sport” will flash on the display (according to the
previous setting).
2. Press the +or –button for setting. 3. Briefly press the
MENU ESCbutton to go back to the
menu screen, or press and hold the MENU ESCbutton
(approximately one second) to go back to the main screen
without storing the settings.
Daytime Running Lamps (DRL)
This function may be used to activate / deactivate the
Daytime Running Lamps.
Proceed as follows to switch this function on or off:
1. Briefly press the MENU ESCbutton to display the
three sub-menus.
2. Briefly press the MENU ESCbutton. “On” or “Off”
will flash on the display (according to previous setting).
3. Press the +or –button for setting.
150 UNDERSTANDING YOUR INSTRUMENT PANEL

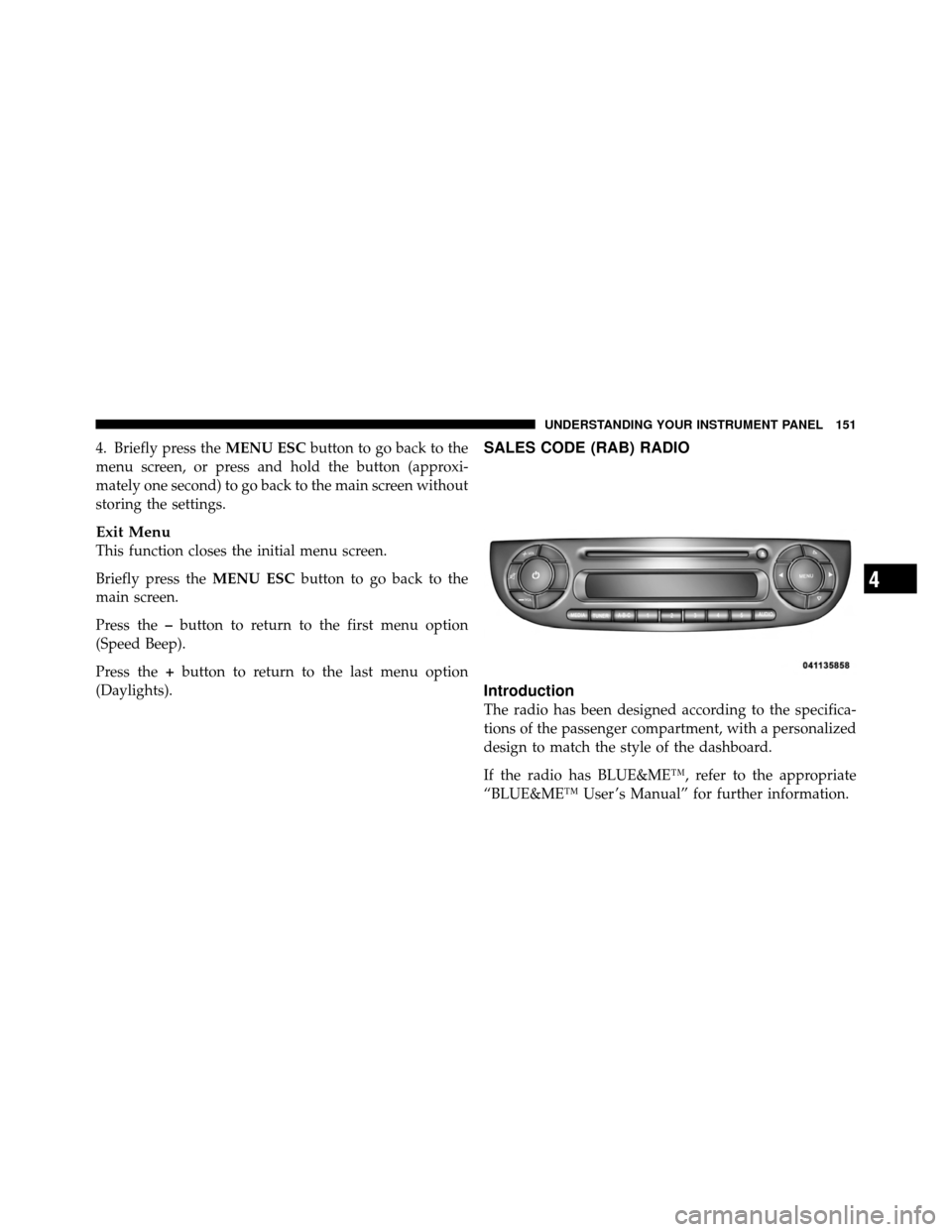

4. Briefly press theMENU ESCbutton to go back to the
menu screen, or press and hold the button (approxi-
mately one second) to go back to the main screen without
storing the settings.
Exit Menu
This function closes the initial menu screen.
Briefly press the MENU ESCbutton to go back to the
main screen.
Press the –button to return to the first menu option
(Speed Beep).
Press the +button to return to the last menu option
(Daylights).
SALES CODE (RAB) RADIO
Introduction
The radio has been designed according to the specifica-
tions of the passenger compartment, with a personalized
design to match the style of the dashboard.
If the radio has BLUE&ME™, refer to the appropriate
“BLUE&ME™ User ’s Manual” for further information.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 151

The instructions for use are given below and we recom-
mend you to read them carefully.
Suggestions
Road Safety
Please, learn how to use all different radio functions (e.g.
store stations) before beginning to drive.
Reception Conditions
Reception conditions change constantly while driving.
Reception may be interfered with by the presence of
mountains, buildings or bridges, or when you are far
away from the broadcaster.
WARNING!
Having the volume turned up high can cause the
driver to no be able to hear important traffic sounds,
i.e. sirens, horns, etc. This could cause an accident.
Always adjust the volume so that you can still hear
background noises.
Care And Maintenance
Clean the cover with a soft antistatic cloth only. Cleaning
and polishing products could damage the surface.
CDs
The presence of dirt, scratches or distortions on the CDs
could cause skipping and poor sound quality while it is
playing. For optimal playback conditions, follow these
guidelines:
•Only use branded CDs.
152 UNDERSTANDING YOUR INSTRUMENT PANEL

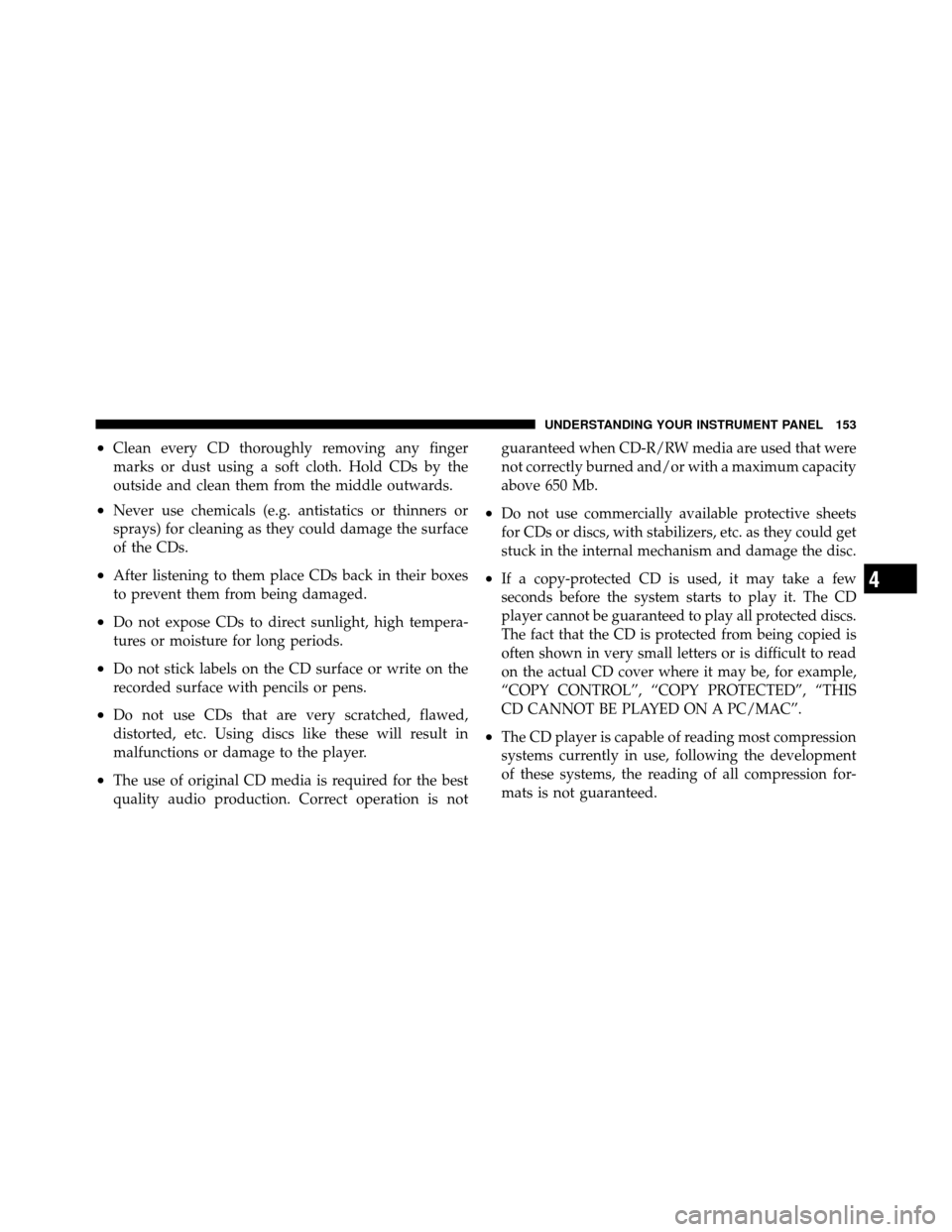

•Clean every CD thoroughly removing any finger
marks or dust using a soft cloth. Hold CDs by the
outside and clean them from the middle outwards.
•Never use chemicals (e.g. antistatics or thinners or
sprays) for cleaning as they could damage the surface
of the CDs.
•After listening to them place CDs back in their boxes
to prevent them from being damaged.
•Do not expose CDs to direct sunlight, high tempera-
tures or moisture for long periods.
•Do not stick labels on the CD surface or write on the
recorded surface with pencils or pens.
•Do not use CDs that are very scratched, flawed,
distorted, etc. Using discs like these will result in
malfunctions or damage to the player.
•The use of original CD media is required for the best
quality audio production. Correct operation is notguaranteed when CD-R/RW media are used that were
not correctly burned and/or with a maximum capacity
above 650 Mb.
•Do not use commercially available protective sheets
for CDs or discs, with stabilizers, etc. as they could get
stuck in the internal mechanism and damage the disc.
•If a copy-protected CD is used, it may take a few
seconds before the system starts to play it. The CD
player cannot be guaranteed to play all protected discs.
The fact that the CD is protected from being copied is
often shown in very small letters or is difficult to read
on the actual CD cover where it may be, for example,
“COPY CONTROL”, “COPY PROTECTED”, “THIS
CD CANNOT BE PLAYED ON A PC/MAC”.
•The CD player is capable of reading most compression
systems currently in use, following the development
of these systems, the reading of all compression for-
mats is not guaranteed.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 153

Technical Specifications
The complete system consists of:
•Two 165 mm diameter midwoofer speakers, one
speaker in each of the front doors.
•Two 22 mm diameter tweeter speakers, one speaker in
each of the front pillars.
•Two 100 mm diameter full range speakers, one speaker
in each of the rear side panels.
•Antenna on the car roof.
•Radio with CD/MP3 player.With Bose
Premium Audio system (if equipped):
•Two 165 mm diameter midwoofer speakers.
•Two 11 mm tweeter speakers in the front pillars.
•Two 100 mm full range speakers, one speaker in each
of the rear side panels.
•A subwoofer under the right front seat.
•An amplifier in the trunk on the right-hand side panel.
•Antenna on the car roof.
•Radio with CD/MP3 player.
154 UNDERSTANDING YOUR INSTRUMENT PANEL

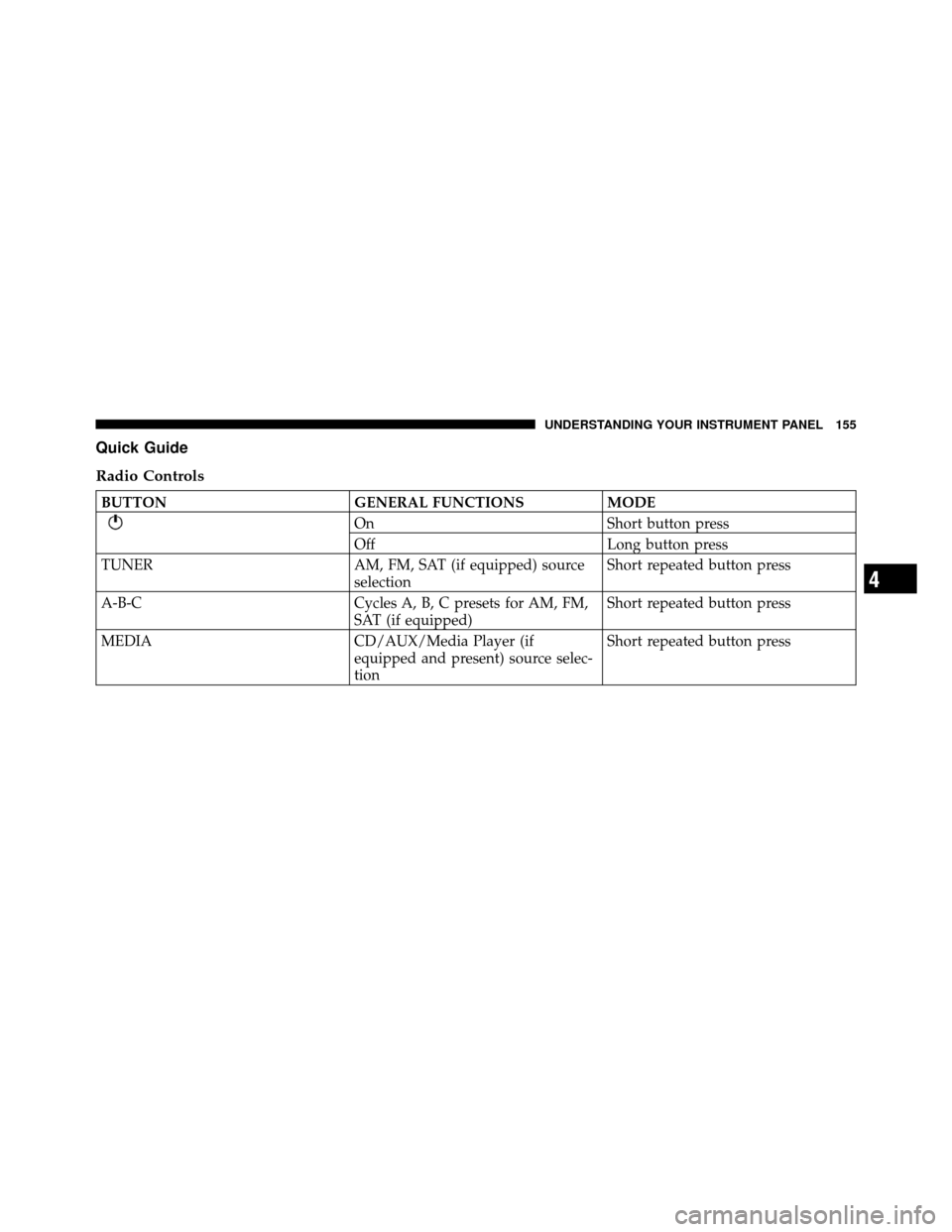

Quick Guide
Radio Controls
BUTTONGENERAL FUNCTIONSMODE
OnShort button press
Off Long button press
TUNER AM, FM, SAT (if equipped) source
selectionShort repeated button press
A-B-C Cycles A, B, C presets for AM, FM,
SAT (if equipped)Short repeated button press
MEDIA CD/AUX/Media Player (if
equipped and present) source selec-
tionShort repeated button press
4
UNDERSTANDING YOUR INSTRUMENT PANEL 155

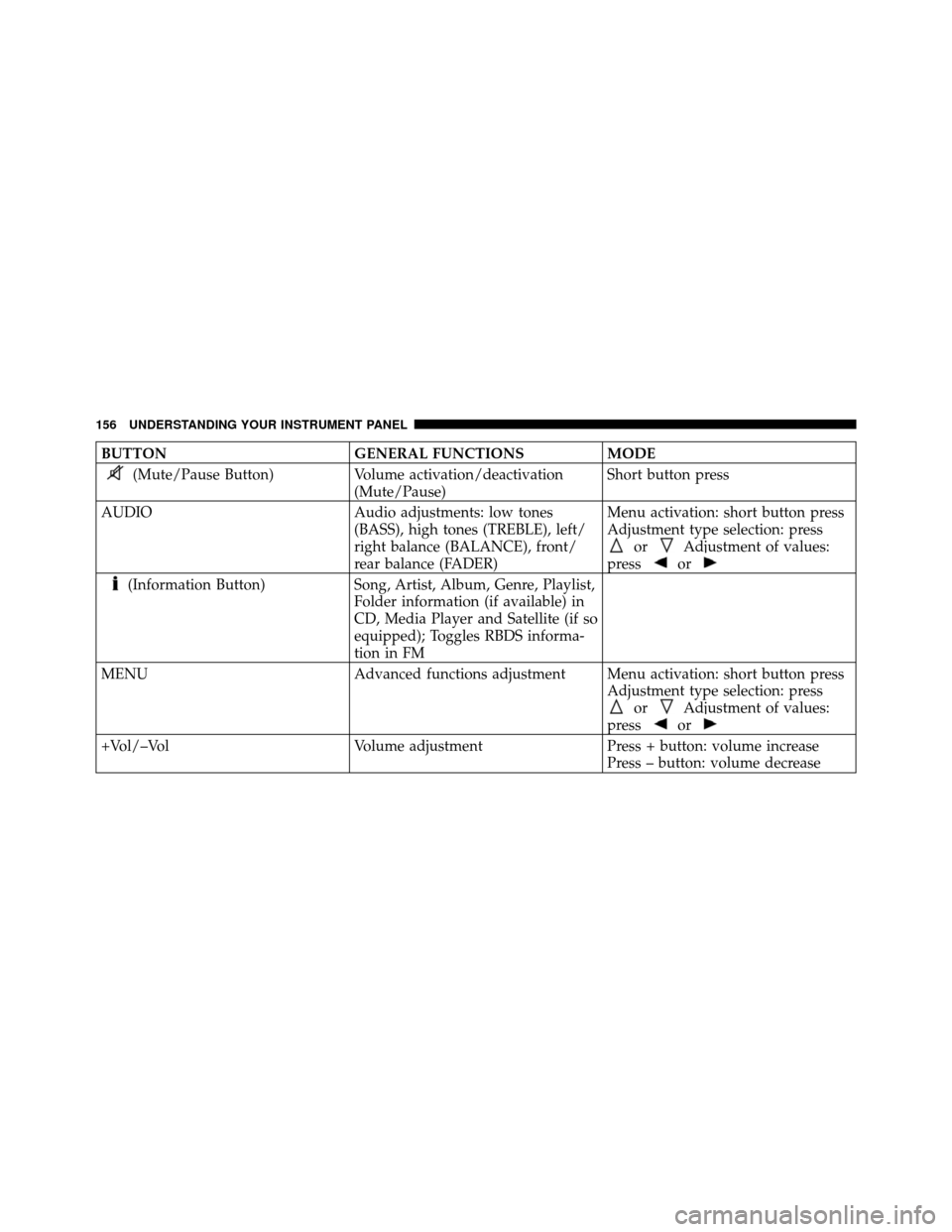

BUTTONGENERAL FUNCTIONSMODE
(Mute/Pause Button)Volume activation/deactivation
(Mute/Pause) Short button press
AUDIO Audio adjustments: low tones
(BASS), high tones (TREBLE), left/
right balance (BALANCE), front/
rear balance (FADER)Menu activation: short button press
Adjustment type selection: press
orAdjustment of values:
press
or
(Information Button) Song, Artist, Album, Genre, Playlist,
Folder information (if available) in
CD, Media Player and Satellite (if so
equipped); Toggles RBDS informa-
tion in FM
MENU Advanced functions adjustment Menu activation: short button press
Adjustment type selection: press
orAdjustment of values:
press
or
+Vol/–Vol Volume adjustmentPress + button: volume increase
Press – button: volume decrease
156 UNDERSTANDING YOUR INSTRUMENT PANEL

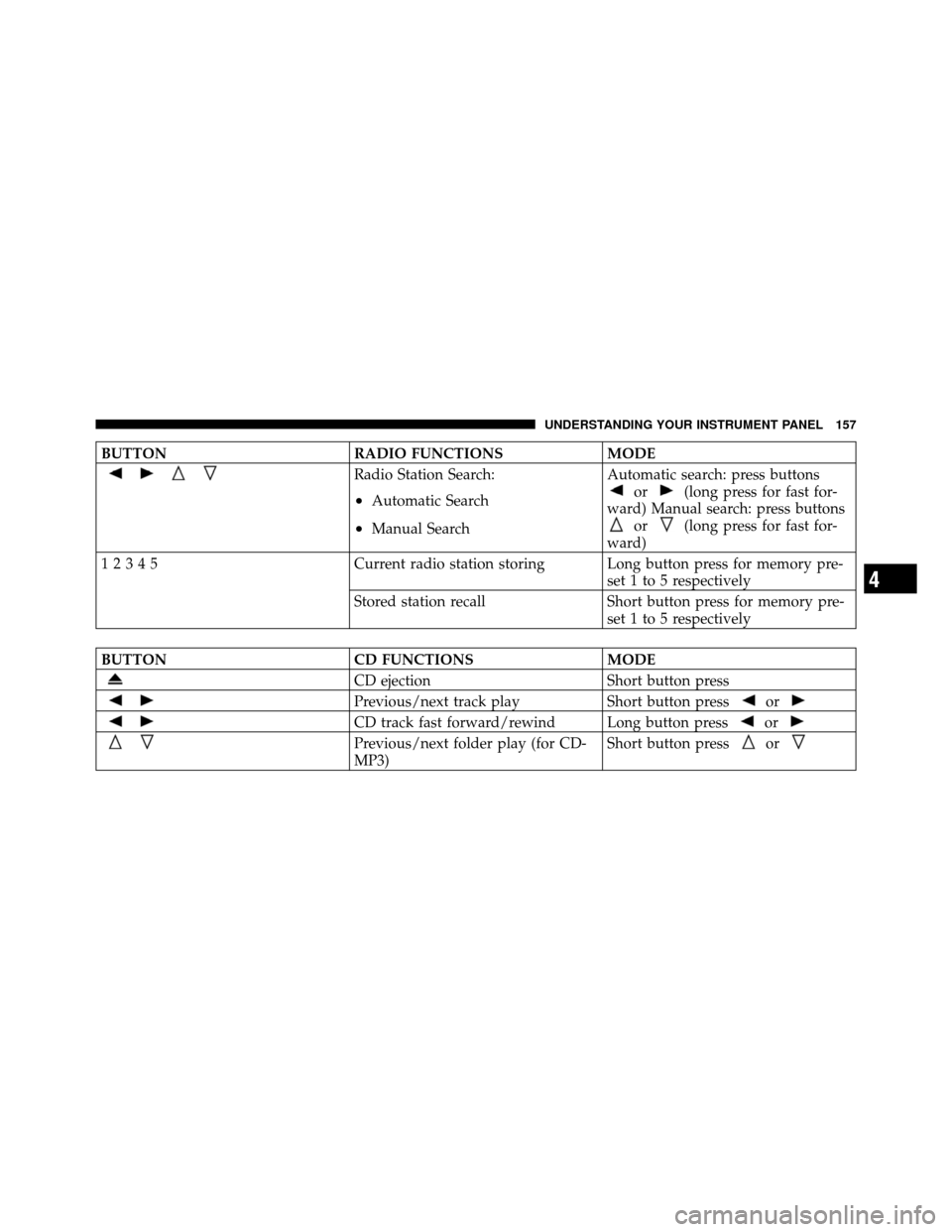

BUTTONRADIO FUNCTIONSMODE
Radio Station Search:
•Automatic Search
•Manual SearchAutomatic search: press buttons
or(long press for fast for-
ward) Manual search: press buttons
or(long press for fast for-
ward)
12345 Current radio station storing Long button press for memory pre-
set 1 to 5 respectively
Stored station recall Short button press for memory pre-
set 1 to 5 respectively
BUTTON CD FUNCTIONSMODE
CD ejectionShort button press
Previous/next track playShort button pressor
CD track fast forward/rewind Long button pressor
Previous/next folder play (for CD-
MP3)Short button pressor
4
UNDERSTANDING YOUR INSTRUMENT PANEL 157

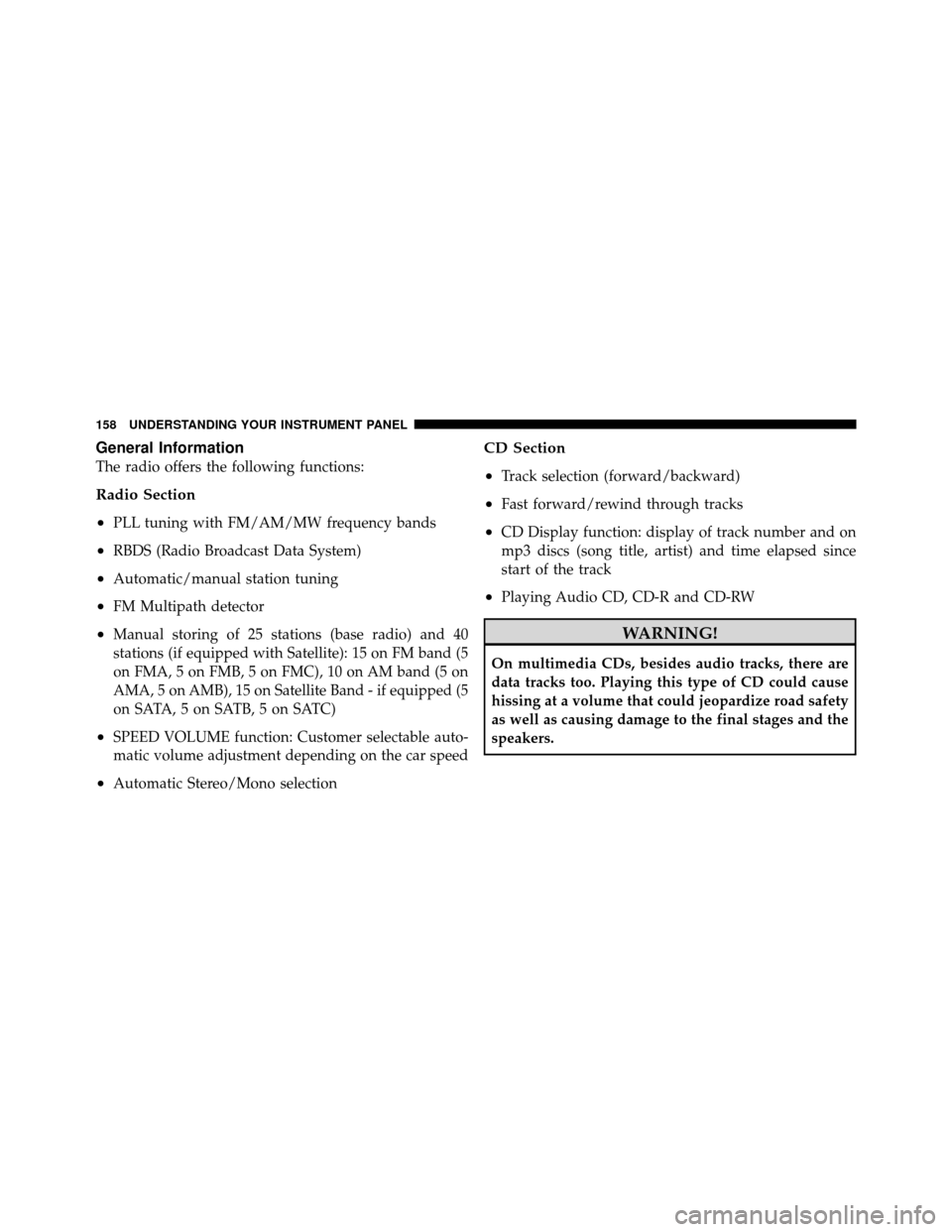

General Information
The radio offers the following functions:
Radio Section
•
PLL tuning with FM/AM/MW frequency bands
•RBDS (Radio Broadcast Data System)
•Automatic/manual station tuning
•FM Multipath detector
•Manual storing of 25 stations (base radio) and 40
stations (if equipped with Satellite): 15 on FM band (5
on FMA, 5 on FMB, 5 on FMC), 10 on AM band (5 on
AMA, 5 on AMB), 15 on Satellite Band - if equipped (5
onSATA,5onSATB,5onSATC)
•SPEED VOLUME function: Customer selectable auto-
matic volume adjustment depending on the car speed
•Automatic Stereo/Mono selection
CD Section
•
Track selection (forward/backward)
•Fast forward/rewind through tracks
•CD Display function: display of track number and on
mp3 discs (song title, artist) and time elapsed since
start of the track
•Playing Audio CD, CD-R and CD-RW
WARNING!
On multimedia CDs, besides audio tracks, there are
data tracks too. Playing this type of CD could cause
hissing at a volume that could jeopardize road safety
as well as causing damage to the final stages and the
speakers.
158 UNDERSTANDING YOUR INSTRUMENT PANEL
