FIAT 500 ABARTH 2014 2.G Owners Manual

WARNING!
Engine exhaust, some of its constituents, and certain
vehicle components contain, or emit, chemicals
known to the State of California to cause cancer and
birth defects, or other reproductive harm. In addi-
tion, certain fluids contained in vehicles and certain
products of component wear contain, or emit, chemi-
cals known to the State of California to cause cancer
and birth defects, or other reproductive harm.
WARRANTY INFORMATION
See the Warranty Information Booklet, located on the
DVD, for the terms and provisions of FIAT Group
Automobiles warranties applicable to this vehicle and
market.
REPORTING SAFETY DEFECTS
In The 50 United States And Washington, D.C.
If you believe that your vehicle has a defect that could
cause a crash or cause injury or death, you should
immediately inform the National Highway Traffic Safety
Administration (NHTSA) in addition to notifying the
manufacturer.
If NHTSA receives similar complaints, it may open an
investigation, and if it finds that a safety defect exists in
a group of vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot become involved in
individual problems between you, your authorized
dealer, and the manufacturer.9
IF YOU NEED CONSUMER ASSISTANCE 369

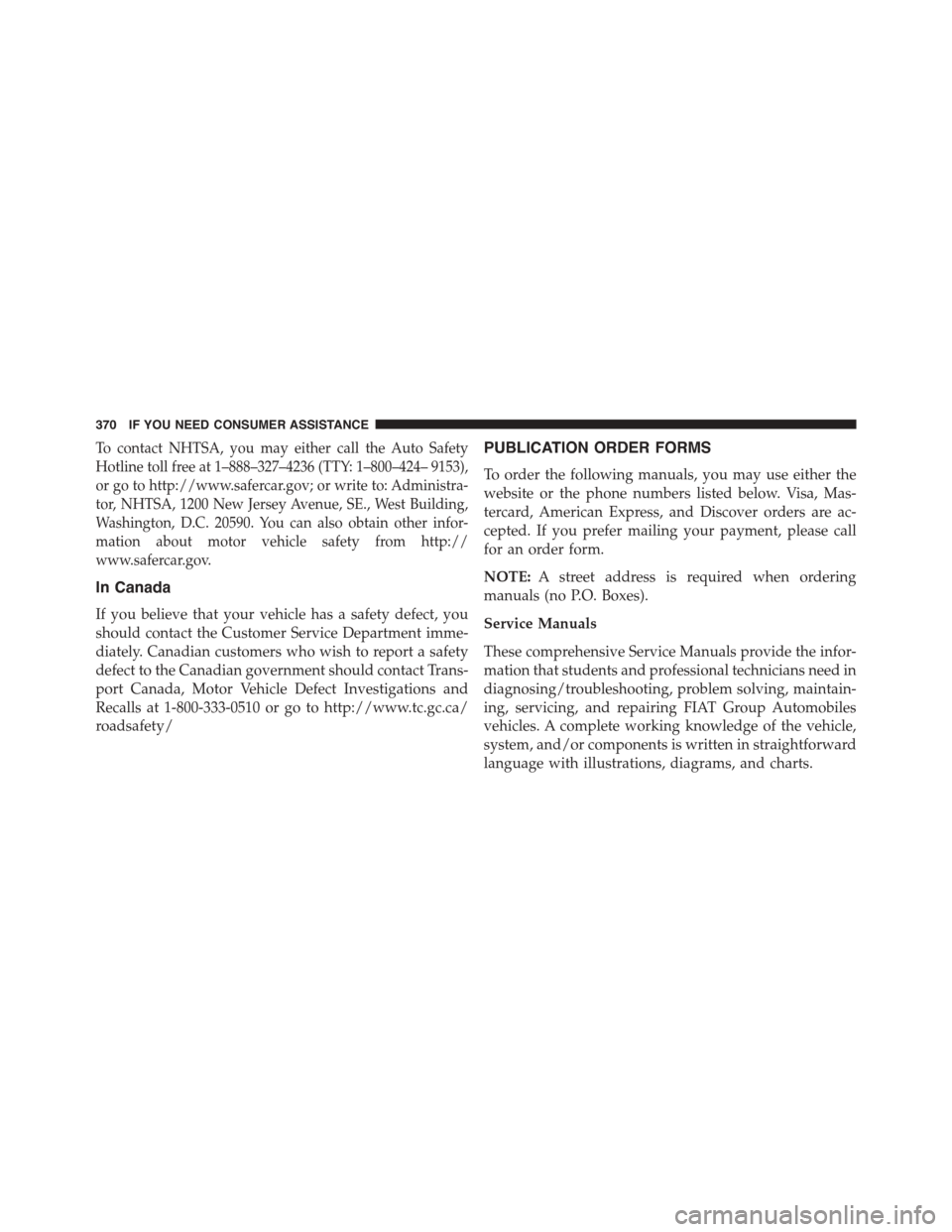

To contact NHTSA, you may either call the Auto Safety
Hotline toll free at 1–888–327–4236 (TTY: 1–800–424– 9153),
or go to http://www.safercar.gov; or write to: Administra-
tor, NHTSA, 1200 New Jersey Avenue, SE., West Building,
Washington, D.C. 20590. You can also obtain other infor-
mation about motor vehicle safety from http://
www.safercar.gov.
In Canada
If you believe that your vehicle has a safety defect, you
should contact the Customer Service Department imme-
diately. Canadian customers who wish to report a safety
defect to the Canadian government should contact Trans-
port Canada, Motor Vehicle Defect Investigations and
Recalls at 1-800-333-0510 or go to http://www.tc.gc.ca/
roadsafety/
PUBLICATION ORDER FORMS
To order the following manuals, you may use either the
website or the phone numbers listed below. Visa, Mas-
tercard, American Express, and Discover orders are ac-
cepted. If you prefer mailing your payment, please call
for an order form.
NOTE:A street address is required when ordering
manuals (no P.O. Boxes).
Service Manuals
These comprehensive Service Manuals provide the infor-
mation that students and professional technicians need in
diagnosing/troubleshooting, problem solving, maintain-
ing, servicing, and repairing FIAT Group Automobiles
vehicles. A complete working knowledge of the vehicle,
system, and/or components is written in straightforward
language with illustrations, diagrams, and charts.
370 IF YOU NEED CONSUMER ASSISTANCE

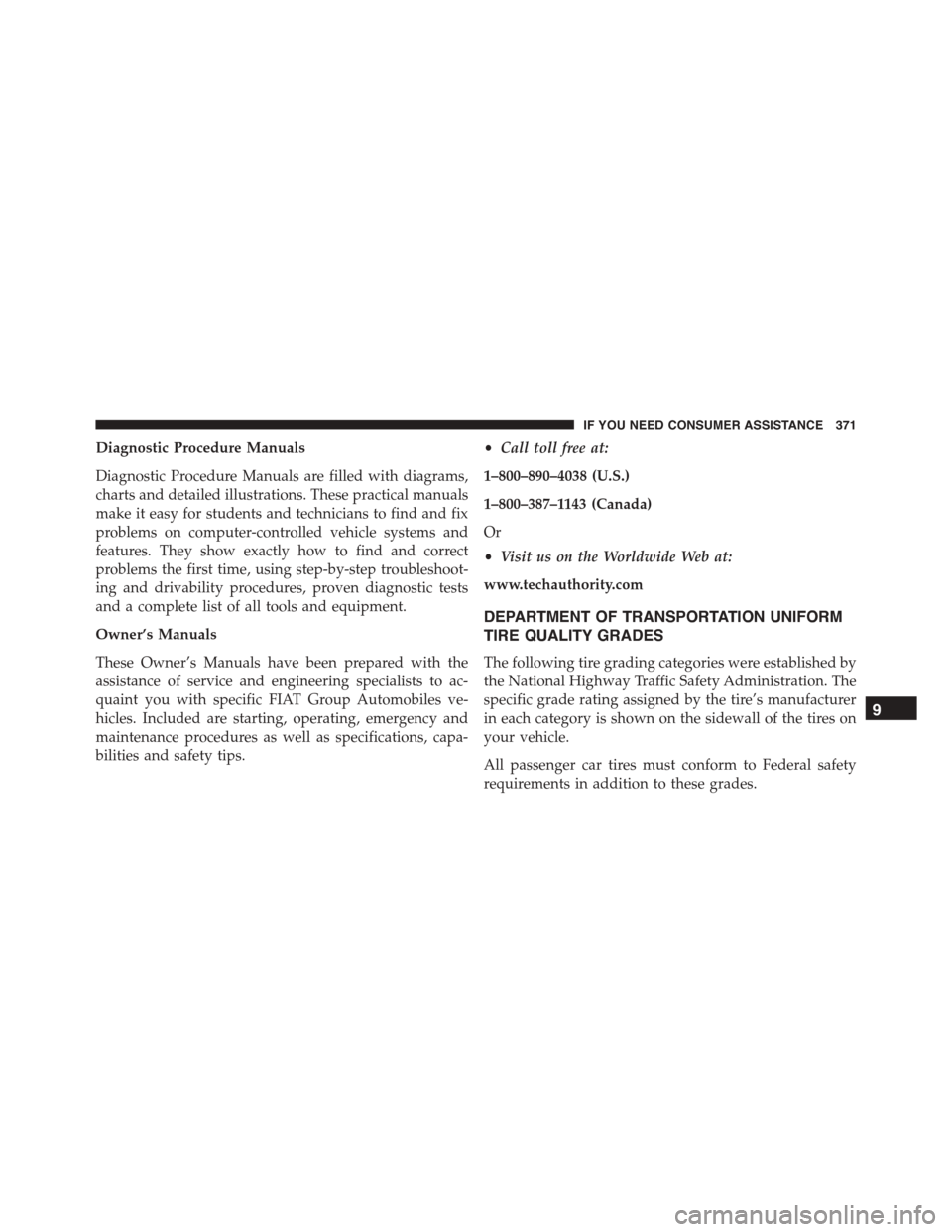

Diagnostic Procedure Manuals
Diagnostic Procedure Manuals are filled with diagrams,
charts and detailed illustrations. These practical manuals
make it easy for students and technicians to find and fix
problems on computer-controlled vehicle systems and
features. They show exactly how to find and correct
problems the first time, using step-by-step troubleshoot-
ing and drivability procedures, proven diagnostic tests
and a complete list of all tools and equipment.
Owner’s Manuals
These Owner’s Manuals have been prepared with the
assistance of service and engineering specialists to ac-
quaint you with specific FIAT Group Automobiles ve-
hicles. Included are starting, operating, emergency and
maintenance procedures as well as specifications, capa-
bilities and safety tips.
•Call toll free at:
1–800–890–4038 (U.S.)
1–800–387–1143 (Canada)
Or
•Visit us on the Worldwide Web at:
www.techauthority.com
DEPARTMENT OF TRANSPORTATION UNIFORM
TIRE QUALITY GRADES
The following tire grading categories were established by
the National Highway Traffic Safety Administration. The
specific grade rating assigned by the tire’s manufacturer
in each category is shown on the sidewall of the tires on
your vehicle.
All passenger car tires must conform to Federal safety
requirements in addition to these grades.
9
IF YOU NEED CONSUMER ASSISTANCE 371

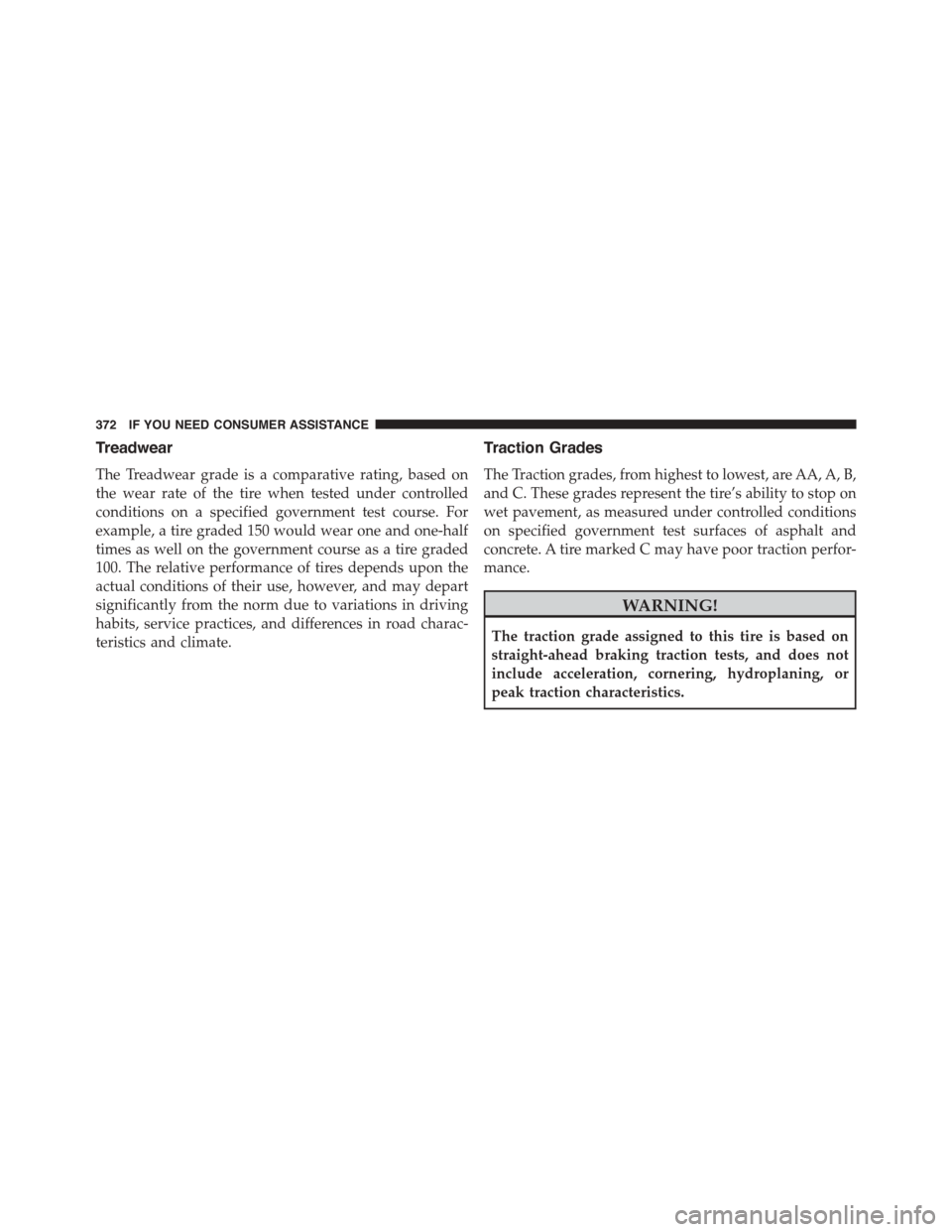

Treadwear
The Treadwear grade is a comparative rating, based on
the wear rate of the tire when tested under controlled
conditions on a specified government test course. For
example, a tire graded 150 would wear one and one-half
times as well on the government course as a tire graded
100. The relative performance of tires depends upon the
actual conditions of their use, however, and may depart
significantly from the norm due to variations in driving
habits, service practices, and differences in road charac-
teristics and climate.
Traction Grades
The Traction grades, from highest to lowest, are AA, A, B,
and C. These grades represent the tire’s ability to stop on
wet pavement, as measured under controlled conditions
on specified government test surfaces of asphalt and
concrete. A tire marked C may have poor traction perfor-
mance.
WARNING!
The traction grade assigned to this tire is based on
straight-ahead braking traction tests, and does not
include acceleration, cornering, hydroplaning, or
peak traction characteristics.
372 IF YOU NEED CONSUMER ASSISTANCE

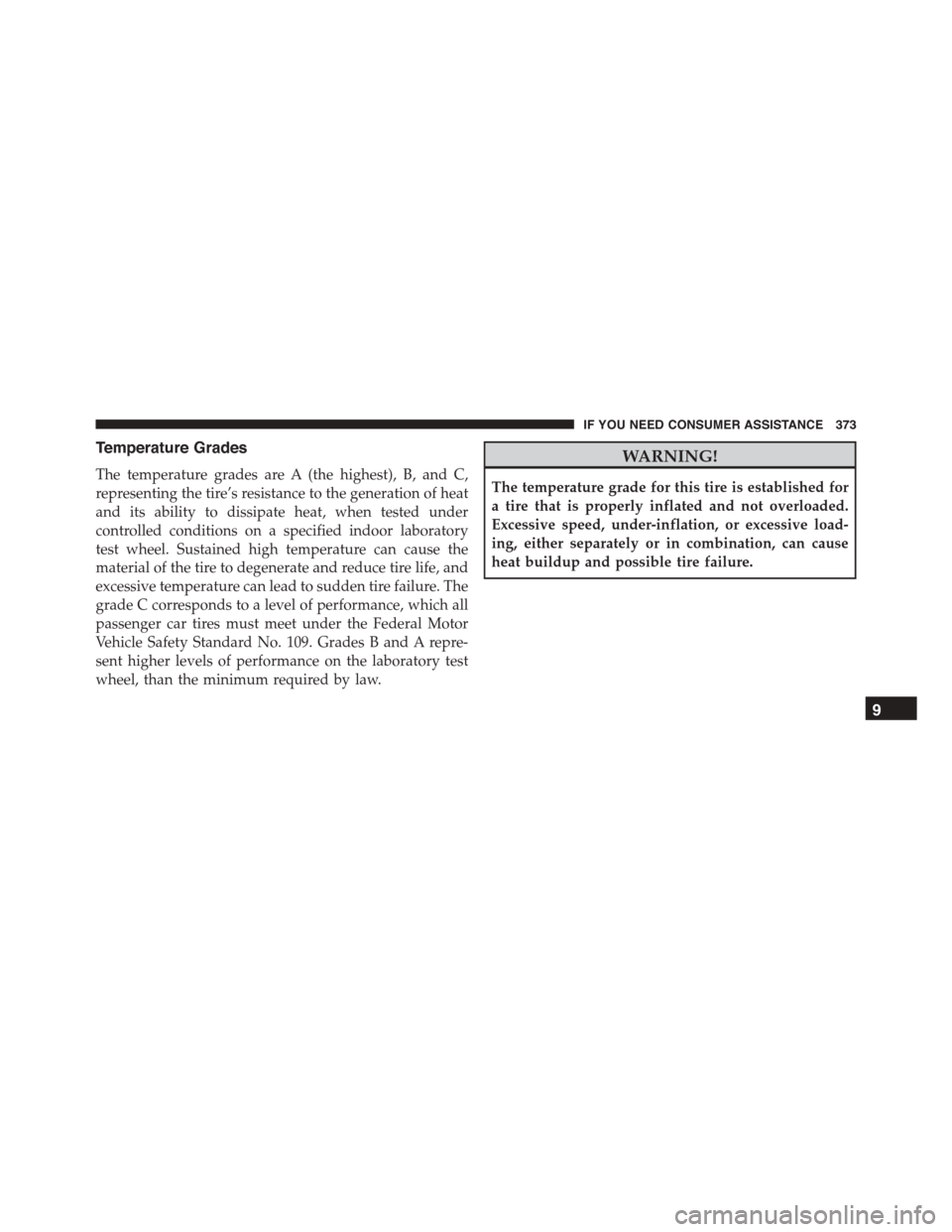

Temperature Grades
The temperature grades are A (the highest), B, and C,
representing the tire’s resistance to the generation of heat
and its ability to dissipate heat, when tested under
controlled conditions on a specified indoor laboratory
test wheel. Sustained high temperature can cause the
material of the tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden tire failure. The
grade C corresponds to a level of performance, which all
passenger car tires must meet under the Federal Motor
Vehicle Safety Standard No. 109. Grades B and A repre-
sent higher levels of performance on the laboratory test
wheel, than the minimum required by law.
WARNING!
The temperature grade for this tire is established for
a tire that is properly inflated and not overloaded.
Excessive speed, under-inflation, or excessive load-
ing, either separately or in combination, can cause
heat buildup and possible tire failure.
9
IF YOU NEED CONSUMER ASSISTANCE 373

INDEX
10

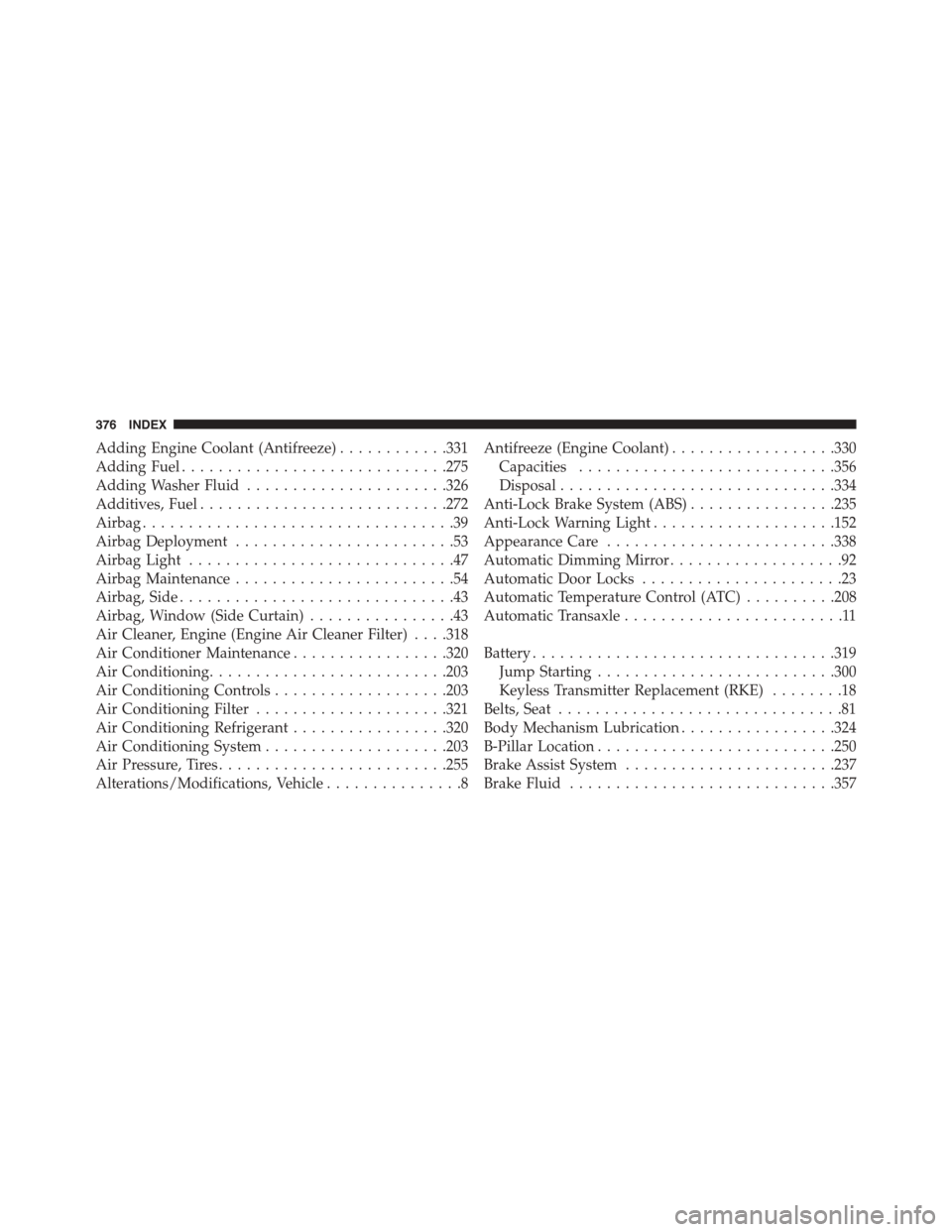

Adding Engine Coolant (Antifreeze)............331
Adding Fuel.............................275
Adding Washer Fluid......................326
Additives, Fuel...........................272
Airbag..................................39
Airbag Deployment........................53
Airbag Light.............................47
Airbag Maintenance........................54
Airbag, Side..............................43
Airbag, Window (Side Curtain)................43
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . .318
Air Conditioner Maintenance.................320
Air Conditioning..........................203
Air Conditioning Controls...................203
Air Conditioning Filter.....................321
Air Conditioning Refrigerant.................320
Air Conditioning System....................203
Air Pressure, Tires.........................255
Alterations/Modifications, Vehicle...............8
Antifreeze (Engine Coolant)..................330
Capacities............................356
Disposal..............................334
Anti-Lock Brake System (ABS)................235
Anti-Lock Warning Light....................152
Appearance Care.........................338
Automatic Dimming Mirror...................92
Automatic Door Locks......................23
Automatic Temperature Control (ATC)..........208
Automatic Transaxle........................11
Battery.................................319
Jump Starting..........................300
Keyless Transmitter Replacement (RKE)........18
Belts, Seat...............................81
Body Mechanism Lubrication.................324
B-Pillar Location..........................250
Brake Assist System.......................237
Brake Fluid.............................357
376 INDEX

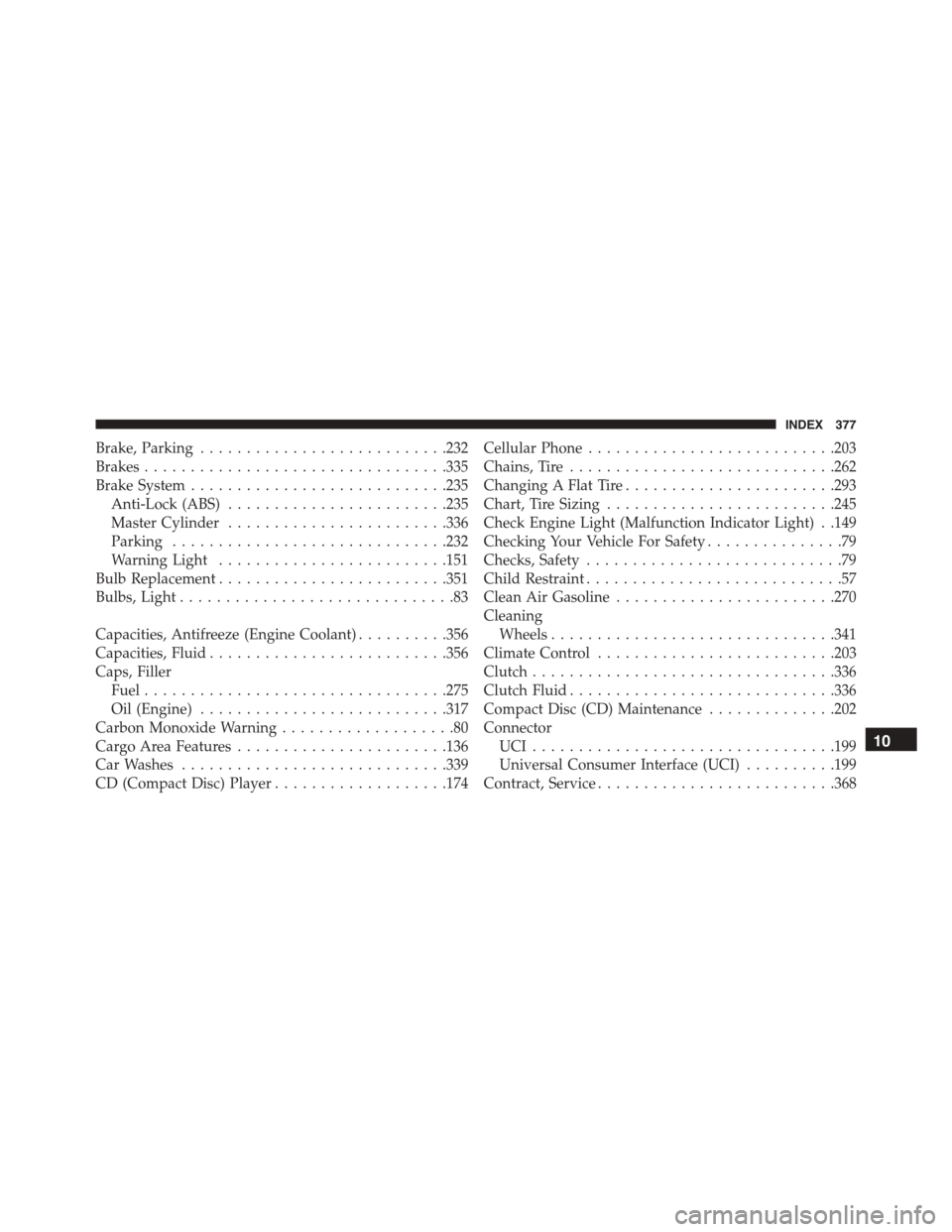

Brake, Parking...........................232
Brakes.................................335
Brake System............................235
Anti-Lock (ABS)........................235
Master Cylinder........................336
Parking..............................232
Warning Light.........................151
Bulb Replacement.........................351
Bulbs, Light..............................83
Capacities, Antifreeze (Engine Coolant)..........356
Capacities, Fluid..........................356
Caps, Filler
Fuel.................................275
Oil (Engine)...........................317
Carbon Monoxide Warning...................80
Cargo Area Features.......................136
Car Washes.............................339
CD (Compact Disc) Player...................174
Cellular Phone...........................203
Chains, Tire.............................262
Changing A Flat Tire.......................293
Chart, Tire Sizing.........................245
Check Engine Light (Malfunction Indicator Light) . .149
Checking Your Vehicle For Safety...............79
Checks, Safety............................79
Child Restraint............................57
Clean Air Gasoline........................270
Cleaning
Wheels...............................341
Climate Control..........................203
Clutch.................................336
Clutch Fluid.............................336
Compact Disc (CD) Maintenance..............202
Connector
UCI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..199
Universal Consumer Interface (UCI)..........199
Contract, Service..........................368
10
INDEX 377

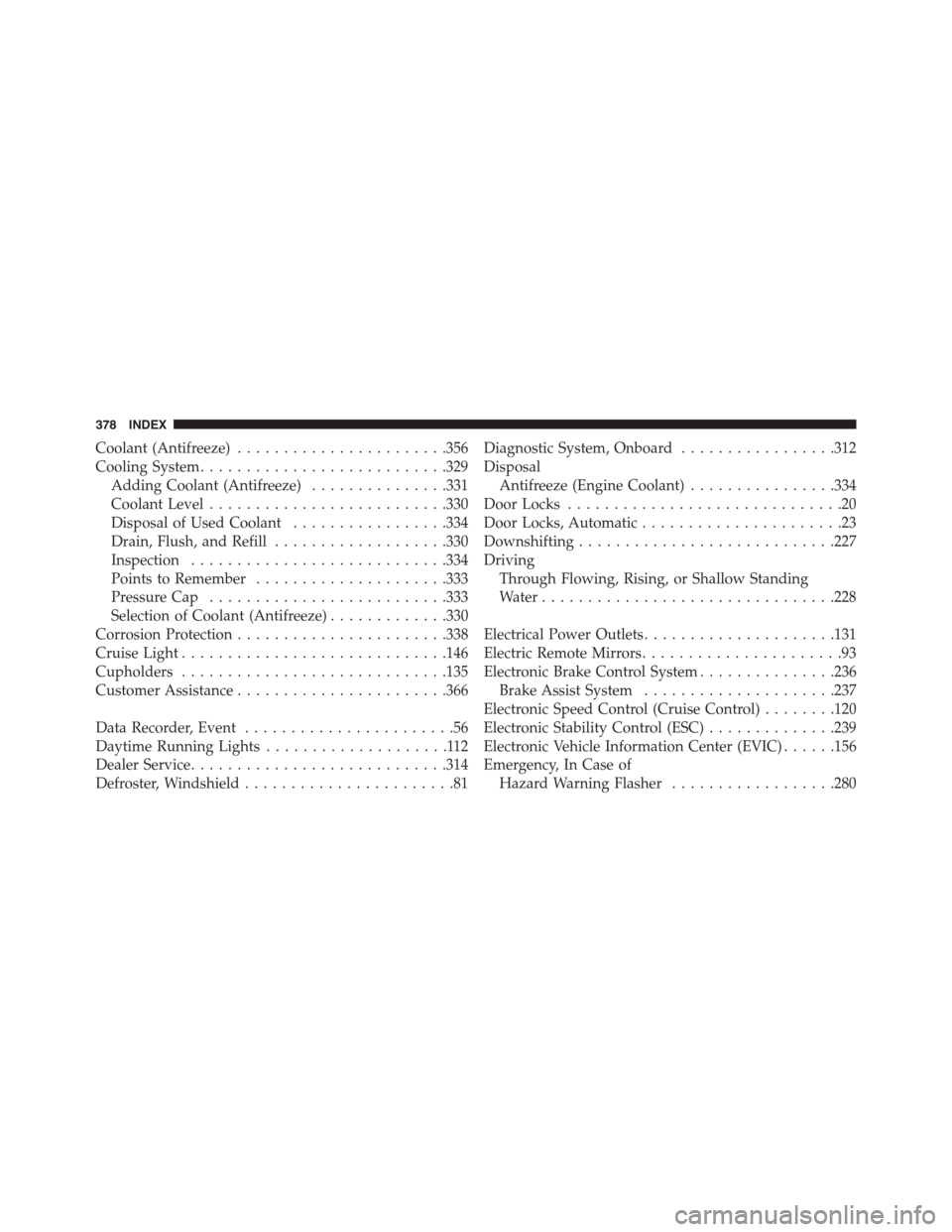

Coolant (Antifreeze).......................356
Cooling System...........................329
Adding Coolant (Antifreeze)...............331
Coolant Level..........................330
Disposal of Used Coolant.................334
Drain, Flush, and Refill...................330
Inspection............................334
Points to Remember.....................333
Pressure Cap..........................333
Selection of Coolant (Antifreeze).............330
Corrosion Protection.......................338
Cruise Light.............................146
Cupholders.............................135
Customer Assistance.......................366
Data Recorder, Event.......................56
Daytime Running Lights....................112
Dealer Service............................314
Defroster, Windshield.......................81
Diagnostic System, Onboard.................312
Disposal
Antifreeze (Engine Coolant)................334
Door Locks..............................20
Door Locks, Automatic......................23
Downshifting............................227
Driving
Through Flowing, Rising, or Shallow Standing
Water................................228
Electrical Power Outlets.....................131
Electric Remote Mirrors......................93
Electronic Brake Control System...............236
Brake Assist System.....................237
Electronic Speed Control (Cruise Control)........120
Electronic Stability Control (ESC)..............239
Electronic Vehicle Information Center (EVIC)......156
Emergency, In Case of
Hazard Warning Flasher..................280
