cruise control FIAT 500 ABARTH 2015 2.G Owners Manual

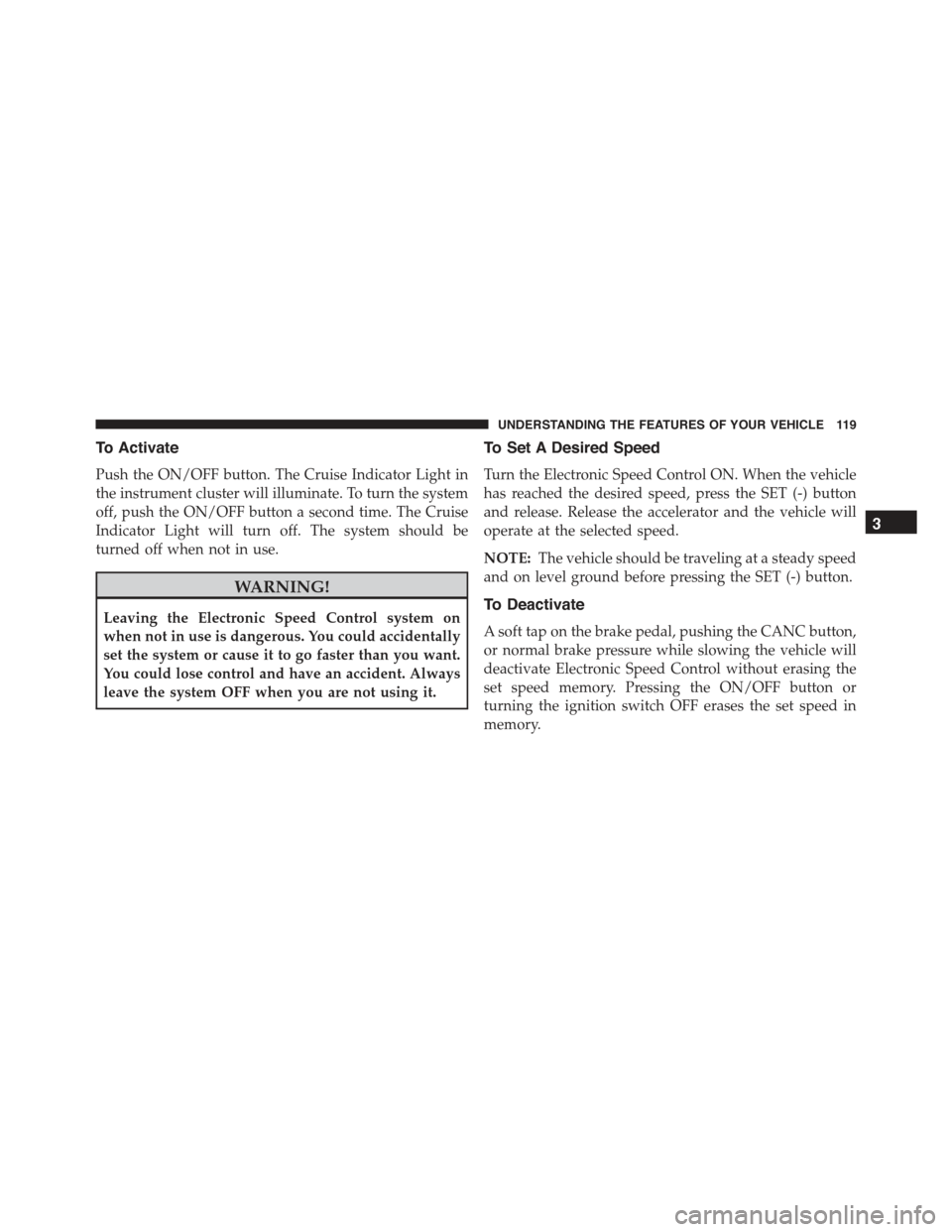

To Activate
Push the ON/OFF button. The Cruise Indicator Light in
the instrument cluster will illuminate. To turn the system
off, push the ON/OFF button a second time. The Cruise
Indicator Light will turn off. The system should be
turned off when not in use.
WARNING!
Leaving the Electronic Speed Control system on
when not in use is dangerous. You could accidentally
set the system or cause it to go faster than you want.
You could lose control and have an accident. Always
leave the system OFF when you are not using it.
To Set A Desired Speed
Turn the Electronic Speed Control ON. When the vehicle
has reached the desired speed, press the SET (-) button
and release. Release the accelerator and the vehicle will
operate at the selected speed.
NOTE:The vehicle should be traveling at a steady speed
and on level ground before pressing the SET (-) button.
To Deactivate
A soft tap on the brake pedal, pushing the CANC button,
or normal brake pressure while slowing the vehicle will
deactivate Electronic Speed Control without erasing the
set speed memory. Pressing the ON/OFF button or
turning the ignition switch OFF erases the set speed in
memory.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 119

23. Generic Warning Light
The Generic Warning Light will illuminate if
any of the following conditions occur: Oil
Change Request, Engine Oil Pressure Sensor
Failure, External Light Failure, Fuel Cut-Off
Intervention, Fuel Cut-Off Not Available, Parking Sensor
Failure.
24. Cruise On Indicator — If Equipped
This light will turn on when the electronic
speed control is ON. For further information,
refer to “Electronic Speed Control” in “Under-
standing Your Instrument Panel.”
25. Charging System Light
This light shows the status of the electrical charg-
ing system. The light should come on when the
ignition switch is first turned to ON/RUN and remain on
briefly as a bulb check. If the light stays on or comes on
while driving, turn off some of the vehicle’s non-essential
electrical devices or increase engine speed (if at idle). If
the charging system light remains on, it means that the
vehicle is experiencing a problem with the charging
system. Obtain SERVICE IMMEDIATELY. See an autho-
rized dealer.
If jump starting is required, refer to “Jump Starting
Procedures” in “What To Do In Emergencies.”
26. Electronic Throttle Control (ETC) Light
This light informs you of a problem with the
Electronic Throttle Control (ETC) system. If a
problem is detected, the light will come on
while the engine is running. Cycle the ignition
key when the vehicle has completely stopped and the
shift lever is placed in the NEUTRAL position. The light
should turn off. If the light remains lit with the engine
running, your vehicle will usually be drivable. However,
see an authorized dealer for service as soon as possible. If
4
UNDERSTANDING YOUR INSTRUMENT PANEL 159

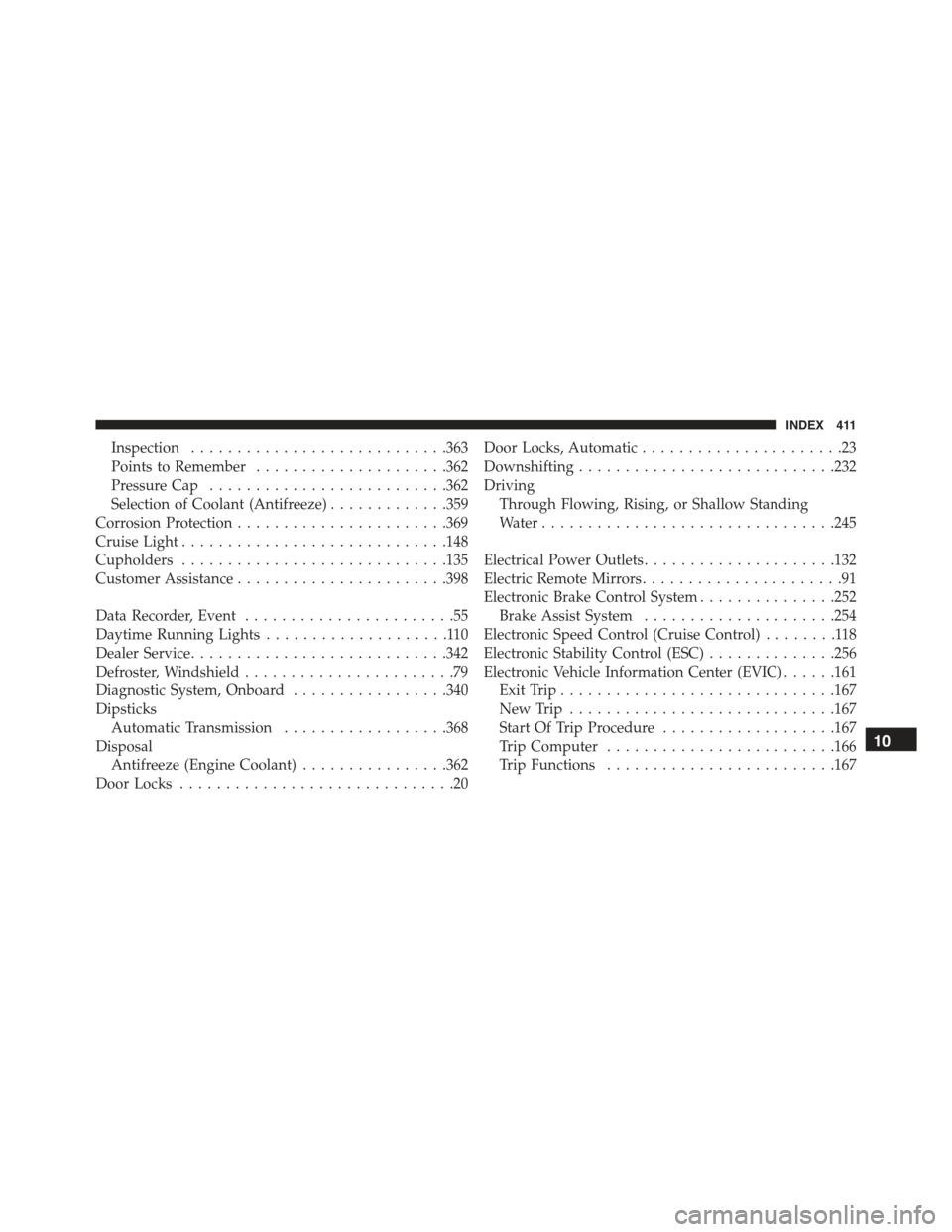

Inspection............................363
Points to Remember.....................362
Pressure Cap..........................362
Selection of Coolant (Antifreeze).............359
Corrosion Protection.......................369
Cruise Light.............................148
Cupholders.............................135
Customer Assistance.......................398
Data Recorder, Event.......................55
Daytime Running Lights....................110
Dealer Service............................342
Defroster, Windshield.......................79
Diagnostic System, Onboard.................340
Dipsticks
Automatic Transmission..................368
Disposal
Antifreeze (Engine Coolant)................362
Door Locks..............................20
Door Locks, Automatic......................23
Downshifting............................232
Driving
Through Flowing, Rising, or Shallow Standing
Water................................245
Electrical Power Outlets.....................132
Electric Remote Mirrors......................91
Electronic Brake Control System...............252
Brake Assist System.....................254
Electronic Speed Control (Cruise Control)........118
Electronic Stability Control (ESC)..............256
Electronic Vehicle Information Center (EVIC)......161
Exit Trip..............................167
New Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . ..167
Start Of Trip Procedure...................167
Trip Computer.........................166
Trip Functions.........................167
10
INDEX 411

Seats..................................101
Adjustment...........................101
Heated...............................105
Selection of Oil...........................345
SENTRY KEY®
FCC General Information..................14
Sentry Key (Immobilizer)....................13
Service Assistance.........................398
Service Contract..........................400
Service Manuals..........................402
Shift Lever Override.......................333
Shift Speeds, Manual Transmission.............232
Shoulder Belts............................29
Signals, Turn.............................81
Snow Chains (Tire Chains)...................284
Snow Tires..............................277
Spare Tire...............................279
Spark Plugs.............................388
Specifications
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..345
Speed Control (Cruise Control)................118
Sport Mode.............................250
Starting................................227
Automatic Transmission..................227
Cold Weather..........................228
Engine Fails to Start.....................229
Manual Transmission....................227
Steering
Power...............................247
Tilt Column...........................117
Wheel, Tilt............................117
Steering Wheel Audio Controls...............209
Steering Wheel Mounted Sound System Controls . . .209
Storage................................382
Storage, Vehicle...........................221
Storing Your Vehicle.......................382
Stuck, Freeing............................331
10
INDEX 419
