engine FIAT 500 ABARTH 2015 2.G Owner's Manual

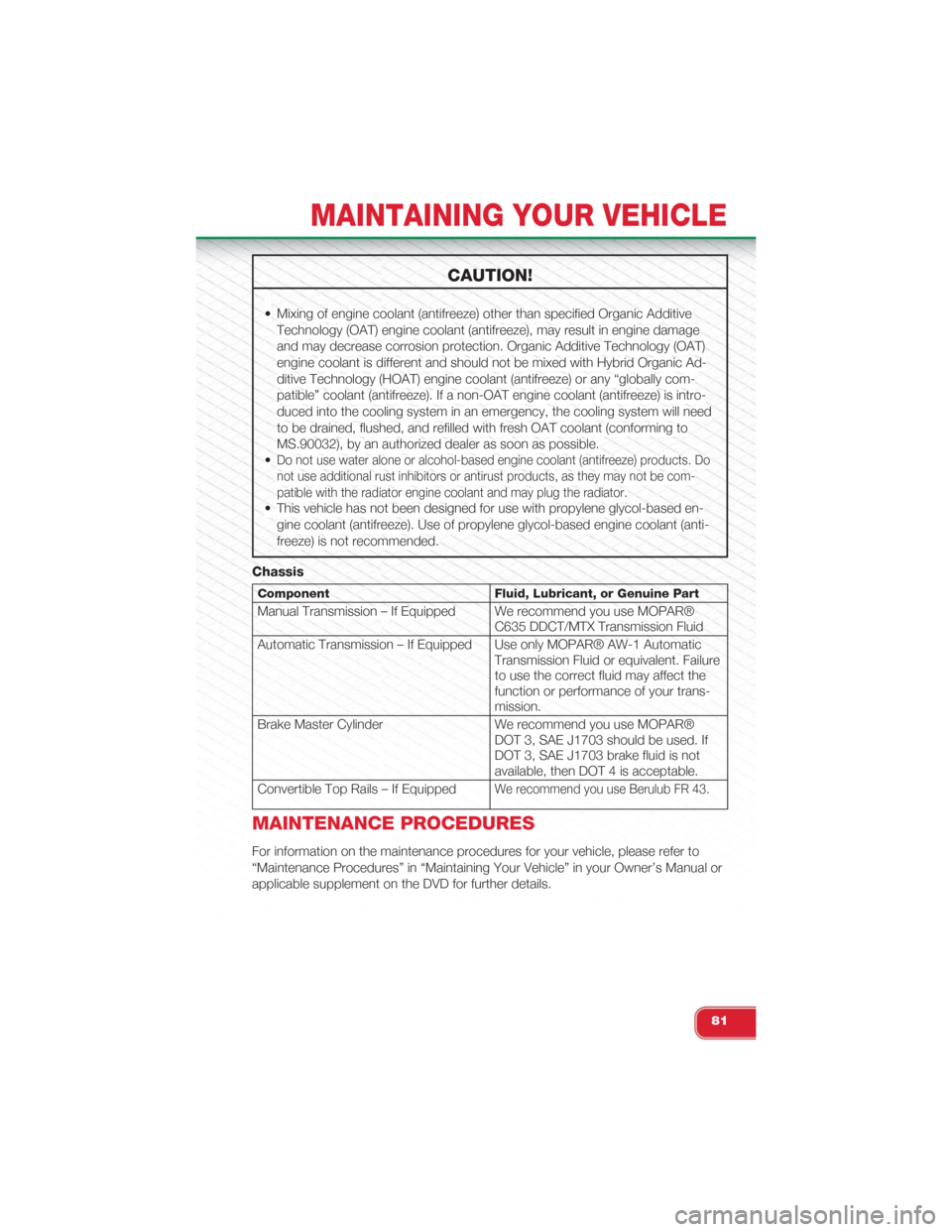

CAUTION!
• Mixing of engine coolant (antifreeze) other than specified Organic Additive
Technology (OAT) engine coolant (antifreeze), may result in engine damage
and may decrease corrosion protection. Organic Additive Technology (OAT)
engine coolant is different and should not be mixed with Hybrid Organic Ad-
ditive Technology (HOAT) engine coolant (antifreeze) or any “globally com-
patible” coolant (antifreeze). If a non-OAT engine coolant (antifreeze) is intro-
duced into the cooling system in an emergency, the cooling system will need
to be drained, flushed, and refilled with fresh OAT coolant (conforming to
MS.90032), by an authorized dealer as soon as possible.
•Do not use water alone or alcohol-based engine coolant (antifreeze) products. Do
not use additional rust inhibitors or antirust products, as they may not be com-
patible with the radiator engine coolant and may plug the radiator.
• This vehicle has not been designed for use with propylene glycol-based en-
gine coolant (antifreeze). Use of propylene glycol-based engine coolant (anti-
freeze) is not recommended.
Chassis
Component Fluid, Lubricant, or Genuine Part
Manual Transmission – If Equipped We recommend you use MOPAR®C635 DDCT/MTX Transmission Fluid
Automatic Transmission – If Equipped Use only MOPAR® AW-1 AutomaticTransmission Fluid or equivalent. Failureto use the correct fluid may affect thefunction or performance of your trans-mission.
Brake Master Cylinder We recommend you use MOPAR®DOT 3, SAE J1703 should be used. IfDOT 3, SAE J1703 brake fluid is notavailable, then DOT 4 is acceptable.
Convertible Top Rails – If EquippedWe recommend you use Berulub FR 43.
MAINTENANCE PROCEDURES
For information on the maintenance procedures for your vehicle, please refer to
“Maintenance Procedures” in “Maintaining Your Vehicle” in your Owner’s Manual or
applicable supplement on the DVD for further details.
MAINTAINING YOUR VEHICLE
81

MAINTENANCE SCHEDULE
Your vehicle is equipped with an automatic oil change indicator system. The oil
change indicator system will remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change indicator message will illumi-
nate. This means that service is required for your vehicle. Operating conditions such
as frequent short-trips, trailer tow, extremely hot or cold ambient temperatures, and
E85 fuel usage will influence when the “Change Oil” message is displayed. Severe
operating conditions can cause the change oil message to illuminate as early as
3,500 miles (5,600 km) since last reset. Have your vehicle serviced as soon as pos-
sible, within the next 500 miles (805 km).
Your authorized dealer will reset the oil change indicator message after completing
the scheduled oil change. If a scheduled oil change is performed by someone other
than your authorized dealer, the message can be reset by referring to the steps de-
scribed under “Electronic Vehicle Information Center (EVIC)” in “Understanding Your
Instrument Panel” in your Owners Manual on the DVD for further information.
NOTE:Under no circumstances should oil change intervals exceed 10,000 miles (16,000 km) ortwelve months, whichever comes first.
Severe Duty All Models
Change Engine Oil at 4000 miles (6,500 km) if the vehicle is operated in a dusty and
off road environment. This type of vehicle use is considered Severe Duty.
Once A Month Or Before A Long Trip:
Check engine oil level
Check windshield washer fluid level
Check the tire inflation pressures and look for unusual wear or damage
Check the fluid levels of the coolant reservoir and brake master cylinder as needed
Check function of all interior and exterior lights
MAINTAINING YOUR VEHICLE
82

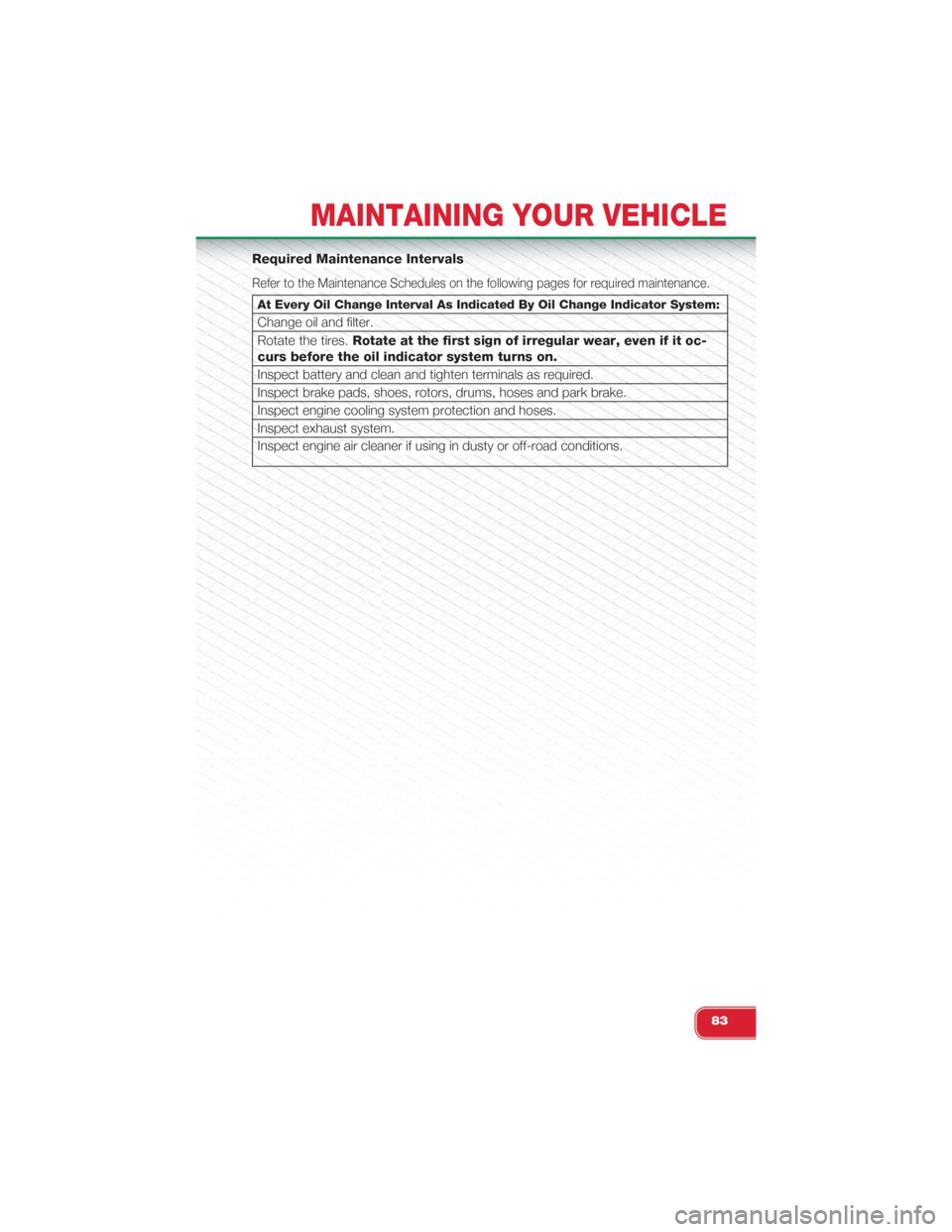

Required Maintenance Intervals
Refer to the Maintenance Schedules on the following pages for required maintenance.
At Every Oil Change Interval As Indicated By Oil Change Indicator System:
Change oil and filter.
Rotate the tires.Rotate at the first sign of irregular wear, even if it oc-
curs before the oil indicator system turns on.
Inspect battery and clean and tighten terminals as required.
Inspect brake pads, shoes, rotors, drums, hoses and park brake.
Inspect engine cooling system protection and hoses.
Inspect exhaust system.
Inspect engine air cleaner if using in dusty or off-road conditions.
MAINTAINING YOUR VEHICLE
83

Maintenance ChartMileage or time passed (whichever comes first)
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15Or Kilometers:
32,000
48,000
64,000
80,000
96,000
112,000
128,000
144,000
160,000
176,000
192,000
208,000
224,000
240,000
Additional InspectionsInspect the CV joints. X X X X XInspect front suspension, tie rod ends, boot seals, and replace ifnecessary.
XXX X X X X
Inspect brake linings, replace if needed. X X X X X X XInspect parking brake function, adjust as necessary. X X X X X X XAdditional MaintenanceReplace cabin/air conditioning filter. X X X X X X XClean and lube sun roof tracks. X X X X X X X X X X X X X XReplace engine air filter. X X X X XReplace the spark plugs. ** X X X X XFlush and replace the engine coolant at 10 years or 150,000miles (240,000 km) whichever comes first.
XX
Inspect and replace PCV valve if necessary.
X
Replace the timing belt.
X
** The spark plug change interval is mileage based only, yearly intervals do not apply.
MAINTAINING YOUR VEHICLE
84

Underhood Fuses
The Front Distribution Unit is located on the right side of the engine compartment, next to
the battery. To access the fuses, press the release tabs and remove the cover.
The ID number of the electrical component corresponding to each fuse can be
found on the back of the cover.
Cavity Maxi Fuse Mini Fuse Description
F01 60 Amp Blue – Body Controller
F02 20 Amp Yellow – Audio Amplifier
F03 20 Amp Yellow – Ignition Switch
F04 40 Amp Orange – Anti-Lock Brake Pump
F05 70 Amp Tan – Electric Power Steering
F06 20 Amp Yellow – Radiator Fan - Single Speed
F06 30 Amp Green – Radiator Fan - Low Speed
F07 40 Amp Orange – Radiator Fan - High Speed
F08 40 Amp Orange – Blower Motor
F09 – 10 Amp Red Powertrain
F10 – 10 Amp Red Horn
F11 – 15 Amp Blue Powertrain
F11 – 10 Amp RedPowertrain (Multiair – If Equipped)
F14 – 5 Amp Tan High Beam (Shutter)
F15 – 15 Amp Blue Cigar Lighter
F16 –7.5 Amp BrownTransmission
F17 – 25 Amp ClearPowertrain (Multiair – If Equipped)
F17 – 15 Amp Blue Powertrain
F18 – 15 Amp Blue Powertrain
F18 – 5 Amp TanPowertrain (Multiair – If Equipped)
F19 –7.5 Amp BrownAir Conditioning
F20 – 15 Amp Blue Heated Seats – If Equipped
F21 – 15 Amp Blue Fuel Pump
F22 – 20 Amp Yellow Powertrain
F23 – 20 Amp Yellow Anti-Lock Brake Valves
F24 –7.5 Amp BrownStability Control System
F30 – 15 Amp Blue Fog Lamps
F82 30 Amp Green – Sunroof/Convertible Top
F83 20 Amp Yellow – Cooling Pump – If Equipped
F84 – 10 Amp Red Transmission
F8530 Amp Green (ATO)– Rear Defroster
F87 – 5 Amp Tan Rear Defroster
F90 – 5 Amp Tan Heated Mirrors – If Equipped
MAINTAINING YOUR VEHICLE
88

FIAT CUSTOMER CENTER
P.O. Box 21–8004 Auburn Hills, MI 48321–8004 Phone: 1-888-242-6342
FIAT CANADA CUSTOMER CENTER
P.O. Box 1621 Windsor, Ontario N9A 4H6 Phone: 1–800–465–2001 (English)
Phone: 1–800–387–9983 (French)
ASSISTANCE FOR THE HEARING IMPAIRED
To assist customers who have hearing difficulties, the manufacturer has installed
special TDD (Telecommunication Devices for the Deaf) equipment at its customer
center. Any hearing or speech impaired customer, who has access to a TDD or a
conventional teletypewriter (TTY) in the United States, can communicate with the
manufacturer by dialing 1–800–380–CHRY. Canadian residents with hearing difficul-
ties that require assistance can use the special needs relay service offered by Bell
Canada. For TTY teletypewriter users, dial 711 and for Voice callers, dial 1–800–
855–0511 to connect with a Bell Relay Service operator.
WARNING!
Engine exhaust, some of its constituents, and certain vehicle components con-
tain, or emit, chemicals known to the State of California to cause cancer and birth
defects, or other reproductive harm. In addition, certain fluids contained in ve-
hicles and certain products of component wear contain, or emit, chemicals
known to the State of California to cause cancer and birth defects, or other repro-
ductive harm.
PUBLICATIONS ORDERING
• If you are the first registered retail owner of your vehicle, you may obtain a compli-
mentary printed copy of the Owner's Manual, Navigation/Uconnect® Manuals or
Warranty Booklet. United States customers may visit the Fiat Contact Us page at
www.fiat.com scroll to the bottom of the page and select the “Contact Us” link,
then select the “Owner’s Manual and Glove Box Material” from the left menu. You
may also obtain a complimentary copy by calling 1–888–242–6342 (U.S.) or
1–800–387–1143 (Canada).
•Replacement English User Guide kits or DVDs may be purchased by visiting
www.techauthority.com or by calling 1–800–890–4038 (U.S.) or 1–800–387–
1143 (Canada). Visa, Master Card, American Express and Discover orders are
accepted. If you prefer mailing your order, please call the above numbers for an
order form.
NOTE:
A street address is required when ordering manuals (no P.O. Boxes).
CONSUMER ASSISTANCE
93

FREQUENTLY ASKED QUESTIONS
GETTING STARTED
• How do I install my LATCH Equipped Child Seat? pg. 16
• How do I fold down my rear seat? pg. 22
ELECTRONICS
• What Sound System do I have? pg. 38
• How do I set the presets on my radio? pg. 41
• How do I connect my portable media player/iPod/MP3? pg. 49
• How do I pair my cell phone via Bluetooth® with the BLUE&ME™ Hands-Free
Communication System? pg. 46
WHAT TO DO IN EMERGENCIES
• What do I do if my TPMS warning light is blinking? pg. 56
• How do I Jump-Start my vehicle? pg. 69
MAINTAINING YOUR VEHICLE
• Where is my underhood fuse block located? pg. 88
• Where is my interior fuse block located? pg. 87
• What type of oil do I use? pg. 80
• How often should I change my engines oil? pg. 82
• What should my tire pressure be set at? pg. 89
FREQUENTLY ASKED QUESTIONS
96

Adding Engine Coolant (Antifreeze) . . .81Adding Washer Fluid. . . . . . . . . . .81Air BagAdvanced Front Air Bag . . . . . . .12Advance Front Air Bag. . . . . . . .11Air Bags. . . . . . . . . . . . . . . .11Air Bag Warning Light. . . . . . . . .11Driver Knee Air Bag. . . . . . . . . .13Front Air Bag. . . . . . . . . . . . .11Passenger Knee Air Bag . . . . . . .13Rollover. . . . . . . . . . . . . . . . .11Side Impacts. . . . . . . . . . . . . .11Air bag Light. . . . . . . . . . . . . . . .55Air Cleaner, Engine (Engine Air CleanerFilter). . . . . . . . . . . . . . . . . . .81Air Conditioner Maintenance . .. . . . .81Air Conditioning Refrigerant. . . . . . . .81Air Conditioning System. . . . . . . . .81AlarmDisarm The System. . . . . . . . . .10Vehicle Security Alarm .. . . . . . .10Alarm (Security Alarm)........10, 60Antifreeze (Engine Coolant) . .. . . .80, 81Capacities. . . . . . . . . . . . . . .80Disposal. . . . . . . . . . . . . . . .81Anti-Lock Warning Light. . . . . . . . .55Appearance Care. . . . . . . . . . . . .81Automatic Temperature Control (ATC). . .31Automatic TransmissionFluid Type. . . . . . . . . . . . . . .81
Battery. . . . . . . . . . . . . . . . . . .81BLUE&ME™ Hands-FreeCommunication. . . . . . . . . . . .43Body Mechanism Lubrication. . . . . .81Brake Fluid...............80, 81Brakes. . . . . . . . . . . . . . . . . . .81Brake System. . . . . . . . . . . . . . .81Master Cylinder. . . . . . . . . . . .81Warning Light. . . . . . . . . . . . .58Break-In Recommendations, NewVehicle. . . . . . . . . . . . . . . . .24Bulb Replacement. . . . . . . . . . . . .92Bulbs, Light. . . . . . . . . . . . . . . .92
Capacities, Antifreeze (Engine Coolant). .80Capacities, Fluid. . . . . . . . . . . . . .80
Caps, FillerOil (Engine) . .. . . . . . . . . . . .81Car Washes . .. . . . . . . . . . . . . .81Charging System Light . .. . . . . . . .55Child Restraint . . .. . . . . . . . . . . .14Child RestraintsInstalling Child Restraints Using TheVehicle Seat Belt . .. . . . . . . . . .16Lower Anchors And Tethers ForChildren. . . . . . . . . . . . . . . .16Using The Top Tether Anchorage . .16CleaningWheels. . . . . . . . . . . . . . . . .81Windshield Wiper Blades. . . . . . .81Climate Control . .. . . . . . . . . . . .30Automatic. . . . . . . . . . . . . . .31Manual. . . . . . . . . . . . . . . . .30Cluster Warning/Indicator LightsAnti-Lock Brake (ABS) Light. . . . .55Brake Warning Light . .. . . . . . . .58Charging System Light . . .. . . . .55Electronic Speed Control SETIndicator . .. . . . . . . . . . . . . .60Electronic Throttle Control (ETC)Indicator Light. . . . . . . . . . . . .59Engine Temperature Warning Light. .57Front Fog Light Indicator. . . . . . .60High Beam Indicator. . . . . . . . .60Malfunction Indicator Light (MIL) . . .59Oil Pressure Warning Light. . . . . .55Park/Headlight ON Indicator. . . . .61Tire Pressure Monitoring System(TPMS) Light. . . . . . . . . . . . .56Turn Signal Indicator. . . . . . . . .60Vehicle Security Light . .. . . . . . .60Clutch.. . . . . . . . . . . . . . . . . . .81Clutch Fluid .. . . . . . . . . . . . . . .81Compact Spare Tire . . . . . . .. . . . .90Coolant (Antifreeze) . .. . . . . . . . . .80Cooling System . . .. . . . . . . . . . .81Adding Coolant (Antifreeze). . . . .81Coolant Level .. . . . . . . . . . . .81Disposal of Used Coolant. . . . . .81Drain, Flush, and Refill . . .. . . . .81Inspection. . . . . . . . . . . . . . .81Points to Remember . .. . . . . . .81Pressure Cap . .. . . . . . . . . . .81
INDEX
97

Selection of Coolant
(Antifreeze)............80, 81
Corrosion Protection. . . . . . . . . . .81
Cruise Control (Speed Control). . . . . .27
Cruise Light. . . . . . . . . . . . . . . .27
Customer Assistance. . . . . . . . . . .93
Defects, Reporting. . . . . . . . . . . .94
Disarming, Security System. . . . . . .10
DisposalAntifreeze (Engine Coolant). . . . .81
ElectronicsYour Vehicle's Sound System . .38, 39Electronic Speed Control (CruiseControl). . . . . . . . . . . . . . . . .27Electronic Throttle Control WarningLight. . . . . . . . . . . . . . . . . . .59Electronic Vehicle Information Center(EVIC)................50, 51Emergency, In Case ofTowing. . . . . . . . . . . . . . . . .72Engine. . . . . . . . . . . . . . . . . . .78Air Cleaner. . . . . . . . . . . . . . .81Break-In Recommendations . . . . .24Checking Oil Level. . . . . . . . . . .81Compartment. . . . . . . . . . . . .78Cooling. . . . . . . . . . . . . . . . .81Oil . . . . . . . . . . . . . . . ..80, 81Oil Filler Cap. . . . . . . . . . . . . .81Oil Selection...........80, 81Overheating. . . . . . . . . . . . . .62Temperature Warning Light .. . . .57Enhanced Accident Response Feature. . .73Event Data Recorder. . . . . . . . . . .76Exhaust System. . . . . . . . . . . . . .81Exterior Lights. . . . . . . . . . . . . . .92
FAQ . . . . . . . . . . . . . . . . . . . . .96FiltersAir Cleaner. . . . . . . . . . . . . . .81Engine Oil. . . . . . . . . . . . . . .81Engine Oil Disposal. . . . . . . . . .81FlashersTurn Signal. . . . . . . . . . . . . .60Flash-To-Pass. . . . . . . . . . . . . . .25Fluid, Brake. . . . . . . . . . . . . . . .81Fluid Capacities. . . . . . . . . . . . . .80
Fluids. . . . . . . . . . . . . . . . . . . .80
Fluids, Lubricants and Genuine Parts . .80
Fog Lights. . . . . . . . . . . . . . . . .60
Folding Rear Seat .. . . . . . . . . . . .22
Freeing A Stuck Vehicle . . .. . . . . . .75
Frequently Asked Questions. . . . . . .96
Fuel
Capacity. . . . . . . . . . . . . . . .80
Specifications . . . .. . . . . . . . .80
Tank Capacity . .. . . . . . . . . . .80Fuse . . . .. . . . . . . . . . . . . . . .87Fuses . . . .. . . . . . . . . . . . . . . .87
Gasoline (Fuel). . . . . . . . . . . . . . .80General Maintenance .. . . . . . . . . .81Glass Cleaning . . . .. . . . . . . . . . .81
Hands-Free Communication —BLUE&ME™. . . . . . . . . . . . . .43HeadlightsCleaning. . . . . . . . . . . . . . . .81Heated Mirrors . . . . .. . . . . . . . . .30High Beam Indicator. . . . . . . . . . .60Hood Release . .. . . . . . . . . . . . .77
Instrument Cluster . .. . . . . . . . . . .6Instrument Cluster Warning Lights. . . .55Instrument Panel Cover. . . . . . . . . .81Instrument Panel Lens Cleaning . . . . .81Interior and Instrument Lights. . . . . .4, 5Interior Appearance Care . . .. . . . . .81Introduction. . . . . . . . . . . . . . . . .2iPod®/USB/MP3 Control .. . . . . . . .49
Key Fob . . . . . . . . . . . . . . . . . . .8Disarm The Alarm. . . . . . . . . . .10
Lane Change Assist. . . . . . . . . . . .25Lap/Shoulder Belts. . . . . . . . . . . .10LATCH (Lower Anchors and Tether forCHildren) . . ............15, 18Light Bulbs . . .. . . . . . . . . . . . . .92LightsFog . . . . . . . . . . . . . . . . . . .60High Beam Indicator. . . . . . . . .60Low Fuel . .. . . . . . . . . . . . . .55Seat Belt Reminder. . . . . . . . . .57Security Alarm . . .. . . . . . . . . .60
INDEX
98

Tire Pressure Monitoring (TPMS) . .56
Turn Signal. . . . . . . . . . . . . .25
Lower Anchors and Tether for CHildren
(LATCH). . . . . . . . . . . . . . . . .15
Lubrication, Body. . . . . . . . . . . . .81
Maintenance Free Battery . . . . . . . .81
Maintenance, General. . . . . . . . . . .81
Maintenance Procedures . . . .. . . . .81
Maintenance Record. . . . . . . . . . .86
Maintenance Schedule . .. . . . . . . .82
Malfunction Indicator Light (Check
Engine). . . . . . . . . . . . . . . . .59
Manual Transmission. . . . . . . . . . .32
Lubricant Selection. . . . . . . . . .81
Master Cylinder (Brakes). . . . . . . . .81
Mirrors
Heated. . . . . . . . . . . . . . . . .30
MOPAR® Accessories . . .. . . . . . .95
New Vehicle Break-In Period. . . . . . .24
Occupant Restraints. . . . . . . . . . .14
Oil Change Indicator. . . . . . . . . . . .61
Oil Change Indicator, Reset . . .. . . .61
Oil, Engine...............80, 81
Capacity. . . . . . . . . . . . . . . .80
Change Interval. . . . . . . . . . . .81
Checking. . . . . . . . . . . . . . .81
Disposal. . . . . . . . . . . . . . . .81Filter. . . . . . . . . . . . . . . . . .81Filter Disposal. . . . . . . . . . . . .81Materials Added to. . . . . . . . . .81Recommendation........80, 81Viscosity. . . . . . . . . . . . . . . .81Oil Filter, Selection. . . . . . . . . . . . .81Oil Pressure Light. . . . . . . . . . . . .55OutletPower. . . . . . . . . . . . . . . . .53Overheating, Engine. . . . . . . . . . . .62
Paint Care. . . . . . . . . . . . . . . . .81Placard, Tire and Loading Information . .89PowerDoor Locks. . . . . . . . . . . . . .10Outlet (Auxiliary Electrical Outlet) . .53Steering. . . . . . . . . . . . . . . .61
Programmable Electronic Features . . .51
Radio (Sound Systems). . . . . . . . . .40
Rear Seat, Folding. . . . . . . . . . . . .22
Reclining Front Seats. . . . . . . . . . .20
Recreational Towing.. . . . . . . . . . .54
Refrigerant . . .. . . . . . . . . . . . . .81
Remote Keyless Entry (RKE)
Disarm The Alarm . .. . . . . . . . .10
Power Convertible Top Function . . .8Replacement Bulbs. . . . . . . . . . . .92Reporting Safety Defects . . . . .. . . .94
Schedule, Maintenance. . . . . . . . . .82Seat BeltEngage The Automatic LockingMode . . . . . . . . .. . . . . . . .16Seat Belt Maintenance . . .. . . . . . .81Seat Belts. . . . . . . . . . . . . . . . .10Reminder. . . . . . . . . . . . . . .57Seat Belt Warning . .. . . . . . . .11SeatsAdjustment . . . . . . .. . . . . . .20Rear Folding. . . . . . . . . . . . . .22Security Alarm. . . . . . . . . . . . . . .60Disarm The System .. . . . . . . . .10Security Alarm. . . . . . . . . . . . .10Signals, Turn..............25, 60Sound Systems (Radio). . . . . . . . . .40Spare Tire...............90, 91Spark Plugs . . . .. . . . . . . . . . . .80Speed ControlAccel/Decel. . . . . . . . . . . . . .27Cancel . .. . . . . . . . . . . . . . .28Resume. . . . . . . . . . . . . . . .28Set . . . . . . . . . . . . . . . . . . .27Speed Control (Cruise Control). . . . . .27StartingCold Weather. . . . . . . . . . . . .37SteeringTilt Column .. . . . . . . . . . . . .23Steering Wheel Audio Controls .. . . . .42Store Radio Presets . .. . . . . . . . . .41Stuck, Freeing .. . . . . . . . . . . . . .75Supplemental Restraint System -Airbag. . . . . . . . . . . . . . . . . .11
Tilt Steering Column. . . . . . . . . . . .23
INDEX
99
