FIAT 500 GUCCI 2012 2.G Owner's Manual

SEAT BELT
•Be sure everyone in your vehicle is in a seat and using a seat belt properly.
• Position the lap belt across your thighs, below your abdomen.To remove slack in the lap portion,
pull up a bit on the shoulder belt.To loosen the lap belt if it is too tight, tilt the latch plate and
pull on the lap belt.A snug belt reduces the risk of sliding under the belt in a collision.
• Position the shoulder belt on your chest so that it is comfortable and not resting on your neck.
The retractor will withdraw any slack in the belt.
• A shoulder belt placed behind you will not protect you from injury during a collision.You are
more likely to hit your head in a collision if you do not wear your shoulder belt.The lap and
shoulder belt are meant to be used together.
• A belt that is too loose will not protect you properly. In a sudden stop you could move too far
forward, increasing the possibility of injury.Wear your seat belt snugly.
• A frayed or torn belt could rip apart in a collision and leave you with no protection. Inspect the
belt system periodically, checking for cuts, frays, or loose parts. Damaged parts must be replaced
immediately. Do not disassemble or modify the system. Seat belt assemblies must be replaced
after a collision if they have been damaged (bent retractor, torn webbing, etc.).
• The seat belts for both front seating positions are equipped with pretensioning devices that are
designed to remove slack from the seat belt in the event of a collision.
• A deployed pretensioner or a deployed air bag must be replaced immediately.
WARNING!
In a collision, you and your passengers can suffer much greater injuries if you are not
buckled up properly.You can strike the interior of your vehicle or other passengers, or
you can be thrown out of the vehicle.Always be sure you and others in your vehicle
are buckled up properly.
SUPPLEMENTAL RESTRAINT SYSTEM (SRS) — AIR BAGS
•This vehicle has Advanced Front Air Bags for both the driver and right front passenger as a
supplement to the seat belt restraint system.The Advanced Front Air Bags will not deploy in
every type of collision.
• Advanced Front Air Bags are designed to provide additional protection by supplementing the
seat belts in certain frontal collisions depending on the severity and type of collision.Advanced
Front Air Bags are not expected to reduce the risk of injury in rear, side, or rollover collisions.
• This vehicle is equipped with Supplemental Side Air Bag Inflatable Curtains to protect the driver,
front and rear passengers sitting next to a window.
• This vehicle is equipped with Supplemental Seat-Mounted Side Air Bags to provide enhanced
protection to help protect an occupant during a side impact.
• This vehicle is equipped with Supplemental Driver Side Knee Air Bag to provide enhanced
protection and work together with the Driver Advanced Front Air Bag during a frontal impact.
• If the Air Bag Warning Light
is not on during starting, stays on, or turns on while driving,
have the vehicle serviced by an authorized service center immediately.
GETTING STARTED
9

•Refer to the Owner's Manual on the DVD for further details regarding the Supplemental
Restraint System (SRS).
WARNING!
•Relying on the air bags alone could lead to more severe injuries in a collision.The air
bags work with your seat belt to restrain you properly. In some collisions, the air bags
won't deploy at all.Always wear your seat belts even though you have air bags.
• Being too close to the steering wheel or instrument panel during Advanced Front
Air Bag deployment could cause serious injury, including death.Air bags need room
to inflate. Sit back, comfortably extending your arms to reach the steering wheel or
instrument panel.
• Supplemental Side Air Bag Inflatable Curtains and Supplemental Seat-Mounted Side
Air Bags need room to inflate. Do not lean against the door or window. Sit upright in
the center of the seat.
• Being too close to the Supplemental Side Air Bag Inflatable Curtain and/or
Seat-Mounted Side Air Bag during deployment could cause you to be severely
injured or killed.
• Do not drive your vehicle after the air bags have deployed. If you are involved in
another collision, the air bags will not be in place to protect you.
• After any collision, the vehicle should be taken to an authorized dealer immediately.
CHILD RESTRAINTS
•Children 12 years and under should ride properly buckled up in a rear seat, if available.
According to crash statistics, children are safer when properly restrained in the rear seats rather
than in the front.
• Every state in the United States and all Canadian provinces require that small children ride in
proper restraint systems.This is the law, and you can be prosecuted for ignoring it.
Installing The LATCH - Compatible Child Restraint System
•Your vehicle's second row passenger seats are equipped with the child restraint anchorage
system called LATCH, which stands for Lower Anchors and Tether for CHildren. LATCH child
restraint anchorage systems are installed in both rear seating positions.
• NEVER install compatible child seats so that two seats share a common lower anchorage.
GETTING STARTED
10

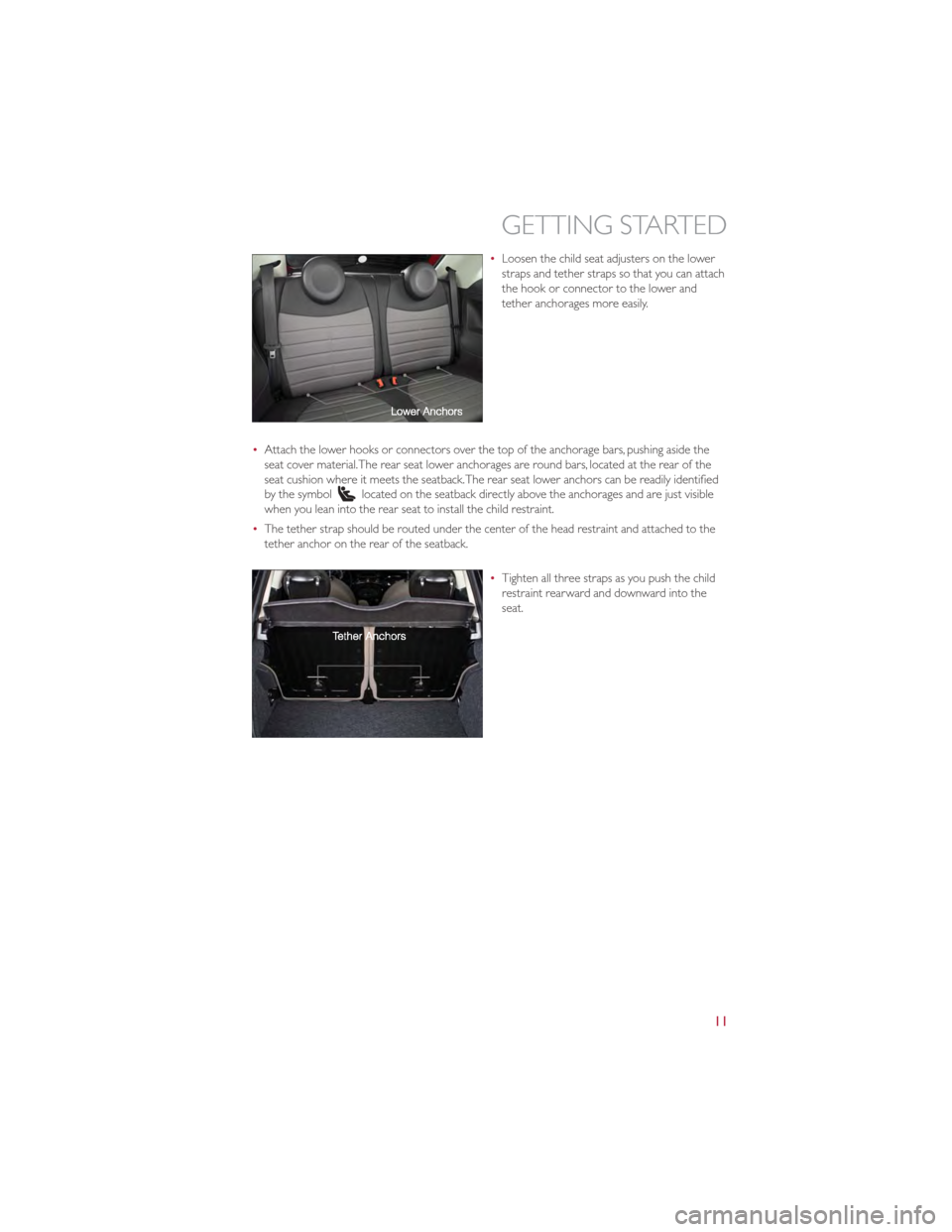

•Loosen the child seat adjusters on the lower
straps and tether straps so that you can attach
the hook or connector to the lower and
tether anchorages more easily.
• Attach the lower hooks or connectors over the top of the anchorage bars, pushing aside the
seat cover material.The rear seat lower anchorages are round bars, located at the rear of the
seat cushion where it meets the seatback.The rear seat lower anchors can be readily identified
by the symbol
located on the seatback directly above the anchorages and are just visible
when you lean into the rear seat to install the child restraint.
• The tether strap should be routed under the center of the head restraint and attached to the
tether anchor on the rear of the seatback.
•Tighten all three straps as you push the child
restraint rearward and downward into the
seat.
GETTING STARTED
11

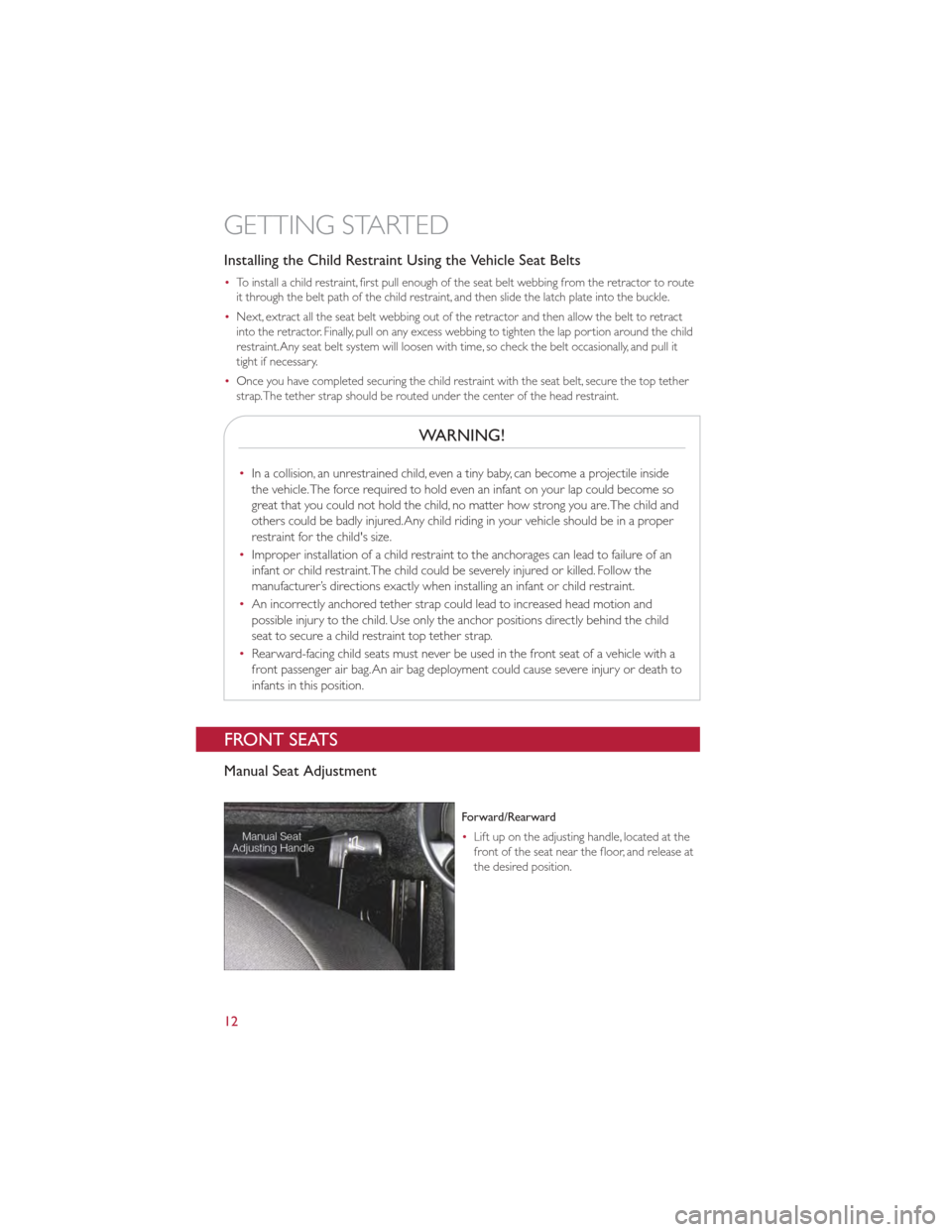

Installing the Child Restraint Using the Vehicle Seat Belts
•To install a child restraint, first pull enough of the seat belt webbing from the retractor to route
it through the belt path of the child restraint, and then slide the latch plate into the buckle.
• Next, extract all the seat belt webbing out of the retractor and then allow the belt to retract
into the retractor. Finally, pull on any excess webbing to tighten the lap portion around the child
restraint.Any seat belt system will loosen with time, so check the belt occasionally, and pull it
tight if necessary.
• Once you have completed securing the child restraint with the seat belt, secure the top tether
strap.The tether strap should be routed under the center of the head restraint.
WARNING!
•In a collision, an unrestrained child, even a tiny baby, can become a projectile inside
the vehicle.The force required to hold even an infant on your lap could become so
great that you could not hold the child, no matter how strong you are.The child and
others could be badly injured.Any child riding in your vehicle should be in a proper
restraint for the child's size.
• Improper installation of a child restraint to the anchorages can lead to failure of an
infant or child restraint.The child could be severely injured or killed. Follow the
manufacturer’s directions exactly when installing an infant or child restraint.
• An incorrectly anchored tether strap could lead to increased head motion and
possible injury to the child. Use only the anchor positions directly behind the child
seat to secure a child restraint top tether strap.
• Rearward-facing child seats must never be used in the front seat of a vehicle with a
front passenger air bag.An air bag deployment could cause severe injury or death to
infants in this position.
FRONT SEATS
Manual Seat Adjustment
Forward/Rearward
•Lift up on the adjusting handle, located at the
front of the seat near the floor, and release at
the desired position.
GETTING STARTED
12

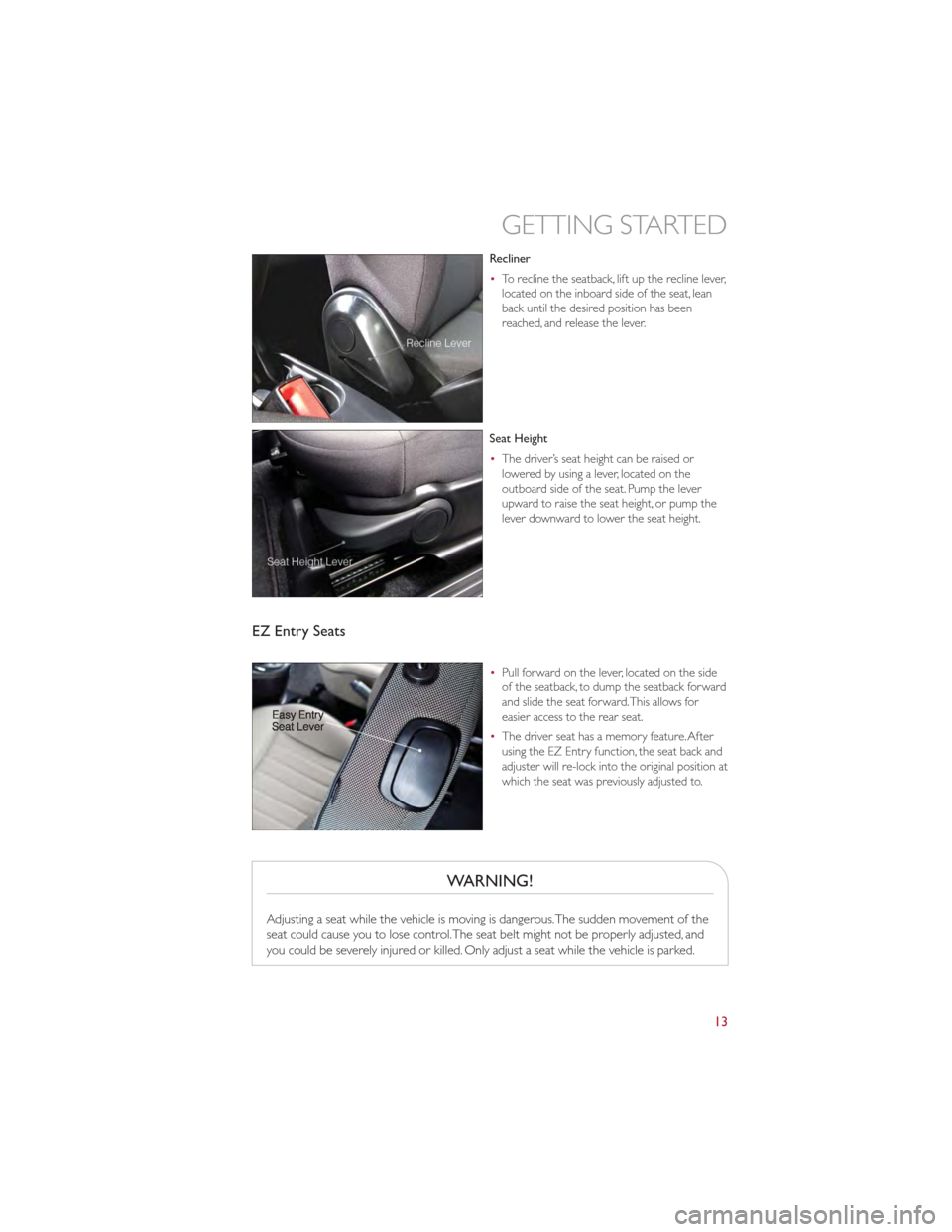

Recliner
•To recline the seatback, lift up the recline lever,
located on the inboard side of the seat, lean
back until the desired position has been
reached, and release the lever.
Seat Height
• The driver’s seat height can be raised or
lowered by using a lever, located on the
outboard side of the seat. Pump the lever
upward to raise the seat height, or pump the
lever downward to lower the seat height.
EZ Entry Seats
•Pull forward on the lever, located on the side
of the seatback, to dump the seatback forward
and slide the seat forward.This allows for
easier access to the rear seat.
• The driver seat has a memory feature.After
using the EZ Entry function, the seat back and
adjuster will re-lock into the original position at
which the seat was previously adjusted to.
WARNING!
Adjusting a seat while the vehicle is moving is dangerous.The sudden movement of the
seat could cause you to lose control.The seat belt might not be properly adjusted, and
you could be severely injured or killed. Only adjust a seat while the vehicle is parked.
GETTING STARTED
13

REAR SEATS
Folding Rear Seatback
•To fold each rear seatback, push down on the
button located on the upper outboard side of
the seat and fold the seatback flat.
NOTE: Be sure that the front seats are fully
upright and positioned forward.This will allow
the rear seatback to fold down easily.
TILT STEERING COLUMN
• The tilt lever is located on the steering
column, below the turn signal lever.
• Push down on the lever to unlock the steering
column.
• With one hand firmly on the steering wheel,
move the steering column up or down as
desired.
• Pull upward on the lever to lock the column
firmly in place.
WARNING!
Do not adjust the steering column while driving.Adjusting the steering column while
driving or driving with the steering column unlocked could cause the driver to lose
control of the vehicle. Be sure the steering column is locked before driving your vehicle.
Failure to follow this warning may result in severe injury or death.
GETTING STARTED
14

HEATED SEATS
Front Heated Seats
•The controls for the front heated seats are
located on the center instrument panel area.
• Press the switch once to turn on the heated
seat. Press the switch a second time to turn off
theheatedseat.
WARNING!
•Persons who are unable to feel pain to the skin because of advanced age, chronic
illness, diabetes, spinal cord injury, medication, alcohol use, exhaustion or other
physical conditions must exercise care when using the seat heater. It may cause burns
even at low temperatures, especially if used for long periods of time.
• Do not place anything on the seat that insulates against heat, such as a blanket or
cushion.This may cause the seat heater to overheat. Sitting in a seat that has been
overheated could cause serious burns due to the increased surface temperature of
the seat.
GETTING STARTED
15

TURN SIGNAL/LIGHTS/HIGH BEAM LEVER
Turn Signal/Lane Change Assist
•Tap the lever up or down once and the turn signal (right or left) will flash briefly to indicate a
lane change and automatically turn off.
Headlights/Parking Lights
•The ignition switch must be in the ON/RUN position for the headlights to operate.
• Rotate the end of the lever to the first detent for parking lights and headlight operation.
High Beams
•Push the lever forward to activate the high beams.
• A high beam symbol will illuminate in the cluster to indicate the high beams are on.
NOTE: For safe driving, turn off the high beams when oncoming traffic is present to prevent
headlight glare and as a courtesy to other motorists.
Flash To Pass
• Pull the lever toward you to activate the high beams.The high beams will remain on until the
lever is released.
Headlight Delay (Follow Me Home)
•Within two minutes from when the engine is turned off and the ignition key is in the
OFF/LOCK position or removed, pull the turn signal lever toward the steering wheel.
• Each movement of the lever toward the steering wheel will increase the illumination period by
30 seconds, up to a maximum of 210 seconds.
OPERATING YOUR VEHICLE
16

Fog Lights
•Push the fog light button, located on the
climate controls, once to turn on the fog lights.
• Push the button a second time to turn the fog
lights off.
WIPER/WASHER LEVER
Front Wipers
Intermittent, Low and High Operation
•Move the lever downward to the first detent for intermittent wiper operation, the second
detent for low wiper operation and to the third detent for high wiper operation.
Mist
• Move the lever upward and release when a single wipe is desired.
NOTE: The mist feature does not activate the washer pump; therefore, no washer fluid will be
sprayed on the windshield.The wash function must be activated in order to spray the windshield
with washer fluid.
OPERATING YOUR VEHICLE
17

Washer Operation
•Pull the lever toward you and hold for as long as spray is desired.
Rear Wiper
Rear Wiper Operation
•Rotate the end of the lever to activate the rear wiper.
Rear Washer Operation
• Push the lever forward and hold for as long as spray is desired.
SPEED CONTROL
•The speed control switches are located on the
steering wheel.
Cruise ON/OFF
•Push the ON/OFF button to activate the
Speed Control.
• CRUISE READY
will appear on the
instrument cluster to indicate the Speed
Control is on.
• Push the ON/OFF button a second time to
turn the system off.
Set
•With the Speed Control on, push and release the SET – button to set a desired speed.
Accel/Decel
•Once a speed is set, pushing the RES + button once or the SET – button once will increase or
decrease the set speed approximately 1 mph (2 km/h).
• Push and hold the RES + button to accelerate in 5mph (8 km/h) increments or push and hold
the SET – button to decelerate in 5mph (8 km/h) increments; release the button to save the
new set speed.
Resume
•To resume a previously selected set speed in memory, push the RES + button and release.
Cancel
•Push the CANCEL button, or apply the brakes to cancel the set speed and maintain the set
speed memory.
• Push the ON/OFF button to turn the system off and erase the set speed memory.
OPERATING YOUR VEHICLE
18
