FIAT 500 GUCCI 2012 2.G Owner's Manual
Manufacturer: FIAT, Model Year: 2012, Model line: 500 GUCCI, Model: FIAT 500 GUCCI 2012 2.GPages: 80, PDF Size: 1.87 MB
Page 21 of 80

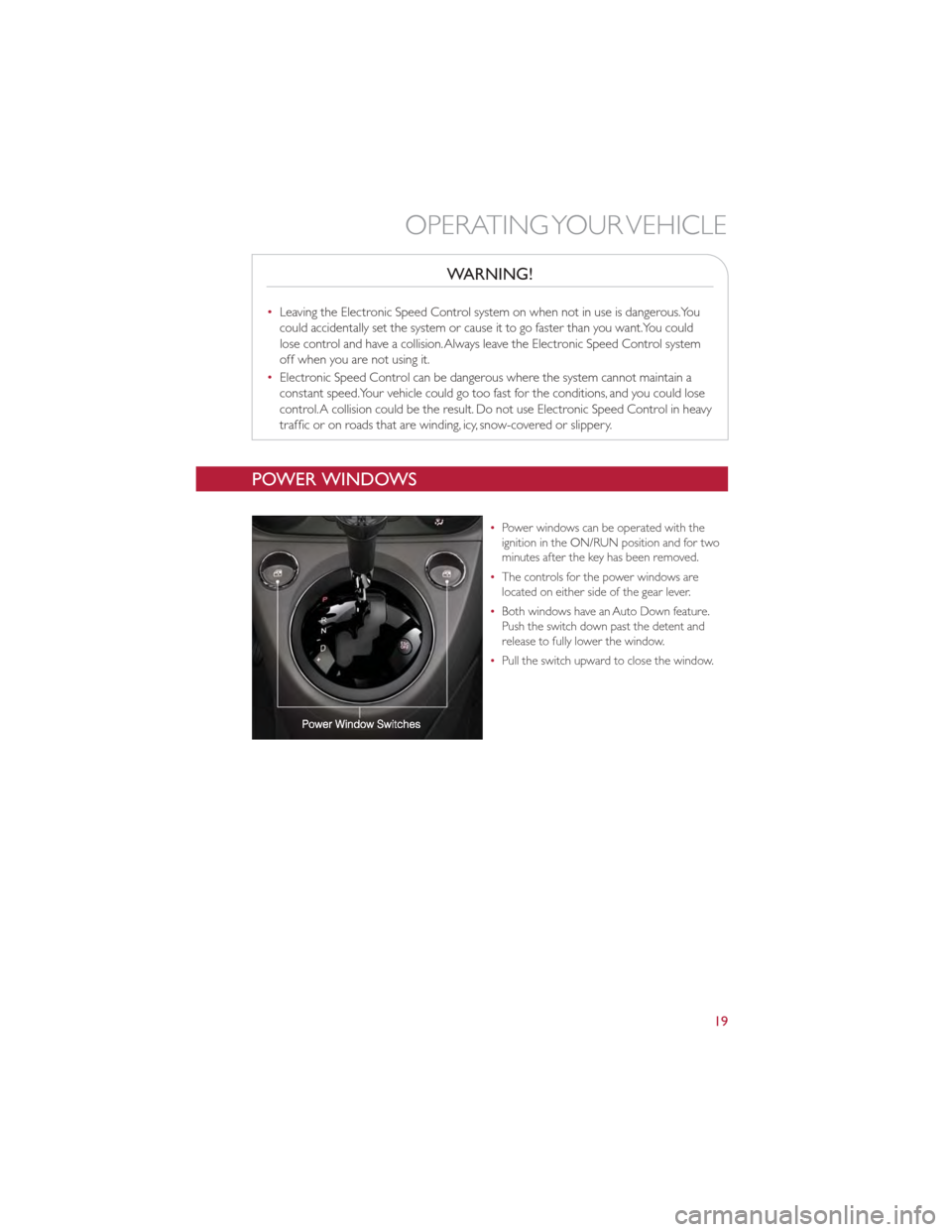

WARNING!
•Leaving the Electronic Speed Control system on when not in use is dangerous.You
could accidentally set the system or cause it to go faster than you want.You could
lose control and have a collision.Always leave the Electronic Speed Control system
off when you are not using it.
• Electronic Speed Control can be dangerous where the system cannot maintain a
constant speed.Your vehicle could go too fast for the conditions, and you could lose
control.A collision could be the result. Do not use Electronic Speed Control in heavy
traffic or on roads that are winding, icy, snow-covered or slippery.
POWER WINDOWS
•Power windows can be operated with the
ignition in the ON/RUN position and for two
minutes after the key has been removed.
• The controls for the power windows are
located on either side of the gear lever.
• Both windows have an Auto Down feature.
Push the switch down past the detent and
release to fully lower the window.
• Pull the switch upward to close the window.
OPERATING YOUR VEHICLE
19
Page 22 of 80
MANUAL CLIMATE CONTROLS
Air Recirculation
•Use recirculation for maximum A/C operation.
• For window defogging, turn the recirculation off.
• Recirculation is not allowed in defrost, floor, defrost/floor (mix) modes.
•
– Air intake from outside
•
– Internal air recirculation
Heated Mirrors
• The mirrors are heated to melt frost or ice.This feature is activated whenever you turn on the
rear window defroster.
OPERATING YOUR VEHICLE
20
Page 23 of 80
AUTOMATIC TEMPERATURE CONTROLS (ATC)
Automatic Operation
•Push the AUTO button.
• Select the desired temperature by pushing the temperature control buttons.
• The system will maintain the set temperature automatically.
Air Recirculation
•Use recirculation for maximum A/C operation.
• For window defogging, turn the air recirculation button off.
Heated Mirrors
•The mirrors are heated to melt frost or ice.This feature is activated whenever you turn on the
rear window defroster.
REAR PARK ASSIST
•If an object is detected behind the rear bumper while the vehicle is in REVERSE, a chime will
sound.The chime rate will change depending on the distance of the object, getting faster as the
object gets closer to the bumper.The chime will become continuous when the distance
between the vehicle and the obstacle is less than 12 inches (30 cm).
• When the Instrument Cluster reads either “Clean Sensor” or “Blinded”, clean off the bumper
sensors to see if the condition is corrected.
OPERATING YOUR VEHICLE
21
Page 24 of 80
SPORT MODE
•The Sport mode increases steering feedback to the driver with slight increases in effort and
throttle pedal-to-engine response. Changes to the transmission shift schedules for more
aggressive shifting will occur on automatic transmission versions.
• Sport driving mode is useful while driving on winding roads where more steering precision is
desired.
•Press the SPORT button, located above the
climate controls, to activate the Sport mode.
Manual Transmission
• Once activated, a SPORT message will be
displayed in the instrument cluster.
• Momentarily release the accelerator pedal.
• Press the accelerator pedal again to activate.
Automatic Transmission
• Once activated, a SPORT message will be
displayed in the instrument cluster.
• Press the SPORT button again to return to the
standard driving mode.
MANUAL TRANSMISSION
•Never shift into REVERSE until the vehicle has come to a complete stop.
POWER SUNROOF
•The power sunroof roof switch is located in the overhead console.
To Open
•Press and hold the power sunroof switch rearward for approximately two seconds and the
sunroof will stop at the vented position. Press the switch a second time and hold for
approximately one second and release, the sunroof will open fully, then stop automatically.This is
called “Express Open”. During Express Open operation, any movement of the sunroof switch
will stop the sunroof.
To Close
•With the sunroof in the full open position, pull the power sunroof button and hold it for
approximately one second, the sunroof will return to the vented position. Pull the switch a
second time and hold for approximately two seconds to completely close the sunroof.
Pinch Protect Override
•If a known obstruction (ice, debris, etc.) prevents the sunroof from closing, press the switch
forward and hold for two seconds after the reversal occurs.This allows the sunroof to move
toward the closed position.
NOTE: Pinch protection is disabled while the switch is pressed.
OPERATING YOUR VEHICLE
22
Page 25 of 80

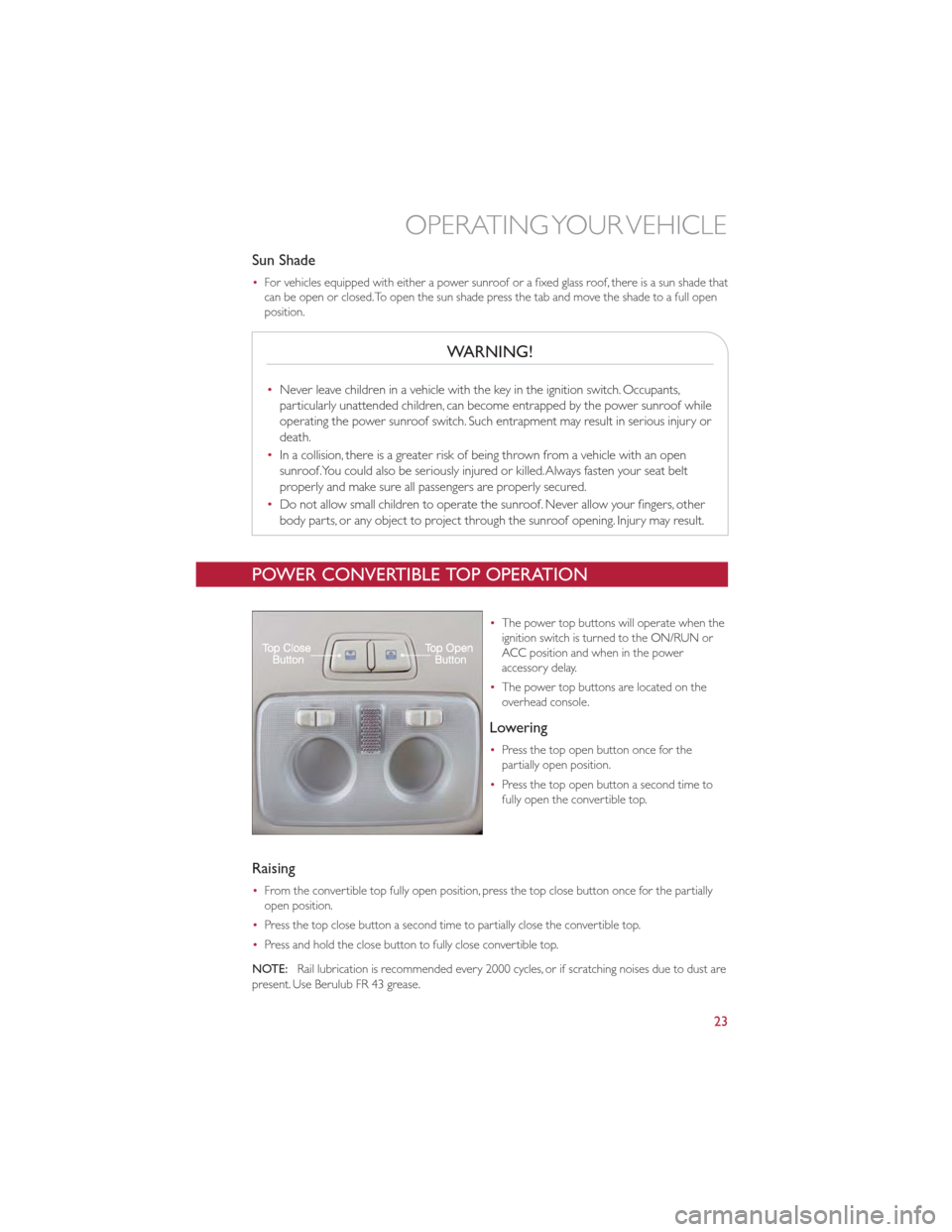

Sun Shade
•For vehicles equipped with either a power sunroof or a fixed glass roof, there is a sun shade that
can be open or closed.To open the sun shade press the tab and move the shade to a full open
position.
WARNING!
•Never leave children in a vehicle with the key in the ignition switch. Occupants,
particularly unattended children, can become entrapped by the power sunroof while
operating the power sunroof switch. Such entrapment may result in serious injury or
death.
• In a collision, there is a greater risk of being thrown from a vehicle with an open
sunroof.You could also be seriously injured or killed.Always fasten your seat belt
properly and make sure all passengers are properly secured.
• Do not allow small children to operate the sunroof. Never allow your fingers, other
body parts, or any object to project through the sunroof opening. Injury may result.
POWER CONVERTIBLE TOP OPERATION
•The power top buttons will operate when the
ignition switch is turned to the ON/RUN or
ACC position and when in the power
accessory delay.
• The power top buttons are located on the
overhead console.
Lowering
•Press the top open button once for the
partially open position.
• Press the top open button a second time to
fully open the convertible top.
Raising
•From the convertible top fully open position, press the top close button once for the partially
open position.
• Press the top close button a second time to partially close the convertible top.
• Press and hold the close button to fully close convertible top.
NOTE: Rail lubrication is recommended every 2000 cycles, or if scratching noises due to dust are
present. Use Berulub FR 43 grease.
OPERATING YOUR VEHICLE
23
Page 26 of 80

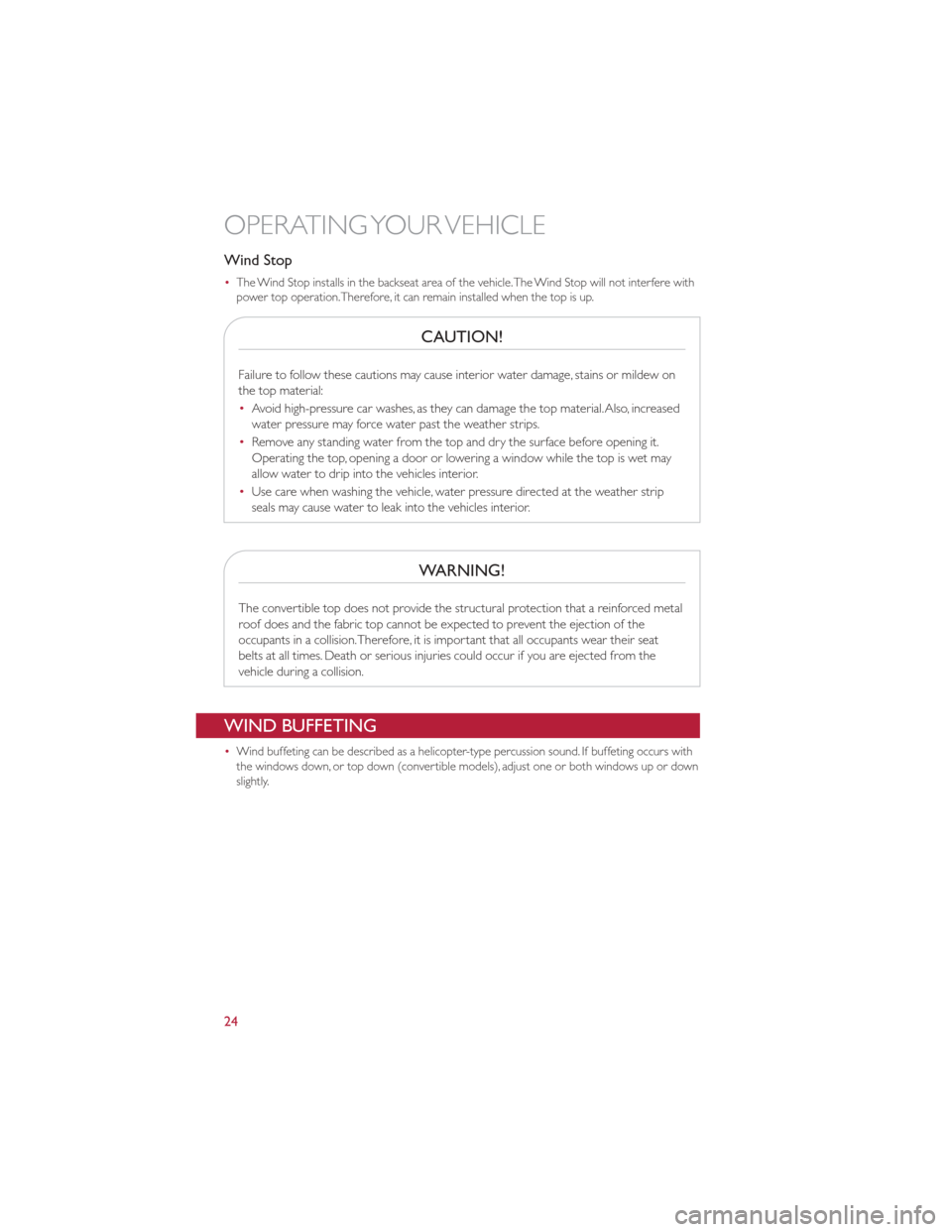

Wind Stop
•The Wind Stop installs in the backseat area of the vehicle.The Wind Stop will not interfere with
power top operation.Therefore, it can remain installed when the top is up.
CAUTION!
Failure to follow these cautions may cause interior water damage, stains or mildew on
the top material:
•Avoid high-pressure car washes, as they can damage the top material.Also, increased
water pressure may force water past the weather strips.
• Remove any standing water from the top and dry the surface before opening it.
Operating the top, opening a door or lowering a window while the top is wet may
allow water to drip into the vehicles interior.
• Use care when washing the vehicle, water pressure directed at the weather strip
seals may cause water to leak into the vehicles interior.
WARNING!
The convertible top does not provide the structural protection that a reinforced metal
roof does and the fabric top cannot be expected to prevent the ejection of the
occupants in a collision.Therefore, it is important that all occupants wear their seat
belts at all times. Death or serious injuries could occur if you are ejected from the
vehicle during a collision.
WIND BUFFETING
•Wind buffeting can be described as a helicopter-type percussion sound. If buffeting occurs with
the windows down, or top down (convertible models), adjust one or both windows up or down
slightly.
OPERATING YOUR VEHICLE
24
Page 27 of 80
COLD WEATHER OPERATION (Engine Block Heater)
Engine Block Heater
•To prevent possible engine damage while starting at low temperatures, this vehicle will inhibit
engine cranking when the ambient temperature is less than –22° F (–30° C) and the oil
temperature sensor reading indicates an engine block heater has not been used.An
externally-powered electric engine block heater is available as optional equipment or from your
authorized dealer.
• The message "plug in engine heater" will be displayed in the instrument cluster when the
ambient temperature is below 5° F (–15° C) at the time the engine is shut off as a reminder to
avoid possible crank delays at the next cold start.
If Engine Fails To Start
CAUTION!
•Use of the recommended SAE 5W-30 oil and adhering to the prescribed oil change
intervals is important to prevent engine damage and ensure satisfactory starting in
cold conditions.
• Do not attempt to push or tow your vehicle to get it started.Vehicles equipped with
an automatic transmission cannot be started this way. Unburned fuel could enter the
catalytic converter and once the engine has started, ignite and damage the converter
and vehicle.
• To prevent damage to the starter, do not continuously crank the engine for more
than 15 seconds at a time.Wait 10 to 15 seconds before trying again.
WARNING!
Never pour fuel or other flammable liquids into the throttle body air inlet opening in
an attempt to start the vehicle.This could result in a flash fire causing serious personal
injury.
OPERATING YOUR VEHICLE
25
Page 28 of 80

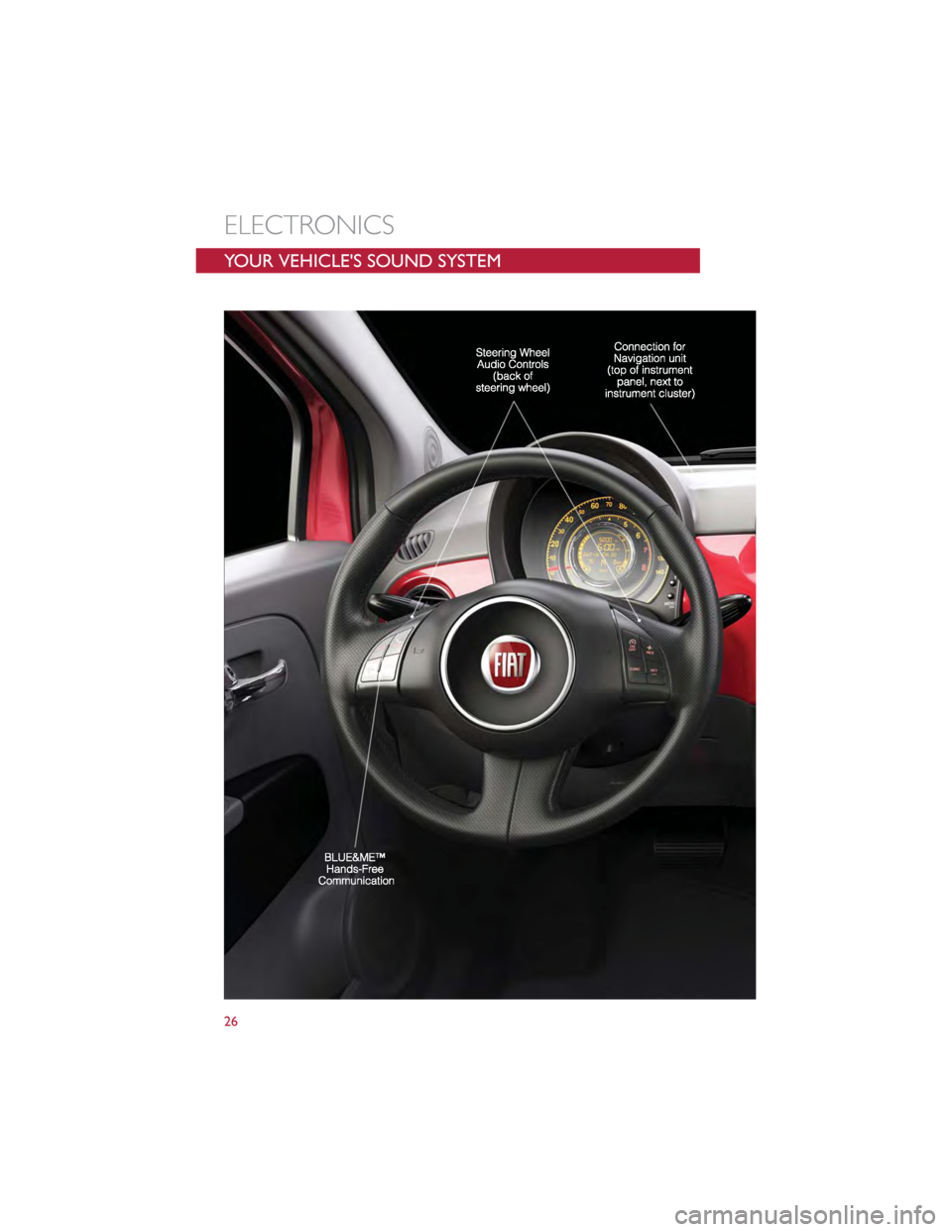

YOUR VEHICLE'S SOUND SYSTEM
ELECTRONICS
26
Page 29 of 80

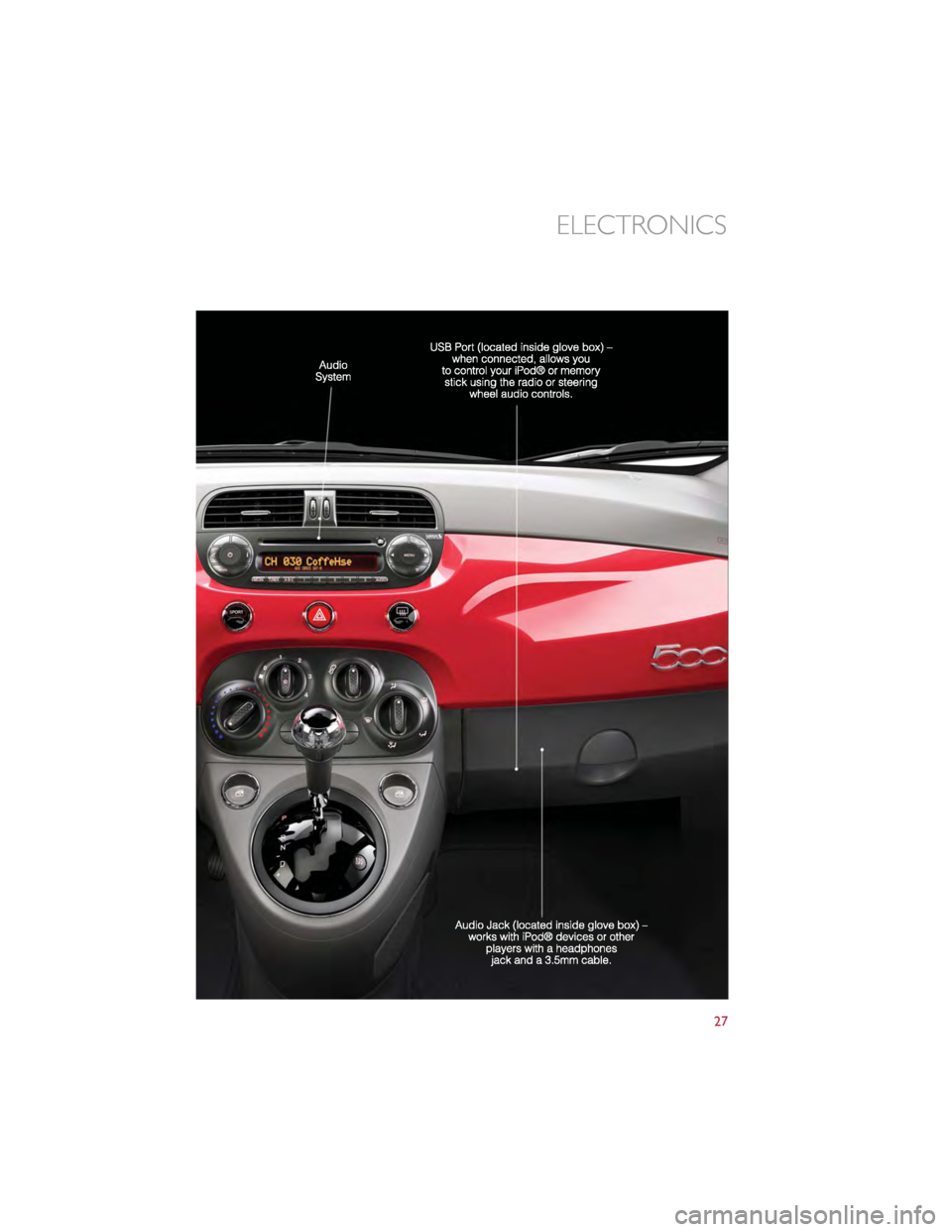

ELECTRONICS
27
Page 30 of 80
AM/FM RADIO WITH CD PLAYER AND SIRIUS XM™
SATELLITE RADIO
Seek Up/Down Buttons
•Press the right or left arrows to seek through radio stations in AM or FM bands. Seek through
tracks in CD.
• Hold either button to bypass stations without stopping.
Tune Up/Down Buttons
•Press the up or down arrows to manually search through radio stations in AM or FM bands. Fast
Forward or Fast Rewind through a CD track.
Audio Settings
•Press the AUDIO button, then press the up and down arrows to select BASS,TREBLE,
BALANCE and FADE.To adjust a setting, use the right and left arrows.
TUNER
•Press the Tuner button to select between AM, FM, SAT (Sirius XM™ Satellite Radio) modes.
Info
•Press the Info button to view Song,Artist,Album, Genre, Playlist, Folder information (if available)
in CD, Media Player and Sirius XM™ Satellite Radio (if so equipped).Also, the Info button to
toggles RDS information in FM mode.
ELECTRONICS
28
